220-1101 CompTIA A+ Certification Exam: Core 1 Questions and Answers

The digitizer converts touch inputs into digital signals, enabling touch functionality on a monitor. This component is essential for touch screens to process user input and is covered under the CompTIA A+ Core 1 objective on display technologies for mobile devices​.

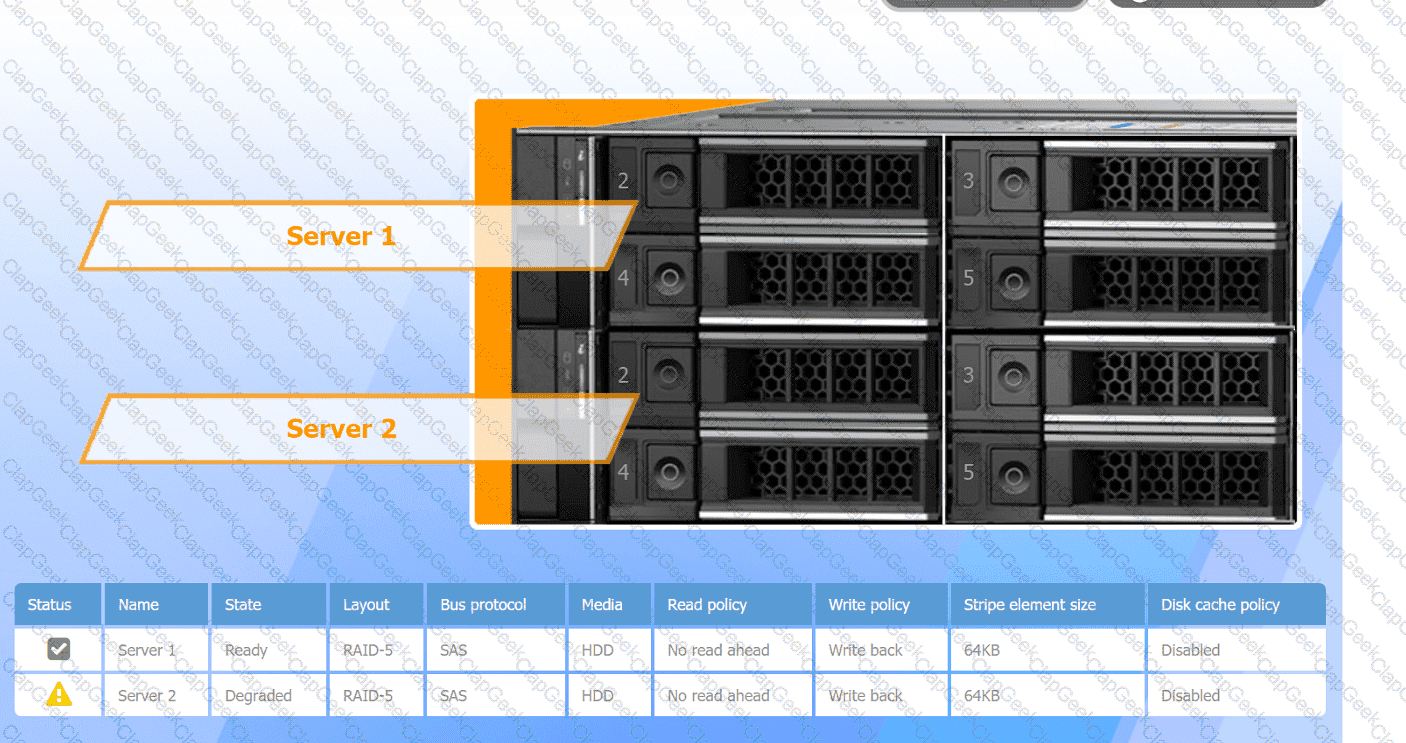

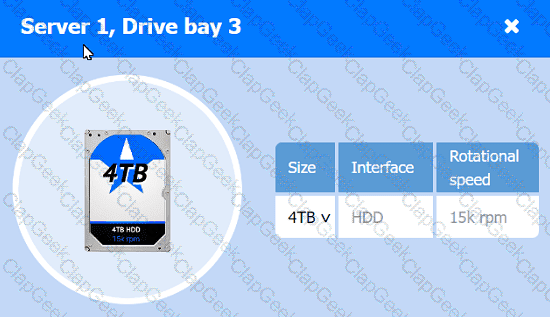

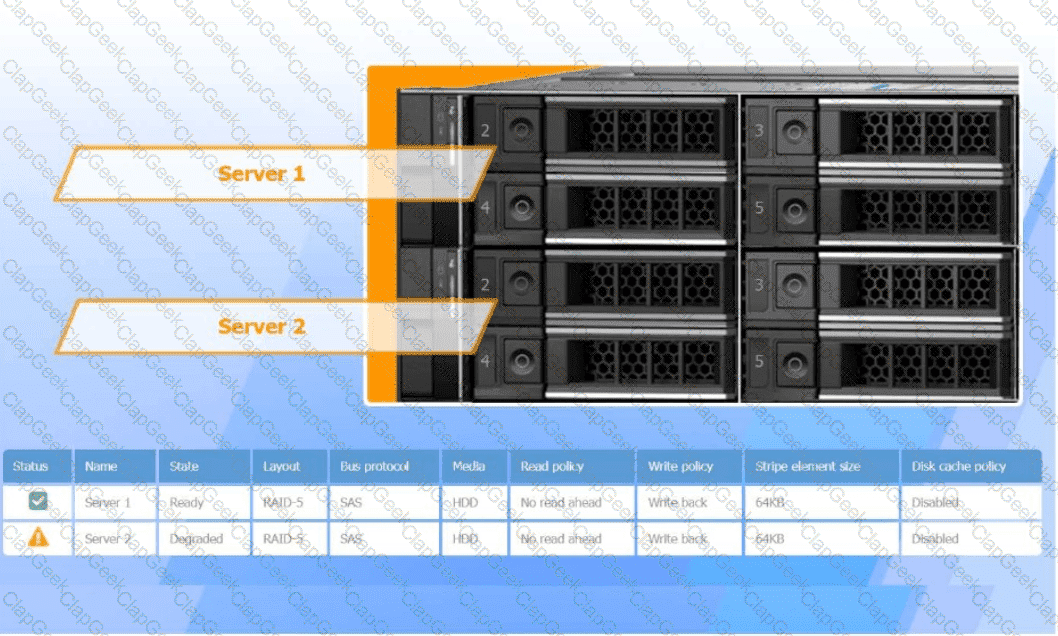

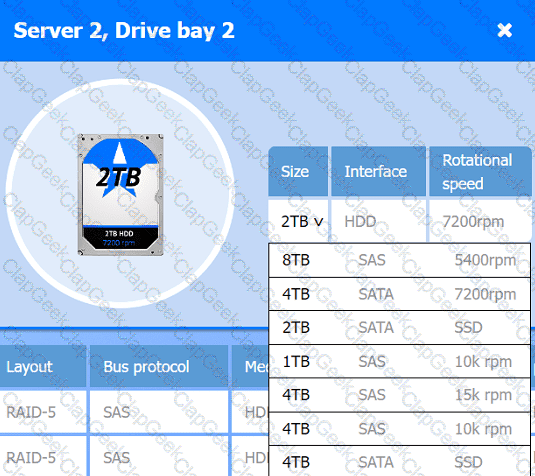

The message stating that one or more disks are in a degraded state is a clear indication of a RAID failure. RAID stands for Redundant Array of Independent Disks, and it is a technology used to provide fault tolerance and improve performance by combining multiple hard drives into a single logical unit.

The message indicating that the OS is missing is most likely caused by a bootable device not found. This means that the server is unable to boot from the designated boot device, which could be the hard drive, a CD/DVD drive, or a USB flash drive. This could be caused by a faulty boot device, a loose cable, or a misconfiguration in the BIOS or UEFI settings.

The most likely reason for a computer showing an APIPA address after being plugged into a network port is that the PC is unable to contact a DHCP server1. Automatic Private IP Addressing (APIPA) is a DHCP fail-safe that protects a computer system from failure. It invokes a standby mechanism for local Internet Protocol version 4 (IPv4) networks supported by Microsoft Windows. With APIPA, DHCP clients can obtain IP addresses even when DHCP servers are not functional1. The other options are less likely to be the cause of the issue1.

The most likely cause of the issue is that the page orientation is incorrect. The printer may be set to print labels in a different orientation than the orientation of the label sheet1.

After the issue has been identified and the backup of the system has been made, the next step is to establish a theory of probable cause. This involves researching the issue to determine the root cause of the problem. This can involve researching internally (e.g. referring to the system logs) or externally (e.g. searching online). Once the probable cause has been identified, the technician can then move on to the next step of designing a plan of action to resolve the issue and implementing the solution.

The main reason to use a virtual machine as a sandbox is to test new software in a safe environment without risking the integrity of the host operating system. Using a virtual machine enables the testing of software and allows for the isolation of the software from the host system. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 409

Device interference is the most likely cause of the wireless connection dropping or becoming slow. Interference can come from other wireless devices, microwave ovens, or physical barriers like walls and metal objects. Hidden SSID, Ethernet port flapping, and high ISP latency are not likely to cause this issue.

Wireless interference from other devices can cause a drop in wireless connection speed and stability. In a small office environment, there may be several wireless devices competing for the same bandwidth, causing the issues described. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.7 Given a scenario, troubleshoot wired and wireless networks with appropriate tools

A network tap is used to intercept the signals passing over a cable and send them to a packet or protocol analyzer. Taps are either powered or unpowered:

If users are experiencing decreased bandwidth and connectivity issues in a Wi-Fi mesh network, the technician should use a Wi-Fi analyzer to determine whether the channel in use is overcrowded and to identify which channel the mesh network should use for best performance. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 308

The 802.11n wireless networking standard supports Multiple Input Multiple Output (MIMO) technology. MIMO technology uses multiple antennas on both the transmitting and receiving devices to improve wireless performance by increasing the amount of data that can be transmitted simultaneously. 802.11a, 802.11b, and 802.11g do not support MIMO technology. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.3

Two-factor authentication (2FA) is a security process that requires users to provide two different authentication factors to verify their identity. This means that in addition to providing something they know (such as a password or PIN), they must also provide something they have (such as a smart card or token) or something they are (such as a fingerprint or retinal scan).

In this case, the correct answer would be C. Password/thumbprint. This option meets the requirement for two-factor authentication because it combines two different types of authentication factors: something the user knows (the password) and something the user is (the thumbprint). The other options do not meet the requirement for 2FA because they either use only one type of authentication factor (A and D) or use two instances of the same type of factor (B).

Electromagnetic interference (EMI) is unwanted noise or interference in an electrical path or circuit caused by an outside source. Hence shielded Cat 6 is better

If a technician determines that the root cause of sporadic network connectivity issues is EMI, the most cost-effective cable medium that can be used without sacrificing system performance is shielded Cat 6 cable. Shielded cables protect against electromagnetic interference (EMI) and radio frequency interference (RFI). References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 548)

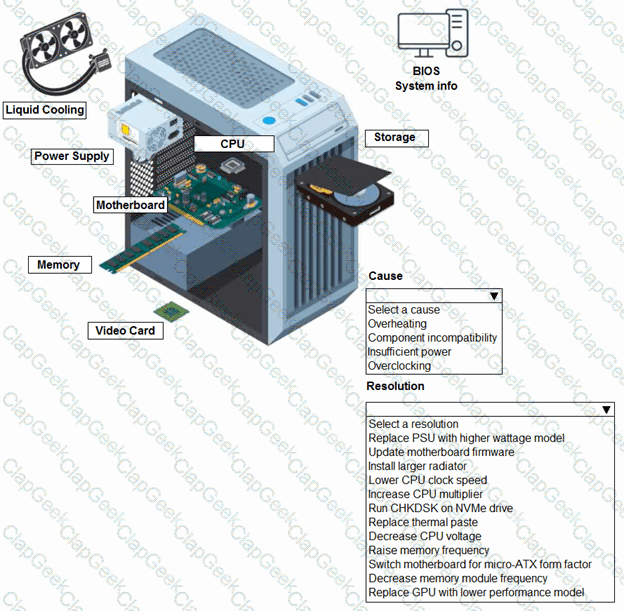

The unexpected reboots on a graphics workstation when rendering complex 3-D models may be caused by insufficient power supply. The workstation is configured with a 115V power supply that is rated at 200W, which may not be enough when the GPU is heavily tasked. The technician should begin troubleshooting by checking the power supply.

The technology that allows multiple networks to traverse a switch is VLAN (Virtual Local Area Network) which is a logical grouping of devices on the same network regardless of their physical location12.

Virtual Local Area Network (VLAN) technology can allow multiple networks to traverse a switch. A VLAN is a logical network created within a physical network that can separate traffic and allow multiple networks to coexist on the same physical network infrastructure. VRRP (Virtual Router Redundancy Protocol), VPN (Virtual Private Network), and DHCP (Dynamic Host Configuration Protocol) do not allow multiple networks to traverse a switch. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.2

Three beeps indicate a "base memory read/write test error". Check out "beep codes" for more information.

https://en.wikipedia.org/wiki/Power-on_self-test#POST_beep_codes_on_CompTIA_A.2B_certification_exam

Reseating the RAM is the best course of action to remediate the issue of three consecutive beeps during boot, as it may indicate a RAM failure or loose connection. By reseating the RAM, the technician can ensure that the connection is secure and the computer should boot normally. References: CompTIA A+ Certification Exam Objectives 1001, 1.9

A redundant power supply is a type of power supply that consists of two or more independent units that can provide power to the same device or system. A redundant power supply can increase the reliability and availability of the device or system, because if one unit fails, the other unit can take over and continue to provide power without interruption. A redundant power supply is often used in servers that require continuous availability, such as web servers, database servers, or file servers.

This is a safe and sensible option if you value your data more than anything else. You don’t want to risk losing your data by trying other methods that may worsen the situation. You can use a software tool or a service provider to recover your data before attempting any repairs.

The component that should be upgraded first is the RAM. When multiple applications are being utilized, the system’s response time slows down drastically. This is because the computer is running out of memory. Upgrading the RAM will allow the computer to store more data in memory, which will improve performance when multiple applications are being used123.

DSL (Digital Subscriber Line) uses POTS (Plain Old Telephone Service) lines to provide high-speed internet access. If the POTS lines are not working, it could cause an internet outage for DSL customers. Fiber and cable internet typically use different types of infrastructure, while satellite internet is not reliant on POTS lines. References: CompTIA A+ Certification Exam: Core 1 - Page 231

RAID 1 is a mirrored configuration that utilizes two drives and provides redundancy by allowing one drive to fail without data loss. This configuration meets the requirement of mirrored storage with two 4TB drives that support one failure. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 8

FTP (File Transfer Protocol) uses TCP ports 20/21 and transfers data in cleartext, which means the data is not encrypted and can be read by anyone who intercepts it. This makes FTP insecure for transferring sensitive information. SSH (Secure Shell), on the other hand, uses port 22 and encrypts data, making it more secure. SNMP (Simple Network Management Protocol) uses ports 161/162 and is used to monitor network devices. Telnet uses port 23 and transfers data in cleartext, making it insecure. References: CompTIA A+ Certification Exam: Core 1 - Page 199

In this situation, the MOST cost-effective cable medium that would not sacrifice system performance would be B. Shielded Cat 6. Electromagnetic interference (EMI) can disrupt network connectivity by interfering with the signals transmitted over network cables. Shielded Cat 6 cables are designed to provide protection against EMI by incorporating a layer of shielding material around the cable’s conductors. This shielding helps to prevent EMI from interfering with the signals transmitted over the cable.

The tool that the technician should use to see all drives is Diskmgmt. Diskmgmt is a Windows utility that allows you to manage disk drives and partitions on your computer. It can be used to view all drives, including USB drives, that are connected to the computer12.

Dropping a smartphone can damage the digitizer, which is the component responsible for sensing touch input. This can cause issues with tapping and swiping on the screen, as well as other touchscreen-related issues. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.3 Given a scenario, troubleshoot mobile device issues

https://www.vingle.net/posts/4651722

Based on the information provided in the scenario, the most likely cause of the issue is that the user’s internet connection is down (option A). This would explain why the user is unable to access any of the organization’s servers or network items and why web pages are not functioning. However, since the user can still access local file folders and other local machines, it suggests that their local network is still functioning.

The user can access local file folders and other local machines but none of the organization's servers or network items, indicating that the issue is with the user's internet connection, not with the user's domain account, switch, or IP address.

When a user receives a notification indicating that there is limited or no connectivity, it means that their device is unable to establish a connection to the network. In this scenario, the user can access local file folders and other local machines but is unable to access any of the organization’s servers or network items and web pages are not functioning. This suggests that the issue is with the user’s internet connection.

An internet connection allows a device to communicate with other devices and servers outside of its local network. If the internet connection is down or not functioning properly, the device will be unable to access any resources outside of its local network. This would explain why the user in this scenario can still access local resources but is unable to access any of the organization’s servers or network items.

Based on the given information, it seems that the projector is experiencing issues with overheating or a faulty power supply. The fact that it shuts off and cannot be turned back on until it has cooled down for 15 minutes suggests that the projector is overheating or there is a problem with the power supply. Therefore, the next logical step would be to clean the filter to ensure proper ventilation and airflow, as a dirty filter can cause overheating.

Based on the information recorded by the technician, the network connection appears to be functioning normally. The user's computer is properly configured with an IPv4 address, subnet mask, and default gateway, which should allow the user to access the internet and online videos. The high download and upload speeds and low ping time recorded from the test laptop also indicate that the network is working well. However, the user's inability to watch online videos suggests that there might be an issue with the network card (NIC) on the user's computer. The NIC might be faulty or malfunctioning, which is preventing the computer from receiving and processing the video data. The technician should try replacing the NIC to resolve the issue.

SMTP (Simple Mail Transfer Protocol) uses port 25 to send email messages between servers12.

SMTP uses port 25 to send email messages between mail servers. Therefore, the system administrator should enable port 25 to allow SMTP traffic through the host-based firewall. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 282

Rapid elasticity is only suitable for a domain whose resource requirements suddenly up and down for a specific time interval. Referring to the question the online retailer wants to migrate to public cloud services during peak season, then wants it to be removed "automatically" when the peak is over.

The most likely action that would resolve the issue is to clean the keyboard. Sometimes dust, hair, and other debris can affect keyboard functionality. The technician can try to clean the keyboard as much as possible, which may be enough to get the keyboard back in working order

Client-side virtualization guest machines require isolation from other guest machines to maintain their security. Isolation ensures that each virtual machine is separated from others and runs its own operating system and applications, making it less vulnerable to attacks from other guest machines. References: CompTIA A+ Certification Exam Objectives 220-1002 - Virtualization and cloud computing - 4.1

Thin, vertical lines on every printed page are usually caused by a dirty drum or toner cartridge. Performing the drum-cleaning procedure will likely resolve the issue. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 18

The clicking sound is the sound of a damaged disk in the HDD

A clicking sound from a hard disk drive typically indicates a mechanical failure, such as the read/write head hitting a physical obstruction or a problem with the disk motor. This can cause the drive to fail to initialize or not be recognized by the system during booting.

The connector that the IT technician should inspect further is Molex. The Molex connector is used to provide power to the motherboard and other components in the computer. If there is a suspected power issue with the motherboard, the IT technician should inspect the Molex connector to ensure that it is properly connected and providing power to the motherboard1

Opening multiple large Excel files simultaneously requires a large amount of RAM. Upgrading the RAM in the workstation should improve performance. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 9

PaaS (Platform as a Service) is a cloud computing model in which a provider offers a platform that allows developers to create, run, and manage applications without the complexity of building and maintaining the infrastructure. An application development environment is a valid use for PaaS. References: CompTIA A+ Certification Exam Objectives 1001, 1.7

The black smudges over the entire image on a printed receipt are most likely caused by a jammed ribbon that is rubbing on the paper. The solution is to clear the bad ribbon and feed it through the printer properly. Ribbon jams can be caused by various issues, such as incorrect installation or a damaged ribbon. References: CompTIA A+ Certification Exam Objectives - 220-1001: 4.5 Given a scenario, troubleshoot common printer problems.

The most likely reason that the technician is unable to select the channel with almost no RF pollution is that it is reserved for licensed band use. Some channels are reserved for specific purposes and require a license to use. These licensed bands are typically used for critical infrastructure, public safety, or military operations, and unlicensed devices are not allowed to use them. References: CompTIA A+ Certification Exam Objectives - 220-1001: 3.3 Compare and contrast common networking hardware devices.

According to Dell Community, the Wi-Fi antenna is located in the top of the LCD display housing. It consists of two elements, fed by two cables, a white main designated on the Wi-Fi card by a white triangle, and a black auxiliary designated on the Wi-Fi card by a black triangle1.

AAA stands for Authentication, Authorization, and Accounting, and it is a framework that provides security services for network access control. Authentication verifies the identity of a user or device that requests access to a network resource. Authorization determines what level of access or privileges are granted to a user or device based on their identity or role. Accounting tracks and records the usage of network resources by users or devices for billing or auditing purposes. RADIUS (Remote Authentication Dial-In User Service) is a protocol that implements AAA functions by communicating with a central server that stores user credentials and policies.

The correct answer is A. DHCP scope.

A DHCP scope is a consecutive range of IP addresses that a DHCP server can select from to fulfill requests from network clients. A DHCP server is a device that automatically assigns IP addresses and other network configuration parameters to devices that request them. A DHCP scope defines the pool of available IP addresses, as well as the subnet mask, default gateway, DNS servers, and lease duration for each IP address. A DHCP scope can also include exclusions, reservations, and policies to customize the IP address allocation process12.

A static IP list is a list of IP addresses that are manually assigned to devices and do not change over time. A static IP list does not require a DHCP server, but it requires more administrative effort and coordination to avoid conflicts or errors. A static IP list is not a consecutive range of IP addresses that a server can select from3.

DNS A records are DNS records that map a domain name to an IPv4 address. DNS is a system that translates human-readable domain names into machine-readable IP addresses. DNS A records are not a range of IP addresses that a server can select from, but a way of resolving domain names to IP addresses.

Automatic private IP addressing (APIPA) is a feature of Windows that allows devices to self-assign an IP address in the absence of a DHCP server or a static IP configuration. APIPA uses the 169.254.0.0/16 address range, which is reserved for link-local communication. APIPA does not create a range of IP addresses that a server can select from, but a fallback mechanism for devices that cannot obtain an IP address from another source.

For more information about DHCP scopes and other related topics, you can refer to the following web search results: DHCP Scope - NETWORK ENCYCLOPEDIA, Managing Microsoft DHCP Scope and other Components - ATA Learning, Dynamic Host Configuration Protocol (DHCP) | Microsoft Learn.

The 2. band is subdivided into up to 14 channels, spaced at 5 MHz intervals from 2412 MHz up to 2484 MHz. Wi-Fi requires bandwidth of approximately 20 MHz, not 5 MHz. Consequently, a site designer needs to choose the channels that do not overlap. On a WLAN where only the first 11 channels are available, channels 1, 6, and 11 can be selected as non-overlapping. Note: In the Americas, regulations permit the use of channels 1-11 only, while in Europe, channels 1-13 are permitted. In Japan, all 14 channels are permitted.

The technician should check the level of network utilization to determine if there is an excessive amount of traffic that may be causing the slow access to the network fileshare. This can be done using network monitoring tools to track the amount of data being transmitted on the network. References: CompTIA A+ Certification Exam Objectives 1001, 2.9

Quad-channel memory architecture allows the CPU to access four memory modules simultaneously, increasing the memory bandwidth and performance. DDR4 RAM is a type of memory that has higher speed and lower power consumption than DDR3. SODIMM is a smaller form factor of memory that is typically used in laptops, not desktops. ECC RAM is a type of memory that can detect and correct errors, but it is more expensive and slower than non-ECC RAM. Triple-channel memory architecture is less common and less efficient than quad-channel. References: https://www.comptia.org/certifications/a#examdetails https://www.comptia.org/blog/what-is-ddr4-ram https://www.comptia.org/blog/what-is-quad-channel-memory

A non-volatile memory express (NVMe) solid state drive (SSD) is the best option for an end user who wants to upgrade the hard drive on a laptop and wants one that is fast and shock resistant.NVMe SSDs use flash memory and PCIe interface to achieve high performance and low latency.SSDs are also more shock resistant than hard disk drives (HDDs) because they have no moving parts.Hybrid HDD/SSD combines both technologies but does not offer the same speed or capacity as pure SSDs.A 5,400rpm HDD or a 7,200rpm HDD are slower and less shock resistant than SSDs

 The USB 2.0 port has insufficient bandwidth to support a high-definition webcam that can update 30 frames per second. USB 2.0 has a maximum theoretical bandwidth of 480 Mbps, which may not be enough for HD video streaming. The user should try using a USB 3.0 port or a Thunderbolt connector, which have higher bandwidths and can support HD webcams. The Thunderbolt connector is compatible with USB devices, so it is not the cause of the issue. The VGA cable and the STP cable are not related to the webcam, as they are used for video output and network connection respectively.

The symptoms suggest that the charging cable falls out of the phone, indicating that the charge port may contain foreign objects such as lint, which can interfere with the connection between the charging cable and the phone.

The screen needs to be recalibrated. The cursor drift is a common symptom of a misaligned touch screen, which can be caused by physical shocks, temperature changes, or software updates. The screen can be recalibrated using the tablet’s settings or a utility program. The screen is not physically damaged, as there is no visible crack or break. The screen rotation is not related to the cursor drift, as it only affects the orientation of the display. The touch-pen battery is not relevant, as the cursor drift occurs even without using the pen.

DHCP stands for Dynamic Host Configuration Protocol, which is a protocol that provides quick, automatic, and central management for the distribution of IP addresses within a network1. A DHCP server can assign IP addresses and other network information to devices that request them, such as computers, smartphones, and routers2.

The IP address 169.254.2.2 is an example of an APIPA (Automatic Private IP Addressing) address, which is a special type of IP address that devices use when they cannot obtain a valid IP address from a DHCP server3. APIPA addresses are in the range of 169.254.0.1 to 169.254.255.254, with a subnet mask of 255.255.0.03. Devices that use APIPA addresses can only communicate with other devices on the same local network that also use APIPA addresses3.

The router in the question is assigned the address scope of 192.168.1.254/24, which means it has an IP address of 192.168.1.254 and a subnet mask of 255.255.255.04. This address scope belongs to the private IP address range of 192.168.0.0 to 192.168.255.255, which is commonly used for local networks4. Devices that use private IP addresses can communicate with other devices on the same local network or across different networks through NAT (Network Address Translation)4.

The most likely cause of the technician receiving the IP address 169.254.2.2 is that the DHCP server on the router is not working properly or is not configured correctly3. This could be due to various reasons, such as a misconfigured router, a faulty cable, a firewall blocking DHCP traffic, or an exhausted pool of IP addresses3. As a result, the technician’s device cannot obtain a valid IP address from the DHCP server and resorts to using an APIPA address instead3.

To fix this issue, the technician should check the router settings and make sure that the DHCP server is enabled and has enough available IP addresses to assign to devices2. The technician should also check the physical cabling and make sure it is properly connected and secured2. If the issue persists, the technician should try rebooting the router or resetting it to factory defaults2. Alternatively, the technician could manually assign a static IP address to the device that matches the router’s address scope, such as 192.168.1.x/242.

The connection type that the technician should recommend is Satellite. Satellite internet is a good option for people who travel around the world and want to have connectivity while visiting remote camping locations. It works by using terminals which can give you internet access in remote locations as long as they have a line of sight to the satellite in orbit above12.

Since the customer travels to remote camping locations with limited or unreliable cellular service, the best recommendation is satellite internet connection. Satellite internet uses a dish to connect to satellites orbiting the earth, which can provide coverage anywhere in the world as long as there is a clear line of sight to the satellite. This is especially useful in remote areas where traditional terrestrial connections are not available. References: CompTIA A+ Certification Exam Objectives - 220-1001: 1.6 Given a scenario, evaluate connection type and bandwidth.

Cross-platform virtualization would be the best solution for running Windows software on a computer running macOS. This involves running a virtual machine (VM) on the macOS computer, which emulates a Windows environment and allows the Windows software to be installed and run within the VM.

Cross-platform virtualization allows a computer running macOS to run Windows software. It involves creating a virtual machine on the macOS computer and installing a Windows operating system on it. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 1

When installing a printer on a network, the technician needs to configure the network settings, which include the IP address, subnet mask, and gateway. These settings are used to ensure that the printer can communicate with other devices on the network.

When installing a printer on a network, the technician must configure the network settings of the printer to ensure that it can communicate with other devices on the network. This includes configuring the gateway, subnet mask and IP address of the printer.

The gateway is the device that connects the local network to other networks or the Internet. The subnet mask is used to determine which part of an IP address represents the network and which part represents individual hosts on that network. The IP address is a unique identifier for each device on a network.

802.11ac is the 802.11 standard that supports both 5GHz and 2.4GHz channel frequencies. 802.11ac is the latest wireless networking standard that operates in both the 5GHz and 2.4GHz frequency bands. It provides higher wireless network speeds and better reliability compared to previous standards, such as 802.11a, 802.11b, and 802.11g. The 802.11a standard operates exclusively in the 5GHz band, while the 802.11b and 802.11g standards operate exclusively in the 2.4GHz band.

The appropriate connection types for connecting an external keyboard to an Android tablet are USB-C and Bluetooth123.

Before attempting to resolve the issue, it is important to first determine the cause or probable cause of the issue, so that a plan of action can be developed. In this case, the fact that the retention policy was updated shortly before users first noticed the issue suggests that this could be the cause of the issue. The systems administrator should investigate this further to determine if this is indeed the cause of the email server issue.

A 1000W 24-pin modular power supply provides enough power to support a dual graphics card configuration, which requires a significant amount of power. A modular power supply allows the technician to connect only the cables that are necessary for the current configuration, reducing cable clutter and improving airflow inside the case. This makes it easier to install and maintain the power supply.

Loading the hard disk drive (HDD) drivers using a flash drive is the most likely action that can fix the issue of a computer not being able to find the hard drive during an OS installation from Windows 7 to Windows 10. The HDD may have a different interface or controller than what Windows 10 supports by default, such as SATA or RAID, which would require loading additional drivers during the installation process. The technician can use a flash drive to load the drivers from another device or source. Changing the partition to MBR, upgrading the RAM modules, or replacing the hard drive are not likely to fix the issue, as they are not related to the HDD drivers

https://www.lifewire.com/fix-it-when-webcam-is-not-working-4588517

If a laptop's external webcam software is running, but it shows no image or video, the first step the technician should perform is to reseat the webcam. Reseating the webcam involves disconnecting it from the motherboard and then reconnecting it. If this doesn't work, the technician should then check the webcam drivers or software. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 502)

The technician should install the appropriate printer drivers for the OS to enable the computer to communicate with the printer. The generic printer name suggests that the drivers are missing or not installed correctly.

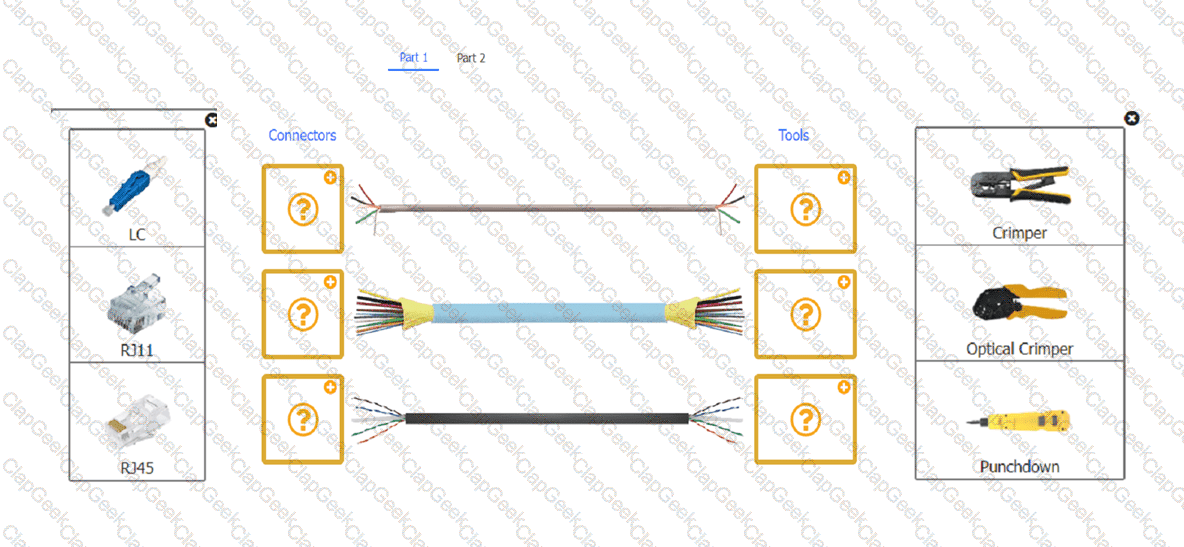

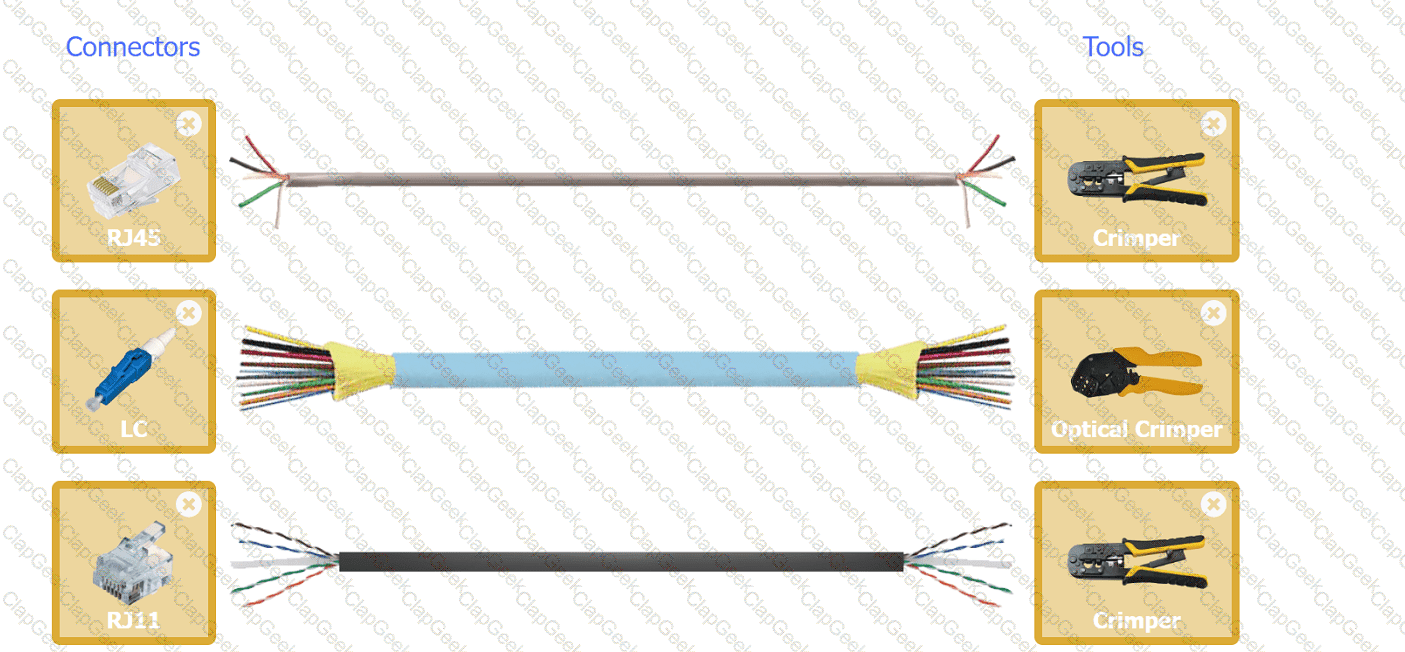

Punchdown tools are used to make connections between wires in a 66/110 block at the demarcation point. The tool is used to insert the wire into the appropriate holes in the block, and it can be used to add additional lines to the demarcation point. The other options are not the correct tools for adding lines to the demarcation point. A toner is used to identify cable pairs, a network tap is used to monitor network traffic, and a crimper is used to terminate cables.

A redundant power supply is a device that provides two or more power supplies connected in parallel so that when one fails, the other one will take over to ensure continuous power. This is ideal for critical warehouse machines that require a reliable power source and are at risk of downtime in the event of a power failure. Installing a redundant power supply will help to reduce the chances of an unexpected power outage and keep the machine running.

The two sets of colors on the motherboard indicate that it supports dual-channel memory, which doubles the bandwidth available to the memory controller. Dual-channel memory requires two identical memory modules to be installed in pairs in the correct slots to work effectively. In this case, the user can install two identical RAM modules to enable dual-channel memory, which will provide better performance when using multimedia applications that consume a lot of memory.

If a user’s PC is very sluggish, the HDD light on the PC is constantly on without blinking, the PC itself is slow receiving input, and it takes a very long time to load the OS, the HDD has no free space is most likely the cause of these issues. When the hard disk drive (HDD) has no free space, the computer may become slow and unresponsive. The technician should check the amount of free space on the HDD and delete any unnecessary files to free up space.

The Official CompTIA® A+® Core 1 and Core 2 Student Guide (Exams 220-1001 and 220-1002) | 193 Protected content. If you encounter an error that indicates unauthorized content or an HDCP error: • DVI, HDMI, DisplayPort, and Thunderbolt all provide support for the Digital Rights Management (DRM) mechanism High-bandwidth Digital Content Protection (HDCP). HDCP allows a content source (such as a Blu-ray disc) to disable itself if the display adapter and monitor and/or speaker system do not support HDCP and fail to authenticate themselves with the playback source. There have been various iterations of HDCP (at time of writing the current version is 2.2) and backward-compatibility can be problematic as authentication may fail between devices that support different versions of the standard.

The Domain Name System (DNS) is responsible for translating domain names into IP addresses. By blocking malicious sites from resolving correctly, the DNS server is able to prevent the user from accessing those sites. Therefore, the DNS server setting on the user’s router needs to be changed to enable this functionality123.

The technician will need to connect the DVI port on the computer to the new display's HDMI port. To do this, a DVI to HDMI cable will be needed. This type of cable will allow the computer's DVI video signal to be transmitted to the new display's HDMI port.

A digital-to-analog converter (DAC) is used to convert a digital signal to an analog signal. An A/V switcher is used to switch between multiple audio and video sources and display them on a single monitor or display. A DisplayPort to HDMI adapter is used to convert a DisplayPort signal to an HDMI signal, but it is not necessary in this scenario as the computer has a DVI port and not a DisplayPort.

If a technician made several upgrades to a computer and then determined the power supplied by the PSU is insufficient, the upgraded graphics card and adding more RAM would most likely cause the insufficiency. Upgrading the graphics card and adding more RAM can increase the power consumption of a computer, which can cause the power supplied by the PSU to be insufficient.

Adding more RAM and upgrading the graphics card are the most likely causes of the insufficiency of power supplied by the PSU. These upgrades require more power to operate efficiently and can cause the PSU to become insufficient.

Vertical or horizontal lines—Marks that appear in the same place (referred to as repetitive defects) are often due to dirty feed rollers (note that there are rollers in the toner cartridge and fuser unit too) or a damaged or dirty photosensitive drum.

Vertical streaks on a laser printer output are usually caused by a damaged or worn-out drum, which is responsible for transferring toner to the paper. If the drum is damaged, toner may accumulate on certain parts of the drum, leading to streaks on the printed output. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 15

A Virtual LAN (VLAN) is a network topology that allows a switch to be divided into separate logical networks. This allows for the creation of multiple broadcast domains within a single physical network, improving network segmentation and security. With VLANs, you can segment your network so that different departments, applications, or users are isolated from each other, improving network security and performance.

CompTIA 6-Step Troubleshooting Process:

1. Identify the problem.

2. Establish a theory of probably cause. (Question the obvious)

3. Test the theory to determine cause.

4. Establish a plan of action to resolve the problem and implement the solution.

5. Verify full system functionality and if applicable implement preventative measures.

6. Document findings, actions, and outcomes.

Writing a knowledge base article in the ticketing software would help document the root cause of the application error and the steps taken to resolve it, which can help other technicians resolve similar issues in the future. This is an example of knowledge management best practices. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 6

A SIM card is needed for the device to use cellular network services, so without it, the device will be unable to connect to the cloud services when taken off site. MDM (Mobile Device Management) can be used to manage settings and access on a device, but it is not necessary for the device to be able to use cloud services. S/MIME (Secure/Multipurpose Internet Mail Extensions) certificates are used to encrypt and digitally sign emails, and are not related to device connectivity. Bluetooth can be used to connect devices together, but it is not necessary for the device to be able to use cloud services.

Verify that the OS supports hot swapping the RAM. Before replacing the RAM on an entry-level server with hot-swappable components, the technician should verify that the operating system supports hot swapping of RAM.

The most appropriate solution for the technician to consider in this situation is Application virtualization. Application virtualization is a technology that allows applications to run in a virtual environment, which isolates them from the underlying operating system and other applications. This ensures that the application deployment will not affect other legacy applications on the end users’ computers1.

it appears that option A, restoring function to the air conditioner, would most likely solve the thermal printer issue in the described scenario. The failure of the air conditioner during the summer could likely have caused high humidity or heat in the factory, which can affect the printing quality of thermal printers by causing blank spots or missing text. By restoring function to the air conditioner, the temperature and humidity in the factory can be controlled, which can help eliminate these printing issues. However, it is still possible that any of the other options listed could also potentially solve the issue, so it is best to assess the situation further and try different solutions if necessary.

NVMe (Non-Volatile Memory Express) drives are high-speed solid-state drives that utilize the PCIe (Peripheral Component Interconnect Express) interface to connect to the motherboard. Before purchasing an NVMe drive, the user should confirm that the PC has an available M.2 slot for the drive and that the PC has a PCIe interface for the M.2 slot.

SATA (Serial ATA) is an older interface for hard drives and is not compatible with NVMe drives. SAS (Serial Attached SCSI) is a newer interface for hard drives and is typically used for enterprise-level storage systems. SCSI (Small Computer System Interface) is a parallel interface for hard drives that is primarily used in high-end workstations and servers. DRAM (Dynamic Random Access Memory) is a type of memory commonly used in computers, but it is not relevant to the storage of data on a hard drive.

A Virtual Private Network (VPN) is a secure method for connecting a remote user's laptop to a corporate server. VPNs use encryption to protect data transmitted over the internet.

The technician should verify the header panel connector is properly connected. A beep code is a diagnostic tool used by motherboards to indicate issues with hardware components. This beep code may be indicating an issue with the connection between the motherboard and the case's header panel connector. This connector is responsible for providing power to the system and any connected peripherals. Therefore, the technician should verify the connection is secure and properly connected before attempting any other troubleshooting steps.

Using the device as a Wi-Fi hotspot, a failing battery, and too many open applications are the most likely causes of the cell phone getting hot. These actions require the phone to use more power and processing, causing it to heat up.

Every computer has a CMOS battery and when you remove that battery, your computer will work almost the same as before. The only difference is you won’t be able to save any settings in the BIOS, which includes the date and time. If your PC is not booting after removing CMOS, you need to make sure that you have your CPU and RAM connected because it’s not possible for your system to boot without those.. Your motherboard and computer will be able to boot just fine even without a CMOS battery present. The only issue is all your BIOS settings will be reset and the time and date will be inaccurate. You will also be unable to save BIOS settings.

https://intellinetnetwork.eu/pages/what-is-a-poe-injector

The quickest way to resolve the issue is to install a Power over Ethernet (PoE) injector to provide power to the IP phone. An unmanaged switch does not provide PoE, so an injector is needed to power the phone.

HDMI-ARC (Audio Return Channel) is an HDMI connection that allows audio to be sent from the TV to an external sound system, such as a soundbar. If the TV's HDMI-ARC port is not being used, then the soundbar will not receive any audio from the TV and thus will not produce any sound. To resolve the issue, the technician should ensure that the TV's HDMI-ARC port is being used to connect the TV to the soundbar.

An impact printer is a type of printer that uses a ribbon to produce text and images on paper. If an impact printer is producing faded text and images when printing, it could be due to a worn-out ribbon that needs to be replaced. The technician would need to replace the ribbon on the impact printer to resolve the issue.

A ribbon is a consumable component used in impact printers that uses a cloth or plastic strip coated with ink to produce text and images on paper. Examples of impact printers include dot matrix printers and line printers. References: Study Guide Section 4.6 - Printer technologies

The correct answers are A. Identify the location of devices that utilize 2.4GHz and D. Map all of the wireless signals in the restaurant. In order to troubleshoot the issue, the technician should first identify the location of devices that utilize the 2.4GHz frequency, as this can cause interference with the wireless signal. Additionally, the technician should map all of the wireless signals in the restaurant in order to identify any potential sources of interference. Checking to see if the phones are IJTP or STP lines, testing to see if the copper electrical wires are causing interference, verifying T568B is being used in the wiring closet patch panel, and scheduling timed router reboots throughout the day are not necessary steps for troubleshooting this issue.

Mobile Device Management (MDM) is a software solution that allows companies to manage and secure mobile devices used in the corporate environment. MDM provides features such as remote data wipe, application management, and device security policies to ensure data protection and compliance with company policies. References: CompTIA A+ Certification Exam Objectives 220-1001 - Mobile device hardware and operating systems - 2.8

The MOST efficient next step the technician should complete is to check the printer paper path to locate any obstructions1. The error message “Paper Jam, Jam in fuser” indicates that there is a paper jam in the fuser2. The fuser is one of the parts of a laser printer most likely to fail without giving any explicit message2.

The printer LCD screen indicates a paper jam in the fuser. The most efficient next step the technician should complete is to check the printer paper path to locate any obstructions. Applying a maintenance kit or replacing the fuser may not be necessary if the issue is caused by a paper jam.

A blot on the screen of a smartphone is most likely caused by damage to the digitizer, which is the part of the device responsible for interpreting touch input. Improper charging is unlikely to cause a blot on the screen, as is damage to the ambient light sensor. Liquid damage is a possibility, but it is more likely to cause discoloration or other physical damage to the screen.

TPM stands for Trusted Platform Module, and it is a special chip installed on a computer’s motherboard that stores encryption keys, passwords, and digital certificates. It can also securely store a user’s PIN, allowing them to access the laptop without having to enter the PIN every time they log on. TPM is a secure way to store and protect sensitive data, making it ideal for use in laptops that need to securely store a PIN.

A custom hosts file is a file that maps hostnames to IP addresses, allowing the user to access websites or servers by their names instead of their numerical addresses. For example, a user can add a line like 192.168.1.100 myserver.local to their hosts file and then access the server by typing myserver.local in their browser. However, this method only works if the IP address of the server does not change. If the server is configured with a dynamic IP address, which means it can be assigned a different IP address by the network router or DHCP server, then the hosts file entry will become invalid and the user will not be able to connect to the server by its hostname. Therefore, the technician should ensure that the server is configured with a static IP address, which means it has a fixed and permanent IP address that does not change. This way, the hosts file entry will always point to the correct IP address of the server and the user will be able to ping the server hostname from their computer.

A router is a device that connects one or more networks, such as a home or small office network, to the internet. It allows multiple devices to share a single internet connection and provides network address translation (NAT) to enable communication between the devices on the local network and the internet. A hub, Ethernet gateway, or wireless access point does not provide this functionality.

A router is the most likely device to be used to connect one or more devices to the internet in a SOHO. A router can provide network address translation (NAT), firewall protection, and other features that are important for securing and managing a network. References: CompTIA A+ Certification Exam Guide, pg. 355

The technician should boot into the BIOS and enable the TPM on the new motherboard to enable the system to boot again and get access to the stored data1.

Boot into the BIOS and enable the TPM on the new motherboard. Explanation: After upgrading the motherboard, the TPM may need to be enabled in the BIOS in order to access the encrypted key and boot the system. Enabling the TPM on the new motherboard should allow the system to boot and provide access to the encrypted data. References: CompTIA A+ Certification Exam Guide, 220-1001, Chapter 13

RAID 0 is a disk array configuration that splits data across two or more disks without parity or mirroring. RAID 0 provides the best I/O performance because it allows parallel read and write operations on multiple disks. RAID 0 also provides the most storage capacity possible because it does not use any disk space for redundancy. However, RAID 0 does not provide any fault tolerance and increases the risk of data loss if any disk fails.

The best way to complete the upgrade with the least amount of downtime is to clone the HDD to the SSD using cloning software, and then replace the HDD with the SSD. This way, the user does not have to reinstall the operating system and applications, or copy over their data manually. The other options would either take more time or result in data loss or inaccessibility. Verified References: [How to Upgrade Your Laptop’s Hard Drive to an SSD].

The transmit power settings of the access point determine how strong the Wi-Fi signal is. If the transmit power is too low, the Wi-Fi network will have slow connection speeds and poor coverage. If the transmit power is too high, the Wi-Fi network will interfere with other nearby networks and devices, causing congestion and performance issues. Therefore, the technician should check the transmit power settings first and adjust them to an optimal level for the office environment.

The answer is A. High availability and B. Elasticity.

High availability is the ability of a system to remain operational and accessible with minimal or no downtime, even in the event of failures, disasters, or disruptions. High availability can be achieved by designing a system that has redundancy, fault tolerance, and disaster recovery capabilities. For example, a cloud engineer can design a system that replicates data and resources across multiple regions, zones, or availability domains, and uses load balancing and failover mechanisms to distribute the workload and handle failures gracefully12.

Elasticity is the ability of a system to scale up or down automatically in response to changes in demand or utilization. Elasticity can be achieved by designing a system that can dynamically allocate and deallocate resources based on predefined metrics, policies, or triggers. For example, a cloud engineer can design a system that uses auto-scaling groups, horizontal or vertical scaling strategies, and on-demand or spot instances to optimize the performance and cost of the system32.

By implementing high availability and elasticity, a cloud engineer can ensure that the solution is able to immediately fail over to another region in case of an outage and also scale up in the event of high utilization. These are two important aspects of building reliable and scalable cloud architectures. Therefore, options A and B are the correct answers.

USB 3.0 ports are slightly smaller than other USB connections, so if the port appears to be the wrong size, it is likely that the port belongs to a different form factor. This can be caused by a number of factors, such as the device being too old to support USB 3.0, or the device not having a USB 3.0 port in the first place.

Upgrading all workstations and providing a virtual environment for the legacy software is the best option, as it allows the engineering department to continue using the vital software while also upgrading to the latest version of Windows. This also ensures that the rest of the organization can take advantage of the latest software and security features.

Thunderbolt cables are commonly used to connect Apple laptops to external displays or other devices. While Thunderbolt is available on some Windows and Chromebook devices, it is most commonly associated with Apple products. References: https://www.intel.com/content/www/us/en/products/docs/io/thunderbolt/thunderbolt-technology-general.html

A USB to 9-pin serial adapter can be used to connect the new computer to the point-of-sale system using a USB port. USB is a common and versatile port type found on most computers.

If a technician is replacing a computer with a connected point-of-sale system using a 9-pin serial adapter and the new computer does not have a 9-pin serial port, an adapter can be installed on the USB port in order to connect to the point-of-sale system. A USB-to-serial adapter can be used to connect a serial device to a USB port on a computer.

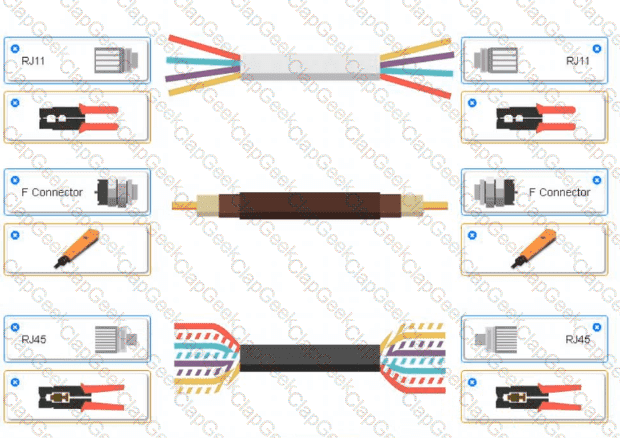

The company should buy Coaxial cables to be used with F-type connectors.

Since the hard drive appears to be functioning normally, the technician should investigate other potential causes of the issue. This could include checking the BIOS settings, verifying the connections to the hard drive, and testing the RAM. Once these steps have been completed, the technician can then take the necessary steps to resolve the issue.

Running the printer’s alignment process is the first step that a technician should do to fix the shadowing problem on the printouts. Shadowing is a print quality issue that occurs when the printer prints a faint duplicate image of the original text or graphics, usually slightly offset from the original position. This can be caused by a misalignment of the printhead, which is the part of the printer that sprays ink onto the paper. The printer’s alignment process is a procedure that adjusts the position and angle of the printhead to ensure that the ink is applied accurately and evenly on the paper. The printer’s alignment process can be performed from the printer’s menu, the printer’s software, or the printer’s maintenance tool, depending on the model and type of the printer.

The other options are not the best solutions for this problem. Reseating the new ink cartridges may not solve the shadowing issue, unless the cartridges are not properly installed or recognized by the printer. However, this is unlikely to be the case, as the printer would usually display an error message or refuse to print if the cartridges are not compatible or inserted correctly. Replacing the fuser assembly or installing the maintenance kit are more drastic and expensive measures that are usually done when the printer has more serious problems, such as paper jams, smearing, streaking, or fading. The fuser assembly is the part of the printer that heats and melts the toner onto the paper, and the maintenance kit is a set of components that need to be replaced periodically to keep the printer in good condition. These parts are not directly related to the shadowing issue, and replacing them may not fix the problem.

Dynamic Host Configuration Protocol (DHCP) allows a networked device to always be assigned the same IP address based on the device's MAC address. DHCP can also assign other network configuration settings to devices automatically.

A USB-C cable is the best option for installing an RS-232 serial signature pad to an ultralightweight laptop. USB-C is a universal connector that supports various protocols and devices, including serial devices. A port replicator is a device that expands the connectivity options of a laptop by providing additional ports. Wi-Fi Direct is a wireless technology that allows devices to connect directly without a router or access point. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB.

The first step to recover data from a failing drive is to clone the drive to another one, which means creating an exact copy of the drive’s contents, including the operating system, applications, files, and settings, to a new drive. Cloning the drive can preserve the data and prevent further damage or data loss from the failing drive. Cloning the drive can also allow the technician to boot from the new drive and access the data normally, without needing to reinstall the operating system or the applications12.

The other options are not as effective or relevant as cloning the drive. Accessing the Device Manager may not help with data recovery, as it is a tool that displays and manages the hardware devices and drivers on a PC. The Device Manager may show the status of the failing drive, but it cannot copy or restore the data from it3. Downloading the drive manufacturer’s diagnostic tool may help with identifying and repairing some errors or issues with the drive, but it may not be able to recover the data if the drive is physically damaged or corrupted. The diagnostic tool may also overwrite or erase some data during the repair process, which can make the data recovery more difficult or impossible4. Uninstalling the drive in the Device Manager may not help with data recovery, as it removes the drive from the system and its driver from the operating system. Uninstalling the drive may make the drive inaccessible or unrecognized by the PC, which can prevent the data recovery5. Replacing the drive with a new one may not help with data recovery, as it does not transfer the data from the old drive to the new one. Replacing the drive may also require reinstalling the operating system and the applications, which can take time and effort. Replacing the drive may also discard the old drive, which may still contain some recoverable data.

A sandbox is a lab environment in which virtual machines can be created, rebooted, and shut down without affecting the production network. This allows for testing and experimentation without the risk of damaging the production environment123..

The most likely reason is A. Missing Wi-Fi adapter.

A Wi-Fi adapter is a device that allows a computer to connect to a wireless network. A legacy workstation may not have a built-in Wi-Fi adapter, or it may have an outdated or incompatible one. If the workstation does not have a Wi-Fi adapter, it will not be able to detect or access any wireless networks, regardless of the location, signal strength, or configuration of the network.

To fix this issue, the technician can install a Wi-Fi adapter on the workstation, either internally or externally. An internal Wi-Fi adapter is a card that fits into a slot on the motherboard, while an external Wi-Fi adapter is a device that plugs into a USB port. The technician should choose a Wi-Fi adapter that is compatible with the workstation’s operating system, hardware, and wireless standards .

The other options are less likely to be the reason for the issue. A Wi-Fi AP replacement means changing the wireless access point that provides the network connection. This may affect the network name, password, or settings, but it should not prevent the workstation from detecting any wireless networks. A hidden Wi-Fi SSID means that the network name is not broadcasted publicly, but it can still be accessed by entering the name manually. A hidden Wi-Fi SSID may make it harder to find the network, but it should not prevent the workstation from detecting other wireless networks. An incorrect Wi-Fi channel means that the network is using a frequency band that is crowded or interfered by other devices. This may affect the network performance or stability, but it should not prevent the workstation from detecting any wireless networks.

The best choice for the user's laptop is a 1TB NVMe SSD. NVMe (Non-Volatile Memory Express) is a high-performance storage protocol designed specifically for solid-state drives (SSDs). It is significantly faster than SATA SSDs and SAS hard drives, making it ideal for users who need fast storage for their laptop. NVMe SSDs also have lower latency and higher bandwidth than traditional hard drives, making them well-suited for data-intensive tasks such as video editing, gaming, and running multiple applications simultaneously. Additionally, NVMe offers more reliable data reliability than traditional hard drives, and is less susceptible to performance degradation over time.

The most likely answer is C. Fuser.

A fuser is a component in a laser printer that uses heat and pressure to fuse the toner powder onto the paper. If the fuser is damaged or worn out, it can cause humming and grinding noises, as well as ghost images on the printouts. Ghost images are faint copies of previous images that appear on the same page. They are caused by the fuser not heating the toner properly, or by the toner sticking to the fuser roller and transferring to the next page12.

To fix this problem, you should replace the fuser unit with a new one. You can check your printer manual for instructions on how to remove and install the fuser unit. You can also use a diagnostic ruler to measure the distance between the ghost images and determine if the fuser is the source of the problem2. If the ghost images are far apart (between 4cm and 5cm), then the fuser is likely to be faulty.

A network tap is a physical device that allows promiscuous monitoring of network traffic by creating a copy of the data packets for analysis. A toner probe is used to trace and identify cables. A Wi-Fi analyzer is used to measure wireless signal strength and interference. A loopback plug is used to test network ports or cables by sending and receiving signals from the same device.

an inverter is a device that converts DC power from the laptop’s battery or AC adapter to AC power for the backlight of the LCD panel. If the inverter is defective, the backlight will not work and the LCD panel will appear blank or very dim. The user can still see a faint image if they shine a flashlight into the LCD because the LCD itself is still working.

A router is a network device that connects multiple networks together and directs data packets to their intended destinations. This includes directing packets to networks outside of the local area network (LAN). Routers use routing tables to determine the best path for data packets to travel.

Hubs and switches operate within a single LAN and are not capable of routing packets to external networks.

Bridges can connect two LANs together, but they do not have the intelligence to route packets to external networks.

Therefore, only routers are capable of directing packets to networks outside of the LAN.

The concept described in the question is related to virtualization and resource management in a virtual environment. The approach that allows all virtual machines (VMs) to have memory (RAM) allocated for use is known as resource pooling. Therefore, the correct answer is D: "Resource pooling." This approach allows resources to be allocated dynamically to VMs based on their current needs, and ensures that resources are used efficiently in the virtual environment.

Resource pooling is a technique used in virtualization to share resources among multiple virtual machines (VMs). With resource pooling, RAM can be allocated dynamically to VMs as needed, allowing all VMs in a virtual environment to have RAM allocated for use.

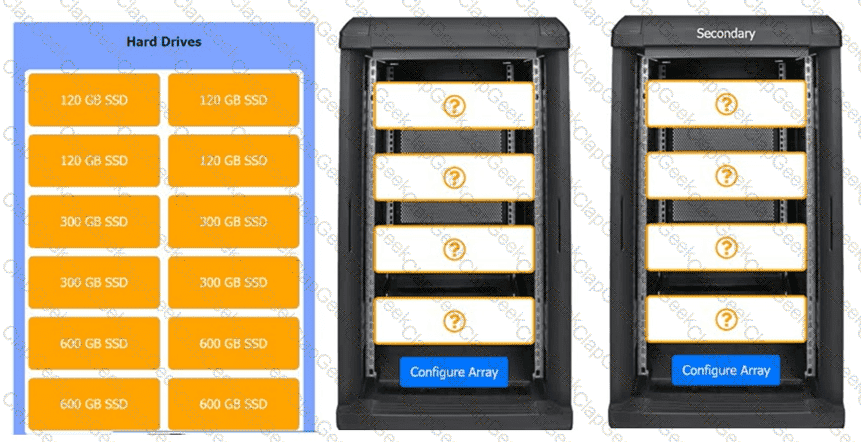

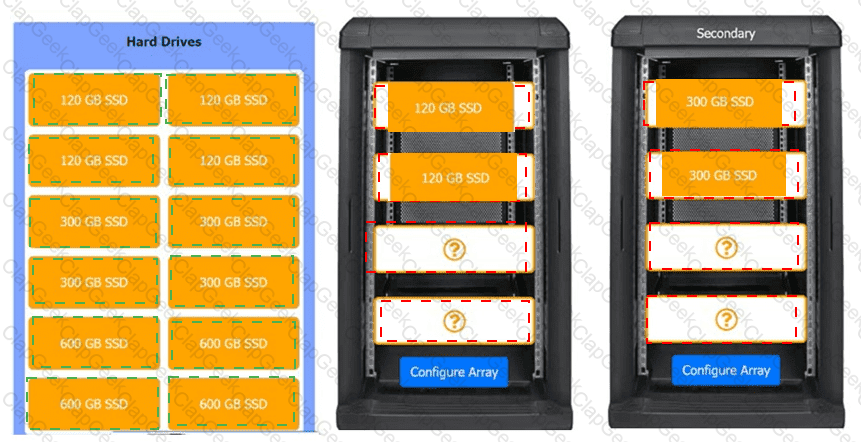

Primary Array:

Drag and drop two 120 GB SSD hard drives to the primary array bay.

Open the primary array and select RAID 1 as the RAID level. RAID 1 provides fault tolerance of one drive, ability to function with only one drive, easily recoverable data, high redundancy, and very fast on reads. It also does not need to be scalable and uses the minimum number of drives (two) for RAID 1.

Confirm the configuration and close the primary array.

Secondary Array:

Drag and drop two 300 GB SSD hard drives to the secondary array bay.

Open the secondary array and select RAID 0 as the RAID level. RAID 0 provides the best write performance and uses the minimum number of drives (two) for RAID 0. It also provides a total space of 600 GB (300 GB x 2), which meets the requirement.

Confirm the configuration and close the secondary array.

You have completed the configuration of the storage arrays.

When installing RAM into a server that will be used as a VM host, it is recommended to install ECC (Error-Correcting Code) RAM to help prevent errors that can cause virtual machines to crash. References: https://www.servermonkey.com/blog/ecc-vs-non-ecc-ram-what-are-the-differences.html

When installing RAM into a rackmount server that will be used as a VM host, it would be best to install ECC (Error Correcting Code) RAM which can detect and correct common types of data corruption.

Enabling the audio device is the correct action to correct an audio issue where a laptop does not have any audio output from the built-in speakers and Windows Device Manager shows a down arrow for the audio device. A down arrow indicates that the audio device is disabled and needs to be enabled by right-clicking on it and selecting Enable device. Replacing the speakers, increasing the volume, or updating the driver are unlikely to solve the issue if the audio device is disabled.

correct answer is "Overclocking" and "Reduce CPU Clock speed" CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer so the user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

The connector that the IT technician should inspect further is Molex. The Molex connector is used to provide power to the motherboard and other components in the computer. If there is a suspected power issue with the motherboard, the IT technician should inspect the Molex connector to ensure that it is properly connected and providing power to the motherboard1

Cross-platform virtualization allows different operating systems, such as Linux and Windows, to run on the same hardware or software platform. This enables users to access applications and data from different operating systems without switching devices or rebooting.

Cleaning the air filter is the best action to resolve the issue of a projector that shuts down after fifteen minutes of use. A dirty air filter can cause overheating and trigger the projector’s thermal protection mechanism. Replacing the video input cable, changing the bulb, or swapping the power cord are unlikely to solve the overheating issue

The frequency bands that 802.11b and 802.11g operate in are 2.4GHz bands, which allow for longer range but lower speed than higher frequency bands such as 5GHz or 6GHz bands used by newer standards such as 802.11a/n/ac/ax.

A sandbox is a virtualization solution that allows a legacy application to run in an isolated environment without affecting other applications or systems. A sandbox can emulate an older operating system or hardware configuration that is compatible with the legacy software. A hybrid cloud is a combination of public and private cloud services that share data and resources. Infrastructure as a service is a cloud computing model that provides servers, storage, networking, and software over the internet. Public cloud is a cloud computing model that provides services and resources to anyone over the internet. Private cloud is a cloud computing model that provides services and resources to a specific organization or group over a private network.

Virtual memory is a software-based memory management system that allows a computer to use hard disk storage space as RAM. This can be used to increase the total RAM in a system without upgrading the hardware. To set up virtual memory, the user should go to the System Properties window and select the Advanced tab. In the Performance section, click on the Settings button, which will open the Performance Options window. Then, click on the Advanced tab and click on the Change button in the Virtual memory section. Finally, select the option to Automatically manage paging file size for all drives, and then click OK to save the changes.

Client-side virtualization is used to run an application or process on a separate virtual machine, isolated from the main operating system. To allow other users on the LAN to access the application, the software developer should configure a bridge networking connection between the virtual machine and the LAN. This will allow the virtual machine to communicate with other computers on the network. Application virtualization, virtual desktop, and site-to-site VPN are not necessary steps for allowing other users to access the application.

If lines appear down copied pages but printed pages sent directly to copier render as intended, it could be due to scratched scanner glass which can cause lines or streaks on copied pages.

If there are lines appearing on copied pages, but not on printed pages sent directly to the copier, the issue is most likely caused by a scratch on the scanner glass. References: https://www.pacificoffice.com/how-to-fix-lines-on-copier/

Near field communication (NFC) is a function that enables contactless payments with a phone by allowing it to communicate with compatible devices within close proximity. If NFC is not working properly, the user will not be able to perform contactless payments with the phone. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB. Bluetooth is a wireless technology that allows devices to connect and exchange data over short distances. USB is a standard interface that connects devices such as keyboards, mice, flash drives, etc

The user's smartphone is losing its charge rapidly and feels thicker than it was when new. Both of these symptoms point towards a bad battery.

A bad battery loses its ability to hold a charge, leading to rapid draining. Additionally, a bad battery can physically swell, which explains why the phone feels thicker.

Malware infection, damaged charge port, and poor connectivity are unlikely causes for both the rapid draining and the increased thickness.

References

CompTIA A+ Certification Core 1 220-1101 Study Guide, Chapter 2: Mobile Devices, Section 2.2 Mobile Device Batteries

https://www.comptia.org/training/books/a-core-1-220-1101-study-guide

A load balancer is a network device or service that distributes incoming network traffic across multiple servers, based on various criteria, such as availability, capacity, performance, or location. A load balancer can ensure that the servers’ resources will be utilized efficiently, as well as improve reliability, scalability, and security. A load balancer can be hardware-based or software-based, or a combination of both. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 79)

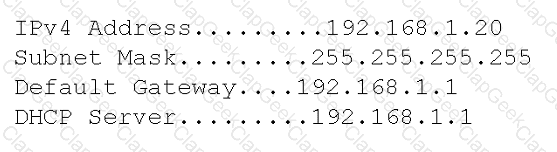

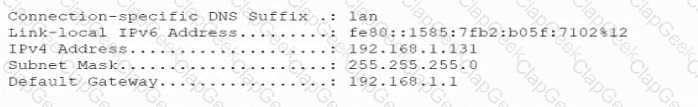

ipconfig is a command-line tool that displays the current configuration of the network interfaces on a Windows PC. It can also be used to release and renew the IP address, flush the DNS cache, and display the routing table. If the PC is unable to ping the local gateway, the technician should use ipconfig to check the IP address, subnet mask, default gateway, and DNS servers of the PC. The technician can also use ipconfig /renew to request a new IP address from the DHCP server, or ipconfig /flushdns to clear the DNS cache.

References

•[CompTIA A+ Core 1 (220-1001) Certification Study Guide], page 78

•How to use the ipconfig command on Windows 10

•How to Ping the Windows Network Router

HDD fragmentation is a condition where the data on a hard disk drive (HDD) is not stored in contiguous clusters, but scattered across different physical locations on the disk. This happens when files are created, modified, or deleted over time, leaving gaps and fragments of data on the disk. HDD fragmentation can affect the performance of the PC, especially when accessing large files that require more disk operations to read or write12.

According to some web search results123, some signs and symptoms of a heavily fragmented HDD are:

•Longer load times for files and programs

•Graphics-heavy apps and games take too long to load new windows or process new environments

•Reduced disk space and efficiency

•Increased disk noise and temperature

•Accelerated disk wear and failure

To fix this issue, the user can use a tool called Disk Defragmenter, which is built-in in Windows. Disk Defragmenter rearranges the fragmented data on the HDD so that it is stored in contiguous clusters, improving the disk performance and reliability1. Disk Defragmenter can run on a schedule or manually by following these steps1:

•Open Disk Defragmenter by clicking the Start button. In the search box, type Disk Defragmenter, and then, in the list of results, click Disk Defragmenter.

•Under Current status, select the disk you want to defragment.

•To determine if the disk needs to be defragmented or not, click Analyze disk. If you’re prompted for an administrator password or confirmation, type the password or provide confirmation.

•Once Windows is finished analyzing the disk, you can check the percentage of fragmentation on the disk in the Last Run column. If the number is above 10%, you should defragment the disk.

•Click Defragment disk. If you’re prompted for an administrator password or confirmation, type the password or provide confirmation.

•Disk Defragmenter might take from several minutes to a few hours to finish, depending on the size and degree of fragmentation of your hard disk. You can still use your computer during the defragmentation process.

To increase the volume on a laptop using only a keyboard, a user can press and hold down the Fn key while pressing one of the function keys (usually F1-F12) that has an icon representing volume up.

The most appropriate way for the technician to receive the latest official drivers for a USB Wi-Fi card is to download them from the vendor’s website. This ensures that the drivers are compatible, updated, and secure. Allowing the OS to install the drivers automatically may not provide the latest or best drivers for the device. Utilizing a third-party, non-OEM driver could cause compatibility or security issues. Running the autoinstall CD could install outdated or unnecessary software along with the drivers

Client-side virtualization is used to run an application or process on a separate virtual machine, isolated from the main operating system. To allow other users on the LAN to access the application, the software developer should configure a bridge networking connection between the virtual machine and the LAN. This will allow the virtual machine to communicate with other computers on the network. Application virtualization, virtual desktop, and site-to-site VPN are not necessary steps for allowing other users to access the application.

A hypervisor is a software layer that manages and allocates resources for virtual machines (VMs) on a physical host machine. A technician can use a hypervisor to adjust the resource allocation for a virtual workstation, such as increasing the amount of RAM assigned to it from the available pool of memory on the host machine. This can improve the performance and functionality of the virtual workstation without requiring any hardware changes or modifications. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 59)

The message prompting to press "OK" indicates that the printer is waiting for a user input. This suggests that there is some issue with the printer settings, and the most probable cause is that the default paper type has been changed, and the printer needs the user to confirm the paper type before proceeding with the print job. This is a common issue that can occur when the default paper type is not set correctly or has been changed without the user's knowledge.

NFC stands for near-field communication, which is a wireless technology that allows two devices to exchange data when they are in close proximity (usually within a few centimeters). NFC is commonly used by mobile devices to process payments at kiosks, such as Apple Pay or Google Pay. Wi-Fi 6 is a wireless standard that provides faster speed and lower latency than previous versions of Wi-Fi. Bluetooth is a wireless technology that allows devices to communicate over short distances (usually within 10 meters). RFID stands for radio-frequency identification, which is a wireless technology that uses radio waves to identify and track objects that have RFID tags attached to them

The screen rotation is locked. If a user’s touch-screen tablet is having an issue with screen orientation, it could be due to screen rotation being locked in device settings.

If the screen rotation is locked, the touch-screen tablet will not rotate the screen when the device is turned. This can usually be unlocked in the settings or by pressing a specific key combination. References: https://www.howtogeek.com/254132/how-to-enable-screen-rotation-on-windows-10/

Following corporate procedures would have been the most likely factor that could have prevented the technician from receiving the written warning. Following established procedures, such as change management, helps ensure that changes made to the production environment are thoroughly tested, approved, and implemented in a controlled and safe manner, reducing the risk of system-wide outages and other unintended consequences.

This is because a docking station can connect multiple monitors to a laptop without using USB ports, which are disabled in this scenario. A splitter cable would only allow two monitors to be connected, not three. A discrete graphics card would require opening the laptop and installing hardware, which may not be feasible or allowed in a high-security environment. An HDMI switch would only allow one monitor to be active at a time, not all three simultaneously.

The technician should research the requirements of the CAD program to see if the computer meets them or needs any upgrades or updates to run it properly. The technician should also check the Event Viewer logs to see if there are any errors or warnings related to the application or system performance that could indicate the cause of the problem or suggest a solution. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (pages 43, 47)

The digitizer is a crucial component of a touchscreen device, responsible for translating touch actions into digital signals that the device can interpret. If a hard reset does not resolve the touchscreen's unresponsiveness, it's likely that the digitizer is damaged. Physical damage, such as cracks or heavy impacts, can impair the digitizer's ability to function correctly, leading to an unresponsive touchscreen. This type of hardware issue requires professional repair or replacement of the touchscreen assembly to restore functionality.

The first step that a technician should do is A. Reseat the webcam.

Reseating the webcam means unplugging and plugging back the webcam into the laptop’s USB port. This can help to ensure that the webcam is properly connected and recognized by the laptop. Reseating the webcam is a simple and quick troubleshooting technique that can solve many common issues, such as loose or faulty connections, power or bandwidth problems, or driver or software conflicts.

Reseating the webcam is the first step that a technician should do, because it follows the principle of starting with the easiest and most obvious solution before moving on to more complex and time-consuming ones. Reseating the webcam can also help to isolate the problem and eliminate other possible causes.

The other options are not the first steps that a technician should do, because they are more disruptive or less effective. Restarting the computer and running system diagnostics (option B) may be helpful if the problem is caused by a software or hardware error, but it may also cause data loss or interruption of other tasks. Reinstalling the webcam software and drivers (option C) may be necessary if the problem is caused by a corrupted or outdated software or driver, but it may also introduce compatibility or configuration issues. Researching new webcam firmware (option D) may be useful if the problem is caused by a firmware bug or vulnerability, but it may also pose security or stability risks.

For more information about troubleshooting external webcams, you can refer to the following web search results: [How to Fix Webcam Problems on Your Laptop], [How to Troubleshoot Webcam Issues on Windows 10], [How to Fix Common Webcam Problems].

This is because HDMI (High-Definition Multimedia Interface) is a digital video cable that can also carry audio signals1. HDMI cables are commonly used to connect devices like Blu-ray players, game consoles, and streaming boxes to HDTVs and monitors. The other options are not capable of carrying audio signals. VGA (Video Graphics Array) is an analog video cable that only carries RGBHV signals12. S-Video (Super Video) is another analog video cable that carries separate luminance and chrominance signals1. DVI (Digital Visual Interface) is a digital video cable that can carry either analog or digital signals, but not audio1.

When installing a wireless point-to-point connection between two buildings, the technician should consider the allowable limits for transmit power, which vary depending on the country or region. Exceeding these limits could interfere with other wireless devices or violate regulations. NFC protocol data rate, RFID frequency range, and Bluetooth version compatibility are not relevant for a wireless point-to-point connection.

The technician should ensure the input connections to the screen are secure1. The screen may not be receiving the signal from the device outputting the data if the input connections are not secure1. Swapping cables with a screen that works is not likely to be the correct option1

A sandbox is a lab environment in which virtual machines can be created, rebooted, and shut down without affecting the production network. This allows for testing and experimentation without the risk of damaging the production environment123..

Checking if the password and SSID are correct is the best step that the technician should take to resolve the issue of a user being unable to access the SOHO wireless network after replacing the gateway. The new gateway may have a different password and SSID than the old one, which would prevent the user from connecting to the wireless network. The technician should verify that the user has entered the correct password and SSID for the new gateway. Assessing the network cables for damage, disabling Bluetooth connections, or updating the firmware are not likely to solve the issue, as they are not related to the wireless network authentication

A faulty battery could cause a tablet to restart on its own and have intermittent issues with charging. Water damage could also cause these symptoms, but it is not the most likely cause unless there is evidence of liquid exposure. Incorrect OS version could cause compatibility or performance issues, but not charging problems. Damaged charging port could prevent the tablet from charging, but not cause it to restart randomly.

The cloud model that BEST addresses the company’s need is the Community cloud model. A community cloud is a cloud infrastructure in which multiple organizations share resources and services based on common operational and regulatory requirements. The concept of a community cloud is akin to a community garden, where different individuals grow produce on a single piece of shared land1.

According to the Official CompTIA A+ Core 1 Study Guide (220-1101) 1, the correct answer is A. Document the findings, actions, and solution in the company knowledge base.

The explanation is that after resolving an issue, a technician should always document what was done and how it was fixed. This helps to create a record of the problem and its solution for future reference and also to share knowledge with other technicians.

https://www.comptia.org/training/books/a-core-1-220-1101-study-guide

By documenting the findings, actions, and solution in the company knowledge base, it will help to ensure that if the Issue happens again, the technician or a different technician will be able to quickly and easily find the solution and resolve the Issue. Additionally, it is important to document the solution so that the same Issue does not need to be troubleshot multiple times in the future.

The best action for the salesperson to take in order to view weather forecasts while traveling and minimize the battery drain on their mobile device is to configure fewer location checks using cellular location services. This can be done by adjusting the settings for the weather application to limit how often it checks for updates and uses location services. This will help to conserve the battery on the device and keep the application from consuming too much power.

correct answer is "Overclocking" and "Reduce CPU Clock speed" CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer so the user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

A multipage misfeed is when more than one sheet of paper feeds into the printer at once, causing paper jams or misprints. A multipage misfeed can be caused by low paper supply or wrinkled paper in the tray, as reported by the user in this case. High latency is not related to paper jams, but to network delays or slow performance. Page orientation refers to whether the page is printed in portrait or landscape mode, which does not affect paper jams either. Driver mismatch could cause printing errors or compatibility issues, but not paper jams.

Switches only send data to the specific computer, while hubs send data to all computers inside the network. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 323

Host-only mode is a network option that isolates a client-side virtual machine from the rest of the network. It allows the virtual machine to communicate only with the host machine and other virtual machines on the same host. NAT mode allows the virtual machine to share the host’s IP address and access the network through it. Bridge mode allows the virtual machine to have its own IP address and connect directly to the network. Direct mode is not a valid network option for virtual machines.

The first step to troubleshoot this issue is to check if the website that hosts the random number generator is HTTPS enabled. This means that the website supports secure communication using SSL certificates and encryption. If the website is not HTTPS enabled, it may not be compatible with the SSL redirection implemented by the IT department. SSL redirection is a technique that automatically redirects HTTP requests to HTTPS, ensuring that the data exchanged between the web browser and the website is protected. However, some websites may not have SSL certificates or may have expired or invalid ones, which can cause errors or warnings when trying to access them via HTTPS. Therefore, the technician should check the website’s URL and see if it starts with https:// or http://. If it is the latter, the technician should try to manually change it to https:// and see if the website loads correctly. If it does not, the technician should contact the website owner or administrator and ask them to enable HTTPS or update their SSL certificates.

Radio-frequency identification (RFID) is the most appropriate protocol to use for inventory tracking in a small warehouse. RFID is a technology that uses radio waves to identify and track objects that have RFID tags attached to them. RFID tags are small devices that store information about the object, such as its name, serial number, location, or status. RFID tags can be passive, which means they do not have a battery and rely on the radio signal from the reader to power them, or active, which means they have a battery and can transmit their own signal. RFID readers are devices that can scan the RFID tags and read the information stored on them.

RFID is suitable for inventory tracking in a small warehouse because it can provide several benefits, such as:

Faster and more accurate scanning: RFID tags can be scanned without direct line of sight, unlike barcodes, and can be scanned in bulk, unlike QR codes. This means that RFID readers can scan multiple items at once, even if they are inside boxes or containers, and reduce the time and errors involved in manual scanning.

Real-time visibility and control: RFID tags can be updated with the latest information about the inventory, such as its location, quantity, or condition. This means that RFID readers can provide real-time data and feedback on the inventory status, such as its availability, movement, or expiration. This can help improve inventory management, optimize warehouse space, and prevent stockouts or overstocking.

Enhanced security and quality: RFID tags can be encrypted and authenticated, unlike barcodes or QR codes, which can be easily copied or tampered with. This means that RFID tags can prevent unauthorized access or theft of the inventory, and ensure its authenticity and quality. This can help protect the inventory from damage, loss, or fraud, and increase customer satisfaction and trust.

The pink hue is most likely caused by physical cabling issues

the output on a monitor is clear but has a pink hue, it could be due to an issue with the physical cabling connecting the monitor to the computer. The video signal may be degraded or distorted due to a damaged or loose cable. The technician should check and replace the cable if necessary to resolve the issue.

The best action for the salesperson to take in order to view weather forecasts while traveling and minimize the battery drain on their mobile device is to configure fewer location checks using cellular location services. This can be done by adjusting the settings for the weather application to limit how often it checks for updates and uses location services. This will help to conserve the battery on the device and keep the application from consuming too much power.

The correct answer is A. Turn on the laptop and move it again to replicate the issue.

One of the basic troubleshooting techniques is to reproduce the problem and observe the symptoms. This can help to identify the cause and the solution of the issue. By turning on the laptop and moving it again, the technician can verify if the noise is related to the laptop’s movement, and if it affects the laptop’s performance or stability. The noise could indicate a loose or damaged component, such as a fan, a hard drive, or a cable, that needs to be fixed or replaced.

The other options are not the best next steps, because they do not confirm the source of the problem, and they may cause more damage or complications. Reseating the memory modules and the SSD (option B) may be helpful if the laptop has booting or performance issues, but it is unlikely to solve the noise problem. Removing the internal battery and looking for loose parts (option C) may be risky if the technician does not follow proper safety precautions, such as disconnecting the power cord and wearing an anti-static wrist strap. Inspecting the connections for a damaged cable (option D) may be part of the troubleshooting process, but it should be done after replicating the issue and narrowing down the possible causes.

For more information about laptop troubleshooting steps, you can refer to the following web search results: Computer Basics: Basic Troubleshooting Techniques, Use a fix-it tool with Windows 10, 6 Ways to Troubleshoot a Computer.

Firmware is a type of software that controls the hardware components of a device, such as the motherboard, hard drive, or keyboard. Firmware updates can improve the performance, stability, and compatibility of the device, as well as fix bugs and security issues. Running a firmware update can help to resolve the issue of a slow laptop, especially if the firmware is outdated or corrupted.

A managed switch is a network device that can be configured to create VLANs (Virtual Local Area Networks), which are logical segments of a network that isolate traffic based on criteria such as function, security, or quality of service. A VLAN can be used to isolate voice traffic on the network, which can improve the performance and security of voice over IP (VoIP) applications. A network tap, a hub, and a DSL filter are not capable of creating VLANs.

The user should configure the print job to use the Duplex option, which will print on both sides of the paper and reduce the amount of paper used.

three beeps and a black screen indicate a memory error of some sort123. This means that the RAM may not be properly installed or connected to the motherboard. Reseating the RAM means removing each stick and re-inserting it, making sure it clicks into place. This can sometimes solve the problem by ensuring a good contact between the RAM and the motherboard.

Replacing the power supply, reattaching the hard drive, or flashing the BIOS are unlikely to fix this issue, since they are not related to the memory error. The power supply provides power to the whole system, the hard drive stores data, and the BIOS is the firmware that controls the boot process. None of these components would cause three beeps and a black screen if they were faulty.

The technician should ensure that a VGA cable is connected properly between the monitor and the computer. A VGA cable is a type of video cable that carries analog signals. If the cable is loose, damaged, or not plugged in correctly, it can cause the monitor to not display any image or show distorted colors. According to the CompTIA Core1 objectives, one of the common display issues is no image on screen. A troubleshooting guide for monitors also recommends checking the VGA cable connection as a possible solution for no signal or blank screen problems.

A sandbox is a virtual environment that isolates the engineer’s research activities from the rest of the system. This allows the engineer to test, experiment, and modify the system without affecting the real data, applications, or settings. A sandbox is the best environment for research purposes because it provides a safe and controlled way to explore new ideas, simulate scenarios, and troubleshoot problems. A sandbox can also be easily reset or deleted after the research is done.

References

What is a Sandbox Environment?

Chapter 4: Virtualization and Cloud Computing

The CMOS (complementary metal-oxide-semiconductor) is a small chip on the motherboard that stores the BIOS settings, including the date and time. The CMOS battery is a coin cell battery that provides power to the CMOS chip when the computer is turned off, so that the BIOS settings are not lost. If the CMOS battery is discharged, the CMOS chip will lose its data, and the date and time will be reset to the default values. This will cause a message to display indicating that the date and time are incorrect when the computer is turned on. The other computers on the network do not display this message because they have functional CMOS batteries. The most likely cause of this issue is the CMOS battery is discharged, and it needs to be replaced with a new one12.

https://techlibrary.hpe.com/docs/iss/proliant-gen10-uefi/s_enabling_VT-d.html

Enabling VT-d (Virtualization Technology for Directed I/O) in the server's BIOS settings is required for the hypervisor to run properly. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 11

The most important step the technician should take before proceeding is A. Verify the device is fully charged and connected to a power supply.

Firmware is a type of software that controls the basic functions and operations of a device, such as a router, printer, or scanner. Firmware can be updated to fix bugs, improve performance, or add new features to the device. However, updating firmware can also be risky, as it may cause the device to malfunction or become unusable if the update process is interrupted or corrupted.

One of the main causes of firmware update failure is power loss, which can occur if the device runs out of battery or is disconnected from the power source during the update. Power loss can damage the firmware and prevent the device from booting up or functioning properly. Therefore, it is essential to verify that the device is fully charged and connected to a power supply before updating the firmware. This can ensure that the device has enough power to complete the update process and avoid any interruptions or errors.

The other options are not as important as verifying the power status of the device. Ensuring the device has adequate storage space for the update is a good practice, but it is not likely to cause a major problem if the device does not have enough space. The update process will either fail to start or prompt the user to free up some space before proceeding. Verifying administrative access on the device is also a good practice, but it is not necessary for updating firmware. Administrative access is required for installing or uninstalling software applications, but not for updating firmware. Firmware updates are usually provided by the device manufacturer or vendor and do not require user authentication. Exporting the user settings so they can be imported after the upgrade is a precautionary measure, but it is not mandatory for updating firmware. Firmware updates do not usually affect the user settings or data on the device, unless they are incompatible or corrupted. Exporting the user settings can help restore them in case of any problems, but it does not prevent them from occurring.

PCle (Peripheral Component Interconnect Express) is a type of expansion slot that connects network interface cards (NICs) and other devices to the motherboard. PCle slots have different sizes and speeds, such as x1, x4, x8, x16, and x32. PCle slots are faster and more versatile than older types of expansion slots, such as AGP (Accelerated Graphics Port) and IDE (Integrated Drive Electronics).

A wireless adapter is a device that allows a laptop to connect to a wireless network, such as a home Wi-Fi router. A wireless adapter can be either internal or external, and it can be enabled or disabled by the user or the operating system. If the wireless adapter is disabled, the laptop will not be able to access the internet when it is not connected to a wired network, such as the office dock.

The technician should do the following steps to enable the wireless adapter:

Check the physical switch or button on the laptop that controls the wireless adapter. Some laptops have a switch or button on the side, front, or keyboard that can turn on or off the wireless adapter. Make sure the switch or button is in the on position.

Check the software settings for the wireless adapter. In Windows 10, you can do this by clicking on the network icon in the system tray, and then clicking on the Wi-Fi icon. Make sure the Wi-Fi is turned on. You can also go to Settings > Network & Internet > Wi-Fi and make sure the Wi-Fi is turned on.

Check the device manager for the wireless adapter. In Windows 10, you can do this by right-clicking on the Start menu and selecting Device Manager. Expand the Network adapters category and look for your wireless adapter. Make sure it is enabled and has no errors. You can right-click on it and select Enable device or Update driver if needed.

If none of these steps work, there may be a hardware or software problem with the wireless adapter that requires further troubleshooting or replacement.

Memory modules are physical components that store data and instructions for the computer to access and process. Memory modules have different specifications and features, such as type, speed, capacity, voltage, and form factor. These specifications and features must be compatible with the motherboard and the processor of the computer, otherwise the memory modules may not work properly or cause errors.

In this scenario, the technician is working to replace a single DDR3 RAM module on a laptop that has two occupied slots. DDR3 stands for Double Data Rate 3, and it is a type of memory technology that offers faster performance and lower power consumption than its predecessors. DDR3 RAM modules have different variants, such as DDR3L, DDR3U, or DDR3R, which have different voltage requirements. For example, DDR3L operates at 1.35V, DDR3U operates at 1.25V, and DDR3R operates at 1.5V.

When the technician tries to turn on the laptop, the computer starts beeping and does not pass POST. POST stands for Power-On Self-Test, and it is a process that checks the hardware components and functionality of the computer before loading the operating system. If POST detects an error or a failure, it may produce a series of beeps or codes to indicate the problem. The number and pattern of beeps or codes may vary depending on the manufacturer or model of the computer.

The technician double-checks the newly installed RAM and notices a motherboard message indicating low voltage. This means that the motherboard is not receiving enough power from the memory module to operate normally. This could indicate that the memory module is not compatible with the motherboard or the processor, or that it is defective or damaged. The most likely cause of this issue is that the technician installed an unsupported memory module that has a lower voltage than what the motherboard or the processor requires.

To resolve this issue, the technician should remove the newly installed RAM module and replace it with a compatible one that has the same voltage as the existing ones. The technician should also check the specifications and features of the motherboard and the processor to ensure that they support the type, speed, capacity, and form factor of the memory modules. The technician should also follow proper safety precautions when handling memory modules, such as wearing an anti-static wrist strap, avoiding physical damage or static discharge, and aligning the notches correctly.

The issue is related to interference from the microwave, which operates at 2.4GHz, the same frequency as some Wi-Fi channels. To avoid this interference, the technician should configure the Wi-Fi access point (AP) to use a 5GHz band, which has more channels and less interference from other devices. Changing the Wi-Fi operation channel may not solve the problem if the microwave interferes with multiple channels. Increasing the power output of the AP may not overcome the interference and may cause more interference to other devices. Changing the SSID to hidden does not affect the interference at all, and may make it harder for users to connect to the network. References: https://www.comptia.org/blog/what-is-wifi-6-and-why-is-it-important

The correct answer is B. Serial.

A serial cable is a type of cable that can be used to connect devices that use serial communication, which is a method of sending data one bit at a time over a single wire. Serial cables are often used for console access to network devices, such as routers, switches, firewalls, or servers, when other methods of connection, such as SSH (Secure Shell), are not available or not working.

A DB9 connector is a type of connector that has nine pins and is commonly used for serial cables. DB stands for D-subminiature, which is a family of connectors that have a D-shaped metal shield and different numbers of pins. DB9 connectors are also known as DE-9 connectors, as they belong to the E size category of D-subminiature connectors. DB9 connectors can support various serial standards, such as RS-232, RS-422, or RS-485.

A parallel cable is a type of cable that can be used to connect devices that use parallel communication, which is a method of sending data multiple bits at a time over multiple wires. Parallel cables are often used for connecting printers or scanners to computers, but they are not commonly used for network devices or serial connections.

An optical cable is a type of cable that can be used to transmit data using light signals over fiber-optic strands. Optical cables can offer high-speed, high-bandwidth, and low-interference data transmission over long distances. Optical cables are often used for network communication, such as Ethernet, or audio/video transmission, such as HDMI or TOSLINK.

A USB cable is a type of cable that can be used to connect devices that use the Universal Serial Bus (USB) standard, which is a protocol that allows data and power transmission between devices. USB cables can support various types of devices, such as keyboards, mice, cameras, flash drives, or chargers. USB cables have different versions and connectors, such as USB-A, USB-B, USB-C, or Micro-USB.

Therefore, the only cable that uses a DB9 connector is a serial cable. For more information about cables and connectors, you can refer to the following web search results: [What Is a Serial Cable?], [What Is a Parallel Cable?], [What Is an Optical Cable?], [What Is a USB Cable?].

The most likely issue is C. Tray settings.

Tray settings are the configuration options that tell the printer what size and type of paper is loaded in each tray. If the tray settings do not match the actual paper size and type, the printer may not be able to feed the paper correctly and cause paper jams.

In this scenario, the team that is having issues prints legal-sized documents, which are 8.5 x 14 inches, while the other teams print letter-sized documents, which are 8.5 x 11 inches. If the printer’s tray settings are set to letter size by default, the printer may not recognize the legal-sized paper and try to pull it as if it were letter-sized paper. This can result in paper jams or misaligned printing.

To fix this issue, the team should check and adjust the tray settings on the printer to match the paper size and type they are using. They can also use a separate tray for legal-sized paper and another tray for letter-sized paper, and make sure to select the correct tray when printing.

The other options are less likely to cause the issue, because:

•Worn rollers are the rubber parts that grip and move the paper through the printer. They can wear out over time and lose their traction, causing paper jams or misfeeds. However, worn rollers would affect all teams and all paper sizes, not just one team and one paper size.

•Page orientation is the direction of the paper, either portrait or landscape. It can affect how the document is printed on the paper, but not how the paper is fed into the printer. Page orientation can be changed in the print settings or in the document itself, but it would not cause paper jams unless the paper size is also incorrect.

•Multipage misfeed is when more than one sheet of paper is pulled into the printer at once, causing a jam. This can happen if the paper is too thin, too thick, or too slippery, or if there is too much or too little paper in the tray. However, multipage misfeed would also affect all teams and all paper sizes, not just one team and one paper size.

For more information and tips on how to prevent and fix paper jams, you can visit these links:

•Fix Paper Jam Errors | HP® Support

•Common Causes of Paper Jams and How to Fix Them - 1ink.com

A swollen battery is the most likely cause of the issue that the customer is reporting. A swollen battery is a battery that has expanded in size due to a chemical reaction, gas buildup, or overheating. A swollen battery can cause pressure on the laptop’s chassis, keyboard, track pad, and other components, making them hard to press or click. A swollen battery can also pose a fire hazard and damage the laptop’s performance and lifespan.

The other options are not as likely or relevant to the issue. Dropping the laptop may cause cracks or other visible damage to the chassis or screen, but the technician did not notice any. The digitizer is the part of the laptop that converts touch input into digital signals, and it has nothing to do with the keyboard or the track pad buttons. An open bottle of rubbing alcohol falling onto the keyboard may cause liquid damage, corrosion, or short circuits, but it would not affect the track pad buttons or the bottom edge of the keyboard.

To troubleshoot and resolve the issue, the technician should remove the battery from the laptop and inspect it for signs of swelling, such as bulging, deformation, or leakage. The technician should also check the laptop’s chassis, keyboard, and track pad for any signs of damage or warping caused by the battery. The technician should then replace the swollen battery with a new one that is compatible with the laptop’s model and specifications. The technician should also dispose of the swollen battery properly and safely, following the local regulations and guidelines.

The correct answer is D. UDP.

UDP (User Datagram Protocol) is a connectionless protocol that does not establish a connection before sending or receiving data. UDP simply sends datagrams to the destination without checking if the receiver is ready or not. UDP does not guarantee reliable delivery, error correction, or in-order arrival of the data. UDP is faster and more efficient than connection-oriented protocols for applications that do not require reliability, such as streaming audio or video1

A. SSH (Secure Shell) is not a correct answer. SSH is a connection-oriented protocol that uses TCP (Transmission Control Protocol) as its transport layer. SSH establishes a secure and encrypted connection between two network endpoints before exchanging data. SSH provides authentication, confidentiality, and integrity for remote login and command execution2

B. TCP (Transmission Control Protocol) is not a correct answer. TCP is a connection-oriented protocol that establishes a connection before sending or receiving data. TCP ensures reliable delivery, error correction, and in-order arrival of the data. TCP is slower and more complex than connectionless protocols, but it provides more reliability and quality of service for applications that require it, such as web browsing or email1

C. HTTPS (Hypertext Transfer Protocol Secure) is not a correct answer. HTTPS is a connection-oriented protocol that uses TCP as its transport layer and SSL/TLS as its security layer. HTTPS establishes a secure and encrypted connection between a web browser and a web server before exchanging data. HTTPS provides authentication, confidentiality, and integrity for web transactions, such as online banking or shopping1

The most likely explanation for the distorted image on the projector is that the projector’s aspect ratio is set incorrectly. The aspect ratio is the ratio of the width to the height of the image, and it affects how the image is displayed on the screen. If the aspect ratio of the projector does not match the aspect ratio of the laptop, the image may appear stretched, squashed, cropped, or letterboxed.

To fix the distorted image, the technician should follow these steps:

Check the aspect ratio of the laptop and the projector. The aspect ratio of the laptop can be found in the display settings of the operating system, such as Windows or Mac OS. The aspect ratio of the projector can be found in the user manual or the on-screen menu of the projector. Common aspect ratios are 4:3, 16:9, and 16:10.

Adjust the aspect ratio of the projector to match the aspect ratio of the laptop. The technician can use the remote control or the buttons on the projector to access the on-screen menu and select the appropriate aspect ratio option. Some projectors may have a dedicated aspect ratio button on the remote control or the projector itself.

Verify that the image is displayed correctly on the screen. The technician can use the zoom, focus, or keystone buttons on the projector or the remote control to fine-tune the image quality and alignment.

The most likely cause of the issue is that the user’s USB-C hub is faulty or incompatible with the laptop. The USB-C hub is a device that allows the user to connect multiple peripherals to the laptop using a single USB-C port. If the hub is not working properly, it may prevent the monitor, keyboard, mouse, and headset from functioning. The technician should replace the user’s USB-C hub with a new one that is compatible with the laptop and test the peripherals again. Verifying the AC adapter voltage will not help with the issue, as the AC adapter is used to power the laptop, not the peripherals. Repairing the operating system will not help either, as the issue is not related to software. Reinstalling the drivers for affected devices may not help, as the issue may be caused by the hub, not the devices. Making sure the printer is not drawing too much power is irrelevant, as the printer is not connected to the hub or affecting the other peripherals. References: https://www.comptia.org/blog/what-is-usb-c

It is designed to protect an organization's network infrastructure and data from unauthorized access, while allowing legitimate traffic to pass through. Firewalls can be configured to enforce security policies that block certain types of traffic, limit access to specific network resources, and prevent attacks such as malware and phishing.

A firewall is a network security system that monitors and controls incoming and outgoing network traffic based on predetermined security rules. It establishes a barrier between a trusted internal network and an untrusted external network, such as the Internet. Firewalls are used to implement network security policies for an environment by controlling access to the network and protecting it from unauthorized access.

A firewall is used to implement network security policies. It monitors incoming and outgoing traffic based on predetermined security rules and can block traffic that does not meet the defined criteria. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Chapter 6, page 243)

To configure the laptop to show both screens, the technician should adjust the monitor display settings. On Windows 10 or 11, the technician can select the Start menu, then open Settings, then select Display. The PC should automatically detect the monitors and show the desktop. If the monitors are not detected, the technician can select Multiple displays, then Detect. The technician can then use the dropdown list next to the image of the desktop to choose how the screen will project across the displays12345.

The correct answer is D. PAN.

A PAN, or Personal Area Network, is a type of network that connects devices within a short range, usually less than 10 meters, and is used by an individual. A PAN can be wireless or wired, and it can enable data transmission between devices without requiring an internet connection. A PAN can also be connected to a LAN or a higher level network, where one device acts as a gateway.

A Bluetooth hotspot is an example of a wireless PAN, where a device such as a smartphone or a laptop can create a network with other Bluetooth-enabled devices nearby. A Bluetooth hotspot can allow devices to share files, access the internet, or use peripherals such as printers or speakers.

A SAN, or Storage Area Network, is a type of network that connects storage devices such as hard disks, tape drives, or optical drives to servers. A SAN provides high-speed data transfer and access to large amounts of data. A SAN is usually used in data centers or enterprises that need to store and manage huge volumes of data.

A WAN, or Wide Area Network, is a type of network that connects devices over a large geographical area, such as across cities, countries, or continents. A WAN can use different technologies and media to transmit data, such as fiber-optic cables, satellite links, or radio waves. A WAN can also consist of multiple LANs or other types of networks. The internet is the largest example of a WAN.

A LAN, or Local Area Network, is a type of network that connects devices within a limited area, such as within a building or a campus. A LAN can use wired or wireless technologies to transmit data, such as Ethernet cables, Wi-Fi routers, or switches. A LAN can enable devices to share resources, such as printers, scanners, or files.

For more information about the types of networks and their differences, you can refer to the following web search results: 11 Types of Networks: Understanding the Differences, Types of Computer Networks, Types of network - Introduction to networks.

A damaged battery can cause a laptop to overheat and swell, making it unable to sit level on the workspace. A swollen battery can also pose a fire hazard and damage other components of the laptop, such as the motherboard or keyboard. The technician should replace the battery as soon as possible and dispose of it properly according to local regulations. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-combined-content-guide (page 25)

RAID 10 (also known as RAID 1+0) combines the features of RAID 1 (mirroring) and RAID 0 (striping) to provide both redundancy and performance enhancements. This configuration requires a minimum of four drives and offers fast data access through striping while ensuring data redundancy through mirroring. RAID 10 is ideal for environments where both data integrity and performance are critical, such as financial databases.

The correct answer is D. Sandboxing.

Sandboxing is a security technique that isolates email attachments in a safe place until the attachments can be scanned for malware. A sandbox is a virtual environment that mimics the operating system and applications of the user, but prevents any changes or damage to the actual system. A sandbox can also monitor the behavior and activity of the attachments and detect any malicious code or actions12.

An approve listing is a security technique that allows only trusted or authorized email senders or domains to be received by the user. An approve listing can help reduce spam and phishing emails, but it does not scan or isolate email attachments for malware3.

A screened subnet is a security technique that creates a buffer zone between the internal network and the internet. A screened subnet uses firewalls and routers to filter and control the traffic that enters and exits the network. A screened subnet can help protect the network from external attacks, but it does not scan or isolate email attachments for malware.

Cross-platform virtualization is a technology that allows running multiple operating systems and applications on the same physical machine. Cross-platform virtualization can help improve efficiency, flexibility, and compatibility, but it does not scan or isolate email attachments for malware.

The technician should restart the modem and run an online internet connection and speed diagnostic tool1. High latency is a common issue with satellite internet connections, and it can cause slow internet speeds2. Restarting the modem can help to resolve the issue1. The technician should also run an online internet connection and speed diagnostic tool to check the connection and speed1. Guiding the customer on how to upgrade the internet plan with the provider in order to improve latency is not likely to be the correct option2.

High latency while pinging can indicate a problem with the modem or the connection between the modem and the satellite. Restarting the modem can often resolve connectivity issues. Running an online internet connection and speed diagnostic tool can help identify any other issues with the connection. Upgrading the internet plan may not resolve latency issues and may not be necessary if the download test is performing perfectly with very good download speeds. High latency is not normal for satellite internet connections, so replacing the modem based on this one test result is premature. References: CompTIA A+ Certification Exam: Core 1 - Page 102

A patch panel is a mounted hardware unit containing ports used to manage cable connections. The individual pairs of a Cat 6 cable are terminated on the patch panel, which then provides a central location for cable management and organization. The patch panel is then connected to the switch using a patch cable.

The correct answer is A. Tethering.

Tethering is the process of sharing a mobile device’s internet data connection with other devices, such as laptops, tablets, or other phones. Tethering can be done by using a Wi-Fi hotspot, a Bluetooth connection, or a USB cable. A Wi-Fi hotspot creates a wireless network that other devices can join, a Bluetooth connection pairs the devices and allows data transfer, and a USB cable connects the devices physically and enables data sharing.

A PAN, or personal area network, is a type of network that connects devices within a short range, usually up to 10 meters. A PAN can be used for various purposes, such as transferring files, printing documents, or accessing the internet. A PAN can be created by using Bluetooth, Wi-Fi, or infrared technologies.

A technician can use a PAN to connect a group of users on a field project by using tethering on a mobile device. The technician can activate the tethering service on the mobile device and choose the preferred method of sharing the internet data connection. The other devices can then connect to the mobile device and access the internet through it.

The other options are incorrect because they are not services that can share the internet data connection on a mobile device. Pairing is the process of establishing a connection between two Bluetooth devices, but it does not necessarily share the internet data connection. Bluetooth is a technology that can create a PAN and enable tethering, but it is not a service that can be activated on a mobile device. Hotspot is a term that can refer to a Wi-Fi hotspot created by tethering on a mobile device, but it is not a service that can be activated on its own.

The correct answer is B. 22.

Port 22 is the default port for SSH (Secure Shell), a protocol that allows secure and encrypted remote login and command execution over a network. SSH uses public key cryptography to authenticate the client and the server, and to encrypt the data exchanged between them. SSH can be accessed through different ports, depending on the configuration of the server and the client. The default port for SSH is 22, but it can be changed to any other port for security reasons1.

Port 20 is the default port for FTP (File Transfer Protocol) data transfer, a protocol that allows file transfer between a client and a server over a network. FTP uses two ports: one for data transfer (port 20) and one for control commands (port 21). FTP does not provide encryption or authentication, and it is vulnerable to various attacks, such as packet sniffing, spoofing, or brute force. To secure FTP connections, protocols such as FTPS (FTP over SSL) or SFTP (SSH File Transfer Protocol) can be used2.

Port 23 is the default port for Telnet, a protocol that allows remote login and command execution over a network. Telnet does not provide encryption or authentication, and it sends data in plain text, which can be easily intercepted or modified by attackers. Telnet is considered obsolete and insecure, and it should be replaced by SSH or other secure protocols3.

Port 25 is the default port for SMTP (Simple Mail Transfer Protocol), a protocol that allows sending and receiving email messages over a network. SMTP does not provide encryption or authentication, and it can be exploited by spammers or hackers to send malicious or unwanted emails. To secure SMTP connections, protocols such as SMTPS (SMTP over SSL) or STARTTLS (Transport Layer Security) can be used.

Therefore, port 22 is the only port that allows for secure communications by default, as it uses SSH protocol. For more information about ports and their security, you can refer to the following web search results: How to secure your TCP/IP ports, What is an SSL port? A technical guide for HTTPS, HTTPS Port: What It Is, How to Use It, and More (2023).

A laptop’s battery is the component that provides power to the laptop when it is not connected to an external power source, such as a wall outlet or a docking station. A laptop’s battery can wear out over time, losing its capacity and ability to hold a charge. This can cause the laptop to not turn on or shut down unexpectedly when it is not plugged in .

According to some web search results , some signs and symptoms of a failing laptop battery are:

•The laptop does not turn on or turns off suddenly when it is not connected to an external power source

•The laptop shows a low battery warning or a red X over the battery icon even when it is fully charged

•The laptop takes longer to charge or does not charge at all

•The laptop feels hot or the battery bulges or leaks

To fix this issue, the technician should replace the laptop’s battery with a new one that is compatible with the laptop model and specifications. The technician should also dispose of the old battery properly, following the environmental and safety guidelines .

Reinstalling the laptop’s operating system, enabling a remote desktop account, or issuing a peripheral set for use in the conference room are not effective solutions for this issue, since they do not address the root cause of the problem, which is the faulty battery. Reinstalling the operating system may erase the user’s data and settings, and it may not improve the laptop’s performance or power management. Enabling a remote desktop account may allow the user to access their files and applications from another device, but it does not solve the problem of the laptop not turning on. Issuing a peripheral set for use in the conference room may provide the user with an external monitor, mouse, and keyboard, but it does not guarantee that the laptop will work without an external power source.

An 8-pin PCIe (Peripheral Component Interconnect Express) power cable is required to provide adequate power to each GPU in an SLI (Scalable Link Interface) configuration. High-performance GPUs often require more power than the PCIe slot on the motherboard can supply, necessitating additional power directly from the power supply. The 8-pin PCIe connector can deliver more power than the standard 6-pin connector, making it suitable for high-end graphics cards commonly used in SLI configurations. This requirement is consistent with the hardware installation and configuration principles covered in the CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly in sections dealing with hardware components and their installation .

A type II hypervisor is a software application that runs on top of a host operating system and creates virtual machines that are isolated from the host. A type II hypervisor provides the highest level of isolation from the host operating system because it does not have direct access to the hardware resources and relies on the host operating system for drivers and services. A type II hypervisor also allows the guest operating systems to run different types of operating systems than the host.

A serial interface is a common way to connect to the console port of a switch using a rollover cable and a terminal emulator program. This allows the network technician to configure and troubleshoot the switch. Bluetooth, near-field communication, and port replicator are not used for console connections.

Category 7 (Cat 7) cables provide the best performance with the least Electromagnetic Interference (EMI) due to their enhanced shielding. Cat 7 cables are designed to support higher speeds and bandwidth while reducing interference compared to Cat 5 or Cat 6.

Why Not A (Cat 5): Cat 5 cables have limited shielding and are prone to EMI, making them unsuitable for high-performance requirements.

Why Not B (Cat 6): Cat 6 offers better shielding than Cat 5 but less than Cat 7.

Why Not D (Coaxial): While coaxial cables are resistant to EMI, Cat 7 offers better performance overall for networking applications.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.1, cable types and their performance characteristics​.

To clean sticking keys on a laptop keyboard, using compressed air is the most effective and safest method. Compressed air can dislodge and remove crumbs, dust, and other debris from under the keys without risking damage to the keyboard's electronic components or the keys themselves. This approach is non-invasive and widely recommended for keyboard maintenance.

One of the possible causes of the error message “No Source Found” is that the projector is not receiving any signal from the connected device, such as a laptop1. This could be due to an incorrect input source selected on the projector or an improper display setting on the laptop. Therefore, the first actions that the technician should take are to verify the projector settings and make sure the correct input is selected, and to check the laptop display settings and set them to extend/duplicate23.

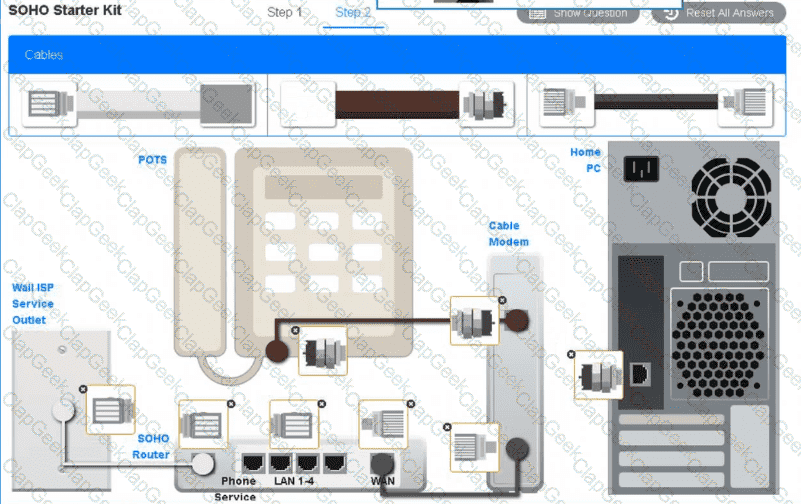

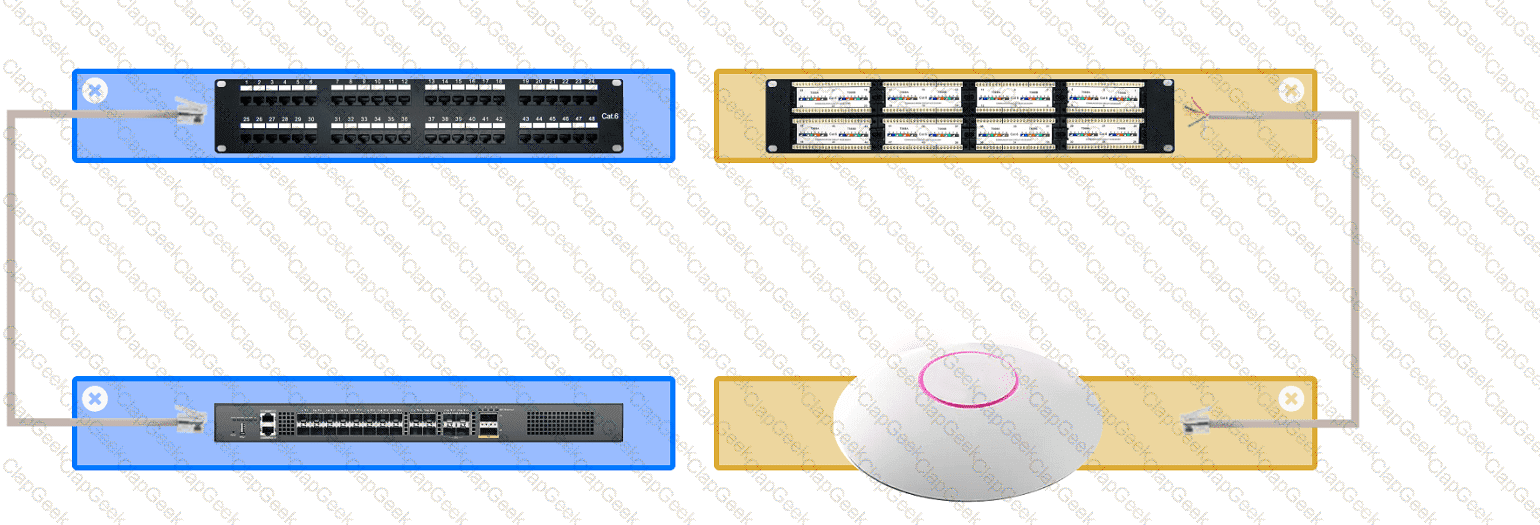

Check the exhibit diagram for both parts.

Part 2

A toner probe (also known as a tone generator and probe) is the best tool for tracing and identifying cables in a patch panel or wall jack. The tone generator sends a signal through the wire, and the probe helps locate the cable by detecting the tone.

Option A (Crimper): Used to attach connectors (e.g., RJ-45), not for tracing cables.

Option B (Punchdown tool): Used to terminate cables into patch panels or keystone jacks.

Option C (Cable stripper): Used to remove insulation, not to trace cables.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 5.1: Identify basic cable types, their connectors, and their features.

The domain name system (DNS) is the component that houses the MX record. The MX record is a type of DNS record that specifies which mail server is responsible for receiving email messages for a domain name. VLAN is an acronym for virtual local area network, which is a logical subdivision of a network that allows devices to communicate as if they were on the same physical segment. DHCP is an acronym for dynamic host configuration protocol, which is a network protocol that assigns IP addresses and other configuration parameters to devices on a network automatically. SMTP is an acronym for simple mail transfer protocol, which is a network protocol that allows sending and receiving email messages over TCP/IP networks

A load balancer is a network device that distributes network or application traffic across multiple servers to ensure that no single server bears too much of the load. Load balancing helps to improve application availability, increase scalability, and optimize resource utilization.

A bridge is used to connect two different networks, often to divide a larger network into smaller segments. A proxy server is used to forward client requests to other servers, and can also be used to cache frequently requested data. A switch is used to connect multiple devices within a network and to control the flow of network traffic. A firewall is used to secure a network by controlling incoming and outgoing traffic based on defined security rules.

NFC (Near Field Communication) is a technology used for short-range wireless communication between devices, typically used for contactless payments and authentication. In this scenario, the 13.56MHz frequency short band was implemented, and users can authenticate using their mobile devices, which requires NFC to be enabled on the device. References: CompTIA A+ Certification Exam Objectives 220-1001 - Mobile device network and device synchronization - 4.4

A network tap (Test Access Point) is a device used for monitoring network traffic. It allows the technician to passively observe the traffic between two network nodes in real-time without introducing latency or affecting the network's performance. By using a network tap, the technician can analyze the data packets flowing through the network to identify if packet loss is occurring, which could be contributing to the slow network traffic in the branch office.

Color gamut refers to the range of colors a display can accurately reproduce. For tasks like graphic design or photo editing, ensuring the screen's colors match the printed output is critical. Monitors with wide and accurate color gamuts (e.g., Adobe RGB) are preferred for these applications.

Option B (Pixel density): Incorrect. Pixel density affects image sharpness, not color accuracy.

Option C (Refresh rate): Incorrect. Refresh rate impacts motion smoothness but is unrelated to color matching.

Option D (Resolution): Incorrect. Resolution determines clarity and detail but does not influence color accuracy.

Before creating a virtual machine (VM) on a computer, it's crucial to ensure that the CPU supports virtualization and that this feature is enabled in the BIOS (or UEFI) settings. While sufficient RAM and hard drive space are also important for running VMs effectively, and compatibility with the graphics card might be a consideration for VMs with intensive graphical requirements, the foundational step is to verify that the CPU supports virtualization and that this feature is activated in the BIOS settings. This is because virtualization technology, often referred to as VT-x (on Intel CPUs) or AMD-V (on AMD CPUs), is a prerequisite for running most virtualization software efficiently.

VGA (Video Graphics Array) is a legacy 15-pin connector used for transmitting analog video signals. VGA was commonly used to connect monitors to computers, but it has been largely replaced by more modern digital interfaces like DVI and HDMI.

C. VGA: A legacy 15-pin connector used for analog video signals.

Why the other options are incorrect:

A. DisplayPort: DisplayPort is a newer digital interface and does not use a 15-pin connector.

B. DVI: DVI (Digital Visual Interface) is a digital connector used for video signals but does not have 15 pins.

D. HDMI: HDMI is also a digital interface for audio and video, but it uses a different connector with no 15 pins.

This topic relates to the Hardware domain in the CompTIA A+ Core 1 exam​.

Printers that use PostScript drivers are designed to handle complex printing tasks, including detailed graphics and images in PDF files. However, if the printer's PostScript driver is outdated, incompatible, or improperly configured, it may struggle to process and print PDF files containing images. Updating or reinstalling the PostScript driver, or choosing a different driver compatible with the printer and document type, can resolve this issue.

When a user connects a laptop to a projector and the image displayed is very fuzzy (blurred) but the brightness level is satisfactory, the first setting to adjust on the projector is the focus. The focus control adjusts the clarity and sharpness of the projected image. Incorrect focus settings can lead to a fuzzy or blurred image even when the brightness is adequate. Adjusting the focus should help in making the image clear and sharp.

In Platform as a Service (PaaS), the cloud provider manages the hardware, operating system, and middleware, while the customer is responsible for managing data and applications.

Why Not B (SaaS): In SaaS, the provider manages all layers, including applications and data, leaving no responsibility for the customer.

Why Not C (IaaS): In IaaS, the customer manages the OS, data, and applications, while the provider only handles the hardware.

Why Not D (CaaS): CaaS (Container as a Service) is not a primary cloud model described in the CompTIA objectives and is less commonly referenced.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 4.1, cloud computing models​.

Testing the power supply first ensures that the correct voltage is reaching all components, which is a common cause of boot issues. Modifying BIOS settings is not possible without a POST. Checking PCIe cards or replacing the motherboard are secondary steps if the power supply is functional. CompTIA A+ Core 1 objectives cover power supply testing as an essential troubleshooting step in system startup issues.

For laptops, the most common type of RAM used is Small Outline Dual Inline Memory Module (SODIMM) due to its smaller size compared to DIMMs used in desktops. DDR5 is the latest generation of RAM, offering higher speed and efficiency. ECC (Error-Correcting Code) DIMM DDR5 and Registered DIMM DDR5 are typically used in servers and high-end workstations for error correction and stability, not in standard laptops. High latency DDR5 is not a desirable specification for RAM as lower latency is preferred for faster performance.

The symptoms described, such as the operating system taking longer than usual to load and hearing clicking sounds from within the workstation, are indicative of a failing hard drive. Clicking sounds, often referred to as the "click of death," signal the read/write head of the hard drive struggling to function properly. This mechanical failure leads to longer load times as the system struggles to read data from the disk. It is crucial to back up data and consider replacing the hard drive to prevent data loss.

Comprehensive and Detailed Step-by-Step Explanation:

To answer this question, we need to identify the port numbers associated with email protocols used in client-server communication.

Port 25 (SMTP - Simple Mail Transfer Protocol):

This port is primarily used for sending emails between mail servers and from mail clients to mail servers (sending outbound mail).

SMTP is an essential protocol for email traffic.

USB-C is a versatile connector capable of transmitting data, video, audio, and power. With standards like DisplayPort over USB-C or Thunderbolt 3/4, it can be used for external displays, file transfers, charging, and more — all through one cable.

Option B (HDMI): Supports video and audio but not general data transfer.

Option C (DisplayPort): Similar to HDMI — supports video/audio but not general file transfer.

Option D (VGA): Legacy analog video only — no data or audio support.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.1: Identify common connector types.

The appropriate power supply specification for the described workstation setup is 12V, 500W output. This specification ensures that the power supply can handle the combined power requirements of an ATX motherboard, multi-core processor, dedicated graphics solution, SATA hard drive, and DDR4 memory. The 12V rail is crucial for components such as the CPU and graphics card, while a 500W output provides sufficient power overhead to support the system under load, as well as potential future upgrades or additional components.

Given the network information for the server “InternalToolCentral” with an IP address of “192.130.230.5” and a subnet mask of “255.255.255.0”, the gateway address should be within the same network range. However, the gateway address is listed as “192.130.230.1”, which is correct and within the same subnet. Therefore, the issue is not with the gateway settings.

The DNS servers are listed as “8.8.8.8” and “4.2.2.1”, which are public DNS servers and should be able to resolve domain names correctly if they are reachable.

The open ports listed include 25 (SMTP), 80 (HTTP), 110 (POP3), 443 (HTTPS), and 3306 (MySQL), which are standard ports for their respective services.

Considering the provided options and the network settings, the most likely explanation for users being unable to access resources on the file server is: A. Applicable ports have been closed during routine hardening. This could prevent users from connecting to the necessary services on the file server.

The symptoms — slow response and failed app launches — indicate that the device's memory or processing resources are overutilized. Closing unnecessary apps can free up RAM and CPU resources, improving performance.

Option A: Overheating may cause sluggishness, but that’s not indicated here.

Option C: Factory reset is a last resort, not the next logical step.

Option D: Battery health would affect uptime, not system speed.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.6: Given a scenario, configure basic mobile device network connectivity and application support.

Display burn-in occurs when a static image is left on a screen for a long time, causing the pixels to wear out unevenly and retain a ghost image even when new content is displayed. This issue can result in double images, where the "burned-in" stationary image persists alongside new, live content. This problem is more common in older displays or those used for static signage. Replacing the display cable or adjusting color settings would not address the underlying cause of uneven pixel wear, and burned-out bulbs would likely result in a loss of image clarity or brightness, not double images.

An MX (Mail Exchange) record in DNS specifies the mail server responsible for accepting email messages on behalf of a domain. It is a vital component of the email delivery process, directing email to the correct server based on the domain part of the email address. Without properly configured MX records, a domain's email system cannot function correctly.

If a desktop fails to power on entirely, the most probable cause is a faulty Power Supply Unit (PSU). If there are no lights, fans, or POST beeps, the PSU may have failed, cutting off all power to the motherboard and components.

Option B (GPU): Could prevent video output, but the system would still power on and beep.

Option C (RAM): Missing or faulty RAM would cause POST errors but not prevent startup entirely.

Option D (CPU): A bad CPU may cause POST failure, but the system would usually at least power on.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

===========

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

eSIM is cost-effective, avoids physical SIM distribution, and provides flexibility in professional environments.

Option Evaluation:

A. Forward a company number to the employee's mobile phone: Temporary and lacks professionalism. Incorrect.

B. Offer a company SIM card: Requires physical handling and less secure than eSIM. Incorrect.

C. Give a company mobile phone: Expensive and not necessarily required. Incorrect.

D. Issue a company eSIM to the employee: Ensures cost-effectiveness and secure deployment. Correct.

ference: Domain 1.7 highlights the importance of device provisioning in corporate environments​​.

To adjust the VLAN configuration, the technician needs to configure the switch. VLANs are configured on switches to segment network traffic logically, even if the devices are connected to the same physical network. By adjusting the VLAN settings on the switch, the technician can ensure that the sales department has access to the marketing department's network resources.

C. Switch: VLANs are configured on switches to logically separate or combine network segments.

Why the other options are incorrect:

A. Network card: A network card is a hardware component that connects a device to a network, but it does not configure VLANs.

B. Patch panel: A patch panel is used to organize and manage network cables but does not play a role in VLAN configuration.

D. Server: A server may host resources, but VLANs are managed at the switch level.

E. Hub: A hub is a basic networking device that simply forwards traffic; it cannot be used to configure VLANs.

This falls under the Networking domain in the CompTIA A+ Core 1 exam​.

A Hardware Security Module (HSM) securely manages cryptographic keys, including those used to protect credit card chips.

Why Not A (TLS): TLS secures data in transit, not encryption key storage.

Why Not B (AMD): AMD refers to processors, not security modules.

Why Not D (ARM): ARM is a processor architecture, not a cryptographic security solution.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.5, cryptographic hardware​.

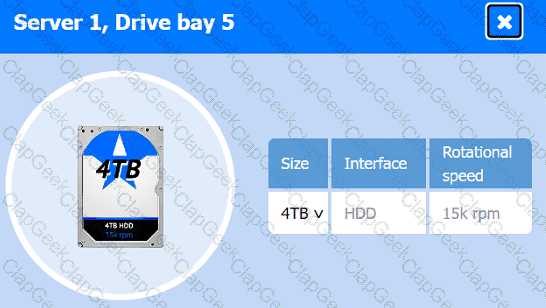

Clicking and grinding noises indicate mechanical drive failure.

SMART data provides insights into the health and status of drives, helping identify failing components in the RAID array.

Why Not A (Run a magnet): This would damage drives.

Why Not B (Check if one drive is not level): Physical leveling is irrelevant.

Why Not D (Check OS logs): OS logs may provide limited information for RAID arrays.

Why Not E (Update RAID controller firmware): While important, it does not diagnose drive failure.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.3, storage troubleshooting​.

The most likely cause is a swollen battery, which occurs when the battery's internal components break down, causing a buildup of gas. This results in:

Physical Symptoms: The battery bulges, pushing the screen away.

Operational Symptoms: The device may still power on when connected to a charger but fails to hold a charge due to battery degradation.

Option A (Malfunctioning power supply): Incorrect. Power supply issues affect charging but do not cause physical bulging.

Option B (Damaged charge port): Incorrect. A damaged port can prevent charging but does not explain the bulge.

Option D (Broken screen): Incorrect. A damaged screen does not cause the device to bulge; it is likely a secondary effect of the swollen battery.

Safety Note: A swollen battery poses a risk of fire or explosion and should be replaced immediately following proper disposal procedures.
