2V0-13.24 VMware Cloud Foundation 5.2 Architect Exam Questions and Answers

In VMware Cloud Foundation (VCF) 5.2, VMware Aria Automation (formerly vRealize Automation) enhances the platform by providing self-service, automation, and multi-site management capabilities. The architect must determine which requirements (REQ01-REQ05) are directly satisfied by the design decisions (DD01 and DD02). Let’s evaluate each requirement against the decisions:

Design Decisions:

DD01: Clustered deployment of Aria Automation

A clustered deployment ensures high availability and scalability of Aria Automation, supporting multiple users and workloads with resilience.

DD02: Integration between Aria Automation and multiple geo-located vCenter Servers

This enables centralized management of distributed vSphere environments (e.g., across availability zones or regions), facilitating network and resource orchestration.

Evaluation of Requirements:

Option A: REQ01 - The solution must support the private cloud cybersecurity industry and local standards and controls

This requirement focuses on cybersecurity and compliance (e.g., encryption, access controls, auditing). While Aria Automation supports role-based access control (RBAC) and integrates with secure VCF components, neither DD01 nor DD02 directly addresses cybersecurity standards or local controls. These are typically met by VCF’s baseline security features (e.g., NSX, vSphere hardening), not specifically by Aria Automation’s clustering or vCenter integration. Thus, REQ01 is not directly satisfied by the stated decisions.

Option B: REQ02 - The solution must ensure that the cloud services are transitioned to operation teams

This requirement implies operational handoff, training, or automation to enable operations teams to manage services. Aria Automation’s clustering (DD01) improves reliability, and vCenter integration (DD02) centralizes management, but neither explicitly ensures a transition process (e.g., documentation, runbooks). This is more about operational processes than the technical decisions provided, so REQ02 is not directly satisfied.

Option C: REQ03 - The solution must provide a self-service portal

This is correct. Aria Automation’s primary function in VCF 5.2 is to provide a self-service portal for users to provision and manage resources (e.g., VMs, applications). A clustered deployment (DD01) ensures theportal’s availability and scalability, supporting multiple users concurrently. Integration with vCenter Servers (DD02) enhances its capability to deploy resources across sites, but DD01 alone directly satisfies REQ03 by enabling a robust self-service experience. Thus, REQ03 is satisfied.

Option D: REQ04 - The solution must provide the ability to consume storage based on policies

This requirement involves policy-driven storage management (e.g., vSAN storage policies). Aria Automation supports storage policies via integration with vSphere/vSAN, allowing users to define storage profiles (e.g., performance, capacity). However, this capability is inherent to vSphere/vSAN integration, not uniquely tied to clustering (DD01) or geo-located vCenter integration (DD02). While Aria Automation facilitates this, the design decisions don’t specifically address storage policy consumption as a primary outcome, making REQ04 less directly satisfied compared to others.

Option E: REQ05 - The solution should provide the ability to extend networks between different availability zones

This is correct. Integrating Aria Automation with multiple geo-located vCenter Servers (DD02) enables management of distributed environments, including network extension across availability zones. In VCF 5.2, this leverages NSX-T for Layer 2 stretching (e.g., via HCX or NSX Federation), orchestrated through Aria Automation. DD02 directly supports this by connecting disparate vCenters, allowing network policies and extensions to be applied across zones. Clustering (DD01) supports scalability but isn’t the key factor—DD02 is the primary enabler. Thus, REQ05 is satisfied.

Conclusion:

The two requirements satisfied by the design decisions are:

REQ03 (C): A clustered Aria Automation deployment (DD01) directly provides a reliable self-service portal.

REQ05 (E): Integration with multiple geo-located vCenter Servers (DD02) enables network extension across availability zones.While REQ04 is partially supported, REQ03 and REQ05 are the most directly tied to the stated decisions in the VCF 5.2 context.

References:

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: Aria Automation Integration)

VMware Aria Automation 8.10 Documentation (integrated in VCF 5.2): Self-Service Portal and Multi-Site Management

VMware NSX-T 3.2 Reference Design (integrated in VCF 5.2): Network Extension Capabilities

In VMware Cloud Foundation (VCF) 5.2, requirements are classified asfunctional(what the system must do) ornon-functional(how the system performs or operates). Functional requirements describe specific capabilities or behaviors, while non-functional requirements address qualities like performance, security, or constraints. Let’s classify each:

Option A: REQ01 - The application server must handle at least 30,000 transactions per second

This is correct. This is afunctional requirementbecause it specifies what the application server (a component of the solution) must do—process a defined transaction volume. It’s a capability the system must deliver, directly tied to workload performance within the VCF environment.

Option B: REQ02 - The design must meet ISO 27001 information security standards

This is anon-functional requirement. ISO 27001 addresses security qualities (e.g., confidentiality, integrity), defininghowthe system should operate securely, not what it does. It’s a compliance and operational constraint, not a functional capability.

Option C: REQ03 - The storage network should maintain a minimum latency of 12 milliseconds before path failover

This is anon-functional requirement. It specifies a performance threshold (latency) and reliability behavior (failover), describinghowthe storage network should perform, not a specific function it must provide.

Option D: REQ04 - The staging environment should utilize a secondary third-party data center

This is correct. This is afunctional requirementbecause it defines what the solution must include—a staging environment located in a specific secondary data center. It’s a capability or structural requirement of the VCF deployment, dictating a functional aspect of the system.

Option E: REQ05 - Planned maintenance must be performed outside the hours of 8 AM to 8 PM GMT

This is anon-functional requirement. It’s an operational constraint onwhenmaintenance occurs, affecting availability and manageability, not a specific function the system must perform.

Conclusion:The two functional requirements areREQ01 (A)andREQ04 (D). They define what the VCF solution must do (handle transactions, include a staging environment), aligning with VMware’s design methodology for functional specifications.

References:

VMware Cloud Foundation 5.2 Planning and Preparation Guide (Section: Functional vs. Non-Functional Requirements)

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: Requirements Classification)

Business requirements in VCF articulate organizational objectives that the solution must enable, often focusing on efficiency, cost, or service improvements rather than specific technical implementations. Option B, "Decrease processing time for service requests by 30%," is a business requirement as it targets an operational efficiency goal that benefits the customer’s service delivery, measurable from a business perspective rather than dictating how the system achieves it. Options A, C, and D—specifying OS compatibility, user capacity, and encryption standards—are technical requirements, as they detail system capabilities or security mechanisms that architects must implement within VCF components like vSphere or NSX. The distinction hinges on intent: B focuses on outcome (speed), while others define system properties.

The requirements specify centralized management components and a 99.99% availability SLA (allowing ~52 minutes of downtime per year) in a VMware Cloud Foundation (VCF) 5.2 multi-AZ design. In VCF, management components (e.g., SDDC Manager, vCenter, NSX Manager) are typically deployed in a Management Domain, and multi-AZ designs leverage availability zones for resilience. Let’s evaluate each option:

Option A: Implement a stretched L2 VLAN for the infrastructure management components between the AZsA stretched L2 VLAN extends network segments across AZs, potentially supporting centralized management. However, it doesn’t inherently ensure 99.99% availability without additional HA mechanisms (e.g., vSphere HA, NSX clustering). TheVCF 5.2 Architectural Guidenotes that L2 stretching alone lacks failover orchestration and may introduce latency or single points of failure if not paired with a stretched cluster, making it insufficient here.

Option B: Select two distant AZs and configure separate management workload domainsSeparate management workload domains in distant AZs decentralize management components (e.g., separate SDDC Managers, vCenters), violating the requirement for centralization. TheVCF 5.2 Administration Guidestates that multiple management domains increase complexity and don’t inherently meet high availability SLAs without cross-site replication, ruling this out.

Option C: Implement VMware Live Recovery between the selected AZsVMware Live Recovery (part of VMware’s DR portfolio, integrating Site Recovery Manager and vSphere Replication) provides disaster recovery across AZs. It ensures centralized management components (in one AZ) can fail over to a secondary AZ, maintaining an RTO/RPO that supports 99.99% availability when properly configured (e.g., <5-minute failover with replication). TheVCF 5.2 Architectural Guiderecommends Live Recovery for multi-AZ resilience while keeping management centralized, making it a strong fit.

Option D: Implement separate VLANs for the infrastructure management components within each AZSeparate VLANs per AZ enhance network isolation but imply distributed management components across AZs, contradicting the centralized requirement. Even if management is centralized in one AZ, separate VLANs don’t directly improve availability to 99.99% without HA or DR mechanisms, per theVCF 5.2 Networking Guide.

Option E: Select two close proximity AZs and configure a stretched management workload domainA stretched management workload domain spans two close AZs (e.g., <10ms latency) using vSphere HA, vSAN stretched clusters, and NSX federation. This keeps management components centralized (single SDDC Manager, vCenter) while achieving 99.99% availability through synchronous replication and automatic failover. TheVCF 5.2 Architectural Guidehighlights stretched clusters as a best practice for multi-AZ designs, ensuring minimal downtime (e.g., seconds during host/AZ failure), meeting the SLA.

Conclusion:

C: VMware Live Recovery enables centralized management with DR failover, supporting 99.99% availability.

E: A stretched management domain in close AZs ensures centralized, highly available management with near-zero downtime.These decisions align with VCF 5.2 multi-AZ best practices.References:

VMware Cloud Foundation 5.2 Architectural Guide(docs.vmware.com): Multi-AZ Design and Stretched Clusters.

VMware Cloud Foundation 5.2 Administration Guide(docs.vmware.com): Management Domain Resilience.

VMware Live Recovery Documentation(docs.vmware.com): DR for VCF Environments.

VMware Aria Operations Continuous Availability (CA) is a feature in VMware Aria Operations (integrated with VMware Cloud Foundation 5.2) that provides high availability by splitting analytics nodes across two fault domains (datacenters) with a Witness Node in a third location to arbitrate in case of a split-brain scenario. The Witness Node has specific network requirements for latency and bandwidth to ensure reliable communication with the primary and replica nodes. These requirements are outlined in the VMware Aria Operations documentation, which aligns with VCF 5.2 integration.

VMware Aria Operations CA Witness Node Network Requirements:

Network Latency:

The Witness Node requires a round-trip latency ofless than 100msbetween itself and both fault domains under normal conditions.

Peak latency spikes are acceptable if they are temporary and do not exceed operational thresholds, but sustained latency above 100ms can disrupt Witness functionality.

Network Bandwidth:

The minimum bandwidth requirement for the Witness Node is10Mbits/sec(10 Mbps) to support heartbeat traffic, state synchronization, and arbitration duties. Lower bandwidth risks communication delays or failures.

Network Stability:

Temporary latency spikes (e.g., during 20-second intervals) are tolerable as long as the baseline latency remains within limits and bandwidth supports consistent communication.

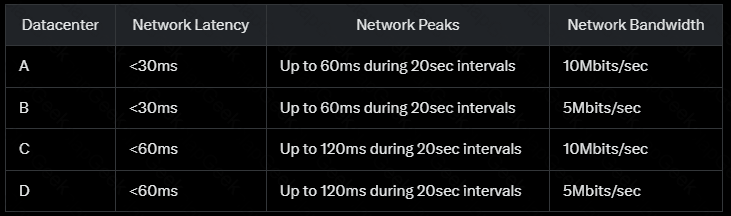

Evaluation of Each Datacenter:

Datacenter A: <30ms latency, peaks up to 60ms during 20sec intervals, 10Mbits/sec bandwidth

Latency: Baseline latency is <30ms, well below the 100ms threshold. Peak latency of 60ms during 20-second intervals is still under 100ms and temporary, posing no issue.

Bandwidth: 10Mbits/sec meets the minimum requirement.

Conclusion: Datacenter A fully satisfies the Witness Node requirements.

Datacenter B: <30ms latency, peaks up to 60ms during 20sec intervals, 5Mbits/sec bandwidth

Latency: Baseline <30ms and peaks up to 60ms are acceptable, similar to Datacenter A.

Bandwidth: 5Mbits/sec falls below the required 10Mbits/sec, risking insufficient capacity for Witness Node traffic.

Conclusion: Datacenter B does not meet the bandwidth requirement.

Datacenter C: <60ms latency, peaks up to 120ms during 20sec intervals, 10Mbits/sec bandwidth

Latency: Baseline <60ms is within the 100ms limit, but peaks of 120ms exceed the threshold. While temporary (20-second intervals), such spikes could disrupt Witness Node arbitration if they occur during critical operations.

Bandwidth: 10Mbits/sec meets the requirement.

Conclusion: Datacenter C fails due to excessive latency peaks.

Datacenter D: <60ms latency, peaks up to 120ms during 20sec intervals, 5Mbits/sec bandwidth

Latency: Baseline <60ms is acceptable, but peaks of 120ms exceed 100ms, similar to Datacenter C, posing a risk.

Bandwidth: 5Mbits/sec is below the required 10Mbits/sec.

Conclusion: Datacenter D fails on both latency peaks and bandwidth.

Conclusion:

OnlyDatacenter Ameets the minimum network requirements for the Witness Node in Aria Operations Continuous Availability. Its baseline latency (<30ms) and peak latency (60ms) are within the 100ms threshold, and its bandwidth (10Mbits/sec) satisfies the minimum requirement. Datacenter B lackssufficient bandwidth, while Datacenters C and D exceed acceptable latency during peaks (and D also lacks bandwidth). In a VCF 5.2 design, the architect would recommend Datacenter A for the Witness Node to ensure reliable CA operation.

References:

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: Aria Operations Integration)

VMware Aria Operations 8.10 Documentation (integrated in VCF 5.2): Continuous Availability Planning

VMware Aria Operations 8.10 Installation and Configuration Guide (Section: Network Requirements for Witness Node)

In VMware Cloud Foundation (VCF) 5.2, thephysical designspecifies tangible hardware and infrastructure choices, while logical design includes policies and configurations. The question focuses on vSAN Original Storage Architecture (OSA) in a VCF environment. Let’s classify each decision:

Option A: DD01 - A storage policy that supports failure of a single fault domain being the server rack

This is a logical design decision. Storage policies (e.g., vSAN FTT=1 with rack awareness) define data placement and fault tolerance, configured in software, not hardware. It’s not part of the physical design.

Option B: DD02 - Each host will have two vSAN OSA disk groups, each with four 4TB Samsung SSD capacity drives

This is correct. This specifies physical hardware—two disk groups per host with four 4TB SSDs each (capacity tier). In vSAN OSA, capacity drives are physical components, making this a physical design decision for VCF hosts.

Option C: DD03 - Each host will have two vSAN OSA disk groups, each with a single 300GB Intel NVMe cache drive

This is correct. This details the cache tier—two disk groups per host with one 300GB NVMe drive each. Cache drives are physical hardware in vSAN OSA, directly part of the physical design for performance and capacity sizing.

Option D: DD04 - Disk drives capable of encryption at rest

This is a hardware capability but not strictly a physical design decision in isolation. Encryption at rest (e.g., SEDs) is enabled via vSAN configuration and policy, blending physical (drive type) and logical(encryption enablement) aspects. In VCF, it’s typically a requirement or constraint, not a standalone physical choice, making it less definitive here.

Option E: DD05 - Dual 10Gb or higher storage network adapters

This is a physical design decision (network adapters are hardware), but in VCF 5.2, storage traffic (vSAN) typically uses the same NICs as other traffic (e.g., management, vMotion) on a converged network. While valid, DD02 and DD03 are more specific to the storage subsystem’s physical layout, taking precedence in this context.

Conclusion:The two design decisions for the physical design areDD02 (B)andDD03 (C). They specify the vSAN OSA disk group configuration—capacity and cache drives—directly shaping the physical infrastructure of the VCF hosts.

References:

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: vSAN OSA Design)

VMware vSAN 7.0U3 Planning and Deployment Guide (integrated in VCF 5.2): Physical Design Considerations

VMware Cloud Foundation 5.2 Planning and Preparation Guide (Section: Storage Hardware)

In VMware Cloud Foundation (VCF) 5.2, NSX Manager appliances manage networking and security (e.g., grouping, policies, firewalls) for Management and VI Workload Domains. The appliance size—Small,Medium, Large, Extra Large—determines its capacity to handle scale, such as the number of hosts, VMs, and security objects. The phrase “higher scale” implies a larger-than-minimum deployment. Let’s evaluate:

NSX Manager Appliance Sizes (VCF 5.2 with NSX-T 3.2):

Small: 4 vCPUs, 16 GB RAM, 300 GB disk. Supports up to 16 hosts, basic deployments (e.g., lab environments).

Medium: 6 vCPUs, 24 GB RAM, 300 GB disk. Supports up to 64 hosts, suitable for small to medium production environments.

Large: 12 vCPUs, 48 GB RAM, 300 GB disk. Supports up to 512 hosts, 10,000 VMs, and complex security policies—standard for production VCF.

Extra Large: 24 vCPUs, 64 GB RAM, 300 GB disk. Supports over 512 hosts, massive scale (e.g., service providers, multi-VCF instances).

VCF Context:

Management Domain: Minimum 4 hosts, often 6-7 for HA, with NSX for overlay networking.

VI Workload Domains: Variable host counts, but “higher scale” suggests multiple domains or significant workload growth.

Security Design: Grouping and policies (e.g., distributed firewall rules, tags) increase NSX Manager load, especially at scale.

Evaluation:

Small: Insufficient for production VCF, limited to 16 hosts. Unsuitable for a Management Domain (4-7 hosts) plus VI Workload Domains.

Medium: Adequate for small VCF deployments (up to 64 hosts), but “higher scale” implies more hosts or complex security, exceeding its capacity.

Large: The default and recommended size for VCF 5.2 production environments. It supports up to 512 hosts, thousands of VMs, and extensive security policies, fitting a Management Domain and multiple VI Workload Domains with “higher scale” needs.

Extra Large: Overkill unless managing hundreds of hosts or multiple VCF instances, which isn’t indicated here.

Conclusion:TheLargeNSX Manager appliance size (Option B) is appropriate for a higher-scale NSX design in VCF 5.2. It balances capacity and performance for Management and VI Workload Domains with advanced security requirements, aligning with VMware’s standard recommendation.

References:

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: NSX Manager Sizing)

NSX-T 3.2 Installation Guide (integrated in VCF 5.2): Appliance Size Specifications

VMware Cloud Foundation 5.2 Planning and Preparation Guide (Section: Security Design)

In VMware Cloud Foundation (VCF) 5.2, non-functional requirements definehowthe system operates (e.g., security, performance), not what it does. The new service must comply with PCI DSS, a standard for protecting cardholder data, and the design must reflect this. The platform is already SOX-compliant, and the question seeks an additional non-functional requirement to support PCI compliance. Let’s evaluate:

Option A: The VCF platform and all PCI application virtual machines must be monitored using the Aria Operations Compliance Pack for Payment Card Industry

This is correct. PCI DSS requires continuous monitoring and auditing (e.g., Requirement 10). The Aria Operations Compliance Pack for PCI provides pre-configured dashboards, alerts, and reports tailored to PCI DSS, ensuring the VCF platform and PCI VMs meet these standards. This is a non-functional requirement (monitoring quality), leverages existing Aria Operations, and directly supports the new service’s compliance needs, making it the best addition.

Option B: The VCF platform and all PCI application virtual machines must be assessed for SOX compliance

This is incorrect. The platform is already SOX-compliant, as stated. SOX (financial reporting) and PCI DSS (cardholder data) are distinct standards. Reassessing for SOX doesn’t address the new service’s PCI requirement and adds no value to the design for this purpose.

Option C: The VCF platform and all PCI application virtual machine network traffic must be routed via NSX

This is incorrect as a new requirement. The VI Workload Domains already use a shared NSX instance, implying NSX handles network traffic (e.g., overlay, security policies). PCI DSS requires network segmentation (Requirement 1), which NSX already supports. Adding this as a “new” requirement is redundant since it’s an existing characteristic, not an additional need.

Option D: The VCF platform and all PCI application virtual machines must be assessed against Payment Card Industry Data Security Standard (PCI DSS) compliance

This is a strong contender but incorrect as a non-functional requirement. Assessing against PCI DSS is a process or action, not a quality of the system’s operation. Non-functional requirements specify ongoing attributes (e.g., “must be secure,” “must be monitored”), not one-time assessments. While PCI compliance is the goal, this option is more a project mandate than a design quality.

Conclusion:The additional non-functional requirement to support the new PCI-compliant service is A: monitoring via the Aria Operations Compliance Pack for PCI. This ensures ongoing compliance with PCI DSS monitoring requirements, integrates with the existing VCF design, and qualifies as a non-functional attribute in VCF 5.2.

References:

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: Aria Operations Compliance Packs)

VMware Aria Operations 8.10 Documentation (integrated in VCF 5.2): PCI Compliance Pack

PCI DSS 3.2.1 (Requirements 1, 10: Network Segmentation and Monitoring

In VMware’s design methodology (aligned with VCF 5.2), requirements are categorized asBusiness Requirements(goals tied to organizational outcomes, often non-technical) orTechnical Requirements(specific system capabilities or constraints). Let’s classify each option:

Option A: Reduce processing time for service requests by 30%This is a Business Requirement. It focuses on a business outcome—improving service request efficiency by a measurable percentage—without specifying how the system achieves it. TheVMware Cloud Foundation 5.2 Architectural Guideclassifies such high-level, outcome-driven goals as business requirements, as they reflect the customer’s operational or strategic priorities rather than technical implementation details.

Option B: The system must support 10,000 concurrent usersThis is a Technical Requirement. It specifies a measurable system capability (supporting 10,000 concurrent users), directly tied to performance and capacity. VMware documentation treats such quantifiable system behaviors as technical, focusing on “what” the system must do functionally.

Option C: Data must be encrypted using AES-256 encryptionThis is a Technical Requirement. It mandates a specific technical implementation (AES-256 encryption) for security, a non-functional attribute. TheVCF 5.2 Design Guidecategorizes encryption standards as technical constraints or requirements, not business goals.

Option D: The application must be compatible with Windows, macOS, and Linux operating systemsThis is a Technical Requirement. It defines a functional capability—cross-platform compatibility—specifying technical details about the system’s operation. VMware classifies such compatibility needs as technical, per the design methodology.

Conclusion:Option A is the Business Requirement, as it aligns with a business goal (efficiency improvement) rather than a technical specification.References:

VMware Cloud Foundation 5.2 Architectural Guide(docs.vmware.com): Section on Requirements Gathering and Classification.

VMware Cloud Foundation 5.2 Design Guide(docs.vmware.com): Business vs. Technical Requirements.

In VMware Cloud Foundation (VCF) 5.2, designing a solution involves documenting requirements, assumptions, constraints, and risks to ensure alignment with organizational needs and to mitigate potential issues. The scenario describes a security-focused design where the VCF solution must support current Active Directory (AD) authentication while remaining flexible for a future 3rd-party identity solution with MFA, potentially before the MFA project concludes. The architect must include items in the design documentation that reflect these needs and address uncertainties. Let’s evaluate each option:

Option A: An assumption that the new 3rd-party identity solution will be compatible with VCFThis is not the best choice. While assumptions are statements taken as true without proof (per VMware design methodology), assuming compatibility with an unknown 3rd-party solution is overly optimistic and ignores the uncertainty inherent in the scenario. The stakeholder notes that the MFA project will only recommend a solution, and no specific solution has been identified. VCF 5.2 supports identity providers via VMware Workspace ONE Access or vSphere SSO with AD/LDAP, but compatibility with an unspecified 3rd-party solution cannot be assured. Documenting this as an assumption could lead to an unmitigated risk, making it less appropriate than identifying a risk instead.

Option B: An assumption that the MFA project will not receive budget to implement a new 3rd-party identity solutionThis is incorrect. Assuming the MFA project will fail to secure a budget is speculative and not supportedby the provided information. The scenario states the MFA projectwill need to request budget, implying it’s part of the plan, not that it will be denied. Including this assumption would unnecessarily skew the design toward the current AD-only solution and contradict the requirement for future flexibility. It’s not a justifiable assumption based on the facts given.

Option C: A requirement that VCF will integrate only with the new 3rd-party identity solutionThis appears to be a poorly worded option, likely intended to mean the opposite, but based on the context and standard VCF design principles, I’ll interpret it as a potential miscommunication. The correct intent might be “A requirement that VCF will integrate withboththe current AD and the new 3rd-party identity solution.” The scenario explicitly states that “the new VCF environment… must be able to integrate with both the current and any proposed future identity solutions.” This is arequirement—a mandatory condition for the design. VCF 5.2 supports AD integration natively via vSphere SSO and can integrate with external identity providers (e.g., via Workspace ONE Access), making this feasible. Given the context, I’ll assume this option was meant to reflect the dual-integration requirement and include it as one of the answers, correcting its phrasing in the explanation.

Option D: A risk that the new 3rd-party identity solution may not be compatible with Active DirectoryThis is not directly relevant to the VCF design. The compatibility between the new 3rd-party solution and AD is a concern for the MFA project or broader IT infrastructure, not the VCF solution itself. VCF integrates with identity providers through its management components (e.g., SDDC Manager, vCenter), and its compatibility with AD is already established. The risk of AD incompatibility with the 3rd-party solution doesn’t directly impact VCF’s design unless it affects the identity provider’s ability to federate with VCF, which is a secondary concern. Thus, this is not a top priority for the architect’s documentation.

Option E: A risk that the new 3rd-party identity solution may not be compatible with VCFThis is a valid and critical item to include. Ariskidentifies potential issues that could impact the solution’s success. Since the MFA project has not yet selected a 3rd-party identity solution, and the VCF deployment may precede its completion, there’s uncertainty about whether the future solution will integrate seamlessly with VCF 5.2. VCF supports standards like LDAP, SAML, and OAuth via Workspace ONE Access or vSphere SSO, but not all 3rd-party solutions may align with these protocols or VCF’s requirements. Documenting this risk ensures it’s considered during planning (e.g., validating compatibility during procurement), making it an essential inclusion.

Corrected Interpretation and Conclusion:Based on the scenario, the architect must document:

Arequirementthat VCF integrates with both the current AD-backed system and any future 3rd-party identity solution (interpreting Option C as misworded but contextually intended).

Ariskthat the new 3rd-party identity solution may not be compatible with VCF (Option E).

These align with VMware’s design methodology, ensuring the solution meets stated needs while flagging potential challenges. Option C is included with the caveat that its wording should be “integrate with both” rather than “only,” but since the question provides fixed options, I’ve selected it based on intent.

References:

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: Identity and Access Management)

VMware Cloud Foundation 5.2 Planning and Preparation Guide (Section: Design Considerations and Risks)

VMware Workspace ONE Access Integration with VCF 5.2 Documentation (Identity Provider Support)

In VMware vSphere, ensuring consistent performance for a mission-critical virtual machine (VM) in a resource-constrained environment requires guaranteeing that the VM receives the necessary CPU and memory resources, even when the cluster is under contention. The scenario specifies that the VM operates in a four-host vSphere cluster with no additional capacity available, meaning options that require adding resources (like D) or creating a new cluster (like C) are not feasible without additional hardware, which isn’t an option here.

Option A: Use CPU and memory reservationsReservations in vSphere guarantee a minimum amount of CPU and memory resources for a VM, ensuring that these resources are always available, even during contention. For a mission-critical application, this is the most effective way to ensure consistent performance because it prevents other VMs from consuming resources allocated to this VM. According to theVMware Cloud Foundation 5.2 Architectural Guide, reservations are recommended for workloads requiring predictable performance, especially in environments where resource contention is a risk (e.g., 90% utilization scenarios). This aligns with VMware’s best practices for mission-critical workloads.

Option B: Use CPU and memory limitsLimits cap the maximum CPU and memory a VM can use, which could starve the mission-critical VM of resources when it needs to scale up to meet demand. This would degrade performance rather than ensure consistency, making it an unsuitable choice. ThevSphere Resource Management Guide(part of VMware’s documentation suite) advises against using limits for performance-critical VMs unless the goal is to restrict resource usage, not guarantee it.

Option C: Create a new vSphere Cluster and migrate the mission-critical virtual machine to itCreating a new cluster implies additional hardware or reallocation of existing hosts, but the question states there is no additional capacity. Without available resources, this option is impractical in the given scenario.

Option D: Add additional ESXi hosts to the current clusterWhile adding hosts would increase capacity and potentially reduce contention, the lack of additional capacity rules this out as a viable recommendation without violating the scenario constraints.

Thus,Ais the best recommendation as it leverages vSphere’s resource management capabilities to ensure consistent performance without requiring additional hardware.References:

VMware Cloud Foundation 5.2 Architectural Guide(docs.vmware.com): Section on Resource Management for Workload Domains.

vSphere Resource Management Guide(docs.vmware.com): Chapter on Configuring Reservations, Limits, and Shares.

In VCF 5.2, the logical design focuses on high-level architectural decisions that define the system’s structure and behavior, as opposed to physical or operational details. Networking decisions in the logical design emphasize scalability, security policies, and connectivity frameworks, per theVCF 5.2 Architectural Guide. Let’s evaluate each:

Option A: Use of 2x 64-port Cisco Nexus 9300 for top-of-rack ESXi host switchesThis specifies physical hardware, a detail typically documented in the physical design (e.g., BOM, rack layout). TheVCF 5.2 Design Guidedistinguishes hardware choices as physical, not logical, unless they dictate architecture (e.g., spine-leaf), which isn’t implied here.

Option B: NSX Distributed Firewall (DFW) rule to block all traffic by defaultThis is a security policy configuration within NSX, defining how traffic is controlled. While critical, it’s an operational or detailed design decision (e.g., rule set), not a high-level logical design element. TheVCF 5.2 Networking Guideplaces DFW rules in implementation details, not the logical overview.

Option C: Implement overlay network technology to scale across data centersOverlay networking (e.g., NSX VXLAN or Geneve) is a foundational architectural decision in VCF, enabling scalability, multi-site connectivity, and logical separation of networks. TheVCF 5.2 Architectural Guidehighlights overlays as a core logical design component, directly impacting how the solution scales across data centers, making it a prime candidate for the logical design.

Option D: Configure Cisco Discovery Protocol (CDP) - Listen mode on all Distributed Virtual Switches (DVS)CDP in Listen mode aids network discovery and troubleshooting on DVS. This is a configuration setting, not a logical design decision. TheVCF 5.2 Networking Guidetreats such protocol settings as operational details, not architectural choices.

Conclusion:Option C belongs in the logical design, as it defines a scalable networking architecture critical to VCF 5.2’s multi-data center capabilities.References:

VMware Cloud Foundation 5.2 Architectural Guide(docs.vmware.com): Logical Design and Overlay Networking.

VMware Cloud Foundation 5.2 Networking Guide(docs.vmware.com): NSX and DVS Configuration.

VMware Cloud Foundation 5.2 Design Guide(docs.vmware.com): Logical vs. Physical Design.

The requirement for N+1 resiliency means the solution must tolerate the failure of one component (in this case, one ESXi host) without disrupting workloads. In VMware Cloud Foundation (VCF), this is typically achieved through vSphere High Availability (HA) settings and sufficient host capacity. The scenario provides key constraints: a 4-node cluster can handle all workloads at 90% utilization, and no growth is expected. Let’s evaluate each option:

Option A: Set the DRS Automation level to Partially AutomatedDRS (Dynamic Resource Scheduling) balances workloads across hosts, but the automation level (Partially Automated vs. Fully Automated) doesn’t directly impact N+1 resiliency. Partially Automated requires manual approval for migrations, which doesn’t enhance or detract from HA-based resiliency. While DRS is useful, this specific setting isn’t critical to the N+1 requirement, per theVMware Cloud Foundation 5.2 Architectural Guide.

Option B: Deploy a workload cluster consisting of five VMware vSphere hostsA 5-node cluster provides N+1 resiliency when paired with HA configured to tolerate one host failure. If one host fails, the remaining four can handle the workload, assuming capacity planning accounts for this. The Aria Operations report indicates a 4-node cluster is sufficient at 90% utilization, but adding a fifth host ensures capacity remains after a failure (reducing utilization to ~72% across four hosts: 90% / 1.25). This aligns with VCF’s standard architecture recommendations for resiliency (VMware Cloud Foundation 5.2 Architectural Guide).

Option C: Set the Host failures cluster tolerates for the workload cluster to 1This HA setting ensures the cluster reserves capacity (e.g., CPU and memory) to failover VMs from onefailed host. In VCF, setting “Host failures cluster tolerates” to 1 is a direct implementation of N+1 resiliency, making it a required design decision (vSphere Availability GuideandVCF 5.2 Administration Guide).

Option D: Deploy a workload cluster consisting of four VMware vSphere hostsA 4-node cluster meets capacity needs at 90% utilization but lacks N+1 resiliency without additional capacity. If one host fails, the remaining three would be overcommitted (120% utilization: 90% / 0.75), risking performance or availability. Thus, this doesn’t satisfy the requirement alone.

Option E: Configure vSphere High Availability (HA) for the workload clusterHA is foundational to N+1 resiliency in vSphere and VCF, enabling VM restarts on surviving hosts after a failure. Without HA, N+1 cannot be achieved, making this a mandatory choice (VMware Cloud Foundation 5.2 Administration Guide).

Option F: Configure vSphere Dynamic Resource Scheduling (DRS) for the workload clusterDRS enhances performance by balancing workloads but isn’t strictly required for N+1 resiliency, which focuses on availability, not optimization. It’s a best practice in VCF but not one of the three critical decisions for this requirement.

Conclusion:

B: A 5-node cluster provides the extra host for N+1.

C: HA set to tolerate 1 host failure implements N+1 policy.

E: HA configuration enables failover, a core N+1 component.Options B, C, and E together ensure the cluster can lose one host without service disruption, meeting the customer’s requirement.References:

VMware Cloud Foundation 5.2 Architectural Guide(docs.vmware.com): Section on Workload Domain Design and HA/DRS Configuration.

vSphere Availability Guide(docs.vmware.com): Chapter on Configuring High Availability.

VMware Cloud Foundation 5.2 Administration Guide(docs.vmware.com): HA and Cluster Sizing Guidelines.

The scenario involves a VCF consolidated architecture with seven ESXi hosts in a single cluster, likely using vSAN as the default storage (standard in VCF consolidated deployments unless specified otherwise). The goal is to minimize storage I/O disruption for an application’s two VMs during business hours while maintaining availability, all within budget and hardware constraints.

Requirement Analysis:

Minimal disruption to storage I/O:Storage I/O disruptions typically occur during vSAN resyncs, host maintenance, or resource contention.

No reduction in availability:Solutions must not compromise the cluster’s ability to keep VMs running and accessible.

Budget/hardware constraints:Options requiring new hardware purchases are infeasible.

Option Analysis:

A. Apply 100% CPU and memory reservations on these virtual machines:Setting 100% CPU and memory reservations ensures these VMs get their full allocated resources, preventing contention with other VMs. However, this primarily addresses compute resource contention, not storage I/O disruptions. Storage I/O is managed by vSAN (or another shared storage), and reservations do not directly influence disk latency, resync operations, or I/O performance during maintenance. The VMware Cloud Foundation 5.2 Administration Guide notes that reservations are for CPU/memory QoS, not storage I/O stability. This option does not effectively mitigate the risk and is incorrect.

B. Implement FTT=1 Mirror for this application virtual machine:FTT (Failures to Tolerate) = 1 with a mirroring policy (RAID-1) in vSAN ensures that each VM’s data is replicated across at least two hosts, providing fault tolerance. During business hours, if a host fails or enters maintenance, vSAN maintains data availability without immediate resync (since data is already mirrored), minimizing I/O disruption. Without this policy (e.g., FTT=0), a host failure could force a rebuild, impacting I/O. The VCF Design Guide recommends FTT=1 for critical applications to balance availability and performance. This option leverages existing hardware, maintains availability, and reduces I/O disruption risk, making it correct.

C. Replace the vSAN shared storage exclusively with an All-Flash Fibre Channel shared storage solution:Switching to All-Flash Fibre Channel could improve I/O performance and potentially reduce disruption (e.g., faster rebuilds), but it requires purchasing new hardware (Fibre Channel HBAs, switches, and storage arrays), which violates the budget constraint. Additionally, transitioning from vSAN (integral to VCF) to external storage in a consolidated architecture is unsupported without significant redesign, as per the VCF 5.2 Release Notes. This option is impractical and incorrect.

D. Perform all host maintenance operations outside of business hours:Host maintenance (e.g., patching, upgrades) in vSAN clusters triggers data resyncs as VMs and data are evacuated, potentially disrupting storage I/O during business hours. Scheduling maintenance outside business hours avoids this, ensuring I/O stability when the application is in use. This leverages DRS and vMotion (standard in VCF) to move VMs without downtime, maintaining availability. The VCF Administration Guide recommends off-peak maintenance to minimize impact, making this a cost-effective, availability-preserving solution. This option is correct.

E. Enable fully automatic Distributed Resource Scheduling (DRS) policies on the cluster:Fully automated DRS balances VM placement and migrates VMs to optimize resource usage. While this improves compute efficiency and can reduce contention, it does not directly mitigate storage I/O disruptions. DRS migrations can even temporarily increase I/O (e.g., during vMotion), and vSAN resyncs (triggered by maintenance or failures) are unaffected by DRS. The vSphere Resource Management Guide confirms DRS focuses on CPU/memory, not storage I/O. This option is not the most effective here and is incorrect.

Conclusion:The two most effective options areImplement FTT=1 Mirror for this application virtual machine (B)andPerform all host maintenance operations outside of business hours (D). These ensure storage redundancy and schedule disruptive operations outside critical times, maintaining availability without additional hardware.

References:

VMware Cloud Foundation 5.2 Design Guide (Section: vSAN Policies)

VMware Cloud Foundation 5.2 Administration Guide (Section: Maintenance Planning)

VMware vSphere 8.0 Update 3 Resource Management Guide (Section: DRS and Reservations)

VMware Cloud Foundation 5.2 Release Notes (Section: Consolidated Architecture)

In VMware Cloud Foundation (VCF) 5.2, design qualities (non-functional requirements) categorizehowthe system operates. The network team’s requirements focus on redundancy and routing diversity, which the architect must classify. Let’s evaluate:

Option A: Availability

This is correct. Availability ensures the solution remains operational and accessible. “N+N redundancy” (e.g., dual active components where N failures are tolerated by N spares) for physical networking components eliminates single points of failure, ensuring continuous network uptime. “Diversely routed inter-datacenter links” prevents outages from a single path failure, enhancing availability across sites. In VCF, these align with high-availability network design (e.g., NSX Edge uplink redundancy), makingavailabilitythe proper classification.

Option B: Performance

Performance addresses speed, throughput, or latency (e.g., “10 Gbps links”). Redundancy and diverse routing might indirectly support performance by avoiding bottlenecks, but the primary intent is uptime, not speed. This doesn’t fit the stated requirements’ focus.

Option C: Recoverability

Recoverability focuses on restoring service after a failure (e.g., backups, failover time). N+N redundancy and diverse routingpreventdowntime rather than recover from it. While related, the requirements emphasize proactive uptime (availability) over post-failure recovery, making this incorrect.

Option D: Manageability

Manageability concerns ease of administration (e.g., monitoring, configuration). Redundancy and routing diversity are infrastructure design choices, not management processes. This quality doesn’t apply.

Conclusion:The architect should classify the requirement asAvailability (A). It ensures the VCF solution’s network remains operational, aligning with VCF 5.2’s focus on resilient design.

References:

VMware Cloud Foundation 5.2 Planning and Preparation Guide (Section: Design Qualities)

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: Network Availability)

NSX Federation in VMware Cloud Foundation (VCF) 5.2 extends networking and security across multiple VCF instances (e.g., across data centers) using a leaf-spine underlay network. The architect must recommend a physical network design that supports this. Let’s evaluate:

Option A: Use a physical network that is configured for EIGRP routing adjacency

Enhanced Interior Gateway Routing Protocol (EIGRP) is a Cisco-proprietary routing protocol. NSX Federation requires a Layer 3 underlay with dynamic routing (e.g., BGP, OSPF), but EIGRP isn’t a VMware-recommended standard for NSX leaf-spine designs. BGP is preferred for its scalability and interoperability in NSX-T 3.2 (used in VCF 5.2). This option is not optimal.

Option B: Layer 3 device that supports OSPF

Open Shortest Path First (OSPF) is a supported routing protocol for NSX underlays, alongside BGP. A Layer 3 device with OSPF could work in a leaf-spine topology, but VMware documentation emphasizes BGP as the primary choice for NSX Federation due to its robustness in multi-site scenarios. OSPF is valid but not the strongest recommendation for Federation-specific designs.

Option C: Ensure that the latency between VMware Cloud Foundation instances that are connected in an NSX Federation is less than 1500 ms

NSX Federation requires low latency between sites for control plane consistency (Global Manager to Local Managers). The maximum supported latency is 150 ms (not 1500 ms), per VMware specs. 1500 ms (1.5 seconds) is far too high and would disrupt Federation operations, making this incorrect.

Option D: Jumbo frames on the components of the physical network between the VMware Cloud Foundation instances

This is correct. NSX Federation relies on NSX-T overlay traffic (Geneve encapsulation) across sites, which benefits from jumbo frames (MTU ≥ 9000) to reduce fragmentation and improve performance. In a leaf-spine design, enabling jumbo frames on all physical network components (switches, routers) between VCF instances ensures efficient transport of tunneled traffic (e.g., for stretched networks). VMware strongly recommends this for NSX underlays, making it the best recommendation.

Conclusion:The architect should documentD: Jumbo frames on the components of the physical network between the VMware Cloud Foundation instances. This aligns with VCF 5.2 and NSX Federation’s leaf-spine design requirements for optimal performance and scalability.

References:

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: NSX Federation Networking)

NSX-T 3.2 Reference Design (integrated in VCF 5.2): Leaf-Spine Underlay Requirements

VMware NSX-T 3.2 Installation Guide: Jumbo Frame Recommendations

The customer plans to use Aria Operations Continuous Availability (CA), a feature in VMware Aria Operations (formerly vRealize Operations) introduced in version 8.x and supported in VCF 5.2, to ensure monitoring solution availability. Continuous Availability separates analytics nodes into fault domains (e.g., primary and secondary sites) for high availability, validated here via a POC in a low-capacity lab. The architect must propose the minimum node size that supports CA in this context. Let’s analyze:

Aria Operations Node Sizes:Per theVMware Aria Operations Sizing Guidelines, analytics nodes come in four sizes:

Extra Small:2 vCPUs, 8 GB RAM (limited to lightweight deployments, no CA support).

Small:4 vCPUs, 16 GB RAM (entry-level production size).

Medium:8 vCPUs, 32 GB RAM.

Large:16 vCPUs, 64 GB RAM.

Continuous Availability Requirements:CA requires at least two analytics nodes (one per fault domain) configured in a split-site topology, with a witness node for quorum. TheVMware Aria Operations Administration Guidespecifies that CA is supported starting with theSmallnode size due to resource demands for data replication and failover (e.g., memory for metrics, CPU for processing). Extra Small nodes are restricted to basic standalone or lightweight deployments and lack the capacity for CA’s HA features.

POC in Low-Capacity Lab:A low-capacity lab implies limited resources, but the POC must still validate CA functionality. TheVCF 5.2 Architectural Guidenotes that Small nodes are the minimum for production-like features like CA, balancing resource use with capability. For a POC, two Small nodes (plus a witness) fit a low-capacity environment while meeting CA requirements, unlike Extra Small, which isn’t supported.

Option A: SmallSmall nodes (4 vCPUs, 16 GB RAM) are the minimum size for CA, supporting the POC’s goal of validating availability in a lab. This aligns with VMware’s sizing recommendations.

Option B: MediumMedium nodes (8 vCPUs, 32 GB RAM) exceed the minimum, suitable for larger deployments but unnecessary for a low-capacity POC.

Option C: Extra SmallExtra Small nodes (2 vCPUs, 8 GB RAM) don’t support CA, as confirmed by theAria Operations Sizing Guidelines, due to insufficient resources for replication and failover, making them invalid here.

Option D: LargeLarge nodes (16 vCPUs, 64 GB RAM) are overkill for a low-capacity POC, designed for high-scale environments.

Conclusion:The minimum Aria Operations analytics node size for the POC isSmall (A), enabling Continuous Availability in a low-capacity lab while meeting the customer’s validation goal.References:

VMware Cloud Foundation 5.2 Architectural Guide(docs.vmware.com): Aria Operations Integration and HA Features.

VMware Aria Operations Administration Guide(docs.vmware.com): Continuous Availability Configuration and Requirements.

VMware Aria Operations Sizing Guidelines(docs.vmware.com): Node Size Specifications.

This scenario involves a VCF multi-AZ design where AZs must operate independently (no shared dependencies) and achieve a 99.9% availability SLA (allowing ~8.76 hours of downtime annually). The design decisions must ensure resilience, fault isolation, and recovery capabilities across AZs.

Requirement Analysis:

Independent AZ operation:Each AZ must function standalone, with no single point of failure or dependency across AZs.

99.9% availability:The design must minimize downtime through redundancy, replication, and recovery mechanisms.

Option Analysis:

A. Configure array-based replication between the selected AZ(s) for the management domain:Array-based replication (e.g., vSphere Replication or SAN replication) for the management domain (vCenter, NSX Manager, SDDC Manager) ensures that critical management VMs are duplicated across AZs. If one AZ fails, the other can take over with minimal downtime, supporting independent operation and high availability. The VCF 5.2 Design Guide recommends replication for multi-AZ deployments to meet SLAs, as it provides a recovery point objective (RPO) near zero. This option enhances availability and is correct.

B. Make sure all configuration backups are replicated between the selected AZ(s):Replicating configuration backups (e.g., SDDC Manager backups, NSX configurations) ensures that each AZ has access to recovery data. If an AZ’s management components fail, the other AZ can restore operations independently using its local backup copy. This supports the independence requirement and reduces downtime (contributing to 99.9% SLA) by enabling quick recovery. The VCF Administration Guide emphasizes backup replication for multi-AZ resilience, making this option correct.

C. Make sure the recovery VLAN for the infrastructure management components has access to both AZ(s):A recovery VLAN spanning both AZs implies a shared network dependency. If this VLAN fails (e.g., due to a network outage), both AZs could be impacted, violating the independence requirement. Multi-AZ designs in VCF favor isolated networks per AZ to avoid cross-AZ single points of failure. The VCF Design Guide advises against shared VLANs for critical components in independent AZ setups. This option undermines the requirements and is incorrect.

D. Choose two distant AZ(s) and consider each AZ the DR for the other:Distant AZs (e.g., separate data centers) with mutual DR (disaster recovery) roles enhance geographic fault tolerance. However, “operate independently” in VCF typically means each AZ can run workloads standalone, not that one is a passive DR site. Distant AZs introduce latency, complicating synchronous replication needed for 99.9% availability, and may rely on shared management, conflicting with independence. The VCF Multi-AZ Guide focuses on active-active AZs, not DR-centric designs, making this less suitable.

E. Choose two close proximity AZ(s) and configure a stretched management workload domain:A stretched management domain (e.g., using vSAN stretched cluster) spans AZs with synchronous replication, ensuring high availability. However, this creates a dependency: both AZs share the same vCenter and management stack, so a failure (e.g., vCenter outage) could affect both, violating independence. The VCF 5.2 Design Guide notes stretched clusters are for single logical domains, not independent AZs. This option contradicts the requirement and is incorrect.

F. Configure a non-routable separate recovery VLAN for the infrastructure management components within each AZ:A non-routable, AZ-specific recovery VLAN isolates management recovery traffic (e.g., for vMotion, backups) within each AZ. This ensures that each AZ’s management components operate independently, with no cross-AZ network reliance. If one AZ’s network fails, the other remains unaffected, supporting the SLA through fault isolation. The VCF Multi-AZ Design Guide recommends separate, isolated networks per AZ for resilience, making this option correct.

Conclusion:The three design decisions areConfigure array-based replication between the selected AZ(s) for the management domain (A),Make sure all configuration backups are replicated between the selected AZ(s) (B), andConfigure a non-routable separate recovery VLAN for the infrastructure management components within each AZ (F). These ensure independent operation and meet the 99.9% SLA through replication and isolation.

References:

VMware Cloud Foundation 5.2 Design Guide (Section: Multi-AZ Design)

VMware Cloud Foundation 5.2 Administration Guide (Section: Backup and Recovery)

VMware Cloud Foundation Multi-AZ Deployment Guide (Section: Networking)

VMware vSphere 8.0 Update 3 Documentation (Section: vSAN Stretched Clusters)

In the context of VMware Cloud Foundation (VCF) 5.2, aconceptual modelis a high-level representation of the solution that outlines its key components, structure, and purpose without delving into granular implementation details. It serves as an initial blueprint to communicate the overall design to stakeholders, focusing on the "what" rather than the "how." According to VMware's architectural design methodology, as detailed in the official VMware Cloud Foundation documentation, the conceptual model is distinguished from logical and physical models by its abstraction level.

Option A: A detailed description of the VMware Cloud Foundation solution configuration, including host names and IP addressesThis option describes aphysical modelor implementation-specific details rather than a conceptual one. Including host names and IP addresses implies a focus on the specific configuration and deployment specifics, which are part of the physical design phase. A conceptual model does not include such low-level details, so this option is incorrect.

Option B: A detailed diagram of the interfaces of the NSX Edge components within the management domain in the data centerThis option represents alogical modelrather than a conceptual one. A detailed diagram of NSX Edge interfaces focuses on the specific networking components and their interconnections within the management domain, which is a step beyond the high-level abstraction of a conceptual model. Logical models provide more specificity about how components interact, making this option incorrect for a conceptual model.

Option C: A high-level diagram of the VMware Cloud Foundation solution showing the workload domains with the number of physical hosts per clusterThis is the correct answer. A high-level diagram showing workload domains and the number of physical hosts per cluster aligns with the definition of a conceptual model in VMware Cloud Foundation. It provides an abstract view of the solution’s structure—highlighting key elements like workload domains and clusters—without diving into implementation specifics like IP addresses or detailed component configurations. This type of diagram effectively communicates the overall architecture, making it an ideal example of a conceptual model.

Option D: A high-level overview of the solution, including risks, assumptions, and constraintsWhile this option is high-level and abstract, it leans more toward adesign justificationorrequirements documentrather than a conceptual model. Risks, assumptions, and constraints are typically part of the architectural decision-making process and documentation (e.g., in a Design and Decisions section), not the conceptual model itself. A conceptual model focuses on the structure and components of the solution, not the surrounding context, making this option incorrect.

In VMware Cloud Foundation 5.2, the architecture follows a layered approach: conceptual, logical, and physical designs. The conceptual model is the first step, providing a bird’s-eye view of the solution, such as the relationship between management and workload domains and the distribution of clusters. Option C fits this description perfectly by illustrating the workload domains and host counts at a high level.

References:

VMware Cloud Foundation 5.2 Architecture and Deployment Guide (Section: Design Methodology)

VMware Cloud Foundation 5.2 Planning and Preparation Guide (Section: Architectural Overview)

VMware Validated Design Documentation (Conceptual Design Principles, applicable to VCF 5.2)

In VMware’s design methodology (aligned with VCF 5.2), requirements are classified asfunctional(what the system must do) ornon-functional(how the system must perform or constraints it must meet). Functional requirements describe specific capabilities or behaviors, while non-functional requirements cover quality attributes, constraints, or compliance. Let’s categorize each:

Option A: The design must satisfy PCI-DSS compliancePCI-DSS (Payment Card Industry Data Security Standard) compliance is a non-functional requirement. It defines security and operational standards (e.g., encryption, access control) rather than a specific system function. TheVCF 5.2 Architectural Guidetreats compliance as a constraint or quality attribute, not a functional capability.

Option B: The database server must support a minimum of 15,000 transactions per secondThis is a functional requirement. It specifies a measurable capability—the database server’s ability to process 15,000 transactions per second—directly tied to workload performance. TheVCF 5.2 Design Guideclassifies such performance metrics as functional, as they dictate what the system must achieve.

Option C: The storage network must have a minimum latency of 10 milliseconds prior to path failoverThis is a non-functional requirement. It defines a quality attribute (latency) and a performance threshold for the storage network, not a specific function. VMware documentation categorizes latency and failover characteristics as non-functional, focusing on “how” the system operates.

Option D: The Production environment must be deployed into the primary data centerThis is a non-functional requirement or constraint. It specifies a location or deployment condition rather than a system capability. TheVCF 5.2 Architectural Guidetreats deployment location as a design constraint, not a functional behavior.

Option E: The platform must be capable of running 1500 virtual machines across both data centersThis is a functional requirement. It defines a specific capability—the platform’s capacity to support 1500 VMs across two data centers—quantifying what the system must do. VMware’s design methodology includes such capacity requirements as functional, per theVCF 5.2 Design Guide.

Conclusion:

B: A functional requirement specifying database transaction capacity.

E: A functional requirement defining VM hosting capability.These two focus on “what” the system must deliver, distinguishing them from non-functional constraints or qualities.References:

VMware Cloud Foundation 5.2 Architectural Guide(docs.vmware.com): Section on Requirements Classification.

VMware Cloud Foundation 5.2 Design Guide(docs.vmware.com): Functional vs. Non-Functional Requirements.
