2V0-32.22 VMware Cloud Operations 8.x Professional Questions and Answers

vRealize Log Insight offers flexible deployment architectures to suit various needs.

Single node deployment with no load balancer : This is suitable for smaller environments with limited log volume. A single vRealize Log Insight node handles all log management tasks.

Three node deployment with an external load balancer : This architecture provides high availability and scalability. An external load balancer distributes incoming traffic across the nodes. This offers flexibility in load balancer selection and configuration.

Clustered deployment with integrated load balancer : This architecture also provides high availability and scalability. In this configuration, a minimum of three vRealize Log Insight nodes are deployed. The integrated load balancer distributes incoming log traffic across the nodes, preventing a single point of failure.

The following architectures are not valid for vRealize Log Insight:

Ten node deployment with the integrated load balancer: The maximum number of nodes in a cluster is limited, and ten nodes with an integrated load balancer is not a supported configuration.

Single node deployment with an external load balancer: A single node deployment does not require a load balancer.

Single node deployment with the integrated load balancer: The integrated load balancer is designed for clustered deployments with a minimum of three nodes.

Two node deployment with the integrated load balancer: The integrated load balancer requires a minimum of three nodes for cluster functionality.

In vRealize Operations, the default data collection interval is set to 5 minutes, which is suitable for most environments. This interval determines how frequently vRealize Operations collects data from monitored sources, including Microsoft Azure. Adjusting this interval can impact the performance and storage requirements of the system. It's recommended to retain the default 5-minute interval unless specific monitoring needs dictate otherwise

An administrator can change the password for the admin user account on vRealize Operations using these two methods:

A. Log in to the vRealize Operations admin UI as the admin user and use the change password functionality [46]: This is the standard method for changing passwords within the vRealize Operations interface. The administrator logs in with their current credentials and can then update the password through the user settings.

B. Log in to the Primary node via SSH and use the appropriate command to reset the admin user account password [47]: This method involves accessing the primary node of the vRealize Operations cluster through SSH and using the vcops-admintool reset-password command to reset the admin password. This is useful if the administrator cannot access the admin UI or prefers to use the command line.

vRealize Log Insight supports various deployment architectures to meet scalability and high availability requirements. A six-node cluster with three nodes in each of two datacenters is a valid deployment model, offering both redundancy and load balancing across datacenters.

Key Considerations:

Cluster Composition:

A vRealize Log Insight cluster can include up to 12 nodes: one primary and multiple worker nodes.

Nodes within a cluster should be of the same size and located within the same data center to ensure optimal performance.

Integrated Load Balancer (ILB):

Utilizing the ILB ensures that incoming ingestion traffic is properly balanced across nodes, maintaining availability even if some nodes become unavailable.

Data Center Placement:

While nodes are typically deployed within the same data center, deploying across multiple data centers can provide disaster recovery capabilities.

Ensure that network latency between datacenters is minimal to prevent performance degradation.

To search archived logs in vRealize Log Insight (vRLI), an administrator needs to follow these steps:

C. SSH into the vRLI appliance, mount the archiving NFS share then import the archive using CLI : This involves establishing an SSH connection to the vRLI appliance, mounting the NFS share where the archived logs are stored, and then using the loginsight repository import command to import the logs into vRLI. This process makes the archived logs searchable within the vRLI interface.

When a vSphere cluster reaches capacity, it's essential to reclaim unused resources from virtual machines (VMs) to optimize performance and accommodate new workloads. In this scenario, the administrator's goal is to recover compute resources from development VMs, identifiable by the "dev" in their names, without affecting production VMs labeled with "prod."

The most efficient approach is to generate an Oversized Virtual Machines Report. This report identifies VMs that have been allocated more resources than they consistently utilize, making them prime candidates for rightsizing.

Steps to Generate the Oversized VMs Report in vRealize Operations:

Access the VM Rightsizing Dashboard:

Navigate to the Optimize Performance section.

Select the VM Rightsizing dashboard.

Filter VMs by Name:

Use the filtering options to include only VMs with "dev" in their names, ensuring the focus remains on development VMs.

Review Oversized VMs:

Within the dashboard, locate the list of Oversized VMs.

This section displays VMs with allocated resources exceeding their actual usage.

Analyze Recommendations:

For each listed VM, vRealize Operations provides recommendations on optimal resource allocation based on historical usage patterns.

Implement Rightsizing:

After reviewing the recommendations, adjust the resources (CPU, memory) of the identified VMs to match the suggested sizes.

This process, known as rightsizing, ensures that VMs have resources commensurate with their workload demands, freeing up excess allocations for other uses.

Benefits of This Approach:

Immediate Resource Reclamation: By rightsizing oversized development VMs, you can quickly recover CPU and memory resources.

Non-Disruptive to Production: Focusing on VMs with "dev" in their names ensures that production workloads remain unaffected.

Operational Efficiency: Rightsizing enhances overall cluster performance by reducing resource contention and improving utilization.

By following this method, the administrator can efficiently reclaim compute resources from development VMs, alleviating the cluster's capacity constraints without impacting production workloads.

To set up vSphere integration for syslog collection from ESXi hosts in vRealize Log Insight, the required permission in vSphere is Configuration.AdvancedSettings.Host.

Explanation:

Configuration.AdvancedSettings.Host:

This permission allows modification of advanced host settings, including configuring syslog parameters necessary for directing ESXi logs to vRealize Log Insight.

Steps to Assign Permission:

Access vSphere Client:

Log in to the vSphere Client with administrative privileges.

Navigate to Host Permissions:

Select the ESXi host or cluster where you want to assign the permission.

Go to the Permissions tab.

Assign Role with Required Permission:

Create a new role or modify an existing one to include the Configuration.AdvancedSettings.Host privilege.

Assign this role to the user or group responsible for configuring the syslog settings.

= To create an identically configured deployment of a production vRealize Operations cluster managed by vRealize Suite Lifecycle Manager (vRSLCM), follow these steps:

E. Export the configuration for the Production vRSLCM Environment [29]: Export the existing configuration of the production environment as a JSON file. This file contains all the necessary details for replicating the deployment.

A. Create a new vRSLCM Environment using the JSON Configuration file [30]: Use the exported JSON file to create a new environment in vRSLCM. This will replicate the basic structure and settings of the production environment.

B. Update the JSON file to replace any configuration details [31]: Modify the JSON file to update any specific configuration details, such as IP addresses, hostnames, and resource allocations, to match the requirements of the new deployment.

C. Create new locker SSL certificates and passwords for the new deployment [32]: Generate new SSL certificates and passwords for the new deployment to ensure security and avoid conflicts with the production environment.

The administrator should deploy the vRealize Operations analytics cluster using vRealize Suite Lifecycle Manager (vRSLCM) . vRSLCM simplifies the deployment and management of vRealize Suite products, including vRealize Operations. It allows the administrator to deploy a 3-node High Availability cluster with custom CA-signed certificates in a streamlined manner.

Here's why the other options are not suitable:

A. Deploy 3 nodes independently, replace certificates and then form the 3-node cluster: This approach is more complex and prone to errors. It involves manual configuration and certificate replacement on each node.

B. Deploy a single node cluster at the beginning to further expand it to 3 nodes in the next step: While possible, this method is not as efficient as deploying a 3-node cluster directly using vRSLCM.

C. Deploy vRealize Operations analytics cluster using Command Line Interface: Deploying using the CLI requires more expertise and manual intervention compared to using vRSLCM.

vRSLCM provides a centralized platform for managing the entire lifecycle of vRealize Suite products, including deployment, configuration, and upgrades. It simplifies the process of deploying a 3-node High Availability cluster of vRealize Operations with custom CA-signed certificates, ensuring a secure and efficient deployment.

In vRealize Log Insight, when generating support bundles for troubleshooting or support purposes, two types are available:

Light Support Bundle:

Description: A minimal support bundle that includes essential log and configuration files.

Use Case: Suitable for initial diagnostics where only basic information is required.

Streaming Support Bundle:

Description: A support bundle that streams data directly to the client without storing it locally on the vRealize Log Insight appliance.

Use Case: Ideal for environments with limited disk space or when immediate data transfer is necessary.

These support bundle types assist administrators in efficiently collecting diagnostic information tailored to specific needs.

References:

Download a vRealize Log Insight Support Bundle

When a CPU license is applied to a custom group containing existing hosts in vRealize Operations, the VMs running on those hosts will show a "License is Invalid" watermark . This is because CPU licenses in vRealize Operations are specifically designed for licensing hosts and their CPU capacity. To license the VMs running on those hosts, you need to apply a separate VM license key.

Here's why the other options are incorrect:

A. The CPU license gets converted to a CPU and VM license: vRealize Operations does not automatically convert CPU licenses to VM licenses.

C. The VMs running on the hosts are not affected: This is incorrect, as the VMs will be affected by the lack of a valid VM license.

D. vRealize Operations prompts the user to apply a VM license key to the VMs running: While vRealize Operations may indicate that the VMs are not properly licensed, it does not explicitly prompt the user to apply a VM license key.

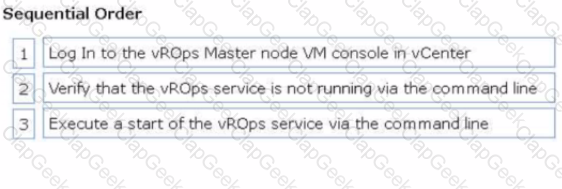

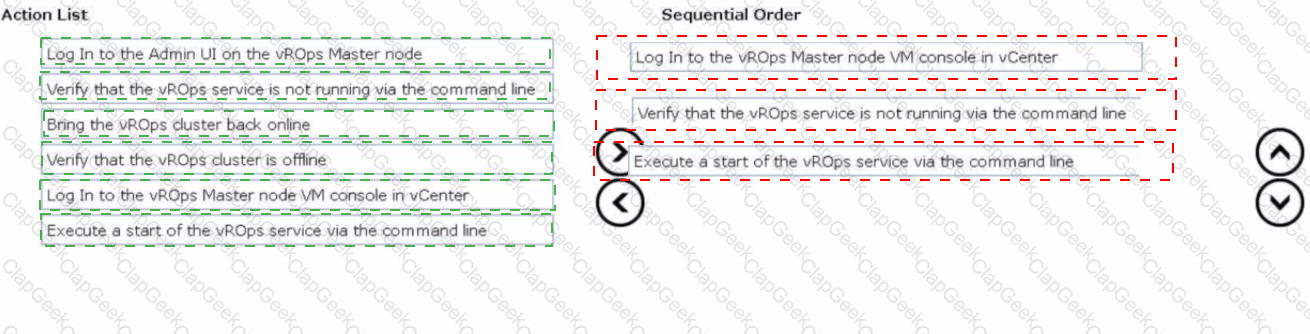

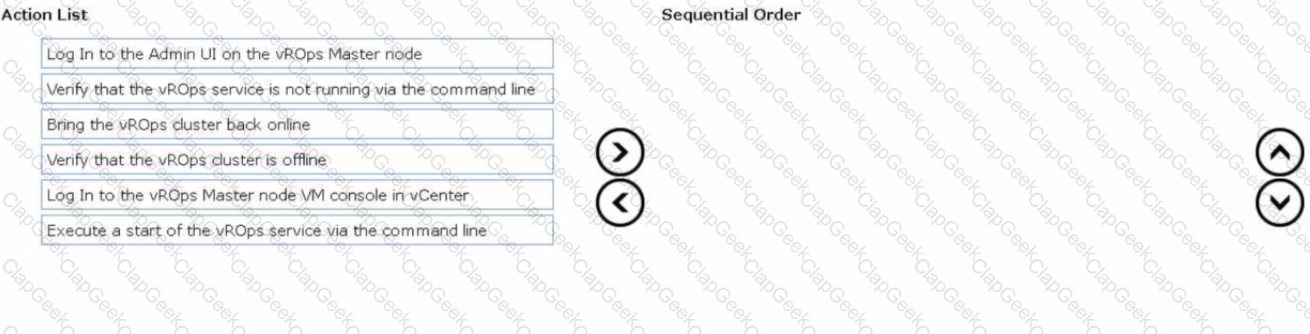

Log in to the vROps Master node VM console in vCenter:

Since the vROps cluster is offline, direct access to the Master node's console in vCenter is required for troubleshooting.

Verify that the vROps service is not running via the command line:

From the Master node console, check the status of the vROps service to confirm that it is not running. Use the appropriate command (e.g., service vmware-vcops status or similar).

Execute a start of the vROps service via the command line:

Start the vROps service using the command line (service vmware-vcops start) to bring the cluster back online.

Questions no: 43 Verified Answer = D, E, and F Comprehensive Detailed Explanation with all VMware References = Three primary factors determine the size of a vRealize Operations deployment:

D. Number of Objects : This refers to the number of entities being monitored, such as virtual machines, hosts, clusters, datastores, and applications. The more objects you monitor, the more resources vRealize Operations needs to collect and analyze data.

E. Number of Metrics : This refers to the number of data points collected for each object. vRealize Operations collects various metrics, such as CPU usage, memory consumption, and network traffic. The more metrics you collect, the higher the resource requirements.

F. Number of Agents : If you use agents to collect data from endpoints or applications, the number of agents deployed also affects the sizing of vRealize Operations. More agents mean more data to process and store.

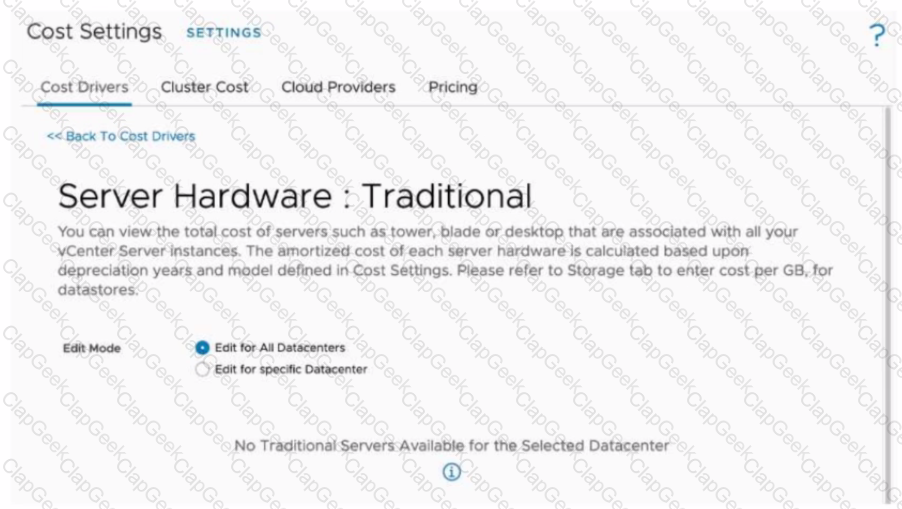

The message "No Traditional Servers Available for the Selected Datacenter" indicates that all the hosts in the selected datacenter are part of vSAN-enabled clusters.

In VMware vRealize Operations, traditional cost drivers apply only to server hardware that is not managed within a vSAN environment. When vSAN is enabled on clusters, the cost drivers and cost calculations for hardware are managed differently because vSAN considers storage costs as part of the software-defined infrastructure, which changes the way costs are modeled and amortized.

Key Points:

Traditional Hardware vs. vSAN:

Traditional cost drivers are associated with non-vSAN environments (e.g., standard storage and compute hardware costs).

For vSAN-enabled clusters, cost calculations must include software-defined storage and are therefore managed under different settings.

Message Meaning:

The error clearly indicates that there are no traditional servers detected because all hosts are part of vSAN-enabled clusters in the datacenter.

Resolution:

If the administrator wants to update cost drivers for these clusters, they must refer to vSAN-specific cost models in vRealize Operations.

Navigate to the vSAN cost settings section in the interface to input appropriate cost metrics.

The OS and Application Monitoring management pack in vRealize Operations collects the following guest information properties for all created objects:

OS Build Number: This identifies the specific build of the operating system running on the guest VM.

OS Version: This indicates the version of the operating system, such as Windows Server 2019 or Red Hat Enterprise Linux 8.

Hostname: This provides the hostname assigned to the guest VM, allowing for easy identification and management.
