3V0-21.23 VMware vSphere 8.x Advanced Design Questions and Answers

This is a business factor because it directly relates to the financial goals and constraints of the customer. Keeping IT infrastructure costs at a minimum will impact the design by influencing decisions regarding hardware selection, deployment scale, and resource allocation, among other factors.

vCPU to pCPU ratio may not exceed 5:1.

This ensures that the virtual CPU (vCPU) allocation is balanced with the physical CPU (pCPU) resources. A ratio that exceeds 5:1 can lead to CPU contention, negatively impacting performance. By maintaining this ratio, the architect ensures that the workloads have sufficient CPU resources for optimal performance.

CPU purchases will favor clock speed and last level cache over cores per socket.

This is an important performance consideration. Choosing CPUs with higher clock speed and larger last-level cache (LLC) ensures that workloads requiring higher single-threaded performance are optimized. This decision favors workloads that benefit from faster CPU processing and larger cache sizes, improving overall performance.

Additional ESXi hosts will be added to the cluster when CPU or memory utilization exceeds 70% for 3 consecutive business days.

This performance-related decision ensures that the environment remains responsive under load. Adding additional hosts when resource utilization exceeds thresholds helps prevent bottlenecks and ensures continued optimal performance by distributing workloads across more physical hosts.

The storage may not have capacity to accommodate 20% year-over-year virtual machine growth.

This is a risk because, while the assumption is that the storage hardware has sufficient capacity, there is a possibility that the hardware may not be able to support future growth, especially if the customer's workload grows faster than expected. Documenting this risk ensures that the design considers potential capacity constraints.

The customer may not have an existing licensing subscription that covers features the architect intends to use.

This is a risk because although the assumption is that the customer will provide licensing, there may be discrepancies between the features required for the design and the customer’s existing licensing. This risk ensures that the architect verifies that the customer’s licensing aligns with the solution requirements.

This is the business objective that translates to a conceptual model constraint, as it is an external requirement that must be met by the system design, influencing how the architecture should be shaped. Compliance audits often dictate specific standards, security, and operational procedures that must be adhered to, which restricts the design choices in terms of governance and best practices.

vSphere High Availability Restart Priority set to default at the cluster level

This option ensures that vSphere HA will automatically restart the virtual machines (VMs) on another available host in the cluster if a host fails. Setting the restart priority at the cluster level ensures that the VMs are restarted in an order that helps maintain the availability of critical workloads first, enhancing the overall availability during a host failure.

vSphere NIC Teaming policy: Route based on originating port ID set on the distributed port group

This setting for NIC Teaming ensures that network traffic is distributed effectively across the NICs, improving network availability. In the event of a failure of one physical switch or NIC, the Route based on originating port ID policy ensures that network connectivity for the VMs is maintained via the remaining NICs, enhancing network resilience.

vSphere Round Robin storage multi-pathing policy set on each ESXi host

Setting the Round Robin storage multi-pathing policy helps distribute I/O across multiple paths to the storage system, ensuring that VM storage remains highly available. If one path fails, traffic is automatically rerouted to other available paths, ensuring minimal disruption to VM storage and improving overall availability in the event of storage path failures.

Based on VMware vSphere 8.x Advanced documentation, the architect is designing a vSphere-based solution to meet three specific requirements: a recovery point objective (RPO) of 15 minutes, a primary and secondary site, and support for orchestration to address application dependencies. The solution must include two VMware technologies that collectively satisfy these requirements.

Requirements Analysis:

Recovery Point Objective (RPO) of 15 minutes: The solution must ensure that no more than 15 minutes of data is lost in a disaster, requiring frequent data replication or synchronization between sites.

Primary and secondary site: The solution must support a disaster recovery (DR) architecture with two distinct sites, implying replication or failover capabilities between them.

Orchestration to address application dependencies: The solution must provide automated recovery workflows to manage the startup order and dependencies of multi-tier applications (e.g., ensuring a database starts before an application server).

Evaluation of Options:

A. vSAN stretched cluster:

Why incorrect: A vSAN stretched cluster provides high availability and disaster recovery by synchronously replicating data across two sites, achieving near-zero RPO and RTO. However, it is designed for high-availability scenarios within a single vSphere cluster spanning sites, not traditional DR with orchestration. vSAN stretched clusters do not natively provide orchestration for application dependencies (e.g., automated recovery plans or startup order), which is a key requirement. Additionally, stretched clusters require low-latency, high-bandwidth connections (typically <5ms RTT), which is not guaranteed in the provided information. This option does not fully meet the orchestration requirement.

B. vSphere HA:

Why incorrect: vSphere High Availability (HA) provides automatic VM restarts within a cluster in case of host failures, but it operates within a single site and does not support replication or failover between primary and secondary sites. vSphere HA does not address the 15-minute RPO requirement, as it does not replicate data, nor does itprovide orchestration for application dependencies across sites. This option is unsuitable for a multi-site DR scenario.

C. Site Recovery Manager:

Why correct: VMware Site Recovery Manager (SRM) is a disaster recovery solution designed for automated failover and failback between primary and secondary sites. SRM supports orchestration of recovery plans, allowing the architect to define the startup order and dependencies of multi-tier applications (e.g., starting a database before an application server). When paired with vSphere Replication, SRM can achieve an RPO of 15 minutes by orchestrating the failover of replicated VMs. SRM meets the requirements for primary/secondary site support, orchestration for application dependencies, and integration with replication technologies to achieve the required RPO.

The solution will deploy VMware vSphere Enterprise Plus on all hosts within the cluster.

VMware vSphere Enterprise Plus offers advanced networking and storage features that will support the required high availability, performance, and management capabilities. Features such as Distributed Switches and Network I/O Control (NIOC) are critical to meeting the business-critical application and performance requirements for the latency-sensitive stock trading application.

The solution will deploy a single vSphere Distributed Switch with each host connected to it.

A vSphere Distributed Switch (VDS) is ideal for managing network configurations centrally across multiple hosts, which meets the requirement for centralized vSphere operational management. It also ensures consistent network configurations and simplifies network management at scale.

The solution will configure Network I/O control to ensure that system-level bandwidth does not impact workload network traffic.

Network I/O Control (NIOC) is essential for prioritizing network traffic, ensuring that latency-sensitive workloads are not impacted by other system-level or less critical traffic. This is crucial for the performance requirements of the stock trading application.

Strict Lockdown Mode is the correct choice because it restricts all access to the ESXi host directly, ensuring that configuration can only be performed through VMware vCenter. This is in line with the requirement that configuration can only be done via vCenter.

Strict Lockdown Mode disables the Direct Console User Interface (DCUI) and SSH services, which aligns with the customer's requirement to have these services disabled for security purposes.

This is a business requirement because it aligns with corporate sustainability goals, focusing on reducing environmental impact. It is a high-level goal that can drive design decisions but is not directly related to the technical function or features of the system.

Deploy all DPU-enabled VMware ESXi hosts into a dedicated VMware vSphere cluster:

Since the customer has amission-critical, latency-sensitive stock trading application, it is essential todedicate resourcesto these workloads to avoid contention with other less critical workloads. By placingDPU-enabled ESXi hosts in a dedicated cluster, the architect ensures that the hardware acceleration provided by the DPUs can be fully utilized by the latency-sensitive application without interference from other workloads.

Configure network offloads compatibility to support DPUs:

DPUscan offload network-related tasks from the CPU, such as network packet processing, and ensure better performance and lower latency. Byconfiguring network offload compatibilityin VMware ESXi, the system will leverage the DPU’s capabilities to offload network traffic processing, reducing the CPU burden and improving network performance for latency-sensitive applications.

Deploy new vSphere distributed switches (8.0.0) and connect the new DPU-enabled hosts:

For optimal support and performance withDPU-enabled hosts, the architect should deployvSphere distributed switches (VDS) version 8.0.0. The newer version will be optimized for the hardware and provide better integration with DPUs, ensuring the latest features, improvements, and support for DPUs, thus maximizing the performance and minimizing latency for mission-critical applications.

VMware vCenter instance in each management domain for the virtual infrastructure management of management workloads:

The customer requiresisolation between management and compute workloads. By deployingvCenter instances in dedicated management domains, the management workloads can be handled separately from production and development compute workloads, ensuring isolation.

VMware vCenter instance in the secondary site management domain for the virtual infrastructure management of production compute workloads:

Thesecondary siteshould also have avCenter instancefor the management ofproduction compute workloads. This ensures thatoperational managementof production workloads is still possible even in the event of adisaster affecting the primary site, which aligns with the requirement to ensure themanagement of compute workloads in the secondary site.

VMware vCenter instance in the primary site management domain for the virtual infrastructure management of production compute workloads:

AvCenter instancein theprimary site management domainshould handle themanagement of production compute workloads. The primary site is typically where most production workloads reside, and having the vCenter instance here ensures that management operations can be performed efficiently.

Separate management domain within each site for hosting local management workloads:

To ensure thatmanagement operations are isolatedand that themanagement workloads do not affect compute workloads, aseparate management domainshould be deployed in each site. This ensures that the management functions do not consume compute resources that are intended for production or development workloads.

To meet the customer requirements, we need to address the two specific scenarios:

Workloads must be automatically relocated to other hosts in the event that a host hardware is marked as degraded:

This requirement can be fulfilled by Proactive HA. Proactive HA is a feature of vSphere HA that works in conjunction with hardware health monitoring tools, such as the vendor’s plugin for vCenter. When the vendor's monitoring tool marks a host as degraded (due to hardware issues), Proactive HA can automatically trigger the migration of workloads to other hosts, based on the Automation Level configuration.

Workloads must be automatically restarted on other hosts in the event of a host failure:

This can be managed using vSphere HA with the setting to restart VMs when a host fails. This ensures that in the event of a host failure, workloads are automatically restarted on available hosts in the cluster.

By enabling Proactive HA with an Automation Level of Automated, the architect ensures that degraded hosts are automatically handled (through workload migration) without manual intervention.

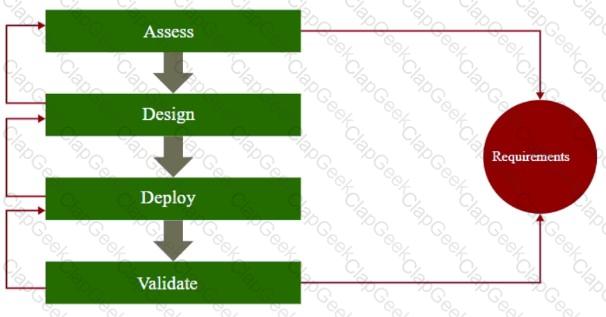

The design became constrained when the customer required the use of the corporate Active Directory Domain Services (AD DS) solution. The security team's intervention and insistence on using the corporate Active Directory effectively limited the options available for the authentication solution, as OpenLDAP was no longer a valid choice. At this point, the solution's scope was restricted to ensure compatibility with the customer's existing Active Directory infrastructure, which imposed a specific requirement on the design.

The company policy requires storage separation of workloads by departments. To meet this requirement, the architect should design the storage architecture to create a dedicated storage volume for each department. This approach allows for logical separation of each department’s data, ensuring that workloads from one department are isolated from the others.

Creating new storage volumes for new departments provides scalability. As new departments are added, new volumes can be provisioned without affecting the existing volumes or requiring reconfiguration of the existing department’s storage.

VMware NSX: NSX provides a centralized platform for network virtualization and security, which aligns with the requirement for enforcing virtual network security policies. It can manage network segmentation, security policies, and micro-segmentation across the entire environment, including both virtual machines and containerized applications.

Distributed Firewalls: NSX's distributed firewall allows for micro-segmentation, meaning that network access is denied between workloads by default, and access controls can be applied based on security policies. This meets the requirement of denying network access by default.

Port Mirroring: Port mirroring in NSX can integrate with the security team's network monitoring solutions. It enables the security team to capture traffic for monitoring and analysis, addressing the requirement for network monitoring support.

A business outcome refers to a result or impact that directly contributes to the strategic goals of the organization, typically focusing on long-term objectives or future benefits. In this case, building a strong foundation for future projects, including cloud infrastructures, aligns with the business goal of positioning the organization for future success and scalability. This outcome is about preparing the organization for the future, which is a key business-driven result.

In this scenario, the requirement is to ensure that only Production workloads are recovered in the event of a host failure during maintenance, while Development workloads are not restarted. This can be achieved using vSphere HA settings.

By configuring the vSphere HA Host Failure Response to Restart VMs, the system will attempt to restart VMs when a host failure occurs.

Setting the Restart Priority for Development VMs to Disabled ensures that these VMs will not be restarted during a failure event, even though the cluster is set to restart VMs in the event of a host failure. This way, only the Production workloads will be restarted, meeting the customer’s requirement.

Separate clusters in DC1 and DC2 provide logical isolation between the two data centers. This means that an accidental change or misconfiguration in one cluster (e.g., DC1) will not affect the other cluster (e.g., DC2). This isolation meets the customer's requirement to limit the impact radius of accidental changes by administrators. By having separate clusters, the risk of cross-site or cross-cluster disruptions is minimized, ensuring better fault tolerance and administrative control.

To meet the requirements outlined, the architect will need to design a solution with three VMware vCenter instances. Here's why:

Isolation of Virtual Infrastructure Management Operations: The management workloads (such as vCenter itself, along with other virtual infrastructure management tools) should be isolated from compute workloads. This suggests the need for a separate vCenter instance to manage the infrastructure without impacting compute workloads.

Physical Isolation of Production and Development Workloads: Production workloads and development workloads need to be physically isolated, which suggests the need for different vCenter instances to maintain separation.

Support for Operational Management in the Event of a Disaster: In the event of a disaster affecting the primary site, the secondary site should still be able to manage compute workloads. This could be achieved by having a vCenter instance in each site (primary and secondary) to ensure continued management in the event of a failure.

Breakdown of the three vCenter instances:

vCenter 1: Manages production workloads across both primary and secondary sites.

vCenter 2: Manages development workloads in the secondary site, ensuring isolation from production.

vCenter 3: Manages the virtual infrastructure management workloads, ensuring isolation from compute workloads.

Based on VMware vSphere 8.x Advanced documentation and VMware Cloud Foundation (VCF) resources, the architect needs to identify the benefit of using workload domains in a VCF environment. Workload domains are a core construct in VCF, designed to simplify the deployment and management of Software-Defined Data Center (SDDC) components, including vSphere, vSAN, NSX, and vCenter.

Analysis of Workload Domains in VCF:

Workload Domains: In VCF, workload domains are logical units that group compute, storage, and networking resources to host specific workloads (e.g., production, development, or DMZ). They include a vSphere cluster, vSAN storage, NSX networking, and a dedicated vCenter instance, managed through the SDDC Manager.

Purpose: Workload domains provide isolation, scalability, and simplified management by automating the deployment and configuration of SDDC components according to VMware’s best practices.

Evaluation of Options:

A. Workload domains require separate instances of vCenter, decreasing complexity and management overhead:

Why incorrect: While workload domains do include a dedicated vCenter instance for each domain to ensure isolation and independent management, this increases management overhead rather than decreasing it. Each vCenter instance requires separate administration, monitoring, and patching, which adds complexity compared to a single vCenter managing multiple clusters. This is not a benefit.

The customer's request to use multiple network connections for the ESXi management network is aimed at improving the resilience of the network, which directly supports the availability of the management network. By using multiple network connections (such as NIC teaming), the solution ensures that if one network connection fails, the other connections can maintain connectivity, thus improving the availability of the ESXi management network.

To meet the requirement of maximum tolerable downtime (MTD) of one hour per month, the system must ensure that in the event of a host failure, the production applications (virtual machines) are restarted as quickly as possible. Configuring vSphere HA Host Failure Response to Restart VMs ensures that VMs are automatically restarted on available hosts in the cluster if a host failure occurs. This setup minimizes downtime and ensures that the system can recover within the specified MTD of one hour per month.

Based on VMware vSphere 8.x Advanced documentation and VMware Validated Solutions (VVS) resources, the VMware Validated Solutions are pre-defined, tested, and proven architectures designed to simplify deployment and operation of VMware Cloud Foundation (VCF) and related technologies. The key benefits include:

C: VVS provides best practice design guidance, offering standardized architectures and configurations that align with VMware's recommended practices to ensure optimal performance and reliability.

E: VVS enables the deployment of technically validated implementations on VMware Cloud Foundation, ensuring that solutions are pre-tested and certified to work seamlessly within the VCF ecosystem, reducing deployment risks.

Must use the latest version of VMware vSphere

This is a constraint because the design must adhere to the specific requirement of using the latest version of VMware vSphere. This limits the possible versions or features that can be incorporated into the solution.

Must use VMXNET3 virtual network interface card

This is also a constraint because it mandates the use of a specific virtual network interface card (VMXNET3), restricting the design to that particular choice for network connectivity.
