AZ-400 Microsoft Azure DevOps Solutions Questions and Answers

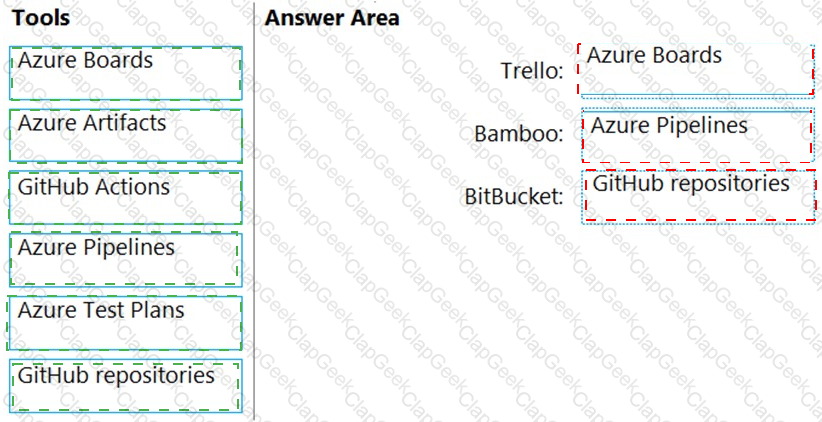

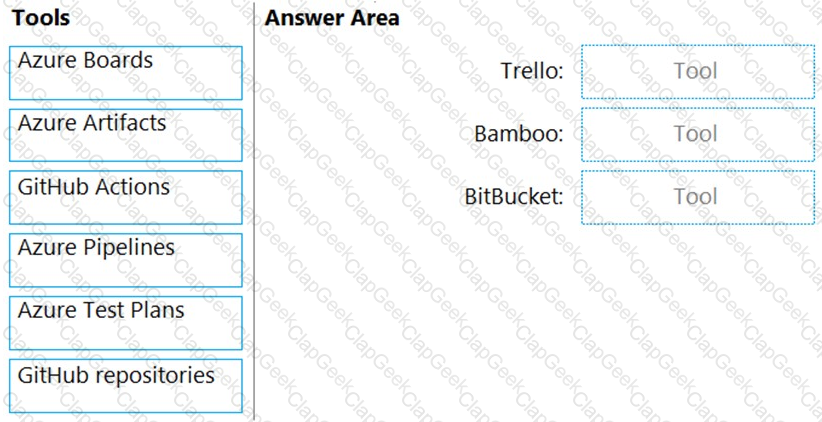

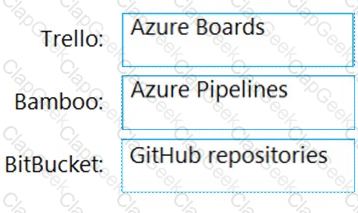

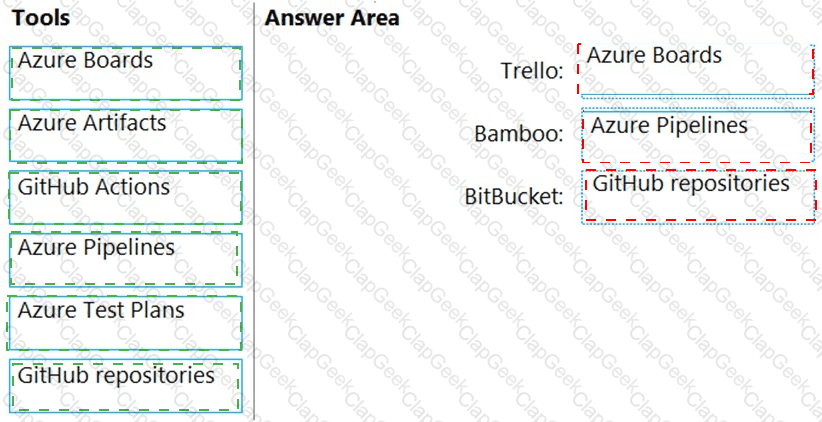

Box 1: Azure Boards

Azure Boards can be used to track work with Kanban boards, backlogs, team dashboards, and custom reporting

You can create multiple Trello boards, which are spaces to store tasks (for different work contexts, or even private boards)

You can easily share Trello boards with another person.

Box 2: Azure Pipelines

You can use Bamboo to implement CI/CD (Continuous Integration and Continuous Delivery) for a simple Azure function app using Atlassian Bamboo. Bamboo does continuous delivery of the project from source code to deployment. It has stages including Build, Test and Deploy.

Software teams in every industry are upgrading their continuous delivery pipeline with Bamboo. Easy build import from popular open source tools, user and group import from JIRA, seamless integration with Bitbucket, and native support for Git, Hg, and SVN means you'll be building and deploying like a champ.

Box 3: GitHub repositories

Bitbucket can be used as the Git repository, but you can use any other Git repository (Like TFS Git) for source control of the code.

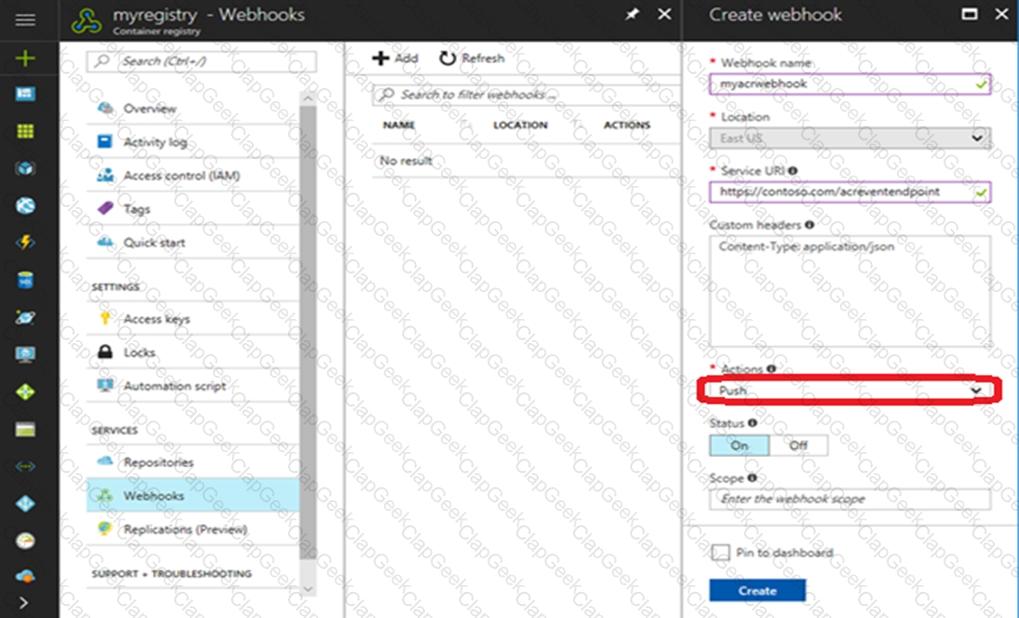

Scenario: Implement Project4 and configure the project to push Docker images to Azure Container Registry.

You use Azure Container Registry Tasks commands to quickly build, push, and run a Docker container image natively within Azure, showing how to offload your "inner-loop" development cycle to the cloud. ACR Tasks is a suite of features within Azure Container Registry to help you manage and modify container images across the container lifecycle.

References:

https://do cs.microsoft.com/en-us/azure/container-registry/container-registry-quickstart-task-cli

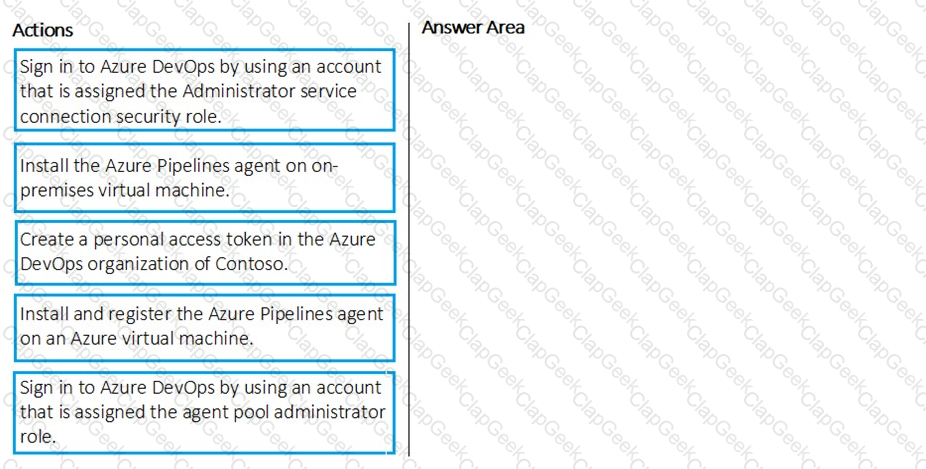

Scenario:

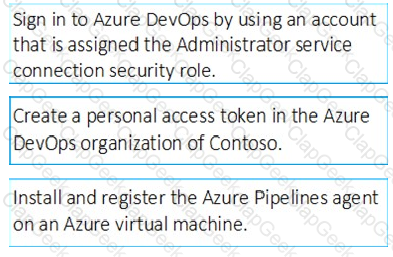

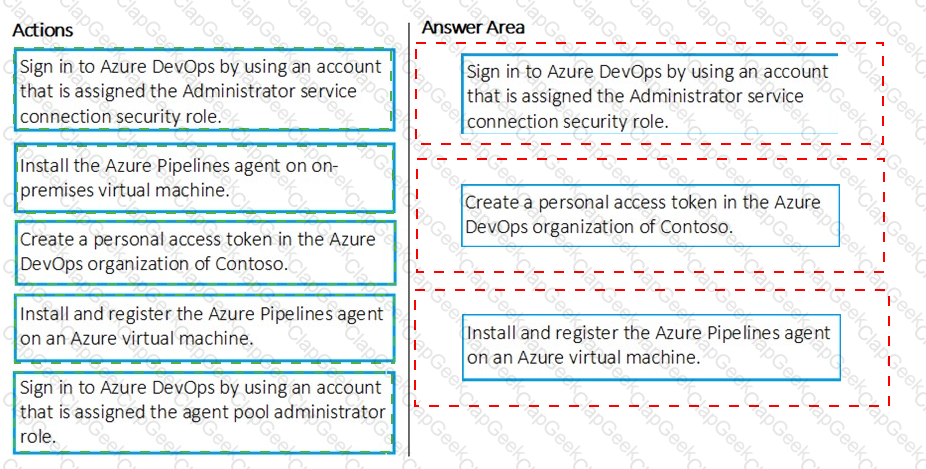

Step 1: Sign in to Azure Develops by using an account that is assigned the Administrator service connection security role.

Note: Under Agent Phase, click Deploy Service Fabric Application. Click Docker Settings and then click Configure Docker settings. In Registry Credentials Source, select Azure Resource Manager Service Connection. Then select your Azure subscription.

Step 2: Create a personal access token..

A personal access token or PAT is required so that a machine can join the pool created with the Agent Pools (read, manage) scope.

Step 3: Install and register the Azure Pipelines agent on an Azure virtual machine.

By running a Azure Pipeline agent in the cluster, we make it possible to test any service, regardless of type.

References:

https://doc s.microsoft.com/en-us/azure/service-fabric/service-fabric-tutorial-deploy-container-app-with-cicd-vsts

https://mohitgoyal.co/2 019/01/10/run-azure-devops-private-agents-in-kubernetes-clusters/

The first thing to do is to declare your Sonar Qube server as a service endpoint in your VSTS/DevOps project settings.

References: https://docs.sonarqube.org/display/SCAN/Analyzing+with+SonarQube+Extension+for+vsts-TFS

The Register-AzureRmAutomationDscNode cmdlet registers an Azure virtual machine as an APS Desired State Configuration (DSC) node in an Azure Automation account.

Scenario: The Azure DevOps organization includes:

The Docker extension

A deployment pool named Pool7 that contains 10 Azure virtual machines that run Windows Server 2016

References: https://docs.microsoft.com/en-us/powershell/module/azurerm.automation/register-azurermautomationdscnode

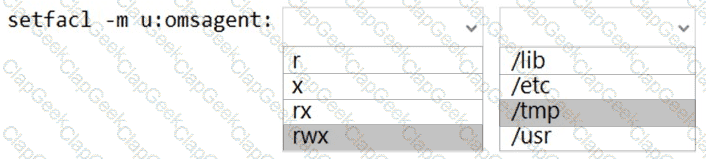

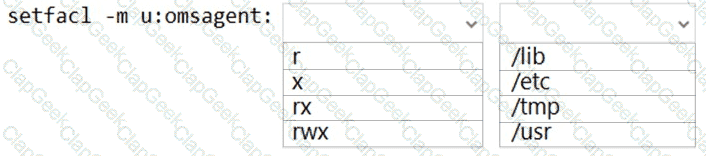

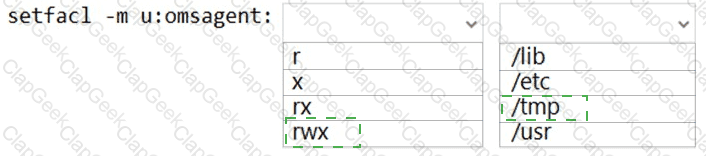

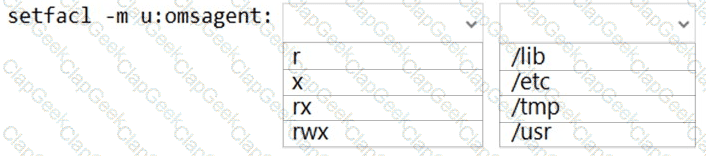

Box 1: rwx

The Log Analytics agent for Linux runs as the omsagent user. To grant >write permission to the omsagent user, run the command setfacl -m u:omsagent:rwx /tmp.

Box 2: /tmp

Deploying DSC to a Linux node uses the /tmp folder.

Scenario:

References: https://docs.microsoft.com/en-us/azure/devops/pipelines/build/triggers

Scenario: Implement Project3, Project5, Project6, and Project7 based on the planned changes

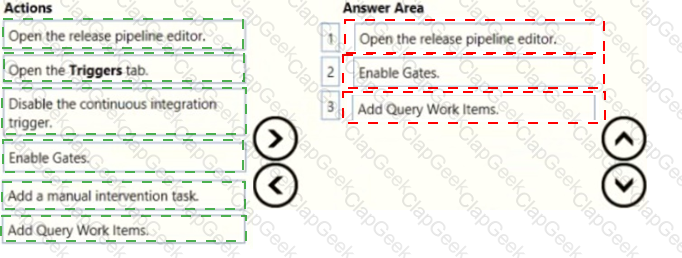

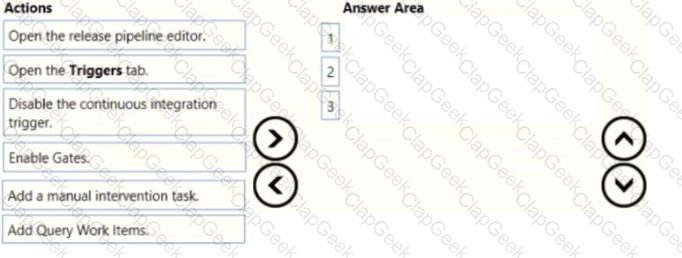

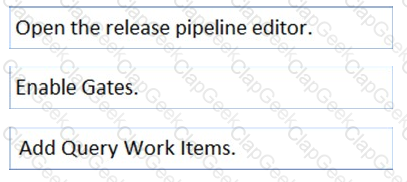

Step 1: Open the release pipeline editor.

In the Releases tab of Azure Pipelines, select your release pipeline and choose Edit to open the pipeline editor.

Step 2: Enable Gates.

Choose the pre-deployment conditions icon for the Production stage to open the conditions panel. Enable gates by using the switch control in the Gates section.

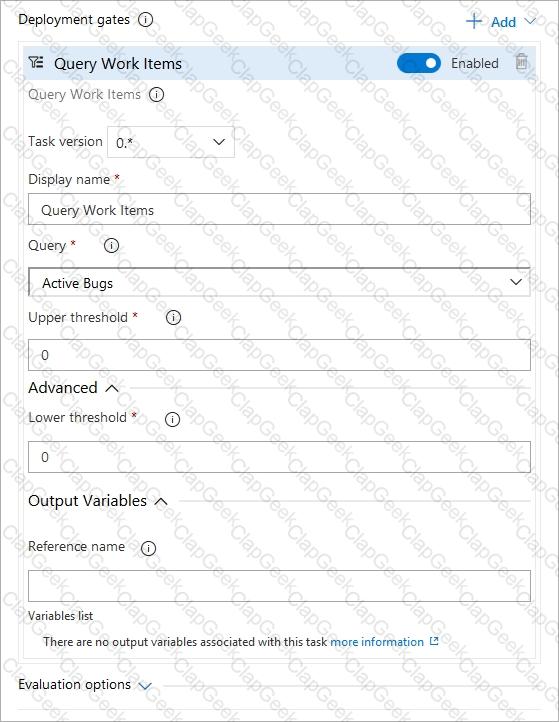

Step 3: Add Query Work items.

Choose + Add and select the Query Work Items gate.

Configure the gate by selecting an existing work item query.

Note: A case for release gate is:

Incident and issues management. Ensure the required status for work items, incidents, and issues. For example, ensure deployment occurs only if no priority zero bugs exist, and validation that there are no active incidents takes place after deployment.

References:

https://docs.microsoft.com/en-us/azure/devops/pipelines/release/deploy-using-approvals?view=azure-devops#configure-gate

The commit-msg hook is invoked by git-commit and git-merge, and can be bypassed with the --no-verify option.

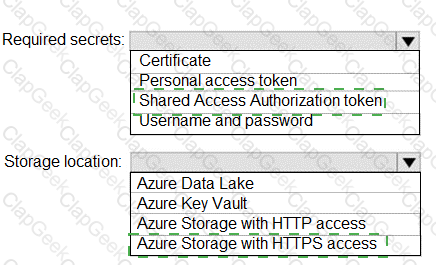

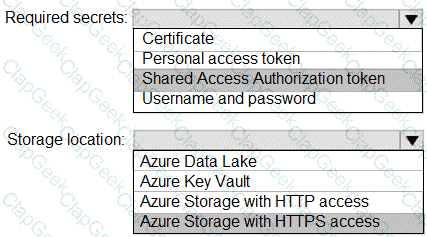

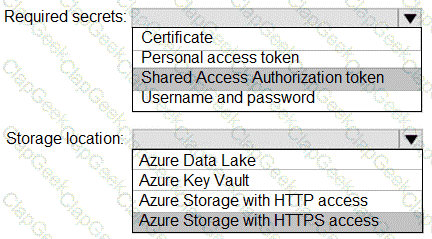

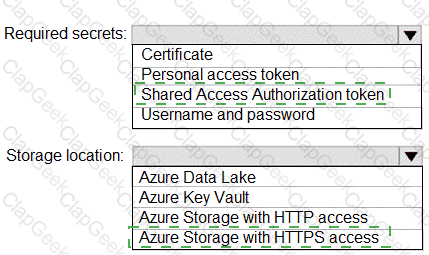

Every request made against a storage service must be authorized, unless the request is for a blob or container resource that has been made available for public or signed access. One option for authorizing a request is by using Shared Key.

Scenario: The mobile applications must be able to call the share pricing service of the existing retirement fund management system. Until the system is upgraded, the service will only support basic authentication over HTTPS.

The investment planning applications suite will include one multi-tier web application and two iOS mobile application. One mobile application will be used by employees; the other will be used by customers.

References: https://docs.microsoft.com/en-us/rest/api/storageservices/authorize-with-shared-key

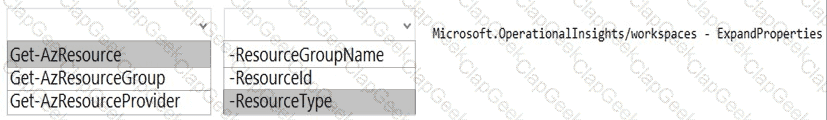

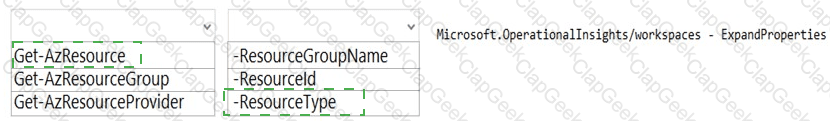

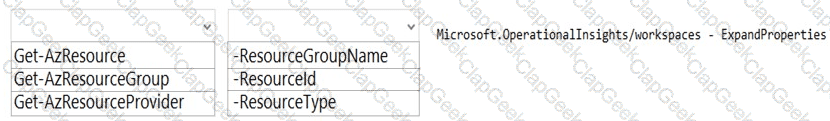

Box 1: Get-AzResource

Use the following command to examine the access control mode for all workspaces in the subscription:

PowerShell

Get-Az Resource –Resource Type Microsoft. Operational Insights/workspaces –Expand Properties | for each {s.Name + ": " + $_.Properties.features.enableLogAccessUsingOnlyResourcePermissions

Box 2: -Resource Type

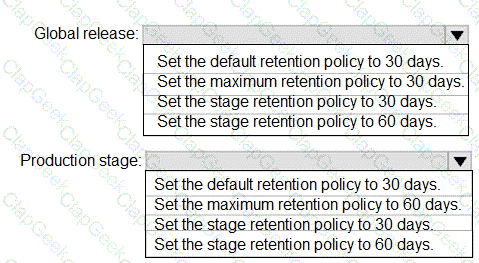

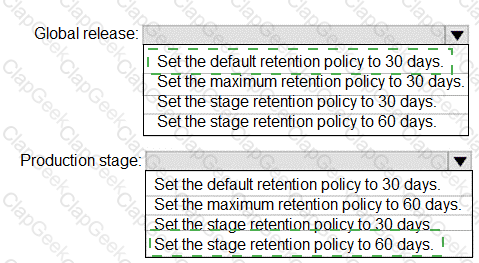

Scenario: By default, all releases must remain available for 30 days, except for production releases, which must be kept for 60 days.

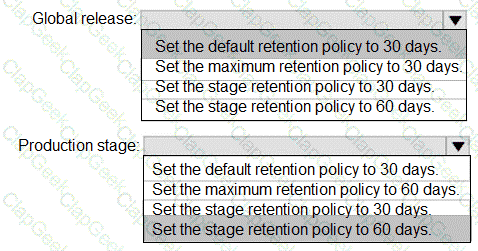

Box 1: Set the default retention policy to 30 days

The Global default retention policy sets the default retention values for all the build pipelines. Authors of build pipelines can override these values.

Box 2: Set the stage retention policy to 60 days

You may want to retain more releases that have been deployed to specific stages.

References: https://docs.microsoft.com/en-us/azure/devops/pipelines/policies/retention

Batching CI runs

If you have many team members uploading changes often, you may want to reduce the number of runs you start. If you set batch to true, when a pipeline is running, the system waits until the run is completed, then starts another run with all changes that have not yet been built.

Example:

# specific branch build with batching

trigger:

batch: true

branches:

include:

- master

To clarify this example, let us say that a push A to master caused the above pipeline to run. While that pipeline is running, additional pushes B and C occur into the repository. These updates do not start new independent runs immediately. But after the first run is completed, all pushes until that point of time are batched together and a new run is started.

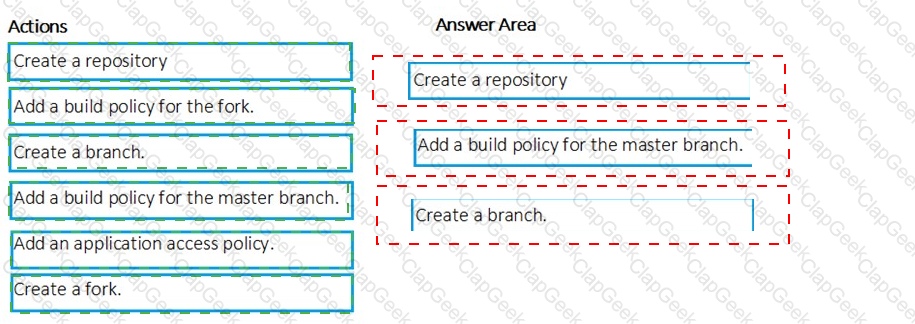

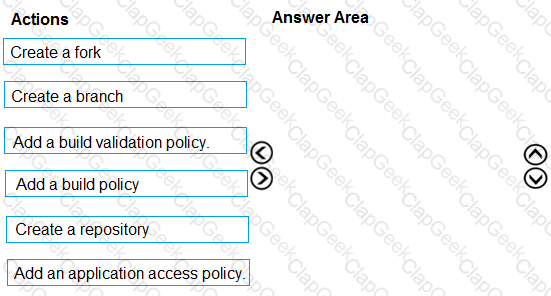

Scenario: A branching strategy that supports developing new functionality in isolation must be used.

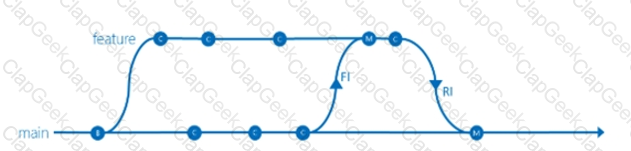

Feature isolation is a special derivation of the development isolation, allowing you to branch one or more feature branches from main, as shown, or from your dev branches.

When you need to work on a particular feature, it might be a good idea to create a feature branch.

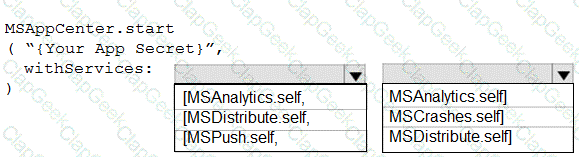

Scenario: Visual Studio App Center must be used to centralize the reporting of mobile application crashes and device types in use.

In order to use App Center, you need to opt in to the service(s) that you want to use, meaning by default no services are started and you will have to explicitly call each of them when starting the SDK.

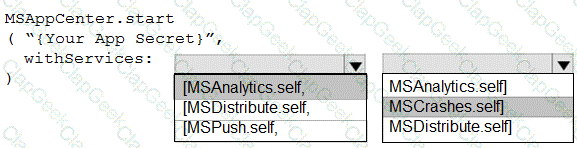

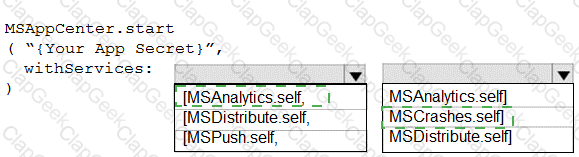

Insert the following line to start the SDK in your app's App Delete class in the didFinishLaunchingWithOptions method.

MSAppCenter.start("{Your App Secret}", withServices: [MSAnalytics.self, MSCrashes.self])

References: https://docs.microsoft.com/en-us/appcenter/sdk/getting-started/ios

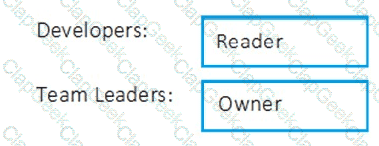

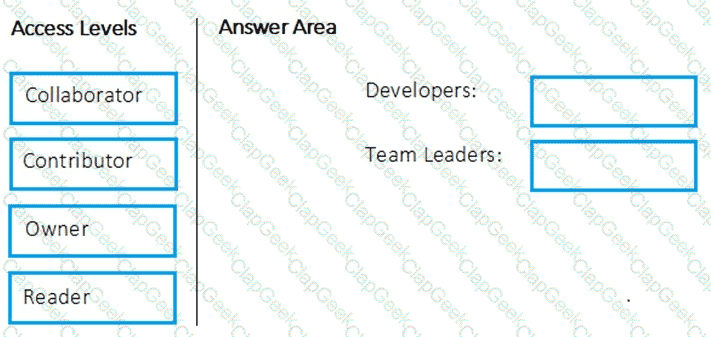

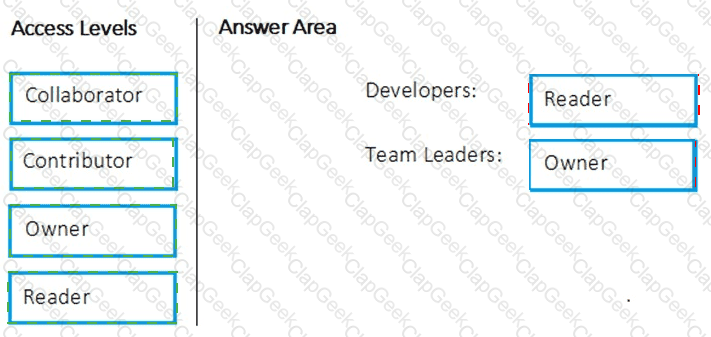

Box 1: Reader

Members of a group named Developers must be able to install packages.

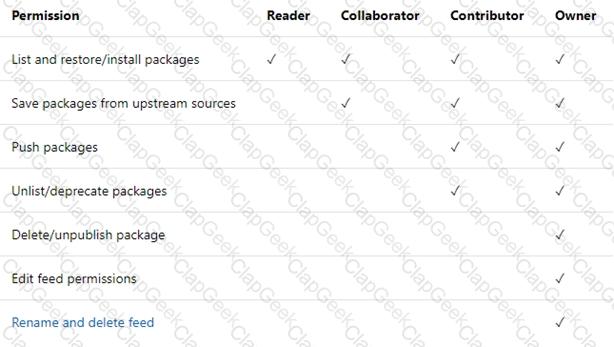

Feeds have four levels of access: Owners, Contributors, Collaborators, and Readers. Owners can add any type of identity-individuals, teams, and groups-to any access level.

Box 2: Owner

Members of a group named Team Leaders must be able to create new packages and edit the permissions of package feeds.

Every request made against a storage service must be authorized, unless the request is for a blob or container resource that has been made available for public or signed access. One option for authorizing a request is by using Shared Key.

Scenario: The mobile applications must be able to call the share pricing service of the existing retirement fund management system. Until the system is upgraded, the service will only support basic authentication over HTTPS.

The investment planning applications suite will include one multi-tier web application and two iOS mobile application. One mobile application will be used by employees; the other will be used by customers.

References: https://docs.microsoft.com/en-us/rest/api/storageservices/a uthorize-with-shared-key

Unattended config:

The agent can be set up from a script with no human intervention. You must pass --unattended and the answers to all questions.

To configure an agent, it must know the URL to your organization or collection and credentials of someone authorized to set up agents. All other responses are optional.

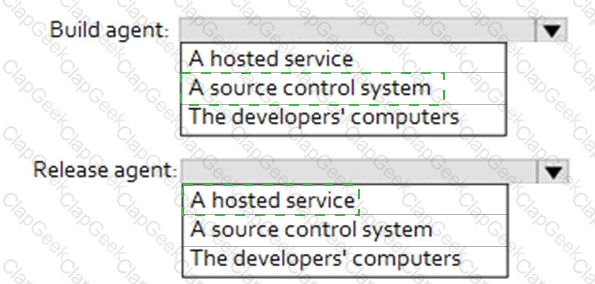

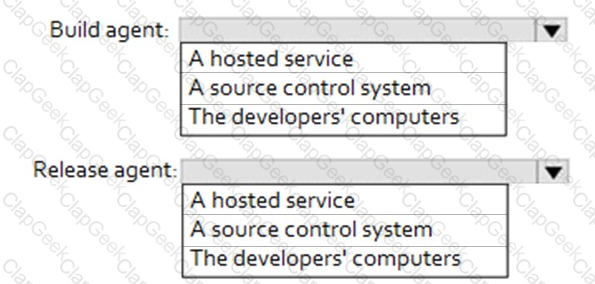

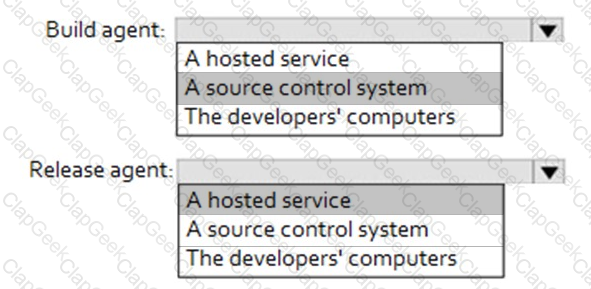

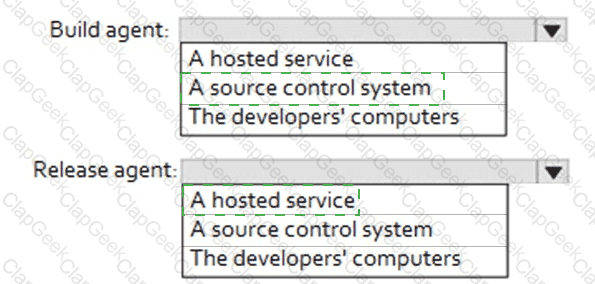

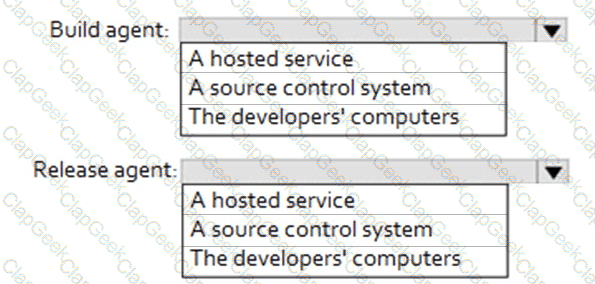

Box 1: A source control system

A source control system, also called a version control system, allows developers to collaborate on code and track changes. Source control is an essential tool for multi-developer projects.

Box 2: A hosted service

To build and deploy Xcode apps or Xamarin.iOS projects, you'll need at least one macOS agent. If your pipelines are in Azure Pipelines and a Microsoft-hosted agent meets your needs, you can skip setting up a self-hosted macOS agent.

Scenario: The investment planning applications suite will include one multi-tier web application and two iOS mobile applications. One mobile application will be used by employees; the other will be used by customers.

References:

https://docs.microsoft.com/en-us/azure/devops/pipelines/agents/v2-osx?view=azure-devops

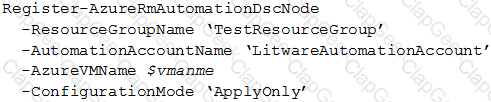

Change the ConfigurationMode parameter from ApplyOnly to ApplyAndAutocorrect.

The Register-AzureRmAutomationDscNode cmdlet registers an Azure virtual machine as an APS Desired State Configuration (DSC) node in an Azure Automation account.

Scenario: Current Technical Issue

The test servers are configured correctly when first deployed, but they experience configuration drift over time. Azure Automation State Configuration fails to correct the configurations.

Azure Automation State Configuration nodes are registered by using the following command.

References: https://docs.microsoft.com/en-us/powershell/module/azurerm.automation/register-azurerma utomationdscnode?view=azurermps-6.13.0

https://docs.m icrosoft.com/en-us/azure/devops/pipelines/release/approvals/servicenow?view=azure-devops

Box 1: Basic

Assign Basic to users with a TFS CAL, with a Visual Studio Professional subscription, and to users for whom you are paying for Azure Boards & Repos in an organization.

Box 2: Stakeholder

Assign Stakeholders to users with no license or subscriptions who need access to a limited set of features.

Note:

You assign users or groups of users to one of the following access levels:

Basic: provides access to most features

VS Enterprise: provides access to premium features

Stakeholders: provides partial access, can be assigned to unlimited users for free

References: https://docs.microsoft.com/en-u s/azure/devops/organizations/security/access-levels?view=vsts

Box 1: Reader

Members of the Reader role can view the organization agent pool as well as agents. You typically use this to add operators that are responsible for monitoring the agents and their health.

Box 2: Service account

Members of the Service account role can use the organization agent pool to create a project agent pool in a project. If you follow the guidelines above for creating new project agent pools,

you typically do not have to add any members here.

Contributors have permissions to contribute fully to the project code base and work item tracking. The main permissions they don't have or those that manage or administer resources.

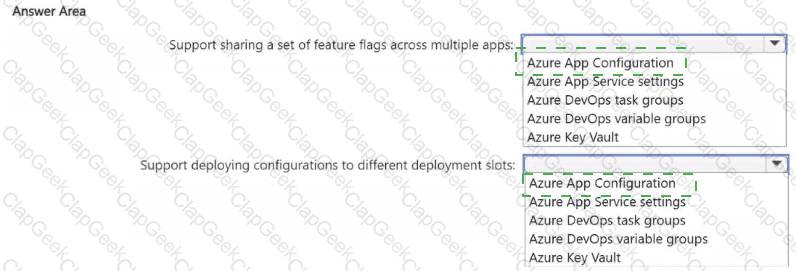

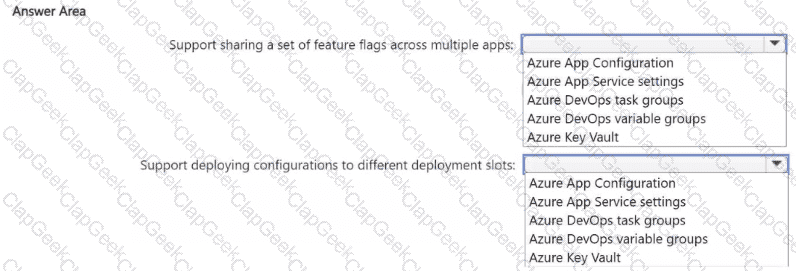

The Feature Manager in the Azure portal for App Configuration provides a UI for creating and managing the feature flags that you use in your applications.

App Configuration offers the following benefits:

A fully managed service that can be set up in minutes

Flexible key representations and mappings

Tagging with labels

Point-in-time replay of settings

Dedicated UI for feature flag management

Comparison of two sets of configurations on custom-defined dimensions

Enhanced security through Azure-managed identities

Encryption of sensitive information at rest and in transit

Native integration with popular frameworks

App Configuration complements Azure Key Vault, which is used to store application secrets.

The IT Service Management Connector (ITSMC) allows you to connect Azure and a supported IT Service Management (ITSM) product/service.

ITSMC supports connections with the following ITSM tools:

ServiceNow

System Center Service Manager

Provance

Cherwell

With ITSMC, you can

Create work items in ITSM tool, based on your Azure alerts (metric alerts, Activity Log alerts and Log Analytics alerts).

Optionally, you can sync your incident and change request data from your ITSM tool to an Azure Log Analytics workspace.

References: https://docs.microsoft.com/en-us/azure/azure-monitor/platform/itsmc-overview

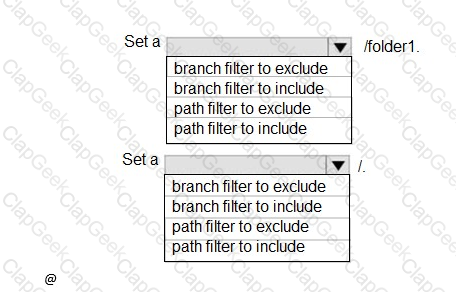

Use a Pull request trigger.

Note: Batch changes

Select this check box if you have a lot of team members uploading changes often and you want to reduce the number of builds you are running. If you select this option, when a build is running, the system waits until the build is completed and then queues another build of all changes that have not yet been built.

References: https://docs.microsoft.com/en-us/az ure/devops/pipelines/build/triggers

https://docs.microsoft.com/en-us/azure/devops/repos/git/pull-requests

Views enable you to share subsets of the NuGet, npm, Maven, Python and Universal Packages package-versions in your feed with consumers. A common use for views is to share package versions that have been tested, validated, or deployed but hold back packages still under development and packages that didn’t meet a quality bar.

https://docs.microsoft.com/en-us/azure/devops/ar tifacts/concepts/views?view=azure-devops

You can create a service hook for Azure DevOps Services and TFS with Jenkins.

References:

https://docs.microsoft.com/en-us/azure/devops/service-hook s/services/jenkins

B: By using your custom NuGet package feed within your Azure DevOps (previously VSTS) instance, you’ll be

able to distribute your packages within your organization with ease.

Start by creating a new feed.

A: We can publish, pack and push the built project to our NuGet feed.

E: Consume your private NuGet Feed

Go back to the Packages area in Azure DevOps, select your feed and hit “Connect to feed”. You’ll see some

instructions for your feed, but it’s fairly simple to set up.

Just copy your package source URL, go to Visual Studio, open the NuGet Package Manager, go to its settings

and add a new source. Choose a fancy name, insert the source URL. Done.

Search for your package in the NuGet Package Manager and it should appear there, ready for installation.

Make sure to select the appropriate feed (or just all feeds) from the top right select box.

References:

https://medium.com/m edialesson/get-started-with-private-nuget-feeds-in-azure-devops-8c7b5f022a68

Instead reduce the code complexity.

Note: Technical debt is the accumulation of sub-optimal technical decisions made over the lifetime of an application. Eventually, it gets harder and harder to change things: it’s the ‘sand in the gears’ that sees IT initiatives grind to a halt.

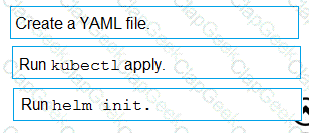

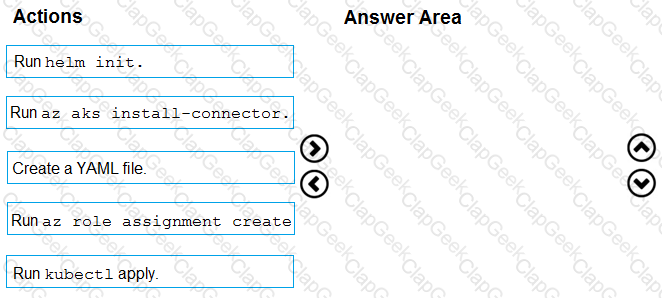

Step 1: Kubectl create

You can add a service account to Tiller using the --service-account flag while you’re configuring Helm (step 2 below). As a prerequisite, you’ll have to create a role binding which specifies a role and a service account name that have been set up in advance.

Example: Service account with cluster-admin role

$ kubectl create -f rbac-config.yaml

serviceaccount "tiller" created

clusterrolebinding "tiller" created

$ helm init --service-account tiller

Step 2: helm init

To deploy a basic Tiller into an AKS cluster, use the helm init command.

Step 3: helm install

To install charts with Helm, use the helm install command and specify the name of the chart to install.

References:

https://docs.microsoft.com/en -us/azure/aks/kubernetes-helm

https://docs.he lm.sh/using_helm/#tiller-namespaces-and-rbac

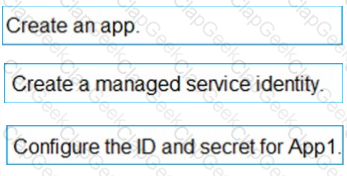

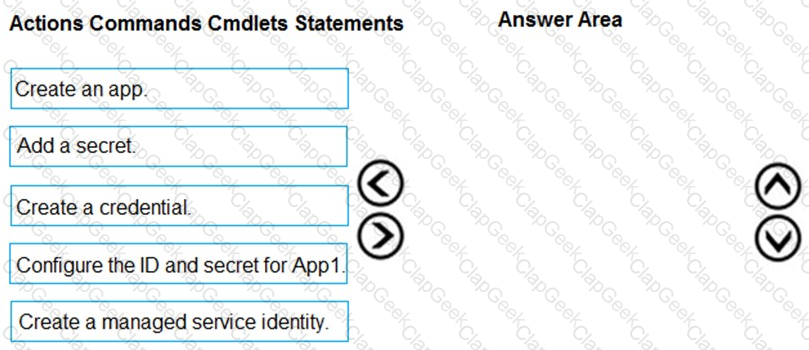

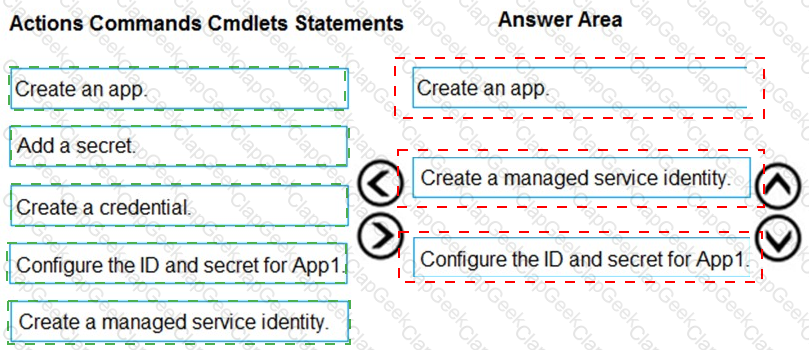

Box 1: Azure Pipelines service connection

Box 2: Managed Service Identity Authentication

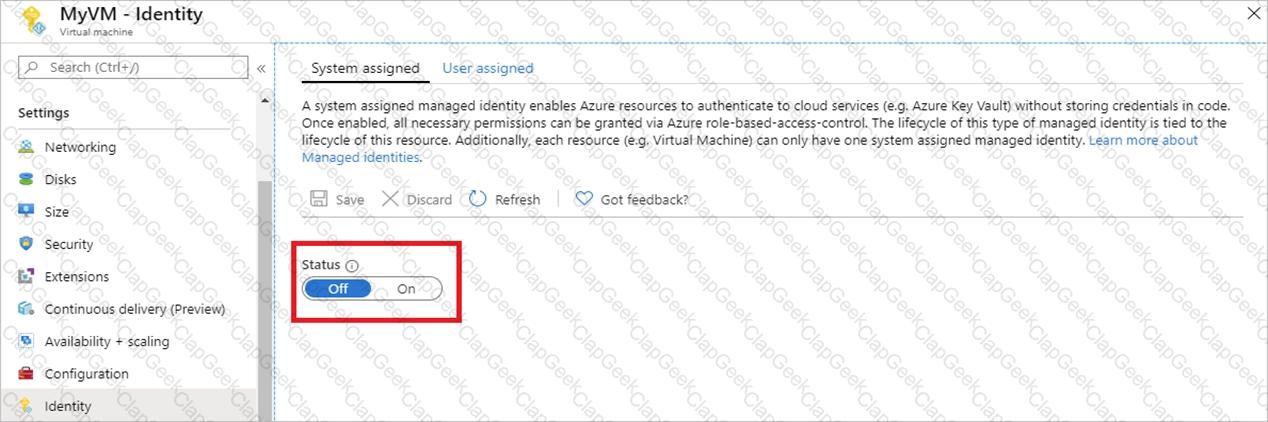

The managed identities for Azure resources feature in Azure Active Directory (Azure AD) provides Azure services with an automatically managed identity in Azure AD. You can use the identity to authenticate to any service that supports Azure AD authentication, including Key Vault, without any credentials in your code.

Monitor compute and app services: Compute & apps include the App Services tab, which App services: list of your App service environments and current security state of each.

Recommendations

This section has a set of recommendations for each VM and computer, web and worker roles, Azure App Service Web Apps, and Azure App Service Environment that Security Center monitors. The first column lists the recommendation. The second column shows the total number of resources that are affected by that recommendation. The third column shows the severity of the issue.

Smart Detection automatically warns you of potential performance problems and failure anomalies in your web application. It performs proactive analysis of the telemetry that your app sends to Application Insights. If there is a sudden rise in failure rates, or abnormal patterns in client or server performance, you get an alert.

Step 1: Create a DSC metaconfiguration

Load up the DSC Configuration into Azure Automation.

Step 2: Copy the metaconfiguration to the virtual machines.

Linking the Node Configuration to the Linux Host

Step 3: Add the virtual machines as DSC nodes in Azure Automation.

go to DSC Nodes, select your node, and then click Assign node configuration. This step assigns the DSC configuration to the Linux machine.

Next up will be to link the node configuration to the host. Go to the host and press the “Assign node…”-button. Next up you can select your node configuration.

Box 1: User Flows

The User Flows tool visualizes how users navigate between the pages and features of your site. It's great for answering questions like:

How do users navigate away from a page on your site?

What do users click on a page on your site?

Where are the places that users churn most from your site?

Are there places where users repeat the same action over and over?

Box 2: Users

Counting Users: The user behavior analytics tools don't currently support counting users or sessions based on properties other than anonymous user ID, authenticated user ID, or session ID.

Box 3: Impact

Impact analyzes how load times and other properties influence conversion rates for various parts of your app. To put it more precisely, it discovers how any dimension of a page view, custom event, or request affects the usage of a different page view or custom event.

There are three types of Application Insights availability tests:

URL ping test: a simple test that you can create in the Azure portal.

Multi-step web test

Custom Track Availability Tests

Note: After you've deployed your web app/website, you can set up recurring tests to monitor availability and responsiveness. Azure Application Insights sends web requests to your application at regular intervals from points around the world. It can alert you if your application isn't responding, or if it responds too slowly.

You can set up availability tests for any HTTP or HTTPS endpoint that is accessible from the public internet. You don't have to make any changes to the website you're testing. In fact, it doesn't even have to be a site you own. You can test the availability of a REST API that your service depends on.

1. Open Microsoft Azure Portal and Log into your Azure account.

2. Select network security group (NSG) named az400-9940427-nsg1

3. Select Settings, Outbound security rules, and click Add

4. Click Advanced

5. Change the following settings:

Destination Port range: 8080

Protocol. TCP

Action: Allow

Note: By default, Azure DevOps Server uses TCP Port 8080.

References:

https://robertsmit.wordpress.com/2017/09/11/step-by-step-azure-network-security-groups-nsg-security-center-azure-nsg-network/

https://docs.microsoft.com/en-us/azure/devops/server/architecture/required- ports?view=azure-devops

Instead use Octopus Tentacle.

References:

https://explore.emtecinc.com/blog/octo pus-for-automated-deployment-in-devops-models

Step 1 : az acr create

An Azure Container Registry (ACR) can also be created using the new Azure CLI.

az acr create

--name

--resource-group

--sku Basic

Step 2: az ad sp create-for-rbac

Once the ACR has been provisioned, you can either enable administrative access (which is okay for testing) or you create a Service Principal (sp) which will provide a client_id and a client_secret.

az ad sp create-for-rbac

--scopes /subscriptions//resourcegroups//providers/Microsoft.ContainerRegistry/registries/

--role Contributor

--name

Step 3: kubectl create

Create a new Kubernetes Secret.

kubectl create secret docker-registry

--docker-server .azurecr.io

--docker-email

--docker-username=

--docker-password

References:

https://thorsten-hans.com/how-to-use-private-azure-container-registry-with-kubernetes

Scenario: Access to Azure DevOps must be restricted to specific IP addresses.

Azure DevOps is authenticated through Azure Active Directory. You can use Azure AD's conditional access to prevent logins from certain geographies and address ranges.

Scenario: Deploy App2 to an Azure virtual machine named VM1.

A personal access token (PAT) is used as an alternate password to authenticate into Azure DevOps.

Woodgrove Bank identifies the following technical requirements:

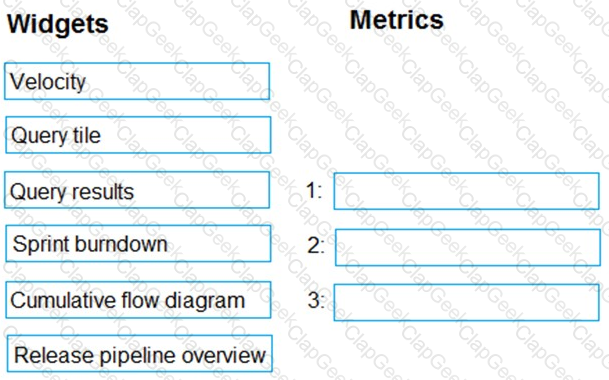

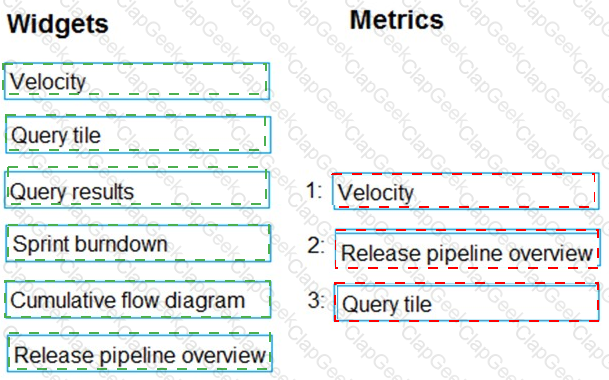

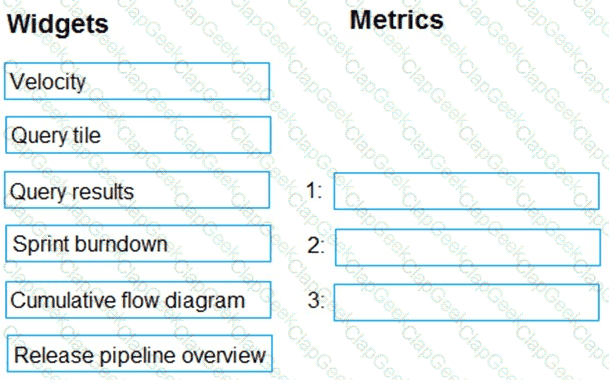

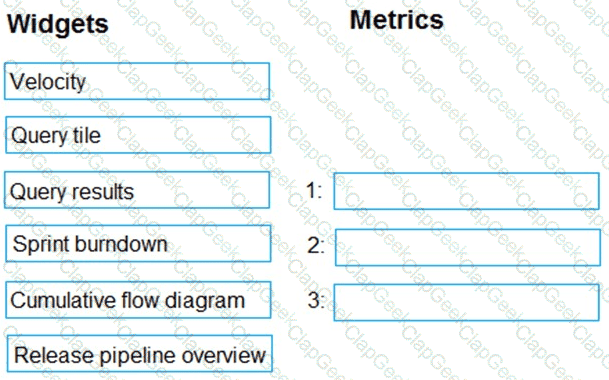

The Azure DevOps dashboard must display the metrics shown in the following table:

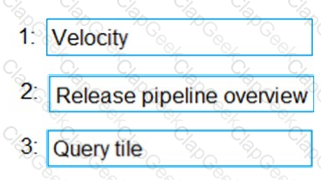

Box 1: Velocity

Velocity displays your team velocity. It shows what your team delivered as compared to plan.

Box 2: Release pipeline overview

Release pipeline overview shows the status of environments in a release definition.

Box 3: Query tile

Query tile displays the total number of results from a query.

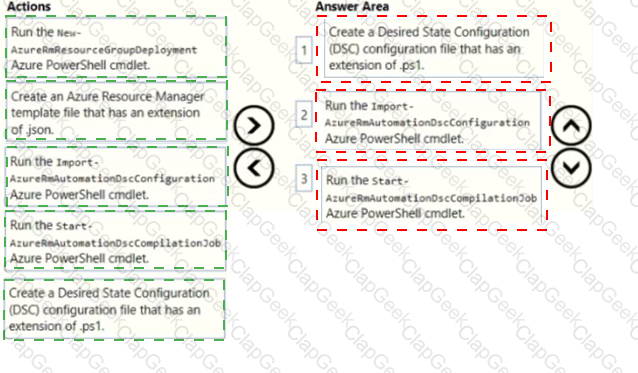

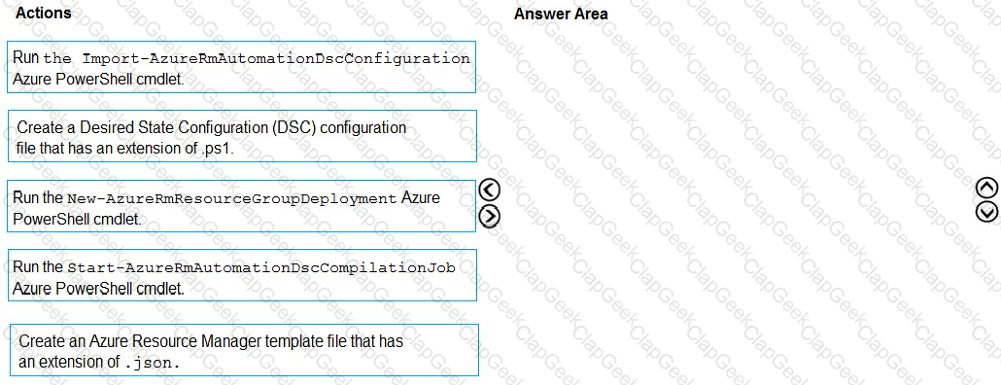

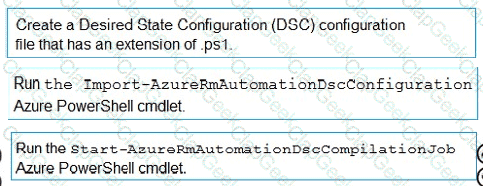

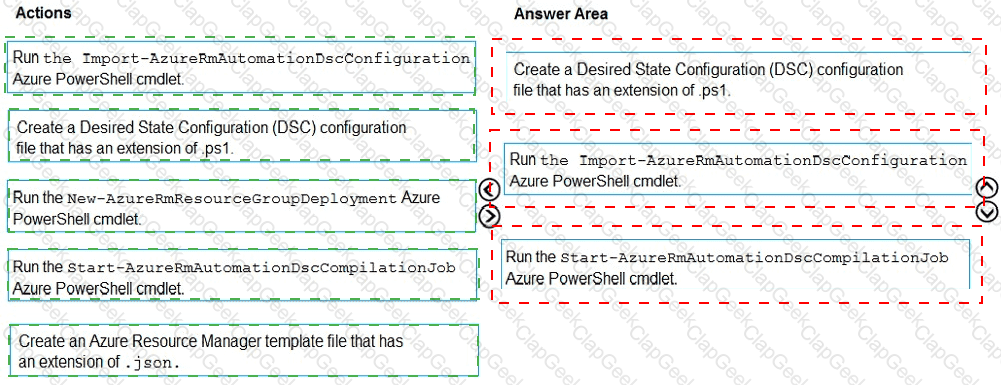

Step 1: Create a Desired State Configuration (DSC) configuration file that has an extension of .ps1.

Step 2: Run the Import-AzureRmAutomationDscConfiguration Azure Powershell cmdlet

The Import-AzureRmAutomationDscConfiguration cmdlet imports an APS Desired State Configuration (DSC) configuration into Azure Automation. Specify the path of an APS script that contains a single DSC configuration.

Example:

PS C:\>Import-AzureRmAutomationDscConfiguration -AutomationAccountName "Contoso17"-ResourceGroupName "ResourceGroup01" -SourcePath "C:\DSC\client.ps1" -Force

This command imports the DSC configuration in the file named client.ps1 into the Automation account named Contoso17. The command specifies the Force parameter. If there is an existing DSC configuration, this command replaces it.

Step 3: Run the Start-AzureRmAutomationDscCompilationJob Azure Powershell cmdlet

The Start-AzureRmAutomationDscCompilationJob cmdlet compiles an APS Desired State Configuration (DSC) configuration in Azure Automation.

References:

https://docs.microsoft. com/en-us/powershell/module/azurerm.automation/import-azurermautomationdscconfiguration

https://docs.microsoft.com/en-us/powers hell/module/azurerm.automation/start-azurermautomationdsccompilationjob

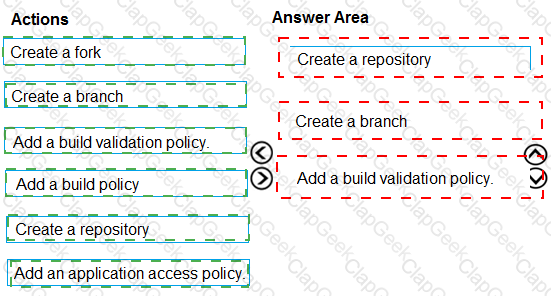

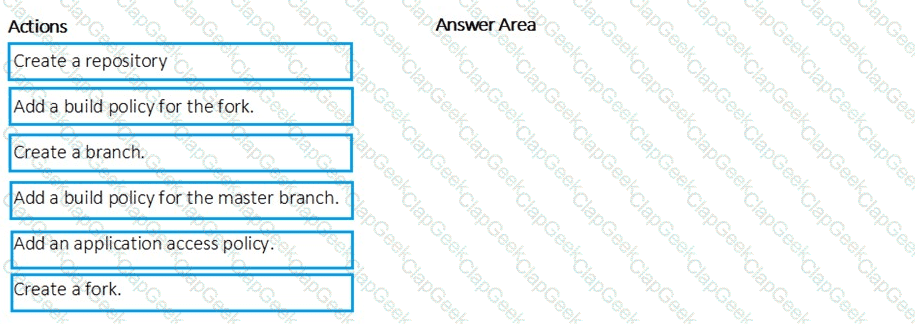

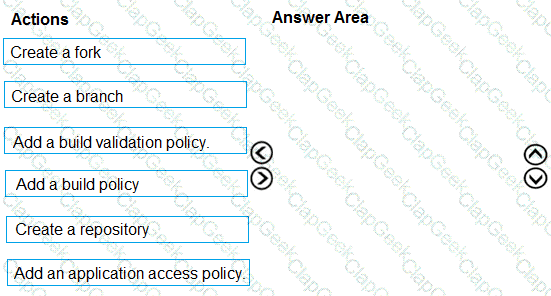

Step 1: Create a repository

A Git repository, or repo, is a folder that you've told Git to help you track file changes in. You can have any number of repos on your computer, each stored in their own folder.

Step 2: Create a branch

Branch policies help teams protect their important branches of development. Policies enforce your team's code quality and change management standards.

Step 3: Add a build validation policy

When a build validation policy is enabled, a new build is queued when a new pull request is created or when changes are pushed to an existing pull request targeting this branch. The build policy then evaluates the results of the build to determine whether the pull request can be completed.

Scenario:

Implement a code flow strategy for Project2 that will:

Enable Team2 to submit pull requests for Project2.

Enable Team2 to work independently on changes to a copy of Project2.

Ensure that any intermediary changes performed by Team2 on a copy of Project2 will be subject to the same restrictions as the ones defined in the build policy of Project2.

References: https://docs.microsoft.com/en-us/azure/devops/repos/git/man age-your-branches

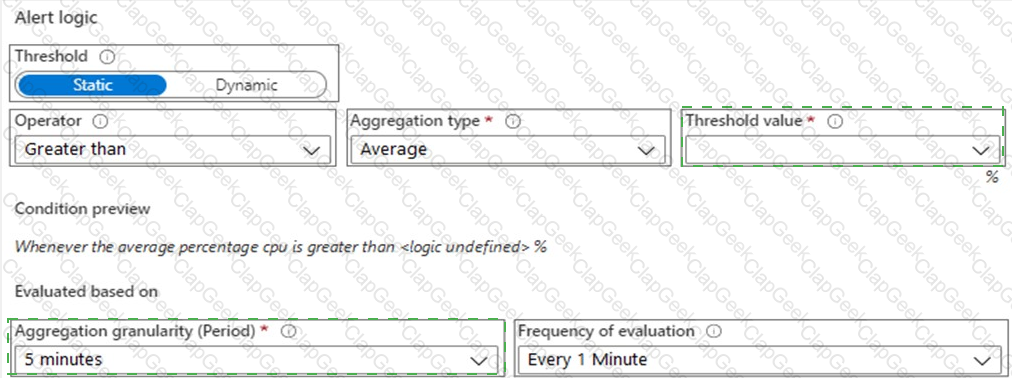

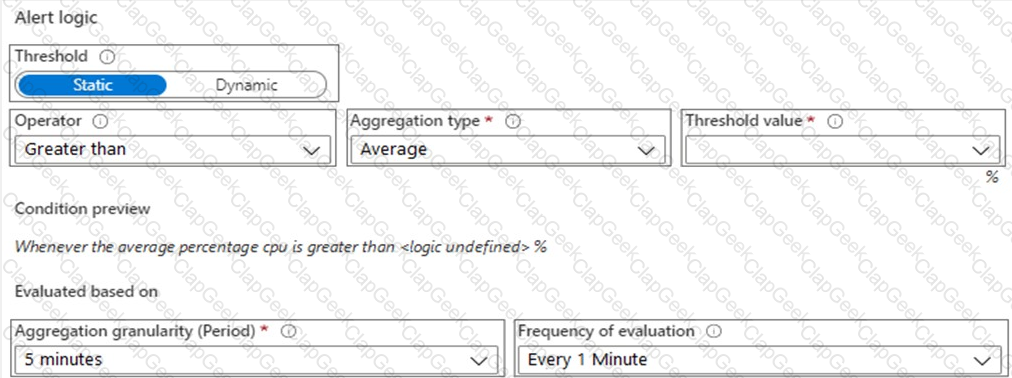

Setting 1: Threshold value

Set to 80 %

Scenario: An Azure Monitor alert for VM1 must be configured to meet the following requirements:

Be triggered when average CPU usage exceeds 80 percent for 15 minutes.

Calculate CPU usage averages once every minute.

Setting 2: Aggregation granularity

Set to 15 minutes.

Step 1: Initialize the Default Main Branch

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Initialize the Main Branch:

Go to Repos > Files.

If the main branch does not exist, you will see an option to initialize it. Click on Initialize and follow the prompts to create the main branch1.

Step 2: Install the Microsoft Security DevOps Extension

Navigate to Extensions:

In Azure DevOps, click on the Shopping Bag icon in the top right corner and select Browse Marketplace.

Search for the Extension:

Search for Microsoft Security DevOps.

Install the Extension:

Click on Get it free.

Select your organization (User1-42147509) and click Install.

Follow the prompts to complete the installation2.

Step 3: Create a New Starter Pipeline

Navigate to Pipelines:

Go to Pipelines > New pipeline.

Select the Repository:

Choose Azure Repos Git and select the relevant repository.

Configure the Pipeline:

Select Starter pipeline and replace the default YAML with the following starter code:

trigger:

- starter

pool:

vmImage: 'windows-latest'

steps:

- task: MicrosoftSecurityDevOps@1

inputs:

command: 'run'

policy: 'azuredevops'

publish: true

Save the Pipeline:

Click on Save and enter starter as the branch name.

Click on Save and run to save the pipeline to the new branch named starter3.

By following these steps, you will have successfully initialized the main branch, installed the Microsoft Security DevOps extension, and created a new starter pipeline named starter1 that includes the specified task

To ensure that your Azure Web App named az400-38443478-main supports rolling upgrades and only 10 percent of users connect to the updated version of the app, you can use deployment slots with the following steps:

Create a Deployment Slot:

Navigate to the Azure Portal.

Go to your Web App az400-38443478-main.

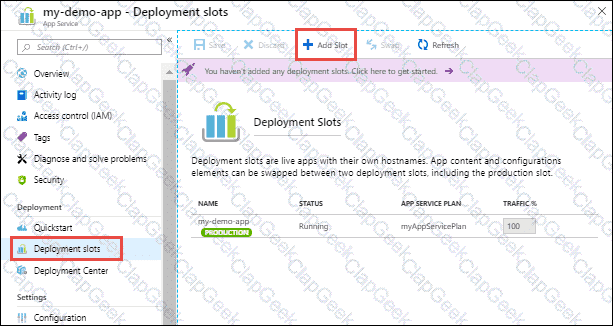

Select Deployment slots in the menu.

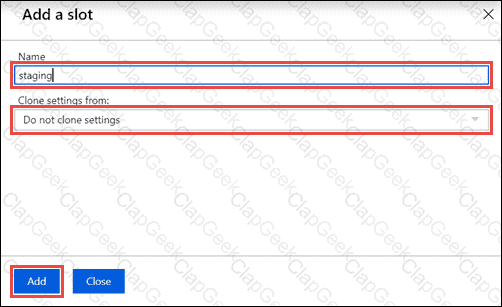

Click on Add Slot.

Name the slot (e.g., staging) and if needed, clone settings from the production slot.

Configure the Traffic Percentage:

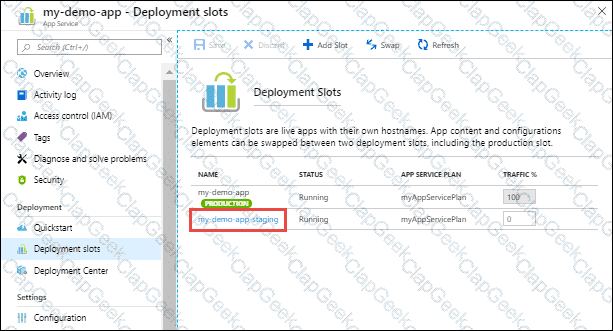

In the Deployment Slots menu, you will see a column for Traffic %.

Set the traffic percentage to 10% for the staging slot1.

This will route only 10% of the traffic to the updated version of the app in the staging slot.

Deploy the Updated App to the Staging Slot:

Deploy your updated application to the staging slot.

Test the application in the staging slot to ensure it’s working as expected.

Complete the Rolling Upgrade:

Once you’re satisfied with the performance and stability of the app in the staging slot, you can gradually increase the percentage of traffic until you’re ready to swap with the production slot.

To swap slots, go to the Deployment slots menu and click on Swap with the production slot.

By using deployment slots, you can achieve rolling upgrades with minimal administrative effort, as it allows you to test the new version on a subset of users before fully releasing it. Remember to adjust the traffic percentage and monitor the application’s performance throughout the process.

Step 1: Navigate to Project Settings

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Access Project Settings:

In the left-hand menu, scroll down and select Project settings.

Step 2: Configure Retention Policies

Navigate to Pipelines Settings:

Under Pipelines, select Settings.

Set Retention Policies:

In the Retention section, set the number of days to keep artifacts, symbols, and attachments to 60 days.

Ensure that the retention policy is applied to all relevant pipelines and branches.

Save Changes:

Click on Save to apply the retention policy1.

By following these steps, you will have successfully configured the retention policy to retain artifacts, symbols, and attachments for 60 days in Project1

Step 1: Initialize the Default Main Branch

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Initialize the Main Branch:

Go to Repos > Files.

If the main branch does not exist, you will see an option to initialize it. Click on Initialize and follow the prompts to create the main branch1.

Step 2: Create a New Branch for the Pipeline

Navigate to Branches:

Go to Repos > Branches.

Click on New branch.

Create the Branch:

Enter azure-pipelines as the branch name.

Select main as the base branch.

Click Create2.

Step 3: Create a New Azure Pipelines YAML Pipeline

Navigate to Pipelines:

Go to Pipelines > New pipeline.

Select the Repository:

Choose Azure Repos Git and select the relevant repository.

Configure the Pipeline:

Select Starter pipeline.

Replace the default YAML with the ASP.NET template. You can find the ASP.NET template in the Azure Pipelines documentation or use the following example:

trigger:

- main

pool:

vmImage: 'windows-latest'

variables:

buildConfiguration: 'Release'

steps:

- task: UseDotNet@2

inputs:

packageType: 'sdk'

version: '5.x'

installationPath: $(Agent.ToolsDirectory)/dotnet

- script: |

dotnet build --configuration $(buildConfiguration)

displayName: 'Build project'

- script: |

dotnet test --no-build --configuration $(buildConfiguration)

displayName: 'Run tests'

Save the Pipeline:

Click on Save and enter azure-pipelines as the branch name.

Click on Save and run to save the pipeline to the new branch named azure-pipelines3.

By following these steps, you will have successfully initialized the main branch, created a new branch named azure-pipelines, and set up a new Azure Pipelines YAML pipeline using the ASP.NET template

Step 1: Initialize the Default Main Branch

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Initialize the Main Branch:

Go to Repos > Files.

If the main branch does not exist, you will see an option to initialize it. Click on Initialize and follow the prompts to create the main branch.

Step 2: Implement an Approval Process for the Main Branch

Navigate to Branch Policies:

Go to Repos > Branches.

Find the main branch and click on the … (ellipsis) next to it.

Select Branch policies.

Enable Required Reviewers:

Under Policies, enable Minimum number of reviewers.

Set the minimum number of reviewers to 2 to enforce the four-eyes principle.

Add Required Reviewers:

Add the users who should review the changes. Ensure that at least one approval is required on every iteration.

Enable Reset Code Reviewer Votes:

Enable the Reset code reviewer votes when there are new changes option to ensure that any new changes require re-approval.

Save Changes:

Click on Save changes to apply the policies.

Step 3: Verify the Approval Process

Create a Pull Request:

Make a change in a branch and create a pull request to merge it into the main branch.

Review and Approve:

Ensure that the pull request requires at least two reviewers to approve it before it can be merged.

By following these steps, you will have successfully initialized the main branch and implemented an approval process that adheres to the four-eyes principle, ensuring that every iteration has at least one approval

Step 1: Create a New Team Dashboard

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Access Dashboards:

In the left-hand menu, select Dashboards.

Create a New Dashboard:

Click on New Dashboard.

Enter the name Dashboard1.

Ensure the dashboard type is set to Team Dashboard.

Click Create.

Step 2: Add the Team Members Widget

Open the Widget Catalog:

After creating the dashboard, the widget catalog will open automatically. If it doesn’t, click on Add Widget.

Search for Team Members Widget:

In the widget catalog, search for Team Members.

Add the Widget:

Click on the Team Members widget and then click Add to place it on your dashboard.

Configure the Widget:

Once added, you can resize and move the widget to your preferred location on the dashboard.

Step 3: Save and Share the Dashboard

Save the Dashboard:

Click on Save to save your changes.

Share the Dashboard:

You can share the dashboard URL with your team members or set permissions to control who can view or edit the dashboard.

By following these steps, you will have a new team dashboard named Dashboard1 that displays the members of the default project team for Project1

Step 1: Write the KQL Query

Open Azure Data Explorer:

Navigate to Azure Data Explorer and sign in with your credentials.

Access the Securitylogs Database:

Open the Securitylogs database.

Write the Query:

Use the following KQL query to count the number of inbound requests for each source IP address:

InboundBrowsing

| where Timestamp between (datetime(2021-10-01) .. datetime(2021-12-31))

| summarize NumberOfRequests = count() by SourceIP

| project SourceIP, NumberOfRequests

Step 2: Export the Query Results

Run the Query:

Execute the query in Azure Data Explorer.

Export the Results:

Once the query results are displayed, click on the Export button.

Choose the export format (e.g., CSV) and specify the export path as C:\Samples.

By following these steps, you will have successfully written a KQL query to count the number of inbound requests for each source IP address during the last three months of 2021 and exported the results to C:\Samples

Step 1: Create a Project Wiki

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Create a Wiki:

In the left-hand menu, select Wiki.

Click on Create project wiki.

Enter the name Wiki1 and click Create.

Step 2: Add Mermaid Syntax to Render a Diagram

Open the Wiki Page:

Navigate to the newly created Wiki1.

Edit the Wiki Page:

Click on Edit to start editing the wiki page.

Insert Mermaid Diagram:

Use the following Mermaid syntax to render a diagram. For example, to render a simple flowchart, you can use:

```mermaid

graph TD;

A-->B;

A-->C;

B-->D;

C-->D;

Save the Page:

Click on Save to save your changes.

Step 3: Render the TCP Handshake Diagram

Convert TCPHandshake.png to Mermaid Syntax:

Since you have a sample diagram in C:\Resources\TCPHandshake.png, you need to convert this diagram into Mermaid syntax. Here’s an example of how a TCP handshake might look in Mermaid syntax:

```mermaid

sequenceDiagram

participant Client

participant Server

Client->>Server: SYN

Server-->>Client: SYN-ACK

Client->>Server: ACK

Add the Diagram to the Wiki:

Replace the sample Mermaid syntax with the TCP handshake diagram syntax in the wiki page.

Save the Page:

Click on Save to save your changes.

By following these steps, you will have created a project wiki named Wiki1 and used Mermaid syntax to render a diagram

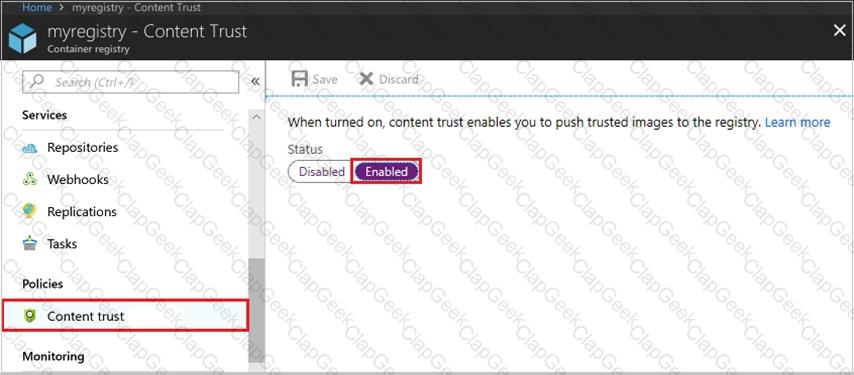

To store signed images in an Azure Container Registry (ACR) instance and support your planned images while minimizing costs, you need to modify the SKU of your ACR instance to one that supports content trust and image signing. Here’s how you can do it:

Determine the Appropriate SKU:

Content trust and image signing are features of the Premium service tier of Azure Container Registry1.

If cost minimization is a priority, ensure that the Premium tier is necessary for your use case. If you require content trust, the Premium tier is the appropriate choice.

Modify the SKU of the ACR Instance:

Navigate to the Azure Portal.

Go to your ACR instance az40038443478act1.

Select Update from the overview pane.

Choose the Premium SKU from the SKU drop-down menu2.

Review the changes and pricing, then save the configuration.

By upgrading to the Premium SKU, you’ll be able to store signed images in your ACR instance. Remember to monitor your usage and costs to ensure they align with your budget and requirements.

To prepare a Network Security Group (NSG) named az400-38443478-nsg1 for hosting an Azure DevOps pipeline agent, while allowing only the required outbound port for Azure DevOps and denying all other inbound and outbound access to the Internet, follow these steps:

Create the NSG:

Navigate to the Azure Portal.

Go to Network Security Groups and click on + Create.

Fill in the details, including the name az400-38443478-nsg1, and create the NSG.

Configure Outbound Security Rules:

Once the NSG is created, go to its settings.

Navigate to Outbound security rules.

Click on + Add to create a new rule.

Set the Destination port ranges to 443, which is the required port for Azure DevOps12.

Set the Protocol to TCP.

Set the Action to Allow.

Assign a Priority number (e.g., 100) that does not conflict with existing rules.

Provide a meaningful Name for the rule (e.g., AllowAzureDevOps).

Configure Default Rules to Deny All Other Traffic:

In the same Outbound security rules section, edit the default rule to deny all traffic.

Change the Action to Deny for the rule with the lowest priority (highest number).

Ensure that this rule applies to all protocols, source and destination IP ranges, and port ranges.

Associate the NSG with the Appropriate Resource:

Associate the NSG with the subnet or network interface of the virtual machine or resource where the Azure DevOps pipeline agent will be hosted.

By following these steps, you will ensure that the Azure DevOps pipeline agent can communicate with Azure DevOps services over the required port while blocking all other inbound and outbound Internet access, adhering to the principle of least privilege and security best practices.

To create an instance of Azure Application Insights named az400-38443478-main and configure it to receive telemetry data from an Azure web app with the same name, you’ll need to follow these steps:

Create a Log Analytics Workspace:

Go to the Azure Portal.

Search for Log Analytics Workspaces and select Add.

Select a Subscription and either use an existing Resource Group or create a new one.

Provide a unique name for your Log Analytics workspace.

Choose the Region that is appropriate for you.

Review the settings and then select Create1.

Create an Azure Application Insights Instance:

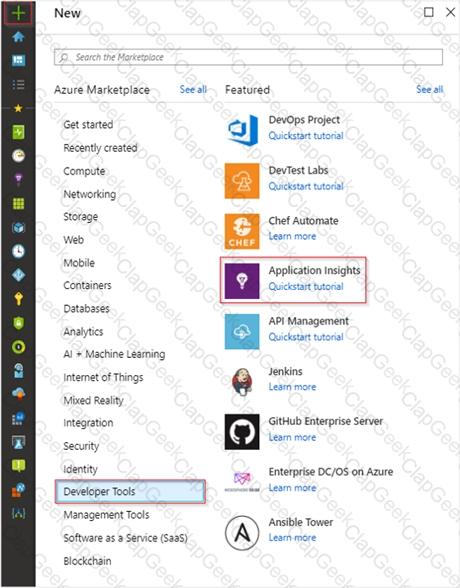

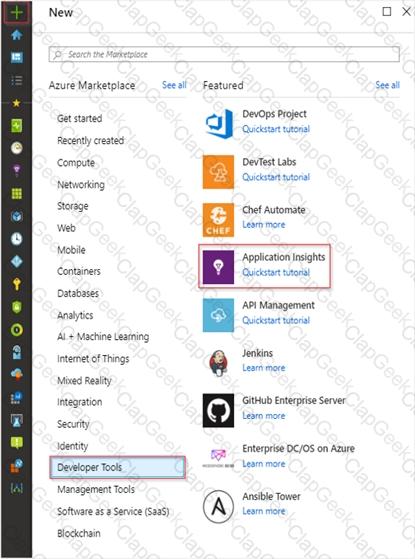

In the Azure Portal, navigate to Application Insights.

Click on + Create.

Fill in the instance details, ensuring the name is az400-38443478-main.

Link the instance to the Log Analytics workspace you created in the previous step.

Review and create the Application Insights instance2.

Configure the Azure Web App to Send Telemetry Data:

Go to the Azure Web App az400-38443478-main.

Under Monitoring, select Application Insights.

Choose to use an existing resource and select the Application Insights instance you created.

Follow the prompts to set up the connection, which may involve adding the appropriate SDK to your web app and configuring the connection string or instrumentation key.

Verify Telemetry Data Reception:

After setting up, send some test traffic to your web app.

Then, go to the Application Insights instance and check the Overview or Performance sections to see if telemetry data is being received.

Remember to replace placeholder names with the actual names of your resources where necessary. These steps will help you set up Azure Application Insights to monitor your web app effectively.

Step 1: Navigate to Personal Access Tokens

Sign in to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Access User Settings:

Click on your profile picture in the top right corner.

Select User settings.

Open Personal Access Tokens:

In the user settings menu, select Personal access tokens.

Step 2: Create a New Personal Access Token

Create a New Token:

Click on + New Token.

Configure the Token:

Name: Enter Token1.

Organization: Select the organization where you want to use the token.

Expiration: Set the expiration to 60 days.

Set Scopes:

Code: Select Read, Write, & Manage.

Build: Select Read & Execute.

Release: Select Read.

Create the Token:

Click on Create.

Step 3: Save the Token

Copy the Token:

Once the token is created, copy it immediately as it will not be displayed again.

Store the token in a secure location.

By following these steps, you will have successfully created a personal access token named Token1 with the specified capabilities and a 60-day expiration

Step 1: Navigate to the Library

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Access the Library:

In the left-hand menu, select Pipelines > Library.

Step 2: Create a Variable Group

Create a New Variable Group:

On the Library page, click on + Variable group.

Configure the Variable Group:

Name: Enter varGroup1.

Description: Optionally, add a description for the variable group.

Add Variables:

Click on + Add to add a new variable.

Variable Name: Enter serverName.

Value: Enter server1.

Click OK.

Click on + Add again to add another variable.

Variable Name: Enter dbName.

Value: Enter db1.

Click OK.

Save the Variable Group:

Click on Save to save the variable group.

By following these steps, you will have successfully created a variable group named varGroup1 containing the specified variables

To configure your Azure Function az400-38443478-funct to automatically update whenever new code is committed to the main branch of the specified GitHub repository, you can use GitHub Actions for continuous deployment. Here’s how to set it up:

Create a GitHub Actions Workflow:

In your GitHub repository, navigate to the .github/workflows/ directory.

Create a new file for your workflow (e.g., azure-function-cd.yml).

Define the Workflow:

In the workflow file, define the steps for the build and deployment process.

Use the Azure/functions-action to deploy to your Azure Function App.

Set up triggers for the main branch to initiate the workflow on every commit.

Generate Deployment Credentials:

In the Azure Portal, navigate to your Function App az400-38443478-funct.

Download the publish profile from the Overview section by clicking on Get publish profile.

Store the Publish Profile as a GitHub Secret:

In your GitHub repository, go to Settings > Secrets and variables > Actions.

Create a new secret (e.g., AZURE_FUNCTIONAPP_PUBLISH_PROFILE) and paste the content of the publish profile.

Configure the Workflow to Use the Secret:

In the workflow file, reference the secret to authenticate the deployment to Azure.

Here’s a sample GitHub Actions workflow snippet:

name: Deploy Azure Function

on:

push:

branches:

- main

jobs:

build-and-deploy:

runs-on: ubuntu-latest

steps:

- uses: actions/checkout@v2

- name: Set up Python version

uses: actions/setup-python@v2

with:

python-version: '3.x'

- name: Install dependencies

run: |

pip install -r requirements.txt

- name: Deploy to Azure Functions

uses: Azure/functions-action@v1

with:

app-name: az400-38443478-funct

publish-profile: ${{ secrets.AZURE_FUNCTIONAPP_PUBLISH_PROFILE }}

package: .

Replace the app-name with the name of your Azure Function App and ensure the Python version and dependencies match your application’s requirements.

By following these steps, your Azure Function will automatically update whenever new code is pushed to the main branch of the GitHub repository. This setup minimizes manual effort and ensures that your function app is always running the latest code.

Step 1: Initialize the Default Main Branch

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Initialize the Main Branch:

Go to Repos > Files.

If the main branch does not exist, you will see an option to initialize it. Click on Initialize and follow the prompts to create the main branch1.

Step 2: Enable Squash Merge for the Main Branch

Navigate to Branch Policies:

Go to Repos > Branches.

Find the main branch and click on the … (ellipsis) next to it.

Select Branch policies.

Enable Squash Merge:

Under Policies, scroll down to the Merge strategy section.

Select Squash merge as the required merge strategy2.

Save Changes:

Click on Save changes to apply the policies.

Step 3: Verify the Squash Merge Policy

Create a Pull Request:

Make a change in a branch and create a pull request to merge it into the main branch.

Complete the Pull Request:

Ensure that the pull request uses the squash merge strategy by selecting Squash commit under the Merge type in the Complete pull request dialog

To ensure that the webhook at https://contoso.com/statushook is called every time the repository named az40038443478acr1 receives a new version of an image named dotnetapp, you can follow these steps to configure a webhook in Azure Container Registry:

Navigate to the Azure Container Registry:

Go to the Azure Portal.

Find and select your Azure Container Registry instance az40038443478acr1.

Create a New Webhook:

Under Services, select Webhooks.

Click on + Add to create a new webhook.

Fill in the form with the following information:

Webhook name: Enter a unique name for your webhook.

Service URI: Enter https://contoso.com/statushook .

Custom headers: (Optional) Add any headers you want to pass along with the POST request.

Trigger actions: Select Push to trigger the webhook on image push events.

Scope: Specify the scope as az40038443478acr1:dotnetapp to target the specific image.

Status: Set to Enabled.

Save the Webhook Configuration:

Review the information and click Create to save the webhook.

Once configured, the webhook will send a POST request to https://contoso.com/statushook whenever a new version of the dotnetapp image is pushed to the az40038443478acr1 repository in your Azure Container Registry1.

This setup will automate the notification process, ensuring that the specified webhook is called with each new image version, thus fulfilling the task requirements.

Step 1: Create an Action Group

Navigate to Azure Portal:

Go to Azure Portal and sign in with your credentials.

Access Azure Monitor:

In the left-hand menu, select Monitor.

Create Action Group:

Under Alerts, select Action groups.

Click on + Create.

Configure Basic Settings:

Subscription: Select your subscription.

Resource Group: Select RG1 lod42147S09.

Action Group Name: Enter DevOpsAG.

Display Name: Enter a display name for the action group.

Step 2: Define Actions

Add Email Notifications:

Click on Add action.

Action Type: Select Email/SMS message/Push/Voice.

Action Name: Enter a name for the action (e.g., EmailAdmins).

Email: Enter admin1@contoso.com and admin2@contoso.com.

Click OK.

Notify Resource Owners:

Click on Add action again.

Action Type: Select Email/SMS message/Push/Voice.

Action Name: Enter a name for the action (e.g., NotifyOwners).

Email: Select Notify all owners.

Click OK.

Step 3: Enable Common Alert Schema

Common Alert Schema:

In the Advanced tab, enable the Common alert schema option1.

Step 4: Review and Create

Review:

Review all the settings you have configured.

Create:

Click on Review + create and then Create.

By following these steps, you will have successfully created an action group named DevOpsAG that emails the specified users and notifies resource owners using the common alert schema

To ensure that your Azure Web App named az400-38443478-main can retrieve secrets from an Azure Key Vault named az400-3844J478-kv1 using a system managed identity with the principle of least privilege, follow these detailed steps:

Enable a System Managed Identity for the Azure Web App:

Navigate to the Azure Portal.

Go to the Azure Web App az400-38443478-main.

Select Identity under the Settings section.

In the System assigned tab, switch the Status to On.

Click Save to apply the changes.

Grant the Web App Access to the Key Vault:

Go to the Azure Key Vault az400-3844J478-kv1.

Select Access policies under the Settings section.

Click on Add Access Policy.

Choose Secret permissions and select Get and List. This grants the app the ability to read secrets, adhering to the principle of least privilege.

Click on Select principal, search for your Web App name az400-38443478-main, and select it.

Click Add to add the policy.

Don’t forget to click Save to save the access policy changes.

Retrieve Secrets in the Web App Code:

In your Web App’s code, use the Azure SDK to retrieve the secrets.

For example, in a .NET application, you can use the Azure.Identity and Azure.Security.KeyVault.Secrets namespaces.

Utilize the DefaultAzureCredential class which will automatically use the system managed identity when running on Azure.

using Azure.Identity;

using Azure.Security.KeyVault.Secrets;

var client = new SecretClient(new Uri("https://az400-3844J478-kv1.vault.azure.net/ "), new DefaultAzureCredential());

KeyVaultSecret secret = await client.GetSecretAsync("my-secret-name");

string secretValue = secret.Value;

Replace "my-secret-name" with the actual name of the secret you want to retrieve.

By following these steps, your Azure Web App will be able to securely retrieve secrets from the Azure Key Vault using a system managed identity, without needing to store credentials in the code, and adhering to the principle of least privilege. Remember to replace the placeholder names with the actual names of your Web App and Key Vault.

To configure a virtual machine template in your DevTest Labs environment named az400-38443478-dtl1 with Windows Server 2016 Datacenter that includes the Selenium tool and the Google Chrome browser, follow these steps:

Create a Custom Image with Windows Server 2016 Datacenter:

In the Azure Portal, go to your DevTest Lab az400-38443478-dtl1.

Navigate to Configuration and policies > Custom images.

Use an existing VM or create a new one with Windows Server 2016 Datacenter.

After setting up the VM, capture it to create a custom image1.

Install Selenium and Google Chrome on the VM:

Connect to the VM via RDP.

Download and install the Selenium WebDriver for your preferred programming language from the official Selenium website2.

For Google Chrome, download the offline installer from the official website and install it on the VM3.

Generalize the VM:

Run the sysprep command to generalize the VM, which prepares it to be used as a template.

Shut down the VM after sysprep completes.

Capture the Generalized VM to Create a Template:

In the Azure Portal, navigate to the VM and select Capture.

Provide the required details and create the image.

Add Selenium and Google Chrome Artifacts to the Template:

Go back to the DevTest Lab az400-38443478-dtl1.

Select Artifacts and add Selenium and Google Chrome artifacts to the template.

Ensure these artifacts are configured to install during the VM creation process.

Create VMs from the Template:

Now, when you create a new VM in the DevTest Lab, select the custom image you created.

The VM will be provisioned with Windows Server 2016 Datacenter, and the Selenium tool and Google Chrome browser will be installed automatically.

By following these steps, you can ensure that all virtual machines created from this template in your DevTest Lab will have the required operating system, tools, and browser installed. Remember to replace placeholder names with the actual names of your resources where necessary.

Step 1: Sign Up for Azure DevOps

Navigate to Azure DevOps.

Click on Start Free.

Enter the credentials:

Email: UserUsefl-42147509@ExamUsers.com

Password: eWrSalD2!

Follow the prompts to complete the sign-up process using the default settings.

Step 2: Create an Azure DevOps Organization

Once signed in, you will be prompted to create a new organization.

Enter a name for your organization and select your region.

Click on Continue to create the organization.

Step 3: Create a Private Project

In your new organization, click on New Project.

Name the project Project1.

Set the visibility to Private.

Click on Create.

Step 4: Add an External User as a Stakeholder

Go to the Organization Settings.

Under General, select Users.

Click on Add users.

Enter the email address: Usfrr2-42147S09@ExamUsers.com.

Set the access level to Stakeholder.

Add the user to the most restrictive group, which is typically the Readers group.

Click on Add to complete the process.

Step 5: Verify the User Addition

Ensure that the external user has been added successfully by checking the Users list.

Confirm that the user has the Stakeholder access level and is part of the Readers group.

By following these steps, you should be able to complete the task successfully. If you encounter any issues, feel free to ask for further assistance!
