CTS Certified Technology Specialist Questions and Answers

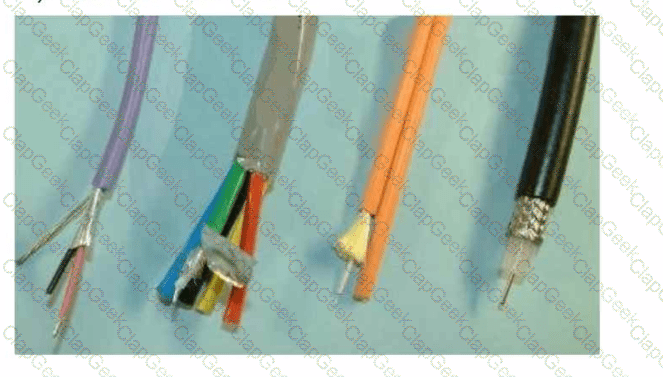

Using a cable tester and running a protocol is the best way to verify the proper performance of a CAT cable with a new termination. Cable testers can check for continuity, wiring configuration, signal quality, and performance standards compliance (e.g., Cat 5e, Cat 6). They can detect faults such as open circuits, short circuits, and incorrect wiring, ensuring the cable is terminated correctly and capable of supporting the desired network speeds and protocols.

A customized quick start guide is particularly useful for helping end users remember key points of the training. These guides provide concise, easy-to-follow instructions tailored to the specific system and user needs, highlighting the most important operational steps and features. This helps users quickly familiarize themselves with the system and perform essential tasks without having to refer to extensive manuals. Including visual aids, such as diagrams and screenshots, further enhances the effectiveness of the quick start guide.

The primary concern for the sales representative during the site survey should be the ceiling clearance for the projector lift. Ensuring that there is sufficient space for the projector lift to operate without obstruction is crucial for proper installation and operation. Inadequate clearance can lead to difficulties in mounting and deploying the projector, potentially compromising the projection quality and system functionality. Additionally, it is important to verify that the projector can be positioned at the correct height and angle to achieve the desired image size and alignment.

When an LED indicator on a projector blinks regularly, it typically signifies an error or a status message that needs attention. The correct course of action is to consult the projector's manual. The manual will provide specific information regarding what the blinking pattern means and the appropriate steps to resolve the issue. This method ensures that the engineer addresses the problem correctly without causing further damage or misdiagnosing the issue.References:

Axis Communications - Maintenance and Troubleshooting Guide

Manufacturer's Projector Manuals

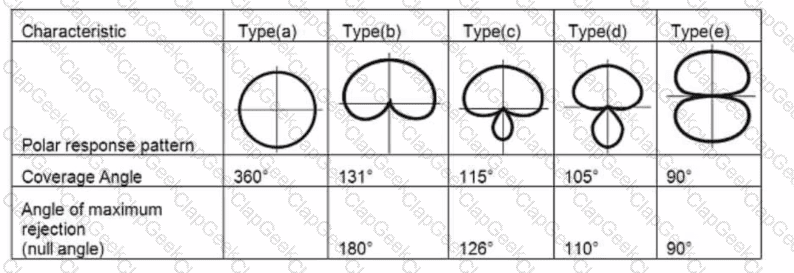

A condenser microphone requires a power source to operate because it uses an electrostatic principle to convert sound into an electrical signal. This power is typically provided by phantom power supplied by a mixer or an audio interface. Without this power source, the condenser microphone will not function. It is crucial to include a power source in the system design to ensure the microphone operates correctly.References:

Axis Communications - Audio Equipment Integration

Audio Engineering Society (AES) Standards

According to AVIXA standards, the minimum load rating for a truss that will hold a 5000 lbs (2268 kg) LED wall is typically calculated with a safety factor to ensure stability and safety. Thesafety factor generally used in rigging and truss systems is 5:1. This means the truss should be rated to hold five times the weight of the load it needs to support.

Given this safety factor:

5000 lbs×5=25000 lbs5000 \text{ lbs} \times 5 = 25000 \text{ lbs}5000 lbs×5=25000 lbs

Therefore, the minimum load rating required for the truss to safely support a 5000 lbs (2268 kg) LED wall is 25000 lbs (11340 kg).

References:

AVIXA Rigging Guidelines

Understanding Load Ratings and Safety Factors

Rigging and Load Calculations in AV Installations

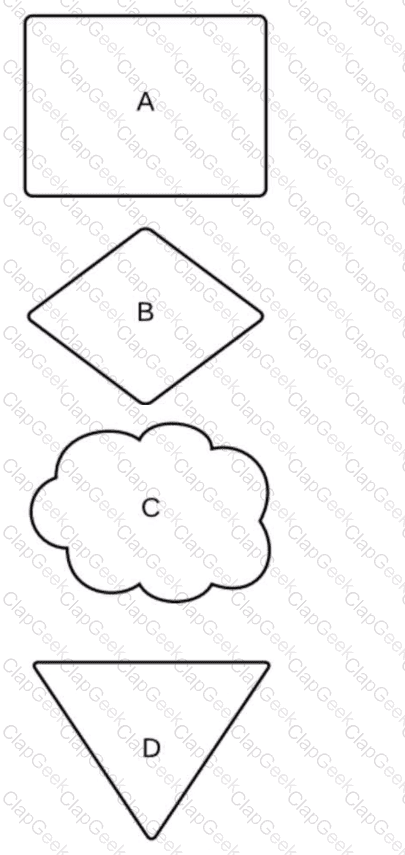

A Request for Information (RFI) is a document used to clarify project design issues. RFIs are typically issued when there is a need for additional information or clarification on specific aspects of the project design. This helps ensure that all parties have a clear understanding of the requirements and can proceed with accurate and consistent implementation. RFIs are commonly used in construction and AV projects to address uncertainties or discrepancies in the design documents.

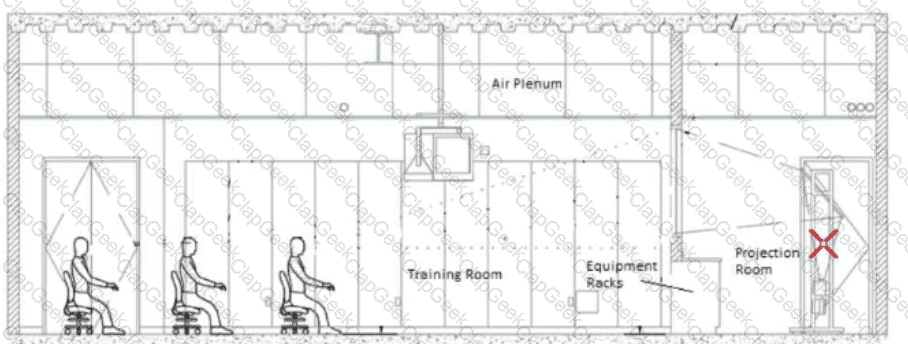

The primary design considerations for a projection system in an auditorium include the viewing cone, viewing distance, and viewing angle. These factors determine the optimal placement and size of the projection screen to ensure that all audience members have a clear and comfortable view. The viewing cone defines the area in which the screen can be clearly seen, the viewing distance impacts the size of the text and images, and the viewing angle ensures the image is visible without distortion from various seating positions.

The contrast control on a display adjusts the range for the difference between white and black. Increasing the contrast makes the whites brighter and the blacks darker, enhancing the overall clarity and sharpness of the image. Proper contrast settings are vital for ensuring that the image displayed is visually appealing and easy to interpret, especially in varying lighting conditions.

References:

Axis Communications - Display Settings and Calibration

AV Technology Standards

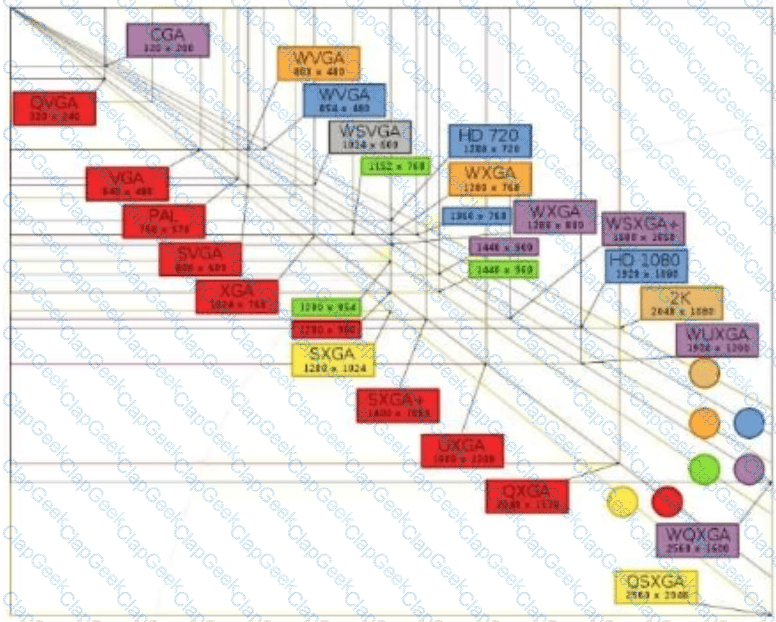

The aspect ratio is the ratio of the width to the height of an image. In the given images, the larger display has a width of 47.6 inches and a height of 26.89 inches. The aspect ratio is calculated as:Aspect Ratio=WidthHeight=47.626.89≈1.77:1\text{Aspect Ratio} = \frac{\text{Width}}{\text{Height}} = \frac{47.6}{26.89} \approx 1.77:1Aspect Ratio=HeightWidth​=26.8947.6​≈1.77:1This approximates to 16:9, which is a common widescreen aspect ratio used in modern displays and television screens.

When designing an AVB (Audio Video Bridging) system, ensuring that the network electronics (such as switches, routers, and network interface cards) are AVB compliant is critical. AVB is a set of standards developed to facilitate the transmission of audio and video data over Ethernet networks with precise timing and low latency. AVB-compliant network electronics are essential for maintaining the quality and synchronization of audio and video streams in such systems.

Top of Form

Bottom of Form

Company information, statement of work, drawings, and bill of materials are presented to the customer as a bid packet (response). This set of documents is used to respond to a request for proposal(RFP) and provides detailed information about how the contractor intends to meet the project requirements. Axis Technology Specialist documentation emphasizes the importance of a comprehensive bid packet to communicate the scope, approach, and cost of a project to the client.

Distortion occurs when an audio device can no longer accurately reproduce the input audio signal. This happens when the signal exceeds the device's capacity to process it linearly, resulting in a corrupted output that differs from the original signal. Distortion can be caused by overloading the device's input or output stages, improper gain settings, or defects in the audio components. It degrades the quality of the audio signal and can manifest as unwanted noise or alterations in the sound.

The viewing category that describes the usage of a display as a reference for CAD drawings is ADM (Analytical Decision Making). This category involves the detailed examination and interpretation of complex information, such as technical drawings or data. Displays used for ADM must have high resolution and clarity to ensure accurate analysis. Axis Technology Specialist documentation categorizes displays for analytical decision-making tasks as requiring superior visual performance to support detailed and precise work.

The Needs Analysis phase of the AV Design process focuses on understanding the specific needs and requirements of the project. This includes identifying the functional requirements, which detail what the system must be able to do to meet the client's objectives. This step ensures that the design will align with the user's needs and provides a foundation for developing the technical specifications and design plans.

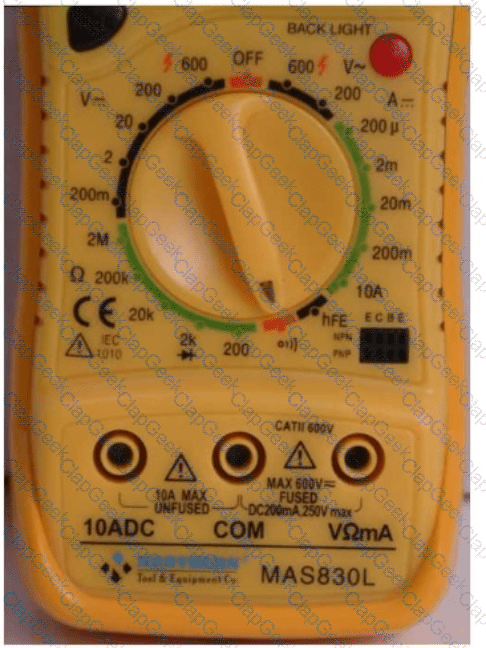

Ohm's Law is a fundamental principle used in electrical engineering and physics to describe the relationship between voltage (V), current (I), resistance (R), and power (P). The Ohm's Law chart is divided into four quadrants, each representing different formulas and relationships among these quantities.

To calculate values expressed in Ohms (which represent resistance, R), you should use Quadrant D. This quadrant contains formulas that solve for resistance (R), using various combinations of voltage (V), current (I), and power (P):

R=VIR = \frac{V}{I}R=IV​

R=V2PR = \frac{V^2}{P}R=PV2​

R=PI2R = \frac{P}{I^2}R=I2P​

These formulas are derived from Ohm's Law and the power equations, providing different ways to calculate resistance based on the available information.

References:

Ohm's Law: Explains the relationship between voltage, current, and resistance.

Power Formulas: Derived from the basic Ohm's Law equations and used to relate power with resistance, voltage, and current.

To further verify and detail the usage of Ohm's Law chart, you can refer to Axis Technology Specialist documentation or any standard electrical engineering textbooks which provide detailed explanations of these formulas and their applications.

Top of Form

Bottom of Form

To ensure a functioning audio solution for staff meetings, the most important question to ask is whether there are any remote participants. This information is crucial because it affects the system's requirements for microphones, speakers, and possibly video conferencing capabilities. Ensuring that the system can effectively support remote participation will lead to better integration and a more effective communication setup. Axis Technology Specialist documentation highlights the necessity of considering remote participants to provide a comprehensive audio-visual solution that meets all user needs.

The main difference between OLED (Organic Light Emitting Diode) displays and LED (Light Emitting Diode) displays is that OLED displays use self-emitting light sources. In OLED technology, each pixel emits its own light, allowing for better contrast ratios and deeper blacks, as pixels can be turned off completely. In contrast, LED displays use a backlight to illuminate the screen, which can result in less precise control over brightness and contrast.

Once a labor change is approved, the next step for the project manager is to update the project schedule. Changes in labor can affect the timeline of the project, and updating the schedule ensures that all stakeholders are aware of the new timelines and can adjust their plans accordingly. This step is critical for maintaining project organization and ensuring that the project stays on track despite the changes.

The main benefit of an inventory tracking system in an AV rental and staging business is having an accurate record of the current state and commitments of assets. This allows the business to manage inventory efficiently, track availability, schedule rentals, and ensure that equipment is maintained and ready for use. According to Axis Technology Specialist documentation, maintaining accurate records of asset status and commitments is crucial for operational efficiency and customer satisfaction in the AV rental industry.

To find the volume of the room, we need to calculate the area of the floor and multiply it by the height of the ceiling. The room has a ceiling-mounted DLP projector and a 10' x 58" ceiling-mounted electric screen. Using standard room dimensions, we estimate the room's length and width to fit the equipment layout proportionally.

Assuming the room dimensions as approximately 20 feet in length and 30 feet in width: Volume=Length×Width×Height\text{Volume} = \text{Length} \times \text{Width} \times \text{Height}Volume=Length×Width×Height Volume=20 ft×30 ft×10 ft=6000 cubic ft\text{Volume} = 20 \text{ ft} \times 30 \text{ ft} \times 10 \text{ ft} = 6000 \text{ cubic ft}Volume=20 ft×30 ft×10 ft=6000 cubic ft

This calculation aligns with the provided options.References:

Axis Communications - Room Design and Calculation Guidelines

Standard Architectural Practices

The throw distance of a projector can be calculated using the throw ratio formula:Throw Distance=Throw Ratio×Screen Width\text{Throw Distance} = \text{Throw Ratio} \times \text{Screen Width}Throw Distance=Throw Ratio×Screen Width

Given:Throw Ratio=2.3\text{Throw Ratio} = 2.3Throw Ratio=2.3Screen Width=144 in\text{Screen Width} = 144 \text{ in}Screen Width=144 in

Throw Distance=2.3×144\text{Throw Distance} = 2.3 \times 144Throw Distance=2.3×144Throw Distance=331.2 in\text{Throw Distance} = 331.2 \text{ in}Throw Distance=331.2 in

Therefore, the projector should be placed approximately 331 inches (8413 mm) from the screen.

Assuming the speakers on the left are 8Ωdrivers and they are connected in parallel, the total impedanceZtZ_tZt​can be calculated using the formula for parallel resistance:

Zt​1​=Z1​1​+Z2​1​For two 8Ω speakers in parallel:1Zt=18+18=28=14\frac{1}{Z_t} = \frac{1}{8} + \frac{1}{8} = \frac{2}{8} = \frac{1}{4}Zt​1​=81​+81​=82​=41​Therefore,Zt=4ΩZ_t = 4ΩZt​=4ΩIf the wiring in the diagram shows two pairs of 8Ω speakers connected in parallel, the total impedance is 4Ω for each pair, and if these pairs are then connected in parallel again, the final impedance is:1Zt=14+14=24=12\frac{1}{Z_t} = \frac{1}{4} + \frac{1}{4} = \frac{2}{4} = \frac{1}{2}Zt​1​=41​+41​=42​=21​Thus, the total impedance is 2Ω.References:

Axis Communications - Audio System Design

Basic Electrical Engineering Textbooks

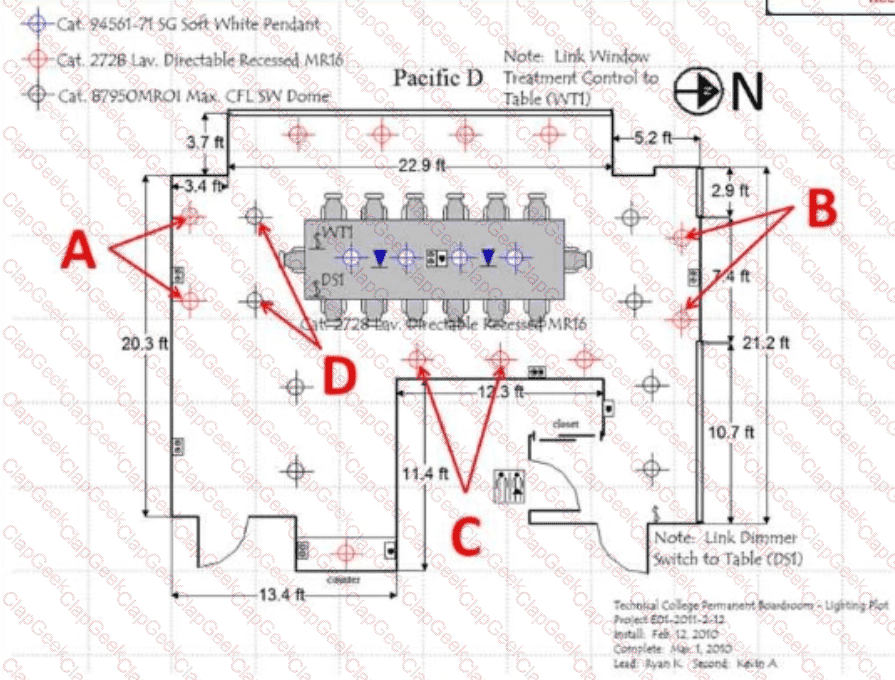

The term "luminaire" refers to a complete lighting instrument composed of a lamp and housing. This includes all components necessary for the fixture to function, such as the lamp (bulb), housing, reflector, and any other elements that contribute to its operation. Axis Technology Specialist documentation uses the term "luminaire" to describe complete lighting systems in various technical specifications and installation guides.

"Shock Loads" for equipment mounts refer to sudden additional loads from earthquakes or personnel hanging from the mounts. Shock loads are unexpected forces that can be significantly higher than normal operating loads and can cause structural failures if not properly accounted for. This is particularly important in areas prone to seismic activity or where equipment might be subjected to additional stresses. Axis Technology Specialist documentation highlights the need to design mounts and supports to withstand such shock loads to ensure the safety and durability of the installation.

Understanding the customer's goals is crucial because it helps the integrator design a solution that meets the customer's expectations and functional requirements. Knowing what the customer expects to achieve with the space allows the integrator to tailor the AV system to those needs, ensuring satisfaction and effective use of the system. This understanding also helps in aligning the project scope with the customer's vision and can prevent misunderstandings and misalignments later in the project.

The first stage in troubleshooting an AV system is identifying the symptoms of the error. This step involves observing and documenting the specific issues or malfunctions that are occurring. By clearly understanding and articulating the symptoms, a technician can more effectively diagnose the problem and narrow down potential causes. Once the symptoms are identified, the technician can proceed to evaluate possible sources of error, check device functionality, and review system diagrams as needed.

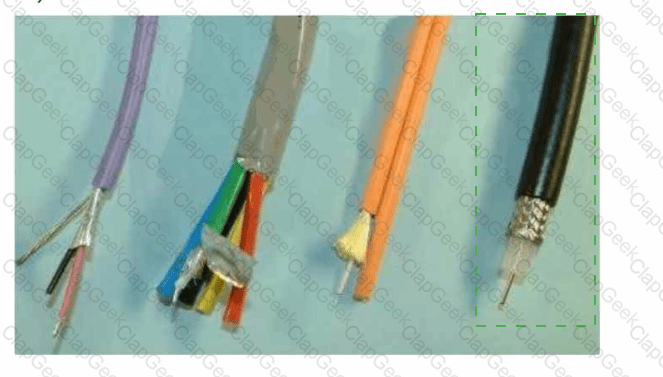

The standard impedance for a DMX (Digital Multiplex) cable is 110 ohms (Ω). DMX is a standard for digital communication networks commonly used to control stage lighting and effects. The 110-ohm impedance is crucial for ensuring the integrity and reliability of the digital signal over long distances. Using cables with the correct impedance prevents signal reflections and ensures proper transmission of the DMX data without errors, maintaining the synchronization and performance of lighting systems.

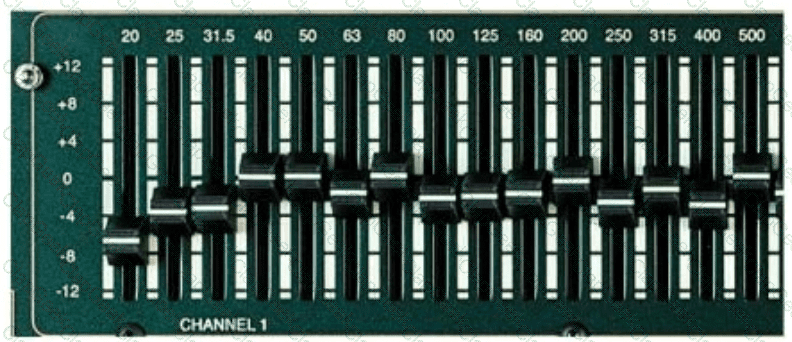

When testing a distributed audio system, focusing on the audio uniformity in the range of intelligible speech (100 Hz - 2 kHz) is most important. This range is crucial for ensuring that speech is clear and understandable, which is often the primary function of distributed audio systems in environments like schools, offices, and public spaces. Ensuring uniform sound distribution within this frequency range helps achieve consistent audio quality and speech intelligibility across the covered area.

On sites such as hospitals or prisons, work restrictions will have the most impact on labor costs for the project. These restrictions may include limited working hours, special security protocols, or the need for supervision, all of which can significantly increase labor costs and project timelines. Axis Technology Specialist documentation underscores the importance of understanding site-specific restrictions to accurately estimate labor costs and project feasibility.
