D-PST-MN-A-24 Dell PowerStore Maintenance Achievement Questions and Answers

For intra-cluster management within Dell EMC PowerStore systems, theinternal networkis used. This network is specifically named the Intra-Cluster Management (ICM) and Intra-Cluster Data (ICD) networks.Each node in a PowerStore cluster communicates with other nodes through bonded ports that are part of this internal network12.

The ICM and ICD networks are crucial for the cluster’s operation as they allow for the management and coordination of data across the cluster. In multi-appliance PowerStore clusters, these networks communicate through the top-of-rack switch network with untagged VLAN network packets that have auto-generated IPv6 addresses.For single-appliance clusters, starting in PowerStoreOS 1.0.2, the ICM network communicates through the backplane within the appliance instead of through the top-of-rack switch2.

In summary, the internal network is essential for the functioning of a PowerStore cluster as it facilitates the necessary communication between nodes for management and data operations. This design ensures high availability and efficient management of the storage system.

In a Dell EMC PowerStore T environment, the recommended number of network switches is two1. This recommendation is based on best practices for general network performance andhigh availability. Using two switches allows for redundancy and ensures that if one switch fails, the other can continue to handle the network traffic without interruption1.

The use of multiple switches connected with technologies like Virtual Link Trunking (VLT) and Link Aggregation Control Protocol (LACP) or their equivalents is advised. Each PowerStore node should have connectivity to all linked switches to maintain high availability and optimal network performance1.

For detailed network design and switch configuration recommendations, administrators should refer to the Dell PowerStore Networking Guide for PowerStore T Models and other official Dell documentation2. These resources provide comprehensive guidelines on setting up the network infrastructure to support PowerStore T systems effectively.

The LED combination that shows a connected and working node ispower LED: steady green fault LED: off.

The power LED on a Dell EMC PowerStore node indicates the power status of the node.

A steady green power LED typically signifies that the node is powered on and operating normally1.

The absence of the fault LED being lit (fault LED: off) indicates that there are no current faults detected with the node1.

This combination of a steady green power LED and no fault LED is the normal operating state for a node and suggests that it is connected and functioning properly1.

For more detailed information on the LED states and what they represent, you can refer to the Dell PowerStore Hardware Information Guide or the Dell Support Knowledge Base1.

When the link LED of the node A embedded module management Ethernet port is off, it indicates that there is no network connection established. The link LED is typically used to indicate the presence of a network connection and its status.If the LED is off, it means that the Ethernet port is not currently connected to a network or there is an issue preventing the connection from being established1.

In the case of the Dell EMC PowerStore T system, the embedded module management Ethernet ports are used for network management traffic. It is essential that these ports have an activenetwork connection for the system to be managed remotely. If the link LED is off, the following steps should be taken:

Check the physical connection of the Ethernet cable to ensure it is securely plugged into both the node’s port and the corresponding switch or router port.

Verify that the switch or router is powered on and functioning correctly.

Ensure that the correct port on the switch or router is being used and that it is configured correctly for the PowerStore system.

If the issue persists after checking the physical connections and switch/router configuration, consult the Dell EMC PowerStore T Installation and Service Manual for further troubleshooting steps2.

It is important to resolve any network connection issues promptly to maintain the manageability and accessibility of the PowerStore system. Following the official Dell documentation and support resources will help ensure that the system is installed and configured correctly for optimal performance and reliability.

In the Dell PowerStore code-naming schema, the number that represents a beta distribution is4. This is based on the PowerStoreOS release matrix, where the versioning and distribution types are indicated by specific digits in the version number.The third digit in the version number typically represents the target code, which is a highly trusted and recommended release1.

For beta distributions, which are pre-release versions provided for testing purposes, Dell uses specific numbering conventions to distinguish them from general availability releases. These beta versions are important for testing new features and fixes in a controlled environment before they are released to all customers.

For detailed information on the code-naming schema and understanding the different types of software distributions for Dell PowerStore, including beta distributions, administrators should refer to the official Dell PowerStoreOS Matrix documentation.This document provides a comprehensive overview of the versioning system and the criteria used to determine the target code and other distribution types1.

When the node A and B embedded module fault LEDs on a Dell EMC PowerStore system are alternating between blue and amber, with the blue LED illuminated for 3 seconds, it indicates that the system is not initialized1. This LED behavior is part of the system’s design to communicate its current state to the user or technician on-site.

The initialization process is a critical step during the installation of a PowerStore system. It involves setting up the system’s configuration, including network settings, storage pools, and other essential parameters. Until this process is completed, the system cannot perform storage operations or host any virtual machines.

To resolve this and initialize the system, the following steps should be taken:

Connect to the system through the PowerStore Manager using a supported web browser.

Complete the Initial Configuration Wizard (ICW), which guides you through the necessary steps to initialize the system.

Once the ICW is completed, the system will finalize its configuration and the LEDs should reflect a normal operational state.

For more detailed guidance on the initialization process and understanding the LED indicators, refer to the Dell PowerStore Installation and Service Guide2. This document provides comprehensive instructions on installing and configuring the PowerStore system, ensuring it is ready for use.

The Pre-Upgrade Health Check (PUHC) results for a Dell EMC PowerStore system can be viewed in the details of Appliances and Nodes within the PowerStore Manager (UI).The PUHC is designed to validate the health of the cluster before a software upgrade and is more thorough than the continuous background checks performed by the alert mechanism of PowerStore1.

To view the PUHC health check results, follow these steps:

Log in to the PowerStore Manager using a supported web browser.

Navigate to the ‘Settings’ menu and select ‘Upgrades’.

Within the ‘Upgrades’ section, you can view the status and results of the PUHC.

Click on the details of a specific appliance or node to see the health check results, including any warnings or actions required.

It is important to address any issues highlighted by the PUHC before proceeding with a software upgrade to ensure a successful update process.For more detailed instructions on running and interpreting the PUHC, refer to the Dell Support Knowledge Base Article1. This resource provides comprehensive guidance on using the PUHC and System Checks to prepare for a Non-Disruptive Upgrade (NDU).

The component that can be replaced while the Dell EMC PowerStore is up and running isSFP(Small Form-factor Pluggable).

SFP modules are hot-swappable, meaning they can be replaced without powering down the system.

These modules are used for network connections and can be found in the network ports of the PowerStore appliance.

When replacing an SFP, it is important to ensure that the replacement is of the same type and speed as the one being replaced.

The process typically involves:

Removing the network cable from the SFP.

Unlocking the SFP from its socket.

Pulling the SFP out of the socket.

Inserting the new SFP into the socket until it clicks into place.

Reconnecting the network cable1.

For more detailed procedures on replacing SFP modules or other components, refer to the Dell PowerStore Installation and Service Guide or contact Dell Support for assistance.

A Field Replaceable Unit (FRU) is a component that can be replaced by the user or technician without having to send the entire product or system to a repair facility.Dell’s Customer Replaceable Unit (CRU) program allows customers to replace designated hardware components, which are typically considered as FRUs1.

In the context of Dell PowerStore Maintenance, the Battery Backup Unit (BBU) is considered an FRU because it is designed to be easily replaced in the field. The BBU is critical for maintaining power to the system in the event of a power failure, ensuring that data is not lost and the system can be shut down gracefully.

The other components listed, such as DIMMs, Embedded IO Modules, and Nodes, may not be as easily replaceable by the customer or may require more technical expertise or special tools. Therefore, they are not typically classified as FRUs within the Dell PowerStore ecosystem.

For detailed procedures on replacing the BBU or any other FRU components, it is recommended to refer to the official Dell PowerStore Maintenance documents and follow the guidelines provided for safe and effective replacement. This ensures that the system integrity is maintained and any warranty or support agreements remain valid.

The command svc_journalctl -f -g "st_io_monitor" is used within the Dell PowerStore environment to retrieve log messages that are associated with the specified error, in this case, “st_io_monitor”, and to monitor for their re-occurrence. The -f flag is typically used to follow thelog, meaning it will continue to output new log messages as they are appended to the journal.The -g flag is used to filter the log output based on a specific pattern1.

This command is part of the suite of service scripts provided by Dell for system maintenance and troubleshooting.It enables service technicians and system administrators to view log messages from the system journal in a consistent and easy-to-read format, which is crucial for diagnosing and resolving issues1.

For more detailed information on using this command and understanding the system journal logs, users should refer to the Dell PowerStore Service Scripts Guide or contact Dell Support for technical assistance1. It’s important to use these commands as per the guidelines provided in the official documentation to ensure proper system maintenance and to avoid any unintended consequences.

When observing the base enclosure front view of a Dell PowerStore system, a solid amber drive LED is an indication of a faulted drive. This LED status is used to alert the storage administrator that there is a fault within the drive that requires attention12.

The LED states for the Dell PowerStore base enclosure are as follows:

Blue: Power is on, and no fault has occurred.

Solid Amber: Power is on, and a fault has occurred within the enclosure.

Blue after Amber Alternating: Power is on, but the system is not initialized.

Off: Power is off.

In the event of a solid amber LED, the recommended steps are:

Identify the faulted drive: Look for the drive with the solid amber LED.

Check the PowerStore Manager: Use the PowerStore Manager to identify the specific error or fault code associated with the drive.

Follow the troubleshooting steps: Refer to the Dell PowerStore Troubleshooting Guide for detailed steps on resolving the issue with the faulted drive.

Replace the drive if necessary: If the drive is determined to be faulty and cannot be recovered, follow the Dell PowerStore Hardware Information Guide for instructions on safely replacing the drive.

For more detailed information and guidance, refer to the official Dell PowerStore documentation, such as the PowerStore Hardware Information Guide and the PowerStore Troubleshooting Guide, or contact Dell support directly

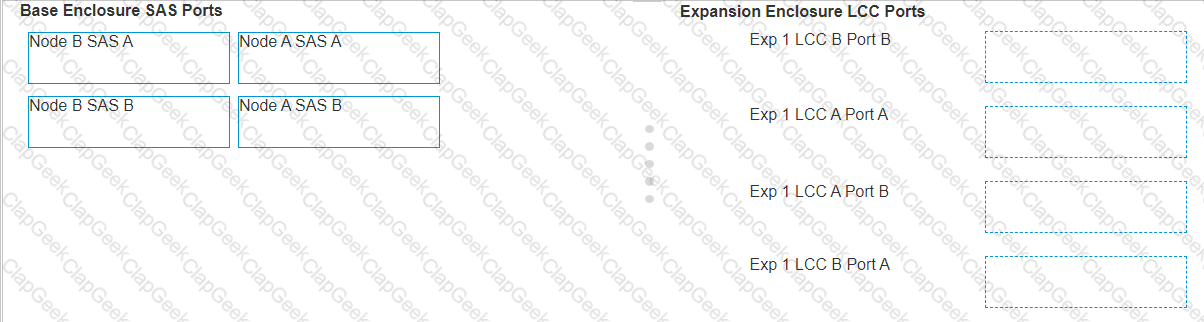

To match the base enclosure SAS ports in column A to their correspondingexpansion enclosure LCC ports in column B for a Dell PowerStore base enclosure connected to a single expansion enclosure, the correct configuration is:

Node B SAS A to Exp 1 LCC A Port B

Node A SAS A to Exp 1 LCC B Port A

Node B SAS B to Exp 1 LCC A Port A

Node A SAS B to Exp 1 LCC B Port B

Step by Step Comprehensive Detailed Explanation with References

Identify the SAS ports on the base enclosure and the LCC ports on the expansion enclosure.

Match the ports according to the configuration provided above.

Connect the cables between the corresponding SAS and LCC ports.

Secure the connections to ensure there is no loose cabling.

Verify the configuration using the PowerStore Manager to ensure all connections are recognized and functioning properly.

For detailed instructions, diagrams, and best practices, refer to the Dell PowerStore Installation and Service Guide1, as well as the Dell EMC PowerStore Quick Start Guide2. These documents provide essential information on the proper setup and maintenance of the storage system, ensuring optimal performance and reliability.

The maximum number of expansion enclosures that a single Dell EMC PowerStore 9000T appliance supports isthree.This is consistent with the design and specifications provided by Dell for the PowerStore series, which allows for scalability within the storage environment1.

The expansion enclosures are used to increase the storage capacity of the PowerStore system beyond what is available in the base enclosure. Each expansion enclosure connects to the base appliance and adds additional drive slots for storage expansion.

For detailed information on the configuration and limitations of expansion enclosures for the PowerStore 9000T model, administrators should refer to the official Dell PowerStore Hardware Information Guide and the Dell PowerStore Technical Primer.These documents provide comprehensive guidelines on the physical and logical expansion capabilities of the PowerStore systems23. Adhering to these specifications is crucial to ensure proper system performance and to avoid unsupported configurations.

When a critical alert related to data integrity is present in Dell EMC PowerStore Manager, the most helpful action for troubleshooting the problem is to select the “Gather Support Materials” option from the Service and Support section.This action facilitates the collection of logs, system information, and other relevant data that can be used by Dell EMC support to diagnose and resolve the issue1.

The process typically involves:

Accessing the alert details slide-out panel within the PowerStore Manager.

Reviewing the critical alert to understand the nature of the data integrity issue.

Selecting the “Gather Support Materials” option, which may include system logs, configuration files, and other diagnostic information.

Following the prompts to collect and package the support materials.

Sending the gathered materials to Dell EMC support for further analysis and assistance.

This proactive step is crucial in expediting the support process and ensuring that the Dell EMC support team has all the necessary information to address the data integrity alert effectively.It is recommended to perform this action as soon as the critical alert is noticed to prevent any potential data loss or system downtime2.

For more detailed instructions on how to gather support materials and manage alerts, administrators should refer to the Dell PowerStore Manager Overview documentation and the PowerStore Alerts knowledge base articles provided by Dell12. These resources offer comprehensive guidance on maintaining and troubleshooting the PowerStore system.

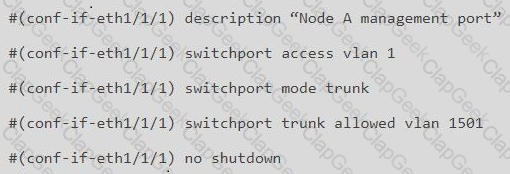

The network configuration shown for a Dell EMC PowerStore T node A management port indicates that VLAN 1 is set as the access VLAN, which means it will pass untagged traffic. The port is also configured as a trunk port, which allows it to pass traffic from multiple VLANs, but only VLAN 1501 is specified in the allowed list, meaning it will pass as tagged traffic. This configuration is typical for network interfaces on storage systems where management traffic is separated from other types of traffic for security and performance reasons.

In detail, the configuration commands are:

switchport access vlan 1: Sets VLAN 1 as the access VLAN, which passes untagged traffic.

switchport mode trunk: Enables trunking on the port, allowing it to pass traffic from multiple VLANs.

switchport trunk allowed vlan 1501: Specifies that only VLAN 1501 traffic is allowed on the trunk and will be tagged.

This setup ensures that management traffic is kept separate from other network traffic and can be managed accordingly.For more information on network configuration for Dell EMC PowerStore systems, you can refer to the PowerStore Networking Guide1. It is important to follow the official documentation to ensure proper configuration and maintenance of the network settings on your storage system.
