D-PVM-OE-01 Dell PowerMax Operate v.2 Questions and Answers

Step by Step Comprehensive Detailed Explanation:

In an SRDF (Symmetrix Remote Data Facility) disaster recovery scenario where production has been switched to the R2 devices at the target site, theResumeoperation allows the primary hosts to regain access to the R1 devices without waiting for a full data transfer from the R2 devices.

Here's how it works:

R1 Access:The Resume operation makes the R1 devices (at the primary site) accessible to the primary hosts.

Background Synchronization:While the hosts access and modify data on the R1 devices, SRDF continues to synchronize the changes from the R2 devices (at the target site) in the background. This ensures that the R1 devices are gradually updated with any changes that occurred on the R2 devices during the failover.

This approach minimizes downtime and allows for a quicker return to the primary site without waiting for a lengthy synchronization process to complete before granting host access.

Why other options are incorrect:

A. Update:This operation copies changes from R2 to R1, but it doesn't necessarily grant immediate host access to R1.

B. Fallback:This is a more comprehensive process that involves reversing replication direction and fully restoring the primary site as the production environment.

C. Failover:This operation switches production to the R2 devices, not the R1 devices.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF commands and operations, including the symrdf resume command. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF and its functionalities, including disaster recovery scenarios and the use of the "Resume" operation.

Step by Step Comprehensive Detailed Explanation:

In SRDF (Symmetrix Remote Data Facility), an "update" operation refers to a specific process where changes made on the target (R2) side are copied back to the source (R1) side. This is typically used in disaster recovery scenarios where:

Failover:A failover occurs, and the target (R2) becomes the active production site.

Data Modification:Data is modified or updated on the target (R2) while it's acting as the primary.

Update Operation:An "update" is initiated to synchronize the changes from the target (R2) back to the source (R1), ensuring that the source has the latest data.

This process is crucial for maintaining data consistency and ensuring a smooth transition back to the original production site after a failover event.

Why other options are incorrect:

A. process to retain the data on the target R2 side:This is not specific to an "update" operation. Data retention on the target is a general aspect of SRDF.

B. A process used to return to the original production site after a failover event:While an "update" is part of the failback process, it's not the entire process itself. Failback involves other steps like reversing replication direction and restoring host access.

D. A process that allows separate hosts to access the same data independently:This describes a different SRDF configuration (like Active/Active) and is not related to the "update" operation.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF commands and operations, including the symrdf update command used to initiate an update from R2 to R1. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF and its functionalities, including disaster recovery scenarios and the use of the "update" operation.

Step by Step Comprehensive Detailed Explanation:

The "Data Protection" menu in Unisphere for PowerMax provides a centralized location for managing various data protection features and functionalities. Specifically, it allows storage administrators to:

Configure and manage SRDF groups:SRDF (Symmetrix Remote Data Facility) is a key technology for disaster recovery and data replication in PowerMax. The Data Protection menu enablesadministrators to create, modify, and monitor SRDF groups, establish replication relationships between devices, and control replication settings.

Why other options are incorrect:

A. Convert front-end ports to SRDF ports:This is typically done through the "System > Hardware" or "Connectivity" sections of Unisphere, where port configurations are managed.

C. Configure Data Protection for z Systems:While PowerMax supports mainframe environments, the specific configuration for z Systems might involve specialized tools or interfaces.

D. Review the audit log for unwanted logins:Audit logs and security-related events are usually found in the "Monitoring" or "Security" sections of Unisphere.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Unisphere for PowerMax 10.0.0 Online Help:The online help for Unisphere provides a detailed explanation of the functionalities available in each menu, including the Data Protection menu. You can access this help within Unisphere itself or on the Dell Support website.

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of data protection features in PowerMax and how they are managed through Unisphere.

Step by Step Comprehensive Detailed Explanation:

Solutions Enabler (SE) uses various daemons (background processes) to perform different functions. The storstpd daemon is specifically responsible for:

Collecting Performance Statistics:It gathers performance data from the connected storage arrays, such as I/O rates, response times, and other metrics.

Managing Performance Data:It stores and manages the collected performance statistics, making them available for monitoring and analysis through tools like Unisphere for PowerMax.

This data is crucial for understanding the performance of the storage arrays, identifying potential bottlenecks, and optimizing storage resources.

Why other options are incorrect:

B. Coordinates storage array locks and application syscalls:This is the function of the storapid daemon.

C. Starts the system watchdog timer periodically:This is not directly related to the storstpd daemon.

D. Performs remote Solutions Enabler API functions:This is typically handled by the storsrvd daemon.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides information about the different daemons used by Solutions Enabler and their roles. You can find this document on the Dell Support website by searching for "Solutions Enabler CLI User Guide."

Here's the correct sequence of actions, along with explanations:

Correct Order:

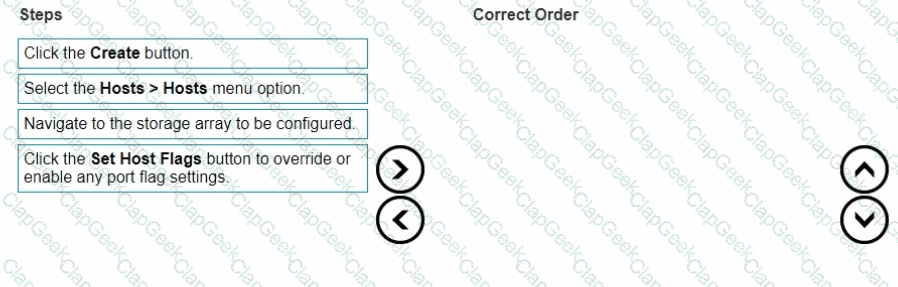

Select the Hosts > Hosts menu option.

Why:This is the initial navigation step within Unisphere. You need to go to the "Hosts" section where you can manage and configure host connections to the PowerMax array.

Navigate to the storage array to be configured.

Why:In an environment with multiple PowerMax arrays, you need to select the specific array for which you want to configure host settings.

Click the Create button.

Why:This initiates the "Create Host" wizard, which will guide you through the process of adding a new host and configuring its settings, including the host flags.

Click the Set Host Flags button to override or enable any port flag settings.

Why:Within the Create Host wizard, you'll reach a point where you can configure host flags. Clicking the "Set Host Flags" button allows you to modify these flags.

Host Flags:These flags are settings that define how the PowerMax array interacts with the host. They control things like:

SCSI support:Different variations of SCSI protocols.

High availability:Features like auto-negotiation of failover.

Other host-specific behaviors.

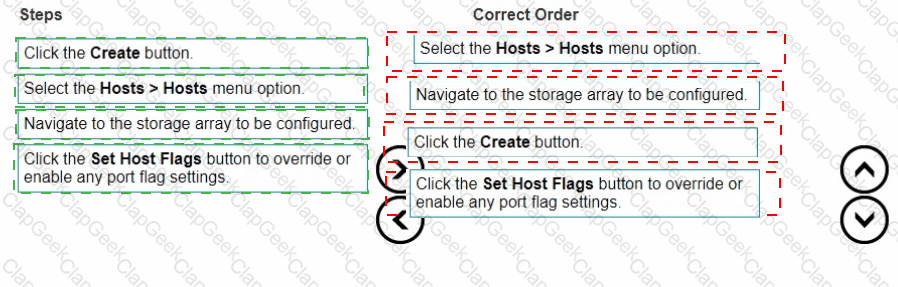

Select the Hosts > Hosts menu option.

Navigate to the storage array to be configured.

Click the Create button.

Click the Set Host Flags button to override or enable any port flag settings.

Step by Step Comprehensive Detailed Explanation:

The Dell PowerMax 2500 is a mid-range storage array designed for enterprise environments. It offers a balance of performance, capacity, and scalability.

Scalability:The PowerMax 2500 scales from a single node pair to a maximum of two node pairs. This allows for increased performance and capacity as needed. Each node pair provides processing power, cache memory, and connectivity.

Why other options are incorrect:

A. Supports up to 16 nodes:This is incorrect. The PowerMax 8500, the higher-end model, supports up to 16 nodes.

B. Supports up to 15 PB of effective capacity:While the PowerMax 2500 offers significant capacity, its maximum effective capacity is lower than 15 PB.

D. Uses Storage Class Memory:Both the PowerMax 2500 and 8500 utilize Storage Class Memory (SCM) for enhanced performance.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax 2500 Hardware Information Guide:This guide provides detailed technical specifications for the PowerMax 2500, including its scalability options, node configurations, and capacity limits. You can find this document on the Dell Support website by searching for "PowerMax 2500 Hardware Information Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of the PowerMax family, including the 2500 and 8500 models. It highlights the key differences in scalability and performance between the two models.

Okay, I understand. We need to perform a system health check and review the compliance status for a PowerMax array with SID ending in 1762 using the Unisphere simulator, then generate and download a compliance report.

Here's how you would do it in the Unisphere for PowerMax simulator, based on the provided image and common Unisphere functionality:

Steps:

1. Launch the Simulator and Access the System Health View

Open Unisphere for PowerMax in your web browser.

You should already be logged in to the simulator, with the PowerMax array with SID 1762.

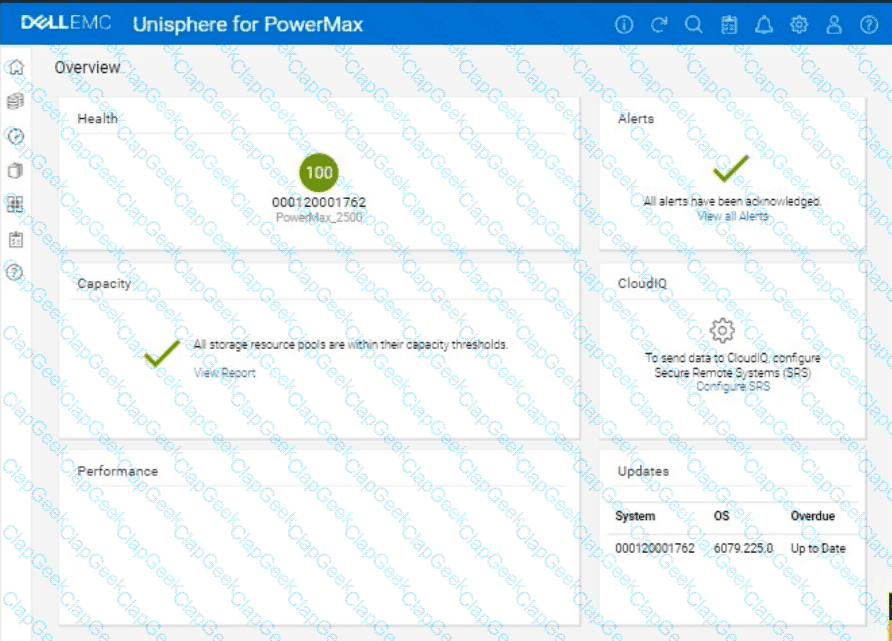

The initialOverviewpage (as shown in the image) provides a good starting point for a health check.

2. Analyze the Overview Page

Health:The "Health" section displays the overall health status of the array. In the image, it shows "100" with a green checkmark, which indicates that the array is currently healthy.

Alerts:The "Alerts" section will show if there are any active alerts. In the image, it shows a green checkmark and "All alerts have been acknowledged," meaning no unacknowledged alerts. You can click "View all Alerts" to see the alert history.

Capacity:The "Capacity" section indicates whether storage resource pools are within their capacity thresholds. The green checkmark and "All storage resource pools are within their capacity thresholds" message indicate that capacity is currently healthy. You can click "View Report" for more details.

Performance:The "Performance" section is not detailed in the image, but it would typically provide a quick overview of the array's performance.

Updates:The "Updates" section shows the system's PowerMaxOS code level and whether any updates are overdue. In the image, it shows that the system is "Up to Date."

3. Navigate to the Compliance Section

In the left-hand navigation pane, click onData Protectionto expand it.

Click onComplianceunder Data Protection.

4. Review Compliance Status

The Compliance view will show you the overall compliance status of your storage groups against the defined compliance policies.

Review the compliance status for each Storage Group.

Look for any storage groups that are marked as "Non-Compliant."

5. Generate the Compliance Report

Click on"Generate Report"(or a similarly worded button) within the Compliance view. This might also be represented as an icon in the simulator.

Select all Storage GroupsSince we need to generate the report for all storage groups.

Report Format:Choose the desired report format. Common options are usually PDF, CSV, or HTML. For this simulation, let's assume PDF is available and select it.

Download the Report:Once the report is generated, there will typically be a"Download"or similar option to save the report to your local system. Click it to download the compliance report.

6. Further Health Checks (Optional):

Detailed Performance Metrics:You can navigate to thePerformancesection in the left navigation pane (under "Dashboard") to view more detailed performance metrics for various components of the array.

Hardware Status:You can typically find a "Hardware" section (or similarly named section) that provides information about the physical components of the array (e.g., DAEs, directors, ports).

Step by Step Comprehensive Detailed Explanation:

Both the PowerMax 2500 and 8500 utilize NVMe over Fabrics (NVMe-oF) for high-speed data transfer. However, they differ in their internal fabric architecture:

PowerMax 2500:Uses a direct NVMe/PCIe connection between the compute nodes and the Dynamic Media Enclosures (DMEs).

PowerMax 8500:Employs a fully switched InfiniBand (IB) fabric for all NVMe-oF traffic. This means that the compute nodes and DMEs are interconnected through InfiniBand switches, providing a high-performance, low-latency, and scalable fabric for data transfer.

Therefore, the use of InfiniBand switches is a feature unique to the PowerMax 8500 compared to the PowerMax 2500.

Why other options are incorrect:

A. Persistent Memory:Both PowerMax 2500 and 8500 utilize Storage Class Memory (SCM), which is a type of persistent memory.

B. Mainframe Connectivity:Both models support mainframe connectivity.

C. Storage Class Memory:As mentioned above, both models use SCM.

References and documents of Dell's public documentation for PowerMax Operate v.2:

PowerMax 2500 and 8500 Dynamic Fabric—A High-Performance Clustered Architecture for Enterprise Storage:This white paper provides a detailed comparison of the Dynamic Fabric architecture in both models, highlighting the use of InfiniBand switches in the PowerMax 8500. You can find this document on the Dell Technologies Info Hub.

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of the PowerMax family, including the 2500 and 8500 models. It may provide context for understanding the differences in their architecture and features.

We need to terminate a clone session for the storage group named "DATA" in the Unisphere for PowerMax simulator.

Here's a step-by-step guide on how to do this, based on typical Unisphere functionality and the context of the question:

Steps:

1. Launch the Simulator and Navigate to the TimeFinder/Clone Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator (you should already be logged in with the array SID 1762 selected, based on the provided image).

In the left-hand navigation pane, locate the section related to TimeFinder operations. This is usually found under:

Data Protection

Local Protection

TimeFinder

Expand the relevant sections and click onTimeFinder SnapVXorTimeFinder Clone(the exact wording might vary slightly in the simulator). The goal is to get to the view where you can manage clone sessions.

2. Locate the Clone Session for the "DATA" Storage Group

The TimeFinder/Clone view will display a list of existing clone sessions.

You need to find the session associated with the "DATA" storage group. Look for the following:

Storage Group Name:The "DATA" storage group should be listed as the source of the clone session.

Session Type/Mode:Verify that it's a Clone session (not a SnapVX snapshot or another type of session).

3. Select the Clone Session

Once you've found the correct clone session for the "DATA" storage group, select it.

You can usually do this by:

Clicking a checkbox next to the session.

Clicking on the session itself (if the interface allows it).

4. Terminate the Clone Session

After selecting the clone session, look for an action button or menu option to terminate it. This might be labeled:

"Terminate"

"Delete"

"Remove"

"Fracture"(in some older versions)

"Stop"

Click the appropriate button to initiate the termination process.

Confirmation:You will likely be prompted with a confirmation message to ensure you want to terminate the selected clone session. Verify that you have selected the correct session (the one for the "DATA" storage group) and confirm the termination.

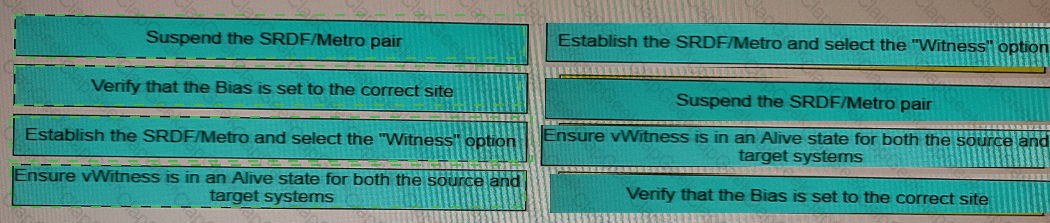

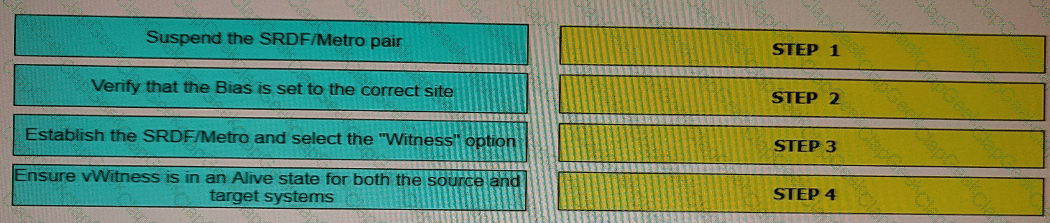

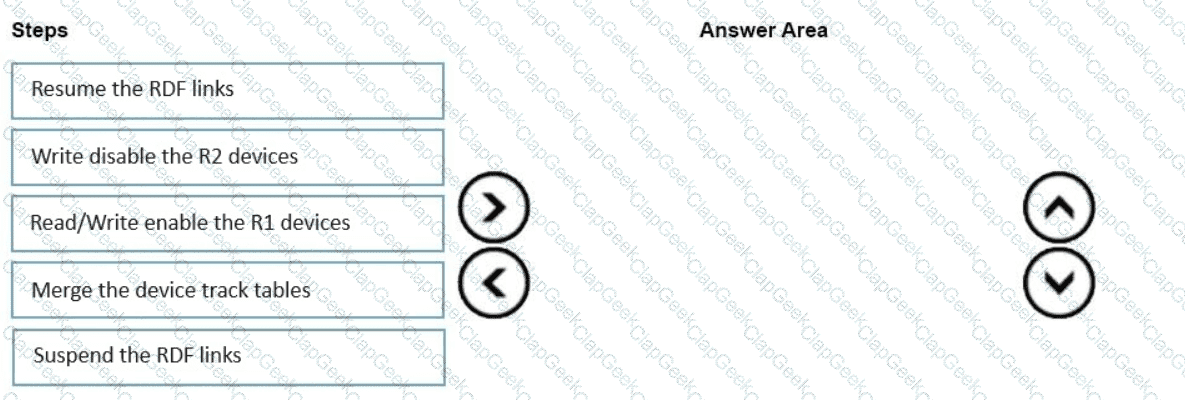

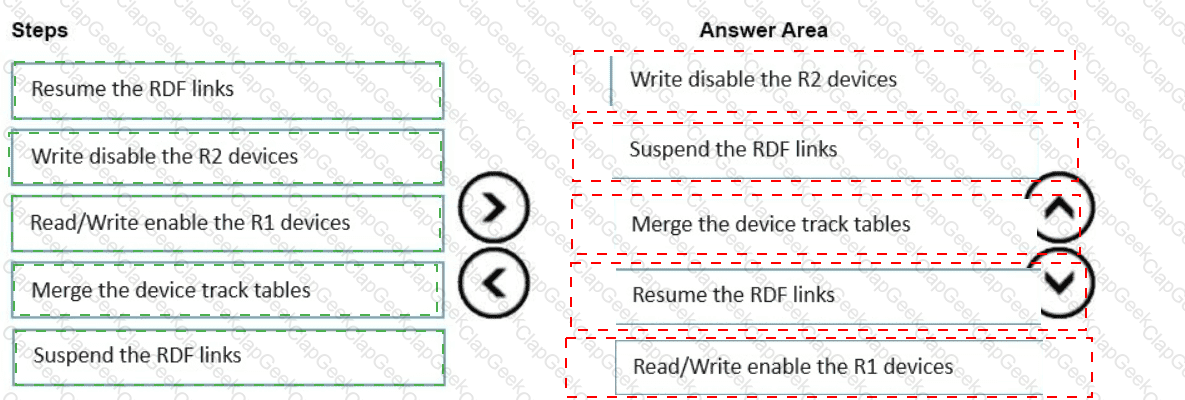

1.write disable R2

2.suspend

3. Merge

4.Resume

5.read/write enable.

Step by Step Comprehensive Detailed Explanation:

The symsan command in Solutions Enabler is used for various SAN (Storage Area Network) management tasks. One of its functions is to scan the SAN environment to discover and verify the configuration of devices and paths.

When used in the context of an Open Replicator Migrator for Dell EMC (O-MDM) session, the symsan command specifically:

Verifies SAN Configuration:It checks the connectivity and configuration of the SAN fabric to ensure that the source and target devices are accessible and properly configured for the migration.

Non-Disruptive:It performs this verification without disrupting any applications or host I/O operations on the remote host. This is crucial for maintaining business continuity during the migration planning phase.

Why other options are incorrect:

A. Temporarily stops the remote application to verify the SAN configuration:symsan does not stop applications; it performs a non-disruptive scan.

B. Verifies the SAN configuration and creates an ORS session on the remote host:symsan only verifies the SAN; it doesn't create ORS (Open Replicator Solutions) sessions.

D. Temporarily stops the remote application and creates an ORS session:Again, symsan doesn't stop applications or create ORS sessions.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides detailed information about the symsan command and its various options, including its use for SAN discovery and verification. You can find this document on the Dell Support website by searching for "Solutions Enabler CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide may offer general information about SAN management and migration tools, providing context for understanding the role of the symsan command.

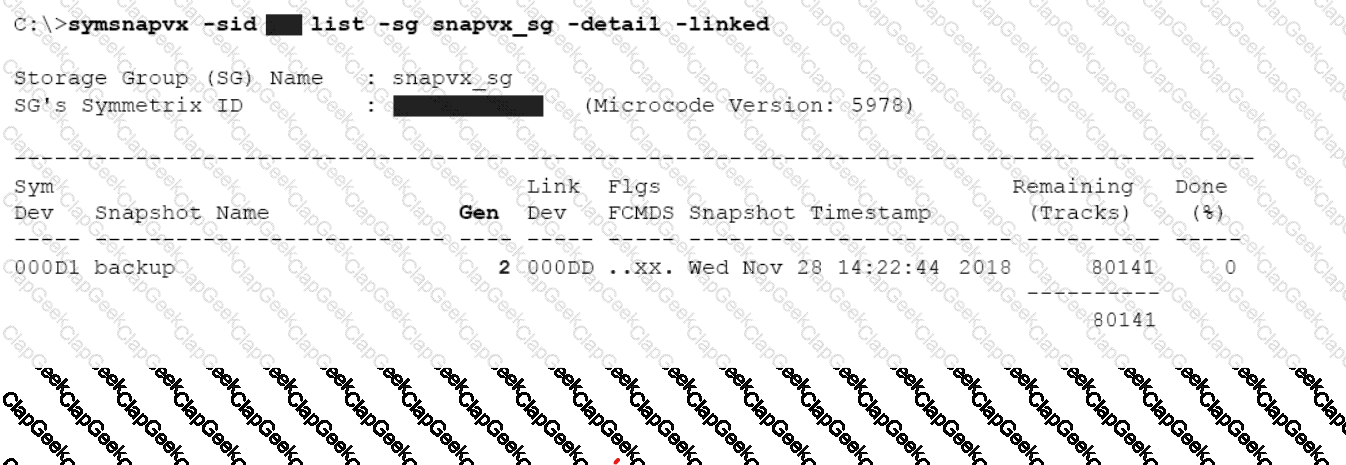

Step by Step Comprehensive Detailed Explanation:

SnapVX Linked Targets:SnapVX is a snapshot technology used in Dell PowerMax storage arrays. A linked target is a volume that provides read/write access to a specific point-in-time copy (snapshot) of a source volume.

Read/Write Access:Unlike traditional snapshots, which are typically read-only, SnapVX linked targets allow modifications. This makes them suitable for use cases like testing, development, and data analysis where changes need to be made to a copy of the data without affecting the original source.

Secure Snapshots:SnapVX offers the capability to create "secure snapshots." These snapshots are write-protected and prevent any modifications or deletion, ensuring data integrity and protection against accidental or malicious changes.

Why other options are incorrect:

B. They support a maximum of 1024 snaps per volume:This is partially correct. While a source volume can have up to 1024 snapshots, this limit includes all types of snapshots (manual, automated, and legacy), not just linked targets.

B. They cannot send data to SRDF:This is incorrect. SnapVX linked targets can participate in SRDF (Symmetrix Remote Data Facility) replication, allowing for disaster recovery and data mobility.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 TimeFinder SnapVX CLI User Guide:This guide provides detailed information about SnapVX features and commands, including how to create, link, and manage snapshots. It confirms the read/write capability of linked targets and the ability to create secure snapshots. You can find this document on the Dell Support website by searching for "Solutions Enabler TimeFinder SnapVX CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of PowerMax technologies, including SnapVX. It highlights the benefits of SnapVX linked targets for various use cases. You can find this document on the Dell Support website by searching for "PowerMax Family Essentials and Best Practices Guide."

Step by Step Comprehensive Detailed Explanation:

In SRDF (Symmetrix Remote Data Facility), a "Restore" operation is used to resynchronize the source (R1) and target (R2) devices after a situation where the target device might have been modified independently. This typically occurs after a failover scenario where the target device becomes the primary and undergoes changes.

During an SRDF Restore operation:

R2 Changes Discarded:Any changes made to the target (R2) device since the last synchronization are discarded.

R1 Changes Propagated:The current data on the source (R1) device is copied over to the target (R2), overwriting any existing data on the target.

This effectively restores the target device to a state consistent with the source device, ensuring data integrity and consistency.

Why other options are incorrect:

B. Resumes normal SRDF mirroring and host access:While a Restore operation can be part of the failback process, it's not the only step involved. Failback might involve additional actions like reversing replication direction and restoring host access.

C. Changes made to the R2 are propagated to the R1. Changes made to the R1 are discarded:This describes an "Update" operation, not a "Restore."

D. Enables access to both the R1 and R2 devices for their hosts:This describes a "Split" operation, where both devices are made accessible independently.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF commands and operations, including the symrdf restore command. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF and its functionalities, including disaster recovery scenarios and the use of the "Restore" operation.

Step by Step Comprehensive Detailed Explanation:

To register an ESXi server in Unisphere for PowerMax, you need to provide the following information:

IP Address:The IP address of the ESXi server that you want to manage. This allows Unisphere to communicate with the ESXi host.

ESXi Server Credentials:The username and password of an account with sufficient privileges to access and manage the ESXi server. This ensures that Unisphere has the necessary permissions to perform storage-related operations on the ESXi host.

Why other options are incorrect:

A. Unisphere credentials and hostname:Unisphere credentials are used to log in to Unisphere itself, not to register an ESXi server.

B. IP address and hostname:While the hostname might be helpful, the ESXi server credentials are essential for authentication and authorization.

D. ESXi server credentials and Unisphere credentials:Unisphere credentials are not required for registering an ESXi server.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax and VMware vSphere Configuration Guide:This guide provides detailed instructions on how to register and manage ESXi servers in Unisphere for PowerMax. You canfind this document on the Dell Support website by searching for "PowerMax and VMware vSphere Configuration Guide."

Dell Unisphere for PowerMax 10.0.0 Online Help:The online help for Unisphere might also provide guidance on registering ESXi servers.

Here's the correct sequence of steps along with explanations:

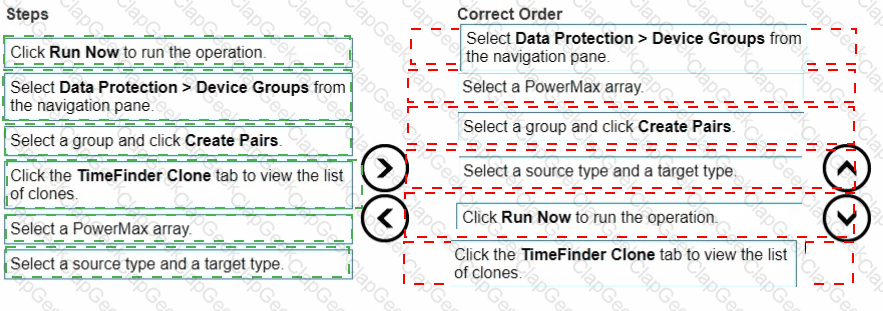

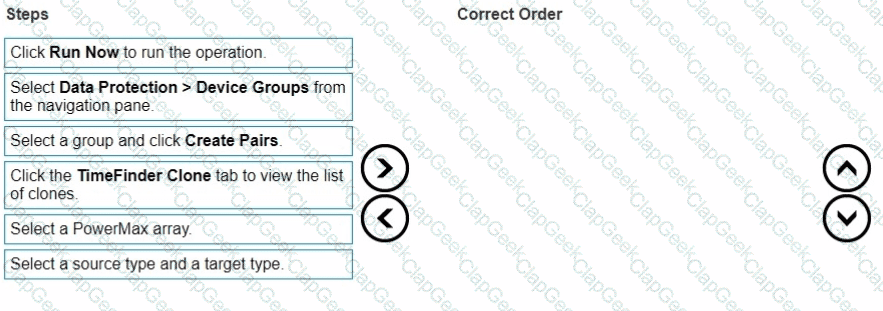

Correct Order:

Select Data Protection > Device Groups from the navigation pane.

Why:This is the starting point within Unisphere for PowerMax. You need to navigate to the section where device groups are managed and where TimeFinder operations are initiated.

Select a PowerMax array.

Why:In an environment with multiple PowerMax arrays, you must specify the array on which you want to create the clone copy sessions.

Select a group and click Create Pairs.

Why:You are selecting the specific device group that will be the source for the clone operation and choosing the "Create Pairs" action to initiate the clone session creation process. This implies you are creating a clone from an existing group of devices.

Select a source type and a target type.

Why:This step defines the characteristics of the source and target devices for the clone session. This could involve selecting from different storage groups, specifying thin or thick provisioning, or other relevant settings. Note that in a clone context, the "target type" often refers to how the clone will be linked to the source (e.g., a full copy or a linked target).

Click Run Now to run the operation.

Why:After configuring all the settings for the clone session, this action triggers the actual creation of the clone pairs based on the selected source and target types and other parameters.

Click the TimeFinder Clone tab to view the list of clones.

Why:Once the operation has been initiated, this is how you would verify that the clone sessions were created successfully and monitor their status.

Select Data Protection > Device Groups from the navigation pane.

Select a PowerMax array.

Select a group and click Create Pairs.

Select a source type and a target type.

Click Run Now to run the operation.

Click the TimeFinder Clone tab to view the list of clones.

We need to remove all resources associated with a deprecated web application server named web_host_1 in the Unisphere for PowerMax simulator.

Here's a step-by-step guide on how to accomplish this, based on typical Unisphere functionality and the context of the question:

Steps:

1. Launch the Simulator and Navigate to the Hosts Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator.

In the left-hand navigation pane, click onHosts>Hosts. This will take you to the Hosts management view.

2. Locate the Host web_host_1

In the Hosts view, you'll see a list of all configured hosts.

Find the host named web_host_1. You might need to use the search or filtering options if there are many hosts listed.

3. Identify Associated Resources

Before deleting the host, it's crucial to identify all resources associated with it. These typically include:

Masking Views:These define the LUNs that a host can access.

Storage Groups:These contain the volumes presented to the host.

Port Groups:These define the connectivity paths (ports) used by the host.

How to Find Associated Resources:

Click on the web_host_1 host entry. This should open a details view or properties page for the host.

Look for tabs or sections labeled "Masking Views," "Storage Groups," or similar.

Note down the names of any masking views and storage groups associated with web_host_1.

4. Remove the Host from Masking Views

Navigate toHosts>Masking Views.

Locate the masking views that you identified in Step 3 as being associated with web_host_1.

Open each masking view's properties.

Remove the Host:There should be an option to edit the host list within the masking view. Find web_host_1 in the list of hosts and remove it.

Save Changes:Save the changes to the masking view.

Repeatfor all masking views associated with web_host_1.

5. Delete or Modify Storage Groups

Navigate toStorage>Storage Groups.

Locate the storage groups that were associated with web_host_1.

Two Options:

If the storage group is ONLY used by web_host_1:You can delete the entire storage group. Select the storage group and click theDeletebutton (or a similar option).

If the storage group is shared with other hosts:You need to remove the volumes associated with web_host_1 from the storage group.

Open the storage group's properties.

Go to the "Volumes" tab.

Identify the volumes that were presented to web_host_1.

Select those volumes and choose the option to "Remove from Storage Group" or a similarly worded option.

Save the changes to the storage group.

6. Delete the Host

Go back toHosts>Hosts.

Select web_host_1.

Click theDeletebutton (or a similar option, like a trashcan icon).

Confirm that you want to delete the host.

7. Verify Removal (Optional)

After deleting the host and modifying the storage groups and masking views, you can verify that the resources have been properly cleaned up.

Check theStorage GroupsandMasking Viewssections again to ensure that web_host_1 is no longer listed and that the storage groups have been either deleted or modified as intended.

The Workload Planner then compares the two values to the maximum response time associated with its given service level. If both calculated values fall within (under) the service level defined response time band, the compliance state is STABLEhttps://www.dell.com/support/kbdoc/en-us/000022528/how-does-the-workload-planner-function
