D-UN-DY-23 Dell Unity Deploy 2023 Exam Questions and Answers

If the time difference between the current system (UTC) time and the NTP server time is too large (approximately 17 minutes), the user cannot configure an NTP server during initial configuration. The user will need to adjust the time while in “Set time manually” mode before changing to “Enable NTP synchronization”. This is to avoid potential issues with data replication, snapshots, and audit logs that rely on accurate time stamps. References: Dell EMC Unity: How to change System Time from ‘Set time manually’ option to NTP2, page 1.

To apply the management IP from the vSphere UnityVSA console, the system administrator must use the svc_initial_config command. This command allows the user to configure the initial network settings for the UnityVSA, such as the management IP address, subnet mask, gateway, and DNS servers. The svc_ipmi command is used to configure the IPMI settings for the UnityVSA, such as the IPMI IP address, username, and password. The svc_change_hw_config command is used to change the hardware configuration of the UnityVSA, such as the number of CPU cores, memory size, and disk size. The svc_inject command is used to inject faults into the UnityVSA for testing purposes.

References: [Dell EMC UnityVSA Installation Guide], [Dell EMC UnityVSA Command Line Interface Reference Guide]

The Dell UnityVSA is a software-defined storage solution that runs the Dell Unity operating environment on a VMware ESXi server. The Dell UnityVSA provides the same features and functions as the Dell Unity hardware platform, such as block and file storage, snapshots, thin clones, data reduction, replication, and encryption. Some of the features of the Dell UnityVSA are:

• iSCSI Connectivity: The Dell UnityVSA supports iSCSI connectivity for block storage access. The iSCSI protocol enables hosts to communicate with the DellUnityVSA over an IP network and access LUNs as SCSI devices. The Dell UnityVSA can support up to 64 iSCSI interfaces and up to 256 iSCSI sessions per interface.
• Asynchronous Replication: The Dell UnityVSA supports asynchronous replication for block and file storage. Asynchronous replication is a feature that copies data from a source storage resource to a destination storage resource over a network at scheduled intervals. Asynchronous replication can be used for disaster recovery, data migration, or backup purposes. The Dell UnityVSA can support up to 256 replication sessions per system.

References:

• Dell EMC Unity: Introduction to the Platform
• Dell EMC Unity: Deploying VMware vSphere with Dell EMC UnityVSA
• Dell EMC Unity: Configuring Hosts to Access Block Storage
• Dell EMC Unity: Replication Technologies

To meet the requirements, the replication connection mode must be set to Both, which allows both synchronous and asynchronous replication sessions to be configured on the same connection. This way, block resources can use synchronous replication, which ensures zero data loss, and file resources can use asynchronous replication, which allows some data difference on the destination. Setting Unisphere resource filtering to All is not necessary, as it only affects the display of resources in the Unisphere GUI. Setting an RPO of 0 on the synchronous replication sessions is redundant, as synchronous replication always has an RPO of 0. Configuring the replication interfaces on the 4-port mezzanine card is not relevant, as it only affects the performance and availability of the replication network.

References: [Dell EMC Unity: Replication Technologies], [Dell EMC Unity: Unisphere Overview]

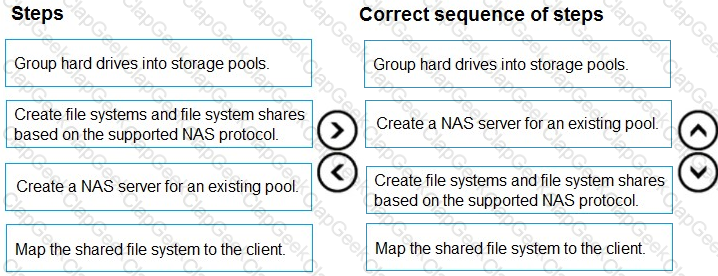

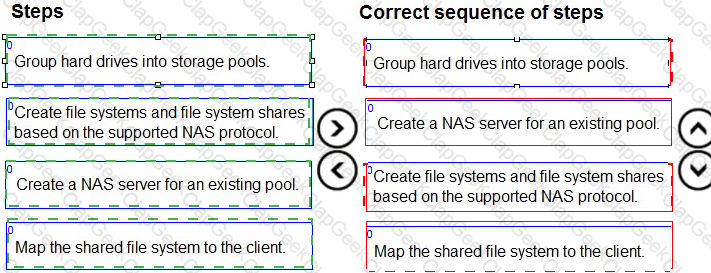

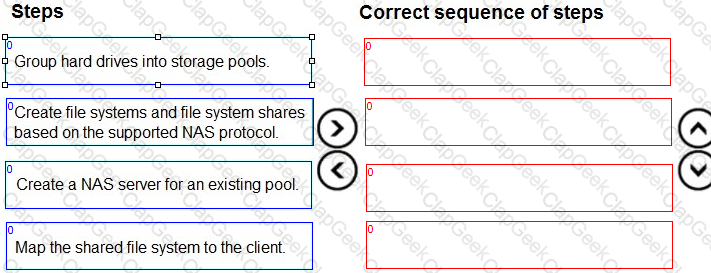

The correct sequence of steps to provision storage for SMB NAS clients is:

• Group hard drives into storage pools. This allows you to create a pool of storage resources that can be allocated to different types of storage objects, such as NAS servers, file systems, and LUNs.You can create different pools based on the performance and capacity requirements of your applications1
• Create a NAS server for an existing pool. A NAS server is a logical entity that provides file-level access to clients using SMB, NFS, or FTP/SFTP protocols. You need to create a NAS server before you can create file systems and shares.You can specify the pool, network settings, domain membership, and other properties for the NAS server2
• Create file systems and file system shares based on the supported NAS protocol. A file system is a logical container that stores files and folders on a NAS server. A file system share is a logical representation of a file system that can be accessed by clients using a specific protocol. For SMB NAS clients, you need to create SMB file system shares that support the SMB protocol.You can configure the share name, permissions, access policies, and other settings for the SMB share3
• Map the shared file system to the client. This allows the client to access the files and folders on the SMB share using a drive letter or a UNC path.You can use the Windows Explorer or the net use command to map the shared file system to the client4

The purpose of a Proxy NAS server is to access snapshot replicas on the destination side of a replicated file resource. A Proxy NAS server is a temporary NAS server that is created on the destination system to mount a snapshot replica of a replicated file system. This allows the user to access the data on the snapshot replica for testing, recovery, or other purposes. A Proxy NAS server does not increase performance or security of production NAS servers, nor does it access snapshots for testing production NAS servers.

References: [Dell EMC Unity: Replication Technologies], [Dell EMC Unity: File System Configuration]

On a Dell Unity XT file system asynchronous replication session, four system Snapshots are required to support replication. Two system Snapshots are created on the source file system, and two system Snapshots are created on the destination file system. The source system Snapshots are used to track the changes that need to be replicated, and the destination system Snapshots are used to apply the changes and maintain a consistent point-in-time copy of the source data. The system Snapshots are automatically created and managed by the replication engine and are not visible to the user.

References: [Dell EMC Unity: Replication Technologies], [Dell EMC Unity: File System Configuration]
