D-VPX-DY-A-24 Dell VPLEX Deploy Achievement Questions and Answers

The VPLEX Cluster Witness communicates with each cluster using a VPN Tunnel over IP to the management servers. This method is used to provide the health check heartbeats required for monitoring the status of the clusters.

VPN Tunnel Creation: Initially, a VPN tunnel is established between the VPLEX Cluster Witness and each VPLEX cluster’s management server. This secure tunnel ensures that the communication for health checks is protected1.

Health Check Heartbeats: Through the VPN tunnel, the VPLEX Cluster Witness sends periodic health check heartbeats to each management server. These heartbeats are used to monitor the operational status of the clusters1.

Monitoring Cluster Health: The health check heartbeats are essential for the VPLEX Cluster Witness to determine the health of each cluster. If a heartbeat is missed, it may indicate a potential issue with the cluster1.

Failover Decisions: Based on the health check heartbeats, the VPLEX Cluster Witness can make informed decisions about failover actions if one of the clusters becomes unresponsive or encounters a failure1.

Configuration and Management: The configuration and management of the VPN tunnels and the health check mechanism are typically done through the VPLEX management console or CLI, following the best practices outlined in the Dell VPLEX Deploy Achievement documents1.

In summary, the VPLEX Cluster Witness uses a VPN Tunnel over IP to communicate with each cluster’s management server, providing the necessary health check heartbeats for continuous monitoring and ensuring high availability of the VPLEX system.

In the context of performance monitoring, particularly for systems like Dell VPLEX, histograms are used to track latencies and display statistical data such as median, mode, percentiles, minimums, and maximums. The term “buckets” is often used to describe the segments within a histogram that categorize the latency data into ranges. Each bucket represents a range of latencies, and the number of events (or I/O operations) that fall into each latency range is counted and displayed.

Histograms in Monitoring: Histograms provide a visual representation of how data is distributed across different ranges of values, which is particularly useful for understanding the performance characteristics of a system like VPLEX.

Buckets Explained: Buckets within a histogram divide the entire range of collected data into discrete intervals. For latency tracking, these buckets might represent latency ranges such as 0-1 ms, 1-2 ms, etc.

Latency Tracking: By collecting latency data in buckets, administrators can quickly identify the distribution of latencies over time, pinpointing whether most I/O operations are fast, slow, or somewhere in between.

Minimums and Maximums: Histograms make it easy to see the minimum and maximum latencies experienced by the system, as well as the frequency of latencies within each bucket range.

Performance Analysis: This method of collecting and analyzing performance statistics is crucial for performance tuning and capacity planning, as it helps administrators understand the behavior of their storage systems under different workloads.

In summary, “buckets” are the correct answer when referring to the segments within a histogram that are used to collect and categorize latency data for performance monitoring purposes in systems like Dell VPLEX.

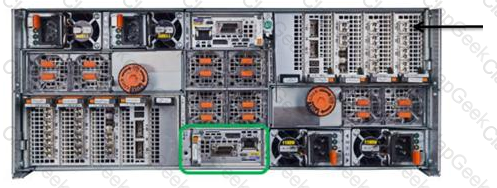

To identify the port indicated by the black arrow, we can refer to the standard VPLEX director port WWN breakdown provided by Dell:

Director Identification: Determine whether the director is A or B. Director B’s WWN is always +1 of Director A’s number1.

Port Numbering: VPLEX director port WWNs are broken down as follows: 0x5001442 [num][seed][IOmodule][port number], where the [port number] is one of {0,1,2,3}1.

Front-End Ports: For VS2 hardware, the front-end ports are typically numbered 0, and the back-end ports are numbered 11.

Exhibit Analysis: If the exhibit shows the standard layout of a VPLEX system and the black arrow points to the first port on Director B, it would be the front-end port 01.

Verification: To confirm the identification, one would typically refer to the official Dell EMC VPLEX documentation for hardware installation and setup, which would provide clear labeling of each port1.

In summary, based on the standard VPLEX port numbering and layout, the port indicated by the black arrow in the exhibit is likely Director B - front-end port 0, assuming that the exhibit follows the standard orientation and labeling conventions.

The storage-volume summary command in VPLEX is used to provide a summary of the storage volumes, including their operational status and health state. This command can be particularly useful when an administrator needs to troubleshoot performance issues with a virtual volume presented through a VPLEX Local cluster.

Command Usage: The storage-volume summary command is executed in the VPLEX CLI (Command Line Interface). It provides a high-level overview of the storage volumes, including their I/O status, operational status, and health state1.

Performance Troubleshooting: When performance issues are reported, it’s important to check the underlying storage volumes for any signs of degradation or operational problems that could be impacting the virtual volume’s performance1.

Health State Information: The command’s output includes the health state of the storage volumes, which can indicate if there are any degraded volumes or other issues that need to be addressed1.

Operational Status: The operational status provided by the command helps determine if the storage volumes are functioning correctly or if there are any issues that could be causing the reported performance problems1.

Further Investigation: If the storage-volume summary command reveals any issues with the underlying storage volumes, further investigation and corrective actions may be necessary to resolve the performance issues1.

In summary, the storage-volume summary command is the appropriate command to provide the underlying storage volume information when troubleshooting performance issues with a virtual volume in a VPLEX Local cluster.

During a VPLEX installation, the front-end ports are enabled after the metadata volumes and backup have been created. This sequence ensures that the system’s metadata, which is crucial for the operation of VPLEX, is secured before the storage is exposed to the hosts.

Metadata Volumes Creation: The first step in the VPLEX installation process involves creating metadata volumes. These volumes store configuration and operational data necessary for VPLEX to manage the virtualized storage environment1.

Metadata Backup: After the metadata volumes are created, it is essential to back up this data. The backup serves as a safeguard against data loss and is a critical step before enabling the front-end ports1.

Enabling Front-End Ports: Once the metadata is secured, the front-end ports can be enabled. These ports are used for host connectivity, allowing hosts to access the virtual volumes presented by VPLEX1.

Exposing Storage to Hosts: With the front-end ports enabled, the storage can then be exposed to the hosts. This step involves presenting the virtual volumes to the hosts through the front-end ports1.

Final Configuration: The final configuration steps may include zoning, LUN masking, and setting up host access to the VPLEX virtual volumes. These steps are completed after the front-end ports are enabled and the storage is exposed1.

In summary, the front-end ports are enabled during a VPLEX installation after the metadata volumes and backup have been created, which is reflected in option D. This ensures that the system metadata is protected and available before the storage is made accessible to the hosts.

"The MetroPoint topology can maintain up to five copies of data, including one remote copy and one local copy at each VPLEX site. It provides protection for each of the VPLEX Metro sites with continuous local replication via RecoverPoint"..

After a WAN outage, to verify management connectivity between MMCS-A on Cluster-1 and MMCS-A on Cluster-2, the storage administrator should use the vpn status command. This command checks the status of the VPN tunnels that facilitate secure communication between the management servers and the Cluster Witness Server.

Command Execution: The administrator should execute the vpn status command in the VPLEX CLI. This command will provide information about the state of the VPN tunnels1.

Interpreting Results: The output from the vpn status command will indicate whether the IPsec VPN tunnels are up and if the remote management servers are reachable. It will show the status of connectivity with both the management servers and the Cluster Witness Server1.

VPN Tunnel Status: The command will show the status of the VPN tunnel between the management servers, which is crucial for the clusters to communicate and operate as a metro system1.

Cluster Witness Server Connectivity: Additionally, the command will verify the VPN status between the management server and the Cluster Witness Server, ensuring that the witness can monitor the health and status of the clusters1.

Troubleshooting: If the vpn status command indicates that the remote management IP is not reachable, further troubleshooting will be required to establish connectivity. This may involve checking network configurations, firewall settings, and ensuring that the VPN services are running properly1.

In summary, the vpn status command is used to determine if the remote management IP is reachable, providing a quick and effective way to verify management connectivity between VPLEX clusters after a WAN outage.

When VPLEX Metro is added to an existing HP OpenView network monitoring environment and only the remote VPLEX cluster is reporting performance statistics, the likely cause is a misconfiguration of the SNMP agent on the local VPLEX cluster management server.

SNMP Agent Configuration: The SNMP (Simple Network Management Protocol) agent on the VPLEX management server must be correctly configured to communicate with the HP OpenView monitoring system. If the local cluster’s SNMP agent is misconfigured, it may not report performance statistics correctly1.

Troubleshooting Steps: To resolve this issue, the following steps should be taken:

Verify the SNMP configuration on the local VPLEX cluster management server.

Check for any discrepancies in the SNMP version, community strings, and allowed hosts between the local and remote clusters.

Ensure that the SNMP service is running and properly configured to send traps and fetches to the HP OpenView system1.

Firewall and Network Checks: Although TCP Port 443 is important for secure communications, it is not typically used for SNMP, which usually operates over UDP ports 161 and 162. Therefore, a blockage of TCP Port 443 would not directly affect SNMP reporting1.

HP OpenView Compatibility: While HP OpenView running SNMP version 2C could potentially cause issues with performance statistic reporting, if the remote cluster is reporting correctly, it suggests that the version of SNMP is not the issue in this case1.

VPLEX Witness Configuration: The VPLEX Witness is not directly involved in the reporting of performance statistics to HP OpenView, so a misconfiguration of the VPLEX Witness’s SNMP agent would not cause this specific issue1.

In summary, the cause of the issue where only the remote VPLEX cluster is reporting performance statistics to HP OpenView is likely due to a misconfigured SNMP agent on the local VPLEX cluster management server.

One of the key benefits of VPLEX continuous availability is the elimination of complex failover procedures. VPLEX provides a unique implementation of distributed cache coherency, which allows the same data to be read/write accessible across two storage systems at the same time. This ensures uptime for business-critical applications and enables seamless data mobility across host arrays without host disruption1.

Continuous Application Availability: VPLEX maximizes the returns on investments in infrastructure by providing continuous availability to workloads, ensuring that applications remain up and running even in the face of disasters1.

Operational Agility: VPLEX offers operational agility to match the infrastructure to changing business needs, allowing for rapid response to business and technology changes while maximizing asset utilization across active-active data centers1.

Seamless Workload Mobility: The seamless workload mobility feature of VPLEX creates a flexible storage architecture that makes data and workload mobility effortless, contributing to the overall operational efficiency2.

Non-Disruptive Technology Refresh: VPLEX supports non-disruptive technology refresh, enabling data center modernization efforts through online technology refresh without impacting business operations2.

Active-Active Data Centers: VPLEX Metro allows applications to simultaneously read/write on both sites, increasing resource utilization and providing a true Recovery Time Objective (RTO) and Recovery Point Objective (RPO) of zero2.

In summary, the elimination of complex failover is a key benefit of VPLEX continuous availability, providing businesses with the assurance that their critical applications will continue to operate smoothly even during disruptions.

To verify that the VPLEX Metro WAN COM link is restored, the storage administrator should run the connectivity validate-local-com command. This command checks the connectivity status of the local communication links within the VPLEX cluster.

Command Execution: The administrator should access the VPLEX CLI and execute the connectivity validate-local-com command. This will initiate a check of the local COM ports’ connectivity status1.

Interpreting Results: After running the command, the administrator should review the output to verify that all expected connectivity is present. The output will indicate whether each local COM port is communicating as expected1.

WAN COM Link: The WAN COM link is responsible for the communication between VPLEX clusters over a wide area network. Ensuring that the local COM links are operational is a prerequisite for the WAN COM link to function properly1.

Post-Outage Verification: Following a WAN outage, it’s crucial to confirm that the communication links are fully operational to maintain the high availability and data mobility features of VPLEX Metro1.

Best Practices: It is recommended to follow the Dell EMC VPLEX best practices for post-outage recovery, which include running the connectivity validate-local-com command to ensure that the system is ready to resume normal operations1.

In summary, the connectivity validate-local-com command is the correct procedure to verify that the VPLEX Metro WAN COM link is restored, as it checks and confirms the presence of all expected local communication link connectivity within the VPLEX cluster.

In a VPLEX Metro environment without a Cluster Witness, consistency groups (CGs) are used to manage distributed virtual volumes with detach rules that determine the behavior during a cluster failure.

CG1 with Cluster-1 as Winner: For App1, the distributed virtual volumes are added to CG1, which has a detach rule set with cluster-1 as the winner. This means that if cluster-2 fails, I/O for CG1 will continue to be serviced at cluster-1 after it automatically attaches the volumes that were distributed across both clusters1.

CG2 with Cluster-2 as Winner: For App2, the distributed virtual volumes are added to CG2, which has a detach rule set with cluster-2 as the winner. In the event of a cluster-2 failure, I/O for CG2 will be serviced after the volumes are detached from cluster-2, allowing cluster-1 to take over and service the I/O1.

Extended Cluster-2 Failure: If cluster-2 fails for an extended period, the VPLEX Metro will follow the detach rules set for each consistency group. CG1 will have its I/O serviced at cluster-1, and CG2 will also have its I/O serviced at cluster-1 after detaching from the failed cluster-21.

No Cluster Witness: Without a Cluster Witness, the VPLEX Metro relies on the detach rules defined in the consistency groups to determine how to handle I/O in the event of a cluster failure1.

Operational Continuity: The goal is to maintain operational continuity for both applications. By servicing I/O for both CG1 and CG2 at cluster-1, VPLEX ensures that both applications remain operational despite the failure of cluster-21.

In summary, if cluster-2 fails for an extended period in a VPLEX Metro setup without a Cluster Witness, I/O for CG1 will be serviced at cluster-1, and I/O for CG2 will also be serviced at cluster-1 after detaching from cluster-2, as per the detach rules set for each consistency group.

For a company with a VPLEX Metro installation that wants to perform data mobility between clusters, the feature they should use is device mobility. This feature allows for the seamless movement of data across storage arrays without host disruption, ensuring uptime for business-critical applications1.

Device Mobility: Device mobility is the process of moving a virtualized storage device from one storage array to another within the VPLEX Metro environment. This is done without affecting the hosts’ access to the data1.

Seamless Data Movement: The unique implementation of distributed cache coherency in VPLEX allows the same data to be read/write accessible across two storage systems simultaneously, facilitating seamless data mobility1.

Non-Disruptive: One of the key advantages of using device mobility in VPLEX Metro is that it is non-disruptive. Hosts can continue to operate without any interruption while the data is being moved between clusters1.

Use Cases: Device mobility is particularly useful in scenarios such as tech refreshes, cloud mobility, consolidation, relocation, and more, where data needs to be moved without affecting the ongoing operations1.

Procedure: To initiate device mobility, the administrator would use the VPLEX CLI to execute commands that orchestrate the movement of the virtualized storage devices between the clusters1.

In summary, device mobility is the recommended feature for a company with VPLEX Metro to perform data mobility between clusters, providing a robust and efficient way to move data without disrupting host access.

To ensure that a consistency group will continue synchronization without manual intervention once the link is restored after a link outage, the configuration option that must be set is auto-resume = true.

Consistency Group Configuration: A consistency group in Dell VPLEX is a collection of virtual volumes that are managed together to maintain write-order fidelity. This is crucial for applications that require all writes across multiple volumes to be consistent with each other1.

Link Outage Handling: In the event of a link outage, it is important for the consistency group to be able to automatically resume synchronization once the link is restored. This minimizes the manual intervention required and ensures data integrity is maintained1.

Auto-resume Option: The auto-resume = true setting is used to configure the consistency group to automatically resume synchronization. This setting is part of the consistency group’s attributes and can be configured via the VPLEX CLI or Unisphere for VPLEX1.

Implementation: To set this option, the administrator would use the VPLEX CLI to navigate to the consistency group settings and modify the auto-resume attribute to true. This ensures that the consistency group will automatically attempt to resume synchronization after a link outage is resolved1.

Best Practices: It is recommended to enable auto-resume for all consistency groups that require high availability and automatic recovery from link outages. This setting is part of the best practices for VPLEX consistency groups as outlined in the Dell VPLEX Deploy Achievement documents1.

In summary, the auto-resume = true configuration option is essential for ensuring that a VPLEX consistency group will continue synchronization without manual intervention after a link outage, thereby maintaining the high availability and data protection standards set by Dell VPLEX Deploy Achievement guidelines.
