Understanding Execution Throttle: The Execution Throttle setting controls the maximum number of concurrent I/O operations that can be sent from a host to a storage array. This setting is crucial for optimizing performance and preventing overloading of the storage array.

QLogic Fibre Channel HBAs: QLogic Host Bus Adapters (HBAs) are used for connecting servers to Fibre Channel storage networks. The recommended settings for these HBAs can significantly impact the performance and reliability of the storage network.

Best Practices for XtremIO and VMware:

According to best practices for connecting VMware clusters to XtremIO arrays, especially when using QLogic Fibre Channel HBAs, the Execution Throttle value is set to optimize performance.

The recommended value for the Execution Throttle setting for QLogic HBAs in a VMware environment connected to an XtremIO array is 65535. This value helps ensure that the host can handle a high number of I/O operations efficiently without overwhelming the storage array.

References:

Dell XtremIO Best Practices Guide for VMware

QLogic HBA Configuration and Performance Tuning Guides

Dell XtremIO Deployment Services

VMware and XtremIO Integration Documentation.

To update the Install base record for Dell XtremIO in addition to the PSNT, the following data needs to be provided:

Microcode Version: This refers to the firmware version running on your XtremIO system. It’s essential to have the latest microcode version reported for support and maintenance purposes.

Installation Configuration: This includes details about the XtremIO system’s setup, such as cluster configuration, number of X-Bricks, and any custom settings applied during the installation.

The process of updating the Install base record typically involves:

Gathering Information: Collect the microcode version from the XtremIO Management Server (XMS) interface and document the installation configuration details.

Submitting the Data: Provide the collected information to Dell Support or through the appropriate channel as directed in the Dell XtremIO Deploy Achievement documentation.

Verification: Dell Support may verify the provided information against their records and the actual system configuration to ensure accuracy.

Record Update: Once verified, Dell Support will update the Install base record with the new information.

For detailed instructions and the official procedure, refer to the Dell XtremIO Deploy Achievement document1. It’s crucial to follow the official guidelines to ensure that the Install base record is accurately updated, which can be critical for effective support and maintenance of the XtremIO system.

Leaving one rack unit open at the bottom of a rack containing an XtremIO X2 is a practice recommended for allowing more efficient cooling. This space acts as a buffer zone, helping to facilitate better airflow and prevent the recirculation of hot air within the rack. It is a part of thermal management strategies in data centers to optimize the cooling systems, which are crucial for maintaining the performance and longevity of the equipment1.

The Dell Best Practices Guide for Rack Enclosures emphasizes the importance of proper cooling and airflow management within rack enclosures. It suggests that efficient cooling can help reduce inefficiencies at the rack level and is essential for maintaining the necessary thermal environment for rack-mounted equipment1. While the guide does not explicitly mention leaving a rack unit open at the bottom, the principle of optimizing airflow for cooling purposes is consistent with the practice.

Understanding X-Bricks: X-Bricks are the fundamental building blocks of an XtremIO storage array. Each X-Brick consists of a pair of storage controllers and a set of SSDs.

XtremIO X1 Cluster Configuration:

An XtremIO X1 cluster can scale by adding more X-Bricks.

The scalability and configuration limits depend on the hardware and software capabilities of the XtremIO X1 system.

Maximum Number of X-Bricks:

The XtremIO X1 cluster can be configured with up to 4 X-Bricks.

This means the maximum configuration for an XtremIO X1 cluster would include 4 X-Bricks.

References:

Dell XtremIO X1 System Overview and Specifications

Dell XtremIO Deployment Services

Official XtremIO Documentation for hardware and cluster configuration limits.

The “Small IO Alerts” feature in XtremIO is designed to notify administrators when a significant number of small I/O operations are detected, which could potentially impact the performance of the storage array. The threshold for these alerts is typically set to a default value that considers the architecture and performance characteristics of the system. In the case of XtremIO, the alert is triggered when I/O operations are smaller than 4 KB1. This threshold is set based on the understanding that smaller I/O sizes can lead to inefficient utilization of the storage array’s resources and can be an indicator of suboptimal application behavior or configuration.

The iostat command is used for monitoring the performance of system input/output devices on Linux/UNIX systems. It provides statistics about disk input/output operations and CPU utilization, which are essential for assessing the performance of these devices. The iostat command generates reports that can be used to change system configuration to better balance the input/output load between physical disks1. This command is particularly useful for system administrators who need to monitor and optimize disk performance and throughput2.

For an XtremIO X2 two X-Brick system installation, only two IP addresses are required because the entire system is managed through the first X-Brick. This is in line with the design of the XtremIO X2 architecture, which allows for a single management point for multiple X-Bricks. The XMS (XtremIO Management Server) manages multiple XtremIO arrays and requires an IP address for each X-Brick in the cluster1. In a two X-Brick system, the first X-Brick acts as the primary management point, and the second X-Brick is managed through it, thus only necessitating two IP addresses for management purposes2.

The RESTful API method used to retrieve an existing configuration from an XtremIO system is the HTTP GET methD. This is a standard method used in RESTful APIs for retrieving resources. In the context of XtremIO, the GET method would be used to call endpoints that return information about the system’s configuration. For example, a GET request to /api/json/v2/types/clusters would retrieve information about the clusters1. The Official Dell XtremIO Deploy Achievement document will contain specific details on the API calls and should be referred to for the most accurate instructions.

To create an iSCSI portal using the XtremIO X2 XMS WebUI, an administrator would start the configuration process in the “Configuration” section. Here’s how the process typically unfolds:

Log into XMS WebUI: The administrator logs into the XtremIO Management Server (XMS) Web User Interface (WebUI).

Navigate to Configuration: Within the WebUI, the administrator navigates to the “Configuration” tab. This section contains settings and options for managing and configuring the storage array.

Access iSCSI Options: Under the “Configuration” tab, the administrator locates the options for iSCSI settings. This may involve expanding menus or selecting specific sub-options related to iSCSI.

Create iSCSI Portal: Once in the iSCSI settings area, the administrator can create a new iSCSI portal. This involves specifying details such as IP addresses, port numbers, and access controls.

Save and Apply: After entering all necessary information, the administrator saves the configuration and applies it to make the iSCSI portal active.

Verify Connectivity: Finally, the administrator verifies that the iSCSI portal is functioning correctly by connecting to it from an iSCSI initiator.

For detailed instructions and best practices, always refer to the official Dell XtremIO Deploy Achievement document1. This document provides comprehensive guidance on all aspects of setting up and managing XtremIO X2 arrays, including the creation of iSCSI portals.

Cable Management: Proper cable management is crucial for maintaining an organized and efficient data center environment.

Rack Units: For an XtremIO X2-R four X-Brick cluster, it is recommended to allocate 6U for the cable management ducts.

Space Allocation: This ensures that there is enough space to manage and organize cables without causing congestion or interfering with airflow.

References:

Dell XtremIO Hardware Installation Guide

Dell XtremIO Rack and Cable Management Documentation

Identify the Components: According to the Dell XtremIO Deploy Achievement document, the XtremIO X1 system includes a Storage Controller (SC) and a Battery Backup Unit (BBU)1.

Understand the Configuration: For a single X-Brick cluster, the left power supply in Storage Controller 1 (X1-SC1-PSU-L) should be connected to the corresponding BBU to ensure proper power redundancy and failover capabilities1.

Determine the Correct Connection: The document specifies that each Storage Controller’s left power supply connects to Output1 of the BBU within the same X-Brick cluster1.

Verify the Answer: Based on the information provided, the correct power cable connection for the left power supply in Storage Controller 1 to the Battery Backup Unit in an XtremIO X1 single X-Brick cluster is to BBU1-Output1, which corresponds to option OB1.

Power Requirements for XtremIO X1 Cluster: Each X-Brick in an XtremIO X1 cluster has its own power distribution units (PDUs) to ensure redundancy and reliability.

Calculation for Four X-Brick Cluster:

Each X-Brick has 2 storage controllers, each with its own PDU.

Therefore, 1 X-Brick requires 2 PDUs.

For a four X-Brick configuration: 4 X-Bricks * 2 PDUs per X-Brick = 8 PDUs.

Ensuring Adequate Power Supply: Connecting 8 PDUs to an electrical source ensures that all storage controllers in the cluster are powered reliably.

References:

Dell XtremIO X1 Installation Guide

XtremIO User Guide

Dell XtremIO Deployment Services

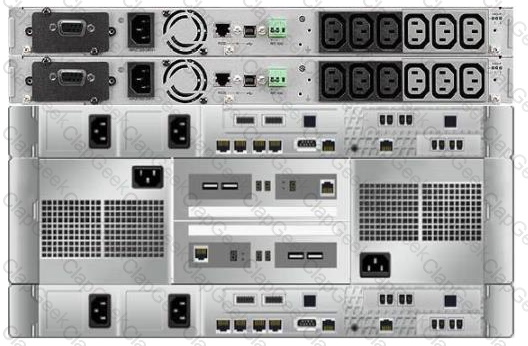

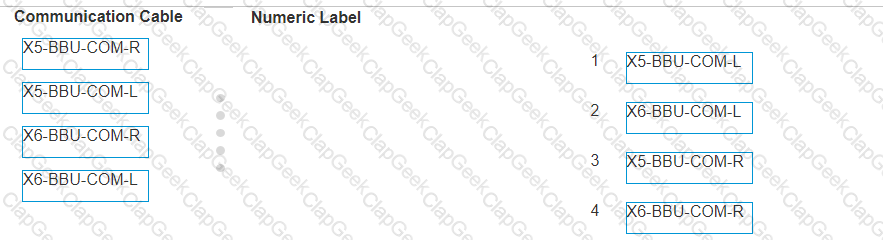

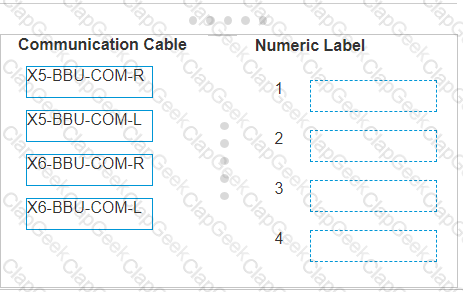

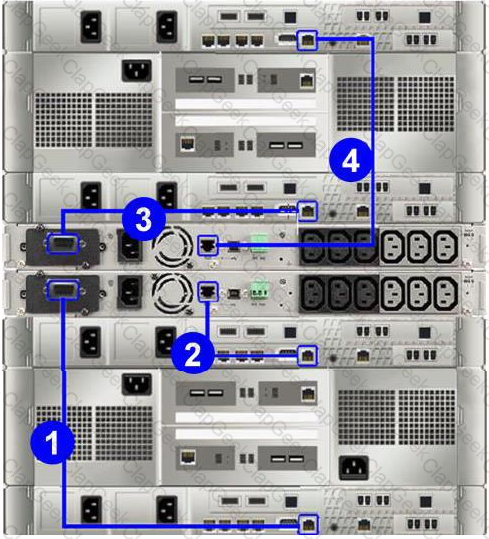

The image provided shows the back of an XtremIO X1 storage system with numeric labels next to the communication cable ports. To ensure the correct communication cables are connected:

Locate the ports on the back of the X-Bricks corresponding to the numeric labels.

Match each communication cable to its respective port based on the numeric label:

The right-side Battery Backup Unit (BBU) communication cable for X-Brick 5 (X5-BBU-COM-R) connects to port labeled 3.

The left-side BBU communication cable for X-Brick 5 (X5-BBU-COM-L) connects to port labeled 1.

The right-side BBU communication cable for X-Brick 6 (X6-BBU-COM-R) connects to port labeled 4.

The left-side BBU communication cable for X-Brick 6 (X6-BBU-COM-L) connects to port labeled 2.

After connecting the cables as per the matching, verify the connections according to the Official Dell XtremIO Deploy Achievement document to ensure they are correct and secure1.

For the most accurate and up-to-date information, please refer to the latest Official Dell XtremIO Deploy Achievement documents or consult with Dell support.

Power Connectors for XtremIO X2 Dual X-Brick Configuration: Each X-Brick typically requires multiple power connections for redundancy and reliability. A dual X-Brick configuration without a physical XMS would need to account for these requirements.

Calculation:

Each X-Brick has 2 storage controllers, each requiring 2 power connections, totaling 4 power connections per X-Brick.

For a dual X-Brick configuration: 4 power connections per X-Brick * 2 X-Bricks = 8 power connections.

Each DAE (Disk Array Enclosure) typically requires 2 power connections. In a dual X-Brick setup, there are 4 DAEs, totaling 8 power connections.

Total power connections: 8 (for X-Bricks) + 8 (for DAEs) = 16 power connections.

References:

Dell XtremIO X2 Installation Guide

XtremIO User Guide

Dell XtremIO Deployment Services

The Dell XtremIO Deploy Achievement documents specify different numbers for the maximum volumes in various contexts. However, for the XtremIO Consistency Group, the supported and QA certified number of volumes is 512. This is based on the authoritative information provided in the official release notes and support documents from Dell. It’s important to note that while there may be higher numbers mentioned in some technical documents or API responses, such as 60000 or 32000, these are either not recommended or pertain to different aspects of the XtremIO system, not specifically to the Consistency Group1.
