D-XTR-MN-A-24 Dell XtremIO Maintenance Achievement Questions and Answers

In preparation for a dual-to-quad online cluster expansion, the active cluster cabling should be validated using the Easy-Install menu. This menu provides a guided and automated way to ensure that all cabling is correctly connected and verified, minimizing the risk of errors and ensuring a smooth expansion process.

The XtremIO X2 storage system can be expanded for capacity (Scale-Up) or both capacity and performance (Scale-Out). The system begins with a single building block, called an X-Brick, with a minimum of 18 SSDs.When additional capacity is required, the system scales up, with up to 72 SSDs for a single X-Brick1. Therefore, to upgrade a single X-Brick XtremIO X2 cluster that already contains 36 SSDs, the minimum number of SSDs required would be 18, which is the base configuration for an X-Brick.

=========================

The XtremIO Storage Array Site Preparation Guide is the document that provides detailed information about the environmental requirements, including temperature and humidity, for XtremIO storage systems.This guide is essential for ensuring that the site where the XtremIO system will be installed meets the necessary conditions for optimal operation and longevity of the equipment1.

The guide typically includes:

The acceptable temperature range for both operating and non-operating conditions.

The recommended humidity levels to prevent condensation and other moisture-related issues.

Guidelines for airflow and cooling to maintain the specified temperature and humidity levels.

It is important to adhere to these requirements to ensure the reliable performance of the XtremIO storage array and to avoid any potential environmental-related issues1.

=========================

The field replaceable units (FRUs) on an XtremIO X1 Storage Controller include the entire component and the Power Supply Unit (PSU).This information is verified as per the Official Dell XtremIO Maintenance Achievement document, which outlines the FRU replacement procedures for XtremIO products1.

In preparation for a single-to-dual online cluster expansion, the power cables that are pre-staged by being connected to Power Distribution Unit B (PDU-B) only are for the right-side Power Supply Units (PSUs) of the Storage Controllers (SCs). Specifically, these would be the power cables for X2-SC1-PSU-R and X2-SC2-PSU-R.This configuration ensures that there is a balanced power distribution across the PDUs and that the new cluster components will have power connectivity once they are physically installed1.

The process typically involves:

Identifying the correct power cables for the SCs’ PSUs.

Connecting these cables to the designated ports on PDU-B.

Ensuring that the cables are properly managed and labeled for easy identification during the expansion process.

This procedure is part of the standard practices for expanding an XtremIO cluster, as detailed in the Official Dell XtremIO Maintenance Achievement document1.

When deploying a virtual XtremIO Management Server (XMS), it is recommended to allocate a virtual hard drive space of200 GB.This recommendation is based on the requirements for the operating system, the XMS application, and additional space for updates, logs, and other system files that may be generated during operation1.

The deployment process would typically involve:

Preparing a virtual environment that meets the minimum hardware specifications.

Allocating the recommended virtual hard drive space of 200 GB to ensure adequate room for the XMS application and associated data.

Proceeding with the installation of the XMS application on the prepared virtual machine.

It is important to follow the official Dell XtremIO documentation to ensure that the virtual environment is correctly configured to support the XMS application2.

In an XtremIO X1 cluster, the system is designed to tolerate the failure of one DAE Controller SAS port without any impact on the service or data integrity. This is because the architecture of the XtremIO X1 includes redundancy and failover mechanisms that ensure continuous operation even when individual components fail.The failure of a single SAS port would trigger these mechanisms, allowing the system to maintain normal operations and prevent data loss, service degradation, or loss of service1.

When comparing XtremIO X1 to XtremIO X2, the amount of memory installed in a Storage Controller with a DAE attached with 400 GB SSDs differs. For the X1, it is 256 GB, while for the X2, it is 512 GB. This increase in memory in the X2 model supports higher performance and improved handling of data operations.

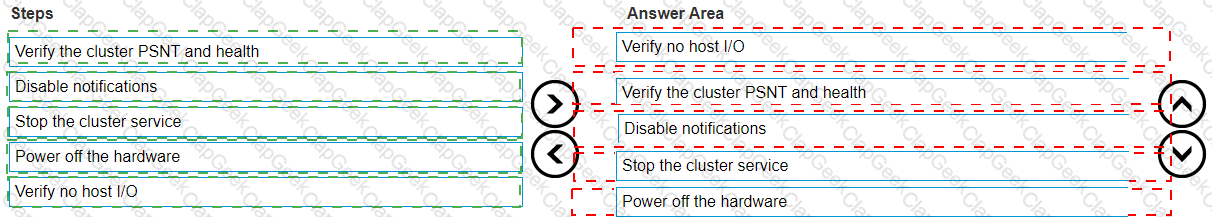

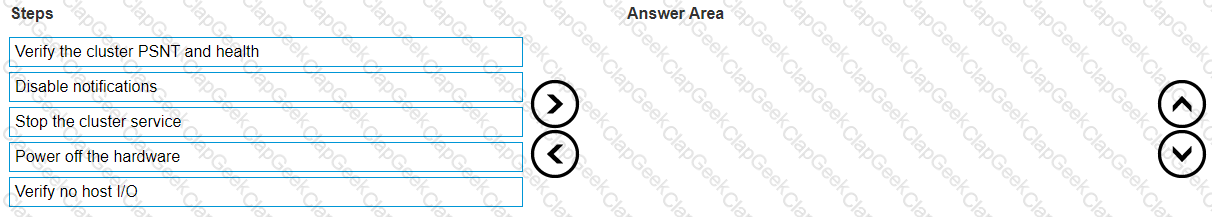

Verify no host I/O: Ensure that there are no active I/O operations from the hosts connected to the XtremIO array. This is crucial to avoid data loss or corruption.

Verify the cluster PSNT and health: Check the Primary Serial Number Tag (PSNT) and the health status of the cluster to ensure everything is functioning properly before proceeding with the shutdown.

Disable notifications: Temporarily disable any notifications to avoid unnecessary alerts during the shutdown process.

Stop the cluster service: Gracefully stop the cluster service to ensure that all processes and services are properly terminated.

Power off the hardware: Finally, power off the hardware to complete the planned shutdown of the XtremIO X2.

When submitting a Request for Product Qualification (RPQ) prior to a dispersed XtremIO cluster installation, it is necessary to include a wiring diagram and an X-Brick component location diagram. The wiring diagram provides a detailed representation of the electrical connections between the components, while the X-Brick component location diagram shows the physical placement of the X-Brick components within the installation environment.These documents are essential for planning the installation to ensure that all components are correctly positioned and connected for optimal performance and serviceability1.

The process for preparing these documents typically involves:

Creating a detailed wiring diagram that outlines all the necessary connections between the X-Brick components and other infrastructure elements.

Developing an X-Brick component location diagram that illustrates where each component will be physically located in the data center.

Reviewing the diagrams to ensure they meet the technical requirements and specifications for a dispersed XtremIO cluster installation.

Submitting the diagrams along with the RPQ for approval before proceeding with the installation.

These steps are crucial for a successful installation and are outlined in the Official Dell XtremIO Maintenance Achievement document1.

XtremIO upgrade packages can be found on the support.emc.com website. This is the official support site for Dell EMC products, where customers can download software updates, including XtremIO upgrade packages.The site provides access to various resources, including documentation, knowledge articles, and software downloads for Dell EMC products12.

To find and download XtremIO upgrade packages, follow these steps:

Go to support.emc.com.

Log in with your Dell EMC support account credentials.

Navigate to the ‘Downloads’ section.

Search for XtremIO in the product list.

Select your specific XtremIO model and version.

Locate the upgrade package you need and download it.

It’s important to ensure that you have a valid support contract and the necessary permissions to access and download software updates from support.emc.com1.

=========================

The Eaton 1550 Evolution BBU (Battery Backup Unit) uses 1 DB9 and 1 RJ50 connector. These connectors are used for communication and management purposes, ensuring that the BBU can interface correctly with other components of the system.

In Dell XtremIO X2 arrays, the Disk Protection Groups (DPGs) are organized in such a way that each DPG spans multiple rows of drives. Specifically, DPG-2 in an XtremIO-X2 DAE (Disk Array Enclosure) uses the drives in Row 1 and Row 2. This configuration is designed toensure redundancy and fault tolerance. The drives in these rows collectively form the DPG, which is responsible for data protection and performance optimization.
