D-XTR-OE-A-24 Dell XtremIO Operate Achievement Questions and Answers

In the XtremIO X2 WebUI cluster security settings, the available configuration options include LDAP, Login Banner, and Inactivity Timeout.

These settings provide administrators with the ability to manage user authentication, customize login messages, and set inactivity timeouts for enhanced security.

Configuring these options helps in maintaining a secure and compliant storage environment.

References:

Dell XtremIO X2 Administration Guide

XtremIO X2 Security Configuration Documentation

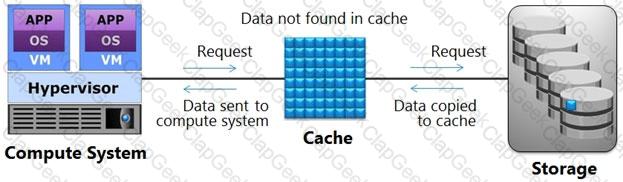

If the requested data is not found in cache, it is called a cache miss and the data must be read from the storage. The back end accesses the appropriate storage device and retrieves the requested data. Data is then placed in cache and finally sent to the compute system through the front end. Cache misses increase the I/O response time.

According to Dell XtremIO documentation, when upgrading an XtremIO X2 two X-Brick cluster, the minimal number of SSDs that can be ordered is 12.

XtremIO clusters use a scale-out architecture, and each X-Brick requires a specific number of SSDs for proper functioning.

The upgrade process is designed to maintain the performance and resilience of the storage system.

The specific requirement of 12 SSDs ensures balanced data distribution and optimal performance across the cluster.

References:

Dell XtremIO Upgrade Guide

XtremIO X2 Specification Documents

When configuring QLogic Fibre Channel HBAs in a VMware environment connected to a Dell XtremIO array, the recommended value for the Execution Throttle is 4096. This recommendation is based on best practices to ensure optimal performance and stability in storage environments. Execution Throttle controls the maximum number of concurrent commands that the HBA will issue to a single target, and setting it correctly helps in balancing the load and avoiding congestion on the storage network.

References:

Dell EMC's official documentation on configuring QLogic HBAs recommends setting the Execution Throttle to 4096 to optimize performance and reliability.

Industry best practices suggest similar values to prevent overloading the storage ports and ensure smooth operation.

Creating a snapshot of a multi-volume database requires careful coordination to ensure data consistency across all volumes. The best practice in this scenario involves using a Consistency Group in conjunction with a Scheduler:

Consistency Group: This is a collection of volumes that are treated as a single entity for snapshot purposes. When a snapshot is taken of a Consistency Group, it captures a point-in-time image of all volumes in the group simultaneously.This ensures that the snapshot reflects a consistent state across all volumes, which is crucial for databases that span multiple volumes1.

Scheduler: The Scheduler is used to automate the snapshot process. By setting up a schedule, the systems administrator can ensure that the snapshot is taken at exactly 1:00 AM without manual intervention.The Scheduler will trigger the snapshot process at the specified time, using the settings defined for the Consistency Group1.

Presenting to a Backup Server: Once the snapshot is created, it can be presented to a backup server.This server will see the snapshot as if it were the actual data, allowing for backup operations to be performed without impacting the production environment1.

Snapshot Restore and Snapshot Set (OA): While these are components of snapshot operations, they do not provide the same level of coordination and automation as a Consistency Group with a Scheduler.

Snapshot Set and the Scheduler (OB): A Snapshot Set is a collection of snapshots, but without the use of a Consistency Group, there is no guarantee that the snapshots will be consistent across all volumes.

Consistency Group and Snapshot Refresh (OD): Snapshot Refresh is a process of updating a snapshot with changes from the source volumes. While useful in certain scenarios, it is not the initial step for creating and presenting snapshots to a backup server.

XtremIO X1 provides continuous availability through a combination of data protection mechanisms and snapshot capabilities:

Data Protection: XtremIO X1 uses a unique data protection scheme known as XtremIO Data Protection (XDP), which offers better efficiency and rebuild performance compared to traditional RAID configurations.XDP provides high levels of fault tolerance and ensures data integrity, which is essential for continuous availability1.

Snapshots: XtremIO’s snapshot technology allows for the creation of instant, space-efficient copies of data volumes.These snapshots can be used for various purposes, including backup and recovery, testing, and development, without impacting the performance of the primary system1.

Continuous Availability: The combination of XDP and snapshots enables XtremIO X1 to provide an enterprise level of continuous availability by ensuring that data is protectedagainst hardware failures and that operations can continue uninterrupted during maintenance or in the event of a disaster1.

XtremIO’s approach to data protection and snapshots is designed to meet the demands of enterprise environments where downtime is not an option, and data must be accessible at all times1.

This ensures that the XMS can effectively communicate with and manage each cluster, regardless of their individual configurations or the specific features they are using.

Compatibility is crucial for the XMS to perform its functions across all clusters, which includes tasks such as monitoring, reporting, and executing management operations.If the XMS code version is not compatible with a particular cluster, it may not be able to manage it properly, leading to potential issues with performance, reliability, and data integrity1.

Therefore, before adding a new XtremIO cluster to an existing XMS setup, the systems administrator must verify that the XMS code version is compatible with the firmware version running on the new cluster, as well as the versions on all other clusters currently being managed.This step is a fundamental requirement to ensure seamless management and operation of the XtremIO storage environment1.

In addition to PowerPath, the supported multipathing software for VMware ESXi hosts connecting to XtremIO is Native Multipathing (NMP).

NMP is integrated with VMware and provides basic multipathing capabilities, allowing for path redundancy and load balancing.

Properly configuring multipathing is crucial for achieving high availability and optimal performance in a VMware environment with XtremIO storage.

References:

Dell EMC Host Connectivity Guide for VMware ESXi

XtremIO Multipathing Configuration Documentation

The iostat command is used for monitoring system input/output device loading by observing the time the devices are active in relation to their average transfer rates.It generates reports that can be used to change system configuration to better balance the input/output load between physical disks1.The iostat command is particularly useful for monitoring disk throughput and can help identify high disk utilization, which is essential for diagnosing performance issues related to storage2.

The iostat command provides information about input/output (I/O) statistics for block devices (like hard drives and SSDs) and CPUs, making it a valuable tool for analyzing the performance and usage of these resources on a system1.It is distributed as part of the sysstat package and is available on most Linux distributions1.

The other commands listed have different purposes:

stat (OA) is used to display file or file system status.

netstat (OB) displays network connections, routing tables, interface statistics, masquerade connections, and multicast memberships.

nbtstat (OC) is a Windows command-line utility that displays protocol statistics and current TCP/IP connections using NetBIOS over TCP/IP.

Therefore, for monitoring the performance of system input/output devices on Linux/UNIX systems, iostat (OD) is the correct command to use1.

Small, random workloads are best suited for high IOPS in a VDI (Virtual Desktop Infrastructure) environment.

Such workloads typically consist of numerous small I/O operations, which require a high number of IOPS to maintain performance.

XtremIO's architecture is optimized for handling small, random I/O patterns efficiently, making it ideal for this type of VDI workload.

References:

Dell XtremIO VDI Best Practices

Storage Performance Fundamentals

Each X-Brick in an XtremIO environment requires at least one RecoverPoint Appliance (RPA) to manage replication tasks effectively.

RecoverPoint provides both synchronous and asynchronous replication, ensuring data integrity and disaster recovery capabilities.

The RPA is crucial for handling replication operations and maintaining data consistency across XtremIO clusters.

References:

Dell XtremIO Integration with RecoverPoint Documentation

Raid-Zero XtremIO and RecoverPoint Initial Findings

The XtremIO X2-S storage array is designed to support a significant amount of capacity per volume.Based on the information available, the largest size supported for each volume in a single X-Brick cluster is 64 TB1. Here’s a detailed explanation:

XtremIO X2-S Capacity: The XtremIO X2-S array allows for scaling up with additional SSDs to increase capacity.A single X-Brick can support a considerable number of SSDs, which contributes to the total volume size it can support1.

Volume Size: The volume size refers to the amount of data storage space that can be allocated for use by applications and services.In the case of XtremIO X2-S, the maximum volume size is designed to accommodate large-scale storage needs1.

Configuration: When configuring volumes on the XtremIO X2-S, administrators can specify the desired size up to the maximum supported limit.This ensures that the storage can be tailored to the specific requirements of the environment1.

Largest Supported Size: The option of 64 TB (OB) aligns with the high-capacity design of the XtremIO X2-S array, making it the correct answer for the largest volume size supported per volume on a single X-Brick cluster1.

For synchronous replication from an XtremIO X1 cluster to a third-party array, the solution that enables this operation isVPLEX with RecoverPoint. Here’s why:

VPLEX: Dell EMC VPLEX is a virtualization and data mobility solution that allows for continuous availability and data mobility across arrays within a data center and over distance.It is often used in conjunction with RecoverPoint to provide synchronous replication1.

RecoverPoint: Dell EMC RecoverPoint offers continuous data protection with multiple replication options, including synchronous and asynchronous replication.It is designed to work with various storage arrays, including third-party arrays, providing flexibility in replication strategies1.

Combination of VPLEX and RecoverPoint: When combined, VPLEX and RecoverPoint offer a comprehensive solution that supports synchronous replication, ensuring zero data loss (RPO=0) and enabling consistency across sites.This combination is particularly useful when integrating XtremIO with third-party arrays1.

Native XtremIO Replication: While XtremIO does offer native replication capabilities, these are typically asynchronous and are designed to work within the XtremIO ecosystem.For synchronous replication, especially to a third-party array, the native replication may not be sufficient1.

RecoverPoint for VMs: This variant of RecoverPoint is specifically designed for virtual environments and may not be the best fit for array-based synchronous replication requirements1.

Therefore, the correct answer isVPLEX with RecoverPoint(OD), as it provides the necessary infrastructure and capabilities for synchronous replication from an XtremIO X1 cluster to a third-party array, ensuring data consistency and zero data loss during the replication process1.

When creating a virtual disk for a VMware VM that will reside on a datastore provisioned from an XtremIO volume, it is generally recommended to use Thick Provisioned, Eager Zeroed disks for optimal performance and capacity usage. Here’s why:

Thick Provisioned, Eager Zeroed (OC): This type of disk allocation pre-allocates the entire size of the disk and zeroes out all the blocks at the time of creation.This can lead to better performance because all the space is allocated and ready for use, and there is no overhead associated with zeroing out blocks during write operations1.

Thick Provisioned, Lazy Zero (OA): While this also pre-allocates the entire disk size, it does not zero out the blocks until they are first written to.This can lead to potential performance degradation compared to Eager Zeroed disks when the blocks are zeroed on demand1.

Thin Provisioned (OB): Thin provisioning allocates disk space on demand rather than pre-allocating the entire disk size.While this can be more efficient in terms of capacity usage, it may not provide the same level of performance as Thick Provisioned, Eager Zeroed disks, especially in high I/O environments1.

Raw Device Mappings (OD): RDM allows a VM to directly access a LUN on the SAN.This is typically used for specific use cases that require direct access to the physical storage device and is not generally necessary for standard VM deployments1.

In summary, for ensuring proper performance and capacity usage, Thick Provisioned, Eager Zeroed (OC) is the recommended way to present the disk to the guest for a VMware VM running on vSphere 6.5 with an XtremIO volume1.

To create an iSCSI portal using the XtremIO X2 XMS WebUI, an administrator should navigate to Cluster Settings.

Within Cluster Settings, the configuration options for creating and managing iSCSI portals are available.

This is the starting point for setting up network configurations and ensuring the proper operation of iSCSI connections.

References:

Dell XtremIO X2 Configuration Guide

XtremIO XMS WebUI Documentation
