FCSS_SASE_AD-23 FCSS FortiSASE 23 Administrator Questions and Answers

The VPN tunnel between the FortiSASE spoke and the FortiGate hub is not establishing due to the configuration of mode config, which is not supported by FortiSASE spoke devices. Mode config is used to assign IP addresses to VPN clients dynamically, but this feature is not applicable to FortiSASE spokes.

Mode Config in IPsec:

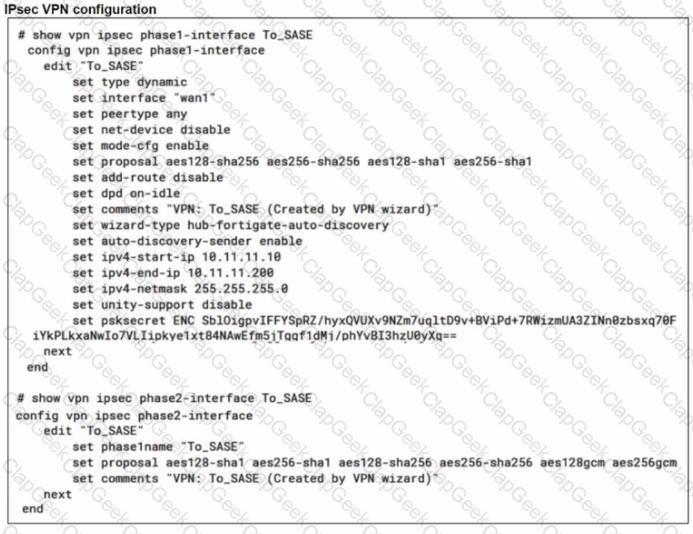

The configuration snippet shows that mode config is enabled in the IPsec phase 1 settings.

Mode config is typically used for VPN clients to dynamically receive an IP address from the VPN server, but it is not suitable for site-to-site VPN configurations involving FortiSASE spokes.

Configuration Adjustment:

To establish the VPN tunnel, you need to disable mode config in the IPsec phase 1 settings.

This adjustment will allow the FortiSASE spoke to properly establish the VPN tunnel with the FortiGate hub.

Steps to Disable Mode Config:

Access the VPN configuration on the FortiSASE spoke.

Edit the IPsec phase 1 settings to disable mode config.

Ensure other settings such as pre-shared key, remote gateway, and BGP configurations are correct and consistent with the FortiGate hub.

References:

FortiOS 7.2 Administration Guide: Provides details on configuring IPsec VPNs and mode config settings.

FortiSASE 23.2 Documentation: Explains the supported configurations for FortiSASE spoke devices and VPN setups.

To configure a Secure Private Access (SPA) solution to share endpoint information between FortiSASE and a corporate FortiGate, you need to take the following steps:

Add the FortiGate IP address in the secure private access configuration on FortiSASE:

This step allows FortiSASE to recognize and establish a connection with the corporate FortiGate.

Use the FortiClient EMS cloud connector on the corporate FortiGate to connect to FortiSASE:

The EMS (Endpoint Management Server) cloud connector facilitates the integration between FortiClient endpoints and FortiSASE, enabling seamless sharing of endpoint information.

Register FortiGate and FortiSASE under the same FortiCloud account:

By registering both FortiGate and FortiSASE under the same FortiCloud account, you ensure centralized management and synchronization of configurations and policies.

References:

FortiOS 7.2 Administration Guide: Provides details on configuring Secure Private Access and integrating with FortiGate.

FortiSASE 23.2 Documentation: Explains how to set up and manage connections between FortiSASE and corporate FortiGate.

The Secure Internet Access (SIA) use case that minimizes individual workstation or device setup is SIA for agentless remote users. This use case does not require installing FortiClient on endpoints or configuring explicit web proxy settings on web browser-based endpoints, making it the simplest and most efficient deployment.

SIA for Agentless Remote Users:

Agentless deployment allows remote users to connect to the SIA service without needing to install any client software or configure browser settings.

This approach reduces the setup and maintenance overhead for both users and administrators.

Minimized Setup:

Without the need for FortiClient installation or explicit proxy configuration, the deployment is straightforward and quick.

Users can securely access the internet with minimal disruption and administrative effort.

References:

FortiOS 7.2 Administration Guide: Details on different SIA deployment use cases and configurations.

FortiSASE 23.2 Documentation: Explains how SIA for agentless remote users is implemented and the benefits it provides.

In the user connection monitor, the random characters shown for the username indicate that log anonymization is enabled. Log anonymization is a feature that hides the actual user information in the logs for privacy and security reasons. To display proper user information, you need to disable log anonymization.

Log Anonymization:

When log anonymization is turned on, the actual usernames are replaced with random characters to protect user privacy.

This feature can be beneficial in certain environments but can cause issues when detailed user monitoring is required.

Disabling Log Anonymization:

Navigate to the FortiSASE settings.

Locate the log settings section.

Disable the log anonymization feature to ensure that actual usernames are displayed in the logs and user connection monitors.

References:

FortiSASE 23.2 Documentation: Provides detailed steps on enabling and disabling log anonymization.

Fortinet Knowledge Base: Explains the impact of log anonymization on user monitoring and logging.

FortiSASE uses the following components for application control to act as an inline-CASB (Cloud Access Security Broker):

SSL Deep Inspection:

SSL deep inspection is essential for decrypting and inspecting HTTPS traffic to identify and control applications and data transfers within encrypted traffic.

This allows FortiSASE to enforce security policies on SSL/TLS encrypted traffic, providing visibility and control over cloud applications.

Web Filter with Inline-CASB:

The web filter component integrates with inline-CASB to monitor and control access to cloud applications based on predefined security policies.

This combination provides granular control over cloud application usage, ensuring compliance with security policies and preventing unauthorized data transfers.

References:

FortiOS 7.2 Administration Guide: Details on SSL deep inspection and web filtering configurations.

FortiSASE 23.2 Documentation: Explains how FortiSASE acts as an inline-CASB using SSL deep inspection and web filtering.

There are two deployment methods used to connect a FortiExtender as a FortiSASE LAN extension:

Connect FortiExtender to FortiSASE using FortiZTP:

FortiZero Touch Provisioning (FortiZTP) simplifies the deployment process by allowing FortiExtender to automatically connect and configure itself with FortiSASE.

This method requires minimal manual configuration, making it efficient for large-scale deployments.

Enter the FortiSASE domain name in the FortiExtender GUI as a static discovery server:

Manually configuring the FortiSASE domain name in the FortiExtender GUI allows the extender to discover and connect to the FortiSASE infrastructure.

This static discovery method ensures that FortiExtender can establish a connection with FortiSASE using the provided domain name.

References:

FortiOS 7.2 Administration Guide: Details on FortiExtender deployment methods and configurations.

FortiSASE 23.2 Documentation: Explains how to connect and configure FortiExtender with FortiSASE using FortiZTP and static discovery.
