H12-351_V1.0 HCIE-WLAN (Written) V1.0 Questions and Answers

B is false because only Layer 3 VXLAN gateways need to maintain VBDIF interfaces for inter-subnet communication on a VXLAN network or communication with external non-VXLAN networks. Layer 2 VXLAN gateways do not need VBDIF interfaces.

References: https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/vxlan-gateway

B is false because calculated data can be displayed on iMaster NCE-CampusInsight without loading a license on the device management page. The license only affects the number of devices that can be managed by iMaster NCE-CampusInsight.

D is false because the UTC time of iMaster NCE-CampusInsight does not need to be the same as that of its managed devices. However, it is recommended that they use the same time zone to avoid confusion.

References: https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/data-collection

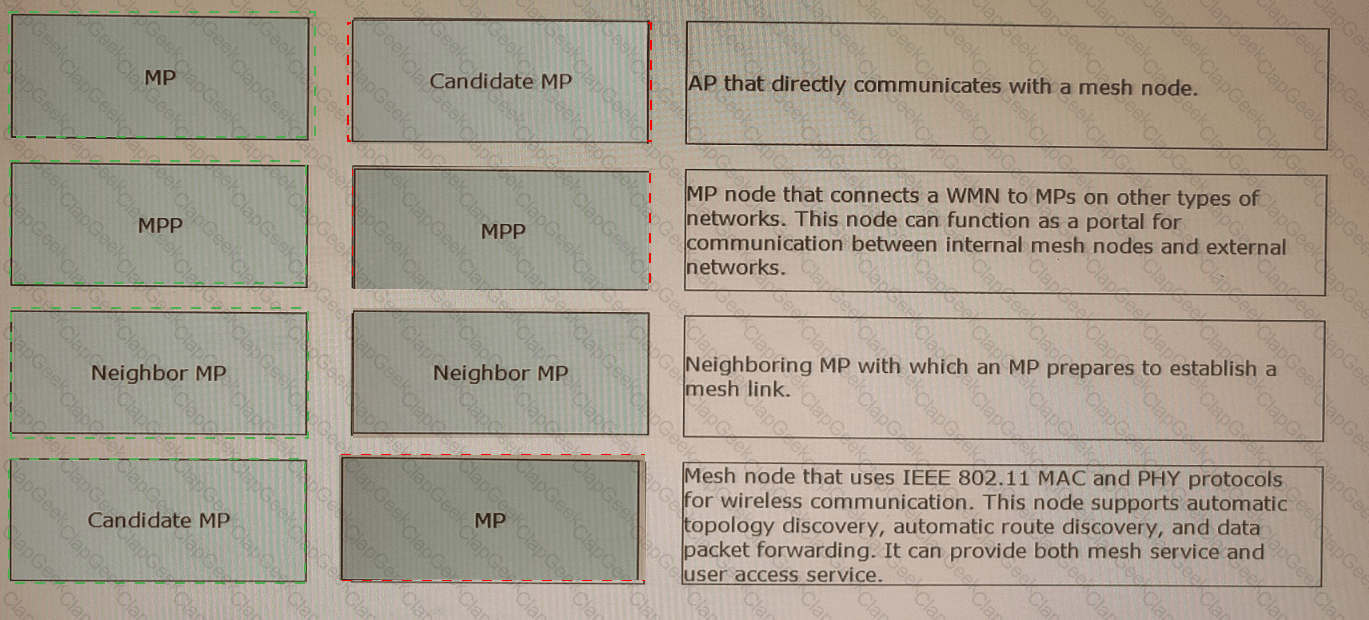

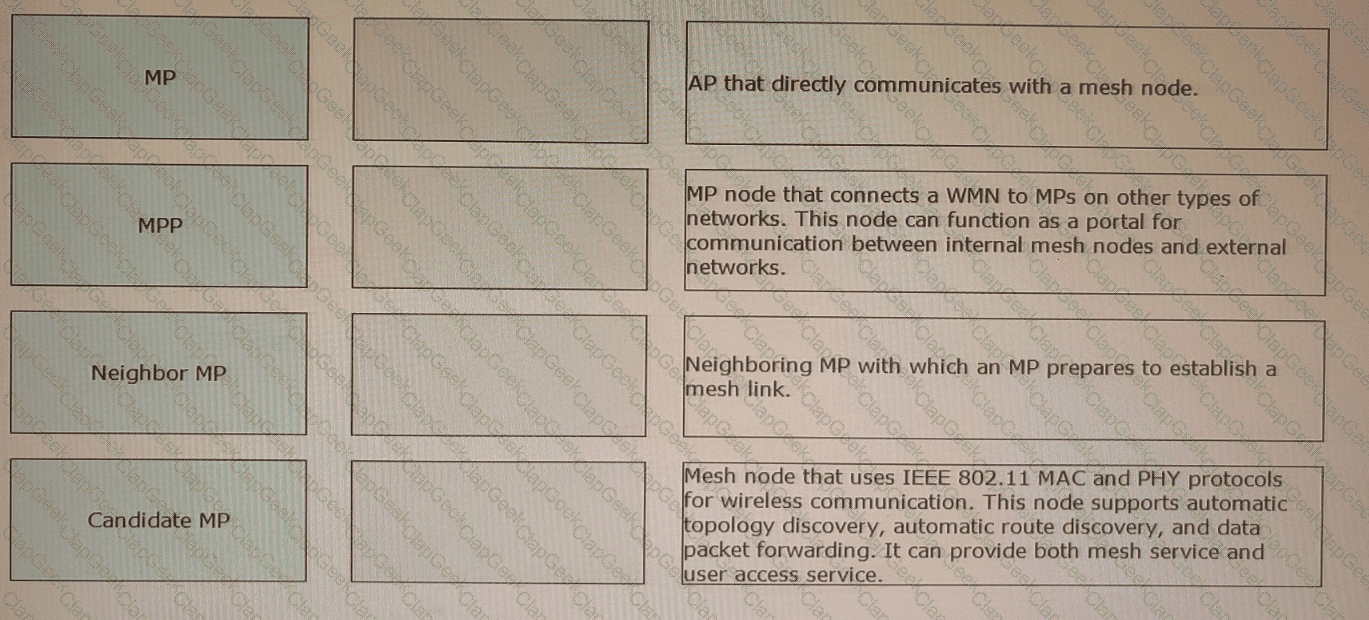

• MP: Mesh node that uses IEEE 802.11 MAC and PHY protocols for wireless communication. This node supports automatic topology discovery, automatic route discovery, and data packet forwarding. It can provide both mesh service and user access service1.
• MPP: MP node that connects a WMN to MPs on other types of networks. This node can function as a portal for communication between internal mesh nodes and external networks1.
• Neighbor MP: Neighboring MP with which an MP prepares to establish a mesh link1.
• Candidate MP: AP that directly communicates with a mesh node2.

https://support.huawei.com/enterprise/en/doc/EDOC1100064365/90f2391e/configuration-examples-for-mesh  2: https://support.huawei.com/enterprise/en/doc/EDOC1100169459/8d79210e/configuring-wireless-mesh-networking

According to the Huawei documents and resources, the network planning suggestions for the solutions are as follows:

• Asset management: The RFID signal coverage distance is 25 m. Therefore, RFID signal coverage must be considered during AP deployment planning. Attach RFID tags on the surface or top of assets to prevent signals from being blocked.
• ESL: Shelves may be blocked in application scenarios. Therefore, shelf blocking must be considered during network planning. The shelves can be deployed in aisles to minimize obstacles toward integrated base stations.
• Smart healthcare: For applications that support regional positioning, positioning devices need to be deployed at key entrances and exits based on service requirements.

Therefore, Asset management - 2, ESL - 1, Smart healthcare - 3 is the correct answer. References: : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/asset-management : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/esl : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/smart-healthcare

In Huawei’s smart roaming solution, the WAC can discover and maintain neighboring AP entries of STAs by using two methods: passive listening and active scanning. Passive listening means that the AP listens to the Probe frames sent by STAs and reports them to the WAC. Active scanning means that the AP periodically and proactively scans neighboring APs of STAs and reports them to the WAC.

References: https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/smart-roaming

Huawei APs can identify non-Wi-Fi devices that operate in the 2.4 GHz frequency band, such as Bluetooth devices, ZigBee devices, game controllers, wireless video and audio transmitters, microwave ovens, cordless phones, and baby monitors.

References: https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/non-wi-fi-device-identification

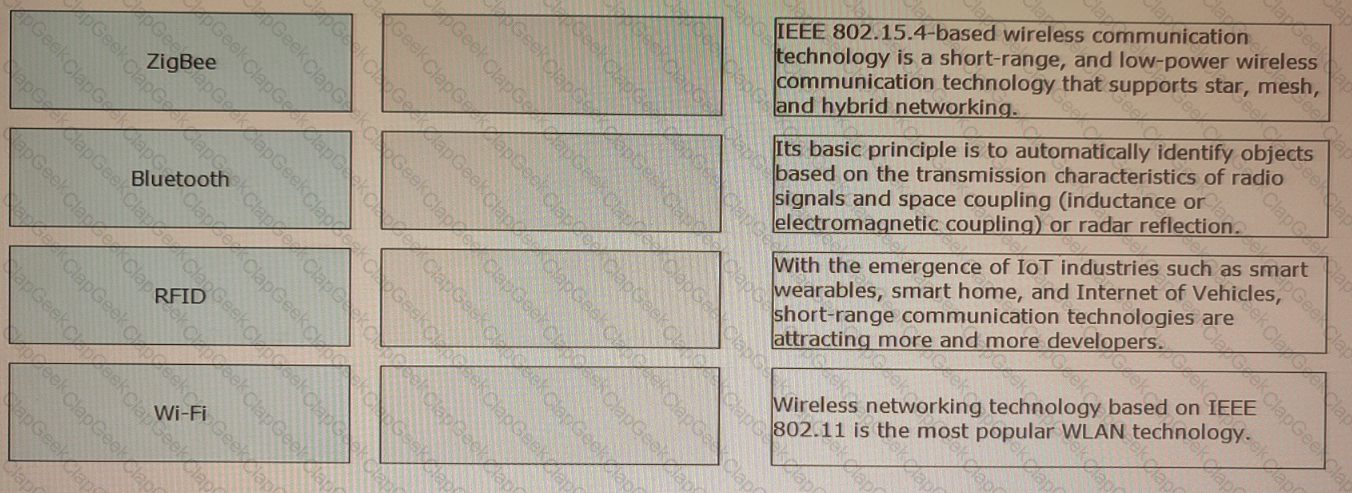

According to the Huawei documents and resources, the definitions of the short-range wireless IoT technologies are as follows:

• ZigBee: IEEE 802.15.4-based wireless communication technology is a short-range, and low-power wireless communication technology that supports star, mesh, and hybrid networking.
• Bluetooth: With the emergence of IoT industries such as smart wearables, smart home, and Internet of Vehicles, short-range communication technologies are attracting more and more developers.
• REID: Its basic principle is to automatically identify objects based on the transmission characteristics of radio signals and space coupling (inductance or electromagnetic coupling) or radar reflection.
• Wi-Fi: Wireless networking technology based on IEEE 802.11 is the most popular WLAN technology.

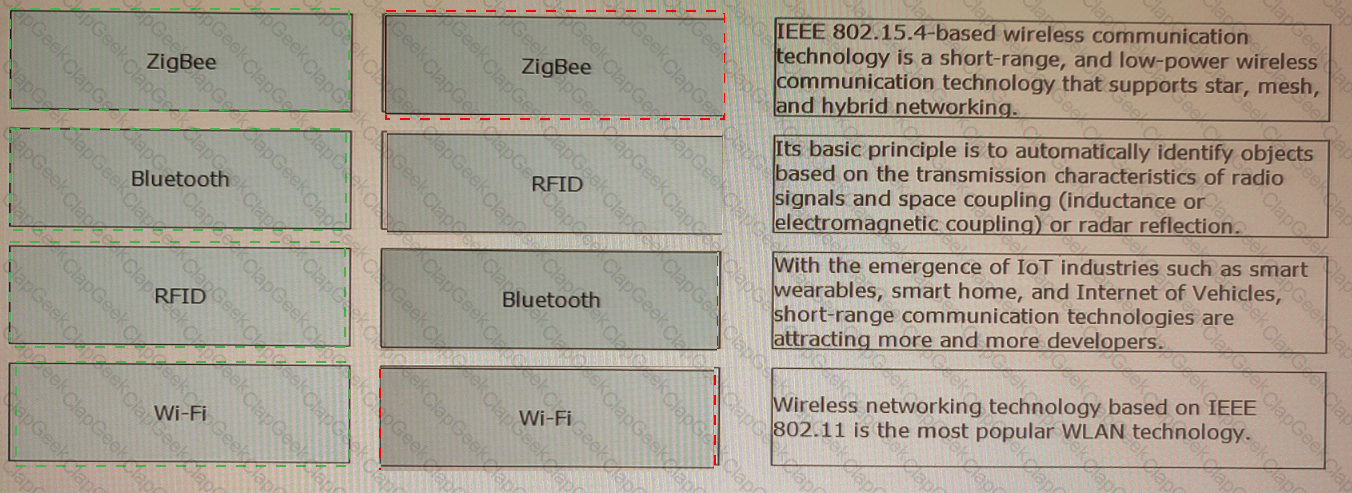

Therefore, ZigBee - 1, Bluetooth - 3, REID - 2, Wi-Fi - 4 is the correct answer. References: : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/zigbee : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/bluetooth : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/rfid : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/wi-fi

iMaster NCE-CampusInsight analyzes network issues during correlation analysis of poor-QoE clients, including coverage, interference, throughput, and hardware issues. It also provides suggestions for network optimization based on the analysis results.

References: https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/correlation-analysis-of-poor-qoe-clients

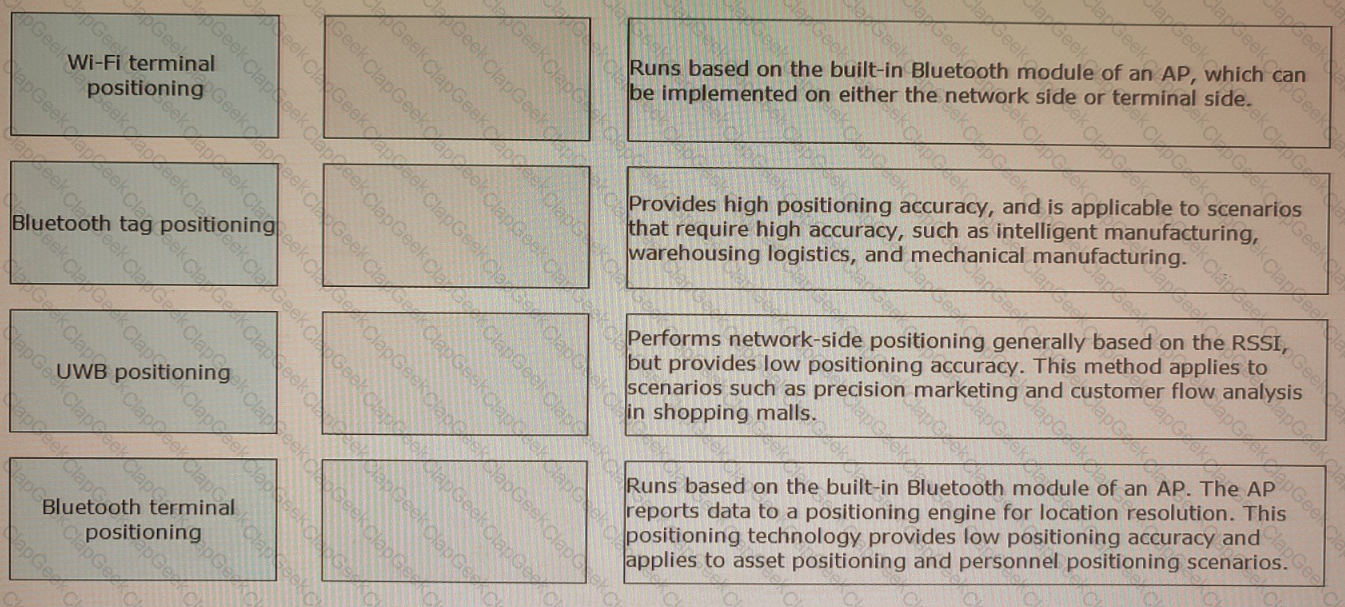

According to the Huawei documents and resources, the features and application scenarios of the wireless positioning solutions are as follows:

• Wi-Fi terminal positioning: Performs network-side positioning generally based on the RSSI, but provides low positioning accuracy. This method applies to scenarios such as precision marketing and customer flow analysis in shopping malls.
• Bluetooth tag positioning: Runs based on the built-in Bluetooth module of an AP. The AP reports data to a positioning engine for location resolution. This positioning technology provides low positioning accuracy and applies to asset positioning and personnel positioning scenarios.
• UWB positioning: Provides high positioning accuracy, and is applicable to scenarios that require high accuracy, such as intelligent manufacturing, warehousing logistics, and mechanical manufacturing.
• Bluetooth terminal positioning: Runs based on the built-in Bluetooth module of an AP, which can be implemented on either the network side or terminal side.

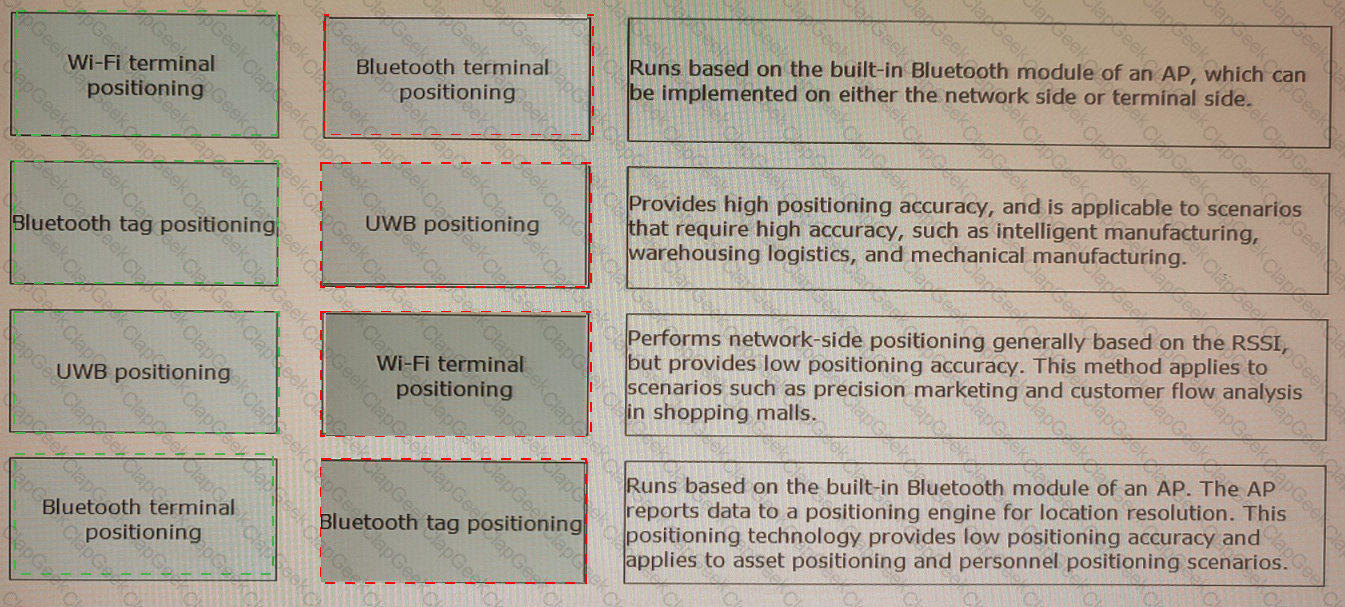

Therefore, Wi-Fi terminal positioning - 3, Bluetooth tag positioning - 4, UWB positioning - 2, Bluetooth terminal positioning - 1 is the correct answer. References: : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/wi-fi-terminal-positioning : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/bluetooth-tag-positioning : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/uwb-positioning : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/bluetooth-terminal-positioning

According to the Huawei documents and resources, the HLD phase is the high-level design phase of a WLAN project. It involves the following items:

• Capacity planning: Determines the number and types of devices required for the WLAN network based on the customer’s requirements and network scale.
• Network design: Designs the network topology, IP addressing scheme, VLAN division, security policies, and other network parameters for the WLAN network.
• Deployment planning: Plans the deployment sequence, schedule, resources, and risks for the WLAN project.

AP position planning is not involved in the HLD phase. It is part of the LLD phase, which is the low-level design phase of a WLAN project. It involves the detailed design of AP positions, antenna types, channel allocation, power adjustment, and other wireless parameters for the WLAN network. Therefore, C is the correct answer. References: : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/wlan-project-design

The WPA3 transition mode applies to both WPA3-Enterprise and WPA3-Personal. In this mode, WPA3 and WPA2 can coexist for a period of time in the future to enable WPA3-incapable STAs to access a WPA3-configured network.

References: https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/wpa3-transition-mode

According to the Huawei documents and resources, 802.1X authentication using port-based access control is a method that allows only one user to access the network through a port at a time. If a user is authenticated successfully on a port, subsequent users on this port can access the network without authentication. When the authenticated user goes offline, all other users are denied access to the network1. Therefore, A is the correct answer. References: 1: https://support.huawei.com/enterprise/en/doc/EDOC1100086527

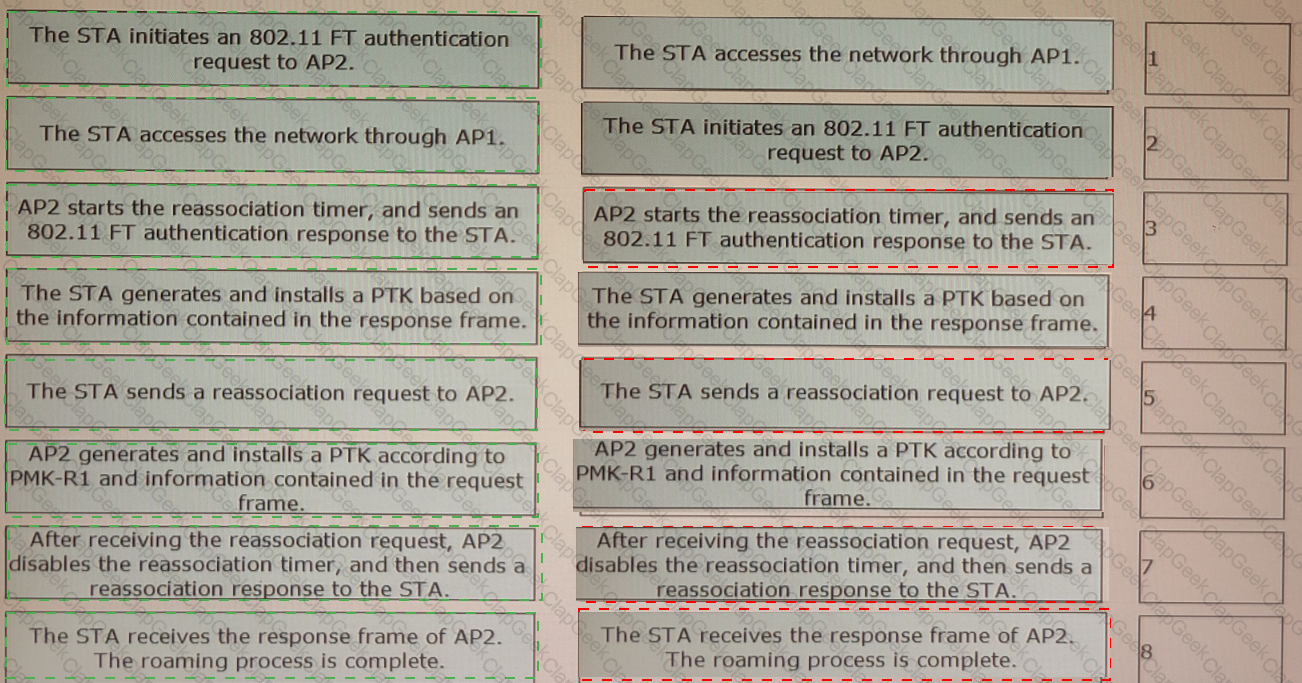

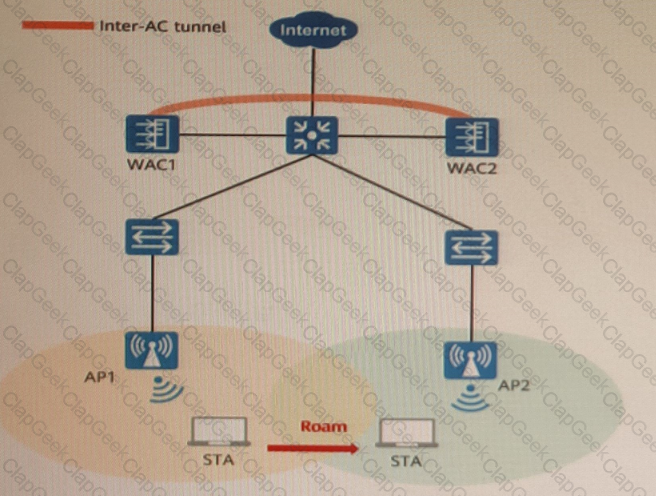

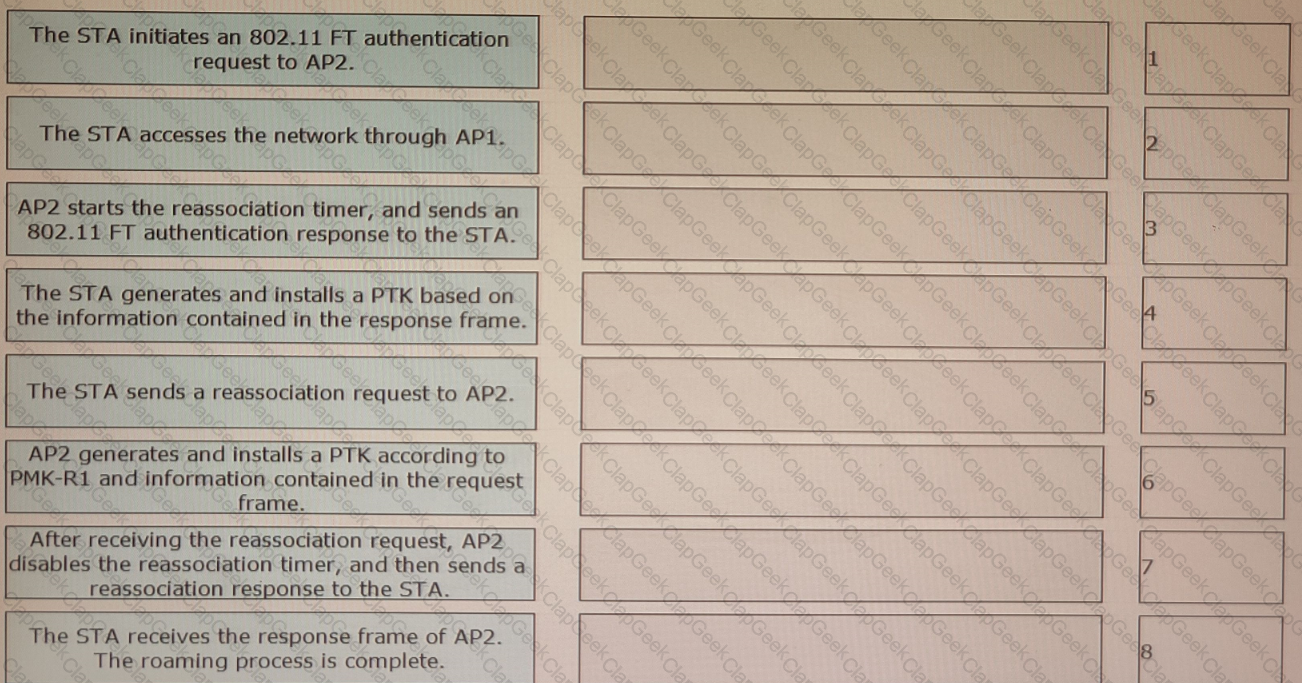

According to the Huawei documents and resources, the chronological order during the 802.11r fast roaming process between WACs is as follows:

2.The STA accesses the network through API. This is the initial association process before roaming.

1.The STA initiates an 802.11 FT authentication request to AP2. This is the first step of the roaming process when the STA moves to a new AP.

3.AP2 starts the reassociation timer, and sends an 802.11 FT authentication response to the STA. This is the second step of the roaming process when AP2 responds to the STA’s request and sets a timer for reassociation.

4.The STA generates and installs a P TK based on the information contained in the response frame. This is the third step of the roaming process when the STA derives a new pairwise key for encryption.

5.The STA sends a reassociation request to AP2. This is the fourth step of the roaming process when the STA requests to reassociate with AP2.

6.AP2 generates and installs a PTK according to PMK-RI and information contained in the request frame. This is the fifth step of the roaming process when AP2 derives the same pairwise key as the STA.

7.After receiving the reassociation request, AP2 disables the reassociation timer, and then sends a reassociation reg onse to the STA. This is the sixth step of the roaming process when AP2 confirms the reassociation with the STA and stops the timer.

8.The STA receives the response frame of AP2. The roaming process is complete. This is the final step of the roaming process when the STA completes the handover to AP2.

Therefore, 2, 1, 3, 4, 5, 6, 7, 8 is the correct answer. References: https://support.huawei.com/enterprise/en/doc/EDOC1100169459/8d79210e/configuring-wireless-mesh-networking

B and E are not parameters recorded by iMaster NCE-CampusInsight for interference analysis. The other options are parameters recorded by iMaster NCE-CampusInsight to comprehensively record and analyze interference.

References: https://support.huawei.com/enterprise/en/doc/EDOC1100058940/8a8f1c9b/interference-analysis
