JN0-223 Automation and DevOps Associate (JNCIA-DevOps) Questions and Answers

https://www.w3schools.com/xml/xpath_syntax.asp

REST API requests can be made using various tools that support HTTP methods. Two common tools are:

cURL:A command-line tool that allows you to send HTTP requests, including GET, POST, PUT, and DELETE. It is widely used for testing and interacting with RESTful APIs due to its simplicity and flexibility.

Web Browser:Modern web browsers can be used to send HTTP GET requests directly by entering the URL into the address bar. Additionally, browser extensions like Postman or built-in developer tools can be used to construct and send more complex REST API requests.

Option B (NETCOfJF)is incorrect as it does not refer to a standard tool for making REST API requests.

Option D (SSH)is incorrect because SSH is a protocol used for secure remote login and command execution, not for sending REST API requests.

Supporting References:

cURL Documentation:Official cURL documentation provides extensive information on how to use cURL to interact with REST APIs.

Web Development and REST API Guides:Many web development resources and REST API documentation recommend using web browsers and tools like cURL for testing and interacting with APIs.

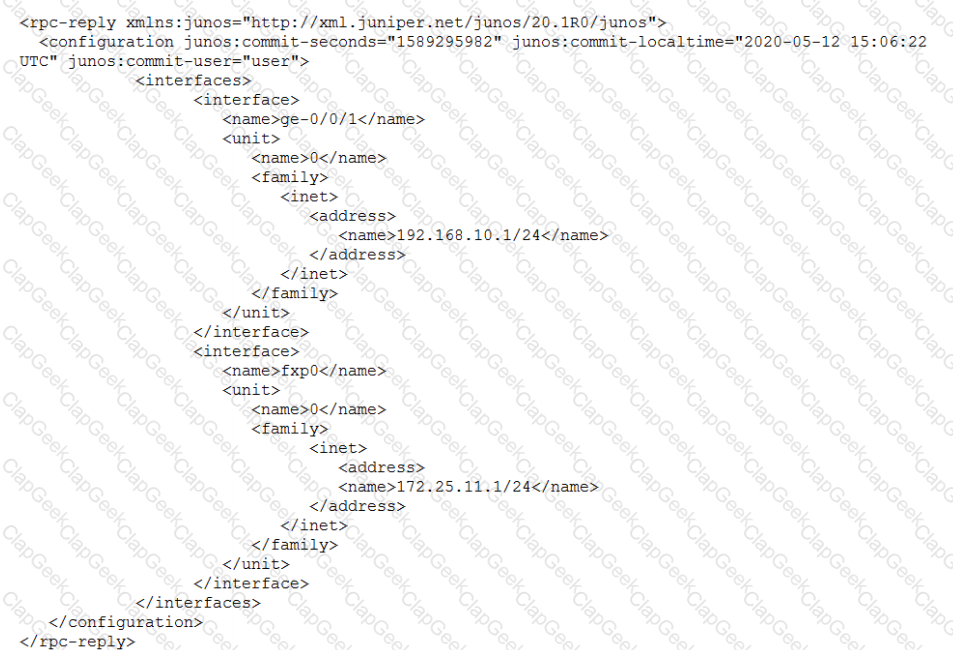

When using the REST API to retrieve interface configuration information from a Junos device:

Data Formats (C): The information can be retrieved inXMLorJSONformats. These are the two standard data formats supported by the Junos REST API for representing configuration and operational data.

Authentication (D): For each HTTP request, especially when using tools like cURL,authentication information must be included. This is typically done using basic authentication (username and password) or an authentication token.

Option A is incorrect because HTML is not a supported format for REST API data retrieval in Junos, andOption B is incorrectbecause SSH is not required for REST API requests; the REST API typically uses HTTP/HTTPS.

Junos REST API Documentation: Details the data formats (XML, JSON) supported by the Junos REST API and the need for authentication.

cURL Usage with REST API: Provides examples of how to use cURL with Junos REST API, including the necessity of providing authentication.

References:

NETCONF (Network Configuration Protocol) is used for network device management and can operate over SSH. The following are true about NETCONF:

Default Port 830 (B): By default, NETCONF uses port 830 for communication over SSH. This is the standard port reserved for NETCONF sessions.

Use of Default SSH Port (D): NETCONF can also operate over the standard SSH port (port 22) if configured to do so. This allows flexibility in network management scenarios where port 830 might not be available or used.

Options A and C are incorrectbecause they refer to incorrect or non-applicable port numbers for NETCONF.

IETF RFC 6241: Specifies the use of NETCONF over SSH, including port details.

Juniper Networks NETCONF Documentation: Discusses the configuration and operation of NETCONF on Junos devices, including port usage.

References:

In Junos OS, acommit scriptis an on-box automation script that runs every time a configuration change is committed. Commit scripts are used to enforce configuration policies, validate configuration changes, or make automatic adjustments to configurations when certain conditions are met.

Commit Script (C): Executes automatically during the commit process, ensuring that the new configuration adheres to specific rules or conventions before it is applied to the system.

Event, SNMP, and operation scriptsare used for other purposes in Junos automation but do not run automatically with every configuration change.

Junos OS Automation Scripts Guide: Provides details on different types of scripts, including commit scripts, and their use cases.

Juniper Networks Documentation: Offers examples and best practices for creating and using commit scripts.

References:

In Python, the distinction between lists and tuples is essential for efficient programming:

Lists:

Mutable (B): This means that once a list is created, its elements can be changed, added, or removed. Lists are versatile and commonly used when the data is expected to change.

Square Brackets: Lists are defined using square brackets[].

Example:

my_list = [1, 2, 3]

my_list[0] = 10 # Modifying the first element

Tuples:

Immutable (B): Once a tuple is created, it cannot be altered. Tuples are used when a fixed collection of items is needed, providing more integrity to the data.

Parentheses: Tuples are defined using parentheses().

Example:

my_tuple = (1, 2, 3)

# my_tuple[0] = 10 # This would raise an error because tuples are immutable

Python Official Documentation: The Python Language Reference provides detailed information on data types like lists and tuples, including their mutability and syntax.

Automation Scripts: In the context of automation, understanding when to use mutable or immutable data structures can significantly impact script performance and reliability.

References:

In XML documents, anamespaceis the data construct used to ensure that element names and data values remain unique. Namespaces prevent naming conflicts by differentiating between elements or attributes that may have the same name but different meanings. This is particularly important in XML, where documents often incorporate elements from multiple sources.

XML Namespaces: A namespace is a collection of names, identified by a URI reference, which is used to distinguish between elements that may have identical names but different definitions or origins. This helps avoid ambiguity in the document.

How Namespaces Work: When a namespace is applied, each element or attribute in the XML document is associated with a prefix. This prefix, combined with the namespace URI, ensures that the element or attribute is uniquely identified, even if another element or attribute in the same document has the same local name but a different namespace.

Schema Definition vs. Namespace: Although an XML schema definition (XSD) can define the structure and type constraints of an XML document, it does not guarantee uniqueness of element names across different XML documents. That role is fulfilled by namespaces.

Practical Example:

Detailed Explanation:xml

Copy code

xmlns:ns2="http://www.example.com/ns2" >

Item in namespace 1

Item in namespace 2

In this example, theitemelements are in different namespaces (ns1andns2), which keeps them unique even though they have the same name.

Juniper Automation and DevOps Documentation: These practices highlight the importance of namespaces in XML documents to maintain the integrity and uniqueness of data, which is essential in automation scripts and configuration files.

W3C XML Namespace Specification: The World Wide Web Consortium (W3C) standard for XML Namespaces defines how namespaces should be used to avoid name conflicts.

References:Namespaces are a crucial concept in XML, ensuring that data can be consistently managed and interpreted correctly, particularly in complex systems where multiple XML documents or schemas are involved.

Aneventscript is used to automate responses to system events in Junos, such as an interface going down. These scripts are triggered automatically when a specified event occurs, making them suitable for tasks like monitoring interface status and executing actions when the status changes.

Option B (event)is correct because event scripts are designed for reacting to system events like an interface going down.

Option A (commit)is used for configuration changes,Option C (operation)is used for operational tasks, andOption D (SNMP)is not applicable in this context.

Supporting References:

Juniper Networks Event Scripts Documentation:Details how event scripts are used to automate responses to specific system events in Junos

In Python, the correct syntax to prompt the user for input and store that input in a variable is:

input(prompt): Theinput()function is used to take input from the user. The string provided as an argument (inside the parentheses) is displayed as a prompt to the user. The input provided by the user is returned as a string and can be stored in a variable.

Example:

hostIP = input("Device IP address: ")

In this example,"Device IP address: "is the prompt displayed to the user, and the user's input will be stored in the variablehostIP.

Options B, C, and D are syntactically incorrect in Python.

Python Official Documentation: Describes the use of theinput()function for getting user input.

Python Tutorials: Various tutorials demonstrate how to properly use theinput()function in scripts.

References:

In Python, the==operator is used to test whether two variables are equal. It returnsTrueif the variables are equal andFalseif they are not.

Option B (==)is correct because it is the equality operator in Python.

Option A (!=)is used for inequality,Option C (%)is the modulus operator, andOption D (=)is used for assignment, not for testing equality.

Supporting References:

Python Documentation on Operators:The official Python documentation covers the use of==for equality checks.

REST APIs use HTTP methods to perform different operations on resources. In the context of RPC (Remote Procedure Call) requests:

GET:This method is used to retrieve data from the server. In a REST API, it is commonly used to fetch information about resources, such as the current configuration or operational state.

POST:This method is used to send data to the server to create or update a resource. In the context of RPC, POST is often used to execute a procedure on the server that may result in the modification of a resource or triggering of an action.

Options B (HEAD) and D (CONNECT) are not typically used for executing RPC requests:

HEADis similar to GET but only retrieves the headers, not the body of the response.

CONNECTis used to establish a tunnel to the server, primarily for SSL-encrypted communication, and is not commonly associated with RESTful RPC operations.

Supporting References:

Juniper Networks REST API Documentation:The documentation provides detailed information about the use of HTTP methods in Juniper's RESTful services.

"RESTful Web Services"by Leonard Richardson and Sam Ruby: This book explains the principles of REST and how different HTTP methods, particularly GET and POST, are used to interact with RESTful APIs.

Junos automation relies on several key processes to handle various automation and API interactions. Let's break down the two key processes involved:

jsd (Junos Script Daemon):The jsd process is responsible for handling automation scripts, including Python and SLAX scripts, as well as handling JET (Junos Extension Toolkit) API requests. This process is fundamental in the automation framework of Junos, as it deals with external and internal API requests, ensuring that the necessary scripts are executed when specific triggers or events occur.

kmd (Key Management Daemon):The kmd process is involved in key management for IPsec and other security services. While its primary function is related to managing cryptographic keys, it plays a role in Junos automation by enabling secure communication and ensuring that automation tasks involving security services (such as automated IPsec tunnel creation) are handled securely.

Why the Other Options Are Incorrect:

A. mod:This process doesn't exist as part of the Junos automation framework. It's likely a distractor.

C. ifd:The ifd process is associated with the physical interfaces on the device and does not play a role in automation or script processing.

References from Juniper Documentation:

Junos Automation Processes
