Acollision domainis a network segment where data packets can "collide" with one another when being sent on the same network medium.

Step-by-Step Breakdown:

Increased Collision Probability:If all devices are in asingle collision domain, the likelihood of packet collisions increases as more devices attempt to send packets simultaneously, leading to network inefficiencies.

Increased Resource Consumption:More collisions result inincreased network resource consumptionas devices need to retransmit packets, causing higher utilization of bandwidth and slowing down network performance.

Juniper Reference:

Collision Domains: Proper network segmentation using switches reduces collision domains, thereby improving network performance and reducing packet collisions.

When creating anIP fabric underlayusingOSPFas the routing protocol, consistentinterface speedsare important to ensure optimal traffic distribution and utilization of all links.

Step-by-Step Breakdown:

OSPF and Interface Speeds:OSPF calculates the cost of a link based on its bandwidth. The default cost calculation in OSPF is:

A black text on a white background Description automatically generated

If interface speeds vary significantly, OSPF may choose paths with lower cost (higher bandwidth), resulting in some links being underutilized.

Equal Utilization:To ensure that all links are equally utilized in an IP fabric, it is recommended to maintain uniform interface speeds across the fabric. This ensures balanced load sharing across all available paths.

Juniper Reference:

IP Fabric with OSPF: Juniper recommends consistent interface speeds to maintain even traffic distribution and optimal link utilization in IP fabric underlay designs.

In Junos OS, routing information is stored in different routing tables depending on the protocol and address family. For IPv6 addresses, the routing table used isinet6.0.

Step-by-Step Explanation:

Routing Tables in Junos:

inet.0: This is the primary routing table for IPv4 unicast routes.

inet6.0: This is the primary routing table for IPv6 unicast routes.

inet.3: This routing table is used for MPLS-related routing.

Other routing tables, like inet.1, inet.2, are used for multicast and other specific purposes.

inet6.0 Routing Table:When IPv6 is enabled on a Juniper router, all the IPv6 routes are stored in theinet6.0table. This includes both direct routes (connected networks) and learned routes (from dynamic routing protocols like OSPFv3, BGP, etc.).

Verification:To view IPv6 routes, the command show route table inet6.0 is used. This will display the contents of the IPv6 routing table, showing the network prefixes, next-hop addresses, and protocol information for each route.

Juniper Reference:

Junos Command: Use show route table inet6.0 to check IPv6 routing entries.

IPv6 Routing: Ensure that the IPv6 protocol is enabled on interfaces and that routingprotocols like OSPFv3 or BGP are properly configured for IPv6 traffic handling.

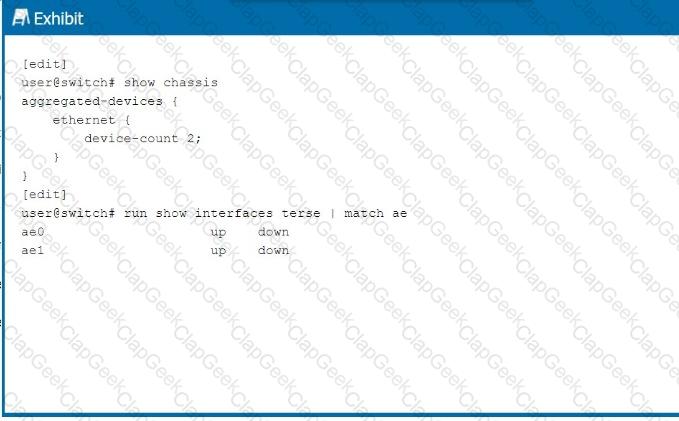

In the exhibit, theae0andae1interfaces are in alink downstate. This occurs when no physical interfaces (member interfaces) have been added to theLAG (Link Aggregation Group)interfaces, or the member interfaces are not operational.

Step-by-Step Breakdown:

LAG Configuration:ALAGinterface (aggregated Ethernet interface) is a logical interface that combines multiple physical interfaces for redundancy and increased bandwidth. The LAG will only be operational if at least one member interface is active and configured correctly.

No Operational Member Interfaces:If no member interfaces are added or if the member interfaces are down, the LAG will remain in adownstate, as shown in the exhibit for ae0 and ae1.

Resolution:Verify that physical interfaces have been added to the LAG using commands like:

LAG Interface Status: In Juniper, the link status of the LAG depends on its member interfaces, which must be operational for the LAG to function.

Per-flow load balancingensures that packets within the same flow are always forwarded over the same path, ensuring that packet order is preserved.

Step-by-Step Breakdown:

Flow Definition:A flow is typically defined by a combination of packet attributes like source/destination IP, source/destination port, and protocol type. Packets that belong to the same flow are routed over the same path to avoid reordering.

Per-Flow Behavior:Inper-flow load balancing, the hashing algorithm ensures that all packets in a particular flow use thesame egress port, maintaining order across the network.

Juniper Reference:

Load Balancing in Juniper: This method ensures that flows are balanced across multiple paths while preventing packet reordering within a single flow.

IP fabricsare Layer 3-centric network designs often used in data centers due to their scalability, efficient routing, and loop-free architecture.

Step-by-Step Breakdown:

Layer 3 Load Balancing:IP fabrics useEqual-Cost Multipath (ECMP)to distribute traffic across multiple paths, providing effective load balancing and improving bandwidth utilization. This capability is absent in traditional Layer 2 networks, which do not support ECMP for routing decisions.

Layer 2 Loops:Layer 2 networksare prone to loops because of the lack of TTL (Time-to-Live) mechanisms. Spanning Tree Protocol (STP) is required to prevent loops, but it can introduce inefficiencies by blocking links. In contrast, IP fabrics based on Layer 3 protocols are loop-free and do not need STP.

Juniper Reference:

IP Fabric: Juniper’s IP fabric solutions offer efficient Layer 3 routing with built-in load balancing and loop prevention, making them ideal for modern data center architectures.

In Junos OS,direct routesare the most preferred routes in the routing table, having the highest priority.

Step-by-Step Breakdown:

Direct Routes:

Direct routes represent networks that are directly connected to the router's interfaces. Since these routes are directly accessible, they are assigned the highest priority and always take precedence over other types of routes.

Preference Values:

Direct routes have apreference of 0, which is the most preferred in Junos. Static routes, OSPF routes, and BGP routes have higher preference values and will only be used if there are no direct routes to the destination.

Juniper Reference:

Direct Route Preference: In Junos,direct routesare always preferred over other routes, ensuring that the router forwards traffic through locally connected networks.

IBGP (Internal Border Gateway Protocol)is used to exchange routing information betweenrouters within the same AS (Autonomous System).

Step-by-Step Breakdown:

TTL of 255:

By default, IBGP sessions are established with aTTL (Time to Live)value of255. This allows IBGP neighbors to communicate over multiple hops within the AS without requiring any additional configuration.

Full Mesh Requirement:

IBGP requires alogical full meshbetween all IBGP routers to ensure that routing information is fully distributed within the AS. Since IBGP does not propagate routes learned from one IBGP peer to another by default, a full mesh topology is needed unlessroute reflectorsorBGP confederationsare used.

Juniper Reference:

IBGP Full Mesh: Juniper recommends using route reflectors in large networks to simplify IBGP full-mesh requirements.

When aMAC limiting violationoccurs on a Juniper switch, the switch will perform the following actions by default:

Step-by-Step Breakdown:

Port Disabled:When the number of MAC addresses on an interface exceeds the configured limit, the port isautomatically disabledto prevent further violations. This is a protective mechanism to prevent MAC address flooding.

Packet Dropped:Additionally, packets from the violating MAC address aredroppedto prevent any further communication from that address. This ensures that only valid MAC addresses are allowed to communicate through the interface.

Example Configuration:

set ethernet-switching-options secure-access-port interface mac-limit 5

If more than five MAC addresses are learned, the port is disabled, and excess packets are dropped.

Juniper Reference:

MAC Limiting: When the switch detects a MAC limiting violation, it disables the port and drops further packets from the violating MAC addresses to maintain network security.

When an OSPF (Open Shortest Path First) neighborship is stuck in the ExStart state, it usually points to a mismatch in Maximum Transmission Unit (MTU) settings between two routers trying to establish the adjacency. The ExStart state is where OSPF routers negotiate the master-slave relationship and exchange DBD (Database Description) packets.

Step-by-Step Breakdown:

OSPF Neighbor States: OSPF goes through several states to establish an adjacency with a neighbor:

Down: No hello packets have been received.

Init: Hello packets are received, but bidirectional communication isn't confirmed.

2-Way: Bidirectional communication is established.

ExStart: The routers are negotiating who will be the master and who will be the slave, and begin to exchange DBD packets.

Exchange: The routers start exchanging the database information.

Loading: The routers process the Link-State Advertisements (LSAs).

Full: The adjacency is fully established.

MTU Mismatch Issue:During the ExStart state, both OSPF routers must agree on their MTU values. If there is an MTU mismatch between the two routers, OSPF neighbors will fail to move from the ExStart to the Exchange state. The router with the larger MTU setting will not accept DBD packets from the router with a smaller MTU because the packets may exceed the smaller MTU size.

In Juniper devices, this behavior can be identified by examining the MTU settings using the show interfaces command and ensuring both routers have matching MTU configurations. To resolve this issue, either match the MTU settings on both routers or configure OSPF to ignore MTU mismatches using the command set protocols ospf ignore-mtu.

Juniper Reference:

Junos Command: show ospf neighbor helps diagnose neighbor states.

MTU Adjustment: set interfaces mtu can be used to set the MTU values correctly.

When thediscardoption is configured as the next hop for a static route, it silently drops any packets that match the route without sending any notification to the sender.

Step-by-Step Breakdown:

Discard Behavior:

If a route uses thediscardnext hop, the router drops the packet without generating any ICMP message or error back to the sender. This is useful for creating null routes to prevent routing loops or blackhole traffic intentionally.

Reject vs. Discard:

Therejectnext hop, in contrast, drops the packet but sends anICMP Destination Unreachablemessage back to the source.

Juniper Reference:

Static Route Behavior: In Junos, thediscardoption ensures packets matching a static route are dropped silently, providing a way to discard traffic without alerting the source.

EBGP (External BGP)andIBGP (Internal BGP)operate with different rules due to the nature of their relationships.

Step-by-Step Breakdown:

TTL Differences:

EBGP: By default, EBGP peers have a TTL of 1, meaning they must be directly connected, or the TTL needs to be manually increased for multihop EBGP.

IBGP: IBGP peers within the same AS have a TTL of 255, as they are expected to communicate over multiple hops within the AS.

Preference for EBGP Routes:

Routes learned viaEBGPare typically preferred over IBGP routes. This is because EBGP routes are considered more reliable since they originate outside the AS, while IBGP routes are internal.

Juniper Reference:

BGP Configuration: The different handling of TTL and route preferences between EBGP and IBGP ensures proper route selection and security within Junos-based networks.

A trunk interface on a switch is used to carry traffic for multiple VLANs between switches or between a switch and another network device, like a router. Trunk interfaces use 802.1Q tagging to identify which VLAN the traffic belongs to.

Step-by-Step Breakdown:

Trunk Ports:

Trunk ports are typically used for inter-switch links or switch-to-router links where multiple VLANs need to be carried over the same physical connection.

VLAN traffic is tagged with a VLAN ID to ensure that it is properly identified as it crosses the trunk link.

802.1Q VLAN Tagging:

Trunk ports use 802.1Q to tag Ethernet frames with the VLAN ID. This ensures that frames are correctly forwarded to the appropriate VLANs on the other side of the trunk.

Juniper Reference:

Trunk Interface Configuration: In Juniper switches, trunk ports are configured to carry tagged traffic for multiple VLANs, which is essential for interconnecting multiple network segments.

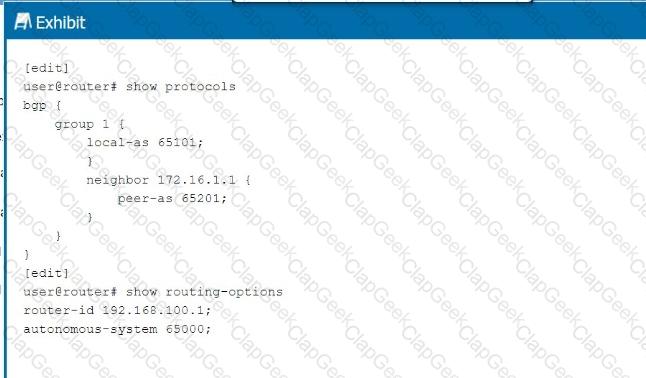

In the exhibit, BGP is configured withlocal AS 65101and a neighbor at172.16.1.1inpeer AS 65201. This setup involves two different Autonomous Systems (AS), indicating anExternal BGP (EBGP)configuration.

Step-by-Step Breakdown:

EBGP vs. IBGP:

EBGPis used between routers in different ASes. In this case, the local AS is65101and the peer AS is65201, meaning the BGP session isEBGP.

IBGPis used between routers within the same AS, which is not applicable here as the AS numbers are different.

BGP Group Configuration:

The configuration does not require a type external parameter because Junos OSautomatically recognizes the session asEBGPwhen the local and peer AS numbers are different.

The BGP session will operate as EBGP, and the configuration will commit successfully.

Juniper Reference:

BGP Configuration: In Juniper, EBGP is automatically recognized when the local and peer AS numbers differ, without needing to specify type external.

In Junos, thedefault export policyforOSPFis toreject all routesfrom being exported.

Step-by-Step Breakdown:

Default Export Policy:By default,OSPFin Junos does not export any routes to other routing protocols or neighbors. This is a safety mechanism to prevent unintended route advertisements.

Custom Export Policies:

If you need to export routes, you must create a customexport policythat explicitly defines which routes to advertise.

Example: You can create an export policy to redistribute static or connected routes into OSPF.

Juniper Reference:

OSPF Export Behavior: In Juniper devices, the default policy for OSPF is to reject route advertisements unless explicitly configured otherwise through custom policies.

Filter-Based Forwarding (FBF) in Junos OS allows traffic to be routed based on specific criteria such as source address, rather than just the destination address. This is useful in scenarios like policy routing or providing multiple paths for different types of traffic.

Step-by-Step Breakdown:

Instance-Type Forwarding:You must create aninstance-type forwardingrouting instance. This routing instance allows for different routing tables based on the incoming packet filter.

Command:

set routing-instances FBF-instance instance-type forwarding

Match Filter:You need to create afilterto match the traffic that will be forwarded according to your custom routing policy. This filter is applied to an interface to determine which traffic will use the custom forwarding instance.

Command Example:

set firewall family inet filter FBF-filter term 1 from source-address
