JN0-637 Security, Professional (JNCIP-SEC) Questions and Answers

When using security profiles to limit system resources in Juniper logical systems:

No Resource Specification (Answer B): If a resource limit is not specified for a logical system, no specific amount of system resources is reserved for it. Instead, the logical system competes for resources along with others in the system, up to the maximum available. This allows flexible resource allocation, where logical systems can scale based on actual demand rather than predefined limits.

Multiple Logical Systems per Security Profile (Answer D): A single security profile can be applied to multiple logical systems. This allows administrators to define resource limits once in a profile and apply it across several logical systems, simplifying management and ensuring consistency across different environments.

These principles ensure efficient and flexible use of system resources within a multi-tenant or multi-logical-system environment.

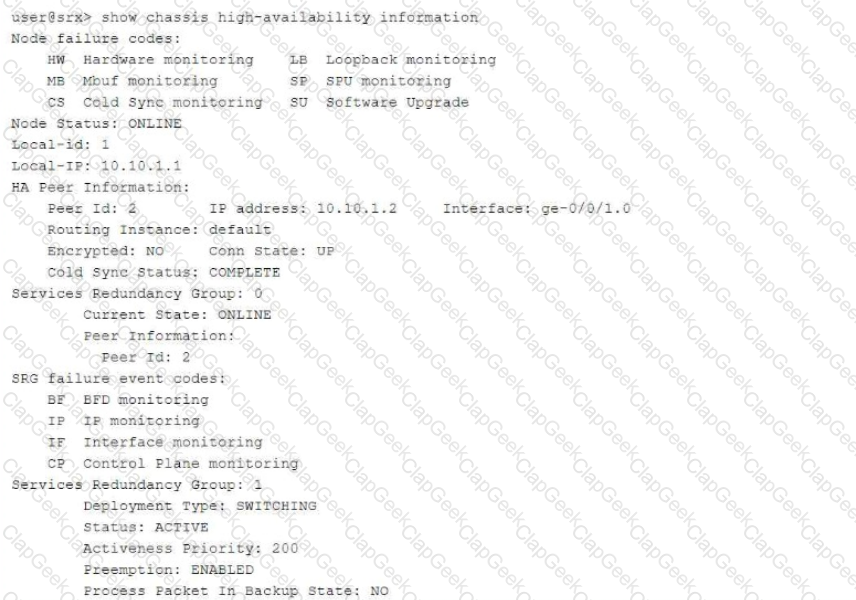

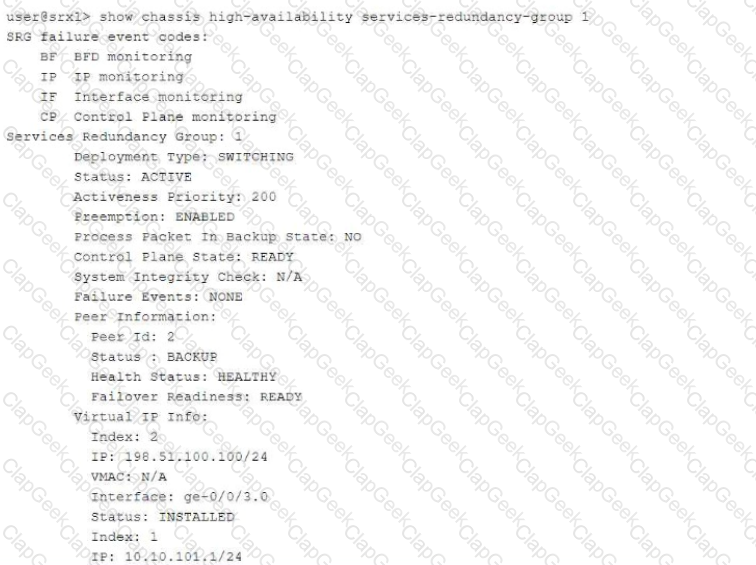

Referring to the exhibit for a multinode HA environment, we can conclude the following about the HA setup:

Two Services Redundancy Groups (Correct: Option A):The output shows the status of SRG 0 and SRG 1, confirming that there are two services redundancy groups in the HA configuration.

Node 1 Hosting SRG 1 (Correct: Option C):The exhibit indicates that Node 1 is currently active for SRG 1. According to the configuration, Node 1 will continue to host SRG 1 unless it becomes unavailable.

Session State Synchronization (Correct: Option D):In this HA setup, session state synchronization is enabled between the two nodes. This ensures that sessions remain active and seamless failover can occur if one node fails.

Juniper References:

Juniper HA Documentation: Provides details on multinode HA setups, SRG configurations, and session synchronization.

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

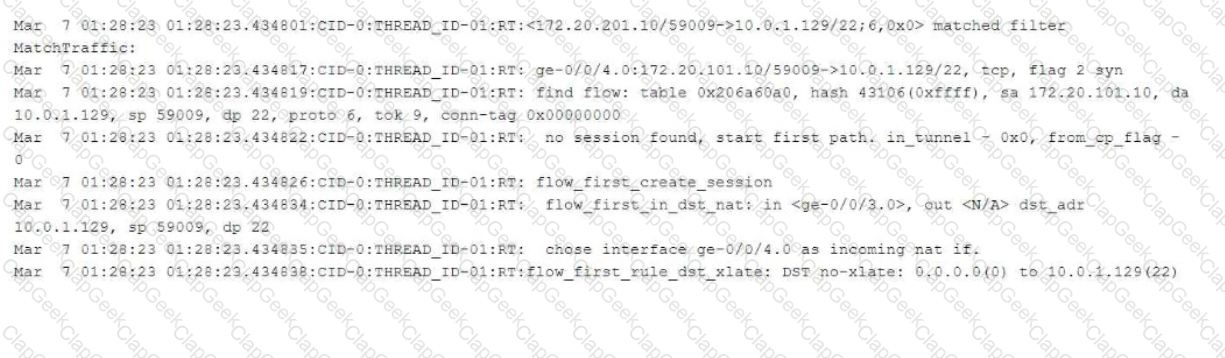

When two networks with overlapping IP address spaces need to communicate, Network Address Translation (NAT) is required to translate the IP addresses so that they become unique across the combined network. In this scenario, both the local network and the new branch office use the same subnet: 192.168.100.0/24. To enable communication without IP conflicts, we need to translate the overlapping addresses to unique ones.

Understanding the Problem:

Local Network (Office A): 192.168.100.0/24

Branch Office (Office B): 192.168.100.0/24

Objective: Allow communication between Office A and Office B despite overlapping IP ranges.

Solution Overview:

To resolve the overlapping IP addresses, we can use Static NAT to create a one-to-one mapping between the overlapping IP addresses and a unique IP range. This way, when packets traverse the network boundary, their IP addresses are translated to a non-overlapping range, avoiding conflicts.

Option B and Option C implement Static NAT to resolve the issue:

Option B (At Office A):

Translates destination addresses from 192.168.200.0/24 to 192.168.100.0/24.

This allows Office B to reach Office A's overlapping network by targeting a unique IP range (192.168.200.0/24).

Option C (At Office B):

Translates destination addresses from 192.168.210.0/24 to 192.168.100.0/24.

This allows Office A to reach Office B's overlapping network by targeting a unique IP range (192.168.210.0/24).

Detailed Explanation:

1. Static NAT Configuration at Office A (Option B):

Configuration:

[edit security nat static]

user@OfficeA# show rule-set From-Office-B {

from interface ge-0/0/0.0;

rule 1 {

match {

destination-address 192.168.200.0/24;

}

then {

static-nat {

prefix { 192.168.100.0/24; }

}

}

}

}

Explanation:

from interface ge-0/0/0.0;: Specifies the interface through which the traffic is received.

Matching Traffic:

destination-address 192.168.200.0/24;: Matches packets destined for 192.168.200.0/24.

Action:

static-nat { prefix { 192.168.100.0/24; } }: Translates the destination address to 192.168.100.0/24.

Result:

Office B sends packets to 192.168.200.0/24, which are translated to 192.168.100.0/24 upon arrival at Office A.

Security tags facilitate dynamic traffic management between cloud environments like Azure and AWS. Tags allow flexible policies that respond to cloud-native events or resource changes, ensuring secure inter-cloud communication. For more information, see Juniper Cloud Security Tags.

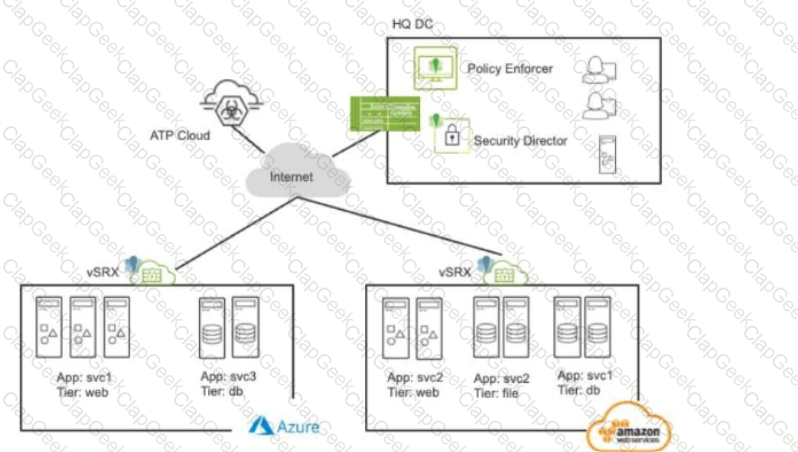

In the scenario depicted in the exhibit, where traffic needs to be dynamically secured between Azure and AWS clouds, the best method to achieve dynamic security is by using security tags in the security policies.

Explanation of Answer C (Security Tags in Security Policies):

Security tags allow dynamic enforcement of security policies based on metadata rather than static IP addresses or zones. This is crucial in cloud environments, where resources and IP addresses can change dynamically.

Using security tags in the security policies, you can associate traffic flows with specific applications, services, or virtual machines, regardless of their underlying IP addresses or network locations. This ensures that security policies are automatically updated as cloud resources change.

Juniper Security Reference:

Dynamic Security with Security Tags: This feature allows you to dynamically secure cloud-based traffic using metadata and tags, ensuring that security policies remain effective even in dynamic environments. Reference: Juniper Security Tags Documentation.

==========

Aggressive mode is required when an IP address is dynamically assigned, such as through DHCP, as it allows for faster establishment with less identity verification. More details are available in Juniper IKE and IPsec Configuration Guide.

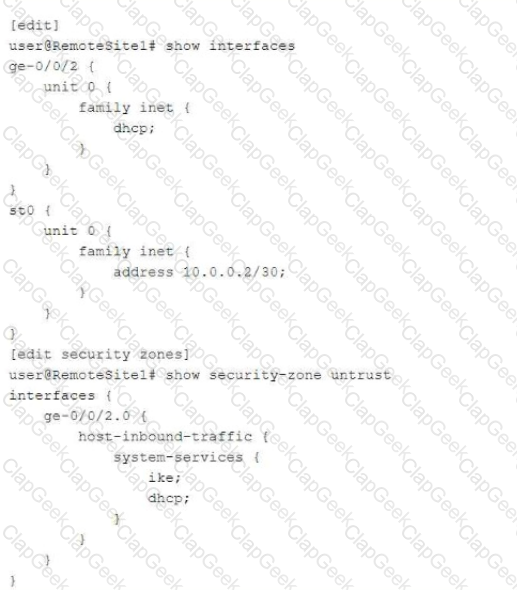

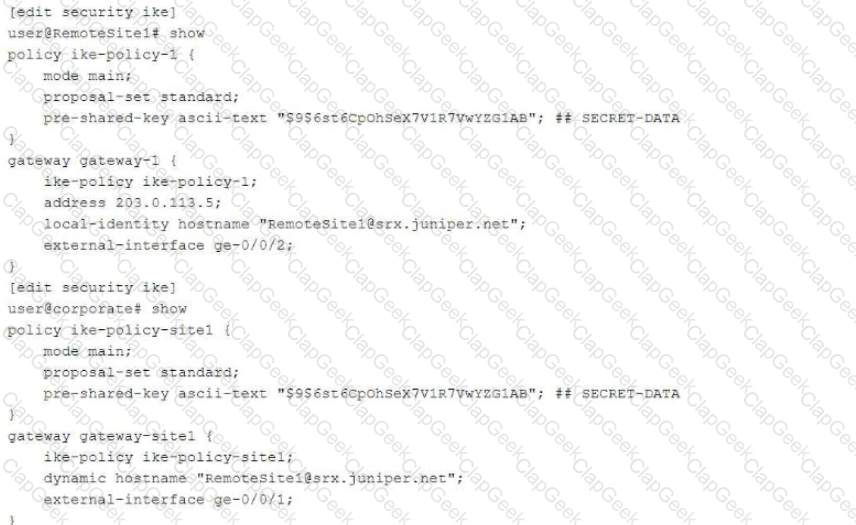

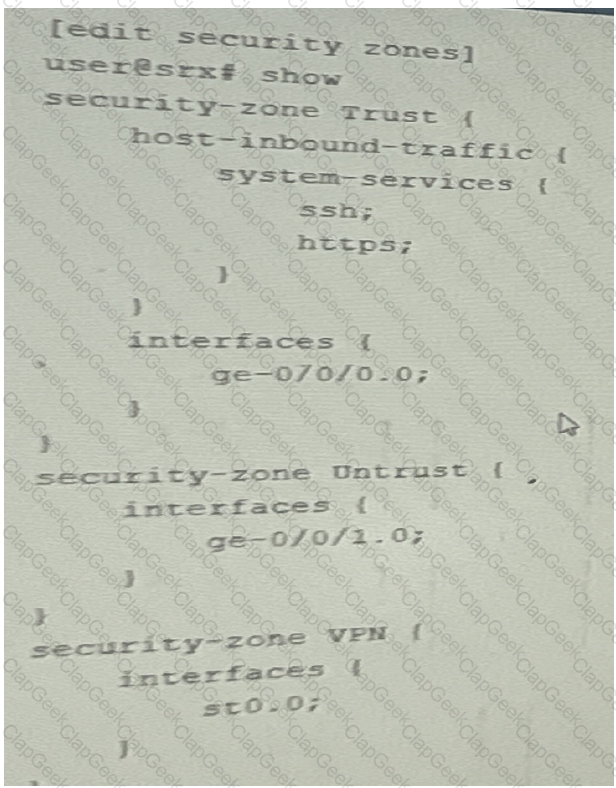

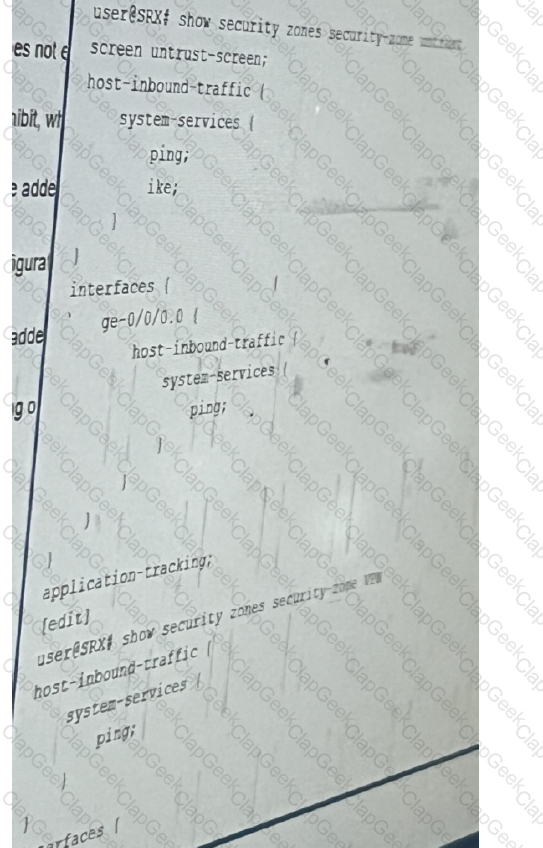

The configuration shown in the exhibit highlights that the RemoteSite1 SRX Series device is using DHCP to obtain an IP address for its external interface (ge-0/0/2). This introduces a challenge in IPsec VPN configurations when the public IP address of the remote site is not static, as is the case here.

Aggressive mode in IKE (Internet Key Exchange) is designed for situations where one or both peers have dynamically assigned IP addresses. In this scenario, aggressive mode allows the devices to exchange identifying information, such as hostnames, rather than relying on static IP addresses, which is necessary when the remote peer (RemoteSite1) has a dynamic IP from DHCP.

Correct Action (D): Changing the IKE policy mode to aggressive will resolve the issue by allowing the two devices to establish the VPN even though one of them is using DHCP. In aggressive mode, the initiator can present its identity (hostname) during the initial handshake, enabling the VPN to be established successfully.

Incorrect Options:

Option A: Changing the external interface to st0.0 is incorrect because the st0 interface is used for the tunnel interface, not for the IKE negotiation.

Option B: Changing to IKE version 2 would not resolve the dynamic IP issue directly, and IKEv1 works in this scenario.

Option C: Changing the IKE proposal set to basic doesn't address the dynamic IP challenge in this scenario.

Juniper References:

Juniper IKE and VPN Documentation: Provides details on when to use aggressive mode, especially when a dynamic IP address is involved.

==========

The interfaces are active and respond to ARP for virtual IP as long as the node is the primary or active node in the SRG group. This ensures high availability and proper traffic forwarding. For information, refer to Juniper SRX HA Documentation.

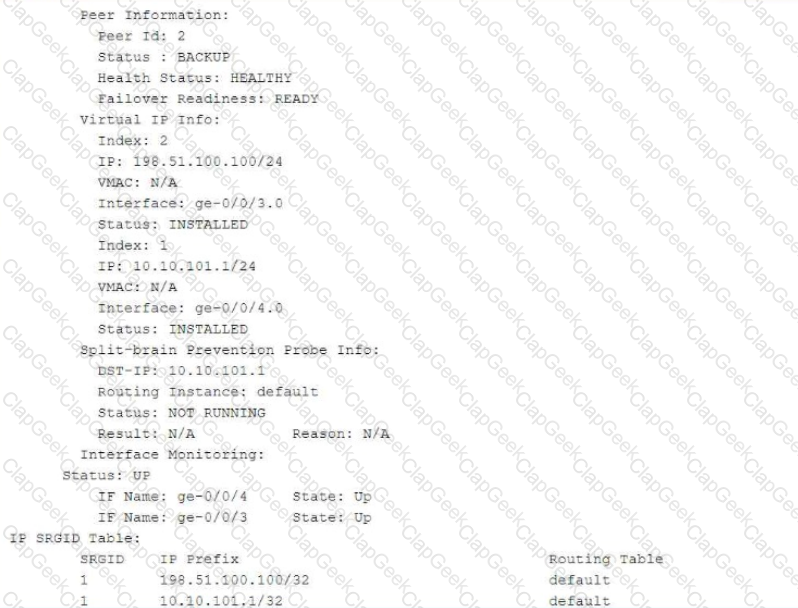

The exhibit shows information about a chassis cluster and its services redundancy group (SRG1). Let's analyze the relevant details:

Explanation of Answer B (Backup Node for SRG1):

The exhibit indicates that this SRX device is in the backup role for SRG1. The status: BACKUP field confirms that this device is currently in a standby role and is not the active node for the services redundancy group.

Explanation of Answer A (Interfaces Not Active):

Since the device is in the backup role, the interfaces ge-0/0/3.0 and ge-0/0/4.0 will not respond to ARP requests for the virtual IP's MAC address. Only the active node's interfaces respond to ARP requests in a chassis cluster configuration.

Juniper Security Reference:

Chassis Cluster Redundancy Overview: In a chassis cluster, the backup node does not respond to ARP requests for the virtual IP. Only the active node handles such requests to ensure seamless traffic forwarding. Reference: Juniper Chassis Cluster Documentation.

==========

==========

Logical systems on SRX Series devices allow the creation of separate virtual routers, each with its unique RPD process. This segmentation ensures that routing and security policies are isolated across different logical systems, effectively acting like independent routers within a single SRX device. For further information, see Juniper Logical Systems Documentation.

To create multiple virtual routers on a single SRX Series device, each with its own unique copy of the routing protocol daemon (RPD) process, you need to use logical systems. Logical systems allow for the segmentation of an SRX device into multiple virtual routers, each with independent configurations, including routing instances, policies, and protocol daemons.

Explanation of Answer D (Logical System):

A logical system on an SRX device enables you to create multiple virtual instances of the SRX, each operating independently with its own control plane and routing processes. Each logical system gets a separate copy of the RPD process, ensuring complete isolation between virtual routers.

This is the correct solution when you need separate routing instances with their own RPD processes on the same physical device.

Configuration Example:

bash

set logical-systems interfaces ge-0/0/0 unit 0

set logical-systems routing-options static route 0.0.0.0/0 next-hop 192.168.1.1

Juniper Security Reference:

Logical Systems Overview: Logical systems allow for the creation of multiple virtual instances within a single SRX device, each with its own configuration and control plane. Reference: Juniper Logical Systems Documentation.

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding Multinode HA:

Chassis Cluster in Active/Passive Mode:

One node is active, and the other is standby.

Dynamic Routing Protocols:

Run on the active node only.

Option A: Dynamic routing is active on one device at a time.

Explanation:

In active/passive HA, dynamic routing protocols run only on the primary (active) node.

==========

To enable advanced policy-based routing in Junos OS and activate a static route with a next-hop address in the inet.0 table within your routing instance, you should utilize RIB groups. RIB groups allow you to import routes from one routing table to another. In this scenario, the static route within the routing instance needs access to the inet.0 routes, which is facilitated by configuring a RIB group. Juniper’s documentation outlines RIB groups as a necessary component for handling instances where routes need to be shared across routing tables, thereby ensuring seamless traffic flow through specified routes. For more details, refer to the Juniper Networks Documentation on RIB Groups.

In Junos OS for SRX Series devices, when enabling advanced policy-based routing and configuring a static route with a next-hop from the inet.0 routing table, the issue arises because the static route is not being used in the routing instance. This is a common scenario when the next-hop belongs to a different routing table or instance, and the routing instance is not aware of that next-hop.

To resolve this, RIB (Routing Information Base) groups are used. RIB groups allow routes from one routing table (RIB) to be shared or imported into another routing table. This means that the routing instance can import the necessary routes from inet.0 and make them available for the routing instance where the policy-based routing is applied.

Detailed Steps:

Configure the Static Route: First, configure the static route pointing to the next-hop in inet.0. Here’s an example:

bash

set routing-options static route 10.1.1.0/24 next-hop 192.168.1.1

This static route will be placed in the inet.0 routing table by default.

Create and Apply a RIB Group: To import routes from inet.0 into the routing instance, create a RIB group configuration. This will allow the static route from inet.0 to be visible within the routing instance.

Example configuration for the RIB group:

bash

set routing-options rib-groups RIB-GROUP import-rib inet.0

set routing-options rib-groups RIB-GROUP import-rib .inet.0

This configuration ensures that routes from inet.0 are imported into the specified routing instance.

Apply the RIB Group to the Routing Instance: Once the RIB group is configured, apply it to the appropriate routing instance:

bash

set routing-instances routing-options rib-group RIB-GROUP

Verify Configuration: Use the following command to verify that the static route has been imported into the routing instance:

bash

show route table .inet.0

The output should now display the static route imported from inet.0.

Juniper Security Reference:

RIB Groups Overview: Juniper's documentation provides detailed information on how RIB groups function and how to use them to share routes between different routing tables. This is essential for scenarios involving policy-based routing where routes from one instance (like inet.0) need to be available in another instance. Reference: Juniper Networks Documentation on RIB Groups.

By using RIB groups, you ensure that the static route from inet.0 is available in the appropriate routing instance for policy-based routing to function correctly. This avoids the need for other methods like filter-based forwarding or transparent mode, which do not address the specific issue of static route visibility across routing instances.

==========

==========

==========

==========

==========

==========

Explanation of Answer A (Session Reclassification):

APBR (Advanced Policy-Based Routing) requires the session to be classified based on the specified rule, which can change midstream as additional packets are processed. If the session was already established before the APBR rule took effect, the traffic may not be correctly reclassified to match the new APBR rule, leading to IDP (Intrusion Detection and Prevention) processing instead of being bypassed. This can occur especially when the session was already established before the rule change.

Explanation of Answer C (Application Services Bypass):

For APBR to work and bypass the IDP service, the application services bypass must be explicitly configured. Without this configuration, the APBR rule may redirect the traffic, but the IDP service will still inspect and potentially drop the traffic. This is especially important for traffic destined for specific sites like social media platforms where bypassing IDP is desired.

Example configuration for bypassing IDP services:

bash

set security forwarding-options advanced-policy-based-routing profile application-services-bypass

Step-by-Step Resolution:

Reclassify the Session Midstream:

If the traffic was already being processed before the APBR rule was applied, ensure that the session is reclassified by terminating the current session or ensuring the APBR rule is applied from the start.

Command to clear the session:

bash

clear security flow session destination-prefix

Configure Application Services Bypass:

Ensure that the APBR rule includes the application services bypass configuration to properly bypass IDP or any other security services for traffic that should not be inspected.

Example configuration:

bash

set security forwarding-options advanced-policy-based-routing profile application-services-bypass

Juniper Security Reference:

Session Reclassification in APBR: APBR requires reclassification of sessions in real-time to ensure midstream packets are processed by the correct rule. This is crucial when policies change dynamically or new rules are added.

Application Services Bypass in APBR: This feature ensures that security services such as IDP are bypassed for traffic that matches specific APBR rules. This is essential for applications where performance is a priority and security inspection is not necessary.

==========

==========

Each tenant system maintains its own configuration database, isolating configurations from others, enhancing security and operational efficiency. Junos OS supports multiple concurrent commit operations across tenant systems. Further details are covered in the Juniper Tenant System Guide.

When configuring tenant systems on an SRX device, the following principles apply:

Tenant Systems Have Their Own Configuration Database (Answer C): Each tenant system has its own isolated configuration database, ensuring that changes made in one tenant system do not affect others. This allows for multi-tenant environments where different tenants can have independent configurations.

Commit Multiple Tenant Systems Simultaneously (Answer D): The system allows for multiple tenant systems to be committed at the same time, simplifying management when working with multiple tenants. This is particularly useful in large environments where multiple logical systems or tenants need updates simultaneously.

The problem describes two offices needing to communicate, but both share the same IP address space, 192.168.100.0/24. To resolve this, NAT must be configured to translate the conflicting address spaces on each side. Here’s how each of the configurations works:

Option A (Correct):This source NAT rule translates the source address of traffic from Office B to Office A. By configuring source NAT, the source IP addresses from Office B (192.168.210.0/24) will be translated when communicating with Office A (192.168.200.0/24). This method ensures that there is no overlap in address space when packets are transmitted between the two offices.

Option D (Correct):This is a source NAT rule configured on Office B, which translates the source addresses from Office A to prevent address conflicts. It ensures that when traffic is initiated from Office A to Office B, the overlapping address range (192.168.100.0/24) is translated.

Options B and C (Incorrect):These options involve static NAT rules that map address ranges between the two offices, but they do not resolve the overlapping IP address space issue effectively. Static NAT is not the optimal solution in this scenario since the problem involves address space conflict, which requires translation of source addresses during communication.

Juniper References:

Juniper NAT Configuration Guide: Detailed instructions on how to configure source NAT and resolve address conflicts between networks.

==========
