MCIA-Level-1 MuleSoft Certified Integration Architect - Level 1 Questions and Answers

CloudHub, part of MuleSoft's Anypoint Platform, is an example of a Platform as a Service (PaaS) offering. PaaS provides a cloud-based platform that allows developers to build, deploy, and manage applications without dealing with the complexities of maintaining the underlying infrastructure. CloudHub provides the necessary tools and services to develop and deploy Mule applications and APIs in the cloud, offering features such as scalability, high availability, monitoring, and management. This allows developers to focus on writing code and developing applications rather than managing servers and infrastructure.

References

• MuleSoft CloudHub Documentation
• Overview of Cloud Computing Service Models

Explanation

As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO).

Configure identity management using one of the following single sign-on standards:

1) OpenID Connect: End user identity verification by an authorization server including SSO

2) SAML 2.0: Web-based authorization including cross-domain SSO

According to MuleSoft, a significant business benefit associated with an API-led connectivity approach using Anypoint Platform is increased developer productivity through self-service of API assets. API-led connectivity promotes the creation of reusable APIs that can be easily discovered and consumed by developers across the organization. This self-service model reduces dependencies, accelerates development, and fosters innovation by enabling teams to quickly build and integrate applications using existing APIs without waiting for central IT to provide access.

References:

• API-led Connectivity: The Key to Unlocking IT Agility
• Benefits of API-led Connectivity

Explanation

* Correct answer is To directly reference one shared and customized log4j2.xml file from multiple Mule applications. Key word  to note in the answer is directly.

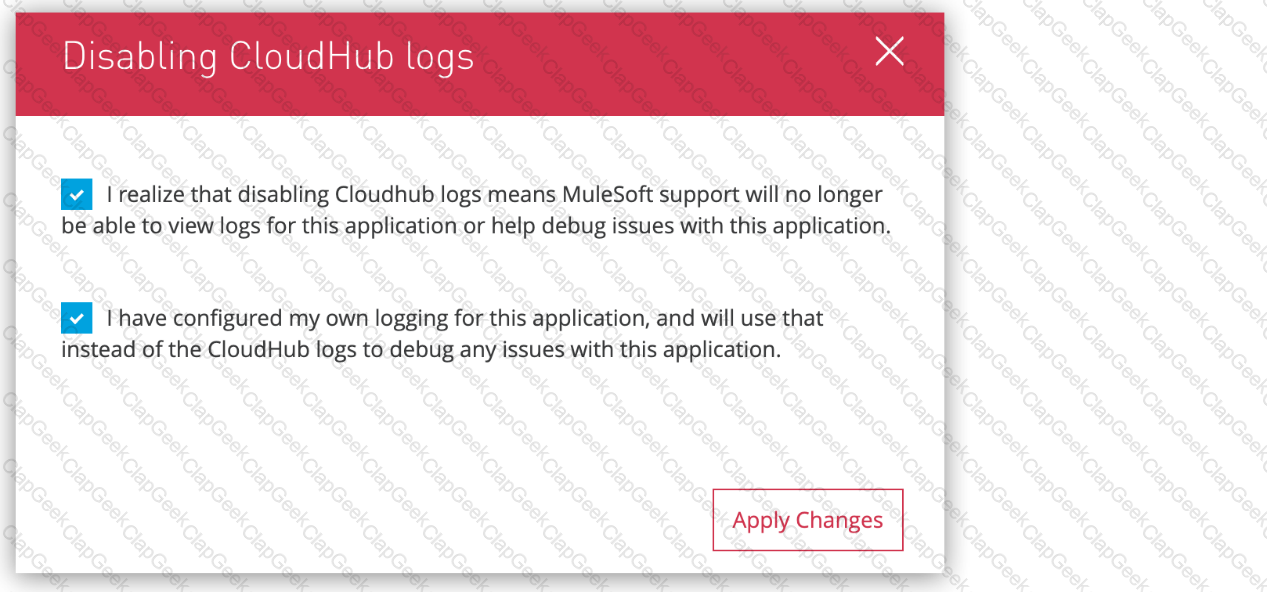

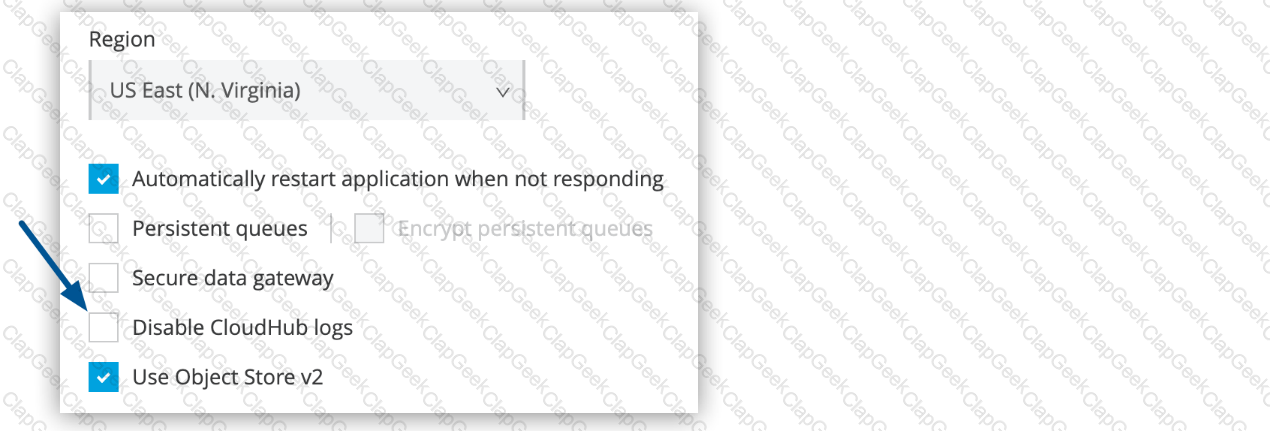

* By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. This specifies the CloudHub appender to write logs to the CloudHub logging service.

* You cannot modify CloudHub log4j2.xml file to add any custom appender. But there is a process in order to achieve this. You need to raise a request on support portal to disable CloudHub provided Mule application log4j2 file.

Graphical user interface, application, Word Description automatically generated

* Once this is done , Mule application's log4j2.xml file is used which you can use to send/export application logs to other log4j2 appenders, such as a custom logging system MuleSoft does not own any responsibility for lost logging data due to misconfiguration of your own log4j appender if it happens by any chance.

Graphical user interface, text, application, email Description automatically generated

* One more difference between customer-hosted Mule runtimes and CloudHub deployed mule instance is that

- CloudHub system log messages cannot be sent to external log management system without installing custom CH logging configuration through support

- where as Customer-hosted runtime can send system and application log to external log management system

MuleSoft Reference:

https://docs.mulesoft.com/runtime-manager/viewing-log-data

https://docs.mulesoft.com/runtime-manager/custom-log-appender

Explanation

* Roles are business group specific. Configure identity management in the Anypoint Platform master organization. As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). * Roles and permissions can be set up at business group and organization level also. But Identity Management setup is only done at Organization level * Business groups are self-contained resource groups that contain Anypoint Platform resources such as applications and APIs. Business groups provide a way to separate and control access to Anypoint Platform resources because users have access only to the busine

Explanation

* Mule Domain Project is ONLY available for customer-hosted Mule runtimes, but not for Anypoint Runtime Fabric

* Mule domain project is available for Hybrid and Private Cloud (PCE). Rest all provide application isolation and can't support domain project.

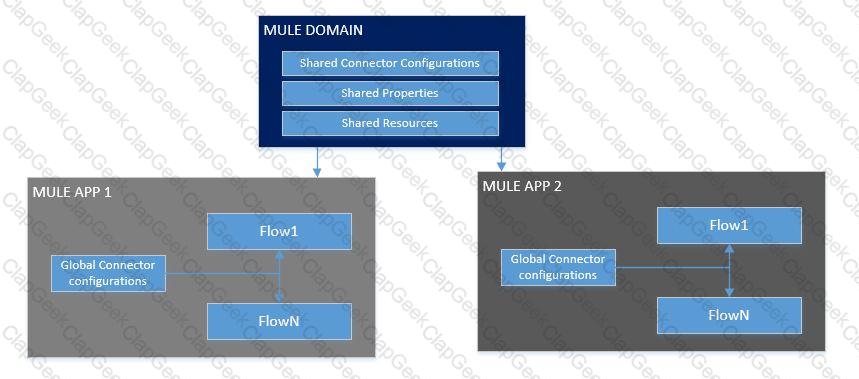

What is Mule Domain Project?

* A Mule Domain Project is implemented to configure the resources that are shared among different projects. These resources can be used by all the projects associated with this domain. Mule applications can be associated with only one domain, but a domain can be associated with multiple projects. Shared resources allow multiple development teams to work in parallel using the same set of reusable connectors. Defining these connectors as shared resources at the domain level allows the team to: - Expose multiple services within the domain through the same port. - Share the connection to persistent storage. - Share services between apps through a well-defined interface. - Ensure consistency between apps upon any changes because the configuration is only set in one place.

* Use domains Project to share the same host and port among multiple projects. You can declare the http connector within a domain project and associate the domain project with other projects. Doing this also allows to control thread settings, keystore configurations, time outs for all the requests made within multiple applications. You may think that one can also achieve this by duplicating the http connector configuration across all the applications. But, doing this may pose a nightmare if you have to make a change and redeploy all the applications.

* If you use connector configuration in the domain and let all the applications use the new domain instead of a default domain, you will maintain only one copy of the http connector configuration. Any changes will require only the domain to the redeployed instead of all the applications.

You can start using domains in only three steps:

1) Create a Mule Domain project

2) Create the global connector configurations which needs to be shared across the applications inside the Mule Domain project

3) Modify the value of domain in mule-deploy.properties file of the applications

Graphical user interface Description automatically generated

* "100% increase in the throughput of the API" might look correct, as the number of requests processed per second might increase, but is it guaranteed to increase by 100%? Using 4 nodes will definitely increase throughput of system. But it is cant be precisely said if there would be 100% increase in throughput as it depends on many other factors. Also it is nowhere mentioned in the description that all nodes have same CPU/memory assigned. The question is about the guaranteed behavior * Increasing number of nodes will have no impact on response time as we are scaling application horizontally and not vertically. Similarly there is no change in JVM heap memory usage. * So Correct answer is 50% reduction in the number of requests being received by each node This is because of the two reasons. 1) API is mentioned as stateless 2) Load Balancer is used

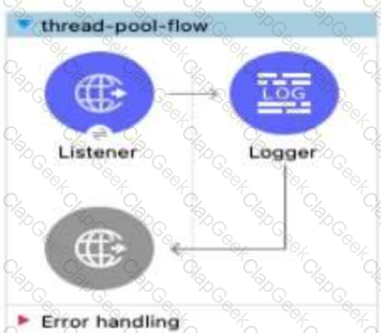

In the context of Mule applications running on Runtime Fabric for Self-Managed Kubernetes (RTF-BYOKS) in a multi-cloud environment, understanding the thread pools used for communication between Agents and Runtime Manager is crucial:

• Shared NIO Selector Pool: This pool is responsible for handling non-blocking IO operations, such as network communication. It ensures efficient handling of IO operations by using a small number of threads to manage multiple IO tasks simultaneously.
• CPU_LITE: This thread pool is used for lightweight CPU operations. It is designed to handle tasks that do not require significant computational resources, ensuring that lightweight operations are processed efficiently without overwhelming the system.

The combination of the Shared NIO Selector Pool and CPU_LITE thread pool ensures efficient and reliable communication between Agents and Runtime Manager in the RTF environment.

References:

• MuleSoft Threading and Thread Pools
• Runtime Fabric Architecture

Explanation

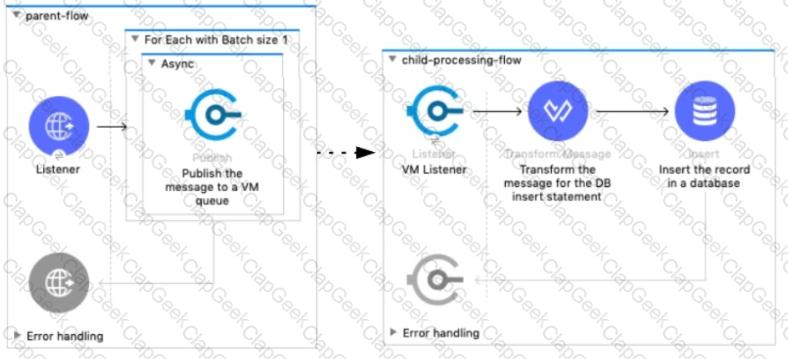

Correct answer is EACH item VM message is processed AT LEAST ONCE by ONE ARBITRARY CloudHub worker. Each of the four CloudHub workers can be expected to process some item VM messages In Cloudhub, each persistent VM queue is listened on by every CloudHub worker - But each message is read and processed at least once by only one CloudHub worker and the duplicate processing is possible - If the CloudHub worker fails , the message can be read by another worker to prevent loss of messages and this can lead to duplicate processing - By default , every CloudHub worker's VM Listener receives different messages from VM Queue Referenece: https://dzone.com/articles/deploying-mulesoft-application-on-1-worker-vs-mult

Explanation

Correct answer is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU Explanation : Using Anypoint MQ, you can create two types of queues: Standard queue These queues don’t guarantee a specific message order. Standard queues are the best fit for applications in which messages must be delivered quickly. FIFO (first in, first out) queue These queues ensure that your messages arrive in order. FIFO queues are the best fit for applications requiring strict message ordering and exactly-once delivery, but in which message delivery speed is of less importance Use of FIFO queue is no where in the option and also it decreased throughput. Similarly persistent object store is not the preferred solution approach when you maximizing message throughput. This rules out one of the options. Scatter Gather does not support ObjectStore. This rules out one of the options. Standard Anypoint MQ queues don’t guarantee a specific message order hence using another for each block to collect response wont work as requirement here is to ensure the order. Hence considering all the above factors the feasible approach is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU

Explanation

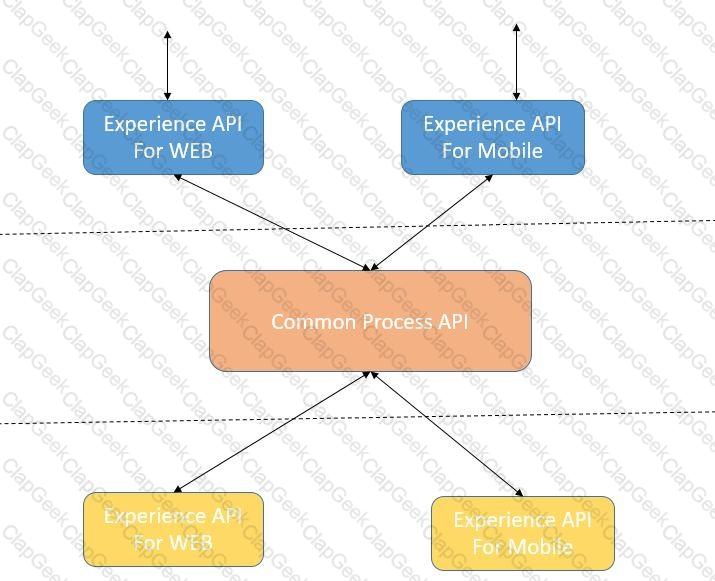

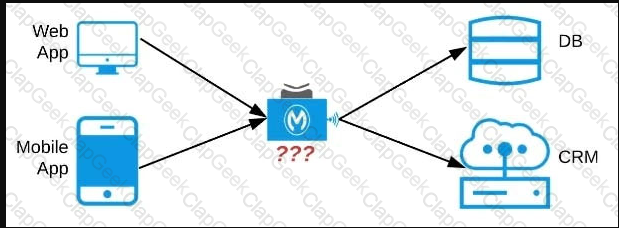

Lets analyze the situation in regards to the different options available Option : A common Experience API but separate Process APIs Analysis : This solution will not work because having common experience layer will not help the purpose as mobile and web applications will have different set of requirements which cannot be fulfilled by single experience layer API

Option : Common Process API Analysis : This solution will not work because creating a common process API will impose limitations in terms of flexibility to customize API;s as per the requirements of different applications. It is not a recommended approach.

Option : Separate set of API's for both the applications Analysis : This goes against the principle of Anypoint API-led connectivity approach which promotes creating reusable assets. This solution may work but this is not efficient solution and creates duplicity of code.

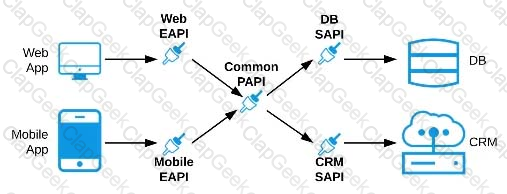

Hence the correct answer is: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system

A screenshot of a computer Description automatically generated with low confidence

Lets analyze the situation in regards to the different options available Option : A common Experience API but separate Process APIs Analysis : This solution will not work because having common experience layer will not help the purpose as mobile and web applications will have different set of requirements which cannot be fulfilled by single experience layer API

Option : Common Process API Analysis : This solution will not work because creating a common process API will impose limitations in terms of flexibility to customize API;s as per the requirements of different applications. It is not a recommended approach.

Option : Separate set of API's for both the applications Analysis : This goes against the principle of Anypoint API-led connectivity approach which promotes creating reusable assets. This solution may work but this is not efficient solution and creates duplicity of code.

Hence the correct answer is: Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system

Diagram Description automatically generated

Explanation

Correct answer is For Each scope in the parent flow On Error Continue error handler in the child flow. You can extract below set of requirements from the question a) Records should be sent to downstream system in the same order that it was received in the array b) Any validation or communication failures should not prevent further processing of the remaining records First requirement can be met using For Each scope in the parent flow and second requirement can be met using On Error Continue scope in child flow so that error will be suppressed.

During the API implementation phase, the integration team should use the API specification to build the MuleSoft application. This involves leveraging the defined API contract to guide the development of the API’s actual implementation. By adhering to the specification, developers ensure that the API meets the agreed-upon requirements and behaviors. This phase includes coding, integrating with backend systems, and ensuring that the implementation aligns with the design and functional requirements outlined in the API specification.

References:

• API-led Connectivity Best Practices
• API Lifecycle Management

Explanation

Correct answer is Batch-triggered ETL Within a Mule application, batch processing provides a construct for asynchronously processing larger-than-memory data sets that are split into individual records. Batch jobs allow for the description of a reliable process that automatically splits up source data and stores it into persistent queues, which makes it possible to process large data sets while providing reliability. In the event that the application is redeployed or Mule crashes, the job execution is able to resume at the point it stopped.

To meet the requirements of enriching logging with more context and improving throughput while reducing latency, the customer should use an asynchronous logging approach. Here's why option B is correct:

• Async Logger: Asynchronous logging helps in improving the performance by decoupling the logging from the main thread of execution. This reduces the latency of message processing since logging operations are offloaded to a separate thread.
• Logging Level Greater than INFO: Logging at levels such as WARN, ERROR, or FATAL ensures that only essential logs are written asynchronously, further enhancing performance. Avoiding DEBUG or TRACE levels unless necessary reduces the overhead of logging.
• Pattern Layout with [%MDC]: Using the pattern layout with [%MDC] in the log4j2.xml configuration file allows the inclusion of mapped diagnostic context in the logs. MDC is a feature that provides context-specific information, such as transaction IDs or user IDs, which helps in tracing and debugging.

Example configuration in log4j2.xml:

This configuration ensures that the logs are enriched with context information provided by MDC and processed asynchronously to maintain high throughput and low latency.

References

• Log4j2 Asynchronous Logging
• Mapped Diagnostic Context (MDC) in Log4j2

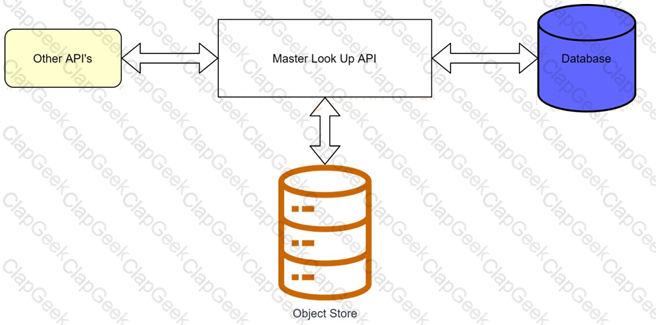

A. Implement HTTP caching policy for all GET endpoints for the master lookup API and implement locking to synchronize access to object store

Comprehensive Detailed Step by Step ExplanationTo resolve the performance issue observed during the performance testing of the Master lookup API, the best approach involves caching and synchronization:

• HTTP Caching Policy:
• Object Store Locking:

By implementing these two strategies, the response time of the Master lookup API will be significantly improved, and the performance issue will be resolved.

References

• MuleSoft HTTP Caching Policy
• MuleSoft Object Store Connector

Explanation

Correct answer is Depending on the Listener operation configuration, either all messages are consumed by ONLY the primary cluster node or else EACH message is consumed by ANY ONE cluster node

For applications running in clusters, you have to keep in mind the concept of primary node and how the connector will behave. When running in a cluster, the JMS listener default behavior will be to receive messages only in the primary node, no matter what kind of destination you are consuming from. In case of consuming messages from a Queue, you’ll want to change this configuration to receive messages in all the nodes of the cluster, not just the primary.

This can be done with the primaryNodeOnly parameter:

The MuleSoft-recommended best practice for sharing the connector and configuration information among multiple APIs is to use a Mule domain project. The steps are:

• Create a Mule domain project.
• Add the Database connector and its configuration to the domain project.
• Reference this domain project from each System API that needs to use the Database connector and configuration.

By using a domain project, you centralize the configuration and reuse it across multiple APIs. This approach ensures consistency, reduces duplication, and simplifies maintenance and updates to the connector configuration.

References

• MuleSoft Documentation on Domain Projects
• Best Practices for Reusable Configuration in MuleSoft

Both Service Oriented Architecture (SOA) and API-led connectivity emphasize the principle of service reusability. This principle involves designing services and APIs in a way that they can be reused across different applications and use cases, reducing redundancy and improving efficiency. By creating reusable services, organizations can accelerate development, maintain consistency, and reduce costs associated with developing and maintaining multiple similar services.

References:

• MuleSoft's API-led Connectivity Approach
• Service-Oriented Architecture (SOA) Principles

• To design an integration Mule application that processes orders and ensures reliability even with an unreliable back-end system, the following components and ActiveMQ queues should be used:

• Until Successful Scope: This scope ensures that the Mule application will continue trying to submit the order to the back-end system until it succeeds or reaches a specified retry limit. This helps in handling transient network issues or minor outages of the back-end system.
• ActiveMQ Long-Retry Queues: By placing the orders in long-retry queues, the application can manage retries over an extended period. This is particularly useful when the back-end system experiences longer outages. The ActiveMQ broker, located within the organization’s firewall, can reliably handle these queues.
• ActiveMQ Dead-Letter Queues: Orders that cannot be successfully submitted after all retry attempts should be moved to dead-letter queues. This allows for manual processing of these orders. The dead-letter queue ensures that no orders are lost and provides a clear mechanism for handling failed submissions.

Implementation Steps:

• HTTP Listener: Set up an HTTP listener to receive incoming orders.
• Immediate Acknowledgment: Immediately acknowledge the receipt of the order to the client.
• Until Successful Scope: Use the Until Successful scope to attempt submitting the order to the back-end system. Configure retry intervals and limits.
• Long-Retry Queues: Configure ActiveMQ long-retry queues to manage retries.
• Dead-Letter Queues: Set up ActiveMQ dead-letter queues for orders that fail after maximum retry attempts, allowing for manual intervention.

This approach ensures that the system can handle temporary and prolonged back-end outages while minimizing manual processing.

References:

• MuleSoft Documentation on Until Successful Scope: https://docs.mulesoft.com/mule-runtime/4.3/until-successful-scope
• ActiveMQ Documentation: https://activemq.apache.org/

To improve delivery quality, a MuleSoft integration team should adopt automated testing with MUnit. MUnit is MuleSoft's testing framework that allows developers to create, design, and run unit and integration tests on their Mule applications. Automated testing with MUnit ensures that each part of the Mule application is tested for correctness and performance, catching issues early in the development cycle. This practice leads to higher quality code, reduced defects, and more reliable integrations.

Other practices mentioned, such as continuous design with API Designer and passive monitoring with Anypoint Monitoring, are important but do not directly address the need for rigorous and automated testing to ensure quality.

References

• MuleSoft Documentation on MUnit
• Best Practices for Automated Testing with MUnit

To securely consume compressed and digitally signed files from a partner's FTPS server, the following inputs are required:

• PGP Public Key of the Partner:
• PGP Private Key for the Company:
• FTP Username and Password:

By using these inputs, the Mule application can securely connect to the FTPS server, verify the integrity and authenticity of the files using PGP, and decrypt the contents for further processing.

References

• MuleSoft FTPS Connector
• MuleSoft PGP Module

To design a caching strategy that queries the database only when there is an update to the Employees table, follow these steps:

• On Table Row Operation: Configure an On Table Row operation to monitor the Employees table for updates.
• Invalidate Cache: When the On Table Row operation detects an update, trigger the invalidate cache operation to clear the cache.
• Object Store Caching Strategy: Use an object-store-caching-strategy to store the cached responses.
• Default Expiration Interval: Use the default expiration interval for the cache, which ensures that cached data is invalidated based on the detection of changes in the Employees table rather than a fixed time interval.

This strategy ensures that the cache is only invalidated when there are actual changes in the Employees table, thereby minimizing redundant transactions and optimizing database performance.

References

• MuleSoft Documentation on Caching Strategies
• Best Practices for Database Integration with MuleSoft

MuleSoft customers often favor a MuleSoft-hosted Anypoint Platform runtime plane over a customer-hosted runtime for the following reasons:

• Reduced time-to-market for the first application (C): Using a MuleSoft-hosted runtime plane accelerates the deployment process because MuleSoft manages the infrastructure, allowing customers to focus on developing and deploying their applications quickly. This leads to faster time-to-market for the initial application and subsequent updates.
• Reduced IT operations effort (E): By leveraging a MuleSoft-hosted environment, customers offload the operational responsibilities, such as infrastructure maintenance, updates, and scalability management, to MuleSoft. This reduces the IT operations workload and allows internal teams to focus on more strategic initiatives.

In contrast, other options like reduced application latency and increased application throughput are not directly influenced by whether the runtime plane is MuleSoft-hosted or customer-hosted.

References

• MuleSoft Anypoint Platform Documentation
• MuleSoft Hosted vs. Customer Hosted Deployment Guides

Explanation

Correct answer is Request size, number of requests, response size, response time Analytics API Analytics can provide insight into how your APIs are being used and how they are performing. From API Manager, you can access the Analytics dashboard, create a custom dashboard, create and manage charts, and create reports. From API Manager, you can get following types of analytics: - API viewing analytics - API events analytics - Charted metrics in API Manager

It can be accessed using: http://anypoint.mulesoft.com/analytics

API Analytics provides a summary in chart form of requests, top apps, and latency for a particular duration.

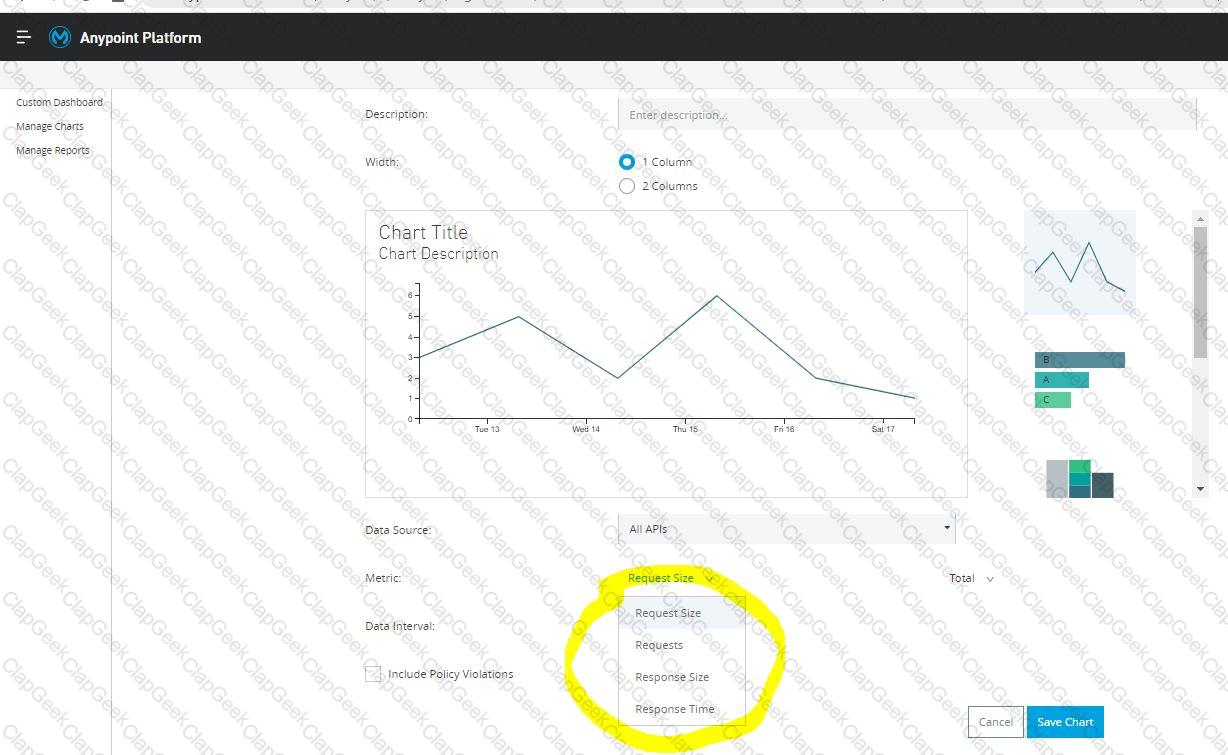

The custom dashboard in Anypoint Analytics contains a set of charts for a single API or for all APIs Each chart displays various API characteristics

– Requests size: Line chart representing size of requests in KBs

– Requests : Line chart representing number of requests over a period

– Response size : Line chart representing size of response in KBs

– Response time :Line chart representing response time in ms

* To check this, You can go to API Manager > Analytics > Custom Dashboard > Edit Dashboard > Create Chart > Metric

Graphical user interface, chart Description automatically generated

API Manager is a component of the Anypoint Platform's control plane. The control plane in Anypoint Platform is responsible for managing, securing, and monitoring APIs and integrations. API Manager specifically provides tools for API governance, including policy enforcement, analytics, security, and lifecycle management. It allows organizations to manage APIs centrally, ensuring they adhere to compliance and security standards while providing insights into API usage and performance.

References:

• Anypoint Platform Control Plane
• Managing APIs with API Manager

Explanation

* Mule High Availability Clustering provides basic failover capability for Mule. * When the primary Mule Runtime becomes unavailable, for example, because of a fatal JVM or hardware failure or it’s taken offline for maintenance, a backup Mule Runtime immediately becomes the primary node and resumes processing where the failed instance left off. * After a system administrator recovers a failed Mule Runtime server and puts it back online, that server automatically becomes the backup node. In this case, Alice, once up, will become backup ---------------------------------------------------------------------------------------------------------------------------------------------- Reference: https://docs.mulesoft.com/mule-runtime/4.3/hadr-guide So correct choice is : Files are polled form Bob node Bob is now the primary node

REST (Representational State Transfer) is an architectural style for designing networked applications. It supports multiple content types, including XML and JSON, making it suitable for APIs that need to handle requests from clients in both formats. RESTful APIs use standard HTTP methods (GET, POST, PUT, DELETE) and are designed to be stateless and scalable. REST's flexibility and wide adoption make it an appropriate choice for the integration architect’s requirements.

References:

• REST API Design
• Understanding RESTful API Design

In a clustered Mule runtime environment, when using a JMS listener to consume messages from a queue destination, it is essential to ensure that messages are appropriately received by all nodes in the cluster. The configuration must support high availability and scalability. Here's why option B is correct:

• primaryNodeOnly="false": Setting this parameter to "false" ensures that the JMS listener is active on all nodes in the cluster, not just the primary node. This setting allows multiple instances of the JMS listener to run concurrently across different nodes, enabling them to consume messages from the JMS queue.
• Shared Subscription: Using a shared subscription means that all nodes will share the consumption of messages from the queue. This approach prevents duplicate message processing, as each message is delivered to only one listener instance within the cluster. This configuration ensures that message processing is balanced across the nodes, improving throughput and reliability.

To configure the JMS listener in Mule, the XML configuration might look something like this:

xml

This setup ensures that all nodes in the cluster are involved in message processing, leveraging the high availability and load balancing capabilities of the cluster.

References

• MuleSoft Documentation on JMS Listener
• MuleSoft Clustering Guide

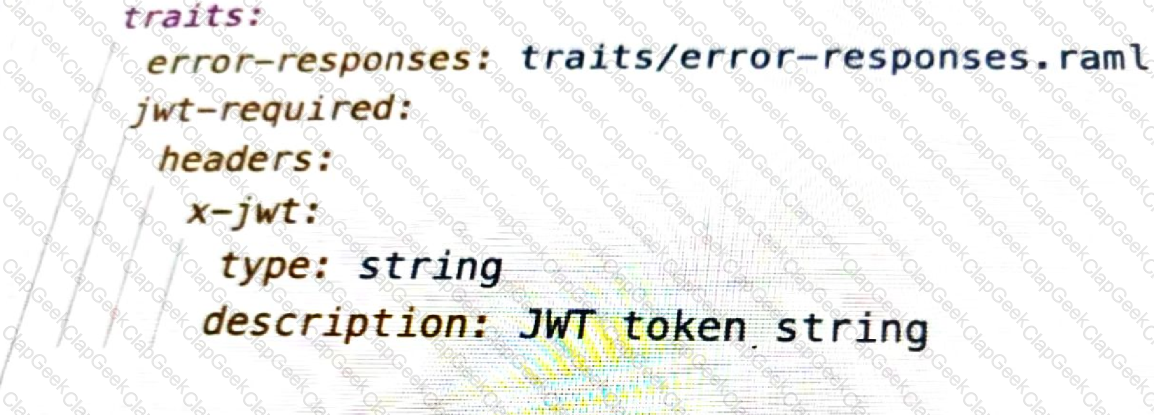

The data format shown in the exhibit is YAML (YAML Ain't Markup Language). YAML is a human-readable data serialization standard that is commonly used for configuration files and data exchange between languages with different data structures. In the exhibit, the indentation and the use of colons to define key-value pairs are characteristic of YAML.

JSON (JavaScript Object Notation) and XML (eXtensible Markup Language) have different syntax structures, and CSV (Comma-Separated Values) is a flat file format that uses commas to separate values. The format shown in the exhibit fits the structure and style of YAML.

References

• YAML Specification Documentation
• MuleSoft Documentation on Supported Data Formats

• Parallel Execution:
• Transaction Management:
• Error Handling and Rollback:

References:

• MuleSoft Documentation on Scatter-Gather
• Transaction management in MuleSoft

=========================

Explanation

•Scatter Gather: When running within a transaction, Scatter Gather does not execute in parallel. This means that the second route is executed after the first one is processed, the third after the second one, etc. In case of error, all routes will be rolled back

According to MuleSoft's IT delivery and operating model, one effective approach to reduce the frequency of IT project delivery failures is to decouple central IT projects from the innovation that happens within each line of business. This approach allows individual business units to innovate and develop solutions tailored to their specific needs while the central IT team focuses on providing core services and governance. By decentralizing innovation, organizations can increase agility, reduce bottlenecks, and foster a more responsive IT environment that can quickly adapt to changing business requirements.

References

• MuleSoft IT Operating Model Guidelines
• Anypoint Platform Documentation on Decoupling IT Projects

When a Mule application using VM queues is deployed to a customer-hosted cluster or multiple CloudHub v1.0 workers/replicas, messages are consumed in a non-deterministic way. This means that any of the nodes in the cluster or any of the workers can consume the messages from the VM queues, but there is no guaranteed order or specific pattern (such as round-robin or sequential processing).

This non-deterministic message consumption helps in distributing the load and handling messages more efficiently across multiple nodes or workers, improving the scalability and reliability of the application.

References

• MuleSoft Documentation on VM Queues and Clustering
• Best Practices for Deploying Mule Applications in Clusters

Explanation

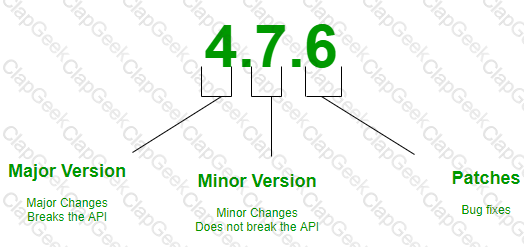

* Semantic Versioning is a 3-component number in the format of X.Y.Z, where :

X stands for a major version.

Y stands for a minor version:

Z stands for a patch.

So, SemVer is of the form Major.Minor.Patch Coming to our question , minor version of the API has been changed which is backward compatible. Hence there is no change required on API client end. If they want to make use of new featured that have been added as a part of minor version change they may need to change code at their end. Hence correct answer is The API client code ONLY needs to be changed if it needs to take advantage of new features.

Diagram Description automatically generated

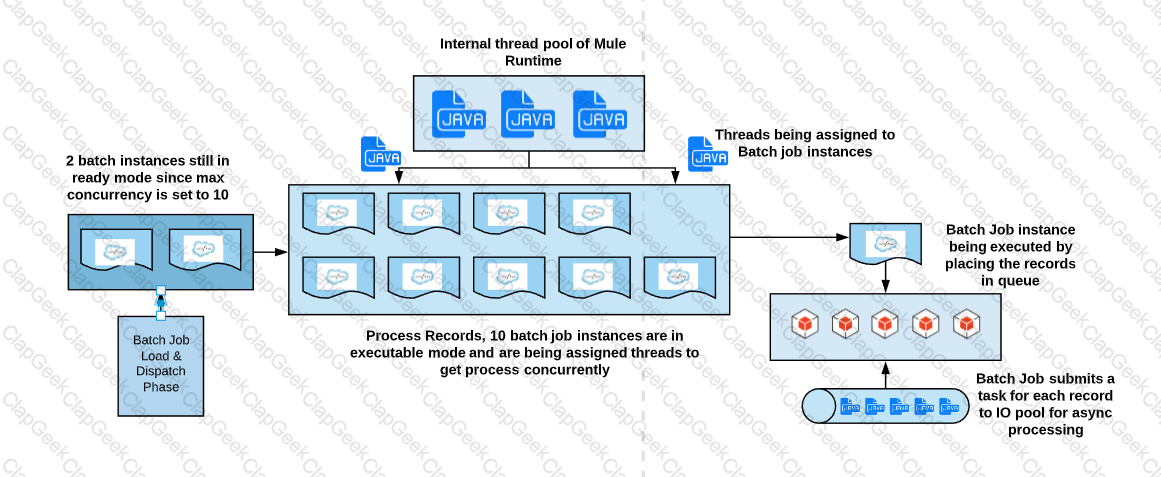

* Each Batch Job uses SEVERAL THREADS for the Batch Steps

* Each Batch Step instance receives ONE record at a time as the payload. It's not received in a block, as it does not wait for multiple records to be completed before moving to next batch step. (So Option D is out of choice)

* RECORDS are processed IN PARALLEL within and between the two Batch Steps.

* RECORDS are not processed in order. Let's say if second record completes batch_step_1 before record 1, then it moves to batch_step_2 before record 1. (So option C and D are out of choice)

* A batch job is the scope element in an application in which Mule processes a message payload as a batch of records. The term batch job is inclusive of all three phases of processing: Load and Dispatch, Process, and On Complete.

* A batch job instance is an occurrence in a Mule application whenever a Mule flow executes a batch job. Mule creates the batch job instance in the Load and Dispatch phase. Every batch job instance is identified internally using a unique String known as batch job instance id.

Data confidentiality involves protecting information from unauthorized access and disclosure. Encrypting a file containing personally identifiable information (PII) is a prime example of ensuring data confidentiality. Encryption transforms the data into a format that is unreadable without the appropriate decryption key, thereby safeguarding sensitive information such as PII from being accessed by unauthorized parties. This measure is essential for compliance with data protection regulations and maintaining the privacy and security of personal data.

References

• MuleSoft Security Best Practices
• Data Protection and Encryption Standards Documentation

• When using MUnit's test recorder in Anypoint Studio to create unit tests, consider the following points:

A. Tests for flows cannot be created with Mule errors raised inside the flow or already existing in the incoming event:

• Explanation: The test recorder cannot record flows if Mule errors are raised during the flow execution or if the incoming event already contains errors. This limitation requires users to handle or clear errors before recording the flow to ensure accurate test creation.

D. A recorded flow execution ends successfully but the result does not reach its destination because the application is killed:

• Explanation: If the application is killed before the recorded flow execution completes, the recorder captures the flow up to the point of termination. However, the final result may not be reached or recorded. This scenario should be avoided to ensure complete and reliable test recordings.

These considerations help ensure the accuracy and reliability of tests created using the test recorder.

References:

• MUnit Documentation: https://docs.mulesoft.com/munit/2.2/
• MUnit Test Recorder: https://blogs.mulesoft.com/dev/mule-dev/using-the-munit-test-recorder/

Explanation

Correct answer is When server-side load-balanced TLS mutual authentication is required between API implementations and API clients CloudHub dedicated load balancers (DLBs) are an optional component of Anypoint Platform that enable you to route external HTTP and HTTPS traffic to multiple Mule applications deployed to CloudHub workers in a Virtual Private Cloud (VPC). Dedicated load balancers enable you to: * Handle load balancing among the different CloudHub workers that run your application. * Define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication. * Configure proxy rules that map your applications to custom domains. This enables you to host your applications under a single domain

Explanation

Object Store Connector is a Mule component that allows for simple key-value storage. Although it can serve a wide variety of use cases, it is mainly design for: - Storing synchronization information, such as watermarks. - Storing temporal information such as access tokens. - Storing user information. Additionally, Mule Runtime uses Object Stores to support some of its own components, for example: - The Cache module uses an Object Store to maintain all of the cached data. - The OAuth module (and every OAuth enabled connector) uses Object Stores to store the access and refresh tokens. Object Store data is in the same region as the worker where the app is initially deployed. For example, if you deploy to the Singapore region, the object store persists in the Singapore region. MuleSoft Reference : https://docs.mulesoft.com/object-store-connector/1.1/ Data can be shared between different instances of the Mule application. This is not recommended for Inter Mule app communication. Coming to the question, object store cannot be used to share cached data if it is deployed as separate Mule applications or deployed under separate Business Groups. Hence correct answer is When there is one CloudHub deployment of the API implementation to three workers that must share the cache state.

To close the IT delivery gap, MuleSoft recommends that IT organizations make their technology assets easily discoverable via a central repository. This approach ensures that existing assets, such as APIs, connectors, templates, and other reusable components, are accessible to all teams within the organization. By having a central repository, teams can quickly find and leverage these assets, reducing duplication of effort, speeding up project delivery, and fostering a culture of reuse and collaboration. This strategy aligns with the principles of an API-led connectivity approach, where reusable assets and APIs form the foundation for scalable and efficient IT delivery.

References

• MuleSoft Documentation on API-led Connectivity
• Anypoint Platform Best Practices for Asset Management

Explanation

Correct answer is Untill Successful scope can be implemented while calling backend API's The Until Successful scope repeatedly triggers the scope's components (including flow references) until they all succeed or until a maximum number of retries is exceeded The scope provides option to control the max number of retries and the interval between retries The scope can execute any sequence of processors that may fail for whatever reason and may succeed upon retry

Explanation

* On Error Propagate halts execution and sends error to the client. In this scenario it's mentioned that "processing of other rows must not be affected" so Option B and C are ruled out.

* Scatter gather is used to club multiple responses together before processing. In this scenario, we need sequential processing. So option A is out of choice.

* Correct answer is For Each scope & On Error Continue scope Below requirement can be fulfilled in the below way

1) Using For Each scope , which will send each row from csv file sequentially. each row needs to be sent sequentially as requirement is to send the message in exactly the same way as it is mentioned in the csv file

2) Also other part of requirement is if any processing step for a row fails then it should log an error but should not affect other record processing . This can be achieved using On error Continue scope on these set of activities. so that error will not halt the processing. Also logger needs to be added in error handling section so that it can be logged.

* Attaching diagram for reference. Here it's try scope, but similar would be the case with For Each loop.

Diagram Description automatically generated

The File Transfer Protocol (FTP) uses the Transmission Control Protocol (TCP) for reliable communication. TCP is one of the core protocols of the Internet Protocol Suite and provides reliable, ordered, and error-checked delivery of a stream of data between applications running on hosts communicating via an IP network. FTP relies on TCP to ensure that all data packets are delivered accurately and in the correct sequence, which is essential for the reliable transfer of files between a client and server.

References

• IETF RFC 959 - File Transfer Protocol (FTP)
• TCP/IP Protocol Suite Documentation

In a typical REST request, the order of interaction is:

• API Client: The client initiates the request to access data or functionality exposed by the API.
• API Interface: This represents the contract or the definition of the API, often specified in OpenAPI or RAML. It defines the endpoints, request/response formats, and other API details.
• API Implementation: This is the actual backend logic that processes the request and returns the response. It interacts with databases, other services, or performs business logic to fulfill the request.

References:

• Understanding REST APIs
• API Design and Implementation

To meet the reliability requirements for Mule applications deployed to a Runtime Fabric (RTF) cluster, where data needs to be shared across application replicas and persist through restarts, the best approach is to use Anypoint Object Store v2. This service is designed to provide persistent storage that can be shared among different application instances and across restarts. Steps include:

• Configure Object Store v2: Set up Anypoint Object Store v2 in the Mule application to handle data storage needs.
• Persistent Data Handling: Ensure that the configuration allows data to be shared and persist, meeting the requirements for reliability and consistency.

This solution leverages MuleSoft's cloud-based storage service optimized for these use cases, ensuring data integrity and availability.

References

• MuleSoft Documentation on Object Store v2
• Configuring Persistent Data Storage in MuleSoft

Explanation

Every Mule application deployed to CloudHub receives a DNS entry pointing to the CloudHub. The DNS entry is a CNAME for the CloudHub Shared Load Balancer in the region to which the Mule application is deployed. When we deploy the application on CloudHub, we get a generic url to access the endpoints. Generic URL looks as below:

..cloudhub.io is the deployed application name which is unique across all the MuleSoft clients. is the region name in which an application is deployed.

The public CloudHub (shared) load balancer already redirects these requests, where myApp is the name of the Mule application deployment to CloudHub: HTTP requests to http://myApp. .cloudhub.io redirects to

http://mule-worker-myApp. .cloudhub.io:8081

HTTPS traffic to https://myApp. .cloudhub.io redirects to

https://mule-worker-myApp. .cloudhub.io:8082

Correct answer is Create WSDL specification using text editor SOAP services are specified using WSDL. A client program connecting to a web service can read the WSDL to determine what functions are available on the server. We can not create WSDL specification in Design Center. We need to use external text editor to create WSDL.

Explanation

* Scatter-Gather is used for parallel processing, to improve performance. In this scenario, input files are coming from different vendors so mostly at different times. Goal here is to minimize the impact of future change. So scatter Gather is not the correct choice.

* If we use 1 API to receive all files from different Vendors, any new vendor addition will need changes to that 1 API to accommodate new requirements. So Option A and C are also ruled out.

* Correct answer is Create an API that receives the file and invokes a Process API with the data contained in the file, then have the Process API process the data using a MuleSoft Batch Job and other System APIs as needed. Answer to this question lies in the API led connectivity approach.

* API-led connectivity is a methodical way to connect data to applications through a series of reusable and purposeful modern APIs that are each developed to play a specific role – unlock data from systems, compose data into processes, or deliver an experience. System API : System API tier, which provides consistent, managed, and secure access to backend systems. Process APIs : Process APIs take core assets and combines them with some business logic to create a higher level of value. Experience APIs : These are designed specifically for consumption by a specific end-user app or device.

So in case of any future plans , organization can only add experience API on addition of new Vendors, which reuse the already existing process API. It will keep impact minimal.

Diagram Description automatically generated

SOAP API specifications are provided as WSDL. Design center doesn't provide the functionality to create WSDL file. Hence WSDL needs to be created using XML editor

• Timeout Attribute:
• Transaction Management:
• Implications of Timeout:

References:

• MuleSoft Documentation on JMS Connector
• Understanding XA Transactions

For handling millions of requests per day with high performance and reliability, JMS (Java Message Service) transactions are the most suitable method. JMS transactions ensure that messages are processed reliably and can be rolled back in case of failures, providing transactional integrity. This is crucial for a trading company where reliable message processing is critical.

Using JMS transactions within Mule clusters allows for the decoupling of message producers and consumers, improving scalability and fault tolerance. JMS provides built-in mechanisms for handling transactional messaging, ensuring that messages are processed once and only once, even in the event of system failures.

References:

• MuleSoft Documentation on JMS

When using a non-persistent object store in MuleSoft, the state data is stored in memory rather than on disk. This means that if a server crashes, all data stored in the non-persistent object store will be lost because it does not survive a server restart or crash. Non-persistent object stores are typically used for temporary data that does not need to be retained across application restarts. Therefore, in an environment where an API is maintaining its state using a non-persistent object store, a server crash will result in the loss of that state data.

References:

• MuleSoft Documentation on Object Store

After completing the build and test activities for a Mule application that implements a System API, the team should use Runtime Manager to both deploy and monitor the System API implementation. Runtime Manager is a component of Anypoint Platform that provides capabilities for deploying, managing, and monitoring Mule applications and APIs. It allows teams to manage applications and APIs across various environments, ensuring they operate correctly and efficiently.

References:

• Anypoint Runtime Manager
• Deploying and Managing Applications with Runtime Manager

In a distributed application architecture, a service mesh typically manages communication between services within the application. A service mesh provides a dedicated infrastructure layer that handles service-to-service communication, including service discovery, load balancing, failure recovery, metrics, and monitoring. This allows developers to offload these operational concerns from individual services, ensuring consistent and reliable inter-service communication.

References:

• Understanding Service Mesh
• Service Mesh for Microservices

Explanation

Mule 4 is built to:

•Minimize the need for custom code.

•Avoid the need for you to know or understand Java.

However, some advanced uses cases require integration with custom Java code, such as:

•Reuse of a library, such as a tax calculation library.

•Reuse of a canonical object model that is standard in the organization.

•Execution of custom logic using Java.

Mule ref doc : https://docs.mulesoft.com/java-module/1.2/

The Publish/Subscriber Messaging Bus (Pub/Sub) model is well-suited for high-volume, real-time communication and notification requirements. In this scenario, the retailer needs to notify its order management, warehouse, and billing systems within 15 minutes of order submission. Pub/Sub messaging systems enable asynchronous communication where messages (orders) are published to a topic and multiple subscribers (order management, warehouse, billing systems) receive notifications simultaneously. This decouples the systems and ensures that each subscriber receives the message promptly for subsequent processing.

References:

• Understanding Pub/Sub Messaging
• MuleSoft's Approach to Event-Driven Architecture

Object Store v2 (OSv2) in MuleSoft allows multiple applications within the same Anypoint Virtual Private Cloud (VPC) to share data. To achieve this, the OSv2 connector must be configured in each application to access the common persistent object store instance. This configuration enables the applications to read from and write to the same object store, facilitating data sharing. Object Store v2 is designed to be persistent and reliable, making it suitable for scenarios where data needs to be retained and shared across multiple applications.

References:

• MuleSoft Documentation on Object Store v2

Explanation

High availability is about up-time of your application

A) High availability can be achieved only in CloudHub isn't correct statement. It can be achieved in customer hosted runtime planes as well

B) An object store is a facility for storing objects in or across Mule applications. Mule runtime engine (Mule) uses object stores to persist data for eventual retrieval. It can be used for disaster recovery but not for High Availability. Using object store can't guarantee that all instances won't go down at once. So not an appropriate choice.

Explanation

Correct answer is It is not possible to store logs for 2 years in CloudHub deployment. External log management system is required. CloudHub has a specific log retention policy, as described in the documentation: the platform stores logs of up to 100 MB per app & per worker or for up to 30 days, whichever limit is hit first. Once this limit has been reached, the oldest log information is deleted in chunks and is irretrievably lost. The recommended approach is to persist your logs to a external logging system of your choice (such as Splunk, for instance) using a log appender. Please note that this solution results in the logs no longer being stored on our platform, so any support cases you lodge will require for you to provide the appropriate logs for review and case resolution

According to the National Institute of Standards and Technology (NIST), a hybrid cloud is a cloud computing deployment model that describes a composition of two or more distinct cloud infrastructures (private, community, or public) that remain unique entities but are bound together by standardized or proprietary technology that enables data and application portability. Hybrid clouds allow organizations to leverage the advantages of multiple cloud environments, such as combining the scalability and cost-efficiency of public clouds with the security and control of private clouds. This model facilitates flexibility and dynamic scalability, supporting diverse workloads and business needs while ensuring that sensitive data and applications can remain in a controlled private environment.

References

• NIST Definition of Cloud Computing
• Hybrid Cloud Overview and Benefits

• Mule Tracing Module and MDC:
• Set Logging Variable Operations:
• Configuring log4j2.xml:
• Improving Throughput and Lowering Latency:

References:

• MuleSoft Documentation on Mule Tracing: Mule Tracing Module
• Log4j2 Documentation on MDC: Log4j2 MDC

Explanation

Correct answer is Implement transformation logic in the new Mule application using DataWeave, invoking existing transformation services when possible. * The key here minimal testing effort, "Extend existing transformation logic" is not a feasible option because additional functionality is highly specific to the new Mule application so it should not be a part of commonly used functionality. So this option is ruled out. * "Implement transformation logic in the new Mule application using DataWeave, replicating the transformation logic of existing transformation services" Replicating the transformation logic of existing transformation services will cause duplicity of code. So this option is ruled out. * "Implement and expose all transformation logic as microservices using DataWeave, so it can be reused by any application component that needs it, including the new Mule application" as question specifies that the transformation is app specific and wont be used outside

• Requirement Analysis: The organization needs to send email alerts to the internal operations team whenever a policy applied to an API instance is deleted in the CloudHub runtime plane.
• Solution: The most effective approach is to implement a new Mule application that uses the Audit Log REST API to detect when a policy is deleted and then sends an email using the SMTP connector.
• Implementation Steps:

GET /accounts/api/v2/organizations/{orgId}/audit-logs

• uk.co.certification.simulator.questionpool.PList@18be5070

Policy deletion detected: #[payload]

• uk.co.certification.simulator.questionpool.PList@189cae60
• Advantages:

References

• MuleSoft Documentation on Audit Log REST API
• MuleSoft Documentation on SMTP Connector
• MuleSoft Documentation on MuleSoft Scheduler Component

Explanation

Explanation

* It's mentioned that the API is governed by a Client ID Enforcement policy in all environments.

* Client ID Enforcement policy allows only authorized applications to access the deployed API implementation.

* Each authorized application is configured with credentials: client_id and client_secret.

* At runtime, authorized applications provide the credentials with each request to the API implementation.

MuleSoft Reference: https://docs.mulesoft.com/api-manager/2.x/polic y-mule3-client-id-based-policies

In an HTTP/1.1-compliant web service, the class of HTTP response status codes that indicates successful client requests is the 2xx class. These status codes signify that the client's request was successfully received, understood, and accepted by the web service. Common 2xx status codes include:

• 200 OK: The request was successful.
• 201 Created: The request was successful and a new resource was created.
• 202 Accepted: The request has been accepted for processing, but the processing is not yet complete.

Other status code classes like 3xx (redirection), 4xx (client errors), and 5xx (server errors) indicate different types of responses and do not signify successful request processing.

References

• IETF RFC 2616: HTTP/1.1 Specification
• HTTP Status Code Definitions

To automate the promotion and deployment of API Manager policies as part of a CI/CD process, an organization can use the Anypoint CLI (Command Line Interface). The Anypoint CLI provides a set of commands to interact with various components of the Anypoint Platform, including API Manager.

Using the Anypoint CLI, you can:

• Apply policies to API instances.
• Promote APIs and their associated policies across different environments.
• Script these actions as part of the CI/CD pipeline to ensure consistency and automation in managing API policies.

Other tools like the MUnit Maven plugin, Mule Maven plugin, and Runtime Manager agent do not provide direct capabilities to manage API Manager policies.

References

• MuleSoft Anypoint CLI Documentation
• Automating API Management with Anypoint CLI

An application load balancer routes requests to a RESTful web API secured by Anypoint Flex Gateway using the HTTPS protocol. HTTPS (HyperText Transfer Protocol Secure) ensures that the communication between the load balancer and the gateway is encrypted and secure, protecting the data from eavesdropping and tampering. HTTPS is the standard protocol for secure communication over the internet, especially for APIs handling sensitive data.

References:

• Securing APIs with HTTPS
• Understanding HTTPS

When a RAML definition is updated and a new version is published to Anypoint Exchange, the client applications that consume the API need to be updated to utilize the new operations. Here’s how the Mule application team can achieve this:

• Access Anypoint Exchange:
• Update the REST Connector:
• Regenerate Client Code (If Necessary):
• Test New Operations:

References

• MuleSoft Documentation: API Development
• Anypoint Studio Documentation: Using Connectors

Explanation

Correct answer is By default, the Anypoint CLI and Mule Maven plugin are not included in the Mule runtime Maven is not part of runtime though it is part of studio. You do not need it to deploy in order to deploy your app. Same is the case with CLI.

Explanation

* HTTP/1.1 keeps all requests and responses in plain text format.

* HTTP/2 uses the binary framing layer to encapsulate all messages in binary format, while still maintaining HTTP semantics, such as verbs, methods, and headers. It came into use in 2015, and offers several methods to decrease latency, especially when dealing with mobile platforms and server-intensive graphics and videos

* Currently, Mule application can have API policies only for Mule application that accepts requests over HTTP/1x

Explanation

● Option A says "Perform EACH DB insert in a SEPARATE DB transaction". In this case if first DB insert is successful and second one fails then first insert won't be rolled back causing inconsistency. This option is ruled out.

● Option D says Perform BOTH DB inserts in ONE DB transaction.

Rule of thumb is when one or more DB connections are required we must use XA transaction as local transactions support only one resource. So this option is also ruled out.

● Option B acknowledges the before DB processing, so message is removed from the queue. In case of system failure at later point, message can't be retrieved.

● Option C is Valid: Though it says "do not ack JMS message", message will be auto acknowledged at the end of transaction. Here is how we can ensure all components are part of XA transaction: https://docs.mulesoft.com/jms-connector/1.7/jms-transactions

Additional Information about transactions:

● XA Transactions - You can use an XA transaction to group together a series of operations from multiple transactional resources, such as JMS, VM or JDBC resources, into a single, very reliable, global transaction.

● The XA (eXtended Architecture) standard is an X/Open group standard which specifies the interface between a global transaction manager and local transactional resource managers.

The XA protocol defines a 2-phase commit protocol which can be used to more reliably coordinate and sequence a series of "all or nothing" operations across multiple servers, even servers of different types

● Use JMS ack if

– Acknowledgment should occur eventually, perhaps asynchronously

– The performance of the message receipt is paramount

– The message processing is idempotent

– For the choreography portion of the SAGA pattern

● Use JMS transactions

– For all other times in the integration you want to perform an atomic unit of work

– When the unit of work comprises more than the receipt of a single message

– To simply and unify the programming model (begin/commit/rollback)
