NCS-Core Nutanix Certified Services Core Infrastructure Professional Questions and Answers

After creating a cluster and connecting it to the customer's network, if the events dashboard in Prism is full of errors, a likely cause could be that the Cluster Virtual IP Address (VIP) was not properly set up. The VIP is crucial for accessing the Nutanix Prism interface and for the proper functioning of the cluster's management operations.

For scenarios requiring VM availability during unplanned outages, AHV Metro with Witness Operation is designed to handle such situations. AHV Metro Availability enables synchronous replication between two sites with a witness that arbitrates site availability in case of a split-brain scenario. This setup is intended for automatic failover during service disruptions, ensuring continuous availability of VMs without manual intervention.

References:

• Nutanix Bible (https://www.nutanixbible.com), particularly the sections on disaster recovery and AHV Metro Availability.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), covering disaster recovery strategies and configurations.

For a newly deployed Nutanix system where the customer has specified VLAN 10 for management traffic, the consultant should recommend using VLAN 10 for both CVM and AHV host traffic. This VLAN designation ensures that all management, monitoring, and internal cluster communication are on a dedicated network, separate from production VM traffic (VLAN 20) and backup/replication traffic (VLAN 30), thereby enhancing network security and performance.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Network Configuration chapter (https://www.nutanixbible.com/)

If nodes cannot be discovered using the Foundation VM and they are already part of a Nutanix cluster, the best course of action is to bare metal image the nodes. This process involves re-imaging the nodes from scratch, which can resolve discovery and communication issues that may be caused by existing configurations or errors within the cluster's networking setup.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

Ref: https://next.nutanix.com/prism- infrastructure-management-26/disk-space-usage-high-alert-in-prism-38199

To ensure the new application is securely deployed without affecting existing applications, the administrator should create new categories for the VMs hosting the new application. This approach allows for targeted application of security policies without impacting other applications. After creating these new categories, the administrator should then create new security policies that incorporate these categories and specify the unique, non-standard ports used by the application, ensuring that security is tailored specifically to the new application's needs.References: Nutanix Prism Central Guide, Nutanix Security Configuration Best Practices.

The Nutanix feature that involves creation as described in the Knowledge Transfer is "Calm Blueprints." Nutanix Calm provides application automation and lifecycle management capabilities that are reflected in Calm Blueprints. These blueprints define the application’s architecture, such as services, dependencies, and associated metadata, and are used to automate the provisioning and scaling of applications across multiple environments, making them a critical component in the Nutanix ecosystem for simplifying management and operations of applications.References: Nutanix University, Nutanix Calm User Guide.

In a Nutanix Files deployment within a 20-node AHV cluster, the consultant can deploy a maximum of 16 FSVMs (File Server Virtual Machines). This limitation is based on Nutanix's best practices and design considerations for scalability and performance. The number of FSVMs that can be effectively managed and maintained without degrading the performance of the file-serving operations or the underlying storage infrastructure dictates this maximum.

References:

• Nutanix Certified Services - Core (NCS-Core) Learning Documents
• Nutanix Bible: https://www.nutanixbible.com
• Nutanix University Videos: https://www.youtube.com/playlist?list=PLAHgaS9IrJecs_AcQT3Y7vSsKT2mjz3Iu

When a consultant sees a message indicating that the MD5 sum for the hypervisor is not found in the Whitelist file after uploading it during the Foundation process, the appropriate step is to download the latest hypervisor ISO whitelist file from the Nutanix portal (Option C). This file contains the approved checksums for various ISO images, ensuring that the hypervisor ISO being used is verified for compatibility and integrity.References: Nutanix Foundation Guide, Nutanix Support Portal.

Ref: https://portal.nutanix.com/page/documents/solutions/details?targetId=BP-2071-AHV-Networking:top_ahv_networking_best_practices.html

Ref: https://portal.nutanix.com/page/documents/solutions/details?targetId=BP-2126-SAS-on-Nutanix:BP-2126-SAS-on-Nutanix

• Nutanix Security: As part of security improvements (complying with California statute SB-327), Nutanix changed the default IPMI password policy.
• Node-Specific Password: Each Nutanix NX hardware node now ships with a unique default IPMI password for the ADMIN user.expand_more This password is the node's serial number (using capital letters).expand_more
• Finding the Serial Number: You can locate the node's serial number either on a physical sticker or by running the ipmitool fru print command on the node.

References:

• Nutanix Support Portal - Knowledge Base Article 1091: https://portal.nutanix.com/kb/1091

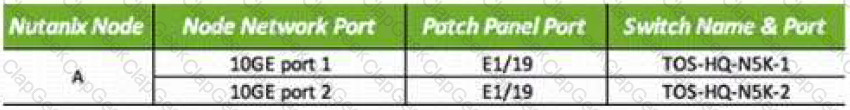

In the As-Built Guide for an AHV cluster deployment with each node configured with four NICs, the consultant should manually update:

• A. Node Port Layout Diagram: To reflect the physical connectivity and usage of each NIC on the nodes.
• B. Network Cabling Diagram: To accurately document how each node is connected to the network infrastructure, ensuring clarity on physical network setup.

References:

• Nutanix Bible (https://www.nutanixbible.com), where documentation standards and diagrams are emphasized.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), covering the importance of accurate network and port documentation in deployment guides.

For a Nutanix cluster configuration that simplifies future deployments and expansions, disabling multicast and broadcast flood optimizations (A) and using a tagged VLAN for the CVM and hypervisor hosts (C) are the best practices. Disabling these optimizations helps in reducing unnecessary network traffic and potential broadcast storms in a growing environment. Using tagged VLANs for CVM and hypervisor hosts ensures proper network segmentation and scalability, allowing for easier management and expansion without reconfiguring the native network setup for each expansion or deployment.References: Nutanix Network Configuration Best Practices, Nutanix Deployment Guide.

Ref: https://portal.nutanix.com/page/documents/details?targetId=Files-v3_6:fil-file-server-manage-c.html

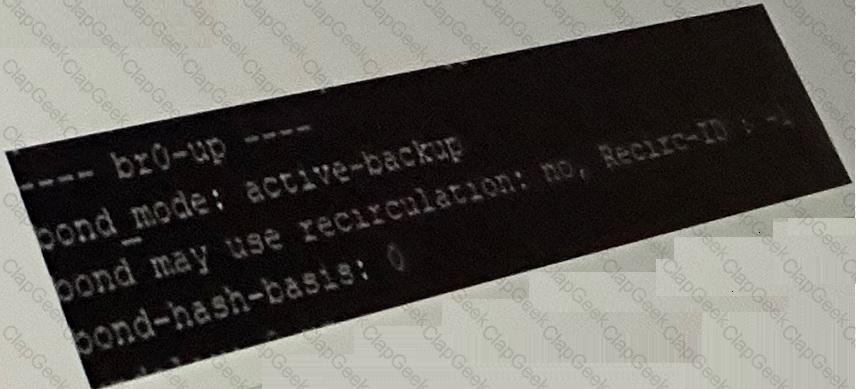

The requirements specify the use of LACP with multiple VLANs and without the use of a native VLAN. Trunk ports must be configured to carry multiple VLANs, which is necessary for scenarios involving LACP across multiple switches (MLAG or vPC). Setting the native VLAN to default and not using it in traffic management while trunking the ports meets these needs effectively. References: Nutanix Bible (https://www.nutanixbible.com/ ), Nutanix Official YouTube Training Series

When facing an error during the installation process that the IPMI IP address is unreachable:

• C. Check the service.log and the individual node log files for more detailed information: Reviewing these log files will provide insights into what might be causing the IPMI connectivity issue, offering specific error messages or network configuration problems that need resolution.

References:

• Nutanix Bible (https://www.nutanixbible.com), where troubleshooting and log analysis are discussed.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), focusing on Foundation troubleshooting and the use of log files to diagnose installation issues.

In the scenario where a consultant is viewing an ESXi host via console without external network connectivity and needs to connect to the Controller Virtual Machine (CVM), the typical IP addresses used for such connections in a Nutanix environment are in the 192.168.5.x range. Specifically, the IP addresses for CVMs often set by default or during initial configuration, such as 192.168.5.253 and 192.168.5.254 (Options A and C), can be used. These addresses are generally reserved for internal CVM communications and can be accessed through the host's internal network configurations.References: Nutanix Cluster Installation Guide, Default Nutanix Network Configurations.

In Nutanix, a cluster with RF2 (Redundancy Factor 2) can tolerate the failure of a single node or drive1. However, to ensure that the cluster can survive a complete rack failure without negatively affecting workload performance, we need to consider rack awareness. When rack fault tolerance is enabled, the cluster has rack awareness and the guest VMs can continue to run with failure of one rack (RF2) or two racks (RF3). The redundant copies of guest VM data and metadata exist on other racks when one rack fails2.

Given the current cluster configuration (30 nodes distributed 10 nodes per rack across three 42U racks), adding 3 additional nodes per rack (9 nodes total) would increase the redundancy of the cluster and improve its ability to withstand a complete rack failure. This is because the additional nodes would provide more storage capacity and compute resources, allowing the cluster to continue running workloads even if one rack fails.

References:

• Understanding Fault Domains and Rack Awareness | Nutanix Community
• RF2 -> RF3 | Requirements | Nutanix Community

Ref https://portal.nutanix.com/page/documents/kbs/details?targetId=kA00e000000LIelCAG

In a five-node cluster with storage containers configured with a replication factor of 3, the behavior of VM High Availability when two AHV host failures occur with the non-default "Guarantee mode" enabled is as follows:

• Will ensure that all VMs can restart in case of two simultaneous AHV host failures: This mode prioritizes maintaining VM availability by reserving enough resources to restart VMs even with multiple host failures, as long as at least three hosts (matching the replication factor) remain functional.

References:

• Nutanix Bible (https://www.nutanixbible.com), specifically sections on VM High Availability and replication factors.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), where best practices for VM High Availability are detailed.

When using the Nutanix cluster As Built Document generator, the necessary configuration elements to provide when running the run_as_built.exe command include the Cluster IP (B) and the Customer Name (D). The Cluster IP is required to properly identify and communicate with the cluster to gather configuration and operational data. The Customer Name is typically used to personalize the documentation, making it specific to the client's deployment, which is useful for record-keeping and future reference purposes.References: Nutanix As Built Documentation generator usage guidelines, Nutanix Best Practices for Documentation.

Considering the equipment setup with one Out-of-Band Management (OOBM) Ethernet switch and two 10GbE SFP+ Top of Rack (ToR) switches, the consultant should recommend six DAC (Direct Attach Cable) 10GbE cables and three Ethernet cables. The DAC 10GbE cables are suitable for connecting the nodes to the ToR switches to handle high-speed data transfers, while the Ethernet cables are necessary for connections related to management purposes, such as connecting to the OOBM switch for remote management tasks. This recommendation ensures adequate connectivity for both data and management networks.References: Nutanix Hardware and Installation Guide, Best Practices for Network Cable Management.

To address critical alerts about components using default passwords in the Prism Element Web Console:

• C. Check NCC results and review the associated KB: The Nutanix Cluster Check (NCC) tool can identify security vulnerabilities, including default password usage. Reviewing the results and associated knowledge base articles provides specific guidance on changing these passwords to secure the environment.

References:

• Nutanix Bible (https://www.nutanixbible.com), specifically sections on cluster health checks and security practices.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which includes instruction on using NCC for cluster validation and security enhancements.

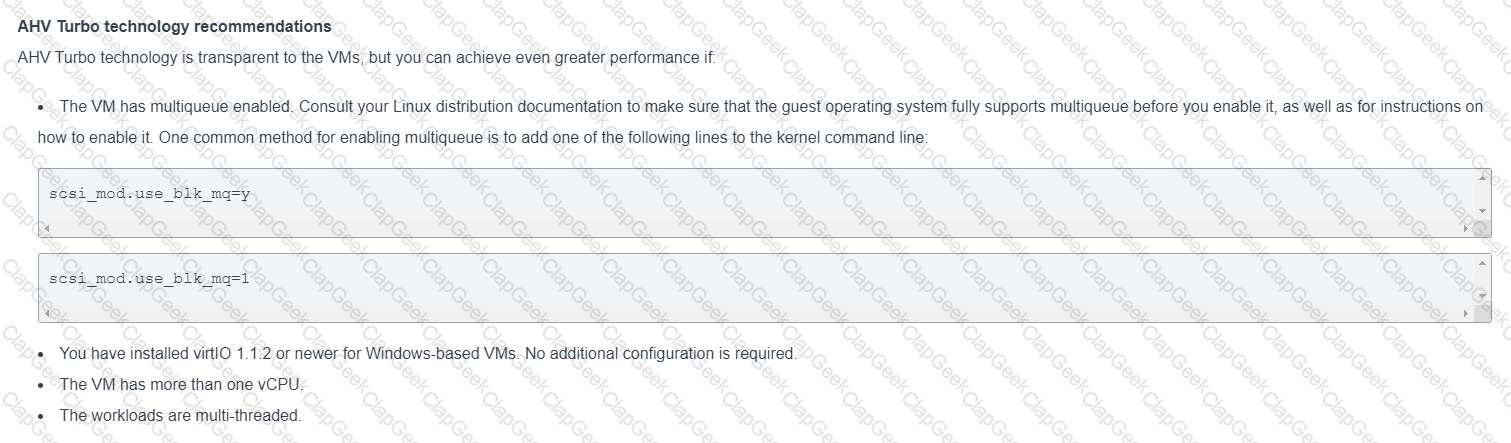

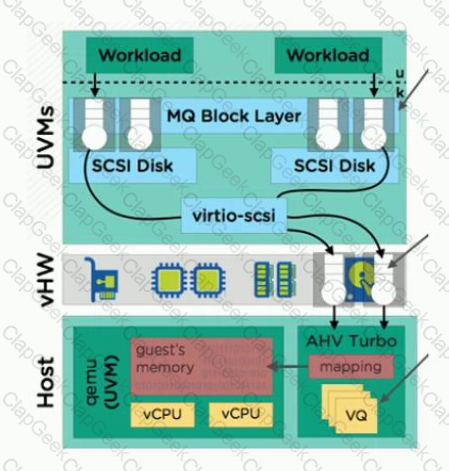

To maximize the performance benefits of AHV Turbo, which is designed to optimize network and storage I/O operations for VMs, certain VM configurations are advantageous. The correct answers are:

Option A, "Workloads are multi-threaded." Multi-threaded applications can better utilize the improvements in I/O processing efficiency provided by AHV Turbo, leading to better overall performance.

Option D, "VMs have more than one vCPU." This configuration allows VMs to handle multiple processes or threads simultaneously, which is particularly beneficial when combined with AHV Turbo's enhanced I/O operations.

References:The benefits of configuring VMs with multiple vCPUs and supporting multi-threaded applications are discussed in Nutanix's documentation on AHV and performance optimization, where AHV Turbo is highlighted for its ability to accelerate VM operations in a Nutanix environment.

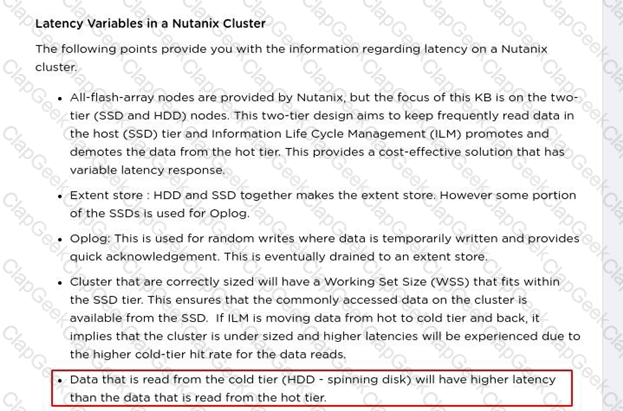

To troubleshoot storage latency issues in a Nutanix cluster, it is vital to examine the state and performance of the network interfaces. The command manage_ovs show_interfaces provides comprehensive details about each interface's status, including any errors or drops that could contribute to network-related latency. This information is crucial for identifying problematic nodes or interfaces that may be causing storage access delays. This command effectively presents the operational status of network interfaces, which can help pinpoint issues directly affecting storage performance.

References:

• Nutanix Command Reference Guide: https://portal.nutanix.com
• Nutanix University Troubleshooting Network Issues: https://www.nutanix.com/support-services/training-certification

ref: https://portal.nutanix.com/page/documents/details?targetId=Web-Console-Guide-Prism-v55:wc-network-visualization-intro-c.html

If the Foundation VM fails to boot and other methods need to be considered, the best alternative is the Foundation Applet. This lightweight tool runs on a laptop or other device and doesn't require booting a VM, providing a straightforward method to image Nutanix hardware, particularly useful in situations where hardware constraints or other issues prevent the use of a full Foundation VM.

References:

• Nutanix Foundation Installation Guide: Nutanix Documentation
• Nutanix Field Installation Guide and Tools Overview

When installing a Nutanix cluster on hardware servers pre-loaded with an existing operating system such as DiscoverOS, the best approach is to re-image the bare metal nodes. This process involves using the Nutanix Foundation tool to install the required Nutanix software (such as AOS and Hypervisor) onto the nodes, replacing any pre-existing software. This ensures that the hardware is properly configured and optimized for the Nutanix environment.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Foundation chapter (https://www.nutanixbible.com/)

For a configuration where a single VM should not exceed the bandwidth of a single 10G uplink and both uplinks need to be utilized, the correct bonding mode is balance-slb (Source Load Balancing). This mode allows both uplinks to be utilized while ensuring that a single VM will not exceed the capacity of one uplink, as traffic from each VM or "source" is assigned to one of the links in the bond. The other_config: bond-rebalance-interval=30000 command is used to set the interval at which the bonding driver will rebalance the assignment of sources to links in the bond. This helps in maintaining optimal distribution of load across the links as network conditions change.

References:

• Nutanix Bible: Network Configuration
• Nutanix University: Advanced Network Configuration

Ref: https://next.nutanix.com/installation-configuration-23/product-mixing-restr ictions-37231

The issue where users can mount all three storage containers despite the intention to restrict access to just container-1 typically stems from a Global whitelist entry. A global whitelist allows all entities to access all containers unless more specific restrictions are applied at the container level. To correct this, specific whitelist entries need to be configured for each container to define and restrict access appropriately.References: Nutanix NCS-Core 6.8 training resources, the Nutanix Bible, and Nutanix technical documentation on storage container management.

When nodes are mistakenly configured with incorrect IP addresses and are on a different network, the most effective way to address this is to re-run the Foundation process. By using Foundation, the nodes can be completely re-imaged with the correct network settings and then properly integrated into a new cluster. This ensures that all hardware and software configurations align with the intended network and cluster settings, avoiding potential conflicts and issues that might arise from manual adjustments.

References:

• Nutanix Bible: Cluster Initialization and Foundation
• Nutanix University: Using Foundation for Node Deployment

When installing Nutanix AOS on Cisco UCS hardware platforms, the recommended method is to use the Foundation VM. This approach allows for the deployment of Nutanix software onto bare metal hardware from a virtual machine that can manage the installation process across multiple nodes simultaneously. The Foundation VM simplifies the installation and initial configuration process, ensuring that all nodes are correctly configured and integrated into the Nutanix ecosystem.References: Nutanix Bible, Nutanix University

In a Nutanix AHV cluster configuration with multiple NICs and ToR switches, achieving high throughput and maintaining link redundancy are critical. The configuration provided in Option D utilizes LACP (Link Aggregation Control Protocol) with active mode, which allows for aggregating multiple network connections in parallel to increase throughput and provide redundancy. The balance-tcp mode of the bonding ensures optimal traffic distribution based on the TCP session, ensuring each session can utilize maximum available bandwidth across multiple links. This setting is crucial for environments requiring high network performance and reliability.References:

• Nutanix Bible
• Nutanix University NCS-Core Materials

To meet the customer's requirements for high availability and the ability to manage up to 12,500 VMs, the consultant should use Prism Central Scale-out deployment. This deployment mode allows Prism Central to be scaled out across multiple instances, significantly enhancing both performance and resilience, ensuring that the management and operations of a large number of VMs can be handled efficiently and without a single point of failure.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

As the consultant concludes the project, to assist the customer with repeating the deployment process at a dark site, the best items to deliver would be:

• A trial license activation code for Prism Starter, which will allow the customer to begin using the Nutanix cluster immediately without initial extra costs.
• Creating an account for access to the Nutanix Support Portal, ensuring the customer can access support and documentation as needed for troubleshooting and learning.
• A guide for dark site deployments using Nutanix standards, which will provide step-by-step instructions tailored to the specific challenges of deploying in a location with no direct internet connectivity.These resources are critical for enabling the customer to independently deploy and manage Nutanix clusters under the unique constraints of a dark site.References: Nutanix Deployment Guide, Nutanix Support Portal Documentation.

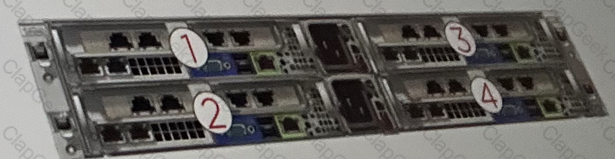

Based on the exhibit which shows an NX-3160 block with marked slots, the correct slot for installing a new node in the existing NX-3160 block is slot 2. This configuration is typically aligned with the chassis' design for orderly expansion and maintaining balanced power and cooling distribution among the nodes.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

Ref: https://portal.nutanix.com/page/documents/kbs/details?targetId=kA00e000000CuaDCAS

For re-configuring an existing cluster for a new use case where data preservation is not a concern, and there is a lack of CVM credentials:

• C. Foundation VM - Bare Metal: This tool allows for a complete re-installation of the Nutanix software from scratch, which is ideal in scenarios where existing configurations and data are no longer needed, and access credentials are unknown or lost.

References:

• Nutanix Bible (https://www.nutanixbible.com), especially sections on cluster reconfiguration and Foundation tools.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), where cluster deployment and reconfiguration scenarios are extensively covered.

In environments where IPv6 is not allowed for node discovery and the use of an external flat switch by the consultant is also restricted, the viable approach is to connect to the top of rack switch and discover the nodes using IPv4. This method aligns with the customer’s networking policies and leverages the existing network infrastructure to facilitate the discovery and configuration of the nodes within the Nutanix cluster.References: Nutanix Bible, Nutanix University NCS-Core 6.8 resources, and Nutanix official guidelines on node discovery using IPv4.

Ref:

The error stating "Prism Central is unreachable" when trying to add a cluster to an existing Prism Central with a proxy setup is likely due to incorrect or missing network routing configurations or firewall rules that do not allow communication between Prism Element and Prism Central. The most likely configuration that is missing and needed to resolve this issue is the whitelist of Prism Central VIP inside of Prism Element and Prism Element VIP inside of Prism Central. Whitelisting these Virtual IP addresses ensures that network traffic between these crucial components of the Nutanix architecture is permitted, thus enabling successful communication and registration of the cluster with Prism Central.References: Nutanix Network Configuration Guide, Nutanix Prism Central Administration.

Regarding the Reserved Capacity parameter in a storage container:

• C. Reserve capacity for a storage container only if the storage pool consists of a single storage container: This best practice ensures that dedicated space is guaranteed for the container, which is particularly important if the storage pool is not shared among multiple containers. This prevents space from being over-provisioned or unavailable when needed by critical applications.

References:

• Nutanix Bible (https://www.nutanixbible.com), specifically sections on storage management and best practices for capacity planning.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which includes detailed discussions on storage container configuration and management.

https://hyperhci.com/2020/07/29/nutanix-cluster-services-down-troubleshooting/

If a customer needs to re-image an existing cluster and both the Foundation Applet and Foundation VM are unavailable, the consultant can access Foundation-as-a-Service (FaaS) through the CVM IP address followed by port 9443, as indicated in Option C. FaaS allows for the re-imaging of Nutanix nodes through a web interface hosted directly on the CVM, making it an effective tool for deploying and managing clusters without needing additional installation media or virtual machines.References: Nutanix Foundation as a Service (FaaS) Documentation, Nutanix Support Portal.

When preparing the laptop and Foundation networking for the installation on customer-indicated HPE/OEM hardware, the consultant should set IP addresses in both the CVM/Host and IPMI subnets (Option C) This ensures that all necessary network interfaces are appropriately configured for management and operational traffic, facilitating seamless communication during the foundation process. Properly setting up IP addresses in both subnets is crucial for ensuring that the Foundation process can access both the CVMs/Hosts and the IPMI for management tasks.References: Nutanix Foundation Guide, Network Preparation for Nutanix Installations.

The make and model of the systems should be verified during the Tech Review Call. This step is essential to ensure that all necessary information is collected and verified before any physical interaction with the hardware. Verifying these details during the call helps in preparing adequately for the cluster deployment, allowing the consultant to anticipate and mitigate any compatibility or configuration issues before arriving onsite.References: Nutanix Foundation Guide, Pre-installation Checklist Documents.

When VMs on the same node can communicate but fail to connect to other parts of the network following changes made to Top of Rack switches, the issue often stems from a VLAN configuration error on the switches. VMs on the same node communicating successfully indicates that the local switch configuration is intact, but inability to reach external network segments points to an incorrect VLAN setup on the broader network, likely introduced during the recent changes to the Top of Rack switches.References: Nutanix Networking Guide, Troubleshooting Network Connectivity in Nutanix.

The issue of VMs not being able to ping the default gateway from a newly created VM network on VLAN 20, while the Nutanix cluster uses VLAN 10, most likely stems from the switch port configuration. For the VMs on VLAN 20 to communicate outside their local network, the switch port to which the Nutanix nodes are connected must be configured as a trunk. This configuration allows multiple VLANs to coexist on the same physical port and enables routing between them. Without the trunk setup, the VLAN 20 traffic is restricted and cannot reach the network beyond the switch, including the default gateway.References: Nutanix Network Configuration Guide, Best Practices for VLAN Configurations.SZXCDESX

The error encountered during the LCM inventory process, which mentions "Could not find a module for entity with reference name nutanix.ncc.update," typically indicates that the cluster has not yet been licensed. The Life Cycle Management (LCM) functionality in Nutanix systems requires a valid license to perform operations such as inventory checks and updates. Without this license, LCM cannot retrieve or update the necessary software modules, leading to the stated error. Licensing the cluster would resolve this issue and allow the LCM processes to proceed normally.References: Nutanix LCM Documentation, Nutanix Licensing Guidelines.

For a Nutanix cluster to support Replication Factor 3 (RF3), a minimum of 5 nodes is required. RF3 means that three copies of the data are maintained across the cluster for fault tolerance and high availability. Having at least five nodes ensures that there are sufficient nodes to distribute these copies across different fault domains, minimizing the risk of data loss and providing improved resilience against node failures.References: Nutanix Bible, Nutanix Technical Documentation on Data Resiliency.

To satisfy the customer's requirements for maximum uptime and throughput in an AHV cluster deployment with link aggregation at the Top-of-Rack (TOR) switches, the consultant should:

• Bonded 2 x 40GbE Adapters with LACP Enabled for Storage Traffic and Guest Traffic using balance-tcp: This configuration leverages Link Aggregation Control Protocol (LACP) to combine the bandwidth of the two 40GbE adapters, enhancing both redundancy and throughput. The balance-tcp mode ensures effective load balancing of traffic based on TCP session ensuring optimal use of available bandwidth and improved fault tolerance.

References:

• Nutanix Bible (https://www.nutanixbible.com), particularly the sections discussing network configurations and LACP.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which covers advanced network settings for performance optimization.

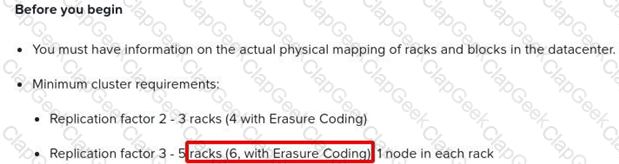

Erasure coding is a method of data protection in which data is broken into fragments, expanded and encoded with redundant data pieces, and stored across a set of different locations or storage media. The goal of erasure coding is to enable data that becomes corrupted at some point in the disk storage process to be reconstructed by using information about the data that’s stored elsewhere in the array1.

In the context of Nutanix, erasure coding increases the usable capacity on a cluster. Instead of replicating data, erasure coding uses parity information to rebuild data in the event of a disk failure1. The capacity savings of erasure coding is in addition to deduplication and compression savings1.

Given the characteristics of the VM in the question (large/sequential writes, data kept for years, data accessed only at the end of the year), Post-Process Compression would be the most suitable feature to utilize to save space. This is because Post-Process Compression, as the name suggests, compresses data after it has been written to the storage, which is suitable for data that is not accessed frequently2.

References:

• Erasure Coding | Nutanix Community
• Nutanix Support & Insights
• Introducing AOS 6.6: Enhanced data services and simplified … - Nutanix

Ref: https://portal.nutanix.com/#page/kbs/ details?targetId=kA00e000000Cr7GCAS

In the scenario where a consultant observes ping timeouts after shutting down one of the links during a port failover test, the issue is likely due to a Native VLAN mismatch on the switchport. The configuration settings shown in the second exhibit indicate different native VLANs for the switch ports connected to the Nutanix node. This mismatch can cause connectivity issues when one of the links is down, as VLAN tagging inconsistencies prevent proper fallback and routing of traffic.References: Cisco Networking Troubleshooting Guide, Nutanix Network Configuration Best Practices.

To find the correct VLAN ID to use during the Foundation of a new 3-node cluster, the consultant should refer to the:

• Deployment Questionnaire: This document typically contains detailed pre-engagement information gathered from the customer, including network specifications such as VLAN IDs. It provides the necessary context and configurations needed for a successful deployment.

References:

• Nutanix Bible (https://www.nutanixbible.com), where the importance of pre-deployment planning and documentation is highlighted.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which covers the process of gathering and using deployment information.

When a consultant is unable to install virtualization software on a laptop, the most suitable versions of Foundation to resolve this issue would be Foundation Portable (Option B) and Foundation Applet (Option D). Both these versions are designed to be used in environments where installing additional virtualization software might not be feasible. Foundation Portable can be run from a USB drive, and the Foundation Applet is a Java-based tool that can run directly on a host machine without the need for a full virtual machine environment.References: Nutanix Foundation Installation Guide, Nutanix Support Portal.

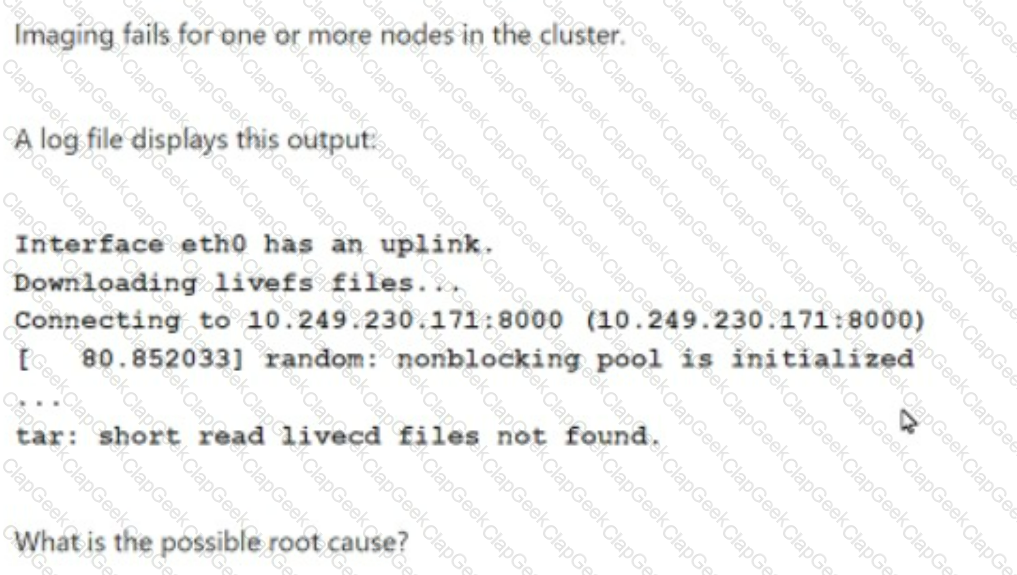

The log file output indicating a failure in downloading livefs files and problems finding the livecd files during node imaging suggests there is a problem connecting to the Foundation VM. The specific error "tar: short read livecd files not found" typically points to an interrupted or failed download process, which can be caused by connectivity issues between the nodes and the Foundation VM. Ensuring robust network connectivity or verifying network settings in the Foundation VM could resolve this issue.References: Nutanix Foundation Tool Error Messages, Nutanix Troubleshooting Documentation.

When Foundation reports an error indicating the ISO is not supported:

• Option B: Checking the MD5 checksum of the ISO file ensures that it matches the expected value listed by Nutanix, confirming the file's integrity and compatibility.
• Option D: Downloading and updating the iso whitelist.json from the Nutanix Support Portal ensures that Foundation has the latest information on supported ISO files, potentially resolving compatibility issues.

References:

• Nutanix Bible (https://www.nutanixbible.com), especially sections on Foundation and ISO troubleshooting.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), which covers the setup and troubleshooting of Foundation.

In the scenario described, the configuration shown in the exhibit indicates that there is an "active-backup" bond mode. If a shut command is executed on the switchport that connects the node to the 5k1 switch (assuming it's the active link), the passive link should take over. This response ensures no loss of connectivity as the passive link becomes active in the absence of the primary (active) link.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

The failure of the vMotion operation indicated by the error message could most plausibly be caused by: A. The vmknic (VMkernel network interface card) configured with a conflicting IP address. This conflict can prevent the ESXi hosts from establishing a connection over the VMotion network, as each host must have a unique IP address on the VMotion network to facilitate proper migration communications. Option B, involving NIOC settings, and option D, involving vSS configuration, could influence performance but are less likely to cause a complete failure to connect. Option C, related to the Foundation service, is not relevant to vMotion networking issues directly. References: VMware vSphere Networking Documentation, Nutanix Integration with VMware Environments.

After deploying a Nutanix cluster with AOS and ESXi managed by a vCenter server, the consultant should ensure that both CVM eth0 and eth2 interfaces are connected to the assigned portgroups on the standard or distributed switch. This setup allows for network segmentation and proper traffic isolation, which is crucial for maintaining network security and efficiency in a virtualized environment.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

When a VM is unable to communicate on the network despite having an IP address assigned, one common issue is incorrect network configuration in terms of VLAN assignment. In the Nutanix AHV, VLANs are configured and managed within Prism Element. The consultant should verify that the virtual NIC (vNIC) of the VM is correctly configured to the intended VLAN that corresponds with the rest of the network. This ensures that the VM can communicate with other devices on the same network segment.References:

• Nutanix Bible
• Nutanix University NCS-Core Materials

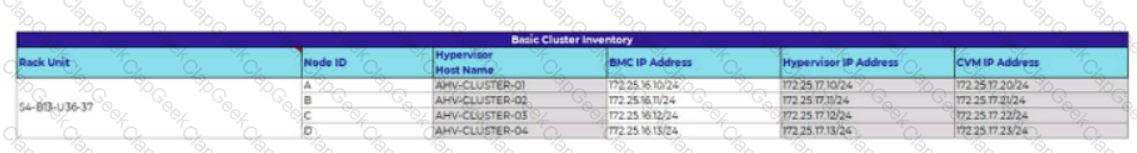

The As-Built Guide is a comprehensive document typically prepared at the end of a Nutanix deployment project. It includes detailed information about the Nutanix environment, such as IP addresses, storage container settings, hardware and software configurations, and other deployment specifics. This document serves as a reference for the customer to understand their deployed infrastructure and for any future modifications or troubleshooting needs.

References:

• Nutanix Bible: Documentation and Reporting
• Nutanix University: Deployment Best Practices

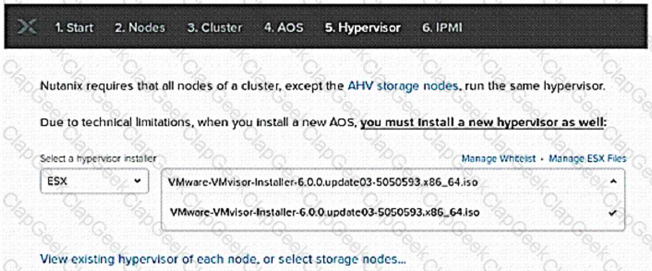

If ESXi 6.5 is not available as one of the choices for hypervisor during the Foundation process, the consultant should upload the ESXi image to the specific directory where Foundation expects to find hypervisor images. The correct path for this operation is /home/Nutanix/foundation/isos/hypervisor/esx. This allows the Foundation tool to detect and use the ESXi image for installation on the nodes.References: Nutanix Foundation Guide, Nutanix Support Documentation.

After an onsite cluster deployment, the As-Built Guide is a crucial document that provides detailed information about the final configuration of the system. However, certain data in the As-Built Guide might require adjustment or might be missing completely.

In this case, the Nutanix Node Port Layout (Option A) and the Physical Rack Layout (Option C) are two data that might require adjustment or might be missing completely. The Nutanix Node Port Layout provides a visual representation of the network connections for each node in the cluster, while the Physical Rack Layout provides a visual representation of the physical arrangement of the nodes in the rack. Both of these data are crucial for understanding the physical and network configuration of the cluster, and any inaccuracies or omissions in these data could lead to confusion or issues in the future.

Therefore, the consultant should ensure that the Nutanix Node Port Layout and the Physical Rack Layout in the As-Built Guide are accurate and complete.

References:

• [Nutanix Support & Insights]
• [Nutanix Community]
• [Nutanix Documentation]
• [Nutanix Certified services - core (NCS-Core) 6.8 - Nutanix University]
• [Nutanix Bible]
• [Nutanix Certified services - core (NCS-Core) 6.8 Playlist - YouTube]

An alert of this nature in the file server dashboard usually indicates issues related to node availability within a cluster. Specifically, the failure of a node in a three-node cluster (Option B) can lead to insufficient resources to handle all tasks, which might trigger such an alert. Additionally, setting a node to maintenance mode in a three-node cluster (Option D) also disrupts service availability and could generate a similar alert, as the remaining nodes might struggle to handle the load or maintain data redundancy.References: Nutanix AOS User Guide, Nutanix Files Documentation.

For a configuration that aims to utilize all available 10G links, achieve maximum throughput per VM, and ensure redundancy with fast reconvergence during link failure, the optimal setting would be to configure Balance-TCP on bridge br0. This setting distributes the load across all available network paths based on the TCP session, maximizing the utilization of network interfaces and ensuring redundancy. This approach is particularly effective in environments with multiple network paths and ensures efficient network traffic management.References:

• Nutanix University - NCS-Core 6.8 Learning Path
• The Nutanix Bible, Network Configuration chapter (https://www.nutanixbible.com/)

The IPMI address on a Nutanix hardware installation can be set in two ways:

• BIOS configuration: Access the BIOS settings during boot-up to manually configure the IPMI address directly on the hardware.
• ipmitool: Use the ipmitool command-line utility to configure the IPMI address from a remote session or script, which provides a way to automate or manage IP settings without needing physical access to the BIOS.

References:

• Nutanix Bible (https://www.nutanixbible.com), particularly the sections on hardware installation and IPMI settings.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), detailing tools and techniques for IPMI configuration.

If new GPU nodes cannot be found during an attempt to expand an existing cluster:

• A. IPMI is not plugged into the network: IPMI must be connected and functional for node discovery and management during expansion processes. If IPMI ports are not connected to the network, the nodes will not be discoverable in Prism Element.

References:

• Nutanix Bible (https://www.nutanixbible.com), particularly the sections discussing network requirements for cluster expansion.
• Nutanix University: NCS-Core 6.8 Training (https://university.nutanix.com), focusing on troubleshooting and resolving issues during hardware expansions.

The Test Plan is the most appropriate resource for detailed information on network validation testing. This document typically outlines the specific tests to be conducted to ensure the network meets the required specifications and performance standards necessary for a stable and efficient Nutanix environment. The Test Plan provides a structured approach to validate each network component and interaction, ensuring all aspects are tested and meet design and operational requirements. References: Nutanix Installation and validation procedures as described in Nutanix official documentation and training modules from Nutanix University.

Before arriving onsite, the consultant should set up the SMTP server to allow emails from both the Cluster Virtual IP Address (VIP) and the Controller Virtual Machine (CVM) IP addresses. This setup ensures that Prism can successfully send email notifications through the customer's mail server about any errors or notifications generated by the Nutanix environment, as both the Cluster VIP and CVM IPs are sources from which Prism sends alerts.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

When encountering an error related to unsupported ISO media during the imaging process, and the ISO version is not listed in the whitelist file, the consultant should take several steps to resolve the issue. Replacing and saving the whitelist file in Foundation ensures that the latest compatibility data is used. Downloading the iso_whitelist.json from the Support portal provides the most recent and comprehensive list of supported ISO versions. Editing the whitelist file in Foundation allows the consultant to manually add or update entries to include the ISO in question, ensuring the imaging process can proceed.

References:

• Nutanix Bible: Foundation Imaging and Compatibility
• Nutanix University: Handling Foundation Errors

During the Knowledge Transfer phase, providing the customer with the As-Built Guide, technical slides and checklists, along with links to documentation and resources, is optimal. This set of materials ensures the customer receives both detailed and high-level information, supporting a thorough understanding of the deployment and operational procedures, and it allows for easy reference to official resources for ongoing needs.References: The Nutanix Bible, NCS-Core 6.8 learning documentation, and best practices in IT project documentation.

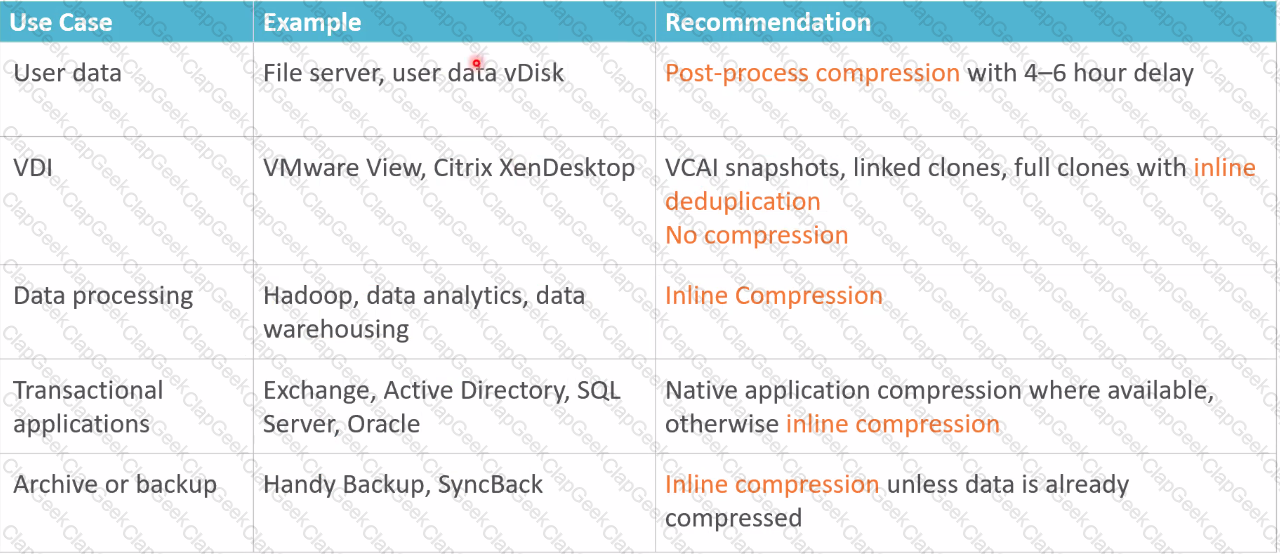

For the Exchange VM experiencing I/O performance issues, the recommended storage optimization change is Option A, "No data reduction." Exchange, as an application, is highly sensitive to latency and typically does not benefit significantly from data reduction technologies like deduplication or compression, which can introduce additional processing overhead and potentially worsen performance issues.

By configuring the container for Exchange with no data reduction, the system maximizes I/O performance by eliminating any additional processing that could delay data access. This setup ensures that Exchange has the fastest possible access to its data, which is crucial for its performance.

References:This recommendation aligns with best practices for Exchange storage on Nutanix, as detailed in the Nutanix best practices guide for deploying Microsoft Exchange, where it advises against using data reduction features for databases requiring high I/O throughput.

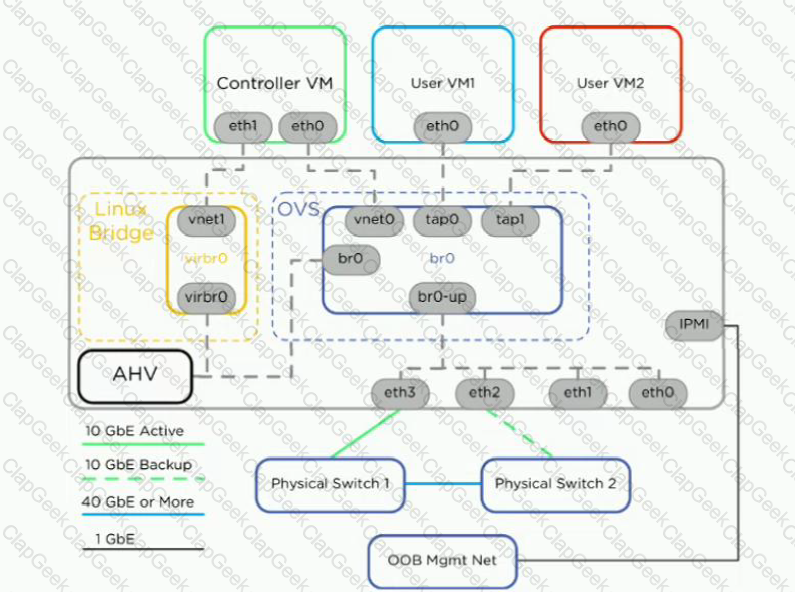

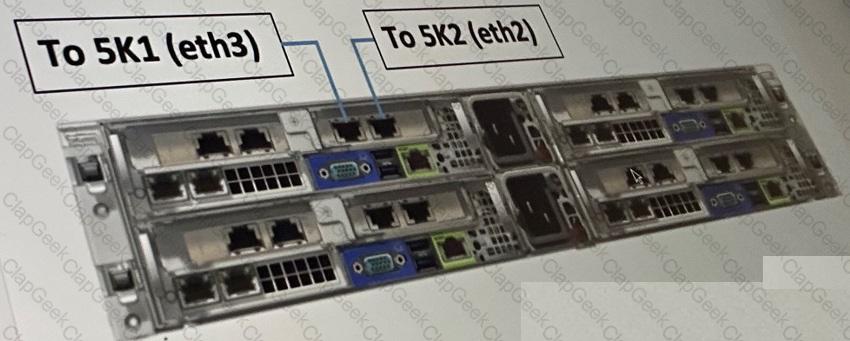

Upon reviewing the network configuration in the provided image and considering the setup in a Nutanix environment, the best action to improve network performance is to adjust the bonding mode for the bridge that includes multiple high-bandwidth interfaces.

Option C, "Configure balance-sib or balance-tcp mode for br0-up if switch configuration allows," is the most effective choice. The bonding mode "balance-sib" (source IP-based load balancing) or "balance-tcp" (TCP/IP layer balancing) can optimize the distribution of network traffic across multiple interfaces, thereby enhancing throughput and redundancy.

This approach utilizes the capabilities of multiple network interfaces more efficiently, distributing the load to prevent any one interface from becoming a bottleneck while providing failover redundancy.

References:This configuration strategy aligns with best practices for network setup in high-performance virtualized environments, as detailed in Nutanix’s networking configuration guides and the Nutanix Bible, ensuring optimal performance and reliability.

The scope of services for the deployment of a new Nutanix cluster would apply to both Foundation and Prism Central. Foundation is the initial software used for deploying Nutanix nodes and creating clusters, essential for setting up the environment. Prism Central is used for managing multiple clusters and is integral to the operational scope of the service, providing centralized management capabilities.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

The manage_ovs command requires specific interface names to be added or configured under a bridge or bond. In the provided scenario, the command failed because it generically referred to '1g' which is not a recognized interface or valid parameter syntax. For the command to work correctly, each individual interface name must be specified. In this case, the missing parameter was the specific interface name 'eth0' for one of the 1GbE NICs. The corrected command should explicitly include the NIC names, e.g., --interfaces eth0,eth1.References:

• Nutanix Bible
• Nutanix University NCS-Core Materials

https://portal.nutanix.com/page/documents/details?targetId=Prism-Central-Guide-Prism-v510:mul-security-policy-management-pc-c.html

When using the Foundation tool for bare metal imaging of Nutanix nodes and dynamic discovery is not possible, the consultant needs the IPMI MAC Address of the nodes. This address is used to identify each node uniquely through its IPMI for remote management purposes, allowing the Foundation VM to interact directly with each node's base management controller (BMC) for the imaging process.References: Nutanix Bible, Nutanix University NCS-Core 6.8 learning materials

Ref: https://portal.nutanix.com/page/documents/details?targetId=Web-Console-Guide-Prism-v5_17:arc-configure-fault-tolerance-rack-prism-c.html

Ref: https://portal.nutanix.com/page/documents/details/?targetId=Files-v3_6:Files-v3_6
