NSE5_FSM-6.3 Fortinet NSE 5 - FortiSIEM 6.3 Questions and Answers

 FortiSIEM Linux Agent: The FortiSIEM Linux agent is used to collect logs and performance metrics from Linux servers and send them to the FortiSIEM system.

 Prerequisite for Installation: Theauditdservice, which is the Linux Audit Daemon, must be installed and running on the Linux server to capture and log security-related events.

auditd Service: This service collects and logs security events on Linux systems, which are essential for monitoring and analysis by FortiSIEM.

 Importance of auditd: Without the auditd service, the FortiSIEM Linux agent will not be able to collect the necessary event data from the Linux server.

 References: FortiSIEM 6.3 User Guide, Linux Agent Installation section, which lists the prerequisites and steps for installing the FortiSIEM Linux agent.

 Incident Status in FortiSIEM: The status of an incident indicates its current state and helps administrators track and manage incidents effectively.

 Cleared Status: When an incident’s status is "Cleared," it means that a specific condition set to clear the incident has been satisfied.

Clear Condition: This is typically a predefined condition that indicates the issue causing the incident has been resolved or no longer exists.

 Automatic vs. Manual Clearance: While some incidents may be cleared automatically based on clear conditions, others might be manually cleared by an operator.

 References: FortiSIEM 6.3 User Guide, Incident Management section, detailing the various incident statuses and the conditions that lead to an incident being marked as "Cleared."

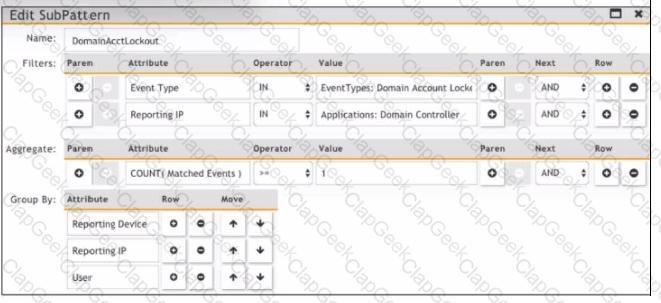

 Incident Creation in FortiSIEM: Incidents in FortiSIEM are created based on specific patterns and conditions defined within the system.

 Group By Function: The "Group By" section in the "Edit SubPattern" window specifies how the data should be grouped for analysis and incident creation.

 Impact of Grouping: The way data is grouped affects the number of incidents generated. Each unique combination of the grouped attributes results in a separate incident.

 Exhibit Analysis: In the provided exhibit, the "Group By" section lists "Reporting Device," "Reporting IP," and "User." This means incidents will be created for each unique combination of these attributes.

 References: FortiSIEM 6.3 User Guide, Rule and Pattern Creation section, which details how grouping impacts incident generation.

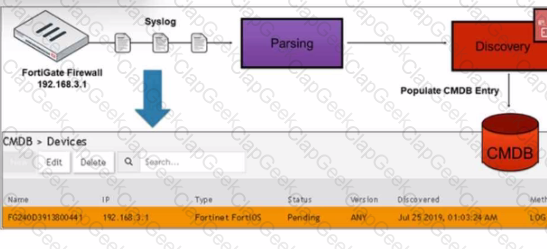

 Discovery Methods in FortiSIEM: FortiSIEM can discover devices using various methods, including syslog, SNMP, and others.

 Syslog Discovery: The exhibit shows that the FortiGate device is discovered by FortiSIEM using syslog.

Syslog Parsing: The syslog messages sent by the FortiGate device are parsed by FortiSIEM to extract relevant information.

CMDB Entry: Based on the parsed information, an entry is populated in the Configuration Management Database (CMDB) for the device.

 Evidence in Exhibit: The exhibit shows the syslog flow from the FortiGate Firewall to the parsing and discovery process, resulting in the device being listed in the CMDB with the status "Pending."

 References: FortiSIEM 6.3 User Guide, Device Discovery section, which explains how syslog discovery works and how devices are added to the CMDB based on syslog data.

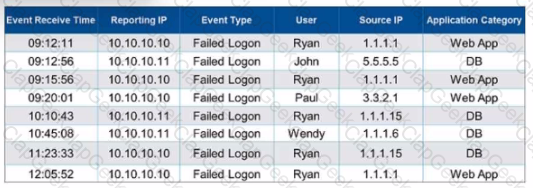

 Grouping Events in FortiSIEM: Grouping events by specific attributes allows for the aggregation of similar events, providing clearer insights and reducing clutter.

 Grouping Criteria: For this question, events are grouped by "User," "Source IP," and "Application Category."

 Unique Combinations Analysis:

Ryan, 1.1.1.1, Web App(appears multiple times but is one unique combination)

John, 5.5.5.5, DB

Paul, 3.3.2.1, Web App

Ryan, 1.1.1.15, DB

Wendy, 1.1.1.6, DB

 Result Calculation: There are five unique combinations in the provided data based on the specified grouping attributes.

 References: FortiSIEM 6.3 User Guide, Event Management and Reporting sections, which explain how to group events by various attributes for analysis and reporting purposes.

 Component Roles in FortiSIEM: Different components in FortiSIEM have specific roles and responsibilities, which contribute to the overall performance and functionality of the system.

 Query Worker: The query worker component is specifically designed to handle and optimize search queries within FortiSIEM.

Function: It processes search requests and executes analytic searches efficiently, handling large volumes of data to provide quick results.

Optimization: By improving the efficiency of query execution, the query worker can significantly speed up long, ad hoc analytic searches, addressing performance issues.

 Performance Impact: Utilizing the query worker ensures that searches are handled by a component optimized for such tasks, reducing the load on other components and improving overall system performance.

 References: FortiSIEM 6.3 User Guide, System Components section, which describes the roles of different workers, including the query worker, and their impact on system performance.

 Performance and Availability Monitoring: Various components in FortiSIEM are responsible for monitoring the performance and availability of devices and services.

 Components:

Supervisor: Oversees the entire FortiSIEM infrastructure and coordinates the activities of other components.

Worker: Processes and analyzes the collected data, including performance and availability metrics.

Collector: Gathers performance and availability data from devices in the network.

 Collaborative Functioning: These components work together to ensure comprehensive monitoring of the network's performance and availability.

 References: FortiSIEM 6.3 User Guide, Performance and Availability Monitoring section, which explains the roles of the supervisor, worker, and collector in monitoring tasks.

 Incident Status Values: Incident statuses in FortiSIEM help administrators track and manage the lifecycle of incidents from detection to resolution.

 Four Possible Status Values:

Active: Indicates that the incident is currently ongoing and needs attention.

Closed: Indicates that the incident has been resolved or addressed.

Cleared: Indicates that the incident has been resolved automatically based on predefined conditions.

Open: Indicates that the incident is acknowledged and under investigation but not yet resolved.

 Usage: These statuses help in prioritizing and tracking incidents effectively, ensuring that all incidents are appropriately managed.

 References: FortiSIEM 6.3 User Guide, Incident Management section, which details the different status values and their meanings.

 Device Discovery Information: Information about discovered devices, including their configurations and statuses, is stored in a specific database.

 CMDB: The Configuration Management Database (CMDB) is used to store detailed information about the devices discovered by FortiSIEM.

Function: It maintains comprehensive details about device configurations, relationships, and other metadata essential for managing the IT infrastructure.

 Significance: Storing discovery information in the CMDB ensures that the FortiSIEM system has a centralized repository of device information, facilitating efficient management and monitoring.

 References: FortiSIEM 6.3 User Guide, Configuration Management Database (CMDB) section, which details the storage and usage of device discovery information.

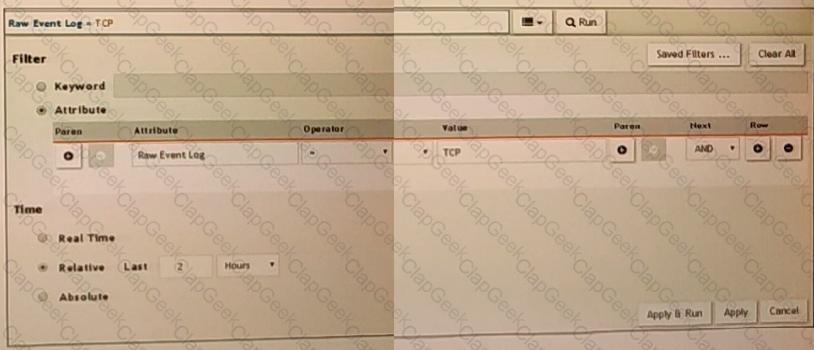

 Case Sensitivity in Searches: In FortiSIEM, search queries, including those for raw event logs, are case sensitive. This means that keywords must be entered exactly as they appear in the logs.

 Keyword Mismatch: The exhibit shows the keyword "TCP" in the Value field. If the actual events use "tcp" (lowercase), the search will return no results because of the case mismatch.

 Correct Keyword: To match the keyword correctly, the administrator should enter "tcp" in the Value field.

 References: FortiSIEM 6.3 User Guide, Search and Filtering section, which discusses the importance of case sensitivity in search queries.

 FortiSIEM Architecture: The FortiSIEM architecture includes several components such as Supervisors, Workers, Collectors, and Agents, each playing a distinct role in the SIEM ecosystem.

 Real-Time Event Correlation: Real-time event correlation is a critical function that involves analyzing and correlating incoming events to detect patterns indicative of security incidents or operational issues.

 Role of Supervisor and Worker:

Supervisor: The Supervisor oversees the entire FortiSIEM system, coordinating the processing and analysis of events.

Worker: Workers are responsible for processing and correlating the events received from Collectors and Agents.

 Collaboration for Correlation: Together, the Supervisor and Worker components perform real-time event correlation by distributing the load and ensuring efficient processing of events to identify incidents in real-time.

 References: FortiSIEM 6.3 User Guide, Event Correlation and Processing section, details how the Supervisor and Worker components collaborate for real-time event correlation.

 Process Monitoring in FortiSIEM: FortiSIEM can monitor critical processes on managed devices, such as an SMTP process on a Linux server.

 Event Generation: When a critical process stops, FortiSIEM generates an event to alert administrators.

 Event Types: Specific event types correspond to different monitored conditions. For a stopped process, the event typePH_DEV_MON_PROC_STOPis used.

 Reasoning: The namePH_DEV_MON_PROC_STOP(Device Monitoring Process Stop) is a generic event type used by FortiSIEM to indicate that any monitored process, including SMTP, has stopped.

 References: FortiSIEM 6.3 User Guide, Event Types section, explains the predefined event types and their usage in different monitoring scenarios.
