View the IPS exit log, and then answer the question below.
# diagnose test application ipsmonitor 3
ipsengine exit log”
pid = 93 (cfg), duration = 5605322 (s) at Wed Apr 19 09:57:26 2017
code = 11, reason: manual
What is the status of IPS on this FortiGate?

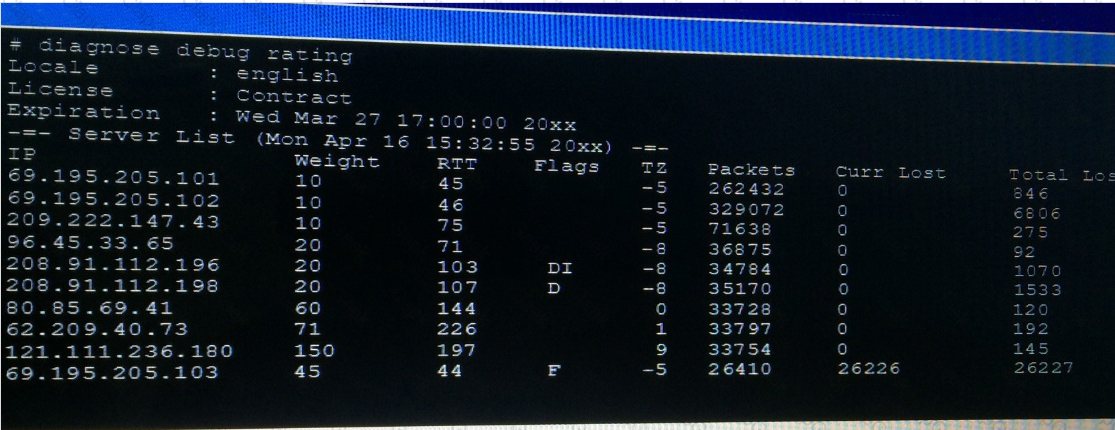

Examine the output of the 'diagnose debug rating' command shown in the exhibit; then answer the question below.
Which statement are true regarding the output in the exhibit? (Choose two.)

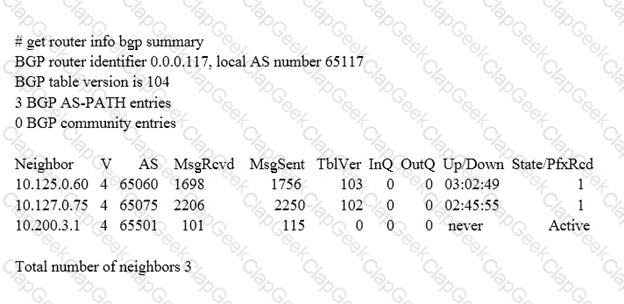

Examine the output of the ‘get router info bgp summary’ command shown in the exhibit; then answer the question below.
Which statements are true regarding the output in the exhibit? (Choose two.)
An administrator has configured a dial-up IPsec VPN with one phase 2, extended authentication (XAuth) and IKE mode configuration. The administrator has also enabled the IKE real time debug:
diagnose debug application ike-1
diagnose debug enable
In which order is each step and phase displayed in the debug output each time a new dial-up user is connecting to the VPN?

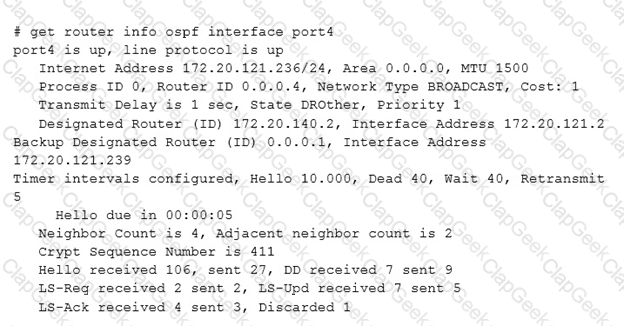

Examine the output of the ‘get router info ospf interface’ command shown in the exhibit; then answer the question below.
Which statements are true regarding the above output? (Choose two.)
View the exhibit, which contains the output of a BGP debug command, and then answer the question below.
Which of the following statements about the exhibit are true? (Choose two.)
Two independent FortiGate HA clusters are connected to the same broadcast domain. The administrator has reported that both clusters are using the same HA virtual MAC address. This creates a duplicated MAC address problem in the network. What HA setting must be changed in one of the HA clusters to fix the problem?
Which of the following conditions must be met for a static route to be active in the routing table? (Choose three.)

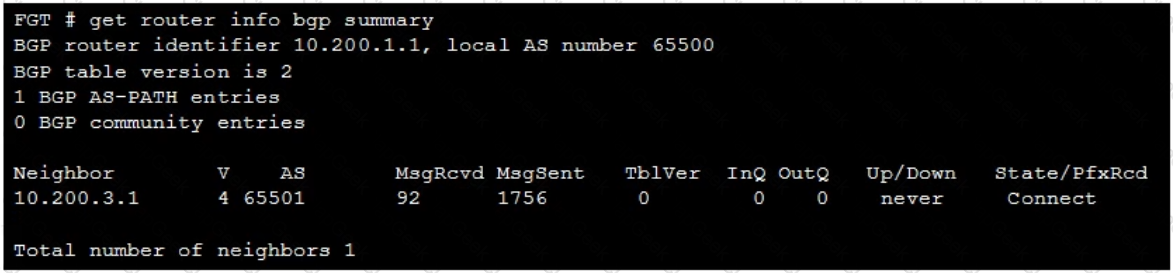

Refer to the exhibit, which shows the output of a BGP debug command.
Which statement explains why the state of the 10.200.3.1 peer is Connect?
An administrator has decreased all the TCP session timers to optimize the FortiGate memory usage. However, after the changes, one network application started to have problems. During the troubleshooting, the administrator noticed that the FortiGate deletes the sessions after the clients send the SYN packets, and before the arrival of the SYN/ACKs. When the SYN/ACK packets arrive to the FortiGate, the unit has already deleted the respective sessions. Which TCP session timer must be increased to fix this problem?
The logs in a FSSO collector agent (CA) are showing the following error:
failed to connect to registry: PIKA1026 (192.168.12.232)
What can be the reason for this error?

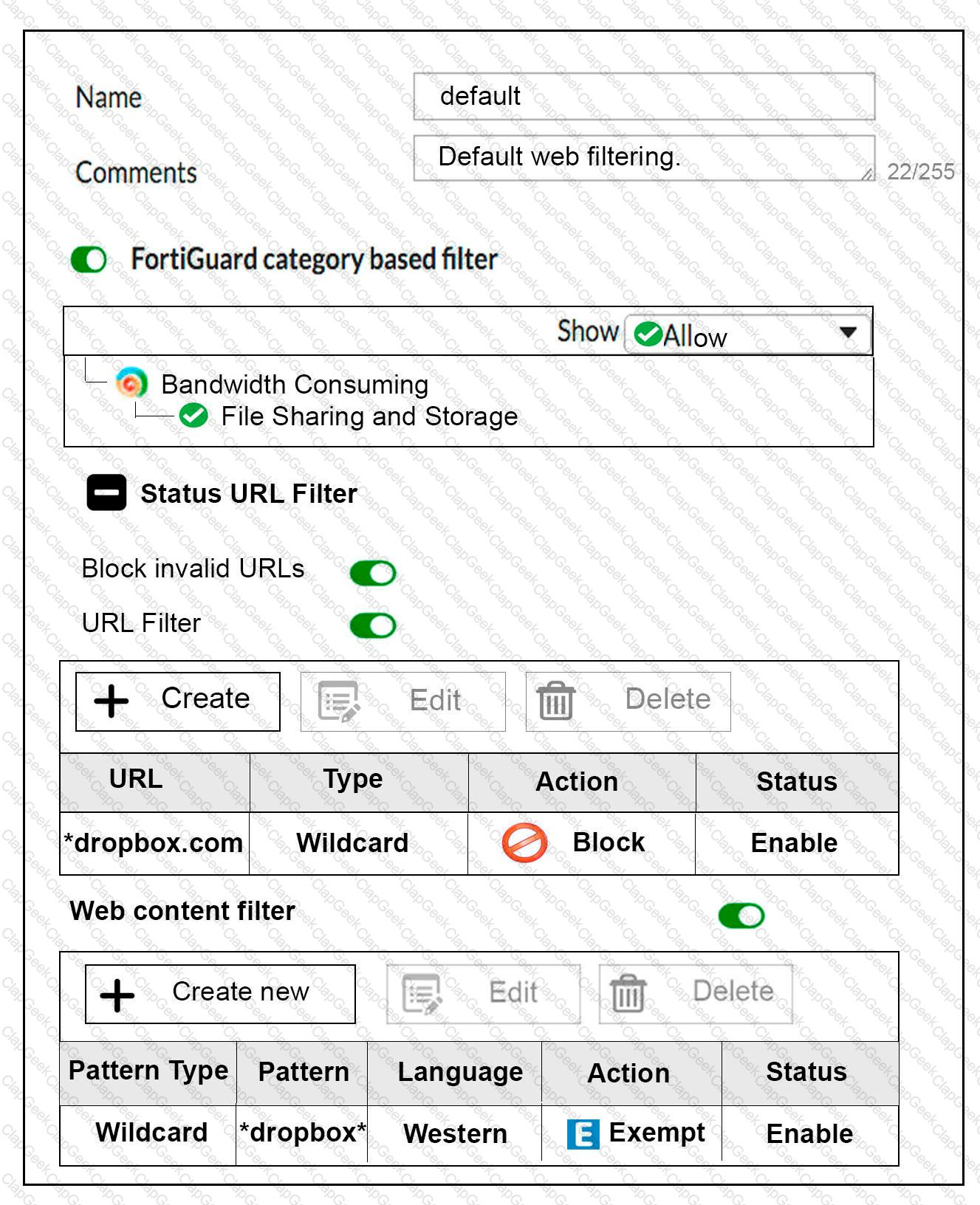

View the exhibit, which contains a partial web filter profile configuration, and then answer the question below.
Which action will FortiGate take if a user attempts to access www.dropbox.com, which is categorized as File Sharing and Storage?

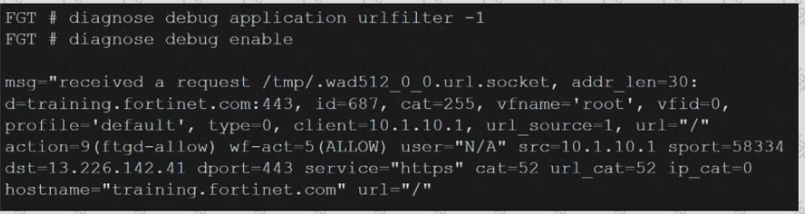

View the exhibit, which contains the output of a real-time debug, Which statement about this output is true?
Which of the following statements is true regarding this output?

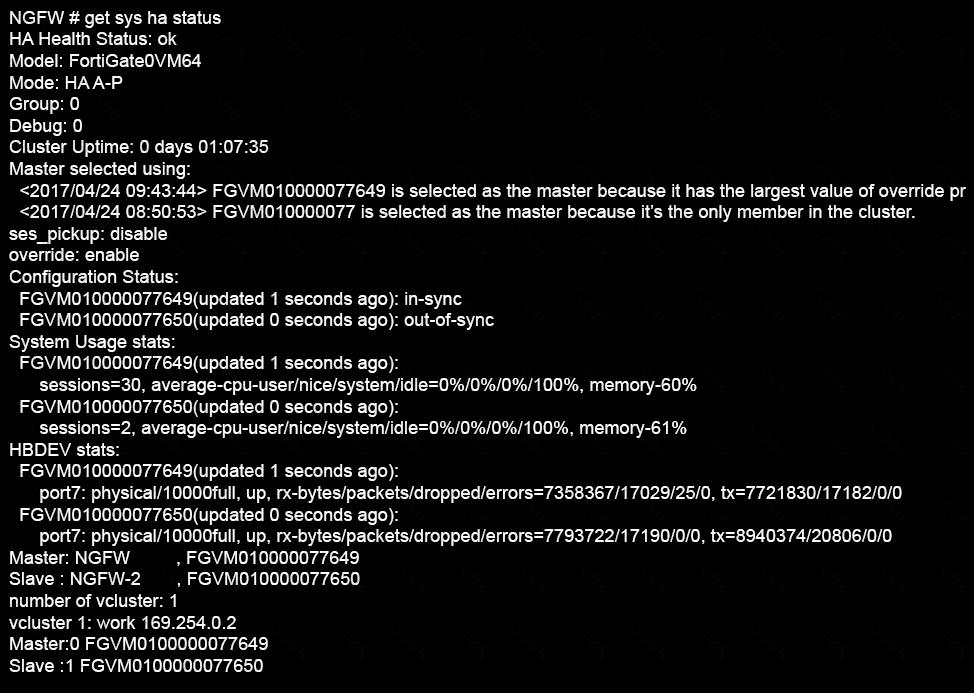

View the exhibit, which contains the output of get sys ha status, and then answer the question below.
Which statements are correct regarding the output? (Choose two.)
An administrator has configured two FortiGate devices for an HA cluster. While testing HA failover, the administrator notices that some of the switches in the network continue to send traffic to the former primary device.
What can the administrator do to fix this problem?
Examine the following traffic log; then answer the question below.
date-20xx-02-01 time=19:52:01 devname=master device_id="xxxxxxx" log_id=0100020007 type=event subtype=system pri critical vd=root service=kemel status=failure msg="NAT port is exhausted."
What does the log mean?
View the exhibit, which contains the output of diagnose sys session stat, and then answer the question below.
Which statements are correct regarding the output shown? (Choose two.)

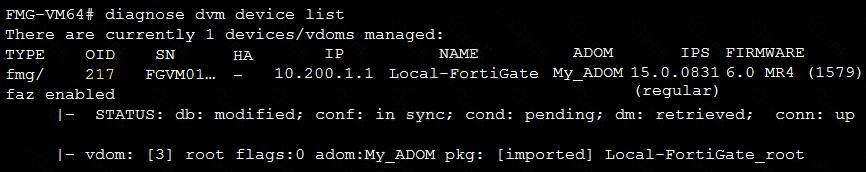

Refer to the exhibit, which contains the debug output of diagnose dvm device list.
Which two statements about the output shown in the exhibit are correct? (Choose two.)
