NSE7_ZTA-7.2 Fortinet NSE 7 - Zero Trust Access 7.2 Questions and Answers

In the scenario where FortiNAC has alarm mappings configured for MDM (Mobile Device Management) compliance failure and FortiClient EMS (Endpoint Management System) is integrated as an MDM connector, the typical response when an endpoint is quarantined by FortiClient EMS is to isolate the host in the registration VLAN. This action is consistent with FortiNAC's approach to network access control, focusing on ensuring network security and compliance. By moving the non-compliant or quarantined host to a registration VLAN, FortiNAC effectively segregates it from the rest of the network, mitigating potential risks while allowing for further investigation or remediation steps.References:FortiNAC documentation, MDM Compliance and Response Actions.

FortiNAC uses a variety of methods to identify devices on the network, such as Vendor OUI, DHCP fingerprinting, and device profiling12. One of the supported communication methods that FortiNAC uses for initial device identification during discovery is SNMP (Simple Network Management Protocol)3. SNMP is a protocol that allows network devices to exchange information and monitor their status4. FortiNAC can use SNMP to read information from switches and routers, such as MAC addresses, IP addresses, VLANs, and port status3. SNMP can also be used to configure network devices and enforce policies4. References: 1: Identification | FortiNAC 9.4.0 - Fortinet Documentation 2: Device profiling process | FortiNAC8.3.0 | Fortinet Document Library 3: Using FortiNAC to identify medical devices - James Pratt 4: How does FortiNAC identify a new device on the network?

 Based on the exhibit, the true statements about the hr endpoint are:

• B. The endpoint is marked as a rogue device: The "w" symbol typically indicates a warning or an at-risk status, which can be associated with an endpoint being marked as rogue due to failing to meet the security compliance requirements or other reasons.
• C. The endpoint has failed the compliance scan: The "w" symbol can also signify that the endpoint has failed a compliance scan, which is a common reason for an endpoint to be marked as at risk.

The FortiAnalyzer playbook configuration shown in the exhibit indicates that:

• D. The playbook is manually started by an administrator: The "ON DEMAND" trigger in the playbook suggests that it is initiated manually, as opposed to being automated or scheduled. This typically means that an administrator decides when to run the playbook based on specific needs or incidents.

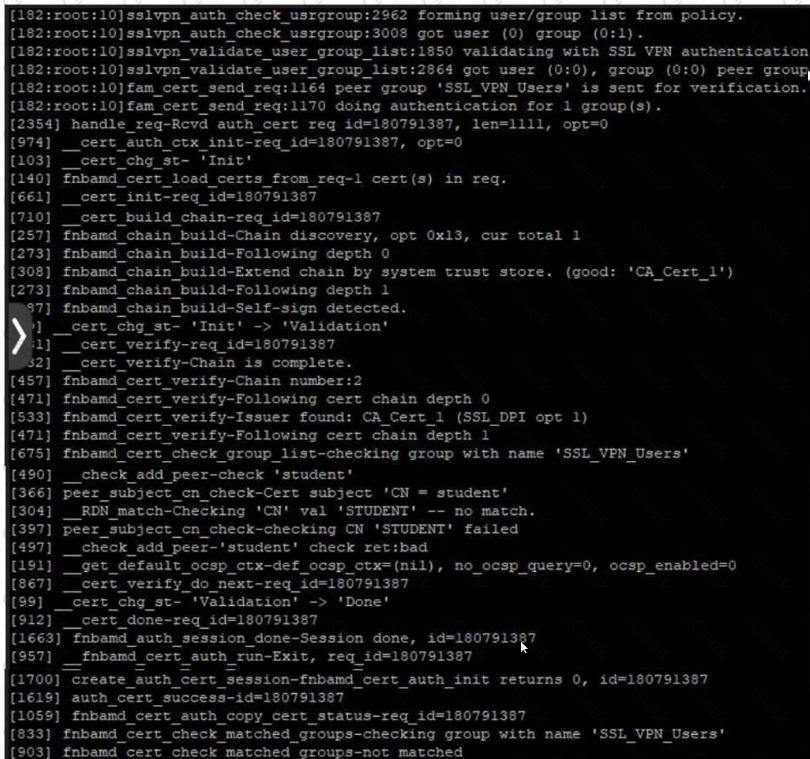

Given the output showing a real-time debug, the statement that describes the login failure is:

• C. student is not part of the usergroup SSL_VPN_Users: The debug log contains a line that says "fnbam_cert_check_group_list-checking group with name 'SSL_VPN_Users'" followed by "peer_check_add_peer_check_student" and later "RDN_match-Checking 'CN' val 'STUDENT' -- no match." This suggests that the certificate presented has a common name (CN) of 'student', which does not match or is not authorized under the 'SSL_VPN_Users' group expected for successful authentication.

According to the FortiNAC documentation1, disabled hosts are placed in the dead end VLAN, which is a special VLAN that isolates them from the production network. This is done to prevent unauthorized or compromised hosts from accessing network resources or spreading malware. The dead end VLAN must be configured in the AP model or the SSID configuration, and the state must be enforced23. Disabled hosts can be enabled again by the administrator or by reauthenticating through the FortiNAC portal. References := 1: Enable or disable hosts | FortiNAC 9.4.0 - Fortinet Documentation 2: Technical Tip: Disabled wireless hosts not isolated - FortiNAC 3: Technical Tip: Disabled wired hosts not isolated - FortiNAC
