OGA-031 ArchiMate 3 Part 1 Examination Questions and Answers

The correct answer is D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process. This is because the diagram shows a business event (Claim Filed) that initiates a business process (Accept Claim) which is performed by a business role (Customer Service Representative). The business process then triggers another business process (Assign Claim) which is also performed by the same business role. The diagram does not show any information flow or assignment relationships between the elements.

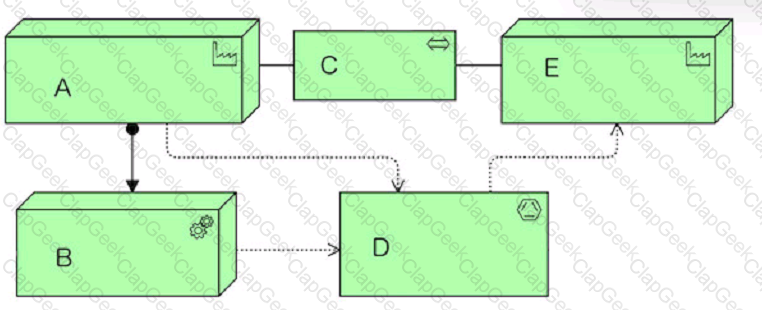

The diagram uses the ArchiMate notation for physical elements, which are used to model physical concepts like machines, physical installations, materials, and distribution networks. A is an equipment element, which represents a physical machine, tool, or instrument that can create, use, store, move, or transform materials. B is a material element, which represents tangible physical matter or energy. C is a distribution network element, which represents a physical network used to transport materials or energy.

References: ArchiMate Physical elements1; ArchiMate® 3.2 Specification, Chapter 9: Physical Elements2; Introduction to ArchiMate 3.0 (Part 4 Physical Elements)3.

According to the ArchiMate 3.2 Specification1, the ArchiMate core language defines a structure of generic elements and their relationships, which can be specialized in different layers. Three layers are defined within the ArchiMate core language as follows:

The Business Layer depicts business services offered to customers, which are realized in the organization by business processes performed by business actors and roles.

The Application Layer depicts application services that support the business, and the applications that realize them.

The Technology Layer comprises both information and operational technology. You can model, for example, processing, storage, and communication technology in support of the application world and Business Layers, and model operational or physical technology with facilities, physical equipment, materials, and distribution networks.

Based on the ArchiMate 3 documents or objectives, a communication network represents a set of structures that connects devices or system software for transmission, routing, and reception of data. A path models the relation between two or more technology internal active structure elements, through which these can exchange information. The diagram uses a flow relationship to indicate that data flows from server B to communication network E, then through path F to communication network I. The notation for a flow relationship is a dashed line with an open arrowhead at the end that points to the direction of the flow.

References: ArchiMate® 3.2 Specification, Chapter 11 Technology Layer, Section 11.2 Active Structure Elements 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.4 Dynamic Relationships 1; ArchiMate communication network 2.

Based on the ArchiMate 3 documents or objectives, the diagram uses a specialization relationship to indicate that the two business roles Travel Insurance Claim Analyst and Home Insurance Product Specialist are more specific versions of the business role Specialist. A specialization relationship is a type of structural relationship that indicates that an object is a specialization of another object. The notation for a specialization relationship is a solid line with an empty triangle at the end that points to the more general element.

References: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.2 Structural Relationships 1; ArchiMate Specialization Relationship - ArchiMate Quick Guide - GitBook 2.

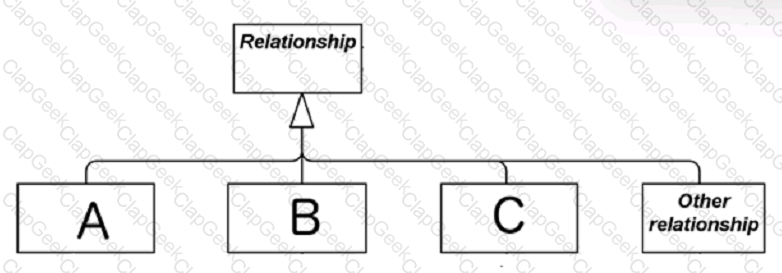

 This is because the diagram shows the three main categories of relationships in ArchiMate: structural relationships, which model the static construction or composition of concepts; dependency relationships, which model how elements depend on or use other elements; and dynamic relationships, which model the temporal or causal connections between elements.

According to the ArchiMate® 3.2 Specification1, a facility is a physical element that is used to model buildings that have an important role in production processes. A facility represents a physical structure or environment1. Therefore, the correct answer is A. Facility.

Comprehensive and Detailed in Depth Explanation:TheAssignmentrelationship is used tolink elements that perform or fulfill a function. ATechnologyFunctionrepresents alogical grouping of technology behavior(e.g., storage, networking), while anApplication Functionrepresentssoftware behavior(e.g., processing business transactions).

Since technology functions enable applications to operate, theAssignmentrelationship correctly models this dependency. TheArchiMate 3.2 Specificationexplicitly states thatTechnology Functionscan beassigned to Application Functions.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:

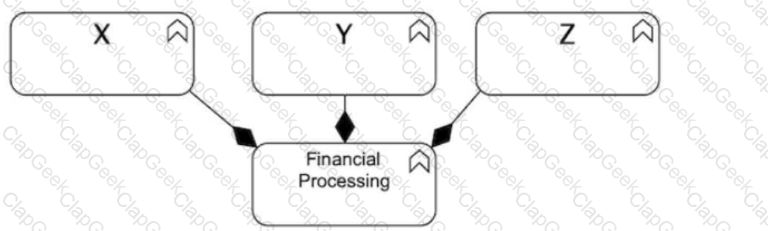

Theblack diamond notationinArchiMaterepresents aComposition relationship, which is used to indicatewhole-part relationshipsbetween elements.

Financial Processingis thewhole(parent element).

X, Y, and Zaresub-functions, meaning they arepart ofFinancial Processing.

Compositionisa strong relationship, meaning thesub-functions (X, Y, and Z) do not exist independently outside Financial Processing.

Analysis of Answer Choices:

✅A. The financial processing function is composed of three sub-functions X, Y, and Z.→✅Correct Answer

Composition relationshipsin ArchiMate indicate that one element ispart of anotherin a strict, whole-part hierarchy.

ArchiMate 3.2 Specification, Section 6.4.2, definesComposition as a structural relationship where the child elements belong strictly to the parent.

SinceFinancial Processing contains X, Y, and Z as integral sub-functions, this is the correct choice.

✅B. The financial processing function aggregates the three sub-functions X, Y, and Z.→❌Incorrect

Aggregationis aweakerrelationship in ArchiMate compared toComposition.

In Aggregation,the sub-functions can exist independently, whereas in Composition, theycannot.

ArchiMate 3.2 Specification, Section 6.4.1, states thatAggregation does not enforce a strict whole-part relationshiplike Composition does.

✅C. The financial processing function is influenced by the three sub-functions X, Y, and Z.→❌Incorrect

Influence relationshipsin ArchiMatedo not represent whole-part structures.

Influence is amotivation relationship, meaning it represents animpact or effect, not astructural dependency.

✅D. The financial processing function is assigned the three sub-functions X, Y, and Z.→❌Incorrect

Assignment relationshipsare used to indicate thata behavior element (e.g., function, process) is performed by an active structure element (e.g., role, actor, component).

This diagramdoes not depict an assignment relationship; instead, itshows a structural composition.

Final Answer:✅A. The financial processing function is composed of three sub-functions X, Y, and Z.

References:

ArchiMate 3.2 Specification: Sections 6.4.2 (Composition), 6.4.1 (Aggregation), and 6.5 (Influence & Assignment).

Archi User Guide: Modeling business functions and composition relationships.

According to the physical elements metamodel, a facility is a specialization of a node, which is an active structure element that represents a computational or physical resource that hosts, manipulates, or interacts with other computational or physical resources. A facility can be used to model physical buildings or locations.

References: Physical Layer: Part 1 - Metamodel1; ArchiMate® 3.0.1 Specification, Chapter 9: Physical Elements2.

This is because a grouping is a composite element that aggregates or groups other elements based on some common characteristic or purpose. A course of action is a motivation element that represents an approach or plan for achieving some goal. An aggregation is a structural relationship that models the whole-part hierarchy between elements. A contract is a passive structure element that represents a formal or informal specification of an agreement between a provider and a consumer that specifies the rights and obligations associated with a product or service.

ased on the ArchiMate 3 documents or objectives, a grouping is a composite element that consists of other concepts, from one or more aspects or layers of the ArchiMate language. A grouping can be used to model a logical or physical grouping of elements that belong together based on some criteria. A grouping can itself aggregate or compose other groupings, leading to a hierarchy of these elements.

References: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.5 Composite Elements 1; Composite Elements | Enterprise Architect User Guide 2.

Comprehensive and Detailed in Depth Explanation:ABusiness Interfaceis an external active structure element that provides an external point of access to one or more Business Services. In theBusiness Layer metamodel, aBusiness Serviceis assigned to aBusiness Interfacebecause interfaces define how services are exposed to external parties or other components within an enterprise.

This is confirmed in theArchiMate Specification 3.2, where aBusiness Interfaceis described as representing a point of interaction that enables access toBusiness Services.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:

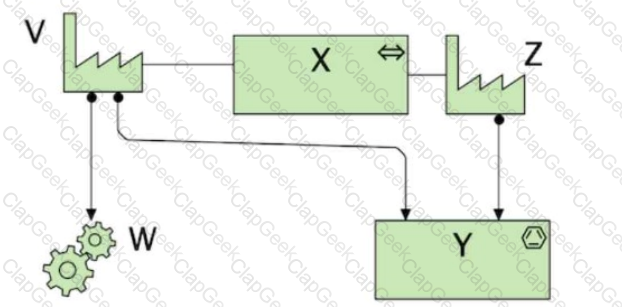

ThisArchiMate Physical Layer diagramrepresentslogistics and supply chain operations. The elements in the diagram align withphysical infrastructure conceptsused inArchiMate 3.2.

Understanding the Diagram Elements:

V (Factory symbol)→ Represents aFactory or Production Facility, where goods are manufactured.

W (Gear symbol)→ RepresentsRaw Material or Equipmentthat isused in production.

X (Network or Transportation symbol)→ RepresentsTransportation or a Distribution networkfor moving goods.

Y (End-point receiving goods)→ Represents alogistics center, warehouse, or transportation endpoint.

This matchesoption D, where:

V = Factory→ The starting point of manufacturing.

W = Raw material→ Essential input for production.

X = Transportation→ Moving products to distribution centers.

Analysis of Answer Choices:

✅A. V = Production process, W = Finished Material, X = Transport network→❌Incorrect

V is not a process; it is aphysical location (Factory).

W represents raw material, not finished material.

X represents transportation, but V is wrongly classified as a process.

✅B. V = Equipment, W = Facility, X = Distribution channel→❌Incorrect

V represents a Facility (Factory), not just Equipment.

W represents raw material, not a Facility.

X is more of a transportation network rather than a distribution channel.

✅C. V = Facility, W = Equipment, X = Distribution network→❌Incorrect

W represents raw material, not just Equipment.

X represents Transportation, not strictly a distribution network.

✅D. V = Factory, W = Raw material, X = Transportation→✅Correct Answer

This is the best match with the diagram’s physical elements.

V (Factory) is the production source.

W (Raw material) is used in production.

X (Transportation) is the means of moving goods.

ArchiMate 3.2 Specification, Section 7.7, definesFacilities, Materials, and Transportation as part of the Physical Layer modeling concepts.

Final Answer:✅D. V = Factory, W = Raw material, X = Transportation.

References:

ArchiMate 3.2 Specification: Sections 7.7 (Facilities & Physical Elements), 7.8 (Material Flow), and 7.9 (Distribution & Logistics).

Archi User Guide: Modeling physical infrastructure in enterprise architecture.

Comprehensive and Detailed In-Depth Explanation:

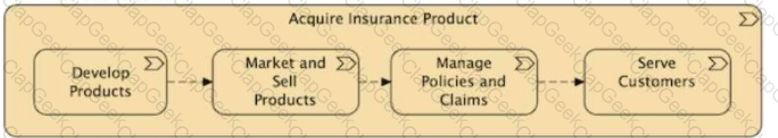

This diagram represents avalue stream, which is a key concept inArchiMate 3.2. Avalue streamdescribes howvalue is created and deliveredacross a sequence of activities. It is used to represent high-levelbusiness activities that contribute to the value creationfor a stakeholder or customer.

TheAcquire Insurance Productat the top level represents anend-to-endflow.

Thesub-elements(Develop Products, Market and Sell Products, Manage Policies and Claims, and Serve Customers) depicthow value is progressively builtthrough different stages.

Thedashed arrowsindicate a flow of value from one stage to the next, typical in value streams.

Analysis of Answer Choices:

✅A. A set of processes for acquiring insurance products→❌Incorrect.

Processes are typically lower-level activitiesdepicted using process modeling, such as BPMN or a process flow diagram.

ArchiMate 3.2 Specification, Section 6.3.2, differentiatesbusiness processesfromvalue streams.

✅B. A sequence of capabilities for acquiring insurance products→❌Incorrect.

Capabilities represent the organization’s abilitiesrather than sequential activities.

InArchiMate, capabilities are morestatic, focusing on what the organization can do, rather thanhow value is delivered over time.

ArchiMate 3.2 Specification, Section 7.3, explains the distinction betweencapabilities and value streams.

✅C. A value stream for acquiring insurance products→✅Correct Answer

A value stream represents a series of high-level activities that create valuefor a customer or stakeholder.

ArchiMate 3.2 Specification, Section 8.2.4, definesvalue streamsas sequences thatdeliver value incrementally.

Thisexact pattern(top-level action decomposed into astructured sequence of stages) is avalue stream.

✅D. A decomposition of the course of action for acquiring insurance products→❌Incorrect.

Course of actionis a concept inStrategy Layerof ArchiMate, referring to guidelines, policies, or directions rather than aflow of activities.

This isnot a strategic breakdown, but rather a flow ofvalue creation.

ArchiMate 3.2 Specification, Section 7.5, states thatcourse of action is different from a structured value creation sequence.

Final Answer:✅C. A value stream for acquiring insurance products.

References:

ArchiMate 3.2 Specification: Sections 6.3.2 (Business Process), 7.3 (Capabilities), 8.2.4 (Value Streams), and 7.5 (Course of Action).

Archi User Guide: Value Stream modeling and decomposition principles.

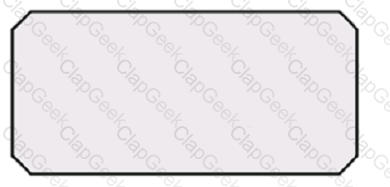

According to the standard notation conventions, a structure element is denoted by a rectangle with rounded corners. A structure element represents an entity that has a state and exhibits some behavior. Examples of structure elements are actors, roles, components, nodes, and objects.

Comprehensive and Detailed In-Depth Explanation:

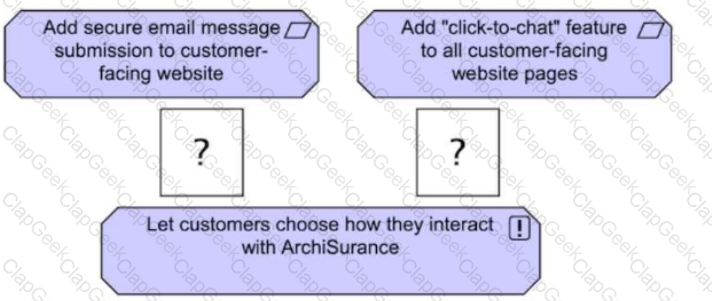

This diagram represents agoal-driven modelwhere thebottom element(Let customers choose how they interact with ArchiSurance) describes ahigh-level objective or outcome, while thetop elementsrepresentspecific implementations that fulfill this objective.

InArchiMate 3.2, theRealization relationshipis used when:

A higher-level concept (e.g., a goal or requirement) is realized by more specific lower-level elements.

Concrete solutions (e.g., features or processes) implement or fulfill an abstract goal.

Understanding the Diagram:

Thegoal is to let customers choose how they interact with ArchiSurance.

The two elements at the top("Add secure email message submission" and "Add click-to-chat feature") are specific solutions that make this goal achievable.

This fitsexactlywith theRealization relationship, where agoal or requirement is realized by specific actions.

Analysis of Answer Choices:

✅A. Aggregation→❌Incorrect

Aggregation represents a "whole-part" relationship, where elements can exist independently of the whole.

Thetop elements are not separate, independent componentsbut rather implementations of the bottom element.

✅B. Access→❌Incorrect

Access relationships are used for information flow, such as reading, writing, or modifying data.

This model is aboutrealizing a business objective, not accessing data.

✅C. Realization→✅Correct Answer

The bottom element is a higher-level goal, and the top elementsimplementorrealizeit.

ArchiMate 3.2 Specification, Section 6.4.9, states thatRealization relationships link abstract concepts (like goals) to concrete implementations (like processes, services, or functions).

✅D. Specialization→❌Incorrect

Specialization relationships are used when one concept is a subtype of another.

Thetop elements are not specialized versions of the bottom element; rather, theyimplementit.

Final Answer:✅C. Realization

References:

ArchiMate 3.2 Specification: Section 6.4.9 (Realization Relationship).

Archi User Guide: Understanding goal realization and requirement fulfillment.

According to the Technology Layer metamodel, a communication network is a physical communication medium between two or more devices or other networks. A communication network realizes a path, which is a relation between two or more nodes through which they can exchange information.

References: Technology Layer in ArchiMate Part 1 - Metamodel1; ArchiMate® 3.2 Specification, Chapter 10: Technology Layer2.

Comprehensive and Detailed in Depth Explanation:In ArchiMate, theActive Structureaspect represents elements thatperform behaviorandact upon other elements.

ABusiness Partneris anactive entitythat interacts with a business.

ASoftware Applicationis anApplication Component, which belongs to theActive Structureaspect.

Server Hardwareis part of theTechnology Layerbut still falls under theActive Structurecategory.

Since all three elements representactive entities performing tasks, they fall underActive Structureas per theArchiMate 3.2 Specification.

References:

Archi User Guide​

ArchiMate 3.2 Specification

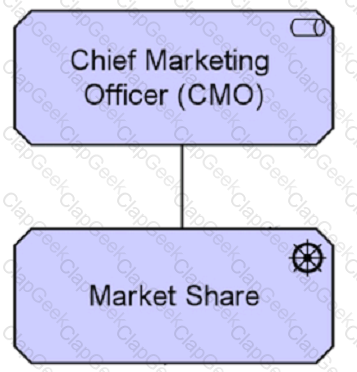

Based on the ArchiMate 3 documents or objectives, a business actor represents a business entity that is capable of performing behavior. A business actor is a business entity as opposed to a technical entity; i.e., it belongs to the Business Layer. The notation for a business actor is a circle with a stick figure inside it. The Chief Marketing Officer in this diagram is a business actor that performs the behavior assigned to the Marketing Manager role.

References: ArchiMate® 3.2 Specification, Chapter 8 Business Layer, Section 8.2 Active Structure Elements 1; ArchiMate Example: Business Actor - Visual Paradigm Community Circle 2.

Comprehensive and Detailed in Depth Explanation:TheMaterialelement in thePhysical Layerof ArchiMate representstangible physical matter or energythat is used or produced within an enterprise. Examples include raw materials, energy sources, or physical substances used in manufacturing.

TheArchiMate 3.2 Specificationexplicitly states thatMaterialis apassive structureelement that representsphysical matter or energy.

References:

Archi User Guide​

ArchiMate 3.2 Specification
