PCNSE Palo Alto Networks Certified Security Engineer (PCNSE) PAN-OS 11.0 Questions and Answers

https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-web-interface-help/policies/policies-application-override

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000PPDrCAO

https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-admin/zone-protection-and-dos-protection/zone-defense/packet-buffer-protection

Palo Alto Networks recommends starting SSL decryption with High Risk categories (Option B) because they’re more likely to contain threats (e.g., malware, phishing) that require visibility for inspection, balancing security and resource use.

User-ID is a feature that allows the firewall to identify and classify users and groups on the network based on their usernames, IP addresses, and other attributes1. User-ID information can be collected from various sources, such as:

A: Windows User-ID agent: A software agent that runs on a Windows server and collects user information from Active Directory domain controllers, Exchange servers, or eDirectory servers2. The agent then sends the user information to the firewall or Panorama for user mapping2.

B: GlobalProtect: A software agent that runs on the endpoints and provides secure VPN access to the network3. GlobalProtect also collects user information from the endpoints and sends it to the firewall or Panorama for user mapping4.

C: XMLAPI: An application programming interface that allows external systems or scripts to send user information to the firewall or Panorama in XML format. The XMLAPI can be used to integrate with third-party systems, such as identity providers, captive portals, or custom applications.

In a High Availability (HA) setup with Palo Alto Networks firewalls, the synchronization of IPsec tunnel Security Associations (SAs) is an important aspect to ensure seamless failover and continued secure communication. Specifically, for Phase 2 SAs, they are synchronized over the HA2 links. The HA2 link is dedicated to synchronizing sessions, forwarding tables, IPSec SA, ARP tables, and other critical information between the active and passive firewalls in an HA pair. This ensures that the passive unit can immediately take over in case the active unit fails, without the need for re-establishing IPsec tunnels, thereby maintaining secure communications without interruption. It's important to note that Phase 1 SAs, which are responsible for establishing the secure tunnel itself, are not synchronized between the HA pair, as these need to be re-established upon failover to ensure secure key exchange.

https://knowledgebase.paloaltonetworks.com/kCSArticleDetail?id=kA10g000000PMiD

https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-admin/firewall-administration/manage-firewall-administrators/administrative-authentication#:~:text=The%20administrative%20accounts%20are%20defined,attributes%20on%20the%20SAML%20server .

When troubleshooting Palo Alto Networks services, such as dynamic updates, verifying the status of service routes is critical. Service routes determine how the firewall communicates with external services (e.g., Palo Alto Networks update servers, WildFire, DNS, etc.) from the Management Plane or data plane interfaces.

Why "debug dataplane internal vif route 250" is Correct

Purpose of the Command:

This command allows administrators to view the service routes configured on the firewall and verify if they are installed correctly and actively working.

The number 250 specifically refers to service routes in the Management Plane.

Output:

The command displays detailed information about service routes, including routing decisions, source interfaces, and next-hop IPs.

Helps identify issues such as:

Incorrect interface configuration.

Invalid next-hop IPs.

Missing routes for specific services.

Analysis of Other Options

debug dataplane internal vif route 255

Incorrect:

The number 255 does not correspond to service routes but is used for internal route debugging unrelated to management plane service routes.

show routing route type management

Incorrect:

This command does not exist in PAN-OS CLI. It might be a misrepresentation of another command.

debug dataplane internal vif route 250

Correct:

As explained above, this is the correct command for verifying service routes in the Management Plane.

show routing route type service-route

Incorrect:

This is not a valid PAN-OS CLI command.

PAN-OS Documentation Reference

Service Routes in PAN-OS 11.0:

The configuration and verification of service routes are covered under the Device > Setup > Services section of the GUI.

For CLI, the debug dataplane internal vif route 250 command is specifically used for troubleshooting service routes in the Management Plane.

For more details, refer to:

PAN-OS 11.0 CLI Guide: Covers debugging tools and service route verification.

PCNSA Study Guide: Domain 1 includes service route configurations and their importance in maintaining connectivity for management services.

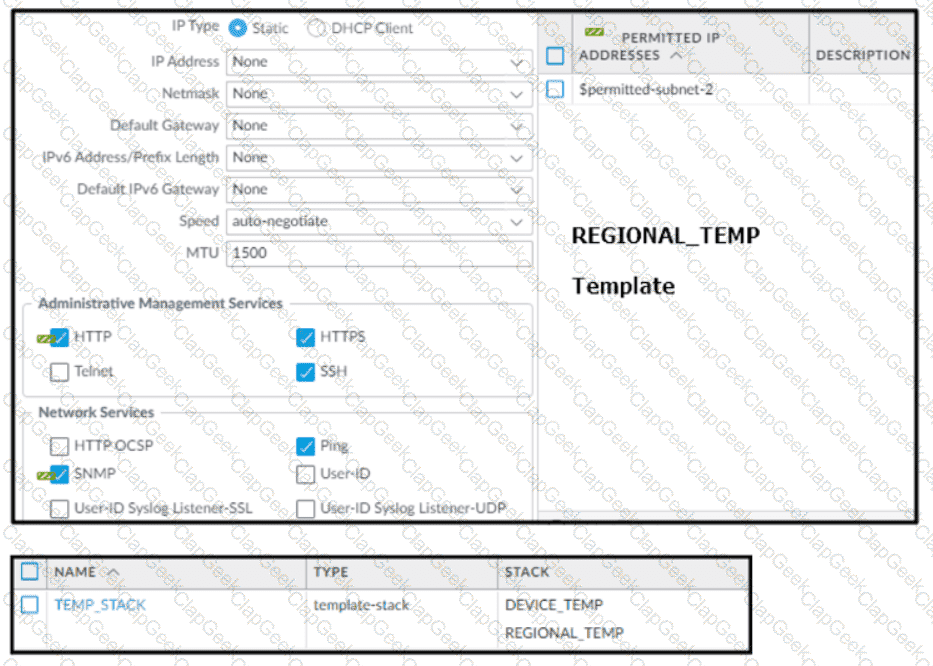

To enable XML API access to a firewall for automation from a network segment routed through a Layer 3 sub-interface, the most straightforward approach is to use an Interface Management profile.

C. This can be achieved by:

Configuring an Interface Management profile and enabling HTTPS access on it. This profile defines management services that are permitted on the interface, including HTTPS, which is required for XML API access.

Applying this Interface Management profile to the desired Layer 3 sub-interface. This action enables HTTPS access (and thus XML API access) on the sub-interface, allowing devices on the connected network segment to communicate with the firewall for automation purposes.

This solution allows for the secure extension of management capabilities to network segments without direct access to the dedicated management interface, facilitating automation and operational efficiency without necessitating changes to existing access configurations.

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000PP3ICAW

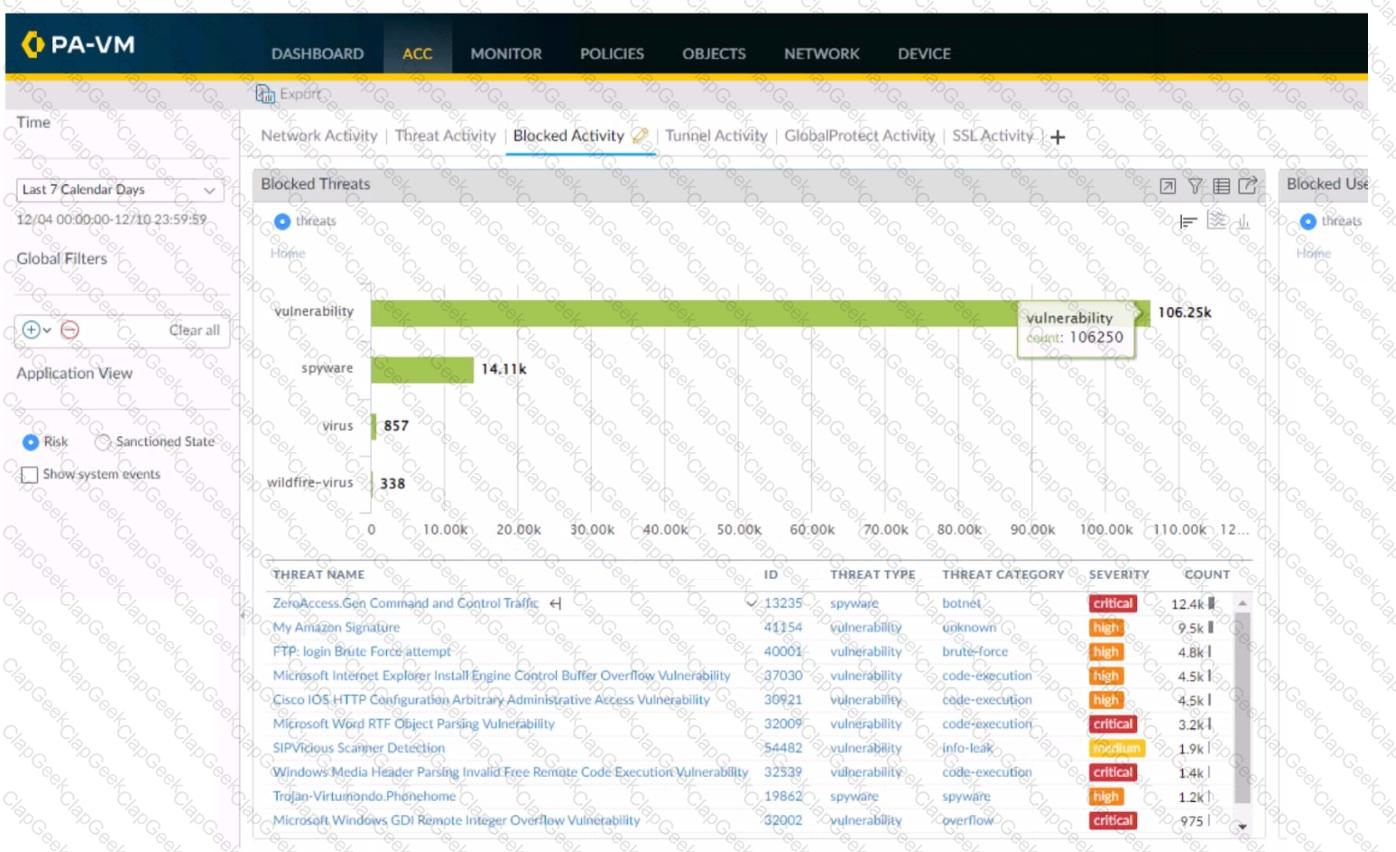

Hover over an attribute in the table below the chart and click the arrow icon to the right of the attribute. https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-admin/monitoring/use-the-application-command-center/interact-with-the-acc#id5cc39dae-04cf-4936-9916-1a4b0f3179b9

https://docs.paloaltonetworks.com/pan-os/10-0/pan-os-admin/app-id/disable-the-sip-application-level-gateway-alg

When a local configuration override occurs on a firewall managed by Panorama, the administrator can enforce Panorama’s centralized management by pushing the template configuration with the "Force Template Values" option. This option overwrites any local changes on the firewall, ensuring that the Panorama-defined configuration (e.g., interface settings) takes precedence and prevents further overrides unless explicitly allowed.

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClbXCAS https://live.paloaltonetworks.com/t5/general-topics/phase-2-tunnel-is-not-up/td-p/424789

The two key exchange algorithms that consume the most resources when decrypting SSL traffic are ECDHE and DHE. These are both Diffie-Hellman based algorithms that enable perfect forward secrecy (PFS), which means that they generate a new and unique session key for each SSL/TLS session, and do not reuse any previous keys. This enhances the security of the encrypted communication, but also increases the computational cost and complexity of the key exchange process. ECDHE stands for Elliptic Curve Diffie-Hellman Ephemeral, which uses elliptic curve cryptography (ECC) to generate the session key. DHE stands for Diffie-Hellman Ephemeral, which uses modular arithmetic to generate the session key. Both ECDHE and DHE require more CPU and memory resources than RSA, which is a non-PFS algorithm that uses public and private keys to encrypt and decrypt the session key123. References: Key Exchange Algorithms, Best Practices for Enabling SSL Decryption, PCNSE Study Guide (page 60)

The best decryption best practice that the administrator should consider is A: Consider the local, legal, and regulatory implications and how they affect which traffic can be decrypted. This is because decryption involves intercepting and inspecting encrypted traffic, which may raise privacy and compliance issues depending on the jurisdiction and the type of traffic1. Therefore, the administrator should be aware of the local, legal, and regulatory implications and how they affect which traffic can be decrypted, and follow the appropriate guidelines and policies to ensure that decryption is done in a lawful and ethical manner1.

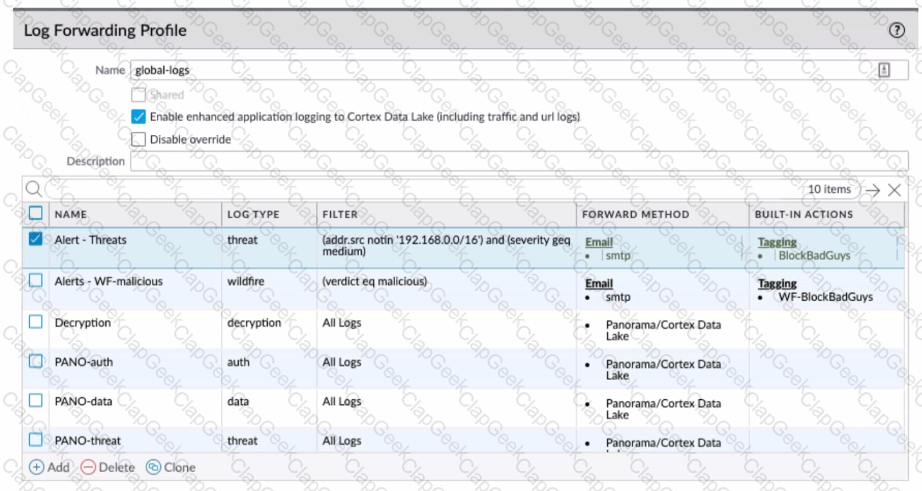

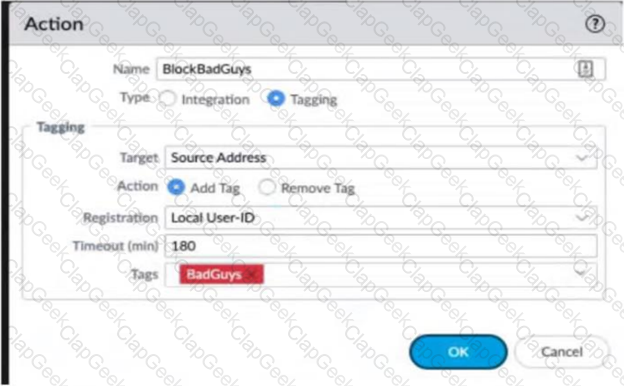

When using the log forwarding built-in action with tagging in Palo Alto Networks firewalls, the primary purpose is to dynamically respond to threats or unwanted traffic identified by the firewall's threat detection mechanisms. The action involves tagging the IP address associated with the unwanted traffic and then using that tag in dynamic security policies to block or manage the traffic.

A. Destination IP addresses of selected unwanted traffic are blocked:

When the tagging action is used, the firewall tags the IP addresses involved in the unwanted traffic (which could be the source or destination IP addresses, but in many configurations, the focus is on the source of the attack). These tags can then be referenced in Dynamic Address Groups (DAGs) within security policies. Consequently, any traffic coming from or going to these tagged IP addresses can be blocked or subjected to specific security rules, effectively mitigating the threat or unwanted behavior.

This approach allows for automated, real-time responses to identified threats, enhancing the security posture by quickly adapting to emerging threats without manual intervention.

https://docs.paloaltonetworks.com/panorama/9-1/panorama-admin/manage-firewalls/manage-device-groups/manage-unused-shared-objects

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000Cm1CCAS

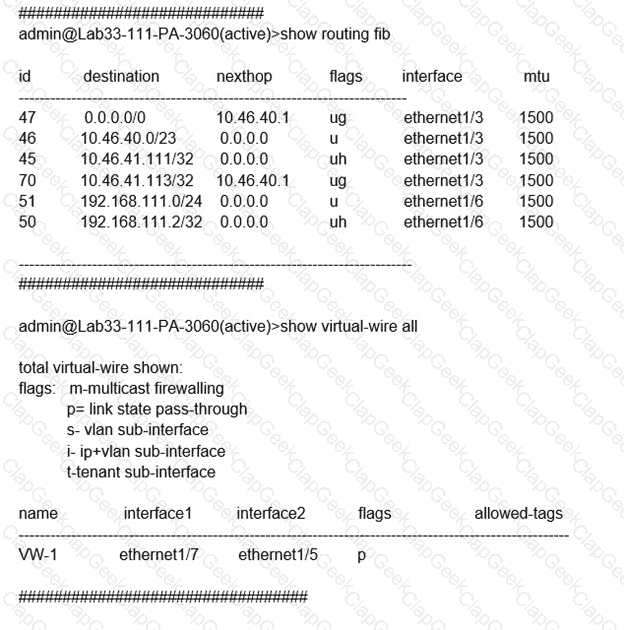

In the second image, VW ports mentioned are 1/5 and 1/7. Hence it can not be a part of any other routing. So if any traffic coming as ingress from 1/7, it has to go out via 1/5.

The egress interface for the traffic with ingress interface ethernet1/7, source 192.168.111.3, and destination 10.46.41.113 will be ethernet1/5. This is because the traffic will match the virtual wire with interfaces ethernet1/5 and ethernet1/7, which is configured to allow VLAN-tagged traffic with tags 10 and 201. The traffic will also match the security policy rule that allows traffic from zone Trust to zone Untrust, which are assigned to ethernet1/7 and ethernet1/5 respectively2. Therefore, the traffic will be forwarded to the same interface from which it was received, which is ethernet1/53.

When dealing with a false positive, particularly for a spyware threat detected through DNS queries (as indicated by the category "dns-c2"), the correct course of action involves creating an exception in the Anti-Spyware profile, not the Vulnerability Protection profile. This is because the Anti-Spyware profile in Palo Alto Networks firewalls is designed to detect and block spyware threats, which can include command and control (C2) activities often signaled by DNS queries.

The steps to configure an exception for this specific spyware signature (threat ID: 1000011111) are as follows:

Navigate to Objects > Security Profiles > Anti-Spyware. This is where all the Anti-Spyware profiles are listed.

Select the related Anti-Spyware profile that is currently applied to the security policy which is generating the false positive.

Within the profile, go to the DNS Exceptions tab. This tab allows you to specify exceptions based on DNS signatures.

Search for the related threat ID (in this case, 1000011111) and click enable to create an exception for it. By doing this, you instruct the firewall to bypass the detection for this specific signature, effectively treating it as a false positive.

Commit the changes to make the exception active.

By following these steps, the administrator can effectively address the false positive without disabling the overall spyware protection capabilities of the firewall.

To determine which sources an engineer can use to gather information about application patterns for creating custom signatures, let’s analyze each option based on PAN-OS 11.0 documentation and typical network troubleshooting practices.

A. Traffic Logs

Why It’s Correct:

Traffic logs in PAN-OS provide details about all traffic flowing through the firewall, including:

Application details.

Source and destination IPs.

Ports used.

This data is essential for identifying patterns, such as specific ports, protocols, or behaviors associated with an application.

How to Use:

Navigate to Monitor > Logs > Traffic in the web interface.

Look for the relevant application traffic and note recurring patterns.

Documentation Reference:

PAN-OS 11.0 Admin Guide, Logging and Reporting Section: Discusses traffic logs as a resource for application and behavior analysis.

B. Data Filtering Logs

Why It’s Incorrect:

Data filtering logs focus on inspecting files, data patterns, or sensitive information such as credit card numbers. These logs are not designed for gathering application-specific traffic patterns.

Documentation Reference:

PAN-OS 11.0 Admin Guide: Details how data filtering logs are used for content inspection, not for creating application signatures.

C. Policy Optimizer

Why It’s Incorrect:

Policy Optimizer helps refine security policies by identifying unused or overly permissive rules. It does not provide information about traffic patterns for applications.

Documentation Reference:

PAN-OS 11.0 Admin Guide, Policy Optimization Section: Focuses on rule management rather than traffic pattern analysis.

D. Wireshark

Why It’s Correct:

Wireshark is a powerful network protocol analyzer that captures and analyzes traffic at a granular level. Engineers can:

Identify application-specific headers or payloads.

Examine protocol behaviors.

Spot unique signatures in application traffic.

How to Use:

Capture traffic flowing to/from the application using a span or mirrored port on the switch or firewall.

Analyze the captured packets for recurring patterns (e.g., specific headers or payload data).

Documentation Reference:

While not directly mentioned in PAN-OS documentation, Wireshark is commonly recommended as a tool for packet analysis in custom application signature creation.

Summary of Correct Choices

Traffic Logs:

Provides a high-level view of application behavior and network patterns.

Wireshark:

Allows deep packet inspection and analysis for identifying unique application behaviors.

PAN-OS 11.0 Study Guide References

PCNSA Study Guide:

Domain 3: Policy Evaluation and Management:

Discusses using traffic logs to refine policies and understand application behavior.

PCNSE Study Guide:

Domain 4: Securing Traffic:

Emphasizes tools like Wireshark for advanced traffic and application analysis.

For SSL Forward Proxy, the firewall generates certificates signed by its CA (here, Untrusted-CA), causing warnings if not trusted by clients. Importing Well-Known-Intermediate-CA and Well-Known-Root-CA into the Default Trusted Certificate Authorities (Option C) and marking them as trusted allows the firewall to issue certificates within this chain, eliminating warnings for sites like important-website.com (Requirement 1). Other untrusted CAs remain untrusted, triggering warnings (Requirement 2).

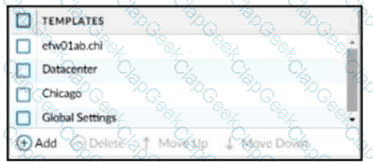

A template is a set of configuration options that can be applied to one or more firewalls or virtual systems managed by Panorama. A template can include settings from the Device and Network tabs on the firewall web interface, such as login banner, SSL decryption exclusion, and dynamic updates4. These settings can be configured in a template named “Global” and included in all template stacks. A template stack is a group of templates that Panorama pushes to managed firewalls in an ordered hierarchy4. References: Manage Templates and Template Stacks, PCNSE Study Guide (page 50)

To generate email alerts when decryption rules are changed in a Palo Alto Networks firewall, you would configure email log forwarding based on specific system logs that capture changes to decryption policies. This is done by setting up log forwarding profiles with filters that match events related to decryption rule modifications. These profiles are then applied to the relevant log types within the firewall's log settings.

To specifically monitor for changes to decryption rules, you would navigate to the Device > Log Settings section of the firewall's web interface. Here, you can configure log forwarding for system logs, which capture configuration changes among other system-level events. By creating a filter that looks for logs associated with decryption rule changes, and associating this filter with an email server profile, the firewall can automatically send out email alerts whenever a decryption rule is modified.

This setup ensures that the security team is promptly notified of any changes to the decryption policies, allowing for quick review and action if the changes were unauthorized or unintended. It is an essential part of maintaining the security posture of the network and ensuring compliance with organizational policies on encrypted traffic inspection.

https://live.paloaltonetworks.com/t5/general-topics/wildfire-submission-entries-with-severity-high-showing-action/td-p/143516

In a High Availability (HA) configuration, particularly in an active-passive setup, it's crucial that the passive unit is kept up to date with the current state of the active unit. This ensures a seamless transition in the event of a failover. The HA4 interface is dedicated to this synchronization task.

D. Perform synchronization of sessions, forwarding tables, and IPSec security associations between firewalls in an HA pair:

The HA4 interface is responsible for the synchronization of critical stateful information between the active and passive units in an HA pair. This includes session information, ensuring that the passive unit can continue existing sessions without interruption if it needs to become active.

In addition to session information, HA4 also synchronizes forwarding tables, which contain information on how to route packets, and IPSec security associations, which are necessary for maintaining secure VPN tunnels.

This synchronization ensures that both units in an HA pair have identical information regarding the current state of the network, sessions, and security associations, enabling a smooth and immediate transition to the passive unit in case the active unit fails.

Panorama’s device group hierarchy supports policy inheritance, but it does not support inheritance across groups with firewalls on different hypervisors (e.g., AWS and NSX-V) when managed by multiple plugins (Option D). AWS and NSX-V firewalls use distinct plugins (e.g., AWS Plugin, NSX Plugin), and Panorama restricts cross-hypervisor inheritance due to differing configurations and contexts, causing errors when pushing policies.

When a firewall’s local configuration overrides a Panorama template, Panorama detects this discrepancy and marks the template as out of sync (Option A) in the UI (e.g., under Templates > Device status). This alerts administrators to resolve the conflict.

The "Received fatal alert UnknownCA from client" log indicates the client rejects the firewall’s decryption certificate because it doesn’t trust the CA. For a valid use case, adding the certificate’s Common Name (CN) to the SSL Decryption Exclusion List (Option B) bypasses decryption for that site, allowing traffic to proceed without interruption. This is an immediate fix within the firewall’s control.

To address the question about the Device Telemetry feature in PAN-OS and its compliance with privacy and data storage laws, let’s examine the details thoroughly.

Understanding Device Telemetry in PAN-OS

Device Telemetry is a feature in Palo Alto Networks’ PAN-OS that collects data from the firewall to provide insights for:

Product usage trends.

Threat analysis.

Operational optimizations.

Telemetry may include:

Configuration data.

Threat logs.

Performance metrics.

However, specific aspects of this feature require attention to ensure compliance with local privacy laws.

Explanation of Options

A. Telemetry feature is automatically enabled during PAN-OS installation

Why It Requires Action:

Telemetry may be enabled by default when upgrading or installing PAN-OS. Local privacy laws (e.g., GDPR in Europe, CCPA in California) often require explicit user consent before enabling data collection.

Relevant Action:

Administrators must review and disable telemetry if required or configure it to align with local compliance laws.

References:

PAN-OS 11.0 Admin Guide: Telemetry configuration is detailed under the "Device Telemetry" section.

PCNSA Study Guide (Domain 1: Device Management): Covers the importance of managing device settings, including Telemetry.

B. Telemetry data is uploaded into Strata Logging Service

Why It Does Not Require Immediate Action:

Data sent to the Strata Logging Service is anonymized and typically adheres to Palo Alto Networks' privacy guidelines. Administrators can disable Strata Logging uploads if necessary.

Optional Action:

Ensure the data is anonymized or disable the service if the organization does not agree with external data storage.

References:

PAN-OS 11.0 Admin Guide: Details on Strata Logging and its integration with telemetry.

C. Telemetry feature is using Traffic logs and packet captures to collect data

Why It Requires Action:

If the telemetry feature collects detailed Traffic Logs or Packet Captures, it could include sensitive user data (e.g., IP addresses, URLs). Many privacy laws prohibit sharing this type of identifiable information unless anonymized.

Relevant Action:

Administrators should ensure traffic logs are anonymized or exclude sensitive data fields to meet privacy requirements.

References:

PAN-OS 11.0 Admin Guide: Outlines telemetry data collection and traffic log inclusion.

PNSE Study Guide (Domain 3: Logging and Reporting): Emphasizes securing and managing logs in compliance with privacy standards.

D. Telemetry data is shared in real time with Palo Alto Networks

Why It Does Not Require Immediate Action:

While data is shared in real time, this process is often anonymized and only includes operational and diagnostic data. Administrators can configure or disable real-time sharing if deemed non-compliant.

References:

PAN-OS 11.0 Admin Guide: Covers real-time telemetry sharing configuration.

Key Objectives in PCNSA and PCNSE Study Guides

PCNSA Study Guide:

Domain 1: Device Management:

Emphasizes understanding and configuring administrative functions such as telemetry and privacy settings.

Domain 4: Securing Traffic:

Stresses compliance with local laws when collecting and forwarding logs.

PCNSE Study Guide:

Domain 2: Logging and Reporting:

Highlights secure log collection and forwarding to external services.

Domain 5: Security Operations:

Focuses on privacy and regulatory compliance in operational activities.

Actions to Ensure Compliance

Review Privacy Regulations:

Check local laws like GDPR (Europe) or CCPA (California) to identify restrictions on data collection and sharing.

Disable Default Telemetry:

During installation or upgrade, explicitly review telemetry settings in Device > Setup > Telemetry.

Customize Data Collection:

Use the PAN-OS telemetry interface to include/exclude sensitive data like packet captures or detailed traffic logs.

Educate Administrators:

Ensure staff managing firewalls are familiar with compliance requirements through PCNSA and PCNSE training.

PAN-OS 11.0 Documentation References

Device Telemetry Overview:PAN-OS 11.0 Admin Guide - Device Telemetry

Telemetry Configuration Settings:PAN-OS 11.0 Admin Guide - Telemetry Configuration

Logging and Privacy Compliance:PAN-OS Logging Configuration

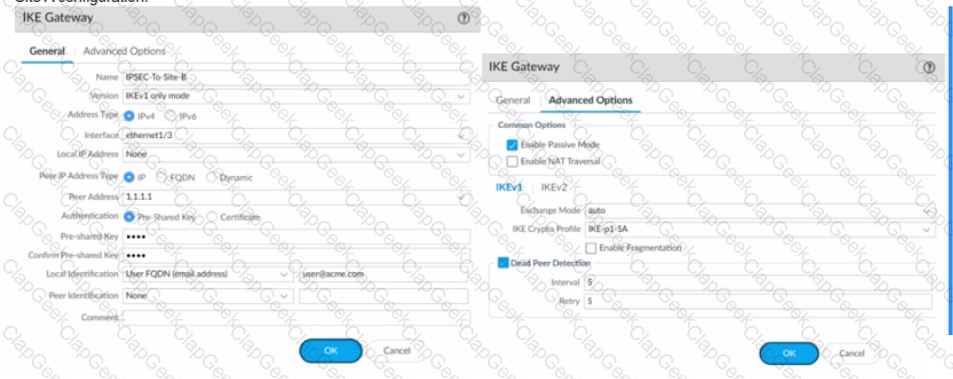

The image shows an IKE Gateway configuration where Site B is set to IKEv1 only mode, and passive mode is not enabled. For dynamic peering to work when Site A is using a DHCP assigned address:

Passive mode on Site A needs to be disabled. In passive mode, the firewall will not initiate the IKE negotiation and will only respond to negotiation requests from the peer. Since Site A has a dynamic IP, it must be able to initiate the connection to Site B, which has a static IP.

Matching the IKE version between Site A and Site B is also necessary for successful IPSec tunnel establishment. Since Site B is set to IKEv1 only mode, Site A also needs to be configured to use IKEv1 to ensure that both sites are using the same version for the IKE negotiation process.

NAT Traversal is used when there are NAT devices between the two endpoints, but there's no indication that this is the case here. Additionally, local identification on Site A is not necessarily related to the issue with dynamic peering not working.

https://www.paloaltonetworks.com/content/dam/pan/en_US/assets/pdf/datasheets/education/pcnse-study-guide.pdf page 83

For IPsec VPN reliability, Option B enhances failover speed by adding a backup tunnel and tuning tunnel monitoring. Reducing the interval (e.g., to 2 seconds) and threshold (e.g., to 3 retries) ensures quick detection and failover to the backup tunnel, minimizing disruption.

For an application that is currently identified as unknown-tcp and has sessions that often remain idle for long periods, creating a custom application and using an application override rule is the most time-efficient solution.

C. The process involves:

Creating a custom application in the Palo Alto Networks firewall and configuring it with specific timeouts to accommodate the application's idle session behavior. This step ensures that the firewall does not prematurely close the application's sessions due to inactivity.

Next, creating an application override rule that references the custom application. This rule directs the firewall to identify traffic matching the rule criteria (such as source, destination, and port information) as the custom application, bypassing the App-ID engine's regular identification process.

This approach allows for the quick implementation of a solution that ensures the application is properly identified in traffic logs without undergoing threat scanning, meeting the requirements for both identification and reporting.

In PAN-OS, the Log Forwarding object under Objects configures forwarding for Authentication (Option B) and User-ID (Option C) logs, among others, to external systems (e.g., syslog servers).

https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-new-features/user-id-features/dynamic-user-groups

Use the dynamic user group in a policy to regulate traffic for the members of the group. You will need to configure at least two rules: one to allow initial traffic to populate the dynamic user group and one to deny traffic for the activity you want to prevent (in this case, questionable-activity). To tag users, the rule to allow traffic must have a higher rule number in your rulebase than the rule that denies traffic.

https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-admin/policy/use-dynamic-user-groups-in-policy

https://www.paloaltonetworks.com/content/dam/pan/en_US/assets/pdf/datasheets/education/pcnse-study-guide.pdf page 83

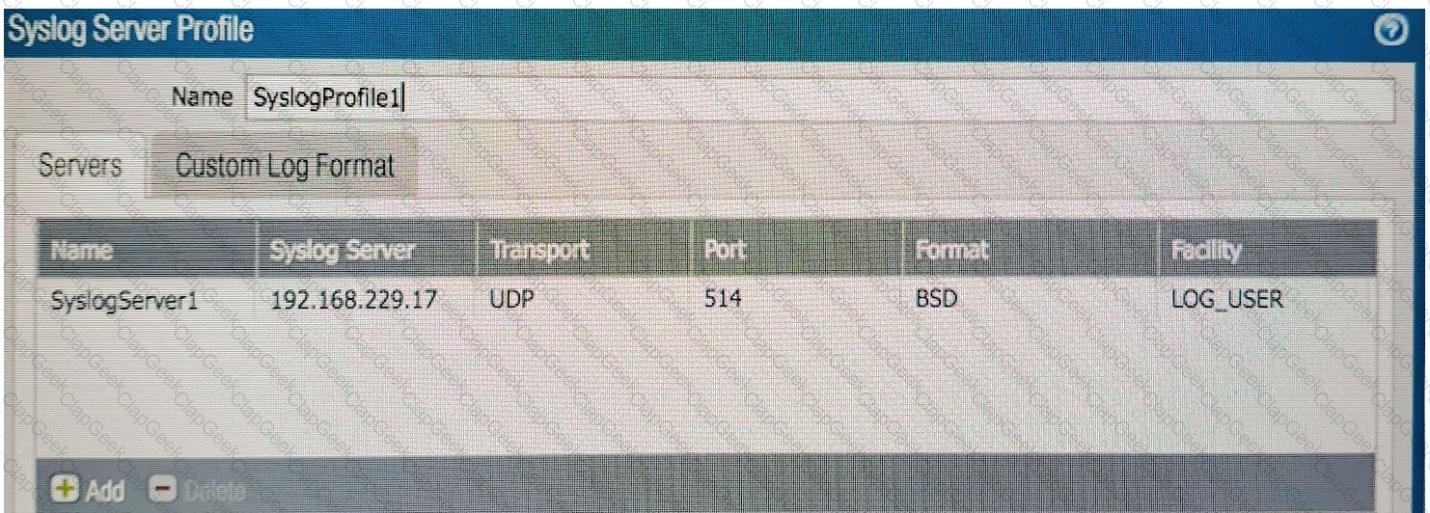

To facilitate the integration with external log parsing systems, the firewall allows you to customize the log format; it also allows you to add custom Key: Value attribute pairs. Custom message formats can be configured under DeviceServer ProfilesSyslogSyslog Server ProfileCustom Log Format. https://docs.paloaltonetworks.com/pan-os/11-1/pan-os-admin/monitoring/use-syslog-for-monitoring/syslog-field-descriptions/custom-logevent-format

Step-by-Step Explanation:

Understanding Log Forwarding in PAN-OS:

Palo Alto Networks firewalls allow forwarding logs to external systems like syslog servers, SNMP servers, or email systems for external analysis or compliance.

Traffic logs can be customized to include additional information that meets the audit or operational requirements.

Syslog Server Profiles:

Syslog Server Profiles specify the format and destination of the log data sent to the syslog server.

These profiles allow customization through the Custom Log Format option, where the firewall engineer can add or modify log fields (e.g., source address, destination address, URL category).

Custom Log Format:

Navigate to Device > Server Profiles > Syslog.

Within the Syslog Server Profile, define a Custom Log Format for traffic logs.

Using this feature, the engineer can include additional fields requested by the internal audit team, such as threat severity, application details, or user ID.

Field Specification:

In the Custom Log Format, fields are defined using variables corresponding to the log fields in PAN-OS.

Example:

$receive_time,$src,$dst,$app,$action,$rule

The engineer can include specific details as requested by the audit team.

Comparison of Other Options:

Option B: Built-in Actions within Objects > Log Forwarding Profile

Log Forwarding Profiles are used to specify what logs are forwarded based on security policy matches. However, they do not control the format of logs.

Log Forwarding Profiles define actions (e.g., forwarding to syslog, SNMP), but customization of log data happens within Syslog Server Profiles.

Option C: Logging and Reporting Settings within Device > Setup > Management

These settings control general logging behavior and settings but do not allow customization of log data for syslog forwarding.

Option D: Data Patterns within Objects > Custom Objects

Data Patterns are used for identifying sensitive data or patterns in data filtering. They are unrelated to log customization.

Why A is Correct?

The Custom Log Format under Device > Server Profiles > Syslog is the only place where additional information can be defined and added to forwarded traffic logs.

This flexibility allows the firewall engineer to meet specific compliance or audit requirements.

Documentation Reference:

PCNSA Study Guide: Logging and Monitoring section discusses Syslog Server Profiles and log forwarding configurations​.

PAN-OS Admin Guide: Covers Custom Log Format configuration under the Syslog Server Profile.

The New App-ID characteristic enables the firewall to monitor new applications on the network, so that the engineer can better assess the security policy updates they might want to make. The New App-ID characteristic always matches to only the new App-IDs in the most recently installed content releases. When a new content release is installed, the New App-ID characteristic automatically begins to match only to the new App-IDs in that content release version. This way, the engineer can see how the newly-categorized applications might impact security policy enforcement and make any necessary adjustments. References: Monitor New App-IDs

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000Cm1OCAS

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000Cm1OCAS

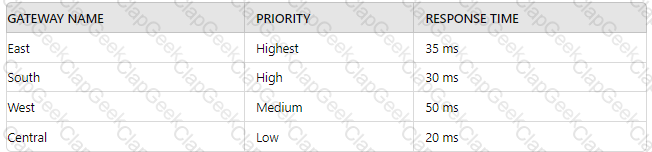

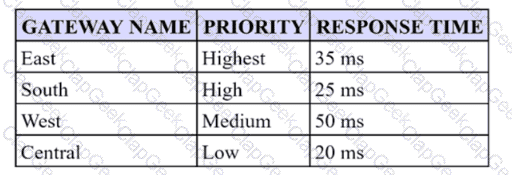

Based on the provided table, the GlobalProtect portal agent configuration includes four gateways with varying priorities and response times. Users will connect to the gateway with the highest priority and, if multiple gateways share the same priority, the one with the lowest response time.

Answer Determination

Prioritize by Priority Level:

East: Highest

South: High

West: Medium

Central: Low

Evaluate Response Times Within Each Priority:

East (Highest): 35 ms

South (High): 30 ms

West (Medium): 50 ms

Central (Low): 20 ms

Given the highest priority is "East" with a response time of 35 ms, users will connect to the East gateway based on the highest priority.

https://docs.paloaltonetworks.com/globalprotect/9-1/globalprotect-admin/globalprotect-gateways/split-tunnel-traffic-on-globalprotect-gateways/configure-a-split-tunnel-based-on-the-domain-and-application

The firewall can use three multi-factor authentication methods to authenticate access to the firewall: SMS, user certificate, and one-time password. These methods can be used in combination with other authentication factors, such as username and password, to provide stronger security for accessing the firewall web interface or CLI. The firewall can integrate with various MFA vendors that support these methods through RADIUS or SAML protocols5. Voice and fingerprint are not supported by the firewall as MFA methods. References: MFA Vendor Support, PCNSE Study Guide (page 48)

The CLI command "show system state filter-pretty sys.sl.p8.phy" is used to display detailed physical layer information, which would include the physical media connected to a specific interface such as ethernet1/8. This command is designed to filter the output to show relevant physical layer information for the specified interface.For more information on Palo Alto Networks CLI commands and their outputs, refer to the "PAN-OS® CLI Reference Guide".

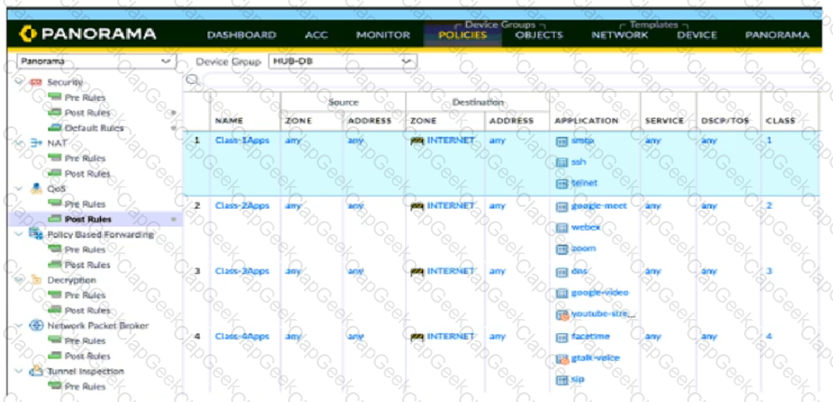

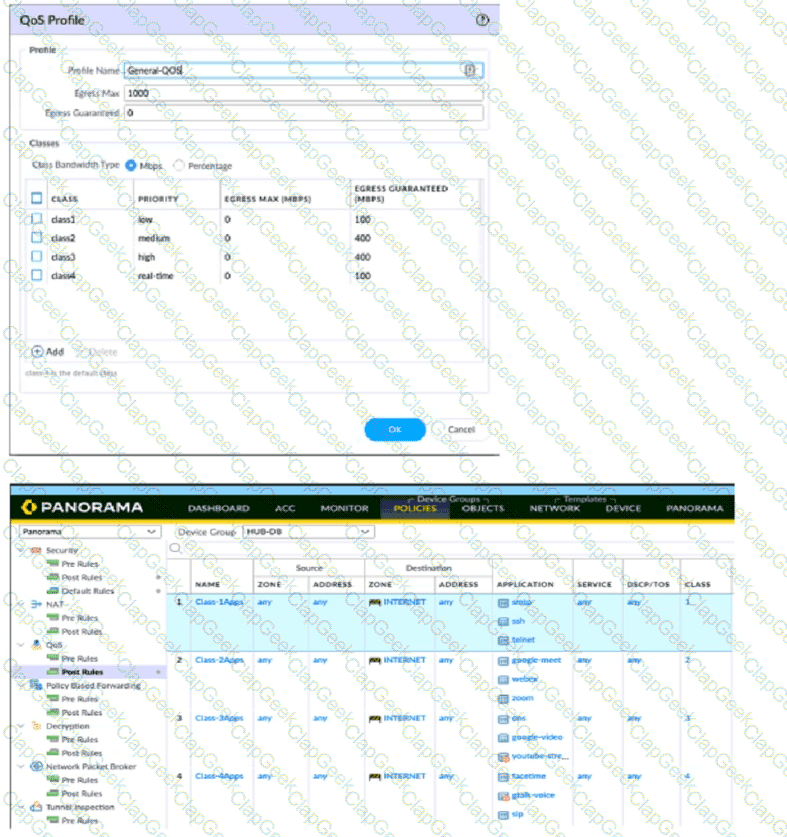

The type of policy in Palo Alto Networks firewalls that can use Device-ID as a match condition is QoS. This is because Device-ID is a feature that allows the firewall to identify and classify devices on the network based on their characteristics, such as vendor, model, OS, and role1. QoS policies are used to allocate bandwidth and prioritize traffic based on various criteria, such as application, user, source, destination, and device2. By using Device-ID as a match condition in QoS policies, the firewall can apply different QoS actions to different types of devices, such as IoT devices, laptops, smartphones, etc3. This can help optimize the network performance and ensure the quality of service for critical applications and devices.

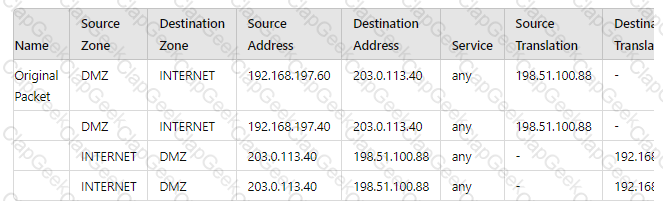

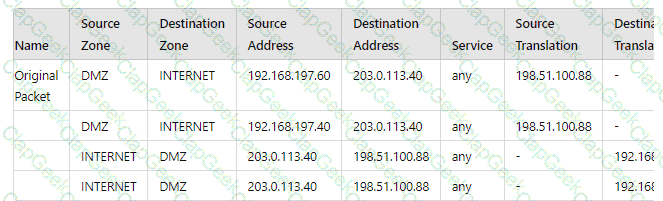

The table displays NAT rules configured on the firewall. The key points are:

Source Zone and Destination Zone define the traffic flow.

Source Address and Destination Address specify the IP addresses involved.

Service indicates the type of traffic (e.g., any, ping).

Source Translation and Destination Translation show the translated IP addresses for NAT.

Issue and Resolution Options

The application server at 192.168.197.40 can establish outbound connections but faces issues with inbound connections due to the shared NAT IP 198.51.100.88. The external database server cannot establish a secure connection back to 192.168.197.40.

Options to Resolve the Issue:

Replace the Two NAT Rules with a Single Rule:

Combining both DMZ servers into one NAT rule might simplify configuration but could cause issues in distinguishing inbound traffic for each server.

Pros: Simplifies rule management.

Cons: Might not address the inbound traffic issue properly.

New Public IP Address:

Obtaining a new public IP address for the new server (192.168.197.40) ensures dedicated inbound and outbound NAT.

Pros: Clear separation of traffic, resolves inbound connectivity issues.

Cons: Requires additional public IP.

Separate Source NAT and Destination NAT Rules:

Configuring distinct NAT rules for source and destination addresses without using the bidirectional option.

Pros: Clear and distinct rules for each direction of traffic.

Cons: More complex to manage, might require more firewall resources.

Move the NAT Rule:

Adjusting the order of NAT rules to prioritize the new server’s rule.

Pros: Simple reordering might resolve prioritization conflicts.

Cons: Might not fully resolve the inbound connection issue.

The Test Policy Match tool in Palo Alto Networks' management systems (such as Panorama or the firewall interface) allows administrators to simulate traffic against configured security policies. This tool is critical for ensuring that the correct policies are applied to specific traffic patterns and that no unintended access is granted.

Test Policy Match enables you to input parameters like source IP, destination IP, application, user, and more, and the system will determine which policy would apply.

It is especially useful for verifying the device-group hierarchy in multi-tenant or Panorama-managed environments, ensuring that inherited or overridden rules are correctly applied.

The tool also helps to proactively check that traffic will be blocked or allowed as intended, reducing misconfigurations and preventing unwanted traffic.

A. Preview Changes: This feature is used to review configuration changes before committing them but does not simulate or validate policy matches.

B. Managed Devices Health: This option is related to checking the health and connectivity status of managed devices, not policies.

D. Policy Optimizer: This tool is used to refine existing security policies by identifying overly permissive rules or unused objects, not for testing specific traffic matches.

Key Points:Why not the other options?The Test Policy Match tool is the most appropriate choice for the scenario described.

traffic log would list an application as “not-applicable” if the firewall denied the traffic before the application match could be performed. This can happen if the traffic matches a security rule that is set to deny based on any parameter other than the application, such as source, destination, port, service, etc1. In this case, the firewall does not inspect the application data and discards the traffic, resulting in a “not-applicable” entry in the application field of the traffic log1.

Cisco TrustSec technology uses Security Group Tags (SGTs) to enforce access controls on Layer 2 traffic. When implementing Zone Protection on a Palo Alto Networks firewall in an environment with Cisco TrustSec, you should configure Ethernet SGT Protection. This setting ensures that the firewall can recognize SGTs in Ethernet frames and apply the appropriate actions based on the configured policies.The use of Ethernet SGT Protection in conjunction with TrustSec is covered in advanced firewall configuration documentation and in interoperability guides between Palo Alto Networks and Cisco systems.

The best way for the administrator to meet the requirement of managing all configuration from Panorama and preventing local overrides is B: Perform a template commit push from Panorama using the “Force Template Values” option. This option allows the administrator to overwrite any local configuration on the firewall with the values defined in the template1. This way, the administrator can ensure that the interface configuration and any other

The Device Group and Template Admin role is tailored for managing specific device groups and templates in Panorama, allowing contractors to deploy policies and objects within their assigned scope without broader administrative access. This aligns with compliance by restricting privileges.

https://docs.paloaltonetworks.com/wildfire/10-2/wildfire-admin/wildfire-overview/wildfire-concepts/verdicts

Each WildFire cloud—global (U.S.), regional, and private—analyzes samples and generates WildFire verdicts independently of the other WildFire clouds. With the exception of WildFire private cloud verdicts, WildFire verdicts are shared globally, enabling WildFire users to access a worldwide database of threat data. https://docs.paloaltonetworks.com/wildfire/10-1/wildfire-admin/wildfire-overview/wildfire-concepts/verdicts.html

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClhzCAC

D is the correct answer because the threat log type would provide information about traffic blocked by a Zone Protection profile. This is because Zone Protection profiles are used to protect the network from attacks, including common flood, reconnaissance attacks, and other packet-based attacks1. These attacks are classified as threats by the firewall and are logged in the threat log2. The threat log displays information such as the source and destination IP addresses, ports, zones, applications, threat types, actions, and severity of the threats2.

Verified References:

1: Zone protection profiles - Palo Alto Networks Knowledge Base

2: Threat Log Fields - Palo Alto Networks

Based on PAN-OS 11.0 documentation, the forwarding configuration for specific log types in Device > Log Settings involves selecting log types for system-level logs, which include HIP Match and Configuration logs.

Explanation for Each Option

A. Threat

Threat logs record detected security threats such as malware, viruses, and vulnerabilities.

Forwarding of Threat logs is not configured in Device > Log Settings. Instead, Threat logs are forwarded using Log Forwarding Profiles applied to Security Policies.

Verdict: Incorrect.

B. HIP Match

HIP Match logs capture information about endpoint compliance reported by GlobalProtect clients.

These logs can be configured for forwarding in Device > Log Settings for monitoring and compliance purposes.

Verdict: Correct.

C. Traffic

Traffic logs provide details about allowed or denied network traffic.

Forwarding of Traffic logs is configured using Log Forwarding Profiles applied to Security Policies, not in Device > Log Settings.

Verdict: Incorrect.

D. Configuration

Configuration logs track administrative changes to the firewall, such as updates to policies, settings, and objects.

These logs can be forwarded from Device > Log Settings for auditing purposes.

Verdict: Correct.

Correct Answer

B. HIP MatchD. Configuration

Key Points from PAN-OS 11.0 Documentation

Device > Log Settings is specifically for system-related logs like HIP Match and Configuration.

Logs like Threat and Traffic are handled through Log Forwarding Profiles applied to Security or NAT policies.

Documentation Reference

For further details, refer to the official Palo Alto Networks PAN-OS 11.0 Admin Guide under Device > Log Settings. This section outlines which log types can be forwarded from this menu.

https://knowledgebase.paloaltonetworks.com/KCSArticleDetail?id=kA10g000000ClhwCAC

https://docs.paloaltonetworks.com/pan-os/10-1/pan-os-networking-admin/nat/source-nat- and-destination-nat/source-nat

https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-admin/user-id/map-ip-addresses-to-users/configure-user-id-to-monitor-syslog-senders-for-user-mapping#iddb1a7744-17c6-4900-a2cb-5f3511fef60f

In Palo Alto Networks firewalls, the processing of NAT rules occurs in a top-down fashion, similar to security policies. To exclude a specific IP address from a broader source NAT rule, a more specific NAT rule must be placed above the broader rule.

C. Place a more specific NAT rule above the broader one:

Create a source NAT rule (NAT-Rule-1) to translate the broader network range (10.0.0.0/23) with dynamic IP and port translation. This rule allows the majority of the subnet to access the internet through NAT.

Create another NAT rule (NAT-Rule-2) with the source IP address in the original packet set specifically to the IP address that should not be translated (10.0.0.10/32). In this rule, set the source translation to none, indicating that this traffic should not be translated and thus not allowed to access the internet.

Place NAT-Rule-2 above NAT-Rule-1 in the NAT policy list. This ensures that the more specific rule (NAT-Rule-2) is evaluated first. If traffic matches NAT-Rule-2, it will not be translated or allowed to the internet, effectively excluding the specific server from internet access.

This configuration leverages the principle of specificity and the order of operation in NAT policies to exclude a specific IP address from source NAT translation, thereby preventing it from accessing the internet.

To create Security rules in Panorama that reference specific users and groups from Active Directory (AD), the Panorama-managed firewalls need access to user-to-group mapping information. This is achieved through Group Mapping, which relies on User-ID functionality. In a Panorama-managed environment, a "master device" must be designated within the device group to provide this Group Mapping data. The master device is a firewall that retrieves user and group information from AD (via LDAP or User-ID agent) and shares it with other firewalls in the device group. This ensures consistent user-based policies across all devices in the group.

The template stack should consist of four templates arranged according to the diagram. The template values that will be configured on the firewall if each template has an SSL/TLS Service profile configured named Management will be the values in Chicago. This is because the SSL/TLS Service profile is configured in the Chicago template, which is the highest priority template in the stack. The firewall will inherit the settings from the highest priority template that has the setting configured, and ignore the settings from the lower priority templates that have the same setting configured. Therefore, the values in Datacenter, efwOlab.chi, and Global Settings will not be applied to the firewall. References:

[Manage Templates and Template Stacks]

[Template Stack Configuration]

[Template Stack Priority]

A: https://docs.paloaltonetworks.com/pan-os/10-1/pan-os-web-interface-help/network/network-virtual-routers/more-runtime-stats-for-a-logical-router#id5628a5e4-e908-457e-a2fd-270a476ab752

D: https://docs.paloaltonetworks.com/pan-os/10-2/pan-os-cli-quick-start/cli-cheat-sheets/cli-cheat-sheet-networking

For log forwarding in PAN-OS, traffic and threat logs require a Log Forwarding profile attached to Security rules (Option B) to send logs to external systems (e.g., syslog, Panorama). Without this, logs are stored locally but not forwarded, a critical design consideration.
