SPLK-1002 Splunk Core Certified Power User Exam Questions and Answers

 There are several ways to access the field extractor. The option that automatically identifies data type, source type, and sample event is Fields sidebar > Extract New Field. The field extractor is a tool that helps you extract fields from your data using delimiters or regular expressions. The field extractor can generate a regex for you based on your selection of sample values or you can enter your own regex in the field extractor. The field extractor can be accessed by using various methods, such as:

Fields sidebar > Extract New Field: This is the easiest way to access the field extractor. The fields sidebar is a panel that shows all available fields for your data and their values. When you click on Extract New Field in the fields sidebar, Splunk will automatically identify the data type, source type, and sample event for your data based on your current search criteria. You can then use the field extractor to select sample values and generate a regex for your new field.

Event Actions > Extract Fields: This is another way to access the field extractor. Event actions are actions that you can perform on individual events in your search results, such as viewing event details, adding to report, adding to dashboard, etc. When you click on Extract Fields in the event actions menu, Splunk will use the current event as the sample event for your data and ask you to select the source type and data type for your data. You can then use the field extractor to select sample values and generate a regex for your new field.

Settings > Field Extractions > New Field Extraction: This is a more advanced way to access the field extractor. Settings is a menu that allows you to configure various aspects of Splunk, such as indexes, inputs, outputs, users, roles, apps, etc. When you click on New Field Extraction in the Settings menu, Splunk will ask you to enter all the details for your new field extraction manually, such as app context, name, source type, data type, sample event, regex, etc. You can then use the field extractor to verify or modify your regex for your new field.

The correct answer is C. By enclosing the macro name in backtick characters (`).

A macro is a way to reuse a piece of SPL code in different searches. A macro can take arguments, which are variables that can be replaced by different values when the macro is called. A macro can also contain another macro within it, which is called a nested macro1.

To reference a macro in a search, you need to enclose the macro name in backtick characters (). For example, if you have a macro named my_macro` that takes one argument, you can reference it in a search by using the following syntax:

| my_macro(argument) | ...

This will replace the macro name and argument with the SPL code contained in the macro definition. For example, if the macro definition is:

[my_macro(argument)] search sourcetype=$argument$

And you reference it in a search with:

index=main | my_macro(web) | stats count by host

This will expand the macro and run the following SPL code:

index=main | search sourcetype=web | stats count by host

References:

Use search macros in searches

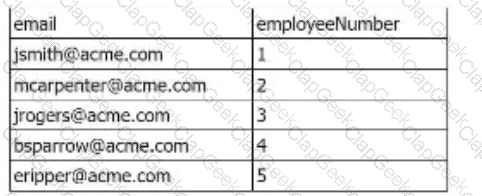

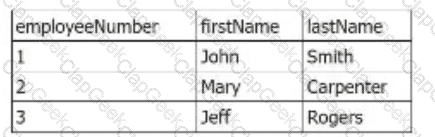

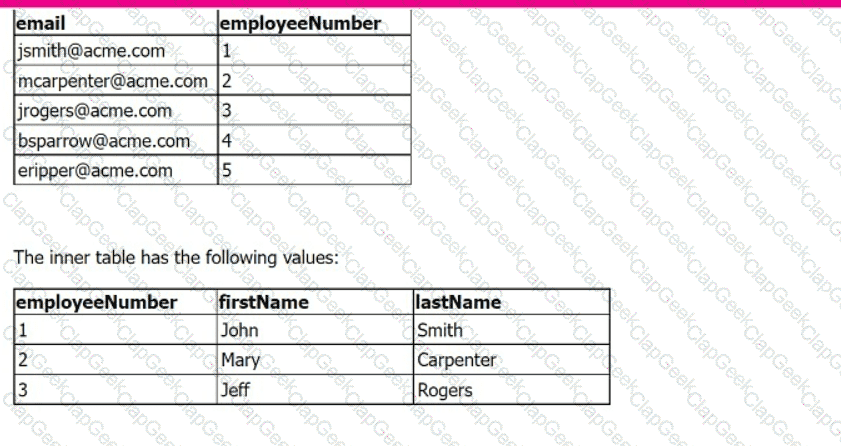

When performing an outer join in Splunk using the | join employeeNumber type=outer command, it combines the rows from both tables based on the employeeNumber field. An outer join returns all rows from both tables, with matching rows from both sides where available. If there is no match, the result is NULL on the side of the join where there is no match.

In the provided tables, there are five rows in the first table and three in the second. Since it’s an outer join, all rows from both tables will be returned. This means the new table will have a total of eight rows, combining the matched rows and the unmatched rows from both tables.

References:

Splunk Documentation on the join command.

Splunk Community discussions on the usage of join and types of joins.

In Splunk, macros that accept arguments are defined with placeholders for those arguments in the format example(var1, var2). In the search example(100,200), "100" and "200" are the values passed for var1 and var2 respectively.

References:

Splunk Docs – Macros

In Splunk, the transaction command is used to group events that share common characteristics into a single transaction1. By default, the transaction command groups all matching events into a single transaction1.

However, you can use the maxspan option to limit the time span of the transactions1. If the time span between the first and last event in a transaction exceeds the maxspan value, the transaction command will start a new transaction1.

Therefore, if the maxspan option is not included in the search, the transaction command might produce multiple transactions instead of one if the time span between the first and last event in a transaction exceeds the default maxspan value1.

Here is an example of how you can use the maxspan option in a search:

index=main sourcetype=access_combined | transaction someuniqefield maxspan=1h

In this search, the transaction command groups events that share the same someuniqefield value into a single transaction, but only if the time span between the first and last event in the transaction does not exceed 1 hour1. If the time span exceeds 1 hour, the transaction command will start a new transaction1.

The span option is used to specify the time span for the timechart command. The span value can be a number followed by a time unit, such as h for hour, d for day, w for week, etc. The span value determines how the data is grouped into time buckets. For example, span=12h means that the data is grouped into 12-hour intervals. The timespan option is not a valid option for the timechart command2

1: Splunk Core Certified Power User Track, page 9. 2: Splunk Documentation, timechart command.

The correct answer is C. Product, count: addtocart, count: remove, count: purchase, sum: addtocart, sum: remove, sum: purchase1.

In Splunk, the chart command is used to create a table or a chart visualization from your data2. The chart command takes at least one function and one field, and optionally another field to group by2.

In the given search, the chart command is used with two functions (count and sum), two fields (domain and price), and two fields to group by (product and action). The usenull=f and useother=f options are used to exclude null values and other values from the chart2.

The chart command creates a table with headers that match the order of the fields and functions in the command1. The headers for the count function are prefixed with count:, and the headers for the sum function are prefixed with sum:1. The values of the product and action fields are used as the suffixes for the headers1.

Therefore, the table headers created by this command are Product, count: addtocart, count: remove, count: purchase, sum: addtocart, sum: remove, and sum: purchase1.

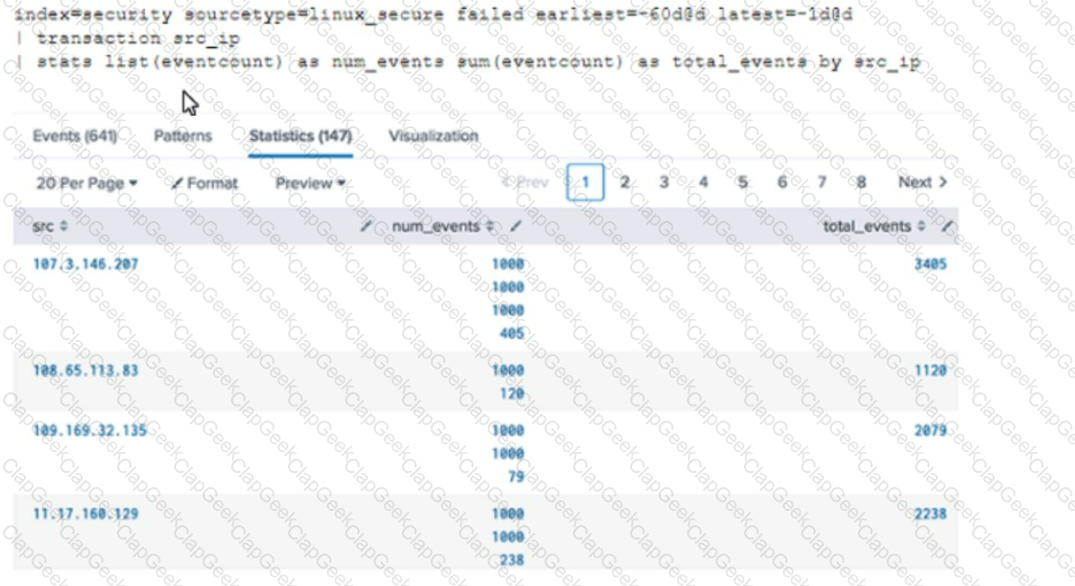

The transaction command is a Splunk command that finds transactions based on events that meet various constraints1.

Transactions are made up of the raw text (the _raw field) of each member, the time and date fields of the earliest member, as well as the union of all other fields of each member1.

The transaction command adds some fields to the raw events that are part of the transaction12. These fields are:

duration: The difference, in seconds, between the timestamps for the first and last events in the transaction12.

eventcount: The number of events in the transaction12.

closed_txn: A Boolean field that indicates whether the transaction is closed or evicted2. A transaction is closed if it meets one of the following conditions: maxevents, maxpause, maxspan, or startswith2. A transaction is evicted if it does not meet any of these conditions and exceeds the memory limit specified by maxopentxn or maxopenevents23.

Therefore, evicted transactions can be distinguished from non-evicted transactions by checking the value of the closed_txn field. The closed_txn field is set to 0, or false, for evicted transactions and 1, or true for non-evicted, or closed, transactions23.

https://docs.splunk.com/Documentation/Splunk/8.0.2/Knowledge/CreateworkflowactionsinSplunkWeb

In Splunk, you can create an event type from the search window by running a search that would make a good event type, then clicking Save As and selecting Event Type1. This opens the Save as Event Type dialog, where you can provide the event type name and optionally apply tags to it1.

You can also create an event type by editing the eventtypes.conf file and adding a new stanza1. Each stanza in the eventtypes.conf file represents an event type1. The stanza name is the name of the event type, and the search attribute specifies the search string that defines the event type1.

It’s important to note that while you can use the eventtype command in a search to find events associated with a specific event type, adding | eventtype to the SPL and executing the search does not create a new event type1. Similarly, clicking Event Actions > Build Event Type in an event’s detail dropdown does not create a new event type1.

The where command can be used to complete the search below.

… | where failure>successes

The where command is a search command that allows you to filter events based on complex or custom criteria. The where command can use any boolean expression or function to evaluate each event and determine whether to keep it or discard it. The where command can also compare fields or perform calculations on fields using operators such as >, <, =, +, -, etc. The where command can be used after any transforming command that creates a table or a chart.

The search string below does the following:

It uses … to represent any search criteria or commands before the where command.

It uses the where command to filter events based on a comparison between two fields: failure and successes.

It uses the greater than operator (>) to compare the values of failure and successes fields for each event.

It only keeps events where failure is greater than successes.

The correct answer is B. Event category tags. This is because the CIM add-on contains a collection of preconfigured data models that you can apply to your data at search time. Each data model in the CIM consists of a set of field names and tags that define the least common denominator of a domain of interest. Event category tags are used to classify events into high-level categories, such as authentication, network traffic, or web activity. You can use these tags to filter and analyze events based on their category. You can learn more about event category tags from the Splunk documentation12. The other options are incorrect because they are not included with the CIM add-on. Search macros are reusable pieces of search syntax that you can invoke from other searches. They are not specific to the CIM add-on, although some Splunk apps may provide their own search macros. Workflow actions are custom links or scripts that you can run on specific fields or events. They are also not specific to the CIM add-on, although some Splunk apps may provide their own workflow actions. tsidx files are index files that store the terms and pointers to the raw data in Splunk buckets. They are part of the Splunk indexing process and have nothing to do with the CIM add-on.

The rex command allows you to extract fields from events using regular expressions. You can use the rex command to specify a named group that matches the port number in the event. For example:

rex "\+\+\+\+port (?\d+)"

This will create a field called port with the value 54 for the event.

The delimiter method is not suitable for this event because there is no consistent delimiter between the fields. The regular expression method is not a valid option for the Field Extractor tool. The Field Extractor tool can extract regular expressions, but it is not a method by itself.

Hello, this is Bing. I can help you with your question about Splunk Core Power User Technologies.

The correct answers are B. duration and D. transaction id.

The explanation is as follows:

The transaction command is a Splunk command that finds transactions based on events that meet various constraints12.

Transactions are made up of the raw text (the _raw field) of each member, the time and date fields of the earliest member, as well as the union of all other fields of each member12.

The transaction command adds some fields to the raw events that are part of the transaction123. These fields are:

duration: The difference, in seconds, between the timestamps for the first and last events in the transaction123.

eventcount: The number of events in the transaction123.

transaction_id: A unique identifier for each transaction3. This field is useful for filtering or joining transactions3.

Therefore, the fields that the transaction command adds to the raw events are duration and transaction_id, which are options B and D in your question.

The time range specified for a historical search defines the amount of data fetched from the index matching that time range2. A historical search is a search that runs over a fixed period of time in the past2. When you run a historical search, Splunk searches the index for events that match your search string and fall within the specified time range2. Therefore, option B is correct, while options A and C are incorrect because they are not what the time range defines for a historical search.

Field aliases in Splunk are alternate names assigned to fields. These can be particularly useful for normalizing data from different sources or simply for making field names more intuitive. Once an alias is created for a field, it can be used across various Splunk knowledge objects, enhancing their flexibility and utility.

A. Calculated fields, lookups, event types, and tags: This is the correct answer. Field aliases can indeed be referenced in calculated fields, lookups, event types, and tags within Splunk. When you create an alias for a field, that alias can then be used in these knowledge objects just like any standard field name.

Calculated fields: These are expressions that can create new field values based on existing data. You can use an alias in a calculated field expression to refer to the original field.

Lookups: These are used to enrich your event data by referencing external data sources. If you've created an alias for a field that matches a field in your lookup table, you can use that alias in your lookup configurations.

Event types: These are classifications for events that meet certain search criteria. You can use field aliases in the search criteria for defining an event type.

Tags: These allow you to assign meaningful labels to data, making it easier to search and report on. You can use field aliases in the search criteria that you tag.

The correct answer is D.

A search macro is a way to reuse a piece of SPL code in different searches. A search macro can take arguments, which are variables that can be replaced by different values when the macro is called. A search macro can also contain another search macro within it, which is called a nested macro1.

To represent an argument in a macro definition, you need to use the dollar sign ($) character to enclose the argument name. For example, if you want to create a search macro that takes one argument named “object”, you can use the following syntax:

[my_macro(object)] search sourcetype= object

This will create a search macro named my_macro that takes one argument named object. When you call the macro in a search, you need to provide a value for the object argument, such as:

my_macro(web)

This will replace the object argument with the value web and run the following SPL code:

search sourcetype=web

The other options are not correct because they use quotation marks (’ or ") or percentage signs (%) to represent arguments, which are not valid syntax for macro arguments. These characters will be interpreted as literal values instead of variables.

References:

Use search macros in searches

The correct answer is D. An argument can be passed to the inner macro by nesting parentheses.

A search macro is a way to reuse a piece of SPL code in different searches. A search macro can take arguments, which are variables that can be replaced by different values when the macro is called. A search macro can also contain another search macro within it, which is called a nested macro. A nested macro can also take arguments, which can be passed from the outer macro or directly from the search string.

To pass an argument to the inner macro, you need to use parentheses to enclose the argument value and separate it from the outer macro argument. For example, if you have a search macro named outer_macro (1) that contains another search macro named inner_macro (2), and both macros take one argument each, you can pass an argument to the inner macro by using the following syntax:

outer_macro (argument1, inner_macro (argument2))

This will replace the argument1 and argument2 with the values you provide in the search string. For example, if you want to pass “foo” as the argument1 and “bar” as the argument2, you can write:

outer_macro ("foo", inner_macro ("bar"))

This will expand the macros with the corresponding arguments and run the SPL code contained in them.

References:

Search macro examples

Use search macros in searches

An event type in Splunk is defined by a search string that returns a specific set of events. The search string index=games sourcetype=score player=* score>9999 is valid because it filters events based on specific criteria directly within the main search command. This search will find all events in the games index with a sourcetype of score, where the player field exists, and the score is greater than 9999. This specificity and direct filtering make it suitable for defining an event type.

References:

Splunk Docs: Create event types

Splunk Answers: Defining event types

The maxpause option of the transaction command in Splunk is used to specify the maximum time allowed between events in a transaction. If the time between events exceeds the maxpause value, those events are not considered part of the same transaction.

References:

Splunk Docs: transaction command

Splunk Answers: maxpause option in transaction

The timeline is a graphical representation of your search results that shows the distribution of events over time2. You can use the timeline to zoom in or out of a specific time range or to select one or more bars on the timeline to filter your results by that time range2. However, these actions will not re-run the search, but rather refine the existing results based on the selected time range2. Therefore, options B, C and D are correct, while option A is incorrect because zooming out will re-run the search with a broader time range.

The eval command ‘if’ function requires the following three arguments (in order): boolean expression, result if true, result if false. The eval command is a search command that allows you to create new fields or modify existing fields by performing calculations or transformations on them. The eval command can use various functions to perform different operations on fields. The ‘if’ function is one of the functions that can be used with the eval command to perform conditional evaluations on fields. The ‘if’ function takes three arguments: a boolean expression that evaluates to true or false, a result that will be returned if the boolean expression is true, and a result that will be returned if the boolean expression is false. The ‘if’ function returns one of the two results based on the evaluation of the boolean expression.

The correct answer is C. Distributable streaming. This is because the eval command is a type of command that can run on the indexers before the results are sent to the search head. This reduces the amount of data that needs to be transferred and improves the search performance. Distributable streaming commands can operate on each event or result individually, without depending on other events or results. You can learn more about the types of commands and how they affect search performance from the Splunk documentation1.

The correct syntax to find events associated with a tag in Splunk is tag=1. So, the correct answer is D. tag=. This syntax allows you to annotate specified fields in your search results with tags1.

In Splunk, tags are a type of knowledge object that you can use to add meaningful aliases to field values in your data1. For example, if you have a field called status_code in your data, you might have different status codes like 200, 404, 500, etc. You can create tags for these status codes like success for 200, not_found for 404, and server_error for 500. Then, you can use the tag command in your searches to find events associated with these tags1.

Here is an example of how you can use the tag command in a search:

index=main sourcetype=access_combined | tag status_code

In this search, the tag command annotates the status_code field in the search results with the corresponding tags. If you have tagged the status code 200 with success, the status code 404 with not_found, and the status code 500 with server_error, the search results will include these tags1.

You can also use the tag command with a specific tag value to find events associated with that tag. For example, the following search finds all events where the status code is tagged with success:

index=main sourcetype=access_combined | tag status_code | search tag::status_code=success

In this search, the tag command annotates the status_code field with the corresponding tags, and the search command filters the results to include only events where the status_code field is tagged with success1.

The correct answer is B. The value for the productName field because it appears first.

The coalesce function is an eval function that takes an arbitrary number of arguments and returns the first value that is not null. A null value means that the field has no value at all, while an empty value means that the field has a value, but it is “” or zero-length1.

The coalesce function can be used to combine fields that have different names but represent the same data, such as IP address or user name. The coalesce function can also be used to rename fields for clarity or convenience2.

The syntax for the coalesce function is:

coalesce(,,…)

The coalesce function will return the value of the first field that is not null in the argument list. If all fields are null, the coalesce function will return null.

For example, if you have a set of events where the IP address is extracted to either clientip or ipaddress, you can use the coalesce function to define a new field called ip, that takes the value of either clientip or ipaddress, depending on which is not null:

| eval ip=coalesce(clientip,ipaddress)

In your example, you have a set of events where the product name is extracted to either productName or productid, and you use the coalesce function to define a new field called productINFO, that takes the value of either productName or productid, depending on which is not null:

| eval productINFO=coalesce(productName,productid)

If both productName and productid fields have values for a given event, the coalesce function will return the value of the productName field because it appears first in the argument list. The productid field will be ignored by the coalesce function.

Therefore, the value for the productName field will be used to populate the productINFO field if both fields have values for a given event.

References:

Search Command> Coalesce

USAGE OF SPLUNK EVAL FUNCTION : COALESCE

When using the transaction command in Splunk, the default maximum span between events is set to unlimited. This is indicated by the default value of maxspan=-1, which corresponds to an “all time” time range.

When you mouse over and click to add a search term from the Fields sidebar or from an event in your search results, Splunk automatically adds the term to your search string with an implied AND operator2. However, this does not apply to some Boolean operators such as OR, NOT and parentheses (). These operators are not implied when you add a search term and you have to type them manually if you want to use them in your search string2. Therefore, options A, B and D are correct, while option C is incorrect because AND is implied when you add a search term.

https://docs.splunk.com/Documentation/Splunk/8.0.2/Search/Abouttransactions

In other cases, it's usually better to use the stats command, which performs more efficiently, especially in a distributed environment. Often there is a unique ID in the events and stats can be used.

The correct answer is D. field2 values are replaced with the value of the field1.

A field alias is a way to associate an additional (new) name with an existing field name. A field alias can be used to normalize fields from different sources that have different names but represent the same data. Field aliases can also be used to rename fields for clarity or convenience1.

When you create a field alias in Splunk Web, you can select the Overwrite Field Values option to change the behavior of the field alias. This option affects how the Splunk software handles situations where the original field has no value or does not exist, as well as situations where the alias field already exists as a field in your events, alongside the original field2.

If you select the Overwrite Field Values option, the following rules apply:

If the original field does not exist or has no value in an event, the alias field is removed from that event.

If the original field and the alias field both exist in an event, the value of the alias field is replaced with the value of the original field.

If you do not select the Overwrite Field Values option, the following rules apply:

If the original field does not exist or has no value in an event, the alias field is unchanged in that event.

If the original field and the alias field both exist in an event, both fields are retained with their respective values.

Therefore, if you create a field alias where field1—field2 and select the Overwrite Field Values option, and an event only contains values for field1, then the value of field2 will be replaced with the value of field1.

References:

About calculated fields

About field aliases

Create field aliases in Splunk Web

Stacked charts represent a series in a single bar with multiple sections. A chart is a graphical representation of data that shows trends, patterns, or comparisons. A chart can have different types, such as column, bar, line, area, pie, etc. A chart can also have different modes, such as split-series, multi-series, stacked, etc. A stacked chart is a type of chart that shows multiple series in a single bar or area with different sections for each series

This search will run the third_party_outages macro and pass the arguments EMEA and -24h to the macro definition. A search macro is a reusable chunk of SPL that can be inserted into other searches. A search macro can take arguments that are used to resolve the search string at execution time. The syntax for using a search macro is macro_name (argument1, argument2, ...).ReferencesSee Use search macros in searches and Search macro examples in the Splunk Documentation.

As mentioned before, there are two types of workflow actions: GET and POST1. Both types of workflow actions can be executed from search results by clicking on an event field value that has a workflow action configured for it1. Another type of workflow action is Search, which runs another search based on the field value1. Therefore, options A, B and D are correct, while option C is incorrect because LOOKUP is not a type of workflow action.

A delimiter field extraction is a method of extracting fields from data that uses a character or a string to separate fields in each event. A delimiter field extraction can be performed by using the Field Extractor (FX) tool or by editing the props.conf file. A delimiter field extraction can be applied to any file format that uses a delimiter to separate fields, such as CSV, TSV, PSV, etc. A CSV file is a comma-separated values file that uses commas as delimiters. Therefore, a CSV file can be extracted using a delimiter field extraction.

The transaction command is a search command that creates a single event from a group of events that share some common characteristics. The transaction command can group events based on fields, time, or both. The transaction command can also create some additional fields for each transaction, such as duration, eventcount, startime, etc. The transaction command does not group a set of transactions based on time, but rather groups a set of events into a transaction based on time. The transaction command does not separate two events based on one or more values, but rather joins multiple events based on one or more values. The transaction command does not return the number of credit card transactions found in the event logs, but rather creates transactions from the events that match the search criteria.

A workflow action is a link that appears when you click an event field value in your search results1. A workflow action can open a web page or run another search based on the field value1. There are two types of workflow actions: GET and POST1. A GET workflow action appends the field value to the end of a URI and opens it in a web browser1. A POST workflow action sends the field value as part of an HTTP request to a web server1. You can configure a workflow action to open a web page in either the same window or a new window1. Therefore, option D is correct, while options A, B and C are incorrect.

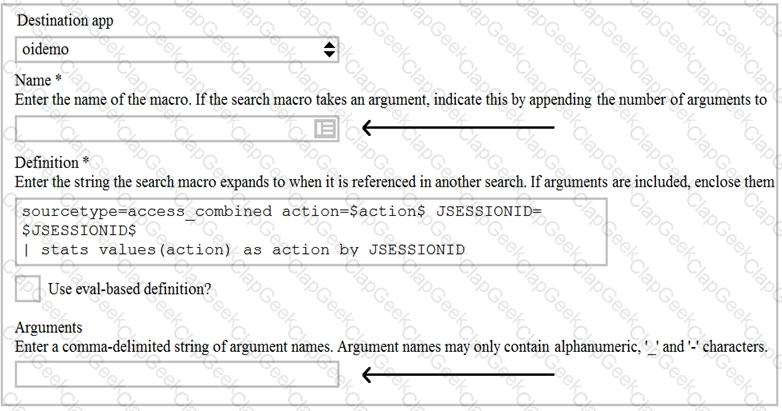

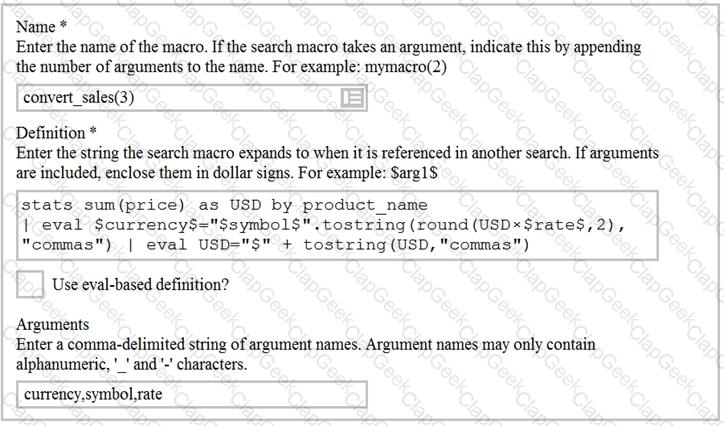

To create a macro that accepts arguments, you must include the number of arguments in parentheses at the end of the macro name1. For example, my_macro(3) is a macro that accepts three arguments. The number of arguments in the macro name must match the number of arguments in the definition1. Therefore, option A is correct, while options B, C and D are incorrect.

A field alias is a way to assign an alternative name to an existing field without changing the original field name or value2. You can use field aliases to make your field names more consistent or descriptive across different sources or sourcetypes2. When you run a search without any transforming commands in Smart Mode, Splunk automatically identifies and displays interesting fields in your results2. Interesting fields are fields that appear in at least 20 percent of events or have high variability among values2. If you have created a field alias based on an original field, both the original field name and the alias name will appear in the Interesting Fields list if they meet these criteria2. However, only one of them will appear in each event depending on which one you have specified in your search string2. Therefore, option B is correct, while options A, C and D are incorrect.

The Field Extractor (FX) allows you to use regular expressions (regex) to extract fields from your events using a graphical interface or by manually editing the regex2. When you use the FX to perform a regex field extraction, you can use the require option to specify a string that must be present in an event for it to be included in the extraction2. This way, you can filter out events that do not contain the required string and focus on the events that are relevant for your extraction2. Therefore, option D is correct, while options A, B and C are incorrect.

The Splunk Common Information Model (CIM) add-on helps you normalize your data from different sources and make it easier to analyze and report on it3. One of the functionalities that the CIM add-on relies on to normalize fields with different names is field aliases3. Field aliases allow you to assign an alternative name to an existing field without changing the original field name or value2. By using field aliases, you can map different field names from different sources or sourcetypes to a common field name that conforms to the CIM standard3. Therefore, option B is correct, while options A, C and D are incorrect.

 The data model command allows you to run searches on data models that have been accelerated1. The syntax for using the data model command is | datamodel [search ]1. Therefore, option A is the correct way to use the data model command to search fields in the data model within the web dataset. Options B and C are incorrect because they do not follow the syntax for the data model command. Option D is incorrect because it does not use the data model command at all.

Data models and pivot are both knowledge objects in Splunk that allow you to analyze and visualize your data in different ways. Data models are collections of datasets that represent your data in a structured and hierarchical way. Data models define how your data is organized into objects and fields. Pivot is a user interface that allows you to create data visualizations that present different aspects of a data model. Pivot does not require users to input SPL searches on data models, but rather lets them select options from menus and forms. Data models are not created out of datasets called pivots, but rather pivots are created from datasets in data models.

Selected fields are fields that you choose to display in your search results by clicking on them in the Fields sidebar or by using the fields command2. Selected fields are displayed below each event in the search results, along with their values2. Therefore, option A is correct, while options B, C and D are incorrect because they are not places where selected fields are displayed.

After manually editing a regular expression (regex) that was created using the Field Extractor (FX) UI, it is no longer possible to edit the field extraction in the FX UI. The FX UI is a tool that helps you extract fields from your data using delimiters or regular expressions. The FX UI can generate a regex for you based on your selection of sample values or you can enter your own regex in the FX UI. However, if you edit the regex manually in the props.conf file, the FX UI will not be able to recognize the changes and will not let you edit the field extraction in the FX UI anymore. You will have to use the props.conf file to make any further changes to the field extraction. Changes made manually cannot be reverted in the FX UI, as the FX UI does not keep track of the changes made in the props.conf file. It is possible to manually edit a regex that was created using the FX UI, as long as you do it in the props.conf file.

Therefore, only statement B is true about manually editing a regex.

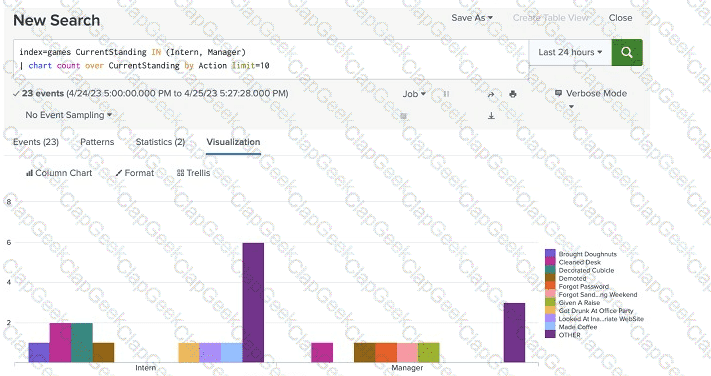

A chart is a graphical representation of your search results that shows the relationship between two or more fields2. You can display a chart in stack mode by changing the Stack Mode option in the Format menu2. Stack mode allows you to stack multiple series on top of each other in a chart to show the cumulative values of each series2. Therefore, option C is correct, while options A, B and D are incorrect because they are not ways to display a chart in stack mode.

Event types are custom categories of events that are based on search criteria. Event types can be used to label events with meaningful names, such as error, success, login, logout, etc. Event types can also be used to create transactions, alerts, reports, dashboards, etc. Event types can be created in two ways:

By going to the Settings menu and clicking Event Types > New. This will open a form where you can enter the name, description, search string, app context, and tags for the event type.

By selecting an event in search results and clicking Event Actions > Build Event Type. This will open a dialog box where you can enter the name and description for the event type. The search string will be automatically populated based on the selected event.

Event types cannot be created by using the searchtypes command in the search bar, as this command does not exist in Splunk. Event types can also be created by editing the event_type stanza in the transforms.conf file, not the props.conf file.

Search workflow actions are custom actions that run a search when you click on a field value in your search results. Search workflow actions can be configured with various options, such as label name, search string, time range, app context, etc. One of the options is to define the time range of the search when creating the workflow action. You can choose from predefined time ranges, such as Last 24 hours, Last 7 days, etc., or specify a custom time range using relative or absolute time modifiers. Search workflow actions do not run as real-time searches by default, but rather use the same time range as the original search unless specified otherwise. Search workflow actions cannot be configured as scheduled searches, as they are only triggered by user interaction. Search workflow actions can be configured with any valid search string that includes any search command, such as transaction.

A space is an implied AND in a search string, which means that it acts as a logical operator that returns events that match both terms on either side of the space2. For example, status=200 method=GET will return events that have both status=200 and method=GET2. Therefore, option B is correct, while options A, C and D are incorrect because they are not implied by a space in a search string.

https://docs.splunk.com/Documentation/Splunk/8.1.0/SearchReference/ConversionFunctions#tostring.28X.2CY.29

The tostring function in the eval command converts a numeric value to a string value. It can take an optional second argument that specifies the format of the string value. Some of the possible formats are:

hex: converts the numeric value to a hexadecimal string.

commas: adds commas to separate thousands in the numeric value.

duration: converts the numeric value to a human-readable duration string, such as “2h 3m 4s”.

Therefore, the formats A, B, and D can be used with the tostring function.

Tags are aliases or alternative names for field values in Splunk. They can make your data more understandable by using common or descriptive terms instead of cryptic or technical terms. For example, you can tag a field value such as “200” with “OK” or “success” to indicate that it is a HTTP status code for a successful request. Tags are case sensitive, meaning that “OK” and “ok” are different tags. Tags are created at search time, meaning that they are applied when you run a search on your data. Tags are searched by using the syntax tag::, where  is the name of the tag you want to search for.

Auto-Extracted fields in Splunk Data Models are derived directly from the indexed data based on the existing fields within the events. These fields are identified and extracted by Splunk automatically, without the need for explicit field extractions configured by the user. Understanding the characteristics of Auto-Extracted fields is crucial for effectively managing Data Models and utilizing them in Pivot tables for analysis.

A. Auto-Extracted fields can be hidden in Pivot. This is true. When building a Data Model, you have the option to hide certain fields from appearing in Pivot, making the Pivot table cleaner and more focused on the fields that are most relevant for analysis. This helps in reducing clutter and focusing on the data that matters most to the users.

B. Auto-Extracted fields can have their data type changed. This statement is not typically accurate for Auto-Extracted fields. The data type of an Auto-Extracted field is determined by Splunk based on the field's content in the indexed data. While you can assign a type to a field when you manually create a field in a data model, the inherent data type of Auto-Extracted fields is not something that is changed within the Data Model itself.

C. Auto-Extracted fields can be given a friendly name for use in Pivot. This is correct. Within Data Models, you can assign a more user-friendly, descriptive name to an Auto-Extracted field. This feature is particularly useful in making Data Models more intuitive and easier to use for those who may not be familiar with the original field names or when the original field names are not descriptive or user-friendly.

D. Auto-Extracted fields can be added if they already exist in the dataset with constraints. This is true. Auto-Extracted fields are based on fields that already exist in the data. When you define a dataset within a Data Model, you can apply constraints to narrow down the events that the dataset includes. The Auto-Extracted fields are then identified from this constrained dataset. This means that the fields must already be present in the data that meets the dataset's constraints to be available for auto-extraction.

In summary, Auto-Extracted fields in Splunk Data Models offer a flexible and efficient way to utilize existing data fields within Pivot tables, with options to rename them for clarity and hide unnecessary fields to streamline data analysis.

The Splunk Common Information Model (CIM) add-on is a Splunk app that contains data models to help you normalize data from different sources and formats. The CIM add-on defines a common and consistent way of naming and categorizing fields and events in Splunk. This makes it easier to correlate and analyze data across different domains, such as network, security, web, etc. The CIM add-on does not use machine learning to normalize data, but rather relies on predefined field names and values. The CIM add-on does not contain dashboards that show how to map data, but rather provides documentation and examples on how to use the data models. The CIM add-on is not automatically installed in a Splunk environment, but rather needs to be downloaded and installed from Splunkbase.

As mentioned before, a calculated field is a field that you create based on the value of another field or fields2. A calculated field can be based on extracted fields, which are fields that are extracted from your raw data using various methods such as regular expressions, delimiters or key-value pairs2. Therefore, option B is correct, while options A, C and D are incorrect because they are not types of fields that a calculated field can be based on.

The timechart command is used to create a time-series chart of statistical values based on your search results2. You can use the timechart command with a by clause to split the results by one or more fields and create multiple series in the chart2. However, you can only list one field after the by clause when using the timechart command because _time is already implied as the x-axis of the chart2. Therefore, option B is correct, while options A, C and D are incorrect.

The eval command is used to create new fields or modify existing fields based on an expression2. The sort command is used to sort the results by one or more fields in ascending or descending order2. If you want to convert numeric field values to strings and also sort on those values, you should use the sort command first, then use the eval command to convert the values to strings2. This way, the sort command will use the original numeric values for sorting, rather than the converted string values which may not sort correctly. Therefore, option C is correct, while options A, B and D are incorrect.

The search below groups events by two or more fields (clientip and host), creates transactions with start and end constraints (maxspan=30s and maxpause=5s), and calculates the duration of each transaction.

index=main | transaction clientip host maxspan=30s maxpause=5s

The search does the following:

It filters the events by the index main, which is a default index in Splunk that contains all data that is not sent to other indexes.

It uses the transaction command to group events into transactions based on two fields: clientip and host. The transaction command creates new events from groups of events that share the same clientip and host values.

It specifies the start and end constraints for the transactions using the maxspan and maxpause arguments. The maxspan argument sets the maximum time span between the first and last events in a transaction. The maxpause argument sets the maximum time span between any two consecutive events in a transaction. In this case, the maxspan is 30 seconds and the maxpause is 5 seconds, meaning that any transaction that has a longer time span or pause will be split into multiple transactions.

It creates some additional fields for each transaction, such as duration, eventcount, startime, etc. The duration field shows the time span between the first and last events in a transaction.

POST workflow actions are custom actions that send a POST request to a web server when you click on a field value in your search results. POST workflow actions can be configured with various options, such as label name, base URL, URI parameters, post arguments, app context, etc. One of the options that are required to create a POST workflow action is post arguments. Post arguments are key-value pairs that are sent in the body of the POST request to provide additional information to the web server. Post arguments can include field values from your data by using dollar signs around the field names.

The command sourcetype=access_combined | transaction JSESSIONID does three things:

It filters the events by the sourcetype access_combined, which is a predefined sourcetype for Apache web server logs.

It groups the events by the field JSESSIONID, which is a unique identifier for each user session.

It creates a single event from each group of events that share the same JSESSIONID value. This single event will have some additional fields created by the transaction command, such as duration, eventcount, and startime.

Therefore, the statements B, C, and D are true.

This search uses the transaction command to group events that share a common value for JSESSIONID into transactions1. The transaction command assigns a duration field to each transaction, which is the difference between the latest and earliest timestamps of the events in the transaction1. The search then uses the timechart command to create a time-series chart of the average duration of each transaction1. Therefore, option A is correct because it describes the search accurately. Option B is incorrect because the search does not use the stats command or the pause field. Option C is incorrect because the transaction command does not require the startswith and endswith options, although they can be used to specify how to identify the beginning and end of a transaction1. Option D is incorrect because the transaction command does not have to be the last command in the search pipeline, although it is often used near the end of a search1.

Field aliases are alternative names for fields in Splunk. Field aliases can be used to normalize data across different sources and sourcetypes that have different field names for the same concept. For example, you can create a field alias for src_ip that maps to clientip, source_address, or any other field name that represents the source IP address in different sourcetypes. Field aliases can also be used in lookup file definitions to map fields in your data to fields in the lookup file. For example, you can use a field alias for src_ip to map it to ip_address in a lookup file that contains geolocation information for IP addresses. Field alias names do not replace the original field name, but rather create a copy of the field with a different name. Field alias names are case sensitive when used as part of a search, meaning that src_ip and SRC_IP are different fields.

A report is a way to save a search and its results in a format that you can reuse and share with others2. A report is also a type of knowledge object, which is an entity that you create to add knowledge to your data and make it easier to search and analyze2. Therefore, option A is correct. A report can be scheduled, which means that you can configure it to run at regular intervals and send the results to yourself or others via email or other methods2. Therefore, option B is correct. A report can run a script, which means that you can specify a script file to execute when the report runs and use it to perform custom actions or integrations2. Therefore, option C is correct. Therefore, option D is correct because all of the above statements are true for reports.

The correct answer is B. A field added by an automatic lookup.

A calculated field is a field that is added to events at search time by using an eval expression. A calculated field can use the values of two or more fields that are already present in the events to perform calculations. A calculated field can use any field as a source, as long as the field is extracted before the calculated field is defined1.

An automatic lookup is a way to enrich events with additional fields from an external source, such as a CSV file or a database. An automatic lookup can add fields to events based on the values of existing fields, such as host, source, sourcetype, or any other extracted field2. An automatic lookup is performed before the calculated fields are defined, so the fields added by the lookup can be used as sources for the calculated fields3.

Therefore, a calculated field can use a field added by an automatic lookup as a source.

References:

About calculated fields

About lookups

Search time processing

The correct answer is B. Transforming.

The explanation is as follows:

The timechart command is a Splunk command that creates a time series chart with corresponding table of statistics12.

A timechart is a statistical aggregation applied to a field to produce a chart, with time used as the X-axis1. You can specify a split-by field, where each distinct value of the split-by field becomes a series in the chart1.

Transforming commands are commands that change the format of the search results into a data structure that can be easily visualized3. Transforming commands often use stats functions to aggregate and summarize data3.

Therefore, the timechart command is an example of a transforming command, as it transforms the search results into a chart and a table using stats functions123.
