UiPath-ADAv1 UiPath Automation Developer Associate Exam (2023.10) Questions and Answers

The Show Elements button in the Computer Vision wizard is used to toggle the highlighting of all UI elements that have been detected by the Computer Vision engine on the target application. This helps to visualize the accuracy and scope of the UI element recognition and to select the desired UI element for automation. (UiPath Automation Developer study guide)

Connecting UiPath Studio to Orchestrator enables several features, including publishing automation packages directly to Orchestrator. This connection is crucial for deploying processes and managing automation workflows at scale. It does not directly enable defining queues and arguments for automations (option B), generating API keys for third-party integrations (option C), or creating an Object Repository of elements (option D), although these can be managed within Orchestrator once the package is published.

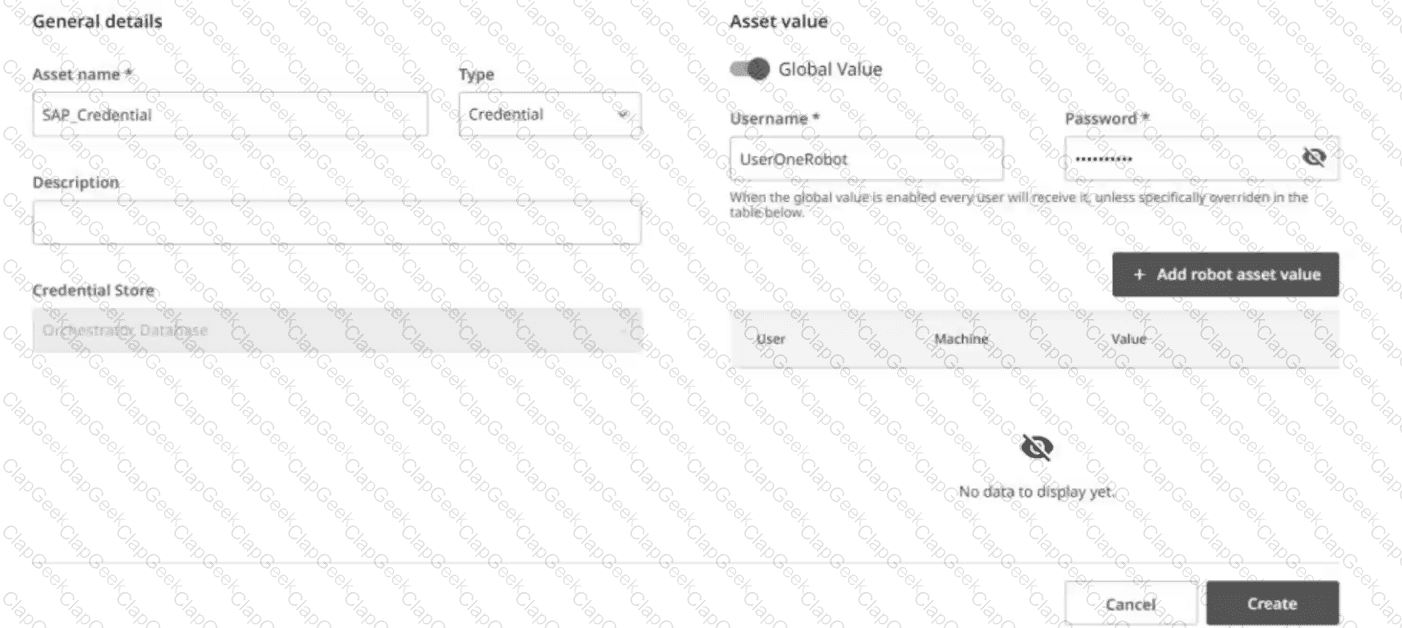

In Orchestrator, when a Credential asset is created and the username value is changed, the password must also be changed to ensure that the credential set remains valid. The username and password are linked as they represent the credential pair used for authentication. Changing one without the other would result in mismatched credentials that cannot be used for logging in to the system that these credentials are associated with. Therefore, the correct answer is D.

The Is Match activity is used to check if a string matches a given regular expression pattern. The regular expression pattern can be used to validate the format of a string, such as a date. In this case, the developer wants to validate that the birth date is in the correct format, which is dd-MM-yyyy. The regular expression pattern for this format is “\d{2}-\d{2}-\d{4}”, which means two digits, followed by a hyphen, followed by two digits, followed by a hyphen, followed by four digits. The Is Match activity will return True if the input string matches this pattern, and False otherwise. Therefore, the answer is D. Activity. Is Match. References: Is Match, Regular Expressions

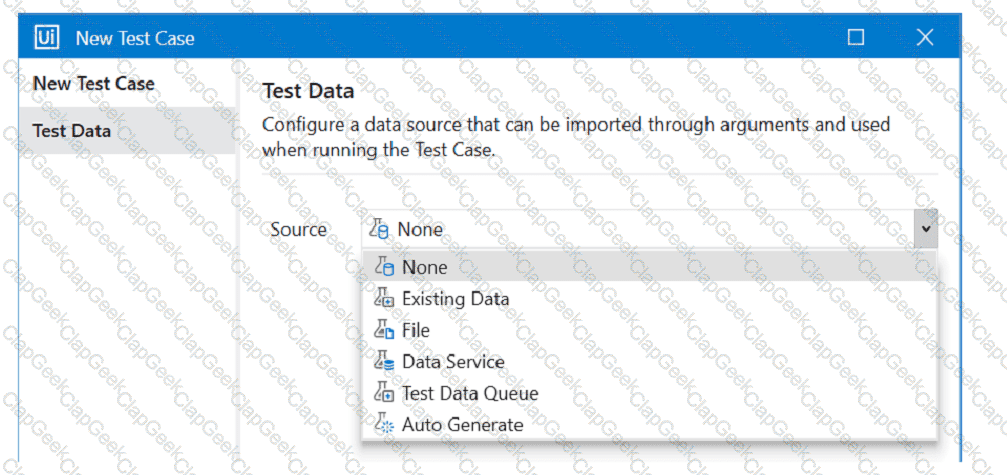

When creating a new test case in UiPath Orchestrator, you can choose a source for the test data that can be imported through arguments and used when running the test case1. The source can be one of the following options: None, Existing Data, File, Data Service, or Test Data Queue2. The option that restricts dynamic data update once the test case is published is File. This option allows you to upload a file (such as Excel or JSON) that contains the test data2. However, once the file is uploaded, you cannot modify or replace it without republishing the test case3. Therefore, the test data is static and cannot be updated dynamically. The other options allow dynamic data update in different ways. For example, Data Service allows you to use an existing table from Data Service as the test data source and filter it by using a SQL query2. You can update the table in Data Service and the changes will be reflected in the test case without republishing it4.

The Job Priority field in UiPath Orchestrator is used to specify the priority of a job when it is added to a queue of pending jobs on the same robot. The priority can be set to Low, Medium, High, or Inherited. The Inherited option means that the priority is inherited from the trigger that started the job. When starting a job manually, the default priority value is Medium, which means that the job will be executed after any high-priority jobs and before any low-priority jobs in the queue. (UiPath Orchestrator documentation1)

The REFramework template is a robust and scalable framework for building RPA projects1. It uses a config file to store the settings and constants that are used throughout the project2. The config file has two sheets: Settings and Assets. The Settings sheet contains the key-value pairs that are read by the InitAllSettings workflow and stored in the config dictionary. The Assets sheet contains the names of the assets that are stored in Orchestrator and need to be retrieved by the InitAllApplications workflow. The OrchestratorQueueName key is used to specify the name of the queue that is used to store the transaction items for the process. If the OrchestratorQueueName key is present in both the Settings and Assets sheets, but an asset with the corresponding name is not present in Orchestrator, the behavior at run time will be as follows:

The InitAllSettings workflow will read the value of the OrchestratorQueueName key from the Settings sheet and store it in the config dictionary.

The InitAllApplications workflow will try to retrieve the asset with the name OrchestratorQueueName from Orchestrator using the Get Asset activity. Since the asset does not exist, the activity will throw an exception.

The exception will be caught by a Try Catch block and handled by a Log Message activity with level Warning and message “Asset not found: OrchestratorQueueName”.

The flow will continue with the next asset in the Assets sheet or move to the next state if there are no more assets.

The flow will use the value of the OrchestratorQueueName key from the config dictionary whenever it needs to access or update the queue.

Therefore, option B is correct. Option A is incorrect because the exception is thrown in InitAllApplications workflow, not InitAllSettings workflow. Option C is incorrect because an empty string is not saved for the OrchestratorQueueName key in the config dictionary. Option D is incorrect because the OrchestratorQueueName key is added to the config dictionary and the flow does not throw in Get Transaction Data workflow.

Credential stores in UiPath Orchestrator are used to securely store sensitive information like Robot credentials and Credential Assets, which are essential for executing automated processes that require login details or other secure data. Orchestrator supports multiple credential stores at the tenant level and provides built-in support for secure stores such as CyberArk and Azure Key Vault. It also allows for the development of plugins for other secure stores if needed. (Orchestrator - Credential Stores - UiPath Academy)

The Surround activity with mock option is used to create a mock activity that wraps around the original activity in the workflow. The mock activity can have different properties and actions than the original activity, depending on the testing scenario. In this case, the MessageBox activity can be surrounded with a mock activity that has the LogMessage action. This will replace the functionality of the MessageBox with a LogMessage during mock testing, which can be useful for logging the test results without interrupting the workflow execution. (UiPath Studio documentation1)

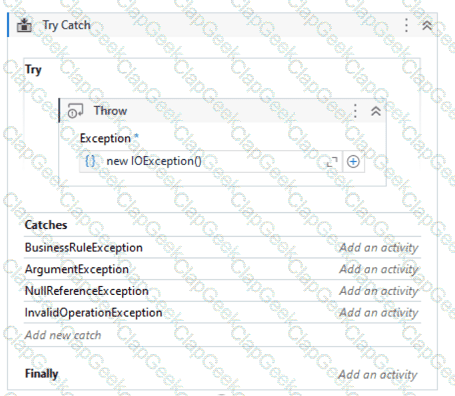

This is because the code is throwing a new IOException, but there is no catch block defined for IOException. The catch blocks present are for BusinessRuleException, ArgumentException, and InvalidOperationException. Therefore, the code will not be able to handle the thrown exception. References: https://docs.uipath.com/activities/docs/try-catch

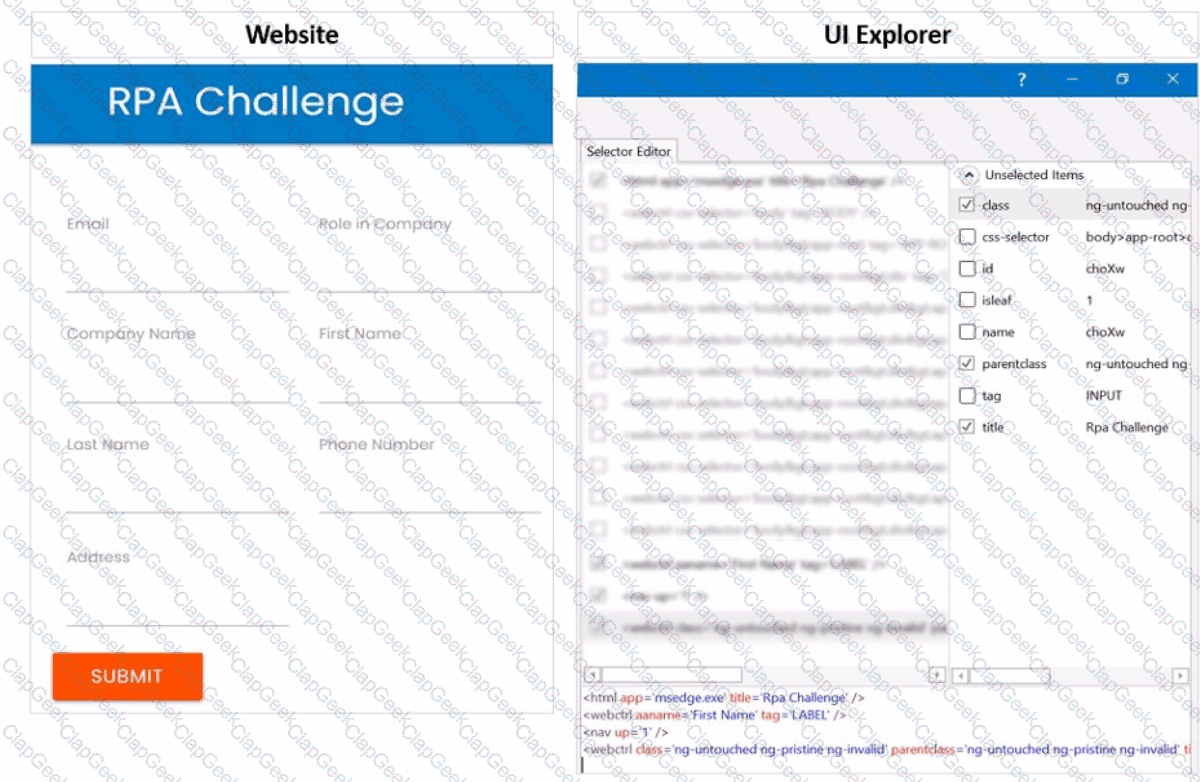

To make a selector specifically target the "First Name" text field during runtime in the UI Explorer, the property that uniquely identifies the "First Name" field should be used. Based on the information provided, the most suitable property to use is the "id" as it is likely to be unique for each field in a form, which helps in precisely identifying the UI element.

A state in a State Machine is a set of actions that execute while the workflow is in a certain condition1. Each state has three components: Entry, Exit, and Transition Actions2. Entry Actions are executed when the state is entered, Exit Actions are executed when the state is exited, and Transition Actions are executed when a transition is triggered by a condition3.

For an unattended automation process that extracts information from emails on an unattended machine without an email client, the "Get IMAP Mail Messages" activity should be used. This activity allows the developer to fetch emails from an IMAP server using the mail folder, port, server, username, and password, which are suitable for scenarios where email clients are not accessible.

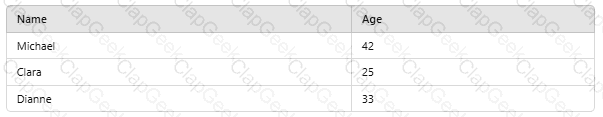

Understanding the Expression:

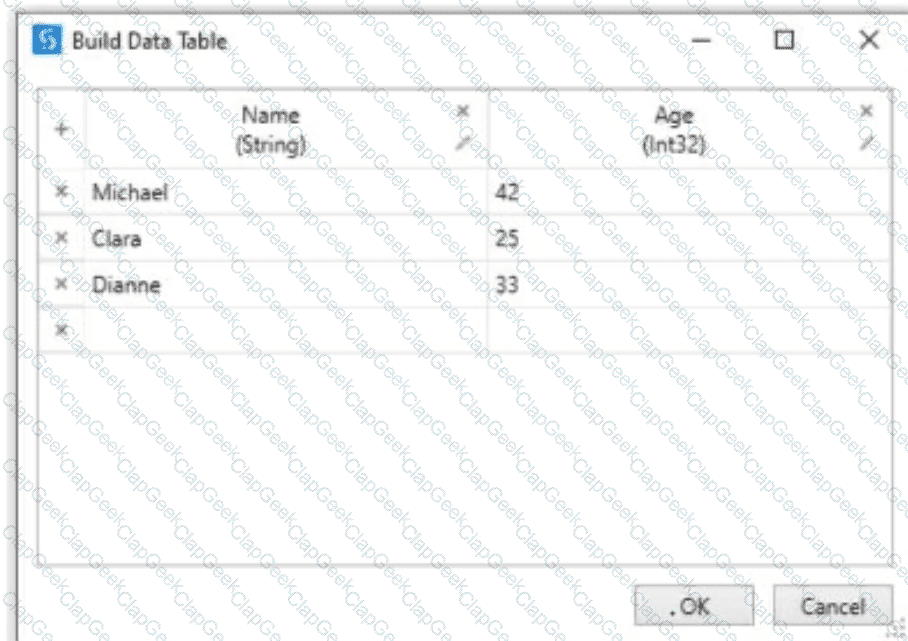

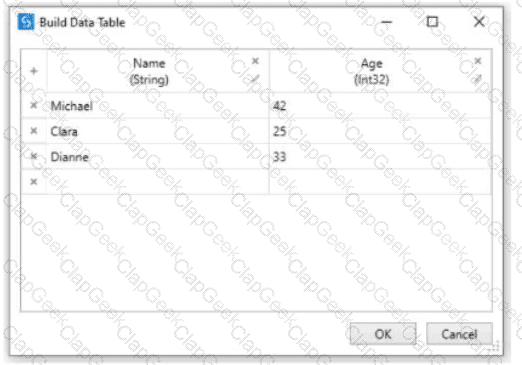

The expression DT.Rows(0)(1).ToString + DT.Rows(1)(0).ToString retrieves values from the DataTable using row and column indexes:

DT.Rows(0)(1).ToString → This refers to Row 0, Column 1:

Row 0: "Michael" (Column 0), 42 (Column 1)

Column 1 (Index 1) in Row 0 = 42

Result: "42"

DT.Rows(1)(0).ToString → This refers to Row 1, Column 0:

Row 1: "Clara" (Column 0), 25 (Column 1)

Column 0 (Index 0) in Row 1 = "Clara"

Result: "Clara"

Concatenating the Results:

"42" + "Clara" = "42Clara"

✅ Final Output: "42Clara"

Why Other Options Are Incorrect:

❌ A. MichaelClara → Incorrect because "Michael" is at DT.Rows(0)(0), not DT.Rows(0)(1).

❌ C. 42Michael → Incorrect because "Michael" is at DT.Rows(0)(0), but we are accessing DT.Rows(1)(0), which is "Clara".

❌ D. 25Clara → Incorrect because 25 is at DT.Rows(1)(1), but we are accessing DT.Rows(0)(1), which is 42.

Final Answer and Output:

✅ Answer: B. 42Clara

✅ Reference:

???? UiPath Documentation – DataTable Manipulation

???? UiPath - Working with Rows and Columns

Understanding the Default Delay in Modern UI Automation

In UiPath Studio, when using Modern UI Automation activities, the default values for delays, timeouts, and wait settings can be configured at the Project Settings level. If these properties are not explicitly set within an activity, UiPath will inherit the values from the Project Settings.

Analysis of the Provided Images:

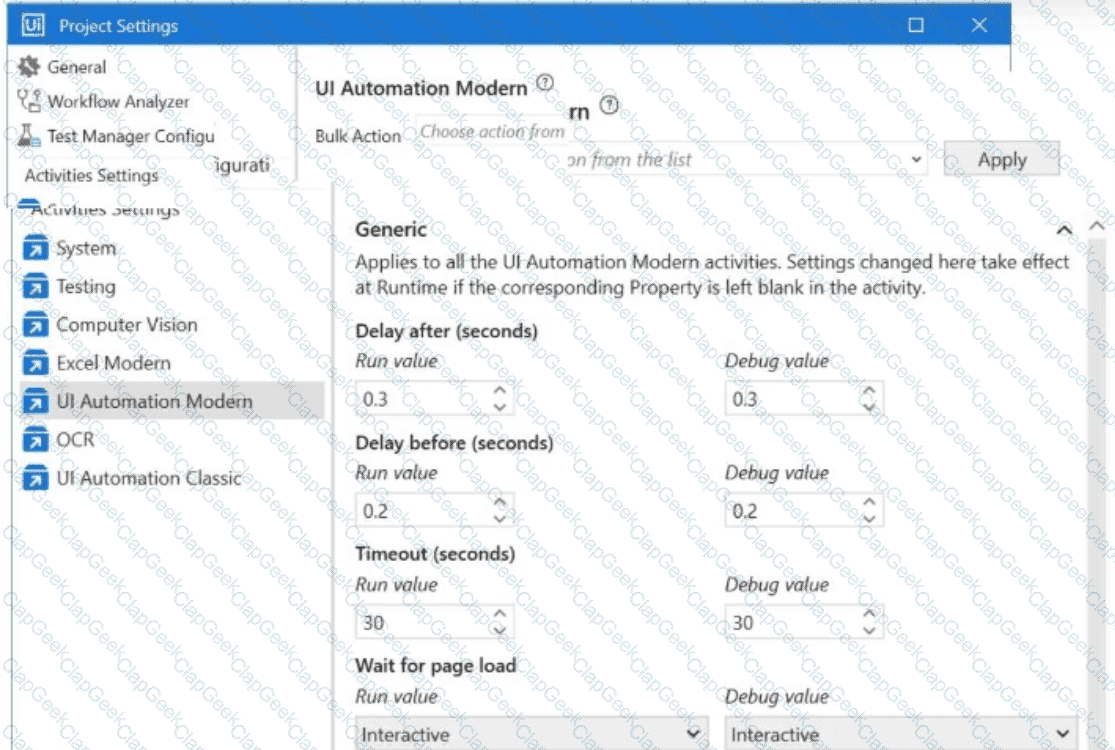

Project Settings (UI Automation Modern Tab)

Delay before (seconds)

Run value: 0.2

Debug value: 0.2

This means that any Modern UI Automation activity (like Check App State) will use 0.2 seconds as the default delay before execution unless manually changed in the activity.

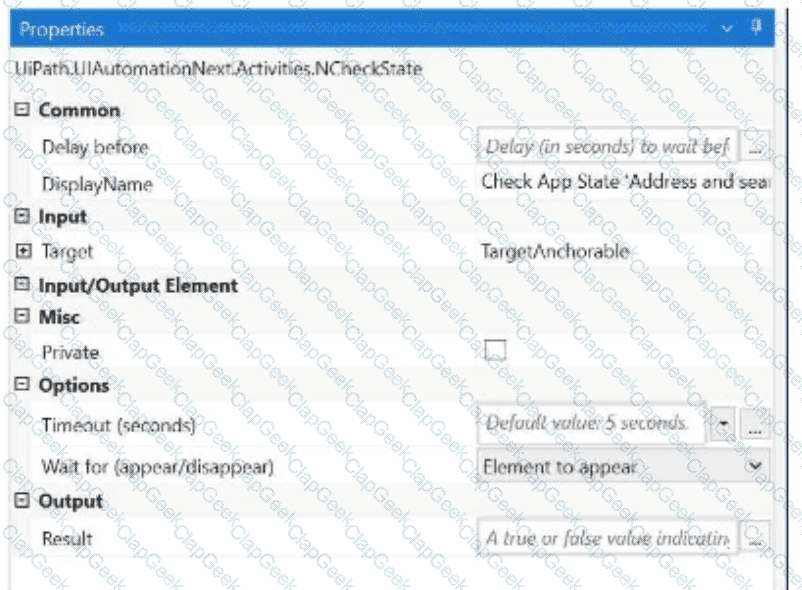

Check App State Activity Properties Panel

The "Delay before" field is empty, meaning it will inherit the default value from Project Settings, which is 0.2 seconds.

Explaining the Answer Choices:

A (0 seconds) ❌ Incorrect

If the Project Settings had no predefined value, the default UiPath behavior might have been 0 seconds. However, the provided settings explicitly define it as 0.2 seconds.

B (0.2 seconds) ✅ Correct

The Project Settings define 0.2 seconds as the default "Delay before" value for all Modern UI Automation activities.

Since no value is manually set in the Check App State activity, it inherits 0.2 seconds from Project Settings.

C (0.3 seconds) ❌ Incorrect

0.3 seconds is set as the "Delay after" value, not "Delay before".

D (30 seconds) ❌ Incorrect

30 seconds is the default timeout value, not the "Delay before" value.

Final Answer: B (0.2 seconds)

???? Official UiPath References:

UiPath Project Settings - Modern UI Automation

Check App State Activity

Delays and Timeouts in UI Automation

These are the properties, methods, or activities that enable the developer to obtain a subset of data from a data table called “dt”:

Filter Data Table activity: This activity enables you to filter a data table by specifying conditions in the Filter Wizard. You can choose to keep or remove rows that match the filter criteria. You can also specify the columns to include or exclude in the output data table1.

dt.Select method: This method returns an array of data rows that match a specified filter expression. You can use this method to query a data table using SQL-like syntax2.

dt.AsEnumerable().Where method: This method returns an enumerable collection of data rows that satisfy a given predicate. You can use this method to query a data table using LINQ syntax3.

A linear process in UiPath is a type of automation process that consists of a series of steps that are executed only once for a single data item or transaction. A linear process does not have any loops or iterations, and it does not depend on any external factors or conditions. A linear process is suitable for scenarios where the automation process is simple, straightforward, and does not require any dynamic branching or decision making. (UiPath Automation Developer study guide)

The Get Text activity is used to extract the text value of a specified UI element. It does not use any of the scraping methods by default, but it can be configured to use the Full Text method in the Properties panel. The Full Text method is able to capture hidden text from an application, as well as the entire visible text and editable text. The Full Text method uses an internal OCR engine that works with most applications and languages.

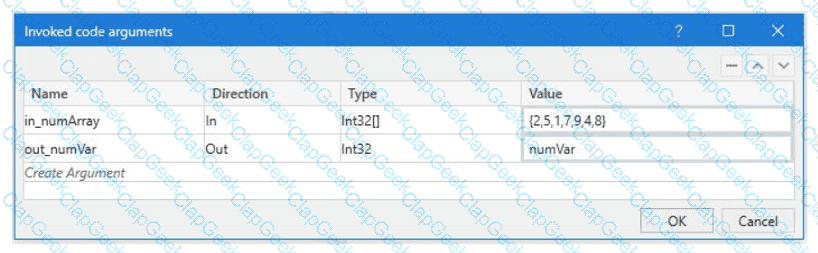

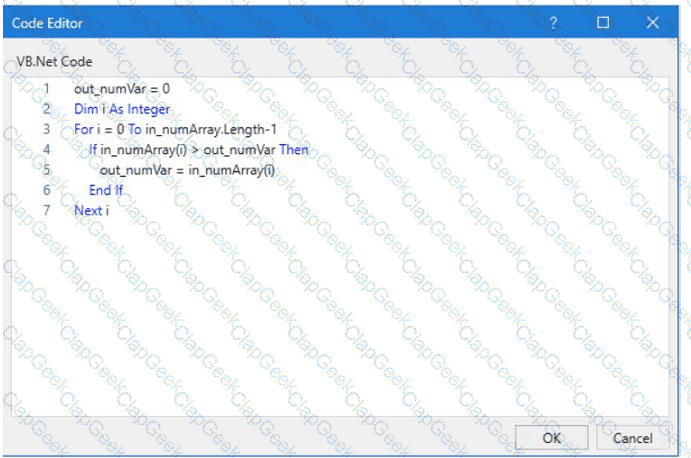

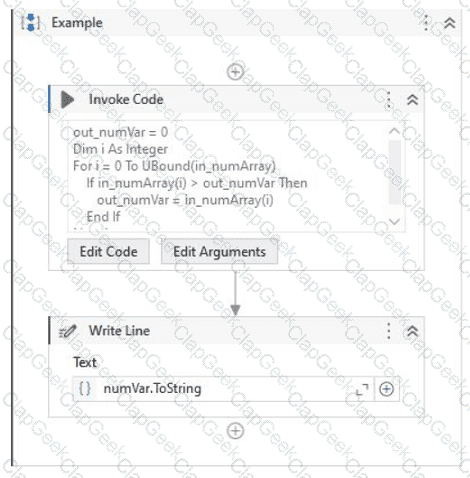

The code in the Invoke Code activity is looping through an array of integers and checking if the current value is greater than the previous value. If it is, the current value is stored in the output variable. Since the last value in the array is 9, this will be the final value of the output variable. (UiPath Studio - Invoke Code - UiPath Academy)

The Solution Design Document (SDD) is created during the Solution Design phase and serves as the technical blueprint for automation.

Why is Option A Correct?

The Solution Design phase includes:

Creating the SDD (Solution Design Document).

Defining technical architecture.

Mapping business workflows to automation.

Selecting automation tools and strategies.

Why Other Options Are Incorrect?

B (User Acceptance Testing phase) ❌

UAT phase is for testing the developed solution after the design phase.

C (Kick-off phase) ❌

The Kick-off phase is for initial planning and stakeholder discussions.

D (Process Design phase) ❌

The Process Design Document (PDD) is created here, not the SDD.

The Substring method is used to extract a part of a string based on a specified starting index and length. The syntax of the Substring method is:

string.Substring(startIndex, length)

where startIndex is the zero-based position of the first character in the substring, and length is the number of characters in the substring. For example, if the string is “Hello”, then string.Substring(1, 2) will return “el”, as it starts from the second character (index 1) and takes two characters.

To return four characters starting with the second character, the startIndex should be 1 and the length should be 4. Therefore, the expression should be:

StrVar.Substring(1, 4)

UiPath Studio Web is a cloud-based automation tool that enables cross-platform automation without requiring local installations.

Why is Option C Correct?

Studio Web automations run on "serverless robots" that are automatically provisioned by UiPath.

These robots can execute on Windows, Mac, or Linux, making them platform-independent.

No need for manual robot installation on each machine.

Why Other Options Are Incorrect?

A (Must run exclusively on Windows robots) ❌

Incorrect. Studio Web supports Mac, Linux, and Windows.

B (Only supports Linux and Mac, not Windows) ❌

Incorrect. Studio Web is platform-independent.

D (Requires a Windows robot on each system) ❌

Incorrect. Serverless robots handle execution automatically.

The App/Web Recorder is a tool that allows you to record your actions on an application or a web browser and generate activities automatically1. The App/Web Recorder has a toolbar that contains different actions that you can select before recording a step2. Some of these actions are:

Click: This action records a click on a button, link, or any other clickable element.

Type: This action records typing text in a text box or any other text area.

Check: This action records selecting or clearing a check box.

Send Hotkey: This action records sending keyboard shortcuts using your keyboard.

Select Item: This action records selecting an item from a drop-down list or any other selector.

These actions are automatically detected and recorded by the App/Web Recorder when you perform them on the application or web browser3. However, there are some actions that are not automatically detected and recorded by the App/Web Recorder, and you need to manually select them from the toolbar before recording a step. These actions are:

Get Text: This action records copying text from a label, paragraph, or any other text element.

Hover: This action records hovering over an element with your mouse cursor.

Highlight: This action records highlighting an element with a colored border.

These actions are useful for extracting data, triggering events, or identifying elements on the application or web browser4. To use these actions, you need to select them from the toolbar and then indicate the element on the screen that you want to apply them to5.

Therefore, option A is the correct answer, as it lists the actions that must be manually selected in the App/Web Recorder before recording a step. Option B includes some actions that are automatically detected and recorded by the App/Web Recorder, such as Click and Type. Option C also includes some actions that are automatically detected and recorded by the App/Web Recorder, such as Check and Send Hotkey. Option D includes all the actions that are automatically detected and recorded by the App/Web Recorder.

To check how many resources are utilized in a personal workspace in UiPath Orchestrator, you can use the See Usage option that displays the current consumption of resources for each workspace. You can also see the total number of resources allocated to all personal workspaces in your tenant. (Orchestrator - Personal Workspaces - UiPath Academy)

The best practice in Dispatcher-Performer architecture is:

Dispatcher: Adds each invoice as a Queue Item in Orchestrator.

Performer: Processes each invoice separately and updates the finance team with the output ID.

Why is B Correct?

✅ Invoice data and finance team email address should be included as Specific Data in Queue Items:

This ensures each invoice contains all necessary details.

Each transaction is processed individually with all relevant data.

Why Other Options Are Incorrect?

In the UiPath implementation model, the stage where the chosen processes are analyzed in their AS-IS state is during the "Process Analysis" phase. This phase involves understanding the current state of the processes to be automated, identifying their challenges, and determining the requirements for the automation solution.

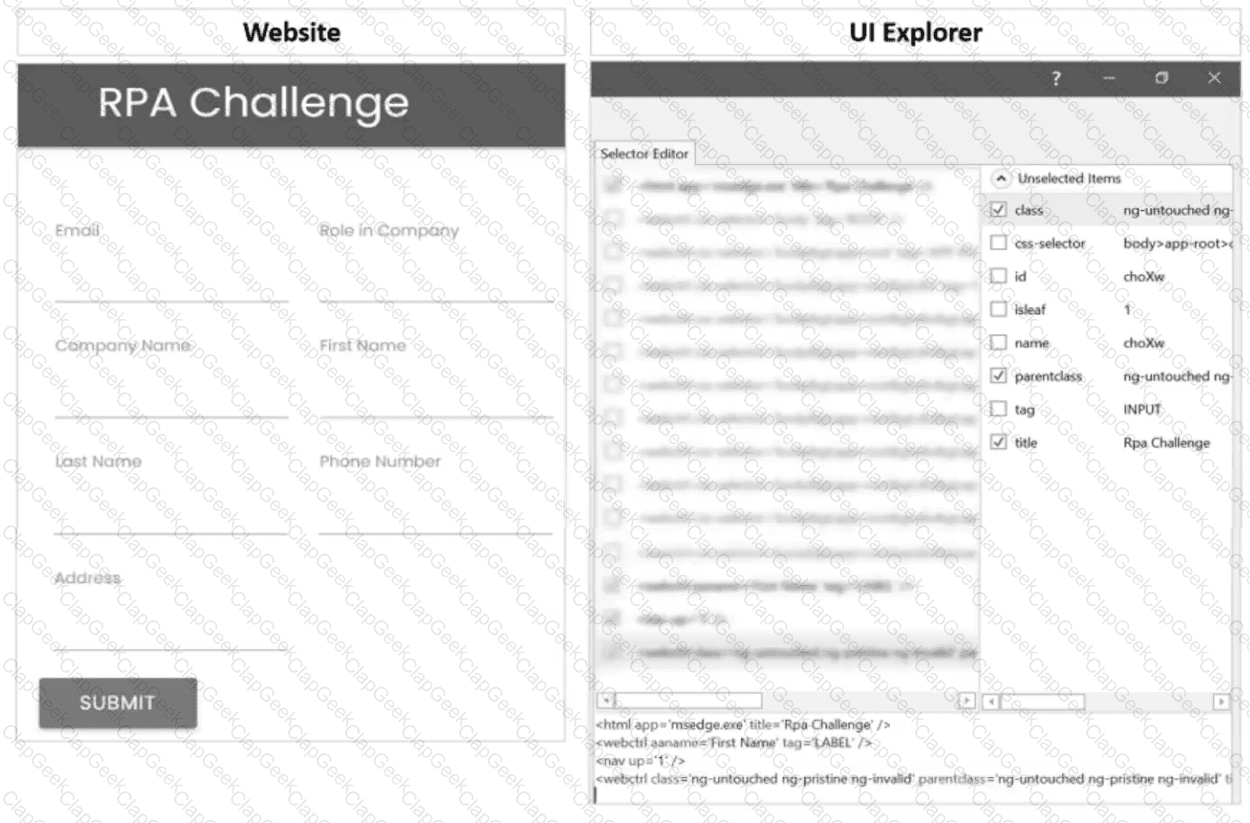

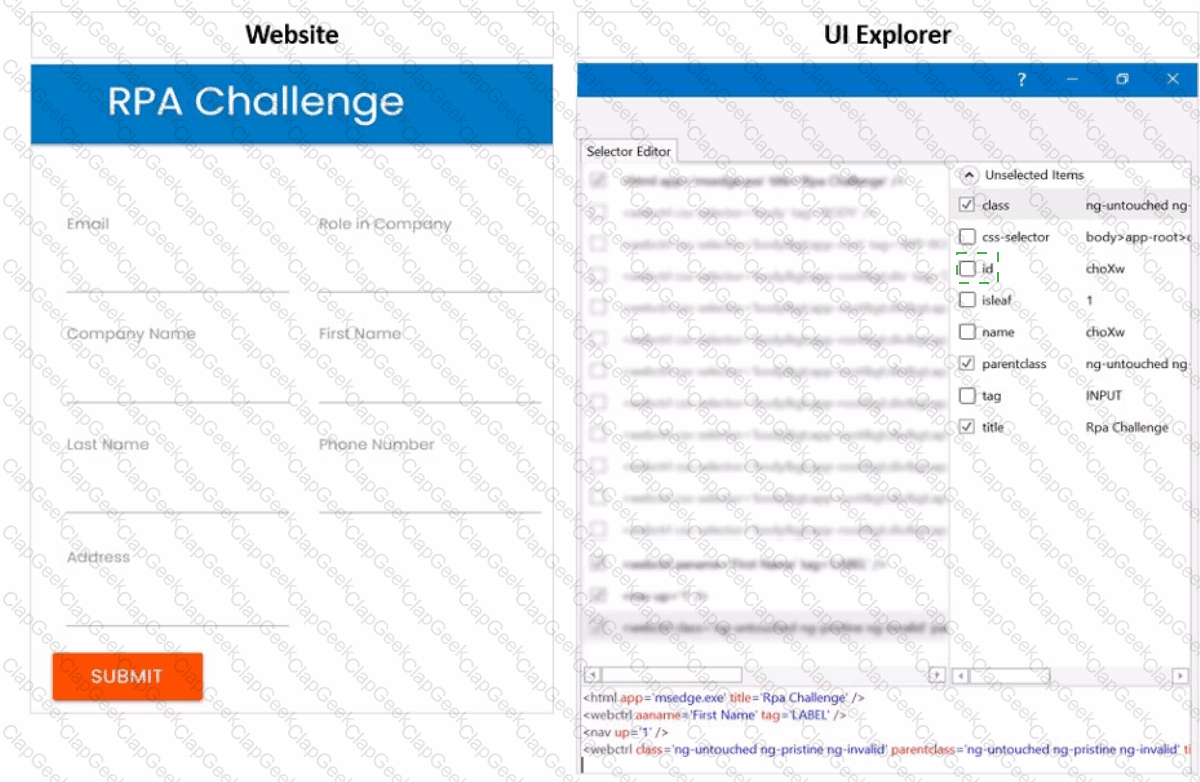

To ensure the selector targets only the First Name text field at runtime, you need to click the additional Property checkbox for ID in the UI Explorer Unselected Items column. This will add the ID attribute to the selector, which is a unique identifier for the text field element. The ID attribute has the value “firstname” for the First Name text field, as shown in the image. This will make the selector more reliable and specific, and avoid targeting the text label or other elements with the same class or tag.

https://docs.uipath.com/de/studio/standalone/2021.10/user-guide/uipath-explorer

This is the correct way to add a library that has been published to the Orchestrator feed as a dependency in a project. The Manage Packages Window allows the developer to browse, install, update, or remove packages from various sources, such as the Orchestrator feed, the Official feed, or the Local feed. The Orchestrator feed is the default location where libraries are published from Studio, and it can be enabled or disabled by clicking on the Settings button in the Manage Packages Window. The Search bar allows the developer to find the desired package by name, version, or description. The Install button allows the developer to add the package as a dependency to the project. The other options are incorrect because they do not use the Orchestrator feed, or they do not use the correct activity to invoke the library. References: About Libraries, Managing Dependencies, Publishing a Library, Invoking a Workflow

Starting with UiPath Studio version 2022.10, the default project type is Windows, which uses .NET 6 or .NET 5 with Windows support1. If a project contains dependencies that lack Windows compatibility, such as custom activities or libraries, they are marked as unresolved when the project is converted to Windows2. The developer needs to manually resolve them by finding compatible alternatives or updating the code3.

In UiPath Studio, to convert a designed process into a template, you should use the "Export as Template" option. This feature packages the project in such a way that it can be reused as a starting point for other automation projects. Therefore, the correct answer is B.

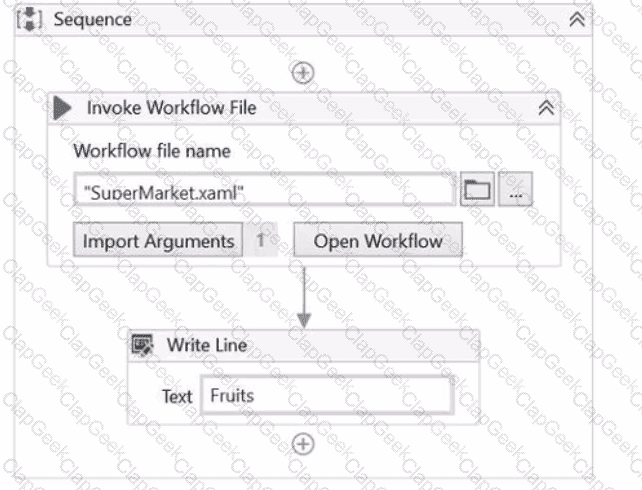

Arguments are used to pass data between different workflows in a project.

They function like method parameters in programming.

Arguments have four directions:

In – Passes data into a workflow.

Out – Sends data from a workflow.

In/Out – Passes data both ways.

Property – Rarely used; behaves like a combination of In and Out.

✅ Why other options are incorrect:

B (Variables): Used for storing data within a single workflow, but they cannot pass data between workflows.

C (Namespaces): Control the scope of libraries, not data transfer.

D (Properties): Define object characteristics, not data flow.

✅ Reference: UiPath Studio - Arguments

A static selector is a selector that has fixed values for the attributes of the target element, such as name, id, class, etc. A static selector is appropriate to use when the target element’s attributes do not change during runtime, meaning they are always the same regardless of the state of the application or the environment. A static selector is more reliable and faster than a dynamic selector, as it does not require any variables or arguments to identify the target element. A static selector is not suitable for situations where the target element’s properties change frequently, such as when the element is generated dynamically, or when the automation requires high flexibility, such as when the element can have different names or ids depending on the input or output data. In those cases, a dynamic selector is preferred, as it can use variables or arguments to adjust the attribute values according to the changes in the target element. References: Dynamic Selectors, Selectors

When using a dynamic selector, the data type that is supported is String. A dynamic selector is a selector that uses a variable or an argument as a property for the attribute of the target element. This allows the selector to easily identify the target element based on the value of the variable or argument, and not an exact string, which might change depending on the interactions inside the automation project1. The variable or argument that is used in the dynamic selector must be of type String, as the attribute values are always strings2. For example, a dynamic selector can use a variable named MenuOption to click on different menu items in an application, such as File, Edit, or Format. The variable MenuOption must be a String variable, and its value can be changed at runtime to interact with different elements. A dynamic selector has the following format, where { {Value}} is the name of the variable or argument that holds the property of the element you want to interact with1:

Dynamic Selector Format

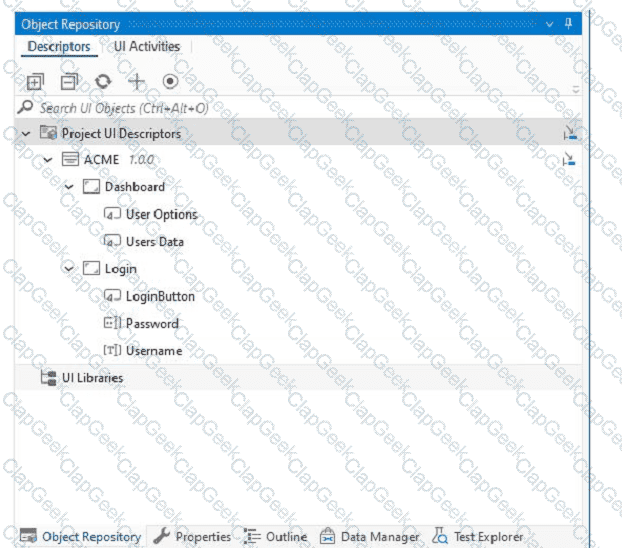

The UI Object Repository is a feature that allows you to store and reuse UI elements across different automation projects1. A UI Library is a type of project that contains UI elements and workflows that can be used as dependencies in other projects2. When you import a UI Library as a dependency in your current project, the UI Object Repository defined in the UI Library will automatically be available in your current project3. You can access the UI elements from the Object Repository panel in Studio and use them in your activities4. Therefore, the correct answer is C. The other options are incorrect because they do not reflect the actual behavior of the UI Object Repository and the UI Library.

In UiPath Studio, the option that prohibits debugging projects with Workflow Analyzer errors is "Enforce Analyzer before Run." When this option is enabled in the backstage view, the Workflow Analyzer runs before the execution of the project, and if there are errors, the project will not run.

The Visible property of the Excel Application Scope activity determines whether the Excel file is opened in the foreground or in the background. If the Visible property is set to True (default value), the Excel file is opened and displayed on the screen. If the Visible property is set to False, the Excel file is opened and processed in the background, without showing the user interface. This can improve the performance and speed of the automation, as well as avoid any interference with the user’s work. Therefore, to create a process that runs in the background and uses Excel activities, the Visible property of the Excel Application Scope activity must be configured to False. References: Excel Application Scope from UiPath documentation.

Breakdown of Indexing in DataTable:

DT.Rows(0)(1) → First row, second column (Age of Michael) → 42

DT.Rows(1)(0) → Second row, first column (Name of Clara) → "Clara"

Final Computation:

"42" + "Clara" = "42Clara"

Why Other Options Are Incorrect?

B (42Michael) ❌

The second value fetched is "Clara", not "Michael".

C (MichaelClara) ❌

Michael is at Rows(0)(0), but the expression fetches Rows(0)(1), which is 42.

D (Clara25) ❌

25 is at Rows(1)(1), but the expression fetches Rows(1)(0), which is "Clara".

The "Compare Files" feature in UiPath Studio allows developers to compare differences between two versions of a file within the project.

It highlights changes in activities, variables, and arguments, helping in code review and debugging.

This feature is especially useful in Git-based version control, allowing users to track modifications efficiently.

✅ Reference: UiPath Studio – Compare Files

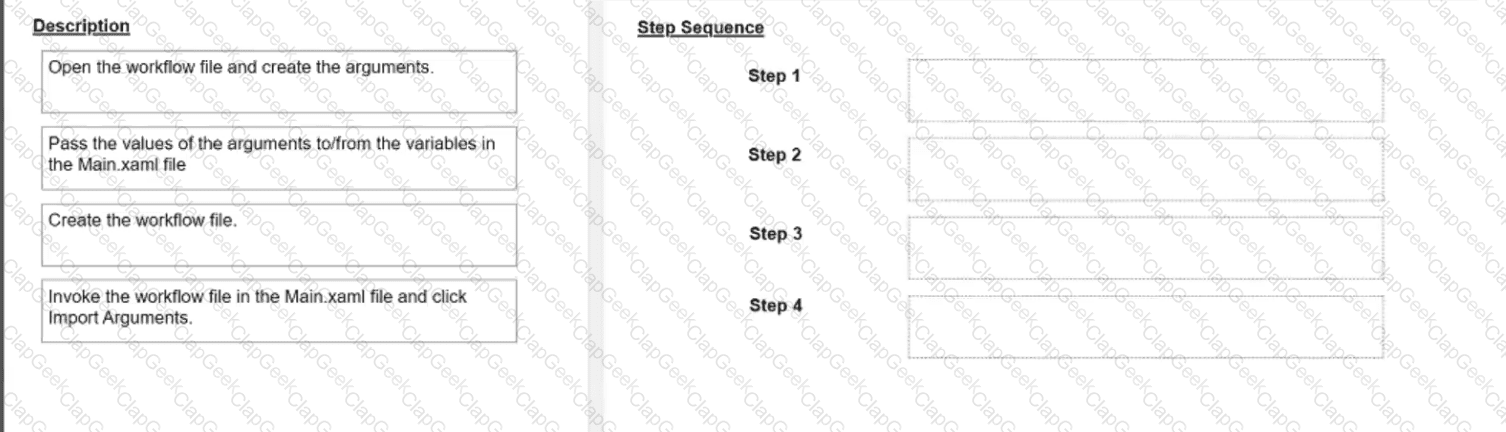

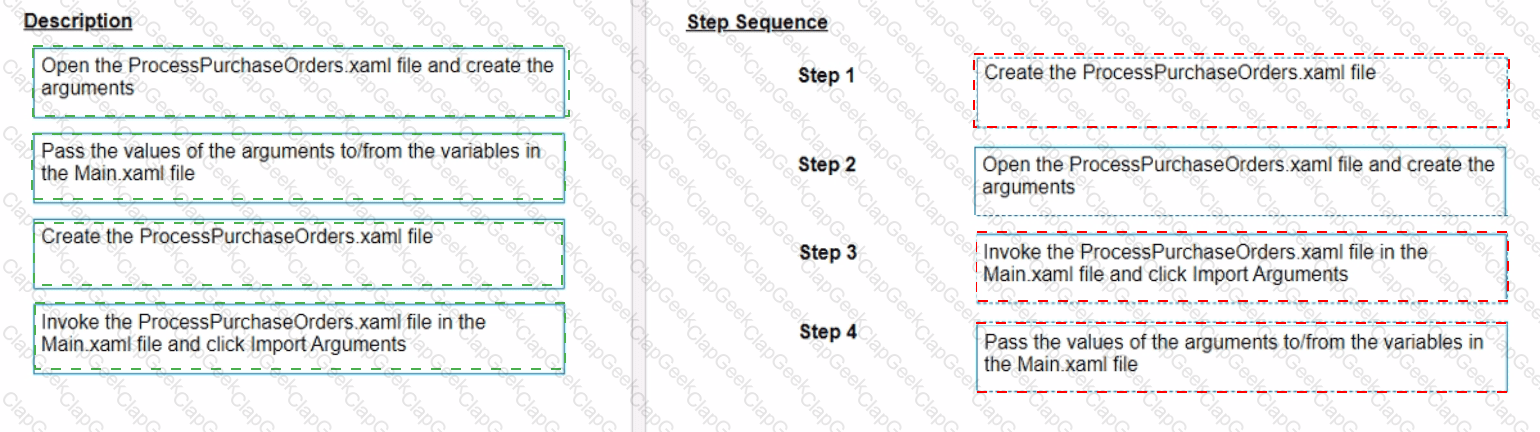

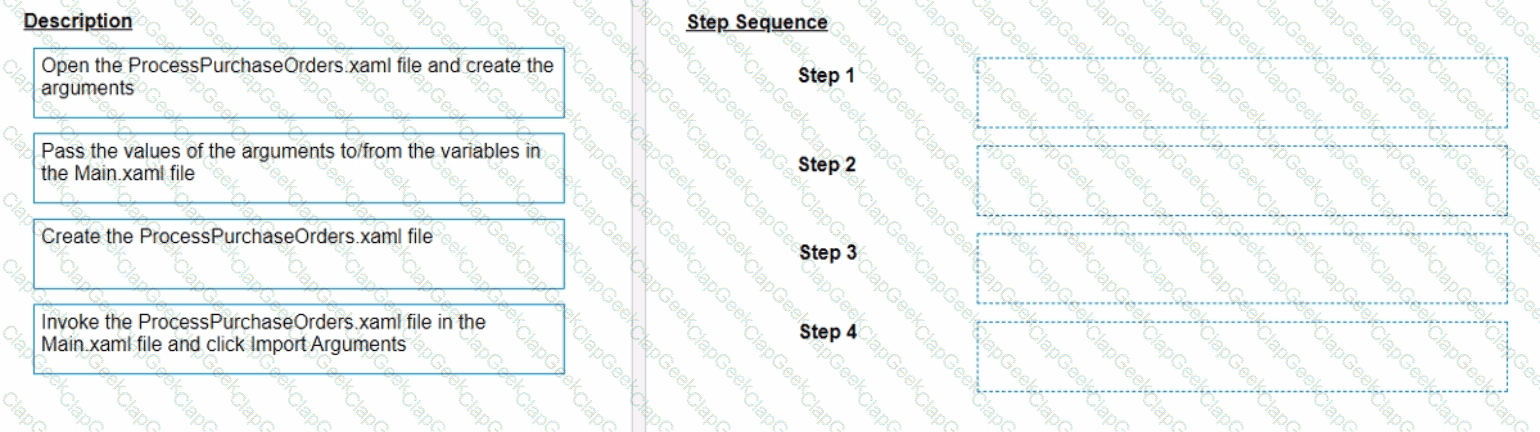

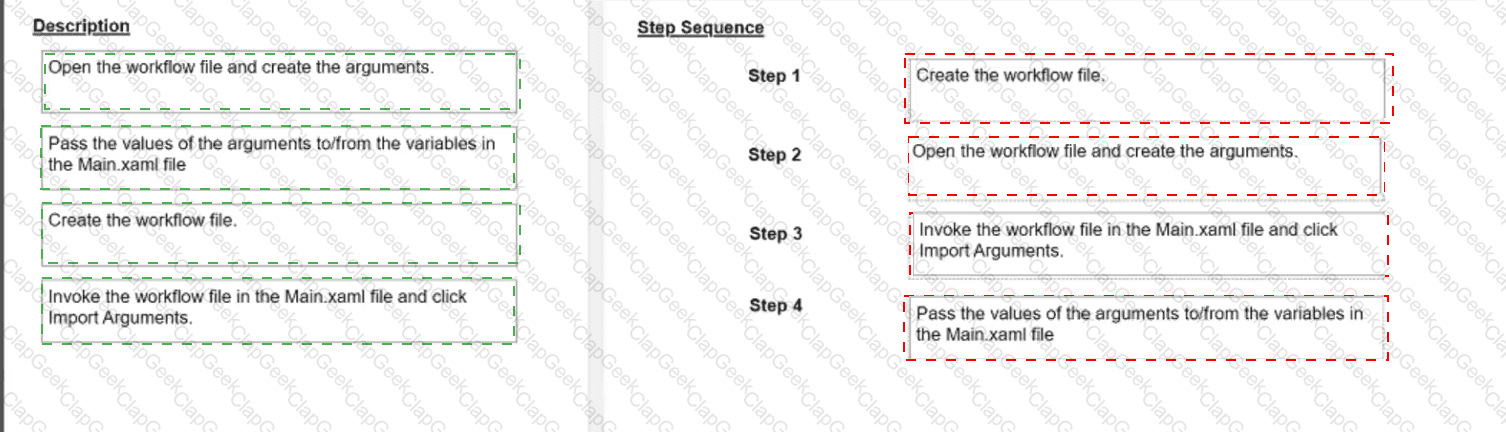

The correct sequence of steps the developer needs to perform is:

Step 1 = Create the ProcessPurchaseOrders.xaml file

Step 2 = Open the ProcessPurchaseOrders.xaml file and create the arguments

Step 3 = Invoke the ProcessPurchaseOrders.xaml file in the Main.xaml file and click Import Arguments

Step 4 = Pass the values of the arguments to/from the variables in the Main.xaml file

This sequence will ensure that the developer can create a reusable workflow, invoke it from the main workflow, and pass data between them using arguments.

https://forum.uipath.com/t/import-arguments-in-invoke-workflow-file/1923

https://forum.uipath.com/t/pass-arguments-invoke/132595

A partial selector is a selector that does not contain the information about the top-level window. A partial selector is usually generated when a UI Automation activity is included in a container activity, such as Attach Browser or Attach Window, that has a full selector of the outer window. This way, the UI Automation activity can use the partial selector relative to the container, instead of the full selector from the root. A partial selector is indicated by the icon in the Properties panel of the UI Automation activity. In this question, the sequence that contains an activity with a partial selector is Option B, where the Click activity has the partial selector icon and is enclosed in an Attach Window activity. The other options have activities with full selectors, indicated by the icon . Therefore, the answer is B. Option B. References: Full Versus Partial Selectors, Selectors

The String.Join method takes two parameters: a separator and an array of strings. It returns a new string that concatenates the elements of the array using the separator. The correct syntax is String.Join(separator, array). Therefore, option B is the correct answer.

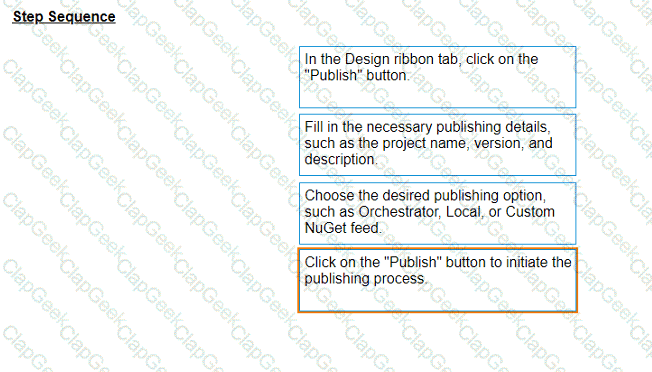

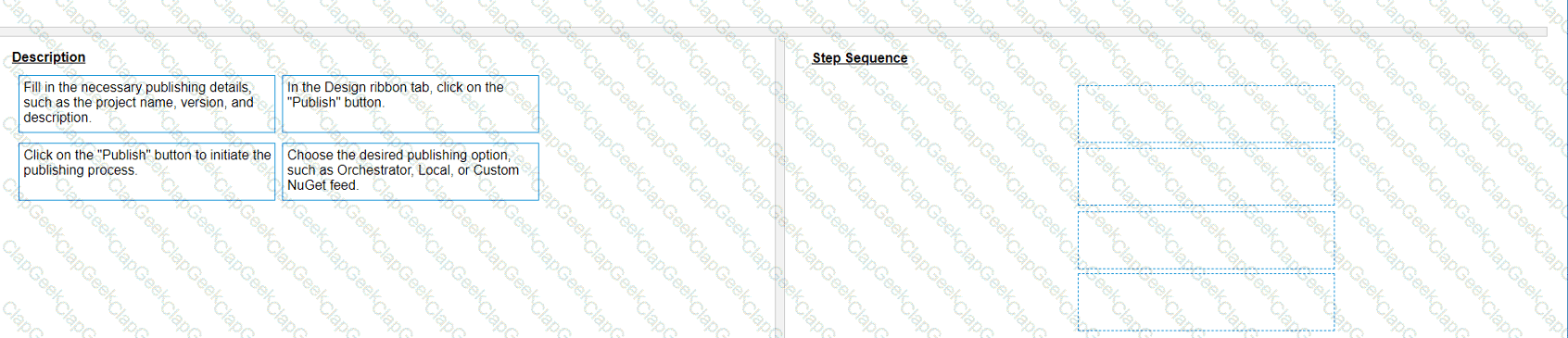

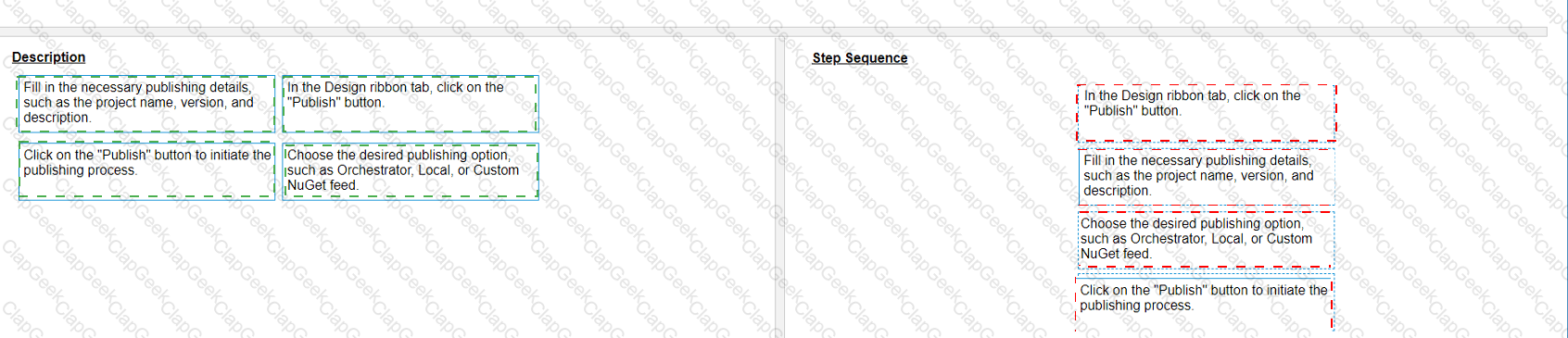

The steps to publish a project from UiPath Studio are:

In the Design ribbon tab, click on the “Publish” button. The Publish Project window opens. (UiPath Studio documentation1)

Fill in the necessary publishing details, such as the project name, version, and description. You can also add release notes and select the environment where the project will run. (UiPath Studio documentation1)

Choose the desired publishing option, such as Orchestrator, Local, or Custom NuGet feed. Depending on your choice, you may need to provide additional information, such as the Orchestrator URL, the local folder path, or the custom feed URL. (UiPath Studio documentation1)

Click on the “Publish” button to initiate the publishing process. A confirmation message will appear when the project is successfully published. (UiPath Studio documentation1)

Short Explanation: Publishing a project from UiPath Studio means creating a package that contains all the files and dependencies required to run the automation process. The package can be deployed to different locations, such as Orchestrator, a local machine, or a custom NuGet feed. Publishing a project from UiPath Studio involves four main steps: clicking on the Publish button, filling in the publishing details, choosing the publishing option, and confirming the publishing process. (UiPath Automation Developer study guide2)

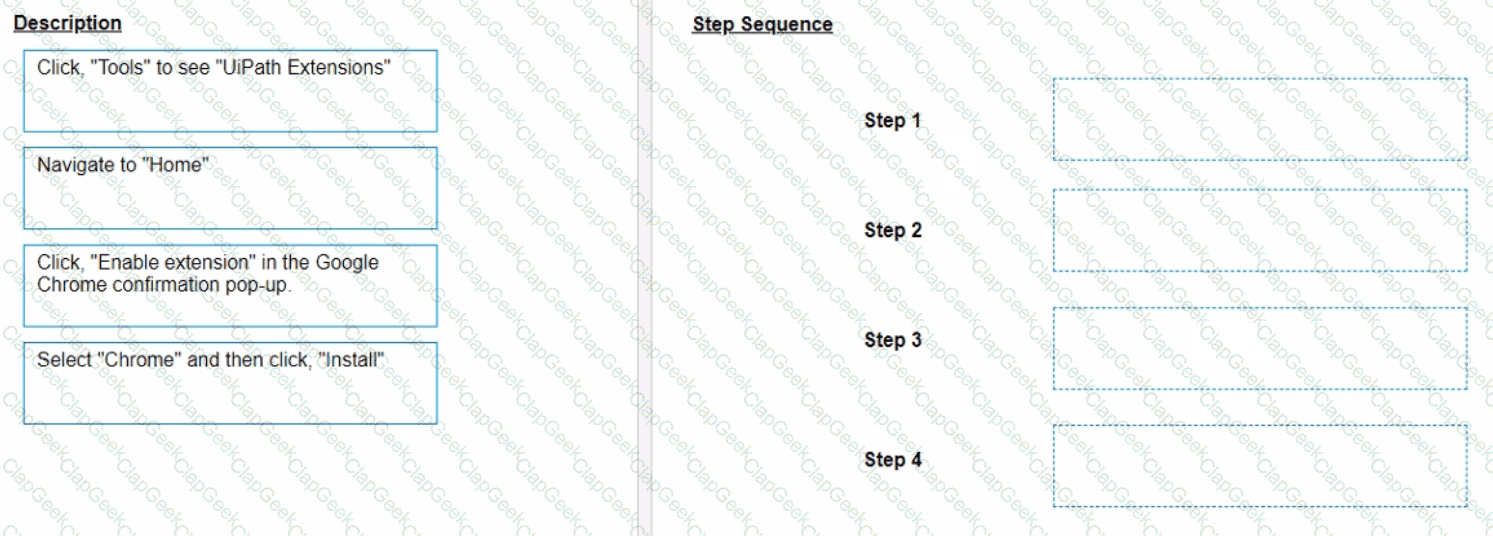

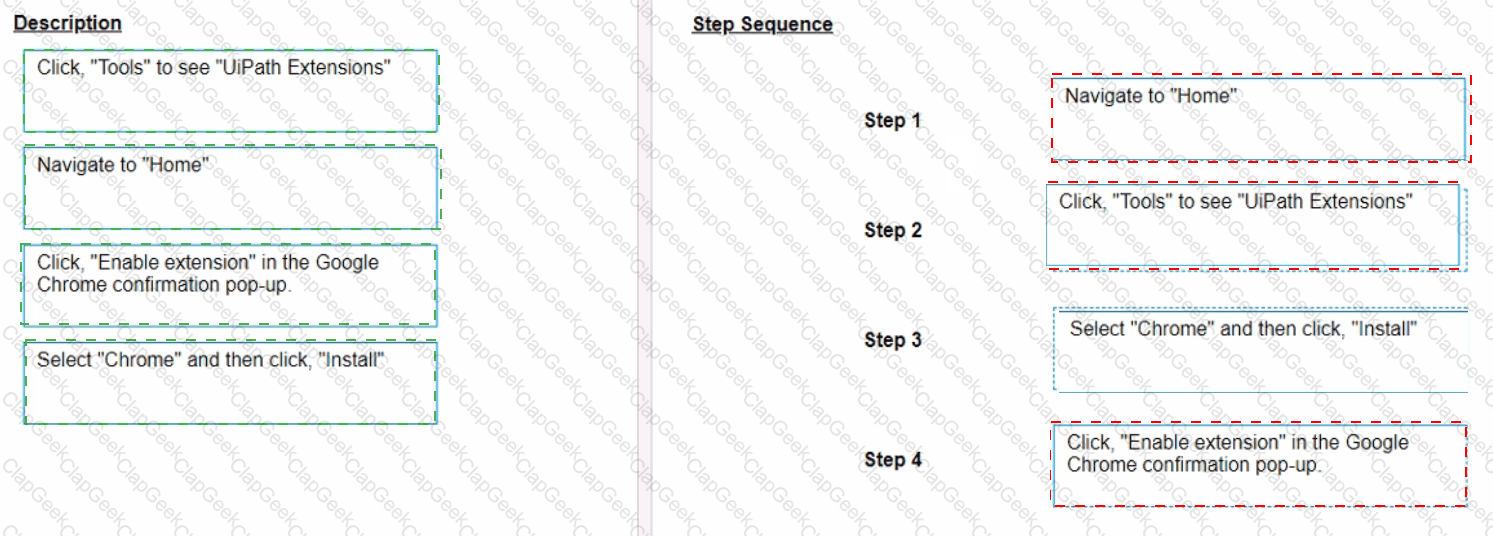

The developer can load the Google Chrome extension from UiPath Studio by following these steps:

Step 1 = Navigate to Home in UiPath Studio. This is the section where you can create, open, or manage your projects.

Step 2 = Click Tools to see UiPath Extensions. This is the section where you can install or update various extensions for different applications or browsers.

Step 3 = Select Chrome and then click Install. This will launch the Chrome browser and redirect you to the Chrome Web Store page for the UiPath extension.

Step 4 = Click Enable extension in the Google Chrome confirmation pop-up. This will add the UiPath extension to your browser and allow you to use UI automation activities in Chrome.

The Strict selector relies only on the UI element’s full selector and does not use anchors.

Why is Option B Correct?

Strict selectors contain only reliable UI element attributes (title, id, class, etc.).

No anchors are needed, as the element is uniquely identified through direct targeting.

Anchors are used only in Fuzzy or Image-based selectors for dynamic UI elements.

Why Other Options Are Incorrect?

A (Strict selector always works better with multiple anchors.) ❌

Incorrect. The Strict selector does not use anchors at all.

C (Strict selector requires at least two anchors.) ❌

Incorrect. Anchors are irrelevant in Strict mode.

D (Strict selector only uses automatically identified anchors.) ❌

Incorrect. Strict selectors do not use anchors, manually or automatically.

The Global Exception Handler is an error handling mechanism for a project. By default, it retries an activity that continually throws an error 3 times. The Global Exception Handler is a workflow that is executed when an exception occurs in the project. It allows the developer to define custom actions for handling different types of exceptions, such as logging, retrying, aborting, or continuing the execution1. When the Global Exception Handler encounters an exception, it logs the name of the activity which faulted and starts retrying the activity three times. If it encounters the same exception each time and the number of retries reaches 3, the execution is aborted at the level of the activity which threw the exception2. The number of retries can be modified by changing the value of the RetryCount variable in the Global Exception Handler workflow3. References: Global Exception Handler and Global Handler for Exceptions from UiPath documentation and Marketplace.

Unattended automation is designed to run without human intervention and is typically deployed in server environments or virtual machines.

Why Option D is Correct:

Unattended robots handle background automation that requires elevated permissions and credentials.

Credentials are securely stored in UiPath Orchestrator Assets, meaning no manual login is required.

Use Case: Running scheduled tasks, back-office operations, and enterprise-level automation.

Why Other Options Are Incorrect:

A: ❌ Incorrect – Unattended bots do not require a human to log in or provide credentials manually.

B: ❌ Incorrect – Supervision is not needed; Unattended automation executes independently.

C: ❌ Incorrect – Unattended automation is not for small, fragmented tasks but enterprise-scale operations.

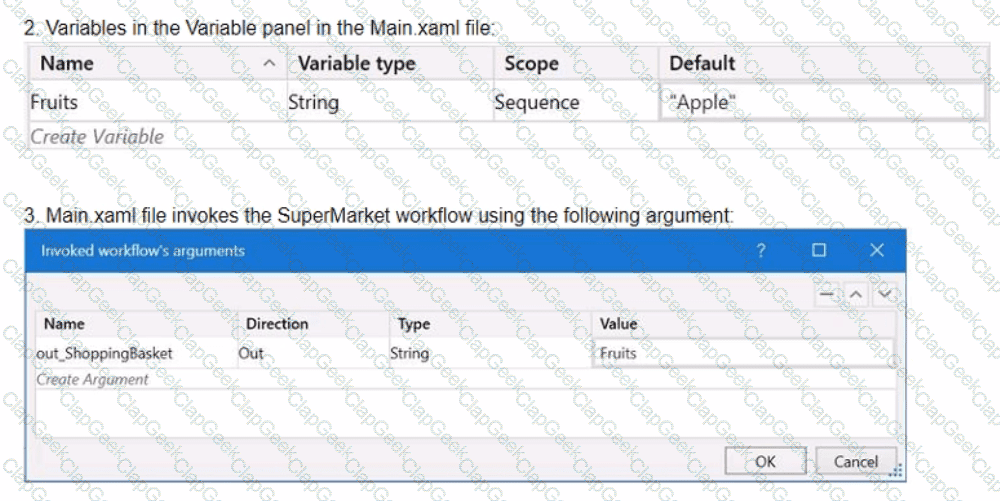

The Variables panel is a panel in UiPath Studio that allows you to create and manage variables in a workflow file. You can change the name, type, scope, and default value of a variable in the Variables panel. When you update the name of a variable in the Variables panel, all the activities that use that variable in the current file are automatically updated with the new name. This ensures that the variable references are consistent and valid throughout the workflow. However, if the variable is used in other workflow files, such as invoked workflows or libraries, you need to manually update the name in those files as well. Therefore, the answer is C. All variable names are automatically updated in the activities in the current file. References: Managing Variables, Variables

Comprehensive and Detailed In-Depth Explanation:

???? UiPath Marketplace is the official platform for sharing reusable automation components such as:

✔ Pre-built workflows

✔ Custom activities

✔ AI models

✔ Connectors and templates

Step-by-Step Execution Guide: Using UiPath Marketplace

1️⃣ Access UiPath Marketplace → UiPath Marketplace

2️⃣ Browse or Search for Components

Example: Search for "Excel Automation Activities"3️⃣ Download and Import into UiPath Studio

Install the component via Manage Packages.4️⃣ Use it in Your Workflow

Drag and drop the pre-built activity into your automation.

???? This saves development time and promotes best practices!

Real-World Use Case: Enhancing Automation with Pre-Built Solutions

???? Scenario:

A developer needs to integrate UiPath with Salesforce, but instead of coding from scratch:

✔ Searches "Salesforce Connector" in UiPath Marketplace.

✔ Installs the pre-built activity pack.

✔ Quickly connects UiPath to Salesforce APIs.

???? This accelerates automation development!

Why the other options are incorrect?

❌ A. UiPath Assistant – Used for running attended bots, not sharing automation components.

❌ C. UiPath Orchestrator – Used for managing robots and processes, not sharing workflows.

❌ D. UiPath Studio – A development tool, but it does not provide a marketplace.

✅ Reference:

UiPath Documentation: UiPath Marketplace

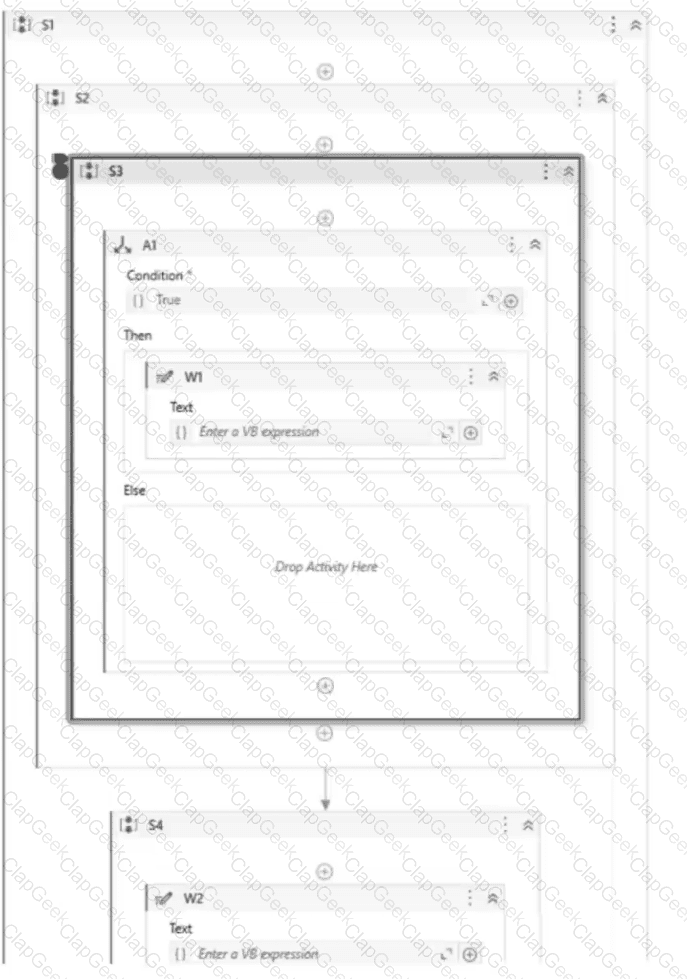

When a developer selects "Step Out" from the Debug section in UiPath Studio's ribbon interface while examining a suspended state upon reaching a breakpoint, the executor will be directed to the activity that called the current container (or the next activity in the higher scope). In the context of the provided sequence structure, stepping out from A1 (assuming that's where the breakpoint is) would go to the next higher scope, which is S2, as it is the sequence that contains A1. Therefore, the correct answer is D (S2 in the image).

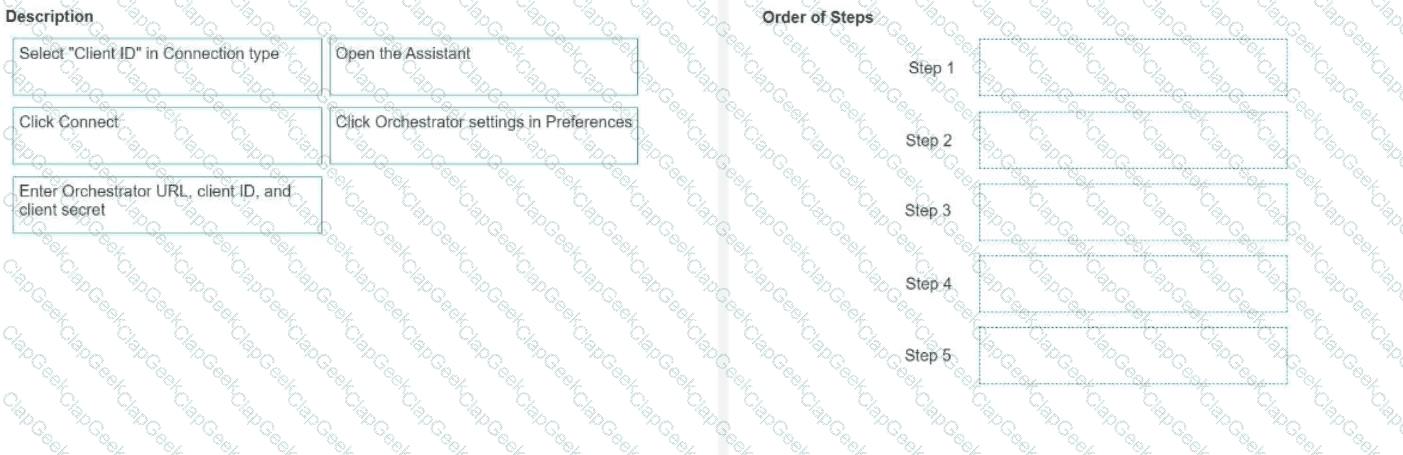

To connect unattended robots to Orchestrator using client credentials in UiPath Assistant, follow these steps in the correct order:

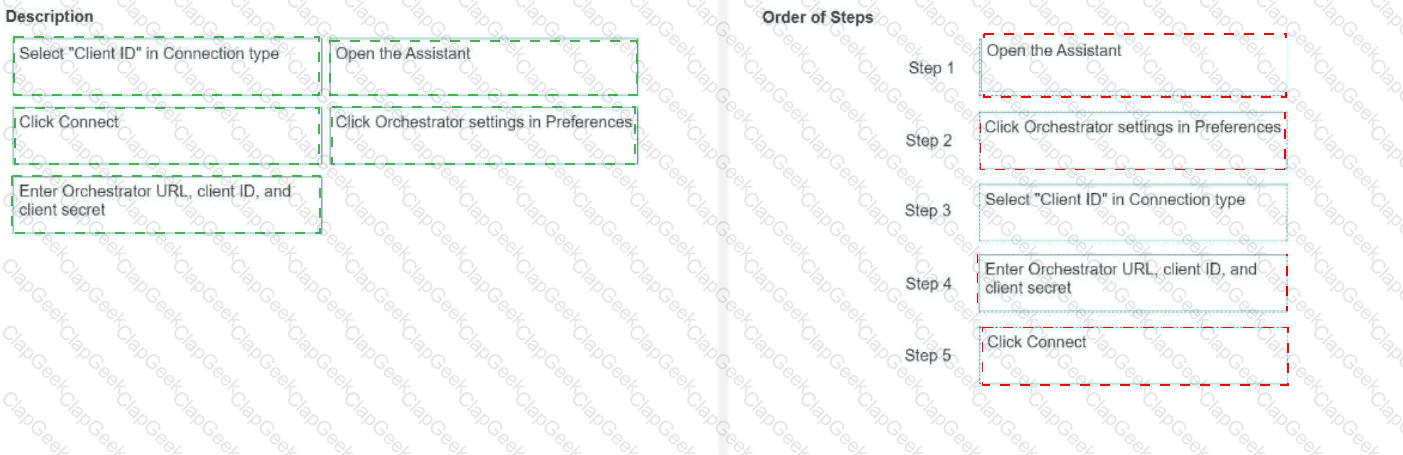

Correct Order of Steps:

Open the Assistant

Click Orchestrator settings in Preferences

Select "Client ID" in Connection type

Enter Orchestrator URL, client ID, and client secret

Click Connect

Explanation of Steps:

Open the Assistant – The UiPath Assistant is required to configure the Orchestrator connection.

Click Orchestrator settings in Preferences – Navigate to the Orchestrator settings to set up the connection.

Select "Client ID" in Connection type – Choose the authentication method using the client ID instead of a machine key.

Enter Orchestrator URL, client ID, and client secret – These credentials are necessary to authenticate and establish the connection.

Click Connect – This final step completes the connection to Orchestrator.

Reference from UiPath Official Documentation:

UiPath Assistant - Connecting to Orchestrator

Orchestrator Authentication Methods

The Capture All Elements feature is a tool that lives inside Capture Elements from Object Repository, and it extracts all the elements of an application from multiple screens simultaneously using the Computer Vision technology. It adds them to your Object Repository library, so that you can use them in your automation projects without having to manually add them one by one1. This feature is available in Studio and Studio Pro, but not in StudioX2.

Comprehensive and Detailed Explanation:

In UiPath, when dealing with passwords or sensitive data, the recommended variable type is SecureString because:

Security:

SecureString is designed to protect sensitive information in memory.

It encrypts the data and prevents exposure in logs or output panels.

UiPath Activities Support SecureString:

Activities like "Type Secure Text", "Get Password", and "Credentials Management" work only with SecureString.

How to Use SecureString in UiPath:

Convert a string to SecureString:

Dim securePassword As New System.Security.SecureString()

For Each c As Char In "123456"

securePassword.AppendChar(c)

Next

Convert SecureString to a normal string (not recommended for security reasons):

Dim password As String = New System.Net.NetworkCredential("", securePassword).Password

Why Other Options Are Incorrect?

A (Object):

Too generic and does not provide security for sensitive data.

B (Int32):

Only stores whole numbers, but passwords may contain leading zeros or special characters, making it unsuitable.

D (Int64):

Same issue as Int32; also, passwords should not be stored as numeric values to prevent security risks.

To retrieve all Outlook emails with the word “UiPath” in the subject, a developer should use the Filter property and the filter schema “@SQL=”“urn:schemas:httpmail:subject”" like ‘%UiPath%’“. The Filter property allows developers to specify a DASL query that filters the emails based on various criteria, such as subject, sender, date, etc. The filter schema “@SQL=”“urn:schemas:httpmail:subject”” like ‘%UiPath%’" uses the SQL dialect of DASL to search for emails that have the word “UiPath” anywhere in the subject. The “%” symbol is a wildcard that matches any character or string. (UiPath Automation Developer study guide)

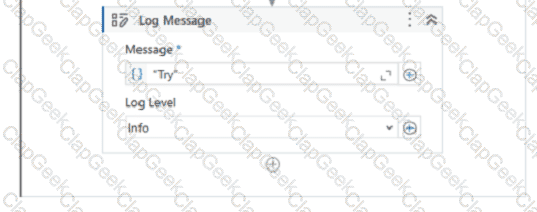

Logging Level “Information” is used to log general information about the process execution, such as the start and end of a transaction1. When an exception is caught in a Catch block, the developer should log a clear message with this level to indicate the type and source of the error, and the action taken to handle it2.

https://docs.uipath.com/studio/standalone/2023.4/user-guide/logging-levels

 The REFramework template is a robust and scalable framework for building RPA projects1. It uses a state machine to handle the different stages of the automation process2. One of the states is the Process Transaction state, where the main actions are performed on each transaction item3. A transaction item can be a queue item from Orchestrator, a data row from an Excel file, or any other type of data that needs to be processed. If the transactions are stored in an Excel table, the best variable type for TransactionItem is System.Data.DataRow, as it represents a single row of data in a DataTable. A DataTable is a collection of rows and columns that can be read from or written to an Excel file using the Excel activities. Therefore, option A is correct.

Option B is incorrect because UiPath.Core.QueueItem is a variable type that represents an item from a queue in Orchestrator. If there is no Orchestrator in the environment, queues cannot be used and QueueItem is not applicable. Option C is incorrect because System.Data.DataTable is a variable type that represents a table of data with rows and columns. A single transaction item cannot be a whole table, but only a row from the table. Option D is incorrect because System.Data.DataRow[] is a variable type that represents an array of data rows. An array is a collection of items of the same type that can be accessed by an index. A single transaction item cannot be an array, but only an element from the array.

Based on the image you sent, the automation process consists of four steps: opening Notepad.exe, typing some text, saving the file, and closing Notepad.exe. Each step has a Log Message activity that writes a text value to the Output panel. If Notepad.exe is not running, the first step will fail and throw an exception. The exception type is SelectorNotFoundException, because the Open Application activity cannot find the selector for Notepad.exe1. Therefore, the Log Message text value that is contained in the Output panel is “SelectorNotFoundException”, which is option D.

A partial selector is a selector that does not contain the information about the top-level window. A partial selector is usually generated when a UI Automation activity is included in a container activity, such as Attach Browser or Attach Window, that has a full selector of the outer window. This way, the UI Automation activity can use the partial selector relative to the container, instead of the full selector from the root. Therefore, the answer is B. When included in an Attach Browser activity. References: Full Versus Partial Selectors, Attach Browser

UiPath Assistant is a desktop tool that enables users to easily access, manage, and run automation workflows on their machines. It provides the following functionalities:

Viewing all the available automations that the user can run, either from Orchestrator or locally.

Adding automations to the launchpad for quick and easy access.

Creating custom folders and sections to organize the automations according to the user’s preferences.

Running automations with a single click or using keyboard shortcuts.

Launching robot-powered apps and managing action center tasks directly from the assistant.

Customizing the assistant’s appearance, name, and avatar to suit the user’s personality.

Viewing the status and progress of the running automations, as well as the history and logs of the past executions.

Connecting to Orchestrator and synchronizing the automations and settings with the cloud.

Accessing the help and feedback options, as well as the interactive guided tour.

The best practice for storing credentials securely in UiPath is to use an Orchestrator Asset.

Orchestrator Assets allow secure storage and retrieval of sensitive information.

Credentials stored in Orchestrator cannot be exposed in logs and are encrypted.

When used in automation, the values are retrieved dynamically, reducing the risk of hardcoded credentials.

✅ Why other options are incorrect:

A (Hardcoded values): Storing credentials in the workflow is insecure and violates best practices.

B (Config.xlsx): Excel files are not secure and can be accessed by anyone with file permissions.

C (Local file): If credentials are stored locally, they become a security risk and are not easily maintainable across multiple bots.

✅ Reference: UiPath Orchestrator - Assets

The Invoke Code activity in UiPath is an activity that allows developers to execute custom code written in VB.NET or C# within a workflow. The activity can accept a list of input arguments and return a list of output arguments, which can be used to exchange data between the code and the workflow. The activity can also access the variables and arguments defined in the current scope of the workflow. The Invoke Code activity can be useful for scenarios where the existing activities do not meet the specific requirements or logic of the automation process. (UiPath Automation Developer study guide)

Unattended robots require a Production runtime for execution.

The Machine Template in Orchestrator must be linked to an available runtime slot for it to function.

Each unattended robot consumes a runtime license, so at least one unallocated runtime must be available before assigning a machine template.

✅ Why other options are incorrect:

B: The Credential Store does not need to be empty.

C: A serverless machine is not required; self-hosted setups use traditional unattended robots.

D: Machine templates are not stored in folders; they are configured in Orchestrator.

✅ Reference: UiPath Orchestrator - Unattended Robot Setup

UiPath best practices recommend using clear and consistent naming conventions for arguments.

Why is Option D Correct?

Arguments should end with their direction (_in, _out, or _io).

Argument names should be meaningful and close to their corresponding variable names to improve readability.

Example Naming Convention:

in_CustomerID

out_TotalPrice

io_TransactionData

Following this standard makes it easier for developers to understand the purpose of each argument.

Why Other Options Are Incorrect?

A (Prefix stating argument type) ❌

Not a UiPath best practice. Arguments should have suffixes indicating direction.

B (Include workflow name) ❌

Workflow names should not be included in argument names to maintain modularity.

C (Exact match with variable name) ❌

Variables and arguments can be similar but should not always be identical to avoid confusion.

Unattended robots are designed to run without human interaction. They can be triggered by events, schedules, or via a command from Orchestrator and are capable of executing processes independently. This is particularly useful for batch processing or automations that need to run at specific times without requiring a human to initiate them. Hence, the correct answer is D.

In UiPath Orchestrator, roles define permissions and control access levels for users.

Why is Option B Correct?

Roles determine what actions a user can perform, such as:

Managing robots

Creating and modifying processes

Accessing queues, jobs, and assets

Example:

A "Developer" role might have permissions to edit processes but not to manage robots.

A "Robot User" role might have only execution permissions.

Why Other Options Are Incorrect?

A (Collections of machines) ❌

Incorrect. Machines are managed separately from roles.

C (Collections of folders) ❌

Incorrect. Roles control access to folders, but are not collections of folders.

D (Collections of processes) ❌

Incorrect. Roles do not control process execution order.

The error "Object reference not set to an instance of an object" occurs because dtReports has not been initialized before use.

To fix this, the correct approach is to initialize the DataTable before adding rows, using:

dtReports = New System.Data.DataTable

Explanation of Each Option:

A (Assign dtReports = New System.Data.DataTable) ✅ (Correct Answer)

Initializes a new empty DataTable, which is required before adding rows.

Once initialized, dtReports can hold columns and rows.

B (Assign New System.Data.DataTable = dtReports) ❌ (Incorrect)

Incorrect syntax. New System.Data.DataTable must be assigned to a variable, not the other way around.

C (Assign dtReports = New System.Data.DataRow) ❌ (Incorrect)

DataRow represents a single row, not the entire DataTable.

We need to initialize the table first, not just a row.

D (Assign dtReports = New List(Of DataRow)) ❌ (Incorrect)

A List(Of DataRow) is not a DataTable. UiPath's Add Data Row activity only works with DataTable, not with lists.

Comprehensive and Detailed In-Depth Explanation:

The role of an automation developer primarily revolves around building, testing, and deploying automation solutions. The Development and Unit Testing phase is the most significant stage where the developer creates and configures the automation workflow using UiPath Studio. Additionally, developers contribute significantly in:

Integration and UAT (User Acceptance Testing):

Ensuring the automation solution functions correctly by integrating with real-world applications and testing with business users.

Debugging and refining workflows based on user feedback.

Deployment and Hypercare:

Assisting with deployment in production environments.

Monitoring initial runs (Hypercare phase) to resolve any post-deployment issues.

✅ Reference:

UiPath Official Documentation: Software Development Life Cycle (SDLC) in RPA

UiPath Academy: RPA Implementation Methodology

The Excel Application Scope activity interacts with a Microsoft Excel file in the following way: it works with xls and xlsm files and Excel must be installed. The Excel Application Scope activity opens an Excel workbook and provides a scope for Excel activities. When the execution of this activity ends, the specified workbook and the Excel application are closed2. The Excel Application Scope activity can work with xls (Excel 97-2003 Workbook) and xlsm (Excel Macro-Enabled Workbook) file formats3. However, the Excel Application Scope activity requires Microsoft Excel to be installed on the machine where the automation is running, as it uses the Excel interop assembly4. Therefore, the Excel Application Scope activity cannot work with xlsx (Excel Workbook) files or without Excel installed.

The Anchor Base activity is used to automate interaction with an application when the element selector is not reliable and the element’s position on the screen changes. The Anchor Base activity consists of two parts: an anchor and an action. The anchor is a UI element that has a reliable selector and a fixed position relative to the target element. The action is the activity that performs the desired operation on the target element. The Anchor Base activity uses the anchor to locate the target element based on its relative position (left, right, top, bottom) and then executes the action on it. This way, the automation can handle dynamic and complex UI elements that have unreliable selectors or change their position on the screen. References: Anchor Base and Example for Anchor Base Activity from UiPath documentation and forum.

The argument name that follows UiPath best practices for argument naming conventions is out_ConfirmationNumber. According to the UiPath best practices, the argument name should be meaningful and include an indication of its type and direction. The type can be inferred from the argument’s data type, such as String, Int32, DataTable, etc. The direction can be one of the following: in, out, or io. The in direction means that the argument can only be used within the given project. The out direction means that the argument can be used to pass data outside of a given project. The io direction means that the argument can be used both within and outside of a given project4. The argument name should also follow the camel case convention, which specifies that each word in the middle of the argument name begins with a capital letter, with no intervening spaces or punctuation5. For example, the argument name out_ConfirmationNumber follows these best practices, as it indicates that the argument is of out direction, and that it stores a confirmation number value. The other argument names do not follow the best practices, as they either use incorrect or inconsistent prefixes, or do not use camel case convention. References: ST-NMG-002 - Arguments Naming Convention and Variables, arguments and workflows naming - best practice from UiPath documentation and forum.

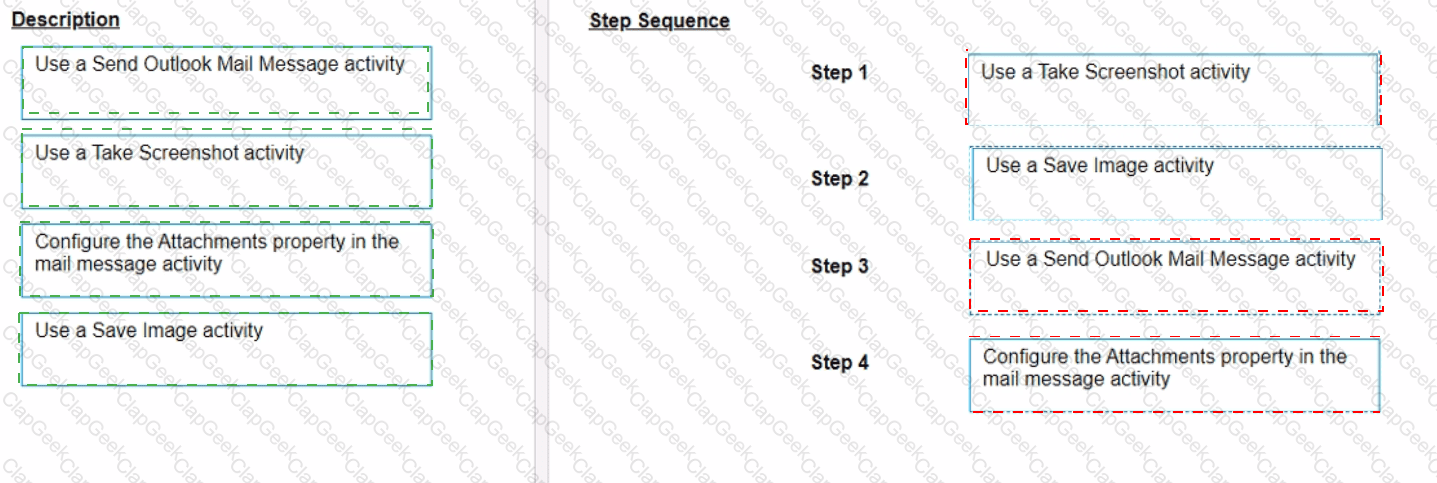

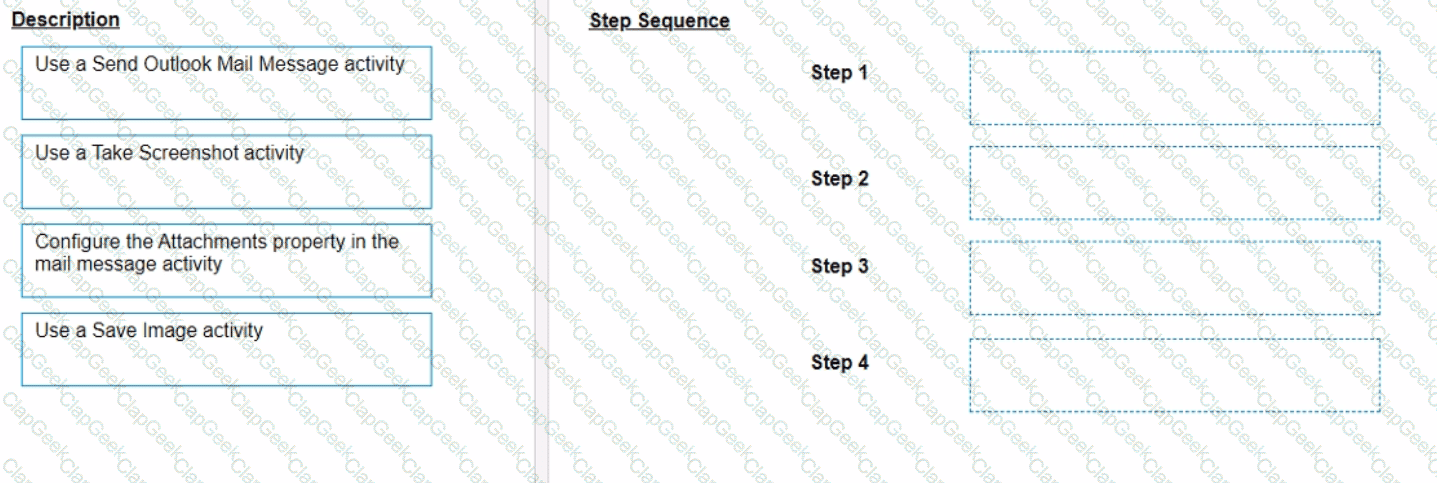

The correct sequence of steps that should be performed is:

Step 1 = Use a Take Screenshot activity to capture the state of the machine. The output is an Image variable, for example img_screenshot.

Step 2 = Use a Save Image activity to save the image to a local file. Supply the FileName (e.g. screenshot.png) and the Image property should be the variable created in step 1.

Step 3 = Use a Send Outlook Mail Message activity to compose and send the email. Configure the Attachments property to include the file path of the image saved in step 2 (e.g. “C:\Users\username\screenshot.png”).

Step 4 = Optionally, use a Delete File activity to delete the image file from the local drive after sending the email. Supply the Path property with the same file path as in step 3.

For more information on how to use these activities in UiPath Studio 2021 10, you can refer to these documents:

Take Screenshot

Save Image

Send Outlook Mail Message

Delete File

The Write Line activity is used to write a specified text to the Output panel. The text can be a string literal, a variable, or an expression. In this case, the Write Line activity in the Main xaml file has the text "out_ShoppingBasket + “, “Orange””. The out_ShoppingBasket is a variable of type String, which is declared in the Main xaml file and has the default value of “Apple”. The variable is passed as an argument to the SuperMarket xaml file, where it is assigned a new value of “Orange”. The argument direction is Out, which means that the value of the argument is passed back to the Main xaml file after the execution of the SuperMarket xaml file. Therefore, the value of the out_ShoppingBasket variable in the Main xaml file is changed from “Apple” to “Orange”. The expression "out_ShoppingBasket + “, “Orange”” concatenates the value of the out_ShoppingBasket variable with a comma and a space, followed by the string literal “Orange”. The result of this expression is “Orange, Orange”. The Write Line activity writes this text to the Output panel. Therefore, the answer is B. Orange. References: Write Line, Variables, Arguments

The Object Repository tree structure shows one application with two screens and five UI elements. The application is the top-level node, the screens are the second-level nodes, and the UI elements are the third-level nodes. The UI elements have properties, selectors, and images that define them.

https://docs.uipath.com/studio/docs/about-the-object-repository

When using the "Get IMAP Mail Messages" activity, the minimum recommended properties to configure are: MailFolder (to specify the folder from which to retrieve the mails), Port (to specify the port used by the IMAP server), Server (the address of the IMAP server), Email (the email address to connect to), Password or SecurePassword (the password used to connect to the email account), and Messages (the output property where the retrieved emails will be stored).

The Postpone property of the Add Queue Item activity allows you to specify a date and time when the queue item becomes available for processing. This can be used to ensure that the queue items are processed in the same order as the emails were received, by setting the Postpone value to the email received date and time. (UiPath Studio - Add Queue Item - UiPath Academy)

To convert ExtractedDate to a DateTime type, the expression that should be used is:

DateTime.Parse(ExtractedDate)

This expression uses the DateTime.Parse method, which converts a string representation of a date and time to its DateTime equivalent. The DateTime.Parse method can accept different formats of date and time strings, as long as they are supported by the current culture or a specified culture. The DateTime.Parse method returns a DateTime object that represents the date and time value of the string1. For example, if the ExtractedDate variable has the value:

ExtractedDate = “08-22-2022”

Then the expression DateTime.Parse(ExtractedDate) will return a DateTime object with the value:

[08/22/2022 12:00:00 AM]

This DateTime object can then be used to perform a comparison with a different date, such as using the DateTime.Compare method or the comparison operators2.

Comprehensive and Detailed Explanation:

In ServiceNow, server-side scripts are executed on the server rather than the client's browser. These scripts are primarily responsible for managing operations related to the database and backend processes. They handle tasks such as querying and updating records, executing business logic, and interacting with external systems.

Option A: User access is typically managed through Access Control Rules (ACLs) and roles, which determine permissions for various resources. While server-side scripts can influence access decisions, the direct management of user access is not their primary function.

Option B: Playbook access pertains to the accessibility of guided sequences in workflows, which is managed through specific configurations and permissions, not directly by server-side scripts.

Option C: Forms and fields are part of the user interface and are primarily managed by client-side scripts, UI policies, and form configurations. Server-side scripts may influence the data displayed on forms but do not directly manage the UI components.

Therefore, server-side scripts in ServiceNow are chiefly concerned with database interactions and backend operations, ensuring that business logic is executed efficiently on the server.

The UiPath Integration Service is a new feature that seamlessly combines world-class UI and API automation, allowing both capabilities to be centrally accessed within the same integration design environment12. This empowers developers to flexibly capture all their automation opportunities, even allowing them to deploy both types of integrations within a single automation12. The UiPath Integration Service also provides the following benefits for automation developers12:

By standardizing authorization and authentication, it simplifies the security protocols for connecting to different systems and applications, such as Salesforce, SAP, or Google G Suite2.

By managing API connections, it enables developers to create, modify, reuse, and share connections to multiple systems using pre-built connectors or custom connectors2.

By enabling faster integration into SaaS platforms, it allows developers to leverage server-side event triggers to start automations based on data updates, insertions, or deletions in external applications2.

Comprehensive and Detailed In-Depth Explanation:

When a workflow needs to make dynamic decisions based on multiple possible values, the Flow Switch activity is the best choice.

Step-by-Step Execution Guide:

1️⃣ Drag and Drop a Flow Switch Activity in UiPath Studio

2️⃣ Set the Expression – Define the variable that determines the execution path.

3️⃣ Configure Cases – Add multiple possible values and specify corresponding actions.

Example Scenario: Order Processing System

A company wants to route customer orders based on order type:

"Electronics" → Assign order to Electronics Department

"Clothing" → Assign order to Clothing Department

"Grocery" → Assign order to Grocery Department

vb

CopyEdit

Dim OrderType As String = "Electronics"

Using a Flow Switch, we set up:

???? Case "Electronics" → Call Electronics Processing Workflow

???? Case "Clothing" → Call Clothing Processing Workflow

???? Case "Grocery" → Call Grocery Processing Workflow

???? Default Case → Log "Invalid Order Type"

This allows dynamic decision-making in a clear, maintainable way.

Why the other options are incorrect?

❌ A. If Activity – If is limited to two conditions (True/False). It does not support multiple branching paths.

❌ B. Flow Decision – Similar to If Activity, Flow Decision only supports binary conditions.

❌ D. While Loop – A loop is used for repeating actions, not decision-making.

✅ Reference:

UiPath Documentation: Flow Switch Activity

UiPath Academy: Control Flow in UiPath

UiPath arguments allow data to be passed between workflows.

In Arguments (In):

Accepts variables or hard-coded values.

Used to pass input values to the invoked workflow.

Out Arguments (Out):

Can only be variables (not hard-coded values).

Used to retrieve values from the invoked workflow.

In/Out Arguments (In/Out):

Can only be variables.

Used to pass and modify data within the workflow.

Why is B Correct?

✅ Follows UiPath's argument behavior:

In: Accepts variables or hard-coded values.

Out: Only variables (because values are returned dynamically).

In/Out: Only variables (since it modifies and returns the same variable).

The Extract PDF Page Range activity is used to extract a specific set of pages from a PDF file and save them as a new PDF file1. The OutputFileName argument is required and specifies the path and name of the new PDF file1. The Range argument accepts complex range values or “All” to indicate which pages to extract12. For example, “1-3,5,7-9” will extract pages 1 to 3, 5, and 7 to 92. The PageCount argument outputs the number of pages in the original PDF file, not the extracted pages1. Password-protected PDF files can be processed with this activity by using the Password argument to provide the password1.

The two parts that are included in an Anchor Base activity are Anchor and Action. The Anchor Base activity is a container that searches for a UI element by using other UI elements as anchors. This should be used when a reliable selector is not available. The Anchor Base activity has two sections: Anchor and Action. The Anchor section contains an activity that identifies the anchor element, such as Find Element or Find Image. The Action section contains an activity that performs an action on the target element, such as Click or Type Into. The Anchor Base activity also has a property called AnchorPosition, which specifies the relative position of the target element to the anchor element, such as left, right, top, or bottom2. For example, if the Anchor Base activity is used to click on a button that is always to the right of a label, the Anchor section can use the Find Element activity to find the label, the Action section can use the Click activity to click on the button, and the AnchorPosition property can be set to Right3.

The IndexOf method of String values returns the index of the first occurrence of a specified character or substring in a given string. The index is zero-based, meaning that the first character has the index 0, the second character has the index 1, and so on. If the character or substring is not found, the method returns -1. In this case, the expression StrVar.IndexOf(“U”) returns the index of the first occurrence of the character “U” in the string “UIPATH STUDIO”, which is 0. Therefore, the answer is A. 0. References: String.IndexOf Method, String Variables

The UiPath Remote Runtime component is a component that enables the communication between a remote application or desktop, such as Citrix Virtual Apps, and the dedicated UiPath extension, such as the UiPath Extension for Citrix or the UiPath Extension for Windows Remote Desktop. It gathers information about the targeted UI elements of the remote applications and sends them to the corresponding extension, so that selectors can be natively generated in UIExplorer1. This way, you can create and manage tasks and exchanges between users and external applications using the authentication process of the API provider2. The UiPath Remote Runtime component is required to establish the connection between an application or desktop server and a corresponding UiPath extension installed on a client machine, without having to rely on OCR and image recognition activities3.

UiPath Studio Web supports Document Understanding for processing structured and unstructured documents in cloud-based automation.

The Document Understanding feature in Studio Web allows:

Extracting key data fields from documents.

Validating and classifying document types.

Using AI models and OCR engines for text extraction.

This is the most efficient way to handle large-scale document processing without manual intervention.

✅ Reference: UiPath Studio Web - Document Understanding

The Automation Developer installation package is a standalone installer that allows you to install UiPath Studio, Assistant, and Robot on your computer. This package is suitable for developers who want to create and test automation projects in UiPath Studio. (UiPath Studio - Installation Options - UiPath Academy)

Understanding the Read Range Activity Configuration:

The Read Range Workbook activity is configured as follows:

Range: "A1:B2"

Sheet Name: "Sheet1"

Headers Option: Unchecked (This means the first row will not be treated as column headers).

The Excel file "Text.xlsx" contains 10,000 rows, but the specified range only covers A1 to B2, meaning only two rows of data will be read.

Behavior of Read Range Workbook When "AddHeaders" Is Unchecked:

When "AddHeaders" is unchecked, all data in the range is considered part of the data table, including what would normally be treated as column headers.

Since the range is "A1:B2", the extracted data includes:

Row 1 → A1, B1

Row 2 → A2, B2

Since the extracted data is treated without headers, the DataTable starts with A1 and B1 as the first row and A2 and B2 as the second row.

Determining OutputDataTable.Rows.Count

The Read Range Workbook activity reads both rows (A1:B1 and A2:B2).

Since headers are not considered, both rows are stored as data in the DataTable.

OutputDataTable.Rows.Count = 2.

✅ Corrected Output:

OutputDataTable.Rows.Count = 2

DataTable Contains:

Row 1: [A1, B1]

Row 2: [A2, B2]

Why the Correct Answer Is "A" and Not Others:

A (OutputDataTable.Rows.Count = 1, Contains A2 and B2) → ✅ Correct if the range was "A2:B2" (Only one row read).

B (OutputDataTable.Rows.Count = 10,000) → ❌ Incorrect. The range only selects two rows, not the entire sheet.

C (OutputDataTable.Rows.Count = 2, Contains A2 and B2) → ❌ Incorrect. If the row count is 2, the data would include A1 and B1 too.

D (OutputDataTable.Rows.Count = 1, Contains A1 and B1) → ❌ Incorrect because two rows were extracted, not one.

In UiPath Orchestrator, when a process is started, it follows a job execution mechanism that ensures the process is executed only on the machines selected for the job.

Key Execution Flow in On-Premise Orchestrator:

Machine Provisioning:

Orchestrator provisions the machines (robots) where the automation will execute.

Job Selection:

The user or Orchestrator selects specific machines to run the process.

Process Execution:

The process starts only on the selected machines in Orchestrator.

Why is A Correct?

✅ A. The process starts running on all machines that are provisioned in Orchestrator and were selected for the job.

Only the machines selected in Orchestrator will execute the job.

If multiple machines are selected, the process runs on all of them (based on robot allocation and availability).

This follows best practices for load balancing and resource management.

The Where method is used to filter data in a List or Data Table based on a condition. It returns a new collection that contains only the elements that satisfy the condition12. The other methods are used for different purposes: OrderBy for sorting, GroupBy for grouping, and Select for projecting3.

The correct variable type to store a monetary amount is Double because:

Monetary values often contain decimal places (e.g., 1234.56).

Double provides accurate calculations for financial transactions.

UiPath Excel activities return numbers as Double when reading numeric values from cells.

Why is B Correct?

✅ Double is ideal for:

Storing decimal values (currency, calculations, etc.).

Ensuring precision when processing monetary data.

Avoiding unnecessary conversions when passing data to web applications.

Based on best practice, the set of features that are used before debugging a workflow in UiPath Studio are Analyze Project and Validate File. Analyze Project is a feature that allows the developer to run the Workflow Analyzer on the entire project or a specific workflow file. The Workflow Analyzer checks the project or the file for potential errors, performance issues, best practices violations, and compliance risks, and generates a report with the analysis results and recommendations1. Validate File is a feature that allows the developer to check the current workflow file for any syntax or semantic errors, such as missing or invalid activities, arguments, variables, or expressions. The Validate File feature also displays the error list and the location of the errors in the workflow file2. By using these features before debugging, the developer can ensure that the workflow is free of any errors or issues that might affect the execution or the quality of the automation. References: Analyze Project and Validate File from UiPath documentation.

One of the key advantages of using UiPath Orchestrator queues is the ability to track the status of Queue Items. This feature allows for monitoring the progress of items as they are processed by robots, including whether they are new, in progress, successful, failed, or retried, among other statuses.

When creating a new project in UiPath Studio and you want to use .NET 6 with Windows support, you should select the "Windows" compatibility option. This option is designed to work with Windows-specific features and the newer .NET versions, including .NET 6. Hence, the correct answer is C.

To display the integer value, MyInteger, inside a Log Message activity, the expression that should be used is:

“The value is” + MyInteger.ToString

This expression uses the string concatenation operator (+) to combine the string literal “The value is” with the string representation of the MyInteger variable. The MyInteger variable is an integer type, which cannot be directly concatenated with a string type. Therefore, the ToString method is used to convert the MyInteger variable to a string type3. For example, if the MyInteger variable has the value 42, then the expression “The value is” + MyInteger.ToString will return the string “The value is 42”. The Log Message activity writes the specified message to the Output panel, the log files, and the Orchestrator logs. The Log Message activity has a property called Message, which is the text to be logged4. The expression can be entered in the Message property of the Log Message activity to display the integer value.

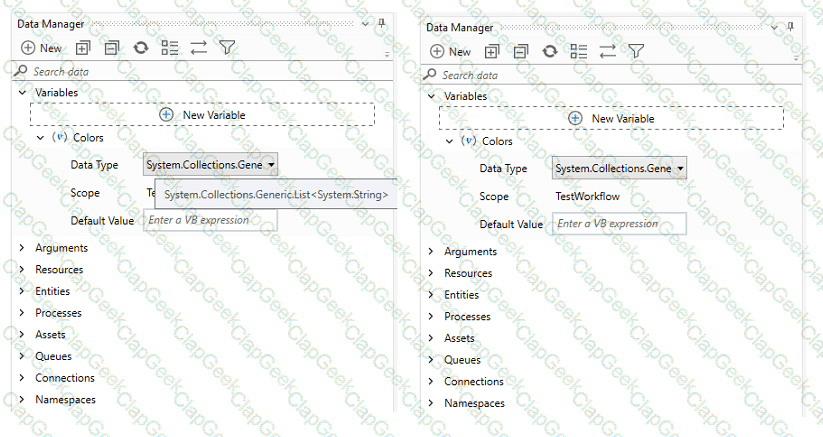

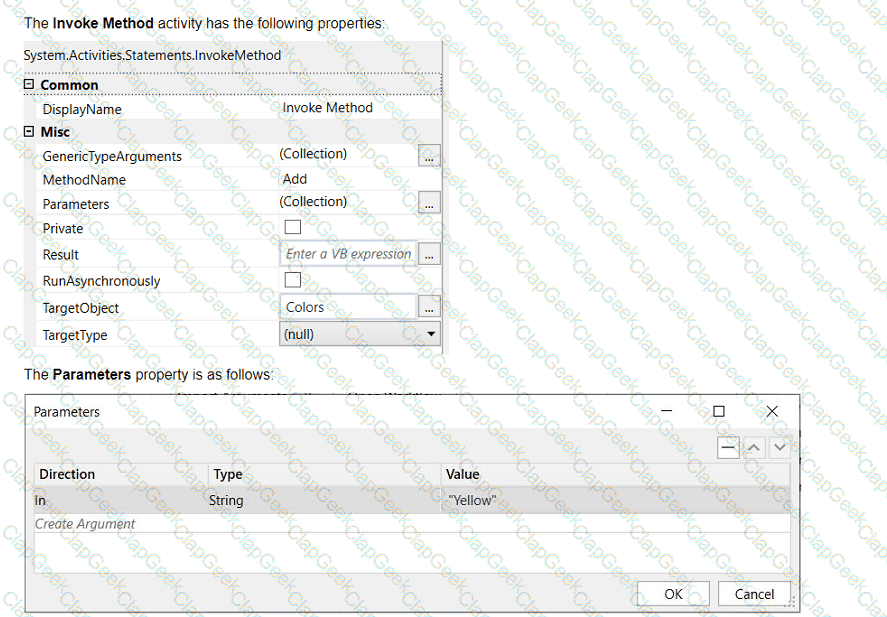

The Invoke Method activity is used to add items to a list of strings. In this case, the list is declared as “Colors”. The outcome of the Invoke Method activity will be that the list “Colors” will contain an item with the value “Yellow”. This is because the TargetObject property is set to “Colors”, which is the list variable, the MethodName property is set to “Add”, which is the method of the list class, and the Parameters property is set to “Yellow”, which is the value to be added to the list. (UiPath Studio documentation1)

Based on best practices, the selector attribute that is unreliable is innertext. The innertext attribute is the text content of a UI element, such as a table, a button, or a label. The innertext attribute is unreliable because it can change dynamically depending on the data or the state of the UI element. For example, the innertext attribute of a table can change when the table is updated with new values, or the innertext attribute of a button can change when the button is clicked or disabled. Using the innertext attribute in a selector can cause the selector to fail or to identify the wrong UI element if the text content is different from the expected value1. Therefore, the innertext attribute should be avoided or replaced with a more reliable attribute, such as tag, class, or title. The tag attribute is the name of the HTML element, such as table, button, or input. The tag attribute is reliable because it does not change unless the UI element is replaced with a different element. The class attribute is the name of the CSS class that defines the style or the behavior of the UI element, such as ui_side_menu, btn-primary, or form-control. The class attribute is reliable because it does not change unless the UI element is styled or modified differently. The title attribute is the text that appears when the mouse pointer is hovered over the UI element, such as temperature now, submit, or username. The title attribute is reliable because it does not change unless the UI element is renamed or removed2.

When using Object Repository in UiPath, UI elements are centrally stored and shared across multiple activities to ensure consistency.

However, if you need to modify a selector for only one specific activity without affecting the Object Repository, the best approach is to unlink the UI element from the Object Repository.

Why is D Correct?

✅ Unlink from Object Repository:

Allows local modifications to the selector without affecting other activities using the same UI element.

After unlinking, the selector becomes independent and can be modified only for that specific activity.

This ensures that other activities using the same Object Repository element remain unchanged.

"For Each Excel Row" is an activity that belongs to the Modern Excel Activities package in UiPath Studio. It is used to iterate through each row of an Excel file, allowing for operations to be performed on each row. This activity is part of the modern design experience and offers enhanced capabilities compared to classic Excel activities. Therefore, the correct answer is D.

The REFramework is a template that helps developers create robust and reliable automation processes. It follows the best practices of error handling, logging, and retry mechanisms. One of the best practices is to clear the transaction data, close the applications, and re-open the applications after every transaction. This helps to avoid potential robot crashes such as “out of memory” by freeing up the memory and resources used by the applications. It also ensures that the applications are in a consistent state for the next transaction.

For a process that involves finding images on a website and storing them, especially when accounting for potential errors on the website that may require repeated attempts, the "Retry Scope" activity is the best choice. This activity allows for the specification of a number of retries and a condition that must be met for the retry to occur. If the image is not found or if there is an error during the process, the "Retry Scope" will attempt the operation again as specified by the developer.

To convert a string variable "InvoiceTotal" to a numeric format that includes decimals, the expression Double.Parse(InvoiceTotal) should be used. This method converts the string representation of a number in a specified style and culture-specific format to its double-precision floating-point number equivalent.

The SetTransactionStatus.xaml file is invoked in the Finally section of the Try Catch activity in the Process Transaction state of the REFramework template project. This file is responsible for setting the status of the current transaction item based on the outcome of the process. It also closes all applications that are used by the process and logs relevant information. (UiPath Studio - REFramework - UiPath Academy)

To extract hidden text from a pdf file, the output method that should be used is FullText only. The FullText output method is one of the options available in the Read PDF Text activity, which reads all the characters from a specified pdf file and stores them in a string variable3. The FullText output method extracts the text from the pdf file as it is, without keeping the formatting or the position of the text. The FullText output method can also extract the hidden text from the pdf file, which is the text that is not visible on the screen, but can be copied and pasted into another application4. For example, the hidden text can be the metadata, comments, or annotations of the pdf file. The FullText output method is suitable for extracting hidden text from a pdf file, as it does not depend on the visibility or the layout of the text. The other output methods, such as Native or OCR, are not suitable for extracting hidden text from a pdf file, as they rely on the appearance or the position of the text on the screen. The Native output method preserves the formatting and the position of the text, but it cannot extract the text that is not visible or selectable5. The OCR output method converts the text from the pdf file into an image and then extracts the text from the image, but it cannot extract the text that is not displayed or recognized by the OCR engine6.

To determine whether a button is enabled or disabled, the best method is to use the "Get Attribute" activity.

Why is Option C Correct?

Get Attribute retrieves various properties of a UI element, including:

"enabled" (True/False)

"visibility"

"aria-disabled"

This allows the bot to check if the button is interactable.

Example Use Case:

Use Get Attribute activity.

Set "Attribute" = "enabled".

Store the result in a Boolean variable:

isButtonEnabled = Get Attribute Output

Use an If condition to check:

If isButtonEnabled Then

Click Button

Else

Log Message: "Button is disabled"

Why Other Options Are Incorrect?

A (Find Element) ❌

Only checks if an element exists but does not retrieve its state.

B (Get Text) ❌

Extracts visible text but cannot detect whether a button is enabled/disabled.

D (Check App State) ❌

Used to detect application states but not specific element attributes.

The main difference between an array and a list in UiPath (and .NET in general) is that an array is a fixed-size collection of elements of the same type, whereas a list is a dynamic-sized collection, meaning it can grow or shrink in size as needed. Both arrays and lists hold elements of the same type, but lists offer more flexibility in terms of adding or removing elements after the collection has been created.

The recommended type of workflow for designing a complex business process using UiPath Studio is Flowchart. Flowcharts are suitable for a more complex business logic, as they enable you to integrate decisions and connect activities in a more diverse manner, through multiple branching logic operators. Flowcharts can also be used as a part of other diagrams, such as Sequences or State Machines3. Flowcharts provide a clear and visual representation of the flow of the process, as well as the possible outcomes and exceptions. Flowcharts can also be easily modified and expanded, as new activities and branches can be added or removed4. References: Flowchart and Understanding the Concept of Workflow of UiPath from UiPath documentation and Medium.

UiPath StudioX is specifically designed for business users who do not have programming expertise but want to automate repetitive tasks.

Why is B Correct?

✅ StudioX is ideal for:

Business users with minimal coding experience.

Citizen developers who need simple, no-code automation.

Automating personal and team tasks (e.g., data entry, email automation, report generation).

In UiPath Orchestrator, Modern Folders (used when Activate Classic Folders is unchecked) introduce a role-based access control (RBAC) model to manage user permissions efficiently.

How Folder Roles Are Assigned in Modern Folders:

Since Classic Folders are disabled, Orchestrator uses Modern Folders for managing permissions.

Folder-specific roles and permissions are assigned at the folder level.

These roles can be assigned directly from the "Folders" page or the folder’s Settings page.

Why is D Correct?

✅ Folder roles are assigned from the Folders page or from the folder's Settings page.

In Modern Folders, access control is handled at the folder level.

Admins can navigate to Orchestrator → Folders → Manage Access to assign roles to users.

The "Share File/Folder" activity in the Microsoft 365 package is used to share a SharePoint file or folder URL with a specific user while defining access permissions.

This activity allows setting view/edit permissions and sending notifications to the recipient.

Example usage:

- Input: File URL, Email ID, Permission Type (View/Edit)

- Output: Shared link

Other options are incorrect:

A (Upload File) is used to store new files in SharePoint.

B (Move File/Folder) moves files or folders within SharePoint.

C (Get File/Folder) retrieves file details but does not handle sharing.

✅ Reference: UiPath Microsoft 365 Activities - Share File/Folder
