Expanding a virtual volume using the Storage Volume expansion method is a valid option when the virtual volume is mapped 1:1 to the underlying storage volume. This method is suitable when each virtual volume corresponds directly to a single storage volume on the backend array, and there is a need to expand the volume’s capacity.

1:1 Mapping: A 1:1 mapping means that there is a direct relationship between a virtual volume in VPLEX and a single storage volume on the backend storage array.This allows for a straightforward expansion process as any increase in the size of the backend volume can be reflected in the virtual volume1.

Storage Volume Expansion: The Storage Volume expansion method involves increasing the size of the backend storage volume first.This is typically done through the storage array’s management interface1.

VPLEX Recognition: Once the backend storage volume is expanded, VPLEX must recognize the new size.This may require rescanning the storage volumes within VPLEX to detect the changes1.

Virtual Volume Expansion: After VPLEX recognizes the increased size of the storage volume, the corresponding virtual volume can be expanded to utilize the additional capacity.This is done within the VPLEX management interface1.

Exclusion of Other Options: The other options listed, such as a virtual volume having minor problems, being a metadata volume, or previously expanded by adding extents or devices, are not typically associated with the Storage Volume expansion methD.These scenarios may require different approaches or may not be suitable for expansion using this method1.

By ensuring that the virtual volume is mapped 1:1 to the underlying storage volume, administrators can effectively utilize the Storage Volume expansion method to increase the capacity of virtual volumes in a VPLEX environment.

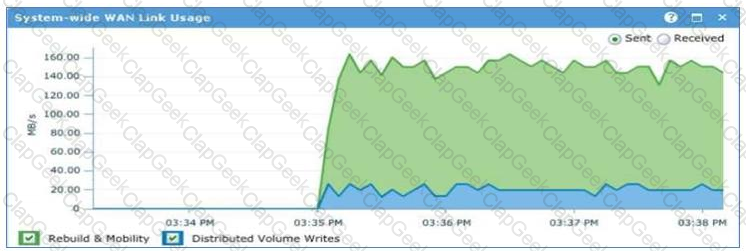

The graph provided in the exhibit shows a high level of ‘Sent’ bandwidth usage, which remains consistently near the upper limit of the chart. This suggests that there is a significant amount of data being sent over the WAN link. In a Dell VPLEX environment, if virtual volumes created on distributed devices experience performance problems, one possible reason could be that I/O demands exceed available WAN COM (WAN Communication) bandwidth.

Here’s a detailed explanation:

High ‘Sent’ Bandwidth Usage: The graph indicates that the ‘Sent’ bandwidth is consistently high, nearing the chart’s maximum capacity.

Impact on Performance: When the I/O of a distributed device exceeds the available WAN COM bandwidth, it can cause a bottleneck, resulting in performance issues such as increased latency or slower response times for write operations.

VPLEX Distributed Architecture: In a VPLEX distributed environment, data must be written to both clusters before an acknowledgment is sent to the host. If the WAN link is saturated, this process is delayed, affecting overall performance.

Monitoring Tools: VPLEX provides monitoring tools that can help identify such issues. The graph in the exhibit likely comes from such a tool, illustrating the system-wide WAN link usage and pinpointing potential performance bottlenecks.

Resolution: To resolve this issue, a storage administrator might need to consider increasing the WAN COM bandwidth, optimizing the data flow, or redistributing the workload to reduce the strain on the WAN link.

References:

Dell EMC VPLEX documentation regarding system performance considerations discusses factors affecting virtual volume performance, including network constraints.

Best practices for VPLEX suggest monitoring WAN link usage and ensuring it aligns with the expected performance levels for distributed devices.

By analyzing the WAN COM bandwidth usage and understanding its impact on distributed device performance, storage administrators can take appropriate actions to mitigate any issues and maintain optimal performance levels.

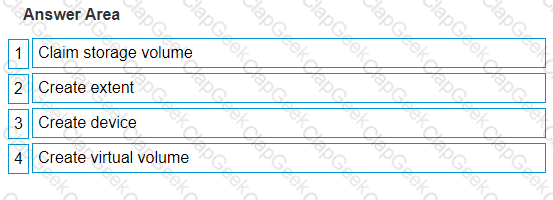

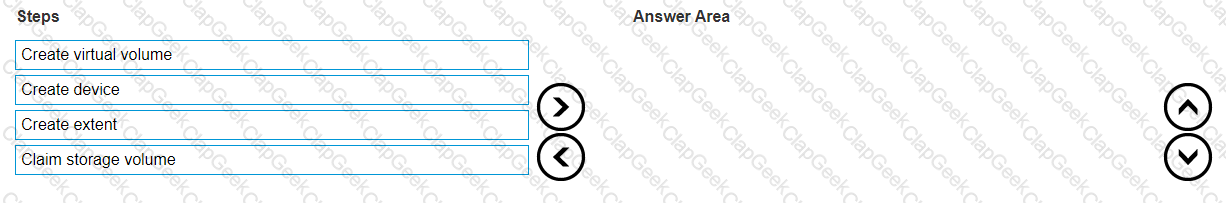

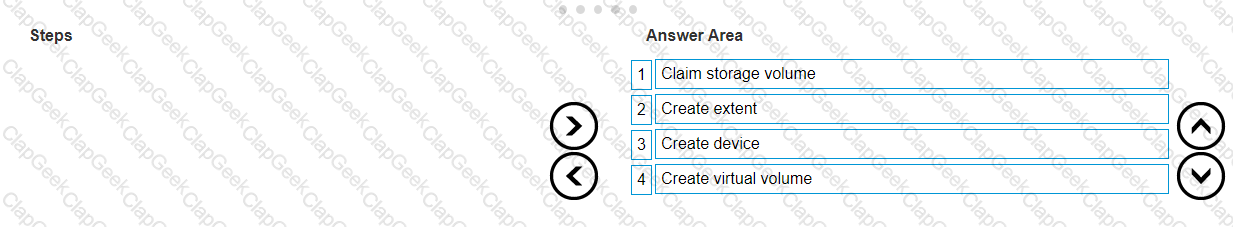

The correct order of steps to create a virtual volume is:

Claim storage volume

Create extent

Create device

Create virtual volume

Claim Storage Volume: The first step involves claiming a storage volume from the underlying storage array. This is where you identify and allocate the physical storage that will be used.

Create Extent: Once the storage volume is claimed, the next step is to create an extent. An extent is a specific range of block addresses within a storage volume.

Create Device: After creating an extent, you then create a device. A device in VPLEX terminology is a logical representation of storage that can be used by hosts.

Create Virtual Volume: The final step is to create a virtual volume from the device. A virtual volume is what is presented to hosts; it’s the logical unit that they will access for storage.

This process ensures that storage is properly allocated and managed within the VPLEX environment, allowing for flexibility and efficiency in storage utilization.

For detailed procedures and best practices, it’s recommended to consult the official Dell VPLEX documentation and training materials, which provide in-depth guidance on managing and configuring VPLEX systems.
