The process of extent and device migration in a Dell VPLEX environment typically involves the following steps:

Create: The initial step is to create a migration job for the extent or device. This involves specifying the source and target extents or devices and setting up the migration parameters.

Commit: Once the migration job is created, the next step is to commit the jB.This action will start the migration process, where data begins to move from the source to the target.

Clean: After the data has been successfully migrated, the system performs a cleanup operation to remove any temporary data structures or logs that were used during the migration process.

Terminate: The final step is to terminate the migration jB.This step concludes the migration process and releases any resources that were allocated for the migration.

References:

The Dell VPLEX documentation provides detailed procedures on how to perform data migration, including the steps involved in migrating extents and devices1.

Best practices and technical guides from Dell also cover the topic of data migration, offering insights into the process and how to ensure a smooth migration experience1.

By following these steps, a storage administrator can successfully migrate extents and devices within the VPLEX environment, ensuring data availability and minimal disruption to services.

A supported geometry for a VPLEX device is RAID-C, which stands for RAID Concatenation. RAID-C is a VPLEX-specific RAID configuration that concatenates multiple extents or devices to create a larger virtual volume.

RAID Concatenation (RAID-C): RAID-C is a VPLEX geometry that allows for the concatenation of multiple storage extents or devices.This configuration is used to create larger virtual volumes by combining smaller ones1.

Use of RAID-C: RAID-C is typically used when there is a need to expand storage capacity without the requirement for additional redundancy.It is a simple way to increase the size of a virtual volume by adding more storage to it1.

Advantages: The advantage of using RAID-C is that it allows for flexibility in storage provisioning and can be easily expanded as storage needs grow.It also enables the use of storage from different arrays1.

VPLEX Device Configuration: In the context of VPLEX, a device refers to a logical unit that can be presented to hosts.By using RAID-C geometry, VPLEX can present larger logical units that span across multiple physical storage arrays1.

Supported Geometries: VPLEX supports various RAID geometries, including RAID-0, RAID-1, and RAID-C, each serving different purposes and providing different levels of performance and protection1.

By utilizing RAID-C geometry, VPLEX administrators can manage storage more effectively, ensuring that they can meet the capacity requirements of their applications and services.

A VPLEX storage administrator can manage array-based attributes throughstorage tiers. This is part of the VPLEX’s ability to integrate with underlying storage arrays and leverage their native capabilities, such as tiering, to optimize performance and cost.

Here’s a detailed explanation:

Understanding Storage Tiers:Storage tiers are classifications of storage based on performance and cost. High-performance tiers use faster storage media like SSDs, while lower tiers might use traditional HDDs.

VPLEX Integration:VPLEX integrates with underlying storage arrays to manage these tiers. By doing so, it can place data on the appropriate tier based on performance requirements and other policies.

Managing Array-Based Attributes:Within the VPLEX, administrators can define policies that determine how data is placed across these tiers. This is done by managing array-based attributes that dictate tier placement.

Provisioning and Migration:Administrators can provision new volumes or migrate existing ones between tiers as needed, ensuring that the most frequently accessed data is on the highest-performing tiers.

Monitoring and Adjusting:VPLEX provides tools for monitoring performance and usage patterns, allowing administrators to adjust tiering policies and placements to optimize for current workloads.

Documentation and Training:For those seeking to understand the full capabilities and management procedures, Dell provides training and documentation, such as the VPLEX Operate Achievement, which covers these topics in detail123.

By managing storage tiers, VPLEX administrators can ensure that the storage infrastructure is used efficiently, balancing cost and performance effectively.

The method of virtual volume expansion that requires the volume to be expanded on the array first is the storage volume expansion methD.This method involves increasing the size of the physical storage volume on the array before expanding the virtual volume in VPLEX.

Array Expansion: The first step is to expand the physical storage volume on the array.This is typically done through the array’s management interface and involves adding more storage or extending the existing volume1.

VPLEX Recognition: Once the storage volume is expanded on the array, VPLEX must recognize the new size of the volume.This may require a rescan or refresh within the VPLEX management interface1.

Virtual Volume Expansion: After VPLEX recognizes the new size of the storage volume, the virtual volume can then be expanded to utilize the additional space.This is done within the VPLEX management interface, where the virtual volume is configured to include the additional capacity1.

Storage Volume Method: The storage volume expansion method is distinct from other methods like concatenation, extent expansion, or RAID-C expansion, which involve different approaches to increasing virtual volume size within VPLEX itself1.

By expanding the storage volume on the array first, administrators can ensure that the additional capacity is available for use by VPLEX, allowing for the seamless expansion of virtual volumes to accommodate growing data needs.

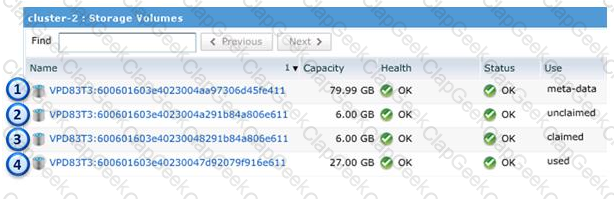

Based on the information provided in the image, here is the explanation:

Storage Volume 1 (OB): This volume is listed with a capacity of 79.99 GB, health status OK, and status OK. Its use is indicated as ‘meta-data’, which typically means it is reserved for system or metadata use and not available for creating extents.

Storage Volume 2 (OA): This volume has a capacity of 6.00 GB, health status OK, and status OK. Its use is indicated as ‘unclaimed’, which suggests that it has not been allocated for any specific purpose yet and could potentially be used for creating an extent.

Storage Volume 3 (OD): This volume also has a capacity of 6.00 GB, health status OK, and status OK. However, its use is indicated as ‘claimed’, meaning it has already been allocated and is not available for creating new extents.

Storage Volume 4 (OC): The final volume has a capacity of 27.00 GB, health status OK, and status OK. Its use is indicated as ‘used’, which implies that it is currently in use and not available for creating new extents.

Based on the above analysis, the storage volume that is available to be used for the creation of an extent isStorage Volume 2 (OA). It is the only volume marked as ‘unclaimed’ and therefore available for new configurations such as creating extents.

In a VPLEX Metro environment without a Cluster Witness, the detach rules set for consistency groups (CGs) dictate the behavior during a WAN COM failure. Here’s what happens:

WAN COM Failure: A WAN COM failure means that the communication link between the two clusters in a VPLEX Metro has been lost.

Detach Rules: Detach rules are predefined actions that determine which cluster will continue to service I/O for a distributed virtual volume in the event of a communication failure.

CG1 and CG2: For App1, CG1 has a detach rule set with cluster-1 as the winner, meaning if there’s a WAN COM failure, cluster-1 will continue to service I/O for CG1, and I/O will be suspended at cluster-2. Conversely, for App2, CG2 has a detach rule set with cluster-2 as the winner, so cluster-2 will continue to service I/O for CG2, and I/O will be suspended at cluster-1.

Consequence of Extended WAN COM Failure: If the WAN COM failure is extended, the detach rules will be invoked, and each cluster will service the I/O for its respective application based on the set rules. This means that CG1 will be active on cluster-1 and suspended on cluster-2, and CG2 will be active on cluster-2 and suspended on cluster-1.

No Cluster Witness: Without a Cluster Witness, which usually arbitrates which cluster should remain active in case of a split-brain scenario, the detach rules are critical for maintaining data integrity and availability.

By setting appropriate detach rules, the company ensures that each application remains operational on one of the clusters, even during an extended WAN COM failure, thus maintaining availability according to the predetermined failover strategy.

When only the remote VPLEX cluster is reporting performance statistics in an HP OpenView network monitoring environment, the cause is likely due to a misconfiguration of the SNMP agent on the local VPLEX cluster management server. Here’s a detailed explanation:

SNMP Agent Role: The SNMP (Simple Network Management Protocol) agent is responsible for collecting and sending performance statistics from the VPLEX cluster to the monitoring system1.

Misconfiguration Symptoms: If the SNMP agent is misconfigured on the local VPLEX cluster management server, it may fail to collect or send the correct performance data, resulting in missing statistics in the monitoring system1.

Troubleshooting Steps: To resolve this issue, the VPLEX administrator should verify the SNMP configuration on the local VPLEX cluster management server.This includes checking the community strings, SNMP version, and target IP addresses for the monitoring system1.

Correct Configuration: Ensuring that the SNMP agent is correctly configured on the local VPLEX cluster management server will allow it to report performance statistics accurately to the HP OpenView network monitoring environment1.

Monitoring Continuity: Proper configuration of the SNMP agent is crucial for continuous and comprehensive monitoring of the VPLEX environment, which is essential for maintaining system performance and availability1.

By addressing the misconfiguration of the SNMP agent on the local VPLEX cluster management server, the service provider can restore full monitoring capabilities and ensure that both local and remote VPLEX clusters report performance statistics as expected.

In a VPLEX Metro cluster without a VPLEX Witness and with a static rule set to “cluster-2 detaches”, the result of a WAN COM failure would be as follows:

Delay Timer: Initially, VPLEX starts a delay timer upon detecting the WAN COM failure.This timer allows for a temporary network issue to be resolved without immediate impact on I/O operations1.

Suspension of I/O: While the delay timer is active, VPLEX suspends I/O to all distributed devices on both clusters to prevent data corruption and ensure data integrity1.

Resumption of I/O: If the WAN COM connectivity is not restored within the expiration period of the delay timer, VPLEX will resume I/O operations on Cluster-2, as per the static rule set.I/O will remain suspended on Cluster-1 to maintain a consistent data state and prevent a split-brain scenario1.

This process ensures that data remains consistent and available on at least one cluster in the event of a WAN COM failure, aligning with the predefined static rule set and maintaining the integrity of the VPLEX Metro cluster operations.

Questions no:Q29

In VPLEX, the type of statistic that provides an instantaneous value displaying CPU utilization and memory utilization is referred to as “counters.” These counters offer real-time metrics that reflect the current state of the system’s resources.

Counters: Counters are a type of statistic in VPLEX that provide immediate, real-time values for various system metrics, including CPU and memory utilization.They are used to monitor the current performance and resource usage of the VPLEX system1.

CPU Utilization: CPU utilization counters show the percentage of CPU resources currently being used by the VPLEX directors.This information is crucial for understanding the load on the system and for capacity planning1.

Memory Utilization: Memory utilization counters display the amount of RAM currently in use by the VPLEX system.This helps administrators monitor memory consumption and ensure that the system has enough memory to operate efficiently1.

Monitoring and Management: Counters are an essential tool for the ongoing monitoring and management of a VPLEX environment.They help administrators identify potential performance bottlenecks and take proactive measures to optimize system performance1.

Instantaneous Values: Unlike other statistics that may provide averages or aggregated data over a period, counters offer instantaneous snapshots of resource usage, making them ideal for real-time monitoring1.

By utilizing counters, VPLEX administrators can gain immediate insights into the system’s CPU and memory utilization, enabling them to maintain optimal performance and address issues as they arise.

Questions no:Q34

Verified Answer:D.ds dd create

Step by Step Comprehensive Detailed Explanation with References:

To create a distributed virtual volume from specified storage volumes in Dell VPLEX, the command used is ds dd create. This command stands for “distributed storage distributed device create” and is part of the VPLEX CLI (Command Line Interface) commands that manage distributed devices across clusters in a VPLEX Metro environment.

Command Usage: The ds dd create command is used to create a distributed device, which is a virtual volume that spans across two VPLEX clusters, providing high availability and data mobility1.

Distributed Virtual Volume: A distributed virtual volume in VPLEX is a volume that is accessible from both clusters in a VPLEX Metro configuration.It allows for simultaneous read and write operations from both locations1.

Creating the Volume: The process involves specifying the storage volumes from each cluster that will be part of the distributed device.The command then creates a virtual volume that combines these storage volumes into a single distributed device1.

High Availability: The resulting distributed virtual volume can be used in scenarios that require high availability, such as active-active data center configurations.It ensures that data is accessible even if one of the clusters becomes unavailable1.

CLI Command Structure: The VPLEX CLI commands follow a structured format where the initial letters indicate the scope and type of operation.In this case, ds indicates distributed storage, and dd indicates a distributed device, which together specify the creation of a distributed virtual volume1.

By using the ds dd create command, administrators can effectively set up distributed virtual volumes in a VPLEX Metro environment, leveraging the system’s capabilities for data availability and mobility.

It is EMC best practice to ensure that each back-end LUN has a connection to all the A-directors and to all the B-directors in the VPLEX cluster to prevent data unavailability during a non-disruptive upgrade. Here’s why:

Non-Disruptive Upgrades: VPLEX allows for non-disruptive upgrades, meaning that system updates and maintenance can occur without impacting data availability or application performance1.

Director Connectivity: By connecting each back-end LUN to all A-directors and B-directors, VPLEX ensures that there are multiple paths for data access.If one director is being upgraded or is offline, the other directors can continue to provide access to the LUNs1.

High Availability: This connectivity model supports VPLEX’s high availability architecture, allowing for continuous operations even during maintenance activities1.

Redundancy: The practice of connecting LUNs to all directors provides redundancy, ensuring that there is no single point of failure that could lead to data unavailability1.

Best Practice: EMC recommends this approach as a best practice to maximize the uptime and resilience of the storage environment, which is critical for mission-critical applications that require constant data access1.

By following this best practice, organizations can leverage VPLEX’s capabilities to maintain data availability and ensure business continuity, even when system upgrades or director maintenance is required.

The Unisphere Performance Monitor Dashboard is used to monitor VPLEX performance parameters. This dashboard is part of the Unisphere for VPLEX management suite and provides a graphical interface for monitoring various performance metrics.

Unisphere for VPLEX: Unisphere for VPLEX is the management interface for VPLEX systems.It provides administrators with tools to configure, manage, and monitor VPLEX environments1.

Performance Monitoring: The Performance Monitor Dashboard within Unisphere allows administrators to view real-time and historical performance data.This includes metrics such as I/O rates, latency, and throughput1.

Dashboard Features: The dashboard offers various features such as performance charts, threshold alerts, and detailed reports that help in identifying performance trends and potential issues1.

Accessibility: The dashboard is accessible through the Unisphere web interface, making it convenient for administrators to monitor the VPLEX system from any location1.

Usage: To use the Performance Monitor Dashboard, administrators log into Unisphere for VPLEX, navigate to the performance section, and can then view and analyze the performance data presented in the dashboard1.

By using the Unisphere Performance Monitor Dashboard, administrators can effectively monitor VPLEX performance parameters, ensuring the system operates efficiently and meets performance requirements.

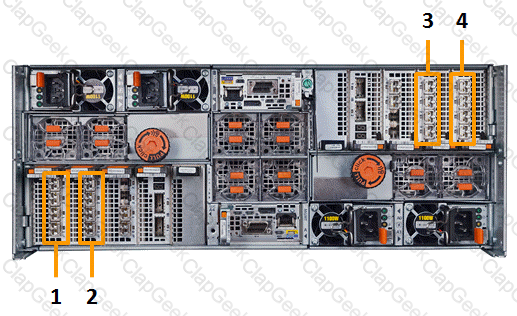

In the exhibit provided, the number that highlights the Director-B front-end ports is 4. Here’s the explanation:

Director-B Identification: In a VPLEX system, each director is a separate hardware component that manages data flow. Director-B is one of these components.

Front-End Ports: The front-end (FE) ports on a director are the interfaces through which the director communicates with hosts or other external devices.

Number 4 in the Exhibit: The exhibit shows a hardware component with various sections labeled with numbers. Number 4 is located at the upper right quadrant, which is typically where front-end ports are found on a director module.

VPLEX Documentation: The Dell EMC VPLEX documentation would provide diagrams and detailed descriptions of the hardware components, including the location of the Director-B front-end ports.

By understanding the layout of VPLEX hardware and referencing the official documentation, one can identify the correct number associated with the Director-B front-end ports in the exhibit.

In VPLEX, a valid target for device data migration is a device with no existing virtual volume. This is because the migration process involves moving data from a source device to a target device, and having an existing virtual volume on the target device could lead to data conflicts or loss.

Migration Process: The migration process in VPLEX is designed to move data from one storage device to another.This is typically done to upgrade storage, balance loads, or for other maintenance reasons1.

Target Device Requirements: The target device for migration should be a clean slate with no existing virtual volumes.This ensures that the data from the source device can be migrated without any issues1.

Device with Existing Virtual Volume: If a device already has a virtual volume, it is not a suitable target for migration because the existing data could be overwritten or corrupted during the migration process1.

Extent and Distributed Device: While extents and distributed devices are components within the VPLEX architecture, they are not the end targets for device data migration.The migration target needs to be a device that can be mapped to a virtual volume after the migration is complete1.

Migration Commands: VPLEX provides specific CLI commands to perform device data migration, ensuring that the process is controlled and that data integrity is maintained throughout the migration1.

By selecting a device with no existing virtual volume as the target for data migration, VPLEX administrators can ensure a smooth and error-free migration process, maintaining the integrity and availability of the data.
